MAU101Tablet PC

Operation Manual Part Number: 7990 0120 0001 R00 (June 2001) TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective companies. NOTE Information in this manual is subject to change without notice. Regulations Information Class B Regulations USA Federal Communications Commission Radio Frequency Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: − Reorient or relocate the receiving antenna. − Increase the separation between the equipment and receiver. − Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. − Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Please note: The use of a non-shielded interface cable with this equipment is prohibited. Canada Canadian Department of Communications Radio Interference Regulations Class B Compliance Notice This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. About the Battery Caution Texts Concerning Lithium Batteries DANISH ADVARSEL! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. NORWEGIAN ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner. SWEDISH VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. FINNISH VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. ENGLISH CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions. DEUTSCH VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch denselben oder einen vom Hersteller empfohlenen gleich-wertigen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers. FRENCH ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la batterie. Remplacer uniquement avec une batterie du même type ou d’un type équivalent recommandé par le constructeur. Mettre au rebut les batteries usagées conformément aux instructions du fabricant. Attention (for USA Users) The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal. About the Modem Caution 1. Never install telephone wiring during a lightning storm. 2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. 3. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. 4. Use caution when installing or modifying telephone lines. 5. Avoid using the telephone function during an electrical storm. There may be a remote risk of electric shock from lightning. 6. Do not use the telephone function to report a gas leak in the vicinity of the leak. Caution (for USA Users) To reduce the risk of fire, use only No.26 AWG or larger telecommunication line cord. i Table of Contents Preface ........................................................................................ v Chapter 1 Getting Started .....................................................1-1 Getting the Computer Running................................................ 1-2 Unpacking .......................................................................... 1-2 Connecting to AC Power ................................................... 1-3 Positioning the Tablet PC .................................................. 1-4 Connecting the Wireless Keyboard (option) ..................... 1-5 Turning on and off the Computer ...................................... 1-6 Taking a Look at the Computer ............................................... 1-8 Right-side Components...................................................... 1-8 Left-side Components ........................................................ 1-9 Rear Components............................................................. 1-10 Front Components............................................................ 1-11 Botto…

Text truncated - open the document above for the full version.

CHAPTER 1 Getting Started Congratulations on purchasing this Tablet PC. This hand-held computer, having no fan and being almost noiseless, is especially designed for the practical applications of warehouses, automobiles, vehicles, public security, repairing, assisting the handicapped, and other demanding situations where conventional notebook computers just cannot measure up. This chapter first tells you step by step how to get the computer up and running. You will find instructions for these procedures: ! Unpacking ! Connecting to AC power ! Turning on the computer ! Turning off the computer Then, you will find a section briefly introducing the external components of the computer. And the last section navigates you to the information you may need after the computer is ready for use. 1-2 Getting Started Getting the Computer Running This section guides you through the procedures for getting the computer ready for operation. Unpacking After unpacking the shipping carton, you should find these standard items: ! Tablet PC ! Accessories: − AC adapter (100~240 VAC, 50~60 Hz) − AC power cord (US, CE, UK, SA) − Driver CD − X-Bay (optional): Module-1: two serial I/O / RJ-45 / IEEE 1394 Module-2: wireless LAN (802.11B) Module-3: wireless modem (CDPD) − Expansion box (optional) Port Replicator module: includes COM1/4, PIO1, CRT, two USB ports (connects behind USB hub, FDD bootable), PS/2 keyboard and mouse, MIC input, earphone out, CD-ROM and AC adapter input CD-ROM module: 24X TEAC CD-224E or better DVD-ROM module: 8X Pioneer K-11T or better USB FDD module: 1.44 MB double-sided high density − Wireless keyboard (optional) − Car adapter/charger (10.7~32 VDC) − (optional) − Secondary battery (optional) − Battery charger for secondary battery (optional) − Carrying bag (optional) − CCD camera module (optional) − This Operation Manual Inspect all the items. If any item is damaged or missing, notify your dealer immediately. Getting Started 1-3 Keep the shipping carton and packing materials in case you need to ship or store the computer in the future. Connecting to AC Power The computer operates either on the external AC power or internal battery power. It is suggested that you use AC power when you start up the computer for the first time. CAUTION: Use only the AC adapter included with your computer. Using other AC adapters may damage the computer. 1. Make sure the computer is turned off. 2. Plug the DC cord of the AC adapter to the power connector on the right-side of the computer ( # ). 3. Plug the female end of the AC power cord to the AC adapter and the male end to an electrical outlet ( $ ). 4. When the AC adapter is connected, the indicator on the AC adapter lights up, indicating that power is being supplied from the electrical outlet to the AC adapter and onto your computer. Now, you are ready to turn on the computer. 1-4 Getting Started CAUTION: ! When you disconnect the AC adapter, disconnect from the electrical outlet first and then from the computer. A reverse procedure may damage the AC adapter or the computer. ! When unplugging the connector, always hold the plug head. Never pull on the cord. NOTE: When the AC adapter is connected, it also charges the battery pack. For information on using battery power, see Chapter 3. Positioning the Tablet PC The computer can be placed upright using its stand found at the back. To place the computer in an upright position, pull open the stand located at the back as shown on the next figure. NOTE: It is recommended that you operate the Tablet PC in an upright position as opposed to letting it lie flat on its back in order to provide adequate air ventilation. The wireless keyboard operates on four “size-AA” (1.5-volt) batteries on the battery compartment located at the back. Be sure to observe the correct polarity when inserting the batteries. NOTE: The condition of the batteries also affects the effectiveness of transmission. If a weakness in transmission is detected, try changing a set of new batteries. Using the Wireless Keyboard (option) The wireless keyboard can either be placed flat on the table or inclined using its stand found at the back. To place the wireless keyboard in an Getting Started 1-5 upright position, pull open the stand located at the back as shown on the next figure. Place the wireless keyboard in front of the Tablet PC with no obstructions between them to allow unhampered communication between the computer and keyboard’s IR port. NOTE: It is recommended that the transmission distance must not exceed 3 meters and that vertical transmission angle is within ± 15 0 while horizontal transmission angle is within ± 30 0 . 1-6 Getting Started Turning On and Off the Computer Turning On 1. Make sure the computer is connected to AC power. 2. Press the power button . 3. Each time the computer is turned on, it performs a Power-On Self Test (POST), and the operating system such as Windows should start. Turning Off To turn off the computer power, use the “Shut Down” command of your operating system. NOTE: There are other ways you can stop the computer so that you will be back to where you left off when you next turn on the computer. (See “Stopping the Computer” in Chapter 2 for information.) CAUTION: If you have to turn the computer on again immediately after turning it off, wait for at least five seconds. Turning the computer off and on rapidly can damage it. Getting Started 1-7 Taking a Look at the Computer This section identifies the external components of the computer and briefly describes the function of each component. Right-Side Components Ref Component Description See Also

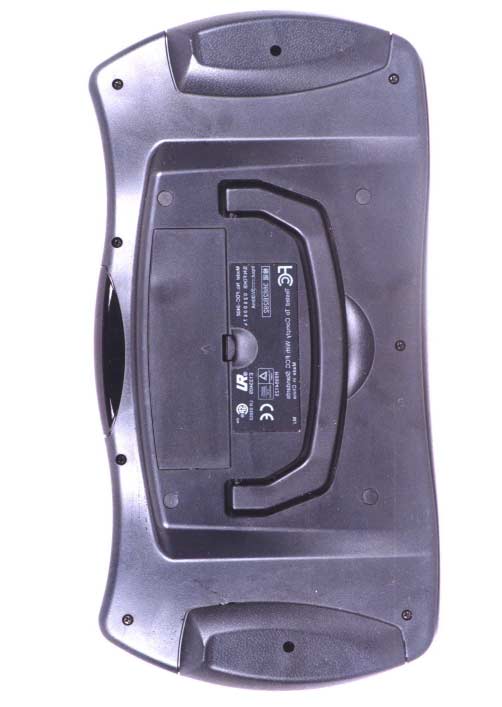

Reset Button Allows you to reset the system. P. 8-16 $ USB Port Connects a USB device, such as a USB floppy drive, printer, digital camera, joystick, and more. P. 4-7 % Microphone Connector Connects an external microphone. P. 2-20 1-8 Getting Started Ref Component Description See Also  Audio Output Connector Connects a set of headphones, external speakers with amplifier,…

Text truncated - open the document above for the full version.

CHAPTER 2 Operating Your Tablet PC This chapter provides information about the use of the computer. If you are new to computers, reading this chapter will help you learn the operating basics. If you are already a computer user but are new to Tablet PCs, you may choose to read only the parts containing information unique to your computer. Described in this chapter are the operating basics of these components: ! Wireless Keyboard ! Touchscreen ! Floppy disk drive ! Hard disk drive ! CD/DVD drive And these features: ! Starting and stopping the computer ! Function keys ! Video features ! Audio features ! Communication features 2-2 Operating Your Tablet PC Starting and Stopping the Computer There are a number of ways to start and stop the computer. Starting the Computer You always start the computer using the power button . A computer starts up with an operating system (OS) existing on the storage device such as the hard disk; or from a floppy disk or CD if you have the docking station installed. The computer will automatically load the OS after you turn it on. This process is called booting. NOTE: An operating system is the platform for all your software application programs to run on. The most widely used operating system today is Microsoft Windows. Stopping the Computer When you finish a working session, you can stop the computer by turning off the power or leaving the computer in Standby or Suspend mode: To stop in this mode... Do this... To start up or resume again Off Follow the shutdown procedure of your operating system. This can prevent loss of unsaved data or damage to your software programs. If the system is locked up because of hardware or software problems, press the power button to turn off the computer. Press the power button . Standby Depending on your settings in Windows, you can put the computer in Standby mode by pressing the power button Press any key. Suspend Depending on your settings in Windows, you can put the computer in Suspend mode by pressing the power button Press the power button . Operating Your Tablet PC 2-3 If you choose to stop in Standby or Suspend mode, you can return to where you left off the next time you start up the computer. (See “Power Management” in Chapter 3 for more information.) 2-4 Operating Your Tablet PC Using the Wireless Keyboard (option) Before using the wireless keyboard, see section on “Positioning the Tablet PC and Wireless Keyboard” on chapter 1. Your wireless keyboard has all the standard functions of a full-sized computer keyboard. The standard functions of the keyboard can be further divided into five major categories: ! Mouse-control buttons ! Typewriter keys ! Cursor-control keys ! Numeric keys ! Function keys Mouse-control Buttons Mouse-control buttons found on both sides of the wireless keyboard are similar to the buttons on a mouse. The left button ( #) is similar to the left- and right-click mouse function. The right button ( $) allows you to slide the on-screen pointer horizontally, vertically, or diagonally. # $ Operating Your Tablet PC 2-5 Typewriter Keys Typewriter keys are similar to the keys on a typewriter. Several keys are added such as the Ctrl , Alt , Esc , and lock keys for special purposes. The Control key is normally used in combination with other keys for program-specific functions. The Alternate key is normally used in combination with other keys for program-specific functions. The Escape key is usually used for stopping a process. Examples are exiting a program and canceling a command. The function depends on the program you are using. When the lock keys (Caps Lock, Num Lock, and Scroll Lock) are pressed, their corresponding indicators light up on the Tablet PC front panel’s device indicators. Cursor-Control Keys NOTE: The word “cursor” refers to the indicator on the screen that lets you know exactly where on your screen anything you type will appear. It can take the form of a vertical or horizontal line, a block, or one of many other shapes. 2-6 Operating Your Tablet PC Numeric Keypad A 15-key numeric keypad is embedded in the typewriter keys as shown next: Numeric keys facilitate entering of numbers and calculations. When Num Lock is on, the numeric keys are activated; meaning you can use these keys to enter numerals. NOTE: ! When the numeric keypad is activated and you need to type the English letter in the keypad area, you can turn Num Lock off. ! Some software may not be able to use the numeric keypad on the external wireless keyboard. Euro Symbol If your Windows supports the Euro dollar sign , you can press the sign on the keyboard. ! To press the Euro sign on the keyboard, hold down either of the Alt keys and type 0128 on the numeric keypad of your keyboard. ! To press the Euro sign on an UK keyboard, hold down the Alt Gr key and press 4 (which has an Euro sign on it). Operating Your Tablet PC 2-7 Windows Keys The keyboard has two keys that perform Windows-specific functions: % Windows Logo key and Application key. The % Windows Logo key opens the Start menu and performs software-specific functions when used in combination with other keys. The Application key usually has the same effect as a right mouse click. (See your Windows manual for more information.) Function Keys On the top row of the keys are the function keys: F1 to F12 . Function keys are multi-purpose keys that perform functions defined by individual programs. 2-8 Operating Your Tablet PC Using the Touchscreen CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the touchscreen. Doing so may damage the touchscreen surface. Use the included touchscreen pen instead, which can be stretched for better grip and handling. The touchscreen is a touch-sensitive device that allows you to communicate with the computer by controlling the location of the pointer on the screen and making selection with the buttons. The touchscreen needs a special device driver support called a PenMount Utility, which allows you to easily use the Tablet PC …

Text truncated - open the document above for the full version.

CHAPTER 3 Managing Power Your computer operates either on external AC power, car adapter, or internal battery power. This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way. The topics in this chapter include: ! What is an AC or car adapter ! How to charge the battery pack ! When and how to initialize the battery pack ! How to check the battery level ! How to replace the battery pack ! What happens when the battery is low and what actions to take ! What is Power Management ! How to save power 3-2 Managing Power AC and Car Adapter CAUTION: ! The AC and car adapter is designed for use with your computer only. Connecting the AC adapter to another device can damage the adapter. ! The AC power cord supplied with your computer is for use in the country where you purchased your computer. If you plan to go overseas with the computer, consult your dealer for the appropriate power cord. ! When you disconnect the AC adapter, disconnect from the electrical outlet first and then from the computer. A reverse procedure may damage the AC adapter or computer. ! When unplugging the connector, always hold the plug head. Never pull on the cord. The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct Current) power because your computer runs on DC power, but an electrical outlet usually provides AC power. It also charges the battery pack when connected to AC power. The AC adapter operates on any voltage in the range of 100 ~ 240 V AC. The car adapter serves as a converter from car battery to DC power. The cigarette lighter port of the car usually provides DC power. It also charges the battery pack when connected. The car adapter operates on any voltage in the range of 10.7 ~ 32 V DC. NOTE: The battery pack cannot be charged when the input power of car adapter falls below 11.5 V DC. Managing Power 3-3 Battery Pack The battery pack is the internal power source for the computer. It is rechargeable using the AC or car adapter. The operating time of a fully charged battery pack depends on how you are using the computer. When your applications often access peripherals, you will experience a shorter operating time. NOTE: Located on the bottom-side of the Tablet PC is the CCD USB port that contains a switch for turning off power coming from the internal primary battery. (Refer to “Bottom-side Components” on chapter 1 for the actual location.) CAUTION: Care and maintenance information for the battery is provided in Chapter 8. In addition to this chapter, be sure to read the “Battery Pack Guidelines” section in Chapter 8 as well. Charging the Battery Pack NOTE: ! Charging will not start if the battery’s temperature is below 0°C (32°F) or above 40°C (104°F). ! The charging process will stop and the Battery Charge Indicator flashes orange when the battery’s temperature gets above 60°C (140°F). If this happens, the battery pack may be damaged, please contact your dealer. ! During charging, do not disconnect the AC adapter before the battery has been fully charged; otherwise you will get a prematurely charged battery. To charge the battery pack, connect the AC adapter to the computer and an electrical outlet. The Battery Charge Indicator ( or ) on the Tablet PC’s Device Indicators appears to indicate that charging is in progress. You are advised to keep the computer power off while the battery is being charged. When the battery is fully charged, the Battery Charge Indicator disappears. It takes approximately 90 minutes to charge the battery pack to 80% capacity and two or three more hours to fully charge the battery pack. CAUTION: After the computer has been fully recharged, do not immediately disconnect and reconnect the AC adapter to charge it again. Doing so may damage the battery. 3-4 Managing Power Initializing the Battery Pack You need to initialize a new battery pack before using it for the first time or when the actual operating time of a battery pack is much less than expected. Initializing is the process of fully charging, discharging, and then charging. It can take several hours. 1. Make sure the computer power is turned off. Connect the AC adapter to fully charge the battery pack. 2. After the battery pack is fully charged, turn on the computer. 3. Disconnect the AC adapter and leave the computer on until the battery is fully discharged. The computer will shut down automatically. 4. Connect the AC adapter to fully charge the battery pack. Checking the Battery Level NOTE: Any battery level indication is an estimated result. The actual operating time can be different from the estimated time, depending on how you are using the computer. By Operating System You can check the approximate battery level using the battery meter function of the operating system. To read the battery level in Windows, click the icon on the taskbar. (Click the icon if the computer is using AC power.) Managing Power 3-5 By Gas Gauge The internal primary battery pack does not support the gas gauge display on the battery itself, but on the exterior side of the secondary battery pack (option) is a gas gauge for displaying the estimated battery charge. When the secondary battery pack is not installed in the Tablet PC and you want to know the battery charge, you can press the on/off switch with a pointed device to see the corresponding value of indicator segment that light green. The value of the corresponding green segment indicates the relative percentage of the battery charge. The battery pack is fully discharged when you see no segment glowing green. Replacing the Secondary Battery Pack CAUTION: ! There is danger of explosion if the battery is incorrectly replaced. Replace the battery only with the computer manufacturer’s optional battery packs. Discard used batteries according to the dealer’s instructions. ! Do not attempt to disassemble the battery pack. If you often rely on battery power for a long period of t…

Text truncated - open the document above for the full version.

CHAPTER 4 Expanding Your Computer You can expand the capabilities of your computer by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter. This chapter gives guidelines on installing and using these devices: ! Serial device ! IR device ! USB device ! PC Card 4-2 Expanding Your Computer Connecting a Serial Device Your computer has a serial port for connecting a serial device such as a serial mouse or modem. Follow this procedure to connect a serial device: 1. Make sure the “COM1 Port” item is set properly in the SCU program. (See “Advanced Menu” in Chapter 5 for information.) 2. Make sure the computer is not turned on. 3. Plug the device cable to the serial port on the right side of the Tablet PC. 4. Turn on the computer. NOTE: Portable modems that derive power through the serial port cannot be used with the Tablet PC. Instead, use a modem that is powered by its own internal battery or external AC power. Expanding Your Computer 4-3 Connecting a USB Device Your computer has one USB port on the right side for connecting USB devices such as digital camera, scanner, printer, modem, or mouse; and one CCD USB port at the bottom-side for connecting an optional CCD camera. NOTE: You can also use the USB port located on the Expansion Port plug of the optional CD-ROM drive module. USB is specified to be an industry standard extension to the PC architecture. It supports “Plug and Play” technology so you can install and remove USB devices without turning off the computer. With its multiple connection capability, up to 127 devices can be connected in a daisy-chain configuration. In addition, you can use a USB hub that converts a single USB connector into multiple ports where USB devices can be connected. To connect a standard USB device, simply plug the device cable to the USB port on the right side of the Tablet PC, or through the optional CD-ROM drive module’s Expansion Port plug. To connect an optional CCD camera, simply place the camera on top of the Tablet PC nearest the CCD USB port. Align and plug in the golden finger connector to the CCD USB port at the bottom-side of the Tablet PC and secure it in place with the built-in screw. Adjust the angle of the CCD camera according to your need. 4-4 Expanding Your Computer Expanding Your Computer 4-5 Connecting an IR Device Your computer has an IR (infrared) port for connecting an infrared- equipped device wirelessly such as a wireless keyboard/mouse, another computer, printer, or PDA (Personal Digital Assistant). The infrared feature supports these standards: For the front panel’s IR port ! IR keyboard/mouse that supports Forward FK34PUS002 (US language) specification For the left side’s IR port ! IrDA 1.1 (FIR – Fast Infrared) with 9.6 Kbps to 4.0 Mbps transfer rate ! HPSIR – Serial Infrared mode Follow this procedure to connect an IR device: 1. Under Windows, make sure that the IrDA Fast Infrared Port is set to HP HSDL-2300/3600. (See “How to Use the CD” in Chapter 6 for information.) 2. Make sure that the “COM2 Port” and its “Mode” items are set properly in the SCU program. (See “Advanced Menu” in Chapter 5 for information.) 3. When using the front panel’s IR port: Place the wireless keyboard where its IR port faces the IR port of your computer within the effective range − within ±15-degrees vertical angle and within ±30-degrees horizontal angle at no greater than 3 meter distance. 4-6 Expanding Your Computer When using the left side’s IR port: Place the transmitting device where its IR port faces the IR port of your computer within the effective range − within ±20-degrees vertical angle and within ±20-degrees horizontal angle at no greater than 0.8~1.0 meter distance. Place the receiving device where the IR port of the Tablet PC faces its IR port within the effective range − within ±15-degrees vertical angle and within ±15-degrees horizontal angle at no greater than 0.8~1.0 meter distance. 4. To take advantage of the IR communications, you need a third party software. NOTE: During infrared communication, take note of the following: ! Do not move the computer and IR device. ! Do not enter Standby mode. ! Do not use a cell phone or another IR device near the computer. ! Avoid strong light such as sunlight or fluorescent light. ! Disable the screen saver. Expanding Your Computer 4-7 Using PC Cards Your computer has one PC Card slot to accommodate one type II card. ZV Port and CardBus Support Your computer’s PC Card slot supports CardBus and ZV (Zoomed-Video) Port specifications. CardBus is the 32-bit version of PC Card technology. It allows speeds of up to 133 Mbps at 33 MHz. Typical applications are SCSI host bus, graphic video, and high-speed network cards. Inserting and Removing a PC Card NOTE: ! Some PC Cards require additional system resources. Before using such PC card, you may have to free other system resources for the PC Card. ! Although some PC Cards can be inserted and removed without turning off the computer, you cannot remove or install PC Cards during Standby mode. To insert a PC Card: 1. Locate the PC Card slot on the right side of the computer. 2. Slide the PC Card, with its label facing up, into the slot until the eject button pops out. 4-8 Expanding Your Computer 3. When a new card is seated, the computer will detect it and try to install the appropriate driver. Follow the on-screen instruction to complete the process. To remove a PC Card: 1. Your operating system may require you to stop the PC Card before you actually remove it. (In Windows, double-click the PC Card icon in Control Panel to stop the card.) 2. Push the eject button and the card will slide out slightly. 3. Pull the card out of the slot. Expanding Your Computer 4-9 System Memory Upgrade You can upgrade your computer by changing system memory to a maximum of 128 MB on the SO-DIMM slot. However, to avoid damage during the installation procedure, please ask y…

Text truncated - open the document above for the full version.
