MAU8212ANotebook with WLAN and Bluetooth

User’s Manual (November 2007) WARNING Do not attempt to disassemble your notebook computer. Doing so may void your warranty. There are no serviceable parts inside. Please refer all servicing to a qualified personnel. TRADEMARKS The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. All brand and product names are trademarks or registered trademarks of their respective companies. NOTE The information in this manual is subject to change without notice. i Table of Contents Table of Contents........................................................................ i Preface v Notational Conventions.......................................................vi Getting Started ........................................................................1-1 Getting the Computer Running ............................................ 1-2 Unpacking ........................................................................ 1-2 Connecting to AC Power ................................................. 1-2 Opening the Cover ........................................................... 1-4 Turning On and Off the Computer ................................... 1-4 Taking a Look at the Computer............................................ 1-6 Right-Side Components ................................................... 1-6 Left-Side Components ..................................................... 1-7 Rear Components ............................................................. 1-8 Bottom Components......................................................... 1-9 Top-open Components ................................................... 1-10 Where to Go from Here...................................................... 1-13 Operating Your Computer......................................................2-1 Starting and Stopping the Computer .................................... 2-2 Starting the Computer ...................................................... 2-2 Stopping the Computer .................................................... 2-2 Using the Quick Buttons ...................................................... 2-4 Using the Keyboard.............................................................. 2-5 Typewriter Keys............................................................... 2-5 Cursor-Control Keys ........................................................ 2-6 Numeric Keypad .............................................................. 2-6 Function Keys .................................................................. 2-7 ii Fn Key .............................................................................. 2-7 Hot Keys .......................................................................... 2-7 Using the Touchpad ........................................................... 2-10 Configuring the Touchpad ............................................. 2-12 Using the DVD Drive (Optional) ....................................... 2-13 Inserting and Removing a Disc ...................................... 2-14 Using the Video Features ................................................... 2-16 Configuring the Display Modes ..................................... 2-16 Using the Audio Features ................................................... 2-18 Connecting Audio Devices ............................................ 2-19 Adjusting the Recording Volume................................... 2-20 Using the Communication Features ................................... 2-27 Using the Modem ........................................................... 2-27 Using the LAN ............................................................... 2-28 Using the Wireless LAN ................................................ 2-29 Using the Bluetooth ® Wireless Feature .......................... 2-33 Using the Fingerprint Sensor.............................................. 2-37 Enrolling Fingerprints .................................................... 2-38 Changing the Settings .................................................... 2-40 Managing Power......................................................................3-1 AC Adapter .......................................................................... 3-2 Battery Pack ......................................................................... 3-3 Charging the Battery Pack ............................................... 3-3 Initializing the Battery Pack ............................................. 3-4 Checking the Battery Level.............................................. 3-4 Replacing the Battery Pack .............................................. 3-5 Battery Low Signals and Actions..................................... 3-7 Power Management .............................................................. 3-8 Hibernation....................................................................... 3-9 Power-Saving Tips ............................................................. 3-10 Expanding Your Computer.....................................................4-1 Connecting an External Monitor .......................................... 4-2 Connecting a USB Device.................................................... 4-3 iii Using Smart Cards ............................................................... 4-4 Inserting and Removing a Smart Card ............................. 4-4 Using PC Cards .................................................................... 4-6 Inserting and Removing a PC Card.................................. 4-6 Using the Card Reader ......................................................... 4-8 Internal Components Upgrade............................................ 4-10 Using BIOS Setup ...................................................................5-1 When and How to Use BIOS Setup ..................................... 5-2 When to Use ..................................................................... 5-2 Starting BIOS Setup ......................................................... 5-2 Moving Aro…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 20, 2007 RE: MiTAC Technology Corp. FCC ID: MAU8212A I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1. The manual needs to clearly state that this is a DFS client only and do not support ad-hoc mode or peer-to-peer mode. 2. Operating frequency should be 5180MHz ~5320 MHz and 5500 to 5700MHz. at page 5. Please correct. 3. FCC ID shown on the label is out of focus. Please provide a better one. 4. Internal photos shows Bluetooth and 3G antenna on the display channel, which are not supported by this device. Please remove them from this device. 5. DFS test report: Please follow the FCC new requirement on the following testing: –Channel Move Time: < 10 sec. •Bin 6 (Long Pulse) –sweep approximately 22 sec Please note that sweep 22 sec on the page 20 of the test report should be for Radar type 6, but not Radar type 5. Best regards, ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ George Chen ~ mailto:[email protected] ~ Taiwan Mobile: +886 930600123 ~ SKYPE: georgeshirley ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

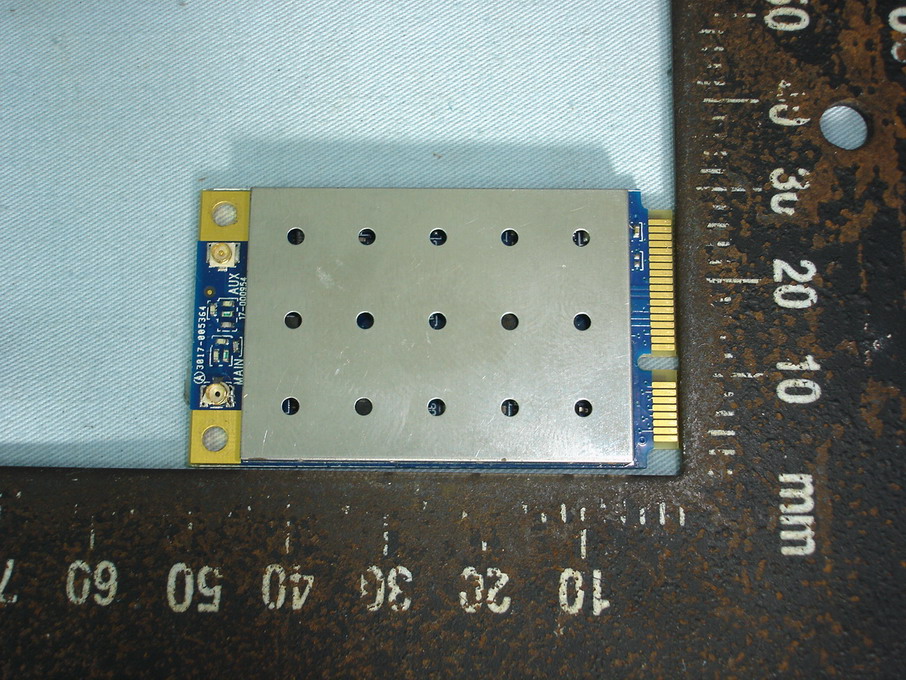

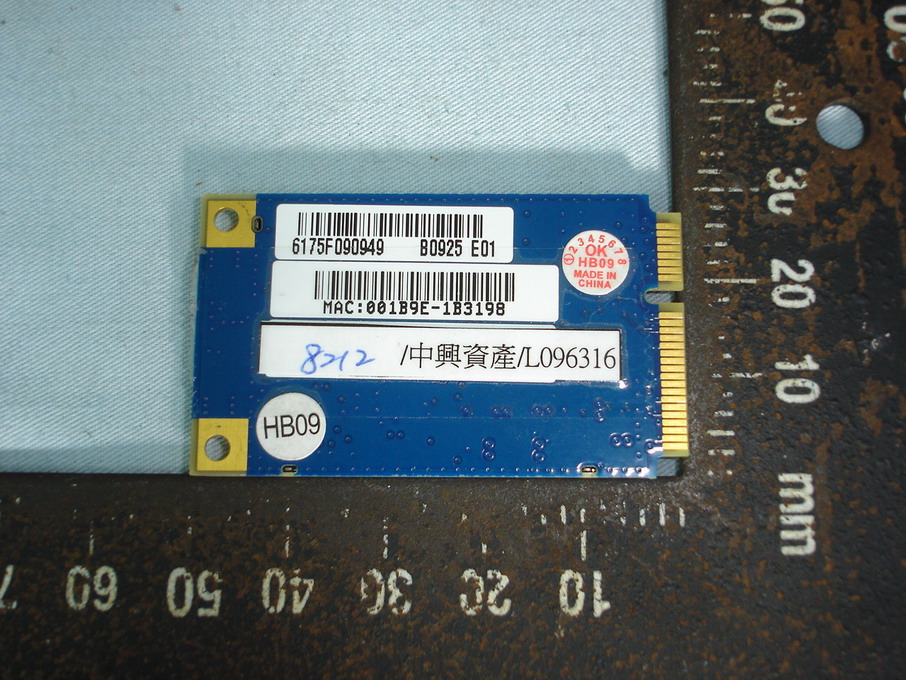

Report No.: 7A111301FR5 FCC ID： MAU8212A Page 88 of 93 Interocean EMC Technology Corp. Test Report 13 Photographs of EUT Front View of 8212X Notebook Rear View of 8212X Notebook Report No.: 7A111301FR5 FCC ID： MAU8212A Page 89 of 93 Interocean EMC Technology Corp. Test Report WLAN module Location Report No.: 7A111301FR5 FCC ID： MAU8212A Page 90 of 93 Interocean EMC Technology Corp. Test Report Front View of EUT-1 (WLL4080-D12) Front View of EUT-2 (WLL4080-D12) Report No.: 7A111301FR5 FCC ID： MAU8212A Page 91 of 93 Interocean EMC Technology Corp. Test Report Rear View of EUT (WLL4080-D12) Report No.: 7A111301FR5 FCC ID： MAU8212A Page 93 of 93 Interocean EMC Technology Corp. Test Report Front View of Adapter Rear View of Adapter

Label & Location FCC ID: MAU8212A

Report No.: 7A111301FR5 FCC ID： MAU8212A Page 92 of 93 Interocean EMC Technology Corp. Test Report View of Antenna Antenna Location

FCC ID：MAU8212A Report No.：7A111301FR5 Page 1 of 5 Maximum Permissible Exposure (MPE) Evaluation Report E.U.T.： NoteBook PC Model Number： 8212X According： FCC Guidelines for Human Exposure IEEE C95.1 The test report consists of 5 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. Report Issued: 2007/12/18 Applicant： MiTAC Technology Corp. Address： 9th Fl., No. 75, Ming Sheng East Road, Sec. 3, Taipei, Taiwan, R.O.C. Issued By： Interocean EMC Technology Corp. LAB Location： 244 No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang,Taipei County, Taiwan, R.O.C. FCC ID：MAU8212A Report No.：7A111301FR5 Page 2 of 5 Table of Contents 1 Introduction 4 2 Classification 4 3 RF Exposure Limit 4 4 Friis Formula 5 5 EUT Operating condition 5 6 Test Results 5 FCC ID：MAU8212A Report No.：7A111301FR5 Page 3 of 5 Summary of Tests IEEE 802.11a/b/g PCI-Express Wireless Module Model: WLL4080-D12 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Pass FCC ID：MAU8212A Report No.：7A111301FR5 Page 4 of 5 RF Exposure Measurement (Fixed use Device) 1 Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2 Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Fixed use Device 3 RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits For Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID：MAU8212A Report No.：7A111301FR5 Page 5 of 5 4 Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm2. If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 5 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 6 Test Results Frequency (MHz) Maximum Antenna gain (numeric) Output power To antenna (mW) Power density (mW/cm 2 ) Limit of Power density (mW/cm 2 ) 2412 to2462MHz 1.39 317.6874 0.087847649 1.0 5745 to 5825MHz 1.45 159.9558 0.046103102 1.0 5180 to 5320MHz 1.38 170.6082 0.046852217 1.0 5500 to 5700MHz 1.38 161.8080 0.044435508 1.0 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20cm separation distance with the antenna.

Report No.: 7A111301FR5 FCC ID： MAU8212A Page 45 of 93 Interocean EMC Technology Corp. Test Report 802.11 a CH100 5500MHz 802.11 a CH120 5600MHz 802.11 a CH140 5700MHz Report No.: 7A111301FR5 FCC ID： MAU8212A Page 46 of 93 Interocean EMC Technology Corp. Test Report 10 AC Power Line Conducted Emission test 10.1 Limit Frequency (MHz) Quasi-Peak (dBμV) Average (dBμV) 0.15 to 0.5 66 to 56 56 to 46 > 0.5 to 5 56 46 > 5 to 30 60 50 NOTE: The limit decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50 MHz. 10.2 Configuration of Measurement Configuration of Instrument Setup. 10.3 Test Procedure 10.3.1 The EUT was placed 80cm height above ground on a non-conductive table and vertical conducting plane located 40cm to the rear of the EUT. 10.3.2 The EUT was connected to the main power through Line Impedance Stabilization Networks (LISN). This setup provided a 50ohm/50mH coupling impedance for the measuring equipment. The auxiliary equipment will place in secondary LISN. 10.3.3 Both sides (Line and Neutral) of AC line are checked for maximum conducted interference. In order to find the maximum emission, the relative positions of equipment and all of the interface cables must be changed according to ANSI C63.4/2003 on conducted measurement. 10.4 Test Result PASS. The final test data is shown on as following pages. H.C.P. V. C . P. EUT LISN 40 cm 80 cm Test ReceiverPulse Limiter Report No.: 7A111301FR5 FCC ID： MAU8212A Page 47 of 93 Interocean EMC Technology Corp. Test Report Power Line Conducted Test Data EUT: NoteBook PC CLIENT: MiTAC MODEL: 8212X RATING: 120V/60Hz Temperature: 25.0 °C Humidity: 62 % POLARITY: Line DISTANCE: Serial No.: FILE/DATA# MiTAC.emi/198 OPERATOR: Raymond TEST SITE: Conduction1 Frequency Factor Meter Reading (dBμV) Emission Level (dBμV)Limits (dBμV) Margin (dB) (MHz) (dB) Quasi-Peak Average Quasi-PeakAverageQuasi-PeakAverage Quasi-PeakAverage 0.162 0.14 39.69 22.32 39.83 22.46 65.36 55.36 -25.53 -32.90 0.181 0.12 35.05 16.25 35.17 16.37 64.44 54.44 -29.27 -38.07 0.205 0.10 45.67 37.50 45.77 37.60 63.41 53.41 -17.64 -15.81 0.271 0.10 39.54 31.95 39.64 32.05 61.09 51.09 -21.45 -19.04 2.994 0.30 33.75 32.33 34.05 32.63 56.00 46.00 -21.95 -13.37 5.580 0.34 37.41 35.12 37.75 35.46 60.00 50.00 -22.25 -14.54 Remark: 1. All readings are Quasi-Peak and Average values. 2. Factor = Insertion Loss + Cable Loss. LIMIT: CISPR 22-B(QP).LMT Test Mode: LCD+D-Sub: 1280*800, 60Hz (LAN: 1Gbps) (SKU B) Report No.: 7A111301FR5 FCC ID： MAU8212A Page 48 of 93 Interocean EMC Technology Corp. Test Report Power Line Conducted Test Data EUT: NoteBook PC CLIENT: MiTAC MODEL: 8212X RATING: 120V/60Hz Temperature: 25.0 °C Humidity: 62 % POLARITY: Neutral DISTANCE: Serial No.: FILE/DATA# MiTAC.emi/197 OPERATOR: Raymond TEST SITE: Conduction1 Frequency Factor Meter Reading (dBμV) Emission Level (dBμV)Limits (dBμV) Margin (dB) (MHz) (dB) Quasi-Peak Average Quasi-PeakAverageQuasi-PeakAverage Quasi-PeakAverage 0.158 0.14 41.25 21.52 41.39 21.66 65.57 55.57 -24.18 -33.91 0.170 0.13 38.13 20.32 38.26 20.45 64.96 54.96 -26.70 -34.51 0.205 0.10 47.22 38.50 47.32 38.60 63.41 53.41 -16.09 -14.81 0.271 0.10 42.56 33.97 42.66 34.07 61.09 51.09 -18.43 -17.02 0.341 0.10 33.51 25.78 33.61 25.88 59.18 49.18 -25.57 -23.30 5.494 0.36 37.50 36.20 37.86 36.56 60.00 50.00 -22.14 -13.44 Remark: 1. All readings are Quasi-Peak and Average values. 2. Factor = Insertion Loss + Cable Loss. LIMIT: CISPR 22-B(QP).LMT Test Mode: LCD+D-Sub: 1280*800, 60Hz (LAN: 1Gbps) (SKU B) Report No.: 7A111301FR5 FCC ID： MAU8212A Page 49 of 93 Interocean EMC Technology Corp. Test Report 11 Dynamic Frequency Selection (DFS) test 11.1 Operating environment Ambient temperature ： 26.3°C Relative humidity ： 67% 11.2 UNII Device Description 11.2.1 The Master device operates in the following UNII bands: a. 5150-5250 MHz b. 5250-5350 MHz c. 5470-5725 MHz d. 5725-5825 MHz 11.2.2 Client (Slave) EUT: Operating mode: The EUT was defined as the client without radar detection function. There are no “ad-hoc” or “peer-to-peer” mode for this device (please refer the declaration letter). Associating peripheral: The device was set up to associate with the master device (Model Name：AIR-AP1242AG-A-K9). 11.2.3 The maximum EIRP of this device is 22.48 dBm from UNII band. This device doesn’t exceed 27dBm EIRP, so no transmit power control is implemented. 11.2.4 Below are the available 50 ohm antenna assemblies and their corresponding gains. 0dBi gain was used to set the -61dBm threshold level (-62dBm+1dB) during calibration of the conducted test setup. 11.3 Operating mode Performance was measured at an active frequency of 5320 and 5520MHz. One laptop PC is connected to the AP via a wire Ethernet connection. A separate laptop PC is used as a host computer for the Station. The AP and the Station transmit output levels are set to normal operating condition. System architectures were used under IP based mode. Report No.: 7A111301FR5 FCC ID： MAU8212A Page 50 of 93 Interocean EMC Technology Corp. Test Report 11.4 Test Protocol and Requirement 11.4.1 For a Master Device, the DFS conformance requirement will be verified utilizing one short pulse radar type. Additionally, the Channel Move Time and Channel Closing Transmission Time requirements will be verified utilizing the long pulse radar type. The statistical performance check will be verified utilizing all radar type. 11.4.2 For a Client Device without DFS, the channel move time and channel closing transmission time requirements will be verified with one short pulse radar type. For testing a Client Device with In-Service Monitoring, two configurations must be tested. a. The Client Device detects the radar waveform: The channel move time and channel closing transmission time requirements will be verified utilizing short pulse radar type and the long pulse radar type. The statistical performance check will be verified utilizing all radar types. b. The Master Device detects the radar waveform: The chan…

Text truncated - open the document above for the full version.

Report No.: 7A111301FR5 FCC ID： MAU8212A Page 44 of 93 Interocean EMC Technology Corp. Test Report 802.11 a CH52 5260MHz 802.11 a CH60 5300MHz 802.11 a CH64 5320MHz

Report No.: 7A111301FR5 FCC ID： MAU8212A Page 1 of 93 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.407 TEST REPORT E.U.T.： NoteBook PC Trade Name：MTC；GETAC Model Number： 8212X FCC ID： MAU8212A Prepared for MiTAC Technology Corp. 9th Fl., No. 75, Ming Sheng East Road, Sec. 3, Taipei, Taiwan, R.O.C. TEL.： +886 2 2506 8898 FAX.： +886 2 2509 5887 Prepared by Interocean EMC Technology Corp. 244 No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: 1. The test report consists of 93 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. 2. The report prohibit used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Report No.: 7A111301FR5 FCC ID： MAU8212A Page 2 of 93 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: MiTAC Technology Corp. Manufacturer: Getac Technology (Kunshan) Co., Ltd. EUT Description: NoteBook PC Model No.: 8212X Serial No.: N/A Tested Power Supply: 120Vac; 60Hz Date of Final Test: Nov. 16, 2007 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart E I HEREBY CERTIFY THAT: The EUT was setup to ANSI C63.4, tested to UNII test procedure of KDB289238 (DA-02-2138A1) for compliance to FCC 47CFR 15.407 requirements, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC Report Issued: 2007/12/18 Report No.: 7A111301FR5 FCC ID： MAU8212A Page 3 of 93 Interocean EMC Technology Corp. Test Report Table of Contents 1 General Information 5 1.1 Description of Equipment Under Test 5 1.2 Technical Specifications 6 1.3 Table for Carrier Frequencies 7 1.4 Test Facility 8 1.5 Test Equipment 9 1.6 Summary of Measurement 10 1.7 Justification 11 2 Peak output power test 12 2.1 Limit 12 2.2 Configuration of Measurement 12 2.3 Test Procedure 12 2.4 Test Result 12 3 26dB bandwidth 14 3.1 Configuration of Measurement 14 3.2 Test Result 14 4 Power Spectrum Density test 19 4.1 Limit 19 4.2 Configuration of Measurement 19 4.3 Test Procedure 19 4.4 Test Result 19 5 Peak excursion to average ratio test 24 5.1 Limit 24 5.2 Configuration of Measurement 24 5.3 Test Procedure 24 5.4 Test Result 24 6 Radiated emission test (FCC Part 15.209) 29 6.1 Limit 29 6.2 Configuration of Measurement 29 6.3 Test Procedure 30 6.4 Test Result 30 7 Band edge test 32 7.1 Limit 32 7.2 Configuration of Measurement 32 7.3 Test Procedure 32 7.4 Test Result 32 Report No.: 7A111301FR5 FCC ID： MAU8212A Page 4 of 93 Interocean EMC Technology Corp. Test Report 8 RF Radiated spurious emission test 37 8.1 Limit 37 8.2 Configuration of Measurement 37 8.3 Test Procedure 38 8.4 Test Result 38 9 RF antenna conducted spurious emission test 42 9.1 Limit 42 9.2 Configuration of Measurement 42 9.3 Test Procedure 42 9.4 Test Result 42 10 AC Power Line Conducted Emission test 46 10.1 Limit 46 10.2 Configuration of Measurement 46 10.3 Test Procedure 46 10.4 Test Result 46 11 Dynamic Frequency Selection (DFS) test 49 11.1 Operating environment 49 11.2 UNII Device Description 49 11.3 Operating mode 49 11.4 Test Protocol and Requirement 50 11.5 DFS Detection Thresholds and Limitations of each Parameter 51 11.6 Radar Test Waveforms 52 11.7 Radar Waveform Calibration 55 11.8 Test setup 59 11.9 DFS Test summary 59 11.10 DFS test result 59 12 Photographs of Test 85 12.1 Power Line Conducted Emission Measurement 85 12.2 Radiated Emission Measurement 86 12.3 DFS Test Measurement 87 13 Photographs of EUT 88 Report No.: 7A111301FR5 FCC ID： MAU8212A Page 5 of 93 Interocean EMC Technology Corp. Test Report 1 General Information 1.1 Description of Equipment Under Test Equipment Under Test :NoteBook PC Model Number :8212X Serial Number :N/A Type of Sample Tested : Proto-type Pre-Production Mass Production Applicant : MiTAC Technology Corp. 9th Fl., No. 75, Ming Sheng East Road, Sec. 3, Taipei, Taiwan, R.O.C. Manufacturer : Getac Technology (Kunshan) Co., Ltd. Kunshan Export Processing Zone, 215300 Jiangsu, P.R.China Power Adapter :Manufacturer: Delta, M/N: ADP-45AD A, S/N: 86W0731000118 Input: 100~240Vac, 50~60Hz, 1.2A Power cord: Non-shielded Detachable, 1.8 m w/o core Output: 15Vdc, 3A Power cable: Non-shielded Un-detachable, 1.8m w/o core Operating Frequency : 5180MHz ~ 5320MHz；5500 ~ 5700MHz Channel Number : Refer to section 1.3 page 7. Type of Modulation : OFDM; DSSS Antenna description : This device uses PCB Printed antenna. Antenna Gain ： 1.4dBi Connector type ： U.FL Sample Receive date :Nov. 13, 2007 Date of Test :Nov. 15~16, 2007 Report No.: 7A111301FR5 FCC ID： MAU8212A Page 6 of 93 Interocean EMC Technology Corp. Test Report 1.2 Technical Specifications Key parts SKU B Memory Samsung 1Gbit DDR CPU Intel McCaslin - Stealey, 800MHz LCD Monitor Toshiba, PI-LTD121EW6S Bluetooth BTM-203B EDRV2.0 ver1.2 HDD Toshiba, (40GB, 1.8”, PATA), Model: MK4009GAL ODD TEAK, (DVDSuper-multi) DVW28ECPUBA Modem Billionton, Model :RD002-D330 Wireless LAN Askey, (802.11abg, Mini PCI-E) Model : WLL4080-D12 3G None AC/DC Adapter Delta, ADP-45ADA Battery (LITHIUM) SANYO, 3CELLS, 11.1V/2.6AH WIRELESS Module Information (WLL4080-D12) Host Interface PCI Express Chipset Atheros AR5424 Network Standard IEEE 802.11a/b/g Modulation Techniques BPSK, QPSK, 16QAM, 64QAM Modulation Technology OFDM, CCK, DSSS Media Access Technology CSMA/CA Supported Data Rates IEEE802.11a/b/g Stand Mode: 1-54Mbps Report No.: 7A111301FR5 FCC ID： MAU8212A Page 7 of 93 Interocean EMC Technology…

Text truncated - open the document above for the full version.

Report No.: 7A111301FR5 FCC ID： MAU8212A Page 1 of 93 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.407 TEST REPORT E.U.T.： NoteBook PC Trade Name：MTC；GETAC Model Number： 8212X FCC ID： MAU8212A Prepared for MiTAC Technology Corp. 9th Fl., No. 75, Ming Sheng East Road, Sec. 3, Taipei, Taiwan, R.O.C. TEL.： +886 2 2506 8898 FAX.： +886 2 2509 5887 Prepared by Interocean EMC Technology Corp. 244 No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: 1. The test report consists of 93 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. 2. The report prohibit used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Report No.: 7A111301FR5 FCC ID： MAU8212A Page 3 of 93 Interocean EMC Technology Corp. Test Report Table of Contents 1 General Information 5 1.1 Description of Equipment Under Test 5 1.2 Technical Specifications 6 1.3 Table for Carrier Frequencies 7 1.4 Test Facility 8 1.5 Test Equipment 9 1.6 Summary of Measurement 10 1.7 Justification 11 2 Peak output power test 12 2.1 Limit 12 2.2 Configuration of Measurement 12 2.3 Test Procedure 12 2.4 Test Result 12 3 26dB bandwidth 14 3.1 Configuration of Measurement 14 3.2 Test Result 14 4 Power Spectrum Density test 19 4.1 Limit 19 4.2 Configuration of Measurement 19 4.3 Test Procedure 19 4.4 Test Result 19 5 Peak excursion to average ratio test 24 5.1 Limit 24 5.2 Configuration of Measurement 24 5.3 Test Procedure 24 5.4 Test Result 24 6 Radiated emission test (FCC Part 15.209) 29 6.1 Limit 29 6.2 Configuration of Measurement 29 6.3 Test Procedure 30 6.4 Test Result 30 7 Band edge test 32 7.1 Limit 32 7.2 Configuration of Measurement 32 7.3 Test Procedure 32 7.4 Test Result 32 Report No.: 7A111301FR5 FCC ID： MAU8212A Page 4 of 93 Interocean EMC Technology Corp. Test Report 8 RF Radiated spurious emission test 37 8.1 Limit 37 8.2 Configuration of Measurement 37 8.3 Test Procedure 38 8.4 Test Result 38 9 RF antenna conducted spurious emission test 42 9.1 Limit 42 9.2 Configuration of Measurement 42 9.3 Test Procedure 42 9.4 Test Result 42 10 AC Power Line Conducted Emission test 46 10.1 Limit 46 10.2 Configuration of Measurement 46 10.3 Test Procedure 46 10.4 Test Result 46 11 Dynamic Frequency Selection (DFS) test 49 11.1 Operating environment 49 11.2 UNII Device Description 49 11.3 Operating mode 49 11.4 Test Protocol and Requirement 50 11.5 DFS Detection Thresholds and Limitations of each Parameter 51 11.6 Radar Test Waveforms 52 11.7 Radar Waveform Calibration 55 11.8 Test setup 59 11.9 DFS Test summary 59 11.10 DFS test result 59 12 Photographs of Test 85 12.1 Power Line Conducted Emission Measurement 85 12.2 Radiated Emission Measurement 86 12.3 DFS Test Measurement 87 13 Photographs of EUT 88 Report No.: 7A111301FR5 FCC ID： MAU8212A Page 5 of 93 Interocean EMC Technology Corp. Test Report 1 General Information 1.1 Description of Equipment Under Test Equipment Under Test :NoteBook PC Model Number :8212X Serial Number :N/A Type of Sample Tested : Proto-type Pre-Production Mass Production Applicant : MiTAC Technology Corp. 9th Fl., No. 75, Ming Sheng East Road, Sec. 3, Taipei, Taiwan, R.O.C. Manufacturer : Getac Technology (Kunshan) Co., Ltd. Kunshan Export Processing Zone, 215300 Jiangsu, P.R.China Power Adapter :Manufacturer: Delta, M/N: ADP-45AD A, S/N: 86W0731000118 Input: 100~240Vac, 50~60Hz, 1.2A Power cord: Non-shielded Detachable, 1.8 m w/o core Output: 15Vdc, 3A Power cable: Non-shielded Un-detachable, 1.8m w/o core Operating Frequency : 5180MHz ~ 5320MHz；5500 ~ 5700MHz Channel Number : Refer to section 1.3 page 7. Type of Modulation : OFDM; DSSS Antenna description : This device uses PCB Printed antenna. Antenna Gain ： 1.4dBi Connector type ： U.FL Sample Receive date :Nov. 13, 2007 Date of Test :Nov. 15~16, 2007 Report No.: 7A111301FR5 FCC ID： MAU8212A Page 6 of 93 Interocean EMC Technology Corp. Test Report 1.2 Technical Specifications Key parts SKU B Memory Samsung 1Gbit DDR CPU Intel McCaslin - Stealey, 800MHz LCD Monitor Toshiba, PI-LTD121EW6S Bluetooth BTM-203B EDRV2.0 ver1.2 HDD Toshiba, (40GB, 1.8”, PATA), Model: MK4009GAL ODD TEAK, (DVDSuper-multi) DVW28ECPUBA Modem Billionton, Model :RD002-D330 Wireless LAN Askey, (802.11abg, Mini PCI-E) Model : WLL4080-D12 3G None AC/DC Adapter Delta, ADP-45ADA Battery (LITHIUM) SANYO, 3CELLS, 11.1V/2.6AH WIRELESS Module Information…

Text truncated - open the document above for the full version.
