MAU8212XNotebook WLAN, WWAN, and Bluetooth

User’s Manual (November 2007) WARNING Do not attempt to disassemble your notebook computer. Doing so may void your warranty. There are no serviceable parts inside. Please refer all servicing to a qualified personnel. TRADEMARKS The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. All brand and product names are trademarks or registered trademarks of their respective companies. NOTE The information in this manual is subject to change without notice. i Table of Contents Preface ...................................................................................... v Notational Conventions.......................................................vi Chapter 1 Getting Started ...................................................1-1 Getting the Computer Running ............................................ 1-2 Unpacking ........................................................................ 1-2 Connecting to AC Power ................................................. 1-2 Opening the Cover ........................................................... 1-4 Turning On and Off the Computer ................................... 1-4 Taking a Look at the Computer............................................ 1-6 Right-Side Components ................................................... 1-6 Left-Side Components ..................................................... 1-7 Rear Components ............................................................. 1-8 Bottom Components......................................................... 1-9 Top-open Components ................................................... 1-10 Where to Go from Here...................................................... 1-13 Chapter 2 Operating Your Computer .................................2-1 Starting and Stopping the Computer .................................... 2-2 Starting the Computer ...................................................... 2-2 Stopping the Computer .................................................... 2-2 Using the Quick Buttons ...................................................... 2-4 Using the Keyboard.............................................................. 2-5 Typewriter Keys............................................................... 2-5 Cursor-Control Keys ........................................................ 2-6 Numeric Keypad .............................................................. 2-6 Function Keys .................................................................. 2-7 Fn Key .............................................................................. 2-7 ii Hot Keys .......................................................................... 2-7 Using the Touchpad ........................................................... 2-10 Configuring the Touchpad ............................................. 2-12 Using the DVD Drive (Optional) ....................................... 2-12 Inserting and Removing a Disc ...................................... 2-14 Using the Video Features ................................................... 2-16 Configuring the Display Modes ..................................... 2-16 Using the Audio Features ................................................... 2-18 Connecting Audio Devices ............................................ 2-19 Using the Communication Features ................................... 2-27 Using the Modem ........................................................... 2-27 Using the LAN ............................................................... 2-28 Using the Wireless LAN ................................................ 2-29 Using the Bluetooth ® Wireless Feature .......................... 2-30 Using the 3G Feature (Optional) .................................... 2-37 Using the Fingerprint Sensor.............................................. 2-41 Enrolling Fingerprints .................................................... 2-42 Changing the Settings .................................................... 2-44 Chapter 3 Managing Power ................................................3-1 AC Adapter .......................................................................... 3-2 Battery Pack ......................................................................... 3-3 Charging the Battery Pack ............................................... 3-3 Initializing the Battery Pack ............................................. 3-4 Checking the Battery Level.............................................. 3-4 Replacing the Battery Pack .............................................. 3-5 Battery Low Signals and Actions..................................... 3-7 Power Management .............................................................. 3-8 Hibernation....................................................................... 3-9 Power-Saving Tips ............................................................. 3-10 Chapter 4 Expanding Your Computer ...............................4-1 Connecting an External Monitor .......................................... 4-2 Connecting a USB Device.................................................... 4-3 Using Smart Cards ............................................................... 4-4 iii Inserting and Removing a Smart Card ............................. 4-4 Using PC Cards .................................................................... 4-6 Inserting and Removing a PC Card.................................. 4-6 Using the Card Reader ......................................................... 4-8 Internal Components Upgrade............................................ 4-10 Chapter 5 Using BIOS Setup ..............................................5-1 When and How to Use BIOS Setup ..................................... 5-2 When to Use ..................................................................... 5-2 Starting BIOS Setup ......................................................... 5-2 Moving Around and Making Selections .......................... 5-4…

Text truncated - open the document above for the full version.

FCC Home | Search | Updates | E-Filing | Initiatives | For Consumers | Find People Office of Engineering and Technology FCC > FCC E-filing > Inquiry System Home Page > Inquiry Confirmation FCC Site Map OET Home Page Site Options Knowledge DataBase Search Detail Criteria Search Submit An Inquiry Reply to an Inquiry Response Category List FAQ Search View Instructions Related Sites Equipment Authorization System (EAS) Telecommunications Certification Bodies (TCB) Inquiry Tracking Number: 192342 Date of Submission: 11/02/2007 Subject: Co-located Mobile and Portable Notebook PC Configuration Question: Gentlemen, I have a problem for which I need guidance. The product presented to us is a notebook PC with built in RF category Mobile Mimo DTS co-located with RF category Portable WCDMA PCB. Obviously the PCB will require SAR testing while the DTS would be satisfied by MPE evaluation. Both PCB and DTS antenna are within 20cm of each other. My question is (1.) can TCB do this evaluation, or should it be performed by FCC? And (2.) is it reasonable during SAR evaluation to simply turn on/off the DTS when highest peak SAR value is found for PCB to detirmine the effect [similar to what is already done for co-located Bluetooth on cellphones]? Bill Please send any comments or suggestions for this site to OET Systems Support Federal Communications Commission 445 12th Street, SW Washington, DC 20554 More FCC Contact Information... Phone: 888-CALL-FCC (225-5322) TTY: 888-TELL-FCC (835-5322) Fax: 202-418-0232 E-mail: [email protected] - Privacy Policy - Web Policies & Notices - Customer Service Standards - Freedom of Information Act

Major Chen 寄件者: Major Chen [[email protected]] 寄件日期: 2007年11月12日星期一 下午 10:01 收件者: '[email protected]'; '[email protected]' 主旨: FW: Response to Inquiry to FCC (Tracking Number 192342)_from Major 第 1 頁，共 1 頁 2007/12/18 FYI. Major From: Generic Office of Engineering Technology [mailto:[email protected]] Sent: Thursday, November 08, 2007 6:06 AM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 192342) Inquiry: --- Reply from Customer on 11/07/2007 --- Gentlemen, We have clients waiting. May I have a response soon? Bill Response: 1) TCB Excl List Tx Categ II e) & f) apply when all associated transmitting-antennas are operating in portable RF exposure conditions. 2) on/off sanity-check SAR not applicable for exposures from antenna(s) in mobile RF exposure conditions contained within a final-product that also includes antenna(s) in portable RF exposure conditions, e.g. laptop with antennas in base/keyboard (portable) and at top of display (mobile). Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET In quiry System to add any additional information pertaining to this inquiry.

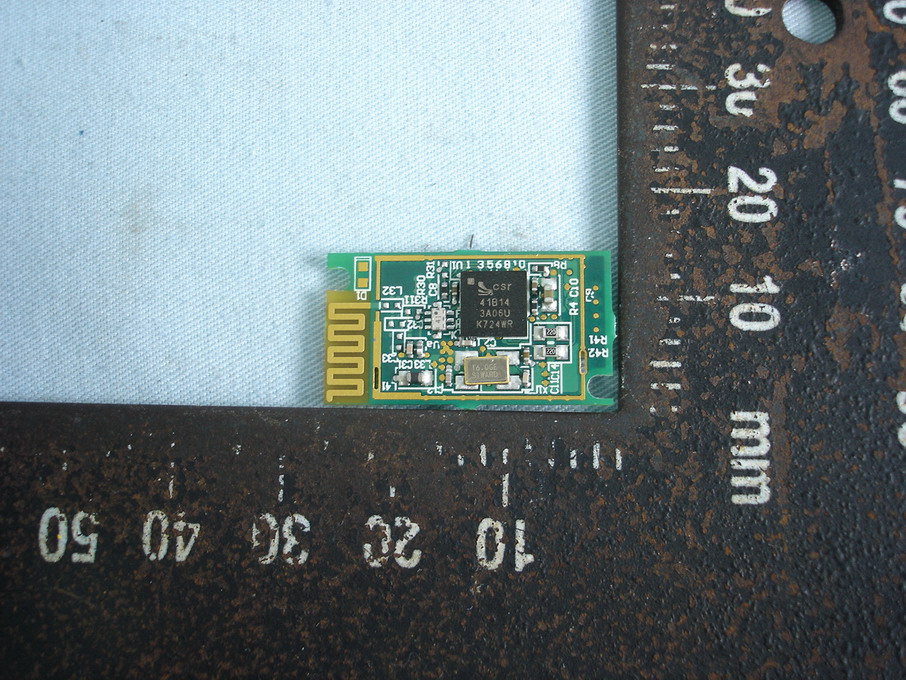

Report No.: 7A111301FR1 FCC ID： MAU8212X Page 50 of 54 Interocean EMC Technology Corp. Test Report 12 Photographs of EUT Front View of 8212X Notebook Rear View of 8212X Notebook Report No.: 7A111301FR1 FCC ID： MAU8212X Page 51 of 54 Interocean EMC Technology Corp. Test Report Front View of EUT (BTM-203B) Rear View of EUT (BTM-203B) Report No.: 7A111301FR1 FCC ID： MAU8212X Page 54 of 54 Interocean EMC Technology Corp. Test Report Front View of Adapter Rear View of Adapter

Label & Location

FCC ID：MAU8212X Report No.：7A111301FR1 Page 2 of 6 Table of Contents 1 Introduction 4 2 Classification 4 3 RF Exposure Limit 4 4 Friis Formula 5 5 EUT Operating condition 5 6 Test Results 6 FCC ID：MAU8212X Report No.：7A111301FR1 Page 3 of 6 Summary of Tests Bluetooth Model: BTM-203B Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Pass FCC ID：MAU8212X Report No.：7A111301FR1 Page 4 of 6 RF Exposure Measurement (Fixed use Device) 1 Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2 Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Fixed use Device 3 RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits For Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID：MAU8212X Report No.：7A111301FR1 Page 5 of 6 4 Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm2. If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 5 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID：MAU8212X Report No.：7A111301FR1 Page 6 of 6 6 Test Results Test Mode：GFSK Channel Channel Frequency (MHz) Maximum Antenna gain (numeric) Output power To antenna (mW) Power density (mW/cm 2 ) Limit of Power density (mW/cm 2 ) 1 (lowest) 2402 1.35 1.8880 0.000507844 1.0 40 (middle) 2441 1.35 1.9815 0.000533004 1.0 79 (highest) 2480 1.35 1.9953 0.000536698 1.0 Test Mode：π/4 DQPSK Channel Channel Frequency (MHz) Maximum Antenna gain (numeric) Output power To antenna (mW) Power density (mW/cm 2 ) Limit of Power density (mW/cm 2 ) 1 (lowest) 2402 1.35 1.6331 0.000439269 1.0 40 (middle) 2441 1.35 1.6596 0.000446406 1.0 79 (highest) 2480 1.35 1.6032 0.000431251 1.0 Test Mode：8 DQPSK Channel Channel Frequency (MHz) Maximum Antenna gain (numeric) Output power To antenna (mW) Power density (mW/cm 2 ) Limit of Power density (mW/cm 2 ) 1 (lowest) 2402 1.35 1.6331 0.000439269 1.0 40 (middle) 2441 1.35 1.6596 0.000446406 1.0 79 (highest) 2480 1.35 1.6032 0.000431251 1.0 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20cm separation distance with the antenna.

Report No.: 7A111301FR1 FCC ID： MAU8212X Page 1 of 54 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.247 TEST REPORT E.U.T.： NoteBook PC Trade Name：MTC；GTEAC Model Number： 8212X FCC ID： MAU8212X Prepared for MiTAC Technology Corp. 9th Fl., No. 75, Ming Sheng East Road, Sec. 3, Taipei, Taiwan, R.O.C. TEL.： +886 2 2506 8898 FAX.： +886 2 2509 5887 Prepared by Interocean EMC Technology Corp. 244 No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark： 1. The test report consists of 54 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. 2. The report prohibit used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Report No.: 7A111301FR1 FCC ID： MAU8212X Page 2 of 54 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: MiTAC Technology Corp. Manufacturer: Getac Technology (Kunshan) Co., Ltd. EUT Description: NoteBook PC Model No.: 8212X Serial No.: N/A Tested Power Supply: 120Vac; 60Hz Date of Final Test: Nov. 28, 2007 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC Report Issued: 2007/12/10 Test Engineer: Checked: Anya Lee Danny Tang Approved: Jerry Liu Report No.: 7A111301FR1 FCC ID： MAU8212X Page 3 of 54 Interocean EMC Technology Corp. Test Report Table of Contents 1 General Information 5 1.1 Description of Equipment Under Test 5 1.2 Technical Specifications 6 1.3 Table for Carrier Frequencies 7 1.4 Test Facility 8 1.5 Test Equipment 9 1.6 Summary of Measurement 10 1.7 Justification 11 2 20dB Bandwidth test 12 2.1 Limit 12 2.2 Configuration of Measurement 12 2.3 Test Procedure 12 2.4 Test Result 12 3 Carrier Frequency Separation test 15 3.1 Limit 15 3.2 Configuration of Measurement 15 3.3 Test Procedure 15 3.4 Test Result 15 4 Number of hopping frequencies test 17 4.1 Configuration of Measurement 17 4.2 Test Procedure 17 4.3 Test Result 17 5 Time of Occupancy (dwell time) test 19 5.1 Limit 19 5.2 Configuration of Measurement 19 5.3 Test Procedure 19 5.4 Test Result 19 6 Maximum Output Power test 24 6.1 Limit 24 6.2 Configuration of Measurement 24 6.3 Test Procedure 24 6.4 Test Result 24 7 RF Conducted spurious emission 26 7.1 Limit 26 7.2 Configuration of Measurement 26 7.3 Test Procedure 26 7.4 Test Result 26 Report No.: 7A111301FR1 FCC ID： MAU8212X Page 4 of 54 Interocean EMC Technology Corp. Test Report 8 RF Radiated spurious emission test 30 8.1 Limit 30 8.2 Configuration of Measurement 30 8.3 Test Procedure 31 8.4 Test Result 31 9 Emission on the Band Edge test 34 9.1 Limit 34 9.2 Configuration of Measurement 34 9.3 Test Procedure 34 9.4 Test Result 34 10 AC Power Line Conducted Emission test 42 10.1 Limit 42 10.2 Configuration of Measurement 42 10.3 Test Procedure 42 10.4 Test Result 42 11 Photographs of Test 47 11.1 Power Line Conducted Emission Measurement 47 11.2 Radiated Emission Measurement 48 12 Photographs of EUT 50 Report No.: 7A111301FR1 FCC ID： MAU8212X Page 5 of 54 Interocean EMC Technology Corp. Test Report 1 General Information 1.1 Description of Equipment Under Test Equipment Under Test : NoteBook PC Model Number : 8212X Serial Number : N/A Type of Sample Tested : Proto-type Pre-Production Mass Production Applicant : MiTAC Technology Corp. 9th Fl., No. 75, Ming Sheng East Road, Sec. 3, Taipei, Taiwan, R.O.C. Manufacturer : Getac Technology (Kunshan) Co., Ltd. Kunshan Export Processing Zone, 215300 Jiangsu, P.R.China Power Adapter : Manufacturer: Delta, M/N: ADP-45AD A, S/N: 86W0731000118 Input: 100~240Vac, 50~60Hz, 1.2A Power cord: Non-shielded Detachable, 1.8 m w/o core Output: 15Vdc, 3A Power cable: Non-shielded Un-detachable, 1.8m w/o core Operating Frequency : 2402MHz ~ 2480MHz Channel Number : 79 channels Type of Modulation : GFSK；π/4DQPSK；8 DPSK Antenna description : This device uses PCB Printed antenna. Antenna Gain ： 1.31dBi Connector type ： U.FL Sample Receive date : Nov. 12, 2007 Date of Test : Nov. 26~28, 2007 Report No.: 7A111301FR1 FCC ID： MAU8212X Page 6 of 54 Interocean EMC Technology Corp. Test Report 1.2 Technical Specifications Key parts SKU A SKU B Memory Hynix 1Gbit DDR Samsung 1Gbit DDR CPU Intel McCaslin - Stealey, 800MHz LCD Monitor Toshiba, PI-LTD121EW6S Bluetooth BTM-203B EDRV2.0 ver1.2 HDD Toshiba, (40GB, 1.8”, PATA), Model: MK4009GAL ODD TEAK, (DVDSuper-multi) DVW28ECPUBA Modem Billionton, Model :RD002-D330 Wireless LAN AzureWave, (802.11abgn, Mini PCI-E) Model : AW-NEW770 (1024) Askey, (802.11abg, Mini PCI-E) Model : WLL4080-D12 3G Novatel, EU870D None AC/DC Adapter Delta, ADP-45ADA Battery (LITHIUM) SANYO, 6Cell, 11.1V/5.2AH SANYO, 3CELLS, 11.1V/2.6AH Bluetooth Module Information Complete 2.4GHz radio transceiver and baseband Bluetooth™ version 2.0+ EDR compliant embedded Bluetooth™ qualified Small footprint (26.0mm x 14.0mm x 4.17mm) Bluetooth™ Class 2 operation (up to 10 meter range) Board to wire connector on Board CSR BlueCore4-ROM, single chip Bluetooth™ system SPI interface can upgrade firmware Park, Sniff, Hold and Sleep low power modes Added ESD protection circuit into module supply voltage pins to prevent electrostatic damage Shielding mask GND layout design to reduce EMI issue Built in a +1.8V regulator. Programmable collaborative coexistence sch…

Text truncated - open the document above for the full version.

Report No.: 7A111301FR1 FCC ID： MAU8212X Page 42 of 54 Interocean EMC Technology Corp. Test Report 10 AC Power Line Conducted Emission test 10.1 Limit Frequency (MHz) Quasi-Peak (dBμV) Average (dBμV) 0.15 to 0.5 66 to 56 56 to 46 > 0.5 to 5 56 46 > 5 to 30 60 50 Note：The limit decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50 MHz. 10.2 Configuration of Measurement 10.3 Test Procedure 10.3.1 The EUT was placed 80cm height above ground on a non-conductive table and vertical conducting plane located 40cm to the rear of the EUT. 10.3.2 The EUT was connected to the main power through Line Impedance Stabilization Networks (LISN). This setup provided a 50ohm/50mH coupling impedance for the measuring equipment. The auxiliary equipment will place in secondary LISN. 10.3.3 Both sides (Line and Neutral) of AC line are checked for maximum conducted interference. In order to find the maximum emission, the relative positions of equipment and all of the interface cables must be changed according to ANSI C63.4/2003 on conducted measurement. 10.3.4 The bandwidth of the field strength meter (R & S Test Receiver ESCS 30) is set at 9kHz. 10.4 Test Result PASS. The final test data is shown on as following pages. H.C.P. V. C . P EUT 40 cm 80 cm Test ReceiverPulse Limiter LISN Report No.: 7A111301FR1 FCC ID： MAU8212X Page 43 of 54 Interocean EMC Technology Corp. Test Report Power Line Conducted Test Data EUT: NoteBook PC CLIENT: MiTAC MODEL: 8212X RATING: 120V/60Hz Temperature: 23.9 °C Humidity: 55 % POLARITY: Line DISTANCE: Serial No.: FILE/DATA# MiTAC.emi/207 OPERATOR: Raymond TEST SITE: Conduction1 Frequency Factor Meter Reading (dBμV) Emission Level (dBμV)Limits (dBμV) Margin (dB) (MHz) (dB) Quasi-Peak Average Quasi-PeakAverageQuasi-PeakAverage Quasi-PeakAverage 0.158 0.14 40.32 22.30 40.46 22.44 65.57 55.57 -25.11 -33.13 0.181 0.12 36.84 17.64 36.96 17.76 64.44 54.44 -27.48 -36.68 0.209 0.10 43.20 33.20 43.30 33.30 63.24 53.24 -19.94 -19.94 0.236 0.10 31.96 11.94 32.06 12.04 62.24 52.24 -30.18 -40.20 0.283 0.10 33.20 24.50 33.30 24.60 60.73 50.73 -27.43 -26.13 0.408 0.10 27.67 21.69 27.77 21.79 57.69 47.69 -29.92 -25.90 Remark: 1. All readings are Quasi-Peak and Average values. 2. Factor = Insertion Loss + Cable Loss. LIMIT: CISPR 22-B(QP).LMT Test Mode: LCD+D-Sub: 1280*800, 60Hz (LAN: 1Gbps) (SKU A) Report No.: 7A111301FR1 FCC ID： MAU8212X Page 44 of 54 Interocean EMC Technology Corp. Test Report Power Line Conducted Test Data EUT: NoteBook PC CLIENT: MiTAC MODEL: 8212X RATING: 120V/60Hz Temperature: 23.9 °C Humidity: 55 % POLARITY: Neutral DISTANCE: Serial No.: FILE/DATA# MiTAC.emi/206 OPERATOR: Raymond TEST SITE: Conduction1 Frequency Factor Meter Reading (dBμV) Emission Level (dBμV)Limits (dBμV) Margin (dB) (MHz) (dB) Quasi-Peak Average Quasi-PeakAverageQuasi-PeakAverage Quasi-PeakAverage 0.150 0.15 41.45 21.99 41.60 22.14 66.00 56.00 -24.40 -33.86 0.166 0.13 39.64 22.92 39.77 23.05 65.16 55.16 -25.39 -32.11 0.205 0.10 44.78 32.29 44.88 32.39 63.41 53.41 -18.53 -21.02 0.252 0.10 30.30 13.17 30.40 13.27 61.69 51.69 -31.29 -38.42 0.279 0.10 35.30 24.80 35.40 24.90 60.85 50.85 -25.45 -25.95 0.341 0.10 32.18 24.24 32.28 24.34 59.18 49.18 -26.90 -24.84 Remark: 1. All readings are Quasi-Peak and Average values. 2. Factor = Insertion Loss + Cable Loss. LIMIT: CISPR 22-B(QP).LMT Test Mode: LCD+D-Sub: 1280*800, 60Hz (LAN: 1Gbps) (SKU A) Report No.: 7A111301FR1 FCC ID： MAU8212X Page 45 of 54 Interocean EMC Technology Corp. Test Report Power Line Conducted Test Data EUT: NoteBook PC CLIENT: MiTAC MODEL: 8212X RATING: 120V/60Hz Temperature: 25.0 °C Humidity: 62 % POLARITY: Line DISTANCE: Serial No.: FILE/DATA# MiTAC.emi/198 OPERATOR: Raymond TEST SITE: Conduction1 Frequency Factor Meter Reading (dBμV) Emission Level (dBμV)Limits (dBμV) Margin (dB) (MHz) (dB) Quasi-Peak Average Quasi-PeakAverageQuasi-PeakAverage Quasi-PeakAverage 0.162 0.14 39.69 22.32 39.83 22.46 65.36 55.36 -25.53 -32.90 0.181 0.12 35.05 16.25 35.17 16.37 64.44 54.44 -29.27 -38.07 0.205 0.10 45.67 37.50 45.77 37.60 63.41 53.41 -17.64 -15.81 0.271 0.10 39.54 31.95 39.64 32.05 61.09 51.09 -21.45 -19.04 2.994 0.30 33.75 32.33 34.05 32.63 56.00 46.00 -21.95 -13.37 5.580 0.34 37.41 35.12 37.75 35.46 60.00 50.00 -22.25 -14.54 Remark: 1. All readings are Quasi-Peak and Average values. 2. Factor = Insertion Loss + Cable Loss. LIMIT: CISPR 22-B(QP).LMT Test Mode: LCD+D-Sub: 1280*800, 60Hz (LAN: 1Gbps) (SKU B) Report No.: 7A111301FR1 FCC ID： MAU8212X Page 46 of 54 Interocean EMC Technology Corp. Test Report Power Line Conducted Test Data EUT: NoteBook PC CLIENT: MiTAC MODEL: 8212X RATING: 120V/60Hz Temperature: 25.0 °C Humidity: 62 % POLARITY: Neutral DISTANCE: Serial No.: FILE/DATA# MiTAC.emi/197 OPERATOR: Raymond TEST SITE: Conduction1 Frequency Factor Meter Reading (dBμV) Emission Level (dBμV)Limits (dBμV) Margin (dB) (MHz) (dB) Quasi-Peak Average Quasi-PeakAverageQuasi-PeakAverage Quasi-PeakAverage 0.158 0.14 41.25 21.52 41.39 21.66 65.57 55.57 -24.18 -33.91 0.170 0.13 38.13 20.32 38.26 20.45 64.96 54.96 -26.70 -34.51 0.205 0.10 47.22 38.50 47.32 38.60 63.41 53.41 -16.09 -14.81 0.271 0.10 42.56 33.97 42.66 34.07 61.09 51.09 -18.43 -17.02 0.341 0.10 33.51 25.78 33.61 25.88 59.18 49.18 -25.57 -23.30 5.494 0.36 37.50 36.20 37.86 36.56 60.00 50.00 -22.14 -13.44 Remark: 1. All readings are Quasi-Peak and Average values. 2. Factor = Insertion Loss + Cable Loss. LIMIT: CISPR 22-B(QP).LMT Test Mode: LCD+D-Sub: 1280*800, 60Hz (LAN: 1Gbps) (SKU B) Report No.: 7A111301FR1 FCC ID： MAU8212X Page 47 of 54 Interocean EMC Technology Corp. Test Report 11 Photographs of Test 11.1 Power Line Conducted Emission Measurement Front View Rear View Report No.: 7A111301FR1 FCC ID： MAU8212X Page 48 of 54 Interocean EMC Technology Corp. Test Report 11.2 Radiated Emission Measurement Front View (Frequency under 1GHz) Rear View (Frequency under 1GHz) Report No.: 7A111301FR1 FCC ID： MAU8212X Page 49 of 54 Interocean EMC Technology Corp. Test Repor…

Text truncated - open the document above for the full version.

Report No.: 7A111301FR1 FCC ID： MAU8212X Page 47 of 54 Interocean EMC Technology Corp. Test Report 11 Photographs of Test 11.1 Power Line Conducted Emission Measurement Front View Rear View Report No.: 7A111301FR1 FCC ID： MAU8212X Page 48 of 54 Interocean EMC Technology Corp. Test Report 11.2 Radiated Emission Measurement Front View (Frequency under 1GHz) Rear View (Frequency under 1GHz) Report No.: 7A111301FR1 FCC ID： MAU8212X Page 49 of 54 Interocean EMC Technology Corp. Test Report Front View (Frequency above 1GHz) Rear View (Frequency above 1GHz)
