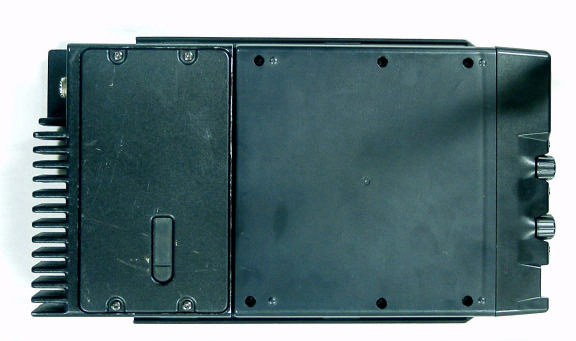

MMA700671AVHF Transceiver

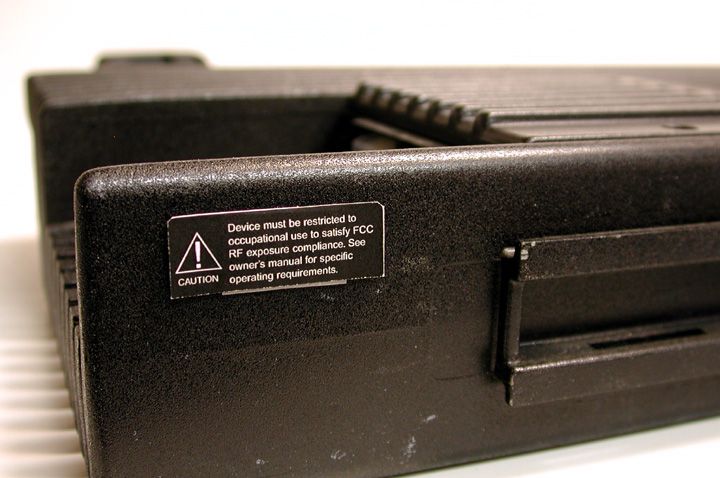

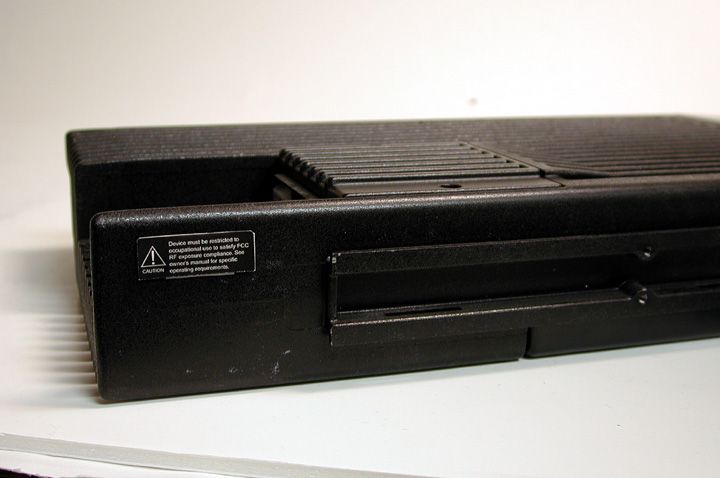

SERVICE MANUALS Testing, alignment and service information are provided in the servicemanual for this model. Service manuals for Titan™ radios areavailable from Midland Radio Corporation at the address shown onthe back cover. 7 DO NOT transmit more than 50% of total radio use time (50% duty cycle). Transmitting for more than 50% of the time can cause FCCRF exposure compliance requirements to be exceeded. This radio istransmitting whenever the TX icon is displayed on the LCD. Pressing the PTT switch on the side of the microphone normally causes theradio to transmit.  Note: The preceding information is provided to make youaware of RF exposure and how to ensure that this radio isoperated within FCC RF exposure limits. You, as the qualified end-user of this radio device must control theexposure conditions of bystanders to ensure the minimum separationdistance, stated above for satisfying FCC RF exposure compliance, ismaintained between the antenna and nearby persons. Transmit onlywhen all person(s) are at least the minimum distance from theproperly installed, externally mounted antenna. IMPORTANT SAFETY INFORMATION CAUTIONSa The antenna connector must be snugly tightened to maintainproper electrical connection and moisture resistance. a Equipment must be grounded according to Midland RadioCorporation installation instructions for safe operation. a Equipment should be serviced only by a qualified technician. a Refer to radio service manual for additional information oninstallation and safety precautions. WARNING!! DO NOT allow the antenna to touch or come in very close proximity with the eyes, face, or any exposed body parts while theradio is transmitting ! DO NOT operate the radio in explosive or flammable atmospheres. The transmitted radio energy could trigger blastingcaps or cause an explosion. ! DO NOT allow children to operate or play with this radio.  Note: The above warning list is not intended to include allhazards that may be encountered when using this radio . ii CONTROLS AND INDICATORS POWER/VOLUME KNOBPress and hold for a few seconds for power on. Press andhold again for power off. Clockwise rotation increasesvolume of received messages.CHANNEL/MENU CONTROL KNOBChannel Function: Rotate to scroll through channels. Your radio can be programmed, by theradio technician to either stop at the highest andlowest channels, or for channel rollover. Menu Function: Press and release to activate the menu mode, which will allow you to access, SquelchSetting (SQL), Group Setting (GRP), All Group Scan(AGS) or One Group Scan (OGS), Scan Key TypeSetting (PRI, SCN, P/S), Back Light Control (BLN=on, or BLF=off), ANI (ANN=on, ANF=off), Clone Mode(CLN) and Clone Process. When finished adjusting the squelch, immediatelypress the MENU button to cause the new squelchsetting to be stored in the radio memory. For properoperation the squelch should be set 5 – 10 digitshigher than the level required for initial muting. All Group Scan availability requires more than 1group to be programmed and Type A scan selected.Some scan key types may not be availabledepending on programming. The ANI mode will notbe available unless activated by the radio technician.PUSH-TO-TALK BAR (On the Hand Microphone)Transmit mode (talk mode) is initiated when pressed.The radio will emit your voice signals on the channelthat appears in the Channel Display.SCAN BUTTONPress SCAN to activate Scan operation. For detailedinformation see the following descriptions of thedifferent scan modes. Also used in conjunction withthe A/D button to add or delete channels from thescan list. 1 PRIORITY SCAN ESCAPE If the radio technician has programmed the radio for this function, theoperator may press the “AUX” button to operate on the last busychannel. Press the “AUX” button again to revert to priority scan withthe priority channel unchanged.NOTE: Conditions when the scan table is automatically reset (initialized), to original programming, is set by the radio technician.The user may manually initialize the scan table by pressing the A/Dbutton for a few seconds (until 2 nd beep) when not in scan operation. ANI OPERATION 1. If ANI operation has been activated during initial programming theradio will transmit the code on the first transmission of aconversation. 2. If the ANI is activated on a certain channel by the radio technician,it cannot be deactivated by the user. The ANI may be set on/off bythe user if it is not specifically activated by the technician. 2 TONE DECODE OPERATION 1. If the radio is programmed for 2 tone decode it may be activated,on channels so programmed, by pressing and holding the menubutton until the second beep is heard. 2. When the radio receives a call with the proper ANI code a seriesof quick beeps will be heard. If the call is answered by pressingthe PTT then the decoder will be reset to normal (non ANI)operation. If the call is not answered a beep will be heard 15seconds and 30 seconds after the call and then return to ANIdecode mode. 3. The decoder may be also be deactivated by pressing the MONbutton or the PTT button. 6 SCAN 4. PRI monitor function is not available in this mode. If scan isstopped, Add/Delete of Group B channels is available inAdd/Delete mode. 5. Other operation is the same as type “A” scan. TYPE “B’ ” SCAN MODE1. Operation is the same as type “B” scan, except the SCAN button operation is the same as type “A” scan. 2. If scan is stopped, Add/Delete of Group B channels is available in Add/Delete mode. TYPE “PS” SCAN MODE1. The “A” channels will be scanned in this mode. 2. The transmit priority and priority monitoring channel will be thechannel that was set when scan was activated. 3. To change the “PRI 1” channel, rotate the channel selector while in the scan mode or during OFF HOOK SCAN stop. 4. Deleting a nuisance channel is the same as type “A” scan. 5. Adding or deleting the “PRI 2” channel is the same as type “A”scan. 6. If scan is stopped, Add/Delete of Group A channels is availablein Add/Delete mode…

Text truncated - open the document above for the full version.

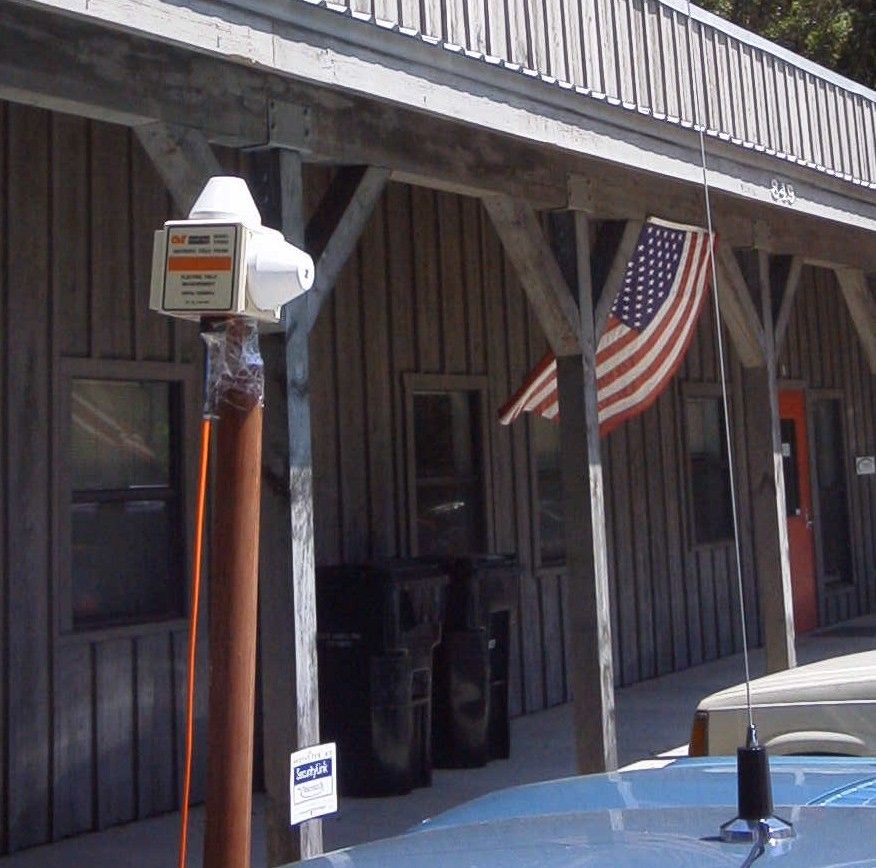

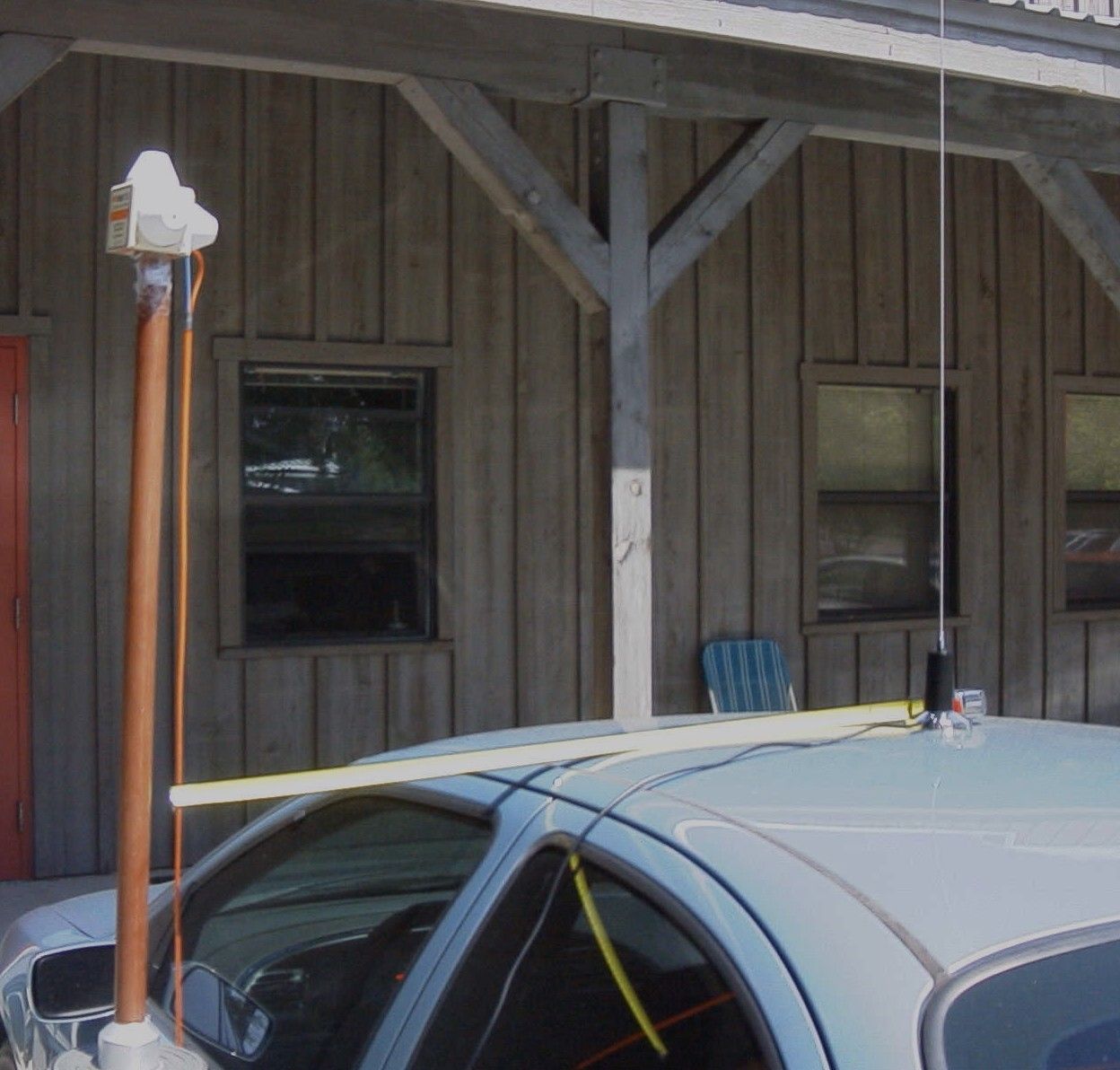

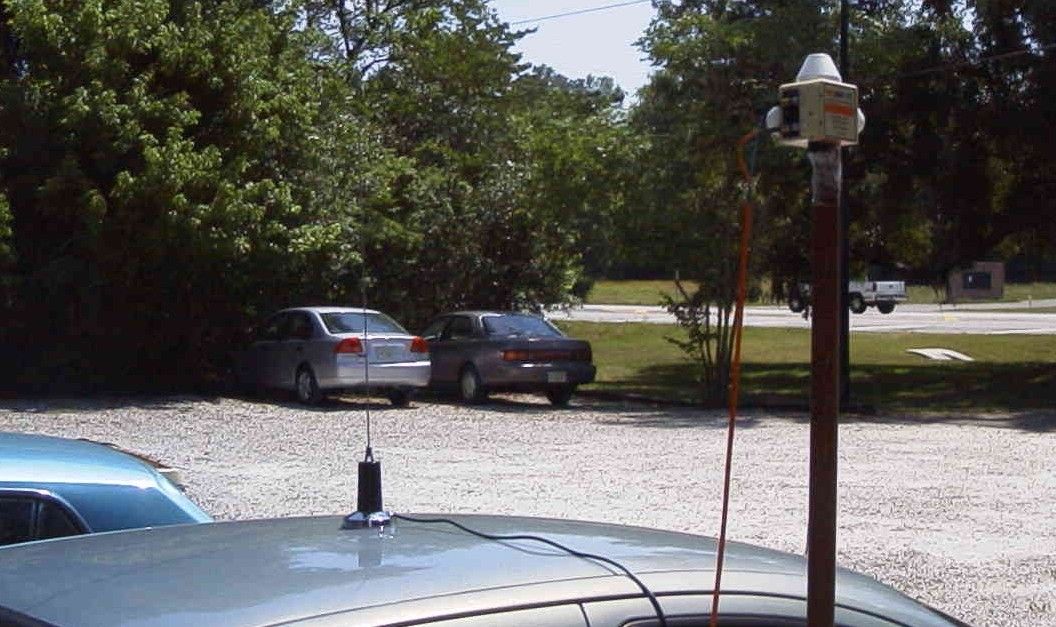

Timco Engineering, Inc. Response to OET Inquiry: FCC ID: MMA700671A Re: FCC ID: MMA700671A Applicant: Midland Radio Corporation Date of Original Email: 03/21/2003 Subject: 1.) Additional user manual training to educate the user of their RF exposure and how to control it. User manual states "Note: The above warning list is not intended to include all hazards that may be encountered when using this radio." Please provide a more comprehensive list of hazards and means for the user to control their exposure. Additional issues might include for example user duty factor. Response: Refer to updated User Manual with comprehensive list of hazards. The User Manual will state “Important Safety Information” with a heading “Warning” and a heading “FCC RF Safety Requirements.” 2.) Updated grant comment MPE distance of 75 cm is not consistent with filing. FCC conversions show 94 and 209 cm. Response: The updated Grant Statement will include the actual electric field Measured distance as recorded by the Amplifier Research Isotropic Field Probe and information regarding specific antenna usage. 3.) Statement and associated steps how the device will comply with controlled and uncontrolled MPE limits when installed on the intended vehicles. Please provided updated user manual with specific instructions to assure that these distances can be maintain. Please define the expected vehicles that these can be mounted on. Please consider steps suggested in 18 March email to Bruno Clavier from Martin Perrine. Response: The User Manual has been updated and specifies the safe distance as determined by electric field measurements. A safe distance was determined to be a person standing next to the automobile door. A 1996 Ford Contour was used as a typical model. This automobile is a compact car and the roof line is typical for a small compact car. A 2002 Honda Accord was found to have a larger roof area and was greater in height. The same was true for a Lincoln Continental. 4.) Antenna exhibit and details. Grant comment states "Use of any other antenna, other than the one supplied, must be addressed at the time of licensing. Please provide external photographs and user manual statements as appropriate. If other antennas are to be used please update grant comment with maximum allowable gain. Also, this is considered a mobile device. RF safety compliance is determined at certification. Please update accordingly. Response. A typical antenna for this radio would be a base loaded whip antenna no longer than 1 meter in height. A vertical loaded whip antenna has a typical gain of 0 dBd up to and including a full length vertical antenna.. Photographs of a magnetic mounted loaded whip antenna mounted on the Ford Contour has been uploaded with this report. This would be a typical installation for this model radio. 0dBd will be specified as maximum gain in the User Manual, a typical number for this type installation.

70-0671 Theory of operation The 70-0671 unit is made up of four major sections: the RF Section, the PA Section, and the Logic Section and the Display section. RF SECTION The RF Section consists of a frequency synthesizer, a transmit modulator, a receiver, and receive audio amplifier circuits. SYNTHESIZER Radio frequency signals for transmission and receiver injection are produced by voltage-controlled oscillators (VCO’s) in a Phase-Lock Loop (PLL) configuration. •Voltage Controlled Oscillator In this radio, VCO’s are used -Q706 operates in transmit mode to generate transmit frequencies and receive mode to receive injection frequencies. In each mode, the output of the buffer is amplified by IC703. RF signal at receiver injection frequency ( Fc + 10.7MHz ) is applied from the LO amplifier IC704 and Q717 in the receiver circuit. RF signal from Q708 is amplified further by the PA portion. When the frequency of the VCO output drifts away from the desired value, the loop adjusts the steering voltage to compensate. A single VCO tank can tune across the entire channel spread (6MHz for A Band, B-Band, and 8MHz for C Band). Resonance of each VCO tank is voltage-tuned by varactor diodes D701 and D705 respectively. Loop steering voltage applies reverse bias to all these varactor diodes simultaneously. As steering Voltage increases, varactor diode capacitance decreases : thus, net capacitance in each tank decreases, which increases resonant frequency of the tanks. •Loop Dividers The amplitude of the VCO signal from IC705 for TX and RX are sufficient to feed prescaling frequency divider, IC701, which applies an output pulse to once every 64 or 65 input cycles. Additional frequency division is also performed within IC701 to produce 2.5/5.0/6.25KHz. X701 is a temperature-compensated crystal oscillator that produces a reference frequency of exactly 12.8MHz. The reference frequency is divided by IC701 to produce 2.5/5.0/6.25KHz that is 13.compared to the down-counted 2.5/5.0/6.25KHz sample of VCO output. Normally the loop response is slowed enough by the active filter to block 2.5/5.0/6.25KHz reference noise and prevent loop correction of voice modulation during transmit. Higher active filter rolloff frequency is selected by the microcomputer system on the Logic Board when the radio changes channels or it is keyed and unkeyed, by a logic low applied to the base of Q705. This increase in loop response speeds locking time. A connection from an intermediate point in the phase/frequency comparator in IC701 is made at pin 7. When the loop is out of lock, the down-counted VCO sample is not in phase with the 2.5/5.0/6.25KHz reference and low going pulses appear here, which produce a logic low at pin 7. This logic low is applied to Q710 through Q709 to switch to Q505. Q505 then clamps off bias to transmit PA preamplifier Q501 to prevent emission of erratic signals generated by the uncontrolled VCO. RECEIVER •Preselector Through K501 relay in the PA, RF signals are routed to the receiver input. Signals at Image frequencies and frequencies far removed from the desired channel are rejected by a Preselector comprised of eight top-coupled, parallel tanks: L201, L202, L203, L204, L205, L206,L207 and L208. No tuning of these tanks is required for the entire channel frequency spread. Q201 provides adequate gain to overcome preselector signal losses and maximize receiver sensitivity. •Injection First Local Oscillator signal ( Fc + 10.7MHz ) is synthesized by the phase-lock loop and applied to Q717. No alignment for the first local oscillator signal is required. •First Mixer To maximize intermodulation immunity, a balanced configuration is utilized for the first mixer stage. High injection is applied to L210-primary and preselector output is applied to its secondary center tap. A diode double balanced mixer using quad-diode D202 is employed. High injection is applied to the push-pull input of the mixer. Some of this signal appears at mixer output, but most is lost because L209 is designed to operate at the 10.7 MHz first IF frequency. •First IF Mixer output is applied to Q203. L215 tunes to match the input impedance of the 10.7MHz crystal filter XF201 which reject signals outside the channel bandwidth. L215 and L217 match the input or output of XF201. Q204 amplifies the first IF signal at least 20dB, and it is coupled to second IF IC201. • Second IF IC201 contains all second IF circuitry, a quadrature demodulator, and a threshold gate. X201 and circuitry in IC201 generate second LO injection of 10.245MHz. A double-balanced mixer, that cancels both input signals internally is utilized so that additional tuned circuits at its output are not needed. Mixer output signal of 455KHz ( IC201 pin3 ) is bandpass filtered further by CF201 and CF202 then superamplified ( 100 + dB ) by the second IF amplifier/limiter within IC201 ( pin 5 ). •Demodulation The quadrature detector in IC201 is another double-balanced mixer to which limiter output is applied. Its second input is taken from 455KHz tank CD201, which is also fed with limiter output ( IC201 pin10 ). Frequency deviation from carrier center will cause phase difference between the two demodulator inputs, which produces output. Preamplified recovered audio appears at demodulator output pin 9. •Audio Recovered audio from IC201 is routed to audio processor IC401. IC401 controls the amplification level. The control voltage is fed via the external volume on the control unit. Output of the gain control IC401 is applied to the Audio amplifier IC202. Audio amplifier IC202 amplifies the audio signal and drives the speaker. •Squelch Audio signals at low pass filter are routed through Squelch Range RV201, which calibrates squelch-break level when squelch level is maximum (80). Signals is amplified and rectified by IC201 to produce a DC voltage that varies inversely with received RF carrier level. The DC voltage is input of a level detector IC408 and detector output is Q405 an open collector …

Text truncated - open the document above for the full version.

70-0671 Alignment Procedure SETUP 1 Remove the six securing screws from the bottom cover , and the cover itself. 2 Connect a resistive 50 Ω RF load and wattmeter to Antenna Connector J502. 3 Connect 13.4V DC power to transceiver J505. 4 Connect a 3.2 Ω, 20W resistor to pins 4 and 6 of the Accessory Plug. The jumper between pins 5 and 6 must be temporarily removed to make this connection. The resistor serves as a constant load to replace the speaker’s inconsistencies. CAUTION:Both speaker terminals are LIVE. Never ground either one. Connect grounded receive-audio measuring-equipment to only one side of the speaker, and chassis ground. Normally, voltage measurement will be half of true values. 5 Turn the radio on (Push on and Push off switch), set the VOLUME control to a mid-position. Connect the Programmer to Programming Port Mic Jack J302. Upload the radio programming Data-Packet into the Programmer and initiate its Remote Control Mode. Refer to the appropriate manual for details. SYNTHESIZER ALIGNMENT •VCO Resonance 1 Select the Remote Control Mode of the Programmer and enter the following test frequencies: A-Band B-Band C-Band RX Frequency 30.00 36.00 42.00 MHz TX Frequency 30.00 36.00 42.00 MHz 2 Adjust Channel RX Tank L713 for 1.5V DC at VC (VCO Steering) . 3 Active transmit mode (using the programmer ) and adjust TX Tank L702 for 1.5V DC at VC (VCO Steering) . •Reference Oscillator 4 Initiate transmit on any channel. Measure transmitted RF carrier frequency without modulation and, if necessary, adjust REFERENCE OSCILLATOR X701 for carrier frequency to within ±30Hz of channel frequency. PA MODULE ALIGNMENT The 70-0671 should be adjusted to have a 6 MHz channel spread (8 MHz C-Band) at 110W. To do so : 1 Change the TX test frequency to the desired frequency. 2 Activate transmit mode and measure RF power at Antenna connector J502. Set RF output power to 110W at J502 using the programmer. MODULATOR ALIGNMENT •Modulation Limiting 1 Disconnect the hand microphone from its front panel Mic Jack J302. Apply 3Vrms of 1000Hz signal to pin 1 of Mic Jack J302, then initiate transmit. 2 Measure total carrier deviation and, if needed adjust modulation limiting to obtain ±5KHz (wide) or ±2.5KHz (narrow) using the programmer. •Microphone Gain 3 No alignment for Microphone gain is required. •CTCSS/DCS 4 Remove the 1KHz audio signal from Mic Jack J302. 5 Add 250.3Hz CTCSS tone to the transmit test by testing frequency using the programmer. 6 Adjust CTCSS deviation to ±750 Hz ± 10 Hz (wide) or ± 375 Hz ± 10 Hz (narrow) deviation using the programmer. 7 Change 67.0 Hz CTCSS tone to the transmit test by testing frequency using in the programmer. 8 Adjust RV401 for ±750 Hz ± 100 Hz (wide) or ± 375 Hz ± 100 Hz (narrow) deviation. 9 Change the transmit DCS code +023 to the transmit test by testing frequency using the programmer. 10 Adjust RV401 so that modulation waveform from modulation analyzer matches the correct waveform shown in Figure 2-1. 11 Change 250.3 Hz CTCSS tone to the transmit test by testing frequency using the programmer. Carefully adjust RV401 for ± 750 Hz ± 10 Hz (wide) or ± 375 Hz ± 10 Hz (narrow) deviation. • DTMF 12 Clear the CTCSS tone, then initiate transmit test by testing frequency using the programmer. 13 Adjust DTMF deviation to ± 2.0KHz ± 10 Hz (wide) or ± 1KHz ± 10 Hz (narrow) deviation using the programmer. CORRECT INCORRECT INCORRECT Figure 2-1 Modulation Waveforms RECEIVER ALIGNMENT 1 Change the RX test frequency to 33.0 MHz for A-Band radios, 39.0 MHz for B-Band , 46.0 MHz for C-Band. •First Injection 2 No adjustment for first injection is required. •Preselector Alignment 3 No adjustment for the preselector (L201, L202, L203, L204, L205, L206, L207,and L208 ) is required. •Quadrature Detector 4 No adjustment for the quadrature is required. •First IF 5 Apply enough modulated ( by 1KHz tone at ± 3KHz (wide) or ± 1.5KHz (narrow) deviation ) on-channel RF signal to maintain 12 to 15 dB SINAD. Adjust L215, and L217, L803 and L804 for maximum SINAD, reducing the RF signal generator output as necessary to stay between 12 and 15 dB SINAD. NOTE: Do not adjust L801 or L802 unless appropriate test equipment is available for performing the “Noise Blanker Tuning’’ steps below. Normally, these coils are tuned for optimum sensitivity as are L803 and L804, then are retuned slightly for optimum noise blanker effectiveness. If the required test equipment is not avai- lable, skip steps 6 through 14. If coils L801 or L802 were replaced, they may be tuned for best sensitivity after adjustment of L215, L217, L803 and L804. Noise blanker performance specifications, however, may not be met. •Noise Blanker Tuning This procedures requires the additional test equipment shown in Table 2-2. 6 Adjust the pulse generator to obtain a 10 nsec wide pulse, as shown in Figure 2-2. Set the pulse period controls to obtain 200 u secbetween pulses(the pulse period is easier to observe on an oscilloscope if the pulse width is temporarily increased by about 10 times.) 7 Temporarily disable the pulse generator. 8 Using coax cable of minimum convenient length, connect the pulse generator, the RF signal generator, and the radio to the two-way power divider. 9 Disable the noise blanker by placing SW801 to the OFF position. 10 Apply an on-channel signal to obtain12dB SINAD, then increase the RF generator output by 40dB. 11 Enable the pulse generator to produce the 10nsec pulses. Adjust pulse amplitude to return SINAD reading to 12 dB. 12 Switch SW801 to the ON position. The SINAD reading should improve. 13 Reduce the RF generator output until a 12 dB SINAD reading is obtained. 14 Using a non-metallic tool, slowly tune L801(clockwise or counter-clockwise, as required) for best SINAD. The amount of L801 adjustment required should be slight. Tune L802 in the same manner. Repeat this step. Noise blanker tuning is complete. Table 2-2----Noise Blanker Test Equipment TEST INSTRUMENT CAPABITIES Pulse Generator Pulse Rate: 5000 p…

Text truncated - open the document above for the full version.

DRAW No.8665567A MODEL NOISE BLANKER (TR-055) 70-0671A REF.NO. LOC DESCRIPTION PARTS CODE SIZE CODE C801 B C.CERAMIC 50V 47PF+-5% CCG0566 1 C802 B C.CERAMIC 50V 100PF+-5% CCG0554 1 C803 B C.CERAMIC 50V 8PF+-0.5PF CCG0551 1 C804 B C.CERAMIC 50V 100PF+-5% CCG0554 1 C805 T C.CERAMIC 50V 8PF+-0.5PF CCG0551 1 C806 B C.CERAMIC 50V 100PF+-5% CCG0554 1 C807 T C.CERAMIC 50V 8PF+-0.5PF CCG0551 1 C808 T C.CERAMIC 50V 68PF+-5% CCG0568 1 C809 B C.CERAMIC 25V 0.1UF+-10% CCG9532 2 C810 T C.CERAMIC 50V 47PF+-5% CCG0556 1 C811 T C.CERAMIC 25V 0.1UF+-10% CCG9532 2 C813 T C.CERAMIC 50V 220PF+-5% CCG0562 1 C814 T C.CERAMIC 50V 1PF+-0.25PF CCG0572 1 C815 T C.CERAMIC 50V 47000PF+-10% CCG9672 2 C816 B C.CERAMIC 50V 47000PF+-10% CCG9672 2 C818 T C.CERAMIC 50V 15PF+-5% CCG0557 1 C819 B C.CERAMIC 16V 22000PF+-10% CCG0689 1 C820 B C.CERAMIC 50V 47000PF+-10% CCG9672 2 C821 B C.CERAMIC 50V 33PF+-5% CCG0564 1 C822 T C.CERAMIC 50V 22000PF+-10% CCG0689 1 C823 T C.CERAMIC 50V 47000PF+-10% CCG9672 2 C824 T C.CERAMIC 50V 10000PF+-10% CCG0575 1 C825 B C.CERAMIC 50V 470PF+-5% CCG0580 1 C826 T C.CERAMIC 25V 0.1UF+-10% CCG9532 2 C827 T C.CERAMIC 50V 470PF+-5% CCG0580 1 C828 T C.TA,ELYC 10V 10UF+-20% CSM0034 3 C829 B C.CERAMIC 50V 22PF+-5% CCG0561 1 C830 B C.CERAMIC 50V 1000PF+-10% CCG0574 1 C831 B C.CERAMIC 50V 47000PF+-10% CCG9672 2 C832 B C.CERAMIC 50V 1000PF+-10% CCG0574 1 C833 T C.CERAMIC 50V 1000PF+-10% CCG0574 1 C834 B C.CERAMIC 50V 4700PF+-10% CCG0581 1 C835 T C.TA,ELYC 10V 10UF+-20% CSM0034 3 C836 B C.CERAMIC 50V 4700PF+-10% CCG0581 1 C837 B C.CERAMIC 25V 0.1UF+-10% CCG9532 2 C838 B C.CERAMIC 50V 47000PF+-10% CCG9672 2 C842 B C.CERAMIC 25V 0.1UF+-10% CCG9532 2 C843 B C.CERAMIC 25V 0.1UF+-10% CCG9532 2 R801 T R.METAL 1/32W 4.7KOHM+-5% RME1817 1 R802 B R.METAL 1/32W 3.3KOHM+-5% RME1815 1 R803 B R.METAL 1/32W 10KOHM+-5% RME1821 1 R804 T R.METAL 1/32W 10KOHM+-5% RME1821 1 R806 T R.METAL 1/32W 4.7KOHM+-5% RME1817 1 R807 T R.METAL 1/32W 560OHM+-5% RME1806 1 R808 B R.METAL 1/32W 4.7KOHM+-5% RME1817 1 R809 B R.METAL 1/32W 3.3KOHM+-5% RME1815 1 R810 B R.METAL 1/32W 3.3KOHM+-5% RME1815 1 R811 T R.METAL 1/32W 10KOHM+-5% RME1821 1 R812 B R.METAL 1/32W 220OHM+-5% RME1801 1 R813 T R.METAL 1/32W 2.2KOHM+-5% RME1813 1 R814 T R.METAL 1/32W 150OHM+-5% RME1799 1 R815 T R.METAL 1/32W 470OHM+-5% RME1805 1 R816 B R.METAL 1/32W 8.2KOHM+-5% RME1820 1 R817 T R.METAL 1/4W 1KOHM+-2% RME1967 R818 B R.METAL 1/32W 470OHM+-5% RME1805 1 R819 T R.METAL 1/32W 150OHM+-5% RME1799 1 R820 T R.METAL 1/32W 150OHM+-5% RME1799 1 R821 T R.METAL 1/32W 5.6KOHM+-5% RME1818 1 R822 B R.METAL 1/32W 2.2KOHM+-5% RME1813 1 R823 B R.METAL 1/32W 2.2KOHM+-5% RME1813 1 R824 B R.METAL 1/32W 8.2KOHM+-5% RME1820 1 R825 B R.METAL 1/32W 220OHM+-5% RME1801 1 R826 B R.METAL 1/32W 10KOHM+-5% RME1821 1 R827 B R.METAL 1/32W 10KOHM+-5% RME1821 1 R828 B R.METAL 1/32W 560OHM+-5% RME1806 1 R829 T R.METAL 1/32W 680OHM+-5% RME1807 1 R830 T R.METAL 1/32W 68OHM+-5% RME1795 1 R831 T R.METAL 1/32W 1KOHM+-5% RME1809 1 R832 B R.METAL 1/32W 10KOHM+-5% RME1821 1 R833 B R.METAL 1/32W 220OHM+-5% RME1801 1 R834 T R.METAL 1/32W 3.3KOHM+-5% RME1815 1 R835 B R.METAL 1/32W 1KOHM+-5% RME1809 1 R836 B R.METAL 1/32W 100KOHM+-5% RME1833 1 R837 B R.METAL 1/32W 47KOHM+-5% RME1829 1 R838 B R.METAL 1/32W 10KOHM+-5% RME1821 1 R839 B R.METAL 1/32W 5.6KOHM+-5% RME1818 1 R840 B R.METAL 1/32W 47OHM+-5% RME1793 1 R842 T R.METAL 1/32W 33OHM+-5% RME1791 1 L801 T COIL 42L240 TLX0312 L802 T COIL 42L240 TLX0312 L803 T COIL 42L240 TLX0312 L804 T COIL 42L240 TLX0312 L805 T COIL 245MA1UH+-5% TLL0517 L806 T COIL 175MA4.7UH+-5% TLL0552 L807 T COIL 165MA6.8UH+-5% TLL0553 L808 T COIL ELESN102K TLE0219 D801 T DIODE HSM88AS HDH0290 D802 T DIODE DCB010 HDD0167 IC801 T IC MC1350DR2 ILM0683 Q801 B TRANSISTOR 2SK508K52 HTK0172 Q802 T TRANSISTOR 2SK508K52 HTK0172 Q803 T TRANSISTOR 3SK151GR HTK0164 Q804 T TRANSISTOR 2SC2462 HTC0686 Q805 T TRANSISTOR 2SA1121C HTA0267 Q806 T TRANSISTOR 2SA1121C HTA0267 Q807 T TRANSISTOR 2SC2462 HTC0686 Q808 T TRANSISTOR 2SA1121C HTA0267 Q809 B TRANSISTOR 2SA1121C HTA0267 Q810 B TRANSISTOR 2SA1121C HTA0267 Q811 B TRANSISTOR 2SC2462 HTC0686 Q812 B TRANSISTOR DTC124EKA HTD0161 SW801 T SW SSSS2-1-2-A SSV0227 DRAW NO. 8671301A MODEL PA(PA-0502)70-0671A REF.NO LOC DESCRIPTION PARTS CODE SIZE CODE C502 T C,CERAMIC 50V 10000PF+-10% CCG9292 2 C504 T C,CERAMIC 50V 10000PF+-10% CCG9292 2 C505 T C,AL ELYC 25V 47UF+-20% CEK0184 C506 T C,CERAMIC 50V 1000PF+-10% CCG9286 2 C507 T C,CERAMIC 50V 10000PF+-10% CCG9292 2 C508 T C,CERAMIC 50V 10000PF+-10% CCG9292 2 C509 T C,AL ELYC 25V 47UF+-20% CEK0184 C510 T C,CERAMIC 50V 0.1UF+-10% CCG9394 3 C511 T C,CERAMIC 50V 10000PF+-10% CCG9292 2 C512 T C,CERAMIC 50V 100PF+-5% CCG9274 2 C513 T C,CERAMIC 50V 100PF+-5% CCG9274 2 C517 T C,CERAMIC 50V 0.1UF+-10% CCG9394 3 C518 T C,AL ELYC 25V 15UF+-20% CEX0580 C521 T C,CERAMIC 50V 1000PF+-10% CCG9286 2 C524 T C,CERAMIC 50V 470PF+-5% CCG9385 2 C528 T C,CERAMIC 50V 1000PF+-10% CCG9286 2 C529 T C,CERAMIC 50V 10000PF+-10% CCG9292 2 C530 T C,CERAMIC 50V 0.1UF+-10% CCG9394 3 C531 T C,PLASTIC 50V 0.22UF+-10% CQA0131 C532 T C,CERAMIC 100V 1000PF+-5% CCG9438 4 C533 T C,CERAMIC 100V 1000PF+-5% CCG9438 3 C534 T C,CERAMIC 50V 10000PF+-10% CCG9292 2 C535 T C,CERAMIC 50V 0.1UF+-10% CCG9394 3 C536 T C,AL ELYC 25V 15UF+-20% CEX0580 C537 T C,MICA 500V 22PF+-5% CMU0004 4 C541 T C,CERAMIC 50V 10000PF+-20% CCG9211 3 C542 T C,CERAMIC 100V 330PF+-5% CCG9435 4 C543 T C,MICA 300V 680PF+-5% CMD0359 C545 T C,MICA 300V 330PF+-5% CMD1081 C546 T C,MICA 300V 470PF+-5% CMD0947 C550 T C,CERAMIC 50V 0.1UF+-10% CCG9394 3 C551 T C,AL ELYC 25V 47UF+-20% CEK0184 C552 T C,CERAMIC 100V 1000PF+-5% CCG9438 4 C554 T C,CERAMIC 50V 0.1UF+-10% CCG9394 3 C555 T C,AL ELYC 25V 15UF+-20% CEX0580 C556 T C,CERAMIC 500V 4PF+-0.25PF CCG9399 4 C557 T C,CERAMIC 100V 150PF+-5% CCG9431 4 C563 T C,CERAMIC 500V 56PF+-5% CCG9423 4 C565 T C,CERAMIC 500V 120PF+-5% CCG9430 4 C566 T C,CERAMIC 500V 27PF+-5% CCG9415 4 C567 T C,CERAMIC 500V 150PF+-5% CCG9431 4 C569 T C,CERAMIC 500V 9PF+-0.5PF CCG9404 4 C5…

Text truncated - open the document above for the full version.

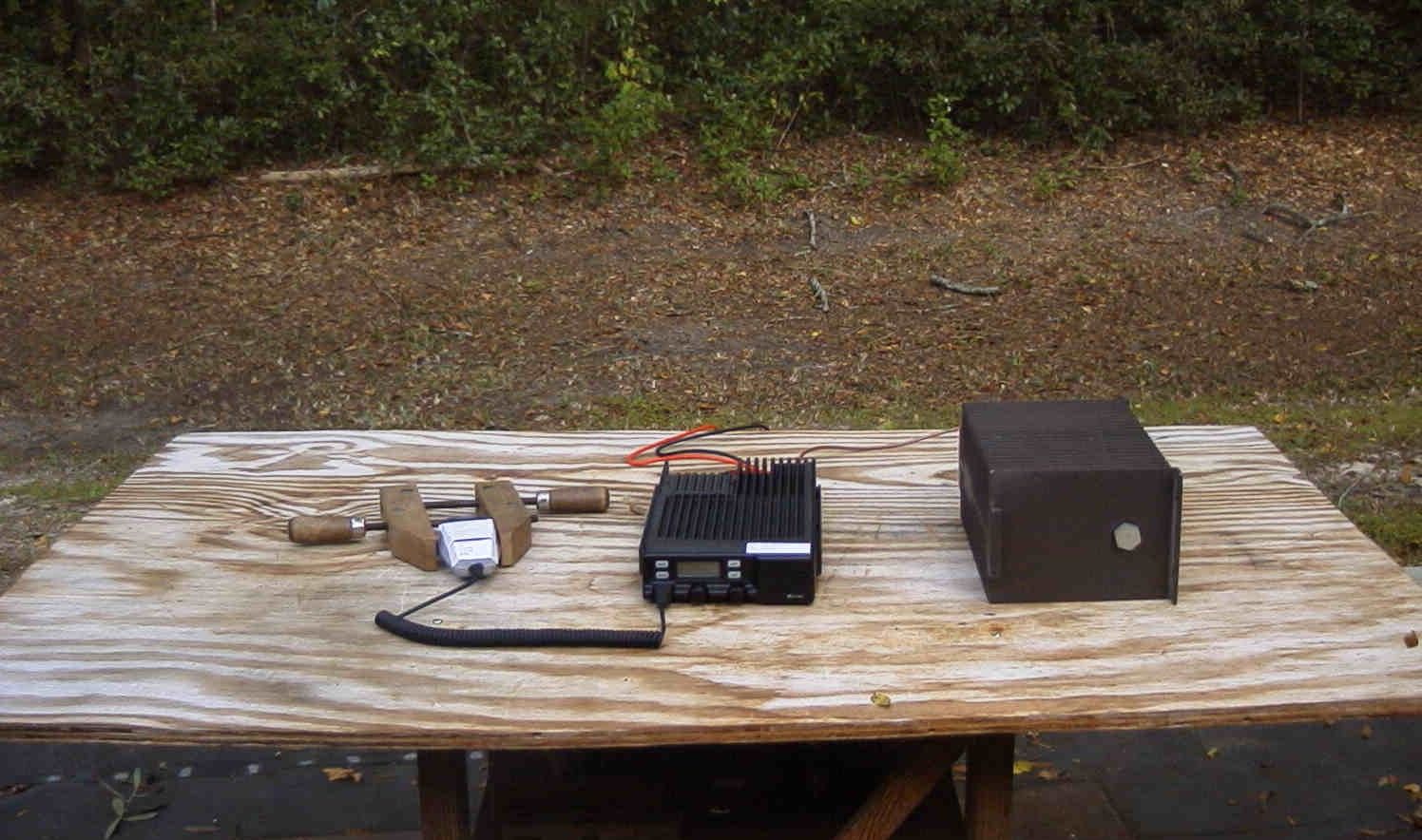

849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] May 5, 2003 Revised August 4, 2003 (pages 6 and 7 of 8) FCC RF EXPOSURE EXHIBIT PART 1.1310 ENVIRONMENTAL ASSESSMENT FOR A MOBILE TRANSMITTER 849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] TABLE OF CONTENTS 1. Test Report Information.......................................................................................1 2. Identification of the Equipment Under Test............................................................2 3. Standard test conditions........................................................................................1 4. Part 1.1310 Environmental Assessment.................................................................1 5. Statement of compliance......................................................................................1 849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] 1. TEST REPORT INFORMATION a) Laboratory: Timco Engineering, Inc 849 N.W. State Road 45 Newberry, Florida 32669 b) FCC Correspondence Reference Number: 7355 c) Client: Midland Radio Company 1120 Clay Street North Kansas City, MO 64116 d) Identification: FCC ID: MMA700671A e) Description: 30-36 MHz Transceiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: May 5, 2003 h) EUT Received: April 28, 2003 i) Sampling method: No sampling procedure used. j) Uncertainty: In accordance with Timco’s internal quality manual. k) Test results: The results presented in this report relate only to the item tested. l) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. 849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] 2. IDENTIFICATION OF THE EQUIPMENT UNDER TEST NAME AND ADDRESS OF APPLICANT: Midland Radio Corporation 1120 Clay Street North Kansas City, MO 64116 MANUFACTURER: Applicant FCC ID: MMA700671A MODEL NO: 70-0671A DESCRIPTION: 30-36 MHz Transceiver TYPE OF EMISSION: 15K0F3E FREQUENCY RANGE, MHz: 30 to 36 MHz POWER RATING, Watts: Maximum Conducted 130 Watts Switchable or Variable N/A MODULATION: Frequency Modulation ANTENNA: Midland Radio Resonant Mobile Whip Antenna ID: 18327C With 15 feet of RG 58U. Attenuation at 30 MHz: Nominal Value: 1.8 dB/100 feet. (typical antenna for this radio) NOTE: RF Power set to highest output across all probe readings/heights. 849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] 3. STANDARD TEST CONDITIONS Except as noted herein, the following conditions and procedures were observed during the testing: In accordance wit…

Text truncated - open the document above for the full version.
