MMA713200BBASE STATION

OPERATOR'S MANUAL BASE TECH II BASE/REPEATER STATION 05/09 Part Number 71-999000 Revision A Base Tech II Base/Repeater Station Operator’s Manual 2 © Midland Radio Corporation Introduction............................................................................................................................................ 3 Description............................................................................................................................................... 3 Features .................................................................................................................................................. 3 Controls, Indicators and Connectors ....................................................................................................... 4 Operation................................................................................................................................................ 8 Installation and Programming.................................................................................................................. 8 Basic Operation ....................................................................................................................................... 8 Front Panel Operation ........................................................................................................................... 10 Signaling................................................................................................................................................ 12 Scanning................................................................................................................................................ 15 Locking the Keypad ............................................................................................................................... 18 Changing Tone Signaling Systems........................................................................................................ 18 Displaying the Channel Information ...................................................................................................... 19 Display of Received Tone Frequencies. ................................................................................................ 20 Bar Graph Displays ............................................................................................................................... 21 LCD Display Back Light......................................................................................................................... 21 Transmit Power Change........................................................................................................................ 21 Calling Party ID Display......................................................................................................................... 22 Displaying any Radio's ID Number........................................................................................................ 22 Emergency Caller Display ..................................................................................................................... 23 Automatic Transmit in Repeater Mode .................................................................................................. 23 TX Test Mode ........................................................................................................................................ 24 Keypad Test Mode................................................................................................................................. 24 Frequency Band Test Mode .................................................................................................................. 25 Starting Message................................................................................................................................... 25 Serial Number Display........................................................................................................................... 26 EEROM Data Check Mode ................................................................................................................... 26 Hardware Error Detection...................................................................................................................... 27 RS232C Communications Error ............................................................................................................ 28 External Option Port/ Remote Control pin out............ .......................................... .................29 Base Tech II Base/Repeater Station Operator’s Manual 3 © Midland Radio Corporation INTRODUCTION Description The Base Tech II Base Repeater represents a technological advancement over previous models. The Base Tech II Base Repeater is comprised of separate modules all housed within one 2RU equipment cabinet. The receiver, transmitter, and PA unit are each enclosed within their own die-cast housing. Each one is then mounted directly on the large upper heatsink. A microprocessor-controlled interface module controls the channel selection, LCD Display, timers, interfaces, and signaling features. The RF power output is 25 — 50/ 60 watts or 50 — 100/ 110 watts on a continuous duty basis. The CTCSS module supports all EIA tones. All tones and different encode and decode tones can be set on a per channel basis during radio programming. Attention The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 6 meters from all persons during normal operation. The peak conducted output power at each antenna terminal must not exceed 250 Watts and the peak radiated output power must not exceed 1000 Watts EIPR. Users and installers must ensure that FCC requirements for satisfying RF exposure compliance are met. (See FCC Rules Part 1, Sections 1307 and 1310) Features o Simplex or two frequency Duplex operation o EEPROM programmable with a PC com…

Text truncated - open the document above for the full version.

Model: 71-3200B Serial #: _5304621__ FCC ID: _MMA713200B__ IC: _3690A-713200B _ MADE IN JAPAN

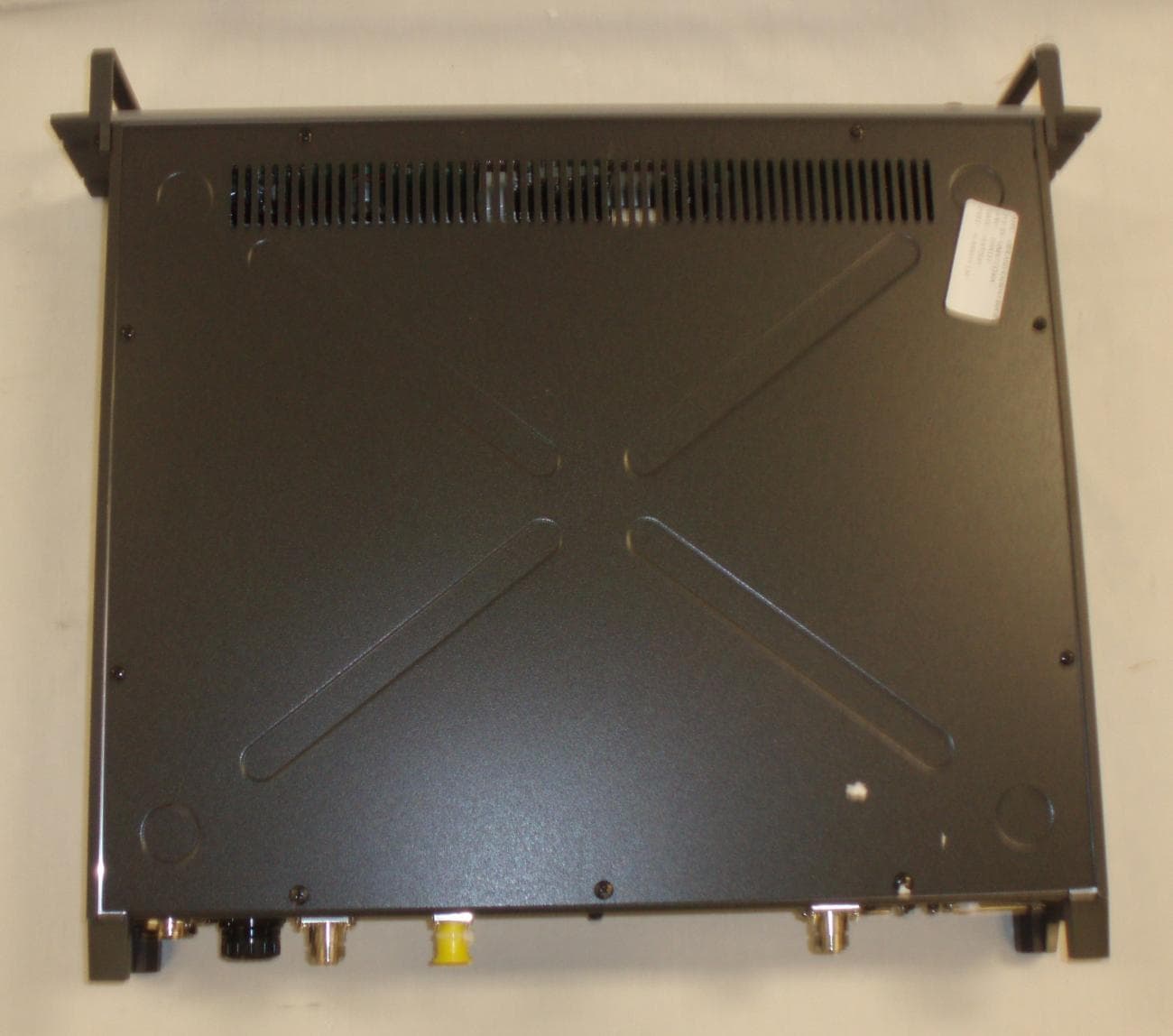

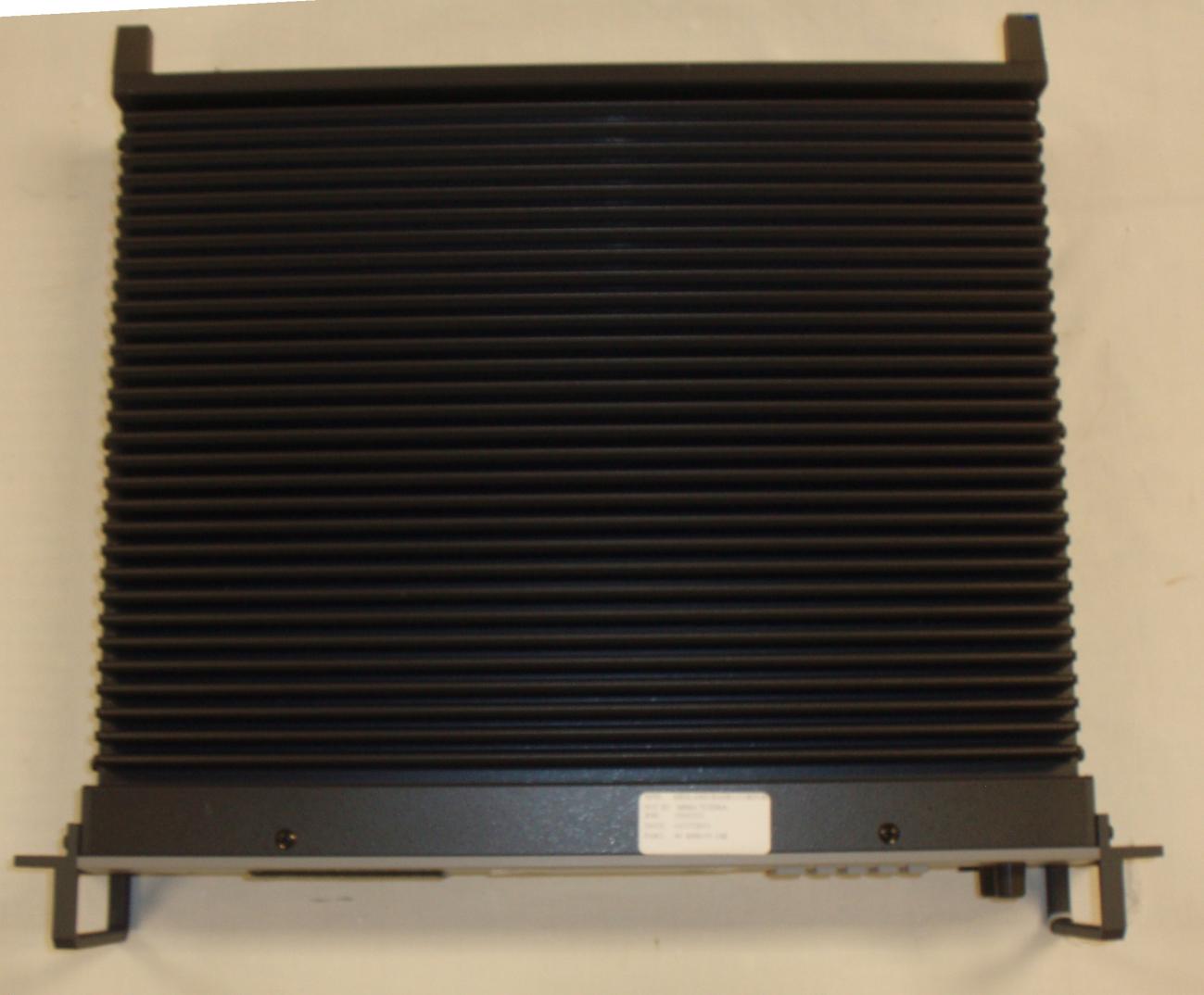

Rear View of 71-3200A/B FCC / IC Identification Label affixe d to rear panel in location shown. Model / FCC / IC Label here

PA UNIT FRONT RX UNIT SERIAL PORT TX UNIT APPLICANT: MIDLAND RADIO CORP. FCC ID: MMA710100B INTERNAL PHOTOS

Midland Radio 71-3200A/B VHF Base Tech II 7.0 ALIGNMENT PROCEDURES 7.1 RECEIVER UNIT 1. Pre-selector and Post-selector Filters Both the pre-selector and post-selector filters have been pre-tuned at the factory, so no alignment is required. 2. FVR001/FVR002 Alignment FVR001 adjusts the squelch tight level FVR002 is used to set the voltage at TP001 to 2.5 Volts DC 3. VCO Alignment The VCO is pre-aligned at the factory to cover the full A or B sub-band. However, if you need to re-adjust the VCO following a repair, set the VCO control voltage at TBD to 10.5 Volts DC by adjusting the coil winding spacing of L303 at the high end of the sub band. 7.2 TRANSMITTER UNIT 1) FVR201 Alignment This potentiometer adjusts the transmit modulation level. Carefully align this potentiometer to obtain as flat of deviation response as possible from the lowest to the highest frequency supported by the transmitter. 2) FVR202 Alignment This potentiometer determines low frequency (below 300Hz) deviation. When either or all of POCSAG, CTCSS and DCS are used, it is necessary to adjust this pot to provide enough deviations at low modulation frequencies. 3) FVR203 Alignment This potentiometer adjusts the maximum transmit deviation. 4) FVR204 Alignment This potentiometer sets the transmitter maximum output power level. 5) VCO Alignment The VCO is pre-aligned at the factory to cover the full A or B sub-band. However, if you need to re-adjust the VCO following a repair, set the VCO control voltage at TBD to 10.5 Volts DC by adjusting the coil winding spacing of L303 at the high end of the sub band. 7.3 POWER AMPLIFIER UNIT 1) FVR501 Alignment This potentiometer is used to adjust the minimum reverse power detection point when the transmit antenna port is terminated with 50 ohm load. 2) FVR502 Alignment This potentiometer is used to set the threshold point for reverse power detection. 3) FVR503 Alignment This potentiometer is used to set the threshold for transmit low power alarm detection. 4) FVR504 Alignment This potentiometer is used to set the maximum transmit power level of the Power Amplifier Unit. Do not exceed 120 Watts or the radio’s FCC type acceptance, whichever is lower. 7.4 LOGIC UNIT 1) VR401 Alignment This is the digital pulse code rotary switch on the Front Panel Unit used to set the volume. 2) VR402 Alignment This is the digital pulse code rotary switch on the Front Panel used to set the squelch level. 3) FVR401 Alignment This potentiometer, located on the Front Panel Unit and accessible from the front of the radio assembly, is used to fine-adjust the Hi-Power Level of the transmitter. 4) FVR402 Alignment This potentiometer, located on the Front Panel Unit and accessible from the front of the radio assembly, is used to fine-adjust the Lo-Power Level of the transmitter. 7.5 DESCRIPTION OF CIRCUITS TO STABILIZE OUTPUT FREQUENCY The transmitter uses a TCVXO (Temperature Compensated Voltage Controlled Crystal Oscillator) to generate 12.00MHz reference frequency for the transmitter PLL and VCO circuit. The accuracy of the TCVXO is less than +/- 0.00015% over the range of –30 degree C to +60 degree C. 7.6 DESCRIPTION OF CIRCUIT TO SUPPRESS SPURIOUS EMMISSIONS AND LIMIT MODULATIONS A multiple pole Low Pass Filter is used after the final power amplifier stage within the Power Amplifier Unit. It is designed to sharply attenuate spurious and harmonics frequencies above the highest frequency in the sub-band of the radio. Modulation limiting is performed by Tx audio processor AK2344 located on the Logic Unit. Internal limiting/compression amplifier provides excellent limiting with minimum distortion. In addition to modulation limiting, this device contains all circuitry to perform pre-emphasis, band pass shaping and CTCSS encoder.

Midland Radio 71-3200A/B VHF Base Tech II 5.0 LIST OF SEMICONDUCTORS DESIGNATIONS AND FUNCTIONS 5.1 Tx VCO UNIT Q301 2SK508 Oscillator Q302 2SC4325 Amplifier Q303 2SC3583 VCO output amplifier Q304 DTA124EUA Switch Q305 2SC2351 B + filter Q306 DTYA114EUA B + switch IC301 uPC1688 Amplifier 5.2 Tx UNIT Q201 2SK3018 PTT buffer Q202 UMG1N Switch Q204 UMC2 Switch Q207 2SD2351 B + filter Q205 2SK3018 Charge pump Q208 RTU002P02 Charge pump Q209 2SK3018 Charge pump Q210 UMC2N Switch Q212 UMG1N Switch Q213 DTC124EUA Switch Q206 DTA124EUA Switch Q211 2SC3357 RF amplifier Q214 2SC4250 Switch Q215 2SC4325 Switch Q217 2SK3018 Switch IC201 BAJ0BCOFP 10v regulator IC202 XC6202P702P 7v regulator IC204 TC75W51F Mod LF amplifier IC205 TA75S01F Mod. Amplifier IC208 MB1511 PLL IC210 NJU7662M DC/DC converter IC209 TC4566F LPF, switch IC211 BA00CC0WFP Tx power adjust IC212-B NJM2904 Power control IC212-A NJM2904 Error amplifier IC203 XC6202P502M 5v regulator IC213 TA75S01F Mod. LF amplifier IC206 TC7TW125FU Level converter IC207 TC7TW125FU Level converter 5.3 PA UNIT Q501 2SK3018 Switch Q502 DTB143EK B + switch IC501-B BAM4558F Reverse power control IC501-A BAM4558F Error amplifier IC502 TA75S01F Power control IC504 AN78L05M 5v regulator IC503 TA75S01F Power signal amplifier PM510 RA08H1317M Driver amplifier Q504 RD70HVF1 Power amplifier Q505 RD70HVF1 Power amplifier 5.4 RX VCO UNIT Q301 2SK508 Oscillator Q302 2SC4325 Amplifier Q303 2SC3583 VCO output amplifier Q304 DTA124EUK Switch Q305 2SC2351 B + filter Q306 DTYA114EUA B + switch IC301 uPC1688 Amplifier 5.5 RX UNIT Q861 3SK177 RF amplifier Q810 2SK508 1 st High IF amplifier Q809 2SD2351 B + filter Q806 RTU002P02 Charge pump Q805 2SK3018 Charge pump Q807 2SK3018 Charge pump Q808 UMC2N Switch Q804 UMC2N Switch Q811 DTA144EUA Switch Q803 33061MCH Rx switch Q802 2SD2351 Rx switch Q801 2SK3018 Rx switch Q812 2SC4250 Switch Q813 2SC4325 Switch Q814 2SC4325 Switch IC806 MB1511 PLL IC807 NJU7662M DC/DC inverter IC808 TC4566F LPF switch IC805 XC6202P502M 5v regulator IC809 TA75S01F VCO error amplifier IC811 SPM5001 1 st mixer IC802 XC221A200 AF LPF IC801 BA70BCOFP 7v regulator IC803 TCWT125FU Level converter IC804 TCWT125FU Level converter IC810 XC221A1200 DC amplifier IC812 XC6201P502M 5v regulator 5.6 IF UNIT Q001 2SC4250 1st IF amplifier Q002 2SK880 Wide/Narrow switch Q003 DTC323TU Wide/Narrow switch Q004 2SK880 Wide/Narrow switch Q005 2SK3018 Wide/Narrow switch Q006 2SD2351 Noise amplifier Q007 XP01501 Squelch switch IC001 TA31136FNG 2nd IF/oscillator/detector IC002 TC75W51FU AF amplifier Logic Unit and Front Panel Unit semiconductor parts are the same as the MMA710100B radio.

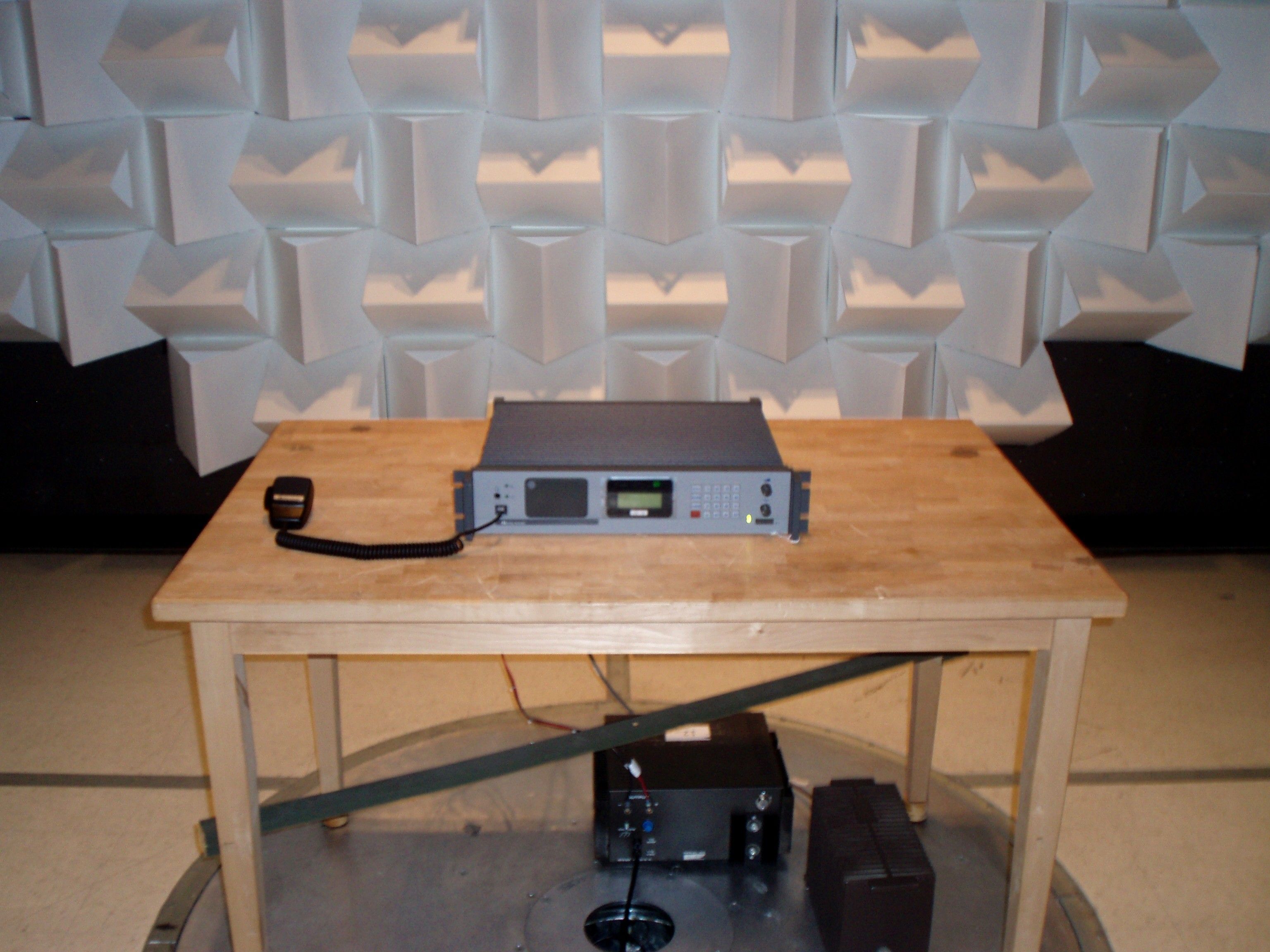

FCC PART 90 AND IC RSS-119, RSS-GEN TEST REPORT APPLICANT MIDLAND RADIO CORPORATION 5900 PARRETTA DRIVE KANSAS CITY MISSOURI 64120 USA FCC ID MMA713200B IC CERTIFICATION 3690A-713200B MODEL NUMBER 71-3200B PRODUCT DESCRIPTION BASE STATION DATE SAMPLE RECEIVED 1/17/2011 DATE TESTED 2/15/2011 TESTED BY Nam Nguyen APPROVED BY Richard Block TIMCO REPORT NO. 110AT11TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. TABLE OF CONTENTS 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: MIDLAND RADIO CORPORATION FCC ID: MMA713200B IC CERT #: 3690A-713200B Report: M\MidlandRadio MMA\110AT11\110AT11TestReport.doc Page 2 of 23 TABLE OF CONTENTS GENERAL REMARKS ......................................................................................................... 3 GENERAL INFORMATION .................................................................................................. 4 TEST PROCEDURES ......................................................................................................... 5 RF POWER OUTPUT .......................................................................................................... 6 MODULATION CHARACTERISTICS .................................................................................... 7 AUDIO FREQUENCY RESPONSE ....................................................................................... 8 AUDIO LOW PASS FILTER ................................................................................................. 9 AUDIO INPUT VERSUS MODULATION ............................................................................. 10 OCCUPIED BANDWIDTH ................................................................................................. 11 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) ................................... 14 FIELD STRENGTH OF SPURIOUS EMISSIONS ................................................................. 17 FREQUENCY STABILITY .................................................................................................. 19 TRANSIENT FREQUENCY BEHAVIOR .............................................................................. 20 EMC EQUIPMENT LIST ................................................................................................... 23 Applicant: MIDLAND RADIO CORPORATION FCC ID: MMA713200B IC CERT #: 3690A-713200B Report: M\MidlandRadio MMA\110AT11\110AT11TestReport.doc Page 3 of 23 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Richard Block Compliance Engineer Date: March 9, 2011 Applicant: MIDLAND RADIO CORPORATION FCC ID: MMA713200B IC CERT #: 3690A-713200B Report: M\MidlandRadio MMA\110AT11\110AT11TestReport.doc Page 4 of 23 GENERAL INFORMATION DUT Specification DUT Description BASE STATION FCC ID MMA713200B IC Certification 3690A-713200B Model Number 71-3200B Serial Number N/A Operating Frequency 146.00 to 174.00 MHz Test Frequencies 151.00, 160.00, and 173.90 MHz No. of Channels 99 Type of Emission 11K2F3E Modulation FM DUT Power Source 110–120Vac/50– 60Hz DC Power 13.8V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Conditions The temperature was 26ºC with a relative humidity of 50%. Modification to the DUT None Test Exercise The DUT was placed in continuous transmit mode. Applicable Standards ANSI/TIA 603-C:2004, FCC CFR 47 Part 90, IC RSS- 119, RSS-GEN Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Applicant: MIDLAND RADIO CORPORATION FCC ID: MMA713200B IC CERT #: 3690A-713200B Report: M\MidlandRadio MMA\110AT11\110AT11TestReport.doc Page 5 of 23 TEST PROCEDURES Power Line Conducted Interference: The procedure used was ANSI/TIA 603-C:2004 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: The RF power output was measured at the antenna feed point using a peak power meter. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was ANSI/TIA 603-C:2004 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a micro volt at the output of the antenna. Applicant: MIDLAND RADIO CORPORATION FCC ID: MMA7132…
