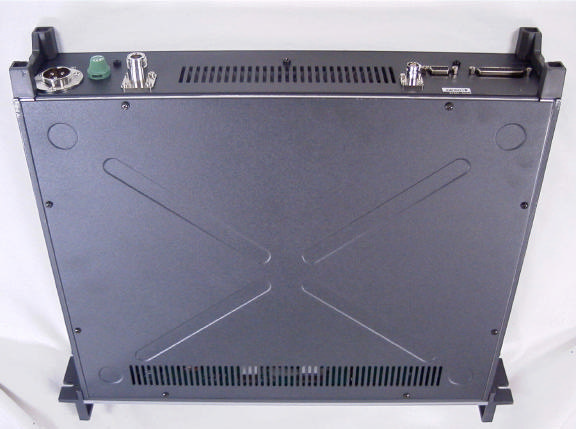

MMA714050CVoice/ Data Radio Transceiver

OPERATORS MANUAL KYODO KG510 BASE/REPEATER KYODO KG510 OPERATORS MANUAL 128113Page #2 of 26 Pages11 December, 2000 CONTENTS SECTIONDESCRIPTIONPAGE 1INTRODUCTION 4 2PRODUCT DESCRIPTION 4 2.1 Features 4 2.2 Product Description 4 2.3 Standard Inclusions 5 CONTROLS, INDICATORS, & CONNECTORS 5 3 3.1 Front Panel Controls5-7 3.2 Rear Panel Connectors7 OPERATION 4.1 Installation and Programming 8 4.2 Basic Operation8 4.2.1 Switch On 4.2.2 Adjust the Volume Setting 4.2.3 Adjust the Squelch Setting 4.2.4 Select the Channel 4.2.5 Receiving 4.2.6 Transmitting 8 8 8 8 8 8 4 4.3 Front Panel Operation 4.3.1 Keypad Operation 4.3.2 Keypad Operation using the SHIFT Key 4.3.3 Changing Channels 9 9 10 11 4.4 Signalling 11 4.4.1 5-Tone Signalling 11 4.4.1.1 Available Tones11 4.4.1.2 Entering 5-Tone Encoding Sequences 11 4.4.1.3 Recalling the Last Encode Sequence12 4.4 2 DTMF Signalling 12 4.4.2.1 Available Tones12 4.4.2.2 DTMF Tone Entry 12 KYODO KG510 OPERATORS MANUAL 128113Page #3 of 26 Pages11 December, 2000 CONTENTS SECTIONDESCRIPTIONPAGE 4.4.2.3 Redialling with DTMF 13 4.4.2.4 Restoring the Last DTMF Numbers to the LCD Display 13 4.4 3 Single Tone Encoding13 4.4.4 Kill Signalling 14 4.4.4.1 Kill Signalling Operation14 4.5 Channel Scanning 15 4.5.1 All Channel Scan Operation 15 4.5 2 Program Channel Scan Operation16 4.5.3 Exiting Scan Modes 16 4.5.4 Priority Scanning16 4.5.5 Removing Channels from Scan List 17 4.5.6 Restoring Channels to the Scan List17 4.6 Locking the Key Pad 17 4.7 Changing Tone Signalling Systems 18 4.8 Displaying Channel Information 18 4.9 Displaying Received Tone Frequencies 19 4.10 Bar Graph Displays 20 4.11 LCD Display Back Light 20 4.12 Transmit Power Change 20 4.13 Calling Party ID Display 21 4.14 Displaying any Radio's ID Number 21 4.15 Emergency Caller Display 22 4.16 Automatic Transmit in Repeater Mode 22 4.17 TX Test Mode 23 4.18 Key Pad Test Mode 23 4.19 Frequency Band Test Mode 24 4.20 Starting Message24 4.21 Serial Number Display25 4.22 EEPROM Data Check Mode25 4.23 Hardware Error Detection26 4.24 RS232C Communications Error Messages26 KYODO KG510 OPERATORS MANUAL 128113Page #4 of 26 Pages11 December, 2000 1.0INTRODUCTION Thank you for purchasing a KYODO KG510 Base or Repeater. We trust that it will operate reliably and give you years of service. If not, or if you wish to suggest ways of improving the KG510's operation, or features, we would welcome your comments. 2.0 FEATURES & PRODUCT DESCRIPTION 2.1Features ! Simplex or two frequency Duplex operation ! EEPROM programmable with a PC computer ! Single Channel and 99 Channel Versions available ! Full Dot Matrix Liquid Crystal Display ! All FM Frequency Bands from 30 to 520 MHz ! Front Facing Speaker ! Transmit Time Limiter to prevent channel jamming ! TX and RX Encryption ! Two Channel Scanning Modes ! 5 Tone Encoder & Decoder plus DTMF Encoder & Decoder ! 22, 26, or 35 MHz switching bandwidth (model dependant) ! Up to 99 channels with Channel Labels ! Two-Stage Front End allows mixed Simplex and Duplex operation ! Channel selectable Wide or Narrow channel spacing ! CTCSS/DCS on a per channel basis ! 5 X 4 Keypad for Channel Change etc ! 2RU Equipment Cabinet ! Step-Up VCO Voltage for Superior Selectivity ! Low Stand-by Current is ideal for Solar Installations ! Watch Dog Timer 2.2Product Description The Kyodo KG510 transceivers represent a quantum advance on the previous rugged & time proven KG110 transceiver. They comprise of separate modules all housed within one 2RU equipment cabinet. The receiver, the transmitter, and the PA Unit are each enclosed within their own diecast housing, that are then directly mounted on the large upper heat-sink. A μProcessor controlled interface module controls the channel selection, LCD Display, timers, interfaces, and signalling features. Models are available for all FM commercial and military frequency bands from 30 MHz to 520 MHz, with channel selectable 12.5, 20, 25, or 30KHz channel spacing arrangements. The RF Power Output is 70 Watt s on a continuous duty basis. The CTCSS module supports all EIA tones. All tones and different encode and decode tones can be set on a per channel basis during radio programming. The KG510 includes 5 tone Selective Calling encoder/decoder with non-predictive decoder, as well as a DTMF encoder, and voice encryption. It supports normal all channel scanning and programmed channel scanning for base use. The KG510 is fitted with a large full dot matrix LCD that is used to display the Channel Numbers & Names, frequency & tone programmed information, and signalling information. All user interface keys and knobs are conveniently located on the front of the radio. All user entered functions are easily activated in a logical manner via the keypad. The KG510 is supplied with an "N" Type connector for the transmitter, and a TNC Connector for the Receiver to allow easy connection to the diplexer or feeder cables. The rear panel includes a 9 way D sub connector for fitment of an external shared tone panel. Also included is a 25 way D sub connector that enables external interface to other radios or control equipment. KYODO KG510 OPERATORS MANUAL 128113Page #5 of 26 Pages11 December, 2000 2.3 Standard Inclusions The KG510 transceiver is supplied complete with the following items: KG510 transceiver DC Cable Operators Manual KD561 Hand Microphone 3.0 CONTROLS, INDICATORS, & CONNECTORS 3.1 Front Panel Controls 1. 1.1. 1. Headphone Socket This socket is provided to allow users to listen to the KG510 using headphones. Plugging a headphone into this socket will disconnect the built-In speaker. It does NOT include a microphone input, or TX PTT facility. 2. 2.2. 2. High TX Power This is a service point and is not used by the radio operators 3. 3.3. 3. Low TX Power This is a service point and is not used by the radio operators 4. 4.4. 4. Loud Speaker* The receiver audio signals are heard from this speaker (provided that the volume setting is loud enough and provided that the s…

Text truncated - open the document above for the full version.

CIRCUITS TO SUPPRESS SPURIOUS RADIATION, LIMIT MODULATION AND CONTROL POWER 1) VCO section The oscillator circuit formed by L303, D305 and D306 generates transmitter frequencies. Then this signal is fed to the 3-stage of amplifiers, buffer amplifier Q302, pre,-ampufler IC301 and post amplifier Q303 and lead to the final amplifier. 2) PLL section Basically, the circuit description is the same as Rx. PLL IC inclusive with pre-scaller IC205 compares the phase between the VCO signal and reference oscillator frequency (12.00NMz) by method of dividing the frequency, and produces VCO control signal. Then this VCO control signal is fed to the charge pump, consisting of Q206, Q207 and Q208, and fed to the LPF. The supply voltage of charge pump is amplified by IC206 (approx. 15V) to achieve greater C/N ratio. 3) Modulator section The modulation signal is fed to both VCO and the reference oscillator (TCVXO), this permits a very flat modulation characteristics against low frequency (DC). This is the advantage when KG510 is used for POCSAG transmitter. 4) Tx younger section The VCO signal is amplified by Q215 and Q216 to achieve 250mW. But VHF bands (136-174MHz) has only stage of amplifier Q215 to achieve l00mW. 5) PA section The signal from younger stage is fed to PM510 and Q510 (VHF bands have no Q501) to achieve 50W output power. Then, signal is fed to the LPF to eliminate the harmonics spurious frequencies. An APC circuit formed by IC502, IC503, Q504 and Q505 stabilizes the output power at the set level. An IC501 protects PM501 and Q501 from the reverse power caused by the unmatched aerials. CIRCUITS TO SUPPRESS SPURIOUS RADIATION, LIMIT MODULATION- AND CONTROL POWER FCC ID: O6E713050B

ALIGNMENT PROCEDURES KYODO KG510 BASE/REPEATER RECEIVER PART 1) BPF-1 and BPF-2 alignment Connect the signal generator to the Rx antenna connector of KG510. Align the BPF-1 and BPF-2 to obtain the maximum sensitivity. For better alignment, if yo u have spectr um a nal yzer a nd trac king ge nerator, co nnect the trac king ge ne- rator to the Rx antenna connector and pick up the output signal from J101 to connect spectrum analyzer. Align the BPF-1 and BPF-2 to have cover the desired bandwidth of receiving frequencies. 2) FVR101 alignment This is to adjust the squelch tihgt level. 3) VCO alignme nt Set the VCO voltage at 10.5V by L303 at the highest receiving frequency. TRANSMITTER PART 1) FVR201 alignment This potentiometer determines the modulation level. Carefully aling this potentiometer to obtain flat deviation from the lowest to the highest frequency installed n the transmitter. 2) FVR202 alignment This potentiometer determines the low frequency (below 300Hz) deviation. When POCSAG, CTCSS or DCS are used, necessary to align to have enough deviation at low freque nc y. 3) FVR203 alignment This potentiometer sets the maximum deviation, normally set at 5KHz. 2KHz or 2.5KHz deviation for narrow spacing can be set by programming software. 4) FVR204 alignment This is to adjust the transmitter output power. 5) VCO alignme nt Set the VCO voltage at 10.5V at the highest channel frequency. LOGIC PART 1) FVR1 alignment This potentiometer is to obtain 600 ohm 0dBm output of the RF signal. 2) FVR2 alignment This is to set the deviation level when KG510 is used for a repeater. 3) FVR3 alignment This is to set the Tx output power level indicating on the LCD. 1) FVC1 alignment This is to shift the CPU clock frequency when necessary. A beat interference sometimes happens at certain frequency. In such case, shifting the CPU clock frequency may eliminate the interference. FRONT CONTROL PANEL PART 1) VR401 alignment This is a volume controller. 2) VR402 alignment This is a squelch level controller. 3) FVR401 alignment This is to set the HI-POWER-LEVEL of the Tx output power. 4) FVR402 alignment This is to set the LO-POWER=LEVEL of the Tx output power. 5) FVR403 alignment This is to set the contrast of the LCD back light.

Parts List 71-4050 © Midland Radio Corporation 33 PARTS LIST Key and VR Unit MISCELLANEOUS REF. # DESCRIPTION PART NUMBER CN405 CHIP CONN. 00-6200-510-130-000 70-159860 SWITCH SKHMPW 70-183160 P.C.B. 51KEY87-1(1/4) 70-070511 SPACER 4A10-2996 70-156162 P.C.B. 51VRS87-2(1/4) 70-070512 CN407 CHIP CONN. 00-6200-508-130-000 70-159885 D412 DIODE SLA-370MT-3F 70-085556 SW401 SWITCH SPPH23056A 70-183161 VR401 ROTARY SWITCH RY-6459 70-183162 VR402 ROTARY SWITCH RY-6460 70-183163 BUTTON 4A10-2988 70-110145 SCREW SEMS SE-3 X 10 70-151060 Front Unit INTEGRATED CIRCUITS IC401 CHIP IC TA75S558F-TE85R 70-076921 IC402 CHIP IC TC74HC373AF(TP1) 70-076941 IC403 CHIP IC. TA78M05F-TE16L 70-076922 IC404 IC TA8201AK 70-076923 IC405 IC PQ12RH11 70-076924 IC406 CHIP IC NJU7662M-T1 70-076925 IC407 CHIP IC BU4S01-TR 70-076926 TRANSISTORS Q401 CHIP TR DTC114EKA-T146 70-080553 Q402 CHIP TR FMG9A-T148 70-080554 Q403 CHIP TR FMG9A-T148 70-080554 Q404 CHIP TR 2SD1766-T100 70-080555 Q405 CHIP TR 2SD2351-T106 70-080556 Q406 CHIP TR 2SJ503 70-080557 Q407 CHIP TR UMC2-TR 70-080558 Q408 CHIP TR 2SA1434-TB 70-080559 Q409 CHIP TR 2SA1434-TB 70-080559 Q410 CHIP TR 2SA1434-TB 70-080559 DIODES D405 CHIP DIODE 1SS355 70-085537 D406 CHIP DIODE 1SS355 70-085537 D407 CHIP DIODE 1SS355 70-085537 D408 CHIP DIODE 1SS355 70-085537 D409 CHIP DIODE 1SS355 70-085537 D411 CHIP DIODE DA204U-T106 70-085538 D412 CHIP DIODE DA204U-T106 70-085538 D414 CHIP DIODE 1SS355 70-085537 CAPACITORS C401 CHIP CAP 1nf 0805 50V 70-138810 C402 CHIP CAP 1μf 1206 50V 70-138838 C403 CHIP ELYC 1μf 10V 70-138850 C404 CHIP CAP 100pf 0805 50V 70-138380 C405 CHIP ELYC 10μF 16V 70-138852 C406 CHIP CAP 0.1μf 1206 50V 70-138837 C407 CHIP CAP 270pf 0805 50V 70-138384 C408 CHIP CAP 270pf 0805 50V 70-138384 C409 CHIP ELYC 10μf 16V 70-138852 C410 CHIP CAP 1nf 0805 50V 70-138810 C411 CHIP CAP 0.1μf 1206 50V 70-138837 C412 CHIP ELYC 10μf 16V 70-138852 C413 CHIP ELYC 10μf 16V 70-138852 C414 CHIP ELYC 10μf 16V 70-138852 C417 CHIP TANTALUM 1μf 1206 16V 70-138844 C418 C.ELYC 470μf 35V 70-138856 C419 C.ELYC 470μf 35V 70-138856 C420 C.ELYC 1000μf 16V 70-138857 C421 CHIP CAP 1nf 0805 50V 70-138810 C422 CHIP CAP 1μf 1206 50V 70-138838 C424 CHIP ELYC 47μf 16V 70-138854 C425 CHIP ELYC 4.7μf 25V 70-138851 C427 CHIP TANTALUM 10uF 10V 1206 70-138849 C428 C.ELYC 220μf 16V 70-138855 C429 CHIP CAP 0.1μf 0805 25v 70-138836 C430 CHIP CAP 0.1μf 0805 25v 70-138836 C431 CHIP CAP 0.1μf 0805 25v 70-138836 CONNECTORS CN401 MIC SOCKET 8 PIN 290A-88-30-119 70-159859 CN402 CHIP CONN. 20 PIN 00-6200-520-330-000 70-159871 CN403 CHIP CONN. 16 PIN 00-6200-516-230-000 70-159872 CN404 CHIP CONN. 10 PIN 00-6200-510-130-000 70-159860 CN406 CHIP CONN. 8 PIN 00-6200-508-130-000 70-159885 CN408 CONNECTOR 3 PIN B 3P-VH 70-159861 Parts List 71-4050 © Midland Radio Corporation 34 Front Unit (continued) CN409 CONNECTOR 2 PIN SB20-02WS 70-159862 CP401 CONNECTOR FF20-TAMEP1 70-159863 DIODES D401 LED MU16-4101 70-085539 D402 LED MU16-3101 70-085540 D403 LED MU16-2101 70-085541 D404 LED MU16-5101 70-085542 CABLES FC402 FLAT CABLE 4A-S429 70-033046 FC403 FLAT CABLE 4A-S471 70-033047 FC405 FLAT CABLE 4A-S585 70-033048 FC407 FLAT CABLE 4A-S584 70-033049 VARIABLE RESISTORS AND CAPACITORS FVR401 VR GF06P 10K 70-164177 FVR402 VR GF06P 100K 70-164178 FVR403 CHIP VARICAP EVM-7JSX30B14 70-123104 MISCELLANEOUS J401 HEADPHONE JACK S-G8022#01 70-153142 LD401 LCD TM12832BBC 70-202097 RESISTORS R401 CHIP RES. 0 ohm 1/10W 0805 70-144372 R405 CHIP RES. 15k ohm 1/10W 0805 70-144395 R406 CHIP RES. 1k ohm 1/10W 0805 70-144384 R407 CHIP RES. 10k ohm 1/10W 0805 70-144394 R408 CHIP RES. 27k ohm 1/10W 0805 70-144163 R409 CHIP RES. 100k ohm 1/10W 0805 70-144402 R410 CHIP RES. 100k ohm 1/10W 0805 70-144402 R411 CHIP RES. 47k ohm 1/10W 0805 70-144400 R412 CHIP RES. 2.2k ohm 1/10W 0805 70-144388 R414 CHIP RES. 2.2k ohm 1/10W 0805 70-144388 R415 CHIP RES. 56 ohm 1/10W 0805 70-144714 R416 CHIP RES. 56 ohm 1/10W 0805 70-144714 R417 CHIP RES. 220 ohm 1/10W 0805 70-144379 R418 CHIP RES. 33 ohm 1/10W 0805 70-144713 R419 CHIP RES. 47k ohm 1/10W 0805 70-144400 R420 CHIP RES. 18k ohm 1/10W 0805 70-144396 R421 CHIP RES. 8.2k ohm 1/10W 0805 70-144393 R422 CHIP RES. 47 ohm 1/10W 0805 70-144376 R423 CHIP RES. 47 ohm 1/10W 0805 70-144376 R424 CHIP RES. 22k ohm 1/10W 0805 70-144397 R425 CHIP RES. 4.7k ohm 1/10W 0805 70-144390 R426 CHIP RES. 4.7k ohm 1/10W 0805 70-144390 R427 CHIP RES. 180 ohm 1/10W 0805 70-144716 R428 CHIP RES. 47 ohm 1/10W 0805 70-144376 R429 CHIP RES. 47 ohm 1/10W 0805 70-144376 R430 CHIP RES. 4.7k ohm 1/10W 0805 70-144390 R431 CHIP RES. 4.7k ohm 1/10W 0805 70-144390 R432 CHIP RES. 4.7k ohm 1/10W 0805 70-144390 R433 CHIP RES. 4.7k ohm 1/10W 0805 70-144390 R434 CHIP RES. 4.7k ohm 1/10W 0805 70-144390 R435 CHIP RES. 4.7k ohm 1/10W 0805 70-144390 R436 CHIP RES. 4.7k ohm 1/10W 0805 70-144390 R437 CHIP RES. 4.7k ohm 1/10W 0805 70-144390 R438 CHIP RES. 4.7k ohm 1/10W 0805 70-144390 R439 CHIP RES.10k ohm 1/10W 0805 70-144394 R440 CHIP RES. 470 ohm 1/10W 0805 70-144381 R441 CHIP RES. 4.7k ohm 1/10W 0805 70-144390 R442 CHIP RES. 10k ohm 1/10W 0805 70-144394 R444 CHIP RES. 4.7 ohm 1/4W 1206 70-144709 R445 CHIP RES. 2.2k ohm 1/10W 0805 70-144388 R446 CHIP RES. 56k ohm 1/10W 0805 70-144726 R447 CHIP RES. 10 ohm 1/4W 1206 70-144711 R448 CHIP RES. 33k ohm 1/10W 0805 70-144398 R449 CHIP RES. 10k ohm 1/10W 0805 70-144394 R450 CHIP RES. 3.3k ohm 1/10W 0805 70-144389 R451 CHIP RES. 0 ohm 1/10W 0805 70-144372 R452 CHIP RES. 8.2k ohm 1/10W 0805 70-144393 R453 CHIP RES. 1.5k ohm 1/10W 0805 70-144386 R454 CHIP RES. 220k ohm 1/10W 0805 70-144403 R455 CHIP RES. 10k ohm 1/10W 0805 70-144394 R456 CHIP RES. 100k ohm 1/10W 0805 70-144402 R457 CHIP RES.100k ohm 1/10W 0805 70-144402 R458 CHIP RES.10k ohm 1/10W 0805 70-144394 MISCELLANEOUS TH401 CHIP THERMISTER TN10-4C103KT 70-086092 COLLAR 4A10-3045 70-150598 CORE BP53RD030310120M 70-178170 P.C.B. 51FR087-3 (1/2) 70-070515 SCREW SEMS SE-3 X 10 70-151060 Parts List 71-4050 © Midland Radio Corporation 35 Front Unit (continu…

Text truncated - open the document above for the full version.

2 2A-SA0020 KG510-UHF 51BLKU0Y RX UNIT CONTROL UNIT PA UNIT TX UNIT BLOCK DIAGRAM LOGIC UNIT No 27Ω150Ω3.3K1Ω4.7Ω2P1P15P1.5P22P5P33P33P33P47P47P47P15P AB 18Ω1.5K0Ω※※10P10P※15P33P33P39P39P10P10P E 0Ω0Ω※※※3P※※5P SA ※※ ERR 1.0K4P1P15P※22P33P5P22P6P 2.2K1P10P2P※3P15P15P8P※ ※※5P※※3P※ PWIN ※※ POW 1n C504 C506 1n 1KR520 C558UC231.5P R547R509R508R507R503 4A-S591 L506L505 4A-S594L503 4A-S594C538C536C533C524C520BC519C517C516C515C514C513C512C510A 18Ω150Ω 100Ω1Ω1.8K 0Ω1.5K 4.7Ω 4A-S591 4A-S591 4.7Ω 4A-S594 4A-S5944A-S594 4A-S594 1P ※ 1P ※ 12P 10P 1P 0.5P 0.75P 15P 7P ※※27P 10P 33P33P 27P27P 47P47P 27P27P 8P 12P 15P 6P C 18Ω220Ω1.5K 4A-S5924A-S592 10P0.5P12P27P27P27P27P F 18Ω100Ω1.5K0Ω 4A-S591 4.7Ω 4A-S5944A-S594 0.5P10P0.75P10P15P33P33P39P39P15P8P DS C529 1n C530 1n PM501R546L504 4A-S595C558C537C534C531C520AC518C522C510BC508 M57704SL M57704L 1.5K 2.2K 4A-S595 1P1P12P 1P10P1P 4A-S595 ※※15P27P3P 7P10P※ 10P 6P 3P ※ 2.2K10P 4A-S593 470P 2SD2352Q506 M57704M2.2K1P10P2P 4A-S595 3P12P10P8P R5483.3K 1KR537 C554 33μ/25V 321321 CN504 C5021n R505 ※ 470PC501 1KR545 1 2 3 IC503 M5237ML 270ΩR531 D511 1SS355 BL501 HM600 ※ R506 ※ 470PC503 FVR504 100K R526100K 33μ/25VC552 FBA04.900BL511 HM600BL502 C551 ※ 2KFVR503 3.9KR523 5.6KR522 FVC501 ※ UC23 ※ C509 C508UC23 ※ 1 2 3 4 IC501:A BAM4558F 6.8K R518 2KFVR502 C5491n FVC502 18P UC23 ※ C511 C5610.1μ 10K R519 1K R521 C514UC2333P R544 ※ UC23 33P C513 C516 27P 12P C517 R5145.6K D506UDZ2.4B D509 1SS355 270ΩR539 GRM40 C543470P C542 GRM40 0.01μ L502RM40A ※C519 C520AUC238P 10KR512 TP501 RCT C522UC23 ※ RB501V D504 R5081.8K FVR501200Ω C5451n TP502RCT HM501BL507 C5281n D505 RB501V HM501 BL508 C5401n L506 L503 0.5PC536UP050 ※C531 321 CN503 L504 1PUP050C537 C538UC23 ※ CN501 12KR534 R503 4.7Ω ※R502 270Ω 1W R532 R5382.2K C557 1μ RB161L D502 1n C505 BL503HM600 ※ BL515 FBA04.900 1SS355 D508 C5500.1μ 2SC3102Q501 27P C515 C518 12P 1 3 IC504 AN78L05M 18PFVC503 FC501IHB340 10PUC23C520B SML-210VT D510 BL514FBA04.900 FVC505 ※ C521 UC23 ※ 10KR511 R547 18Ω R51010K 1nC527 150Ω R509 5P C532 FC502IHB340 10P C534 ※ C559UC23 5PC535 180KR536 470KR516 18Ω150Ω4.7Ω 4A-S5914A-S5924A-S592 DC IN ←→ DC510 M57704EL M57704UH 4A-S593 100KR533 2SB1018AQ505 4.7KR5351.8KR501 R52947K R515 47K 3 1 4 2 5 TA75S01F IC502 ※R527 D5071SS355 100KR525 5.6KR524 C5562.2μ L501 BC501 R5070Ω 1/2W C510AUC237P 8P UC23C512 R5402.7K HM501BL510 DTB143EKQ503 2SK2731Q507 UC34 C544470P FBA04.900 BL505 FBA04.900BL506 C5261n C5414.7μ RB501VD503 ※ C523 BL509FBA04.900 R542 4.7K 2.7K R543 PW CONT TO CP501 FBA04.900BL517 CN502 L505 2A-SA0007-7 0.1μC553 FBA04.600BL513※R504 R530100K R517100K D501 ※ UC23C510B8P R5462.2K BL512FBA04.900 C5070.01μGRM40 C547 1n 0.22μC546 C548 1n Q502DTC124EKA 470ΩR513 1nC525 0.75P C524 R541 4.7K 10P C533 ※ C560UC23 BL516FBA04.900 KG510-40D 51PAU21 PA UNIT CIRCUIT DIAGRAM 2SC2412KQ504 7 56 8 BAM4558FIC501:B M57704H PM501 No 33nH#30743P7P4P24P A 3P6P3P22P CE 3P6P1P10P FDS #1092※4P ※4P 3P2.5P 1n C312 L307L303C309C308C307C305 33nH 47nH #3075 #3074 3P 3P6P 6P2.5P18P B 22nH#3078 3P6P3P12P SA 51RCU21 L308C327L304C303 #1091 #1091 3P 6P0.47μ 0.47μ 4P 3P #1091 6P 0.47μ 4P 1SV232D304 RCT TP301 L303#3078 6P C308 2P C307 TH301 ※ R307220Ω0.22μH L305 3P C310 0.47μHKQ1008L304 15ΩR306 C316 5P C3145PC3131n R311 470Ω R309 4.7K 22nHL306 C317 1n 10P C321 IC301 UPC1688 BL302BLM21 C319 10μ Q303 2SC3583 3.3KR316 10μ C324 C326 100P #1091 L308:A L308:B C325 1n D3071SS355 KG510-40D D3031SV232 C302 82n R305 ※ 3P C309 R312100Ω Q302 2SC4325 R310470Ω C3201n Q305 2SD2351 10μ C318 1K R317 DTA124EKAQ306 R318 47Ω C322 470P R321 15Ω 3PC327 1nC323 22nH 33nH #3078 #3075 1.5P10P#1091 #1091 0.82μ 0.47μ 0.47μ L3010.47μH C30515P 4P C303 1 6 CP301 4.7K R308 1.5PC315 D310 L30722nH 2SK508 Q301 R32210K 3A-SA0010-7 BL301HM501 R320820Ω R315 4.7K KQ10080.47μL302 Q304 DTA124EKA R323100Ω C311 0.75P D309 UDZ2.0×2 D3081SS356 R314 2.2K 4.7ΩR319 12 CP302 RX VCO UNIT CIRCUIT DIAGRAM #3096#30960Ω22nH22nH0.75P120Ω4.7K0.75P4.7K※4P4P 1P4P4P GNDCKERRNC A #3096#309622nH15nH22nH120Ω1.5K9P B 1.5K 7P E 470PC104 F D113:B 10KR139 R160100K L116※ N/WLENC 10KR101 ※C114 4P C160 R161 1.5P 1.1KR166 47n C180 BPF104 #3097 BPF102 #3097 L113 0ΩL105 47nHL102 47nHR116 1PR115 120ΩR112 4.7K 1P R107R103 4.7KC124 ※C103 4PC101 4P #3093 #3095 #3093 #3095 15nH 33nH 0Ω 22nH 0Ω 22nH ※※ 0.75P 120Ω5.6K 120Ω4.7K ※※ 0.75P 5.6K 4.7K 4P 4P4P 4P D102 HVU131 #3102#310233nH22nH22nH0.75P120Ω4.7K0.75P4.7K1P4P4P D112:B 1-LOCOL ＋12VDSC.OUTBUSYRSSIDATA FLC102 BPF101BPF103 #3097#3097 L107 33nHL101L104 15nH33nH R106 120Ω 2.7K C136 No C122 10PC102 2.7K #3093#30930Ω #3095#309522nH 8.8nH0Ω 8.8nH22nH 120Ω※※ 120Ω2.7K 4P 3P C ※※ 2.7K HVU131 D101 8.8nH L101 22nH#3102#31028.8nH22nH120Ω2.7K SA DS 7P2.7K R102820Ω 1nC106 R1124.7K 10K R113 C117 470P C116 4.7n ※L105 C108 470P C107 4.7n 4.7K R103 15nHL102 C1530.1μ R1552.7K C154 ※ R115 120Ω 1nC118 47ΩR117 C119100P R106 120Ω R107 0.75P C102 2.7K L103 0.1μ 15n C150 1K R153 DA204UD112:A R154 1k C14910μ BL103BLM21 C148 10μ 39K R152 2SJ166Q108 47Ω R150 100KR149 BL104HM501 820ΩR118C1121n 56ΩR121 R110 0Ω D104 HVU131 ※ 4.7KR141 C146 10μ 10μC145 L11322nH 20PC127 XF101 48S15A D107:A1SS271 R136 3.9K R137 10K R138 10K C1435P 47KR129 Q1032SK508 10KR122 C124 1PF ※ R120 BLM21BL102 31302T1034P C135 0.15μC141 D119SML210-VT 1P C159 1PC158 R13310KR13210K 0.68μL115 4.7KR186 330ΩR165 R164560Ω 100KR188 2SK3018Q120 1nC168 3.3KR189 C1892.2n CF101 455G 455E CF102 R18410K 15n C187 C184 GRM42 1μ C183100P 470KR168 470P C172 BL101HM501 15n C186 C175 2.2n 22n C174 SQ CONT＋12VRX/SWSIMP D123RB501V R174 22K C178 1μ GRM42 10KR1721SS355 D117 75KR182 CN101 820ΩR111 C103 4P 4PC101 ※3SK177Q102 Q101 3SK177 R10410K UMC2NQ111 0.75P R116 C136 2.7K 100PC110 C109 1n R108 47Ω 0.1μL106 R148 100Ω 2SK3018Q109 J101 6P C122 C121 1n HVU131D106 ※ L1090.1μ 2SK3018Q110 Q107 2SD2351 R126 39K C132 4P D108:A1SS271 ※ C123 C125100P 150Ω R119 C142100P 100KR127 6.8KR128 100KR125 1nC128 100ΩR123 R1248.2K C166 15n 1SS355 D110 47n C137 TA75S01F IC105 C1311μ 1μHL114 12P C161 XF102A48S15B C162 22P 1μ C155 2.2nC163 C164 1n D118 UDZ2.4B C15610μ 47P C…

Text truncated - open the document above for the full version.

APPLICANT: MIDLAND RADIO CORPORATION FCC ID: MMA714050C REPORT #: T:\M\MidlandRadio_MMA\1158UT2\1158UT2TestReport.doc TABLE OF CONTENTS LIST TABLE OF CONTENTS LIST APPLICANT: MIDLAND RADIO CORPORATION FCC ID: MMA714050C TEST REPORT: PAGE 1-2....COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 3......RF POWER OUTPUT PAGE 4......MODULATION CHARACTERISTICS PAGE 5......AUDIO FREQUENCY RESPONSE PLOT PAGE 6......MODULATION LIMITING PLOT – WIDE BAND PAGE 7......MODULATION LIMITING PLOT – NARROW BAND PAGE 8......AUDIO LOW PASS FILTER PLOT PAGE 9......OCCUPIED BANDWIDTH PAGE 10.....OCCUPIED BANDWIDTH PLOT PAGE 11.....OCCUPIED BANDWIDTH PLOT – CW PAGE 12.....SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 13.....METHOD OF MEASURING SPURIOUS EMISSIONS AT ANTENNA TERM. PAGE 14.....FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 15.....METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 16.....FREQUENCY STABILITY PAGE 17-18..TRANSIENT FREQUENCY BEHAVIOR PAGE 19-20..TRANSIENT FREQUENCY RESPONSE PLOTS PAGE 21-23..LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........SKETCH OF LOCATION EXHIBIT 3.........SCHEMATICS EXHIBIT 4.........USER'S MANUAL EXHIBIT 5.........EXTERNAL PHOTOS EXHIBIT 6.........INTERNAL PHOTOS – COMPONENT EXHIBIT 7.........INTERNAL PHOTOS - COPPER EXHIBIT 8.........ALIGNMENT PROCEDURE EXHIBIT 9.........OPERATIONAL DESCRIPTION EXHIBIT 10........TEST SET-UP PHOTOGRAPHS APPLICANT: MIDLAND RADIO CORPORATION FCC ID: MMA714050C REPORT #: T:\M\MidlandRadio_MMA\1158UT2\1158UT2TestReport.doc Page 1 of 23 GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.1033(c)(1)(2)MIDLAND RADIO CORPORATION will manufacture the FCCID: MMA714050C VHF TRANSCEIVER in quantity, for use under FCC RULES PART 90. MIDLAND RADIO CORPORATION 1120 CLAY STREET NORTH KANSAS CITY, MO 64116 2.1033 (c) TECHNICAL_DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 5. 2.1033(c) (4) Type of Emission: 14K2F3E 90.209 Bn = 2M + 2DK M = 3000 D = 4100 Bn = 2(3000)+2(4100) = 14.2k 2.1033(c) (4) Type of Emission: 10K0F3E 90.209 Bn = 2M + 2DK M = 3000 D = 2000 Bn = 2(3000)+2(2000) = 10.0k 2.1033(c)(5) Frequency Range: 465-500 MHz 90.209 2.1033(c)(6)(7) Operating power is fixed at the factory at 70 watts and 90.205 cannot be adjusted. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: POWER INPUT: FINAL AMPLIFIER ONLY Vce = 13.7 Volts IC = 13.0 A 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included in Exhibit 8. APPLICANT: MIDLAND RADIO CORPORATION FCC ID: MMA714050C REPORT #: T:\M\MidlandRadio_MMA\1158UT2\1158UT2TestReport.doc Page 2 of 23 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 4. The block diagram is included as EXHIBIT 3. 2.1033(c)(11) A photograph or a drawing of the equipment identifica tion label is included as Exhibit #1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields - See EXHIBIT 6-7. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. APPLICANT: MIDLAND RADIO CORPORATION FCC ID: MMA714050C REPORT #: T:\M\MidlandRadio_MMA\1158UT2\1158UT2TestReport.doc Page 3 of 23 2.1046(a) RF power output. 90.205 RF power is measured by connecting a 50 ohm, Resistive wattmeter to the RF output connector. With a nominal battery voltage of 13.6 VDC, and the Transmitter properly adjusted, the RF output measures: INPUT POWER: (13.7V)(13.0A) = 178.10 Watts OUTPUT POWER: 70 Watts METHOD OF MEASURING RF POWER OUTPUT TRANSMITTER RESISTIVE LOAD POWER METER APPLICANT: MIDLAND RADIO CORPORATION FCC ID: MMA714050C REPORT #: T:\M\MidlandRadio_MMA\1158UT2\1158UT2TestReport.doc Page 4 of 23 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on page 5. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are shown in pages 6-7. Curves are provided for audio input frequen cies of 300, 1000, and 2500 Hz. Post Limiter Filter The filter must be between the modulation limiter and the modulated stage. At any frequency between 3 & 20 kHz the filter must have an attenuation of 60log (f/3) greater that the attenuation at 1KHz. See the plot; page 8. APPLICANT: MIDLAND RADIO CORPORATION FCC ID: MMA714050C REPORT #: T:\M\MidlandRadio_MMA\1158UT2\1158UT2TestReport.doc Page 5 of 23 AUDIO RESPONSE GRAPH APPLICANT: MIDLAND RADIO CORPORATION FCC ID: MMA714050C REPORT #: T:\M\MidlandRadio_MMA\1158UT2\1158UT2TestReport.doc Page 6 of 23 MODULATION LIMITING GRAPH – WIDE BAND APPLICANT: MIDLAND RADIO CORPORATION FCC ID: MMA714050C REPORT #: T:\M\MidlandRadio_MMA\1158UT2\1158UT2TestReport.doc Page 7 of 23 MODULATION LIMITING – NARROW BAND APPLICANT: MIDLAND RADIO CORPORATION FCC ID: MMA714050C REPORT #: T:\M\MidlandRadio_MMA\1158UT2\1158UT2TestReport.doc Page 8 of 23 AUDIO LOW PASS FILTER PLOT APPLICANT: MIDLAND RADIO CORPORATION FCC ID: MMA714050C REPORT #: T:\M\MidlandRadio_MMA\1158UT2\1158UT2TestReport.doc Page 9 of 23 2.1049(c) EMISSION BANDWIDTH: 90.210(b) Data in the plots shows that the sidebands from greater than 50% to 100% of the authorized bandwidth must be attenuated by at least 25 dB and from 100 to 250% the sidebands must be attenuated by at least 35 dB. Beyond 250% the sidebands must be attenuated by at least 43+log10(TP). The transmitter was modulated with 2500 Hz, adjusted for 50% modulation plus 16 dB. The spectrum ana…
