MMA80150Multi-bandwidth VHF transceiver

Midland Radio Corporation
Multi-bandwidth VHF transceiver - FCC ID MMA80150 - Midland Radio Corporation
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Apr 03, 2000
Application Purpose
Original Equipment
Date of Application
Mar 05, 2000
Equipment Note
Multi-bandwidth VHF transceiver
Frequency Range
148.00000000 - 174.00000000
Company
Midland Radio Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

Parts List/Tune Up Info

Test Report

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

HP105/HP405 User manual Page.1 HP105/HP405 VHF/UHF Handheld Transceiver User’s Manual Copyright  1999 by CTE International Italy; all rights reserved. HP105/HP405 User manual Page.2 In this book... User’s Manual..............................................................................................................................................1 IN THIS BOOK... ................................................................................................................................................... 2 I NTRODUCTION ...................................................................................................................................................... 3 W ARNING NOTES ................................................................................................................................................... 3 S AFETY .................................................................................................................................................................. 3 C ONVENTIONS AND S YMBO LS IN THIS B OOK ......................................................................................................... 5 PART NAMES AND THEIR FUNCTIONS.......................................................................................................... 6 T OP ........................................................................................................................................................................ 6 F RONT ................................................................................................................................................................... 6 S IDE ( LEFT AND RIGHT )........................................................................................................................................... 7 SETUP...................................................................................................................................................................... 8 U NPACKING ........................................................................................................................................................... 8 F ITTIN G / REMO VIN G THE AN TEN N A ......................................................................................................................... 9 I N STALLIN G / REMO VIN G THE BATTERY PACK ........................................................................................................... 9 I N STALLIN G / REMO VIN G THE BELT CLIP ................................................................................................................. 10 C HARGIN G THE BATTERY PACK ............................................................................................................................. 10 BASIC OPERATIONS ......................................................................................................................................... 11 S WITCHIN G THE RADIO ON/OFF ..........................................................................................................................11 A DJUSTING VOLUME ............................................................................................................................................. 11 C HAN N EL SELECTIO N ........................................................................................................................................... 11 R ECEPTIO N .......................................................................................................................................................... 11 M ONITOR ............................................................................................................................................................. 12 T RANSMISSION .................................................................................................................................................... 12 T RANSMISSION P OWER ........................................................................................................................................ 13 S CANNING CHANNELS .......................................................................................................................................... 13 ADVANCED OPERATIONS...............................................................................................................................13 H ANDSFREE TRANSMISSION (VOX) ..................................................................................................................... 14 CARE AND MAINTENANCE............................................................................................................................. 15 B ATTERY P ACKS .................................................................................................................................................. 15 Information on rechargeable batteries.......................................................................................................... 15 Properly charge of battery packs................................................................................................................... 15 Memory effect................................................................................................................................................. 15 Erasing memory effect.................................................................................................................................... 16 Warnings for battery and chargers use ......................................................................................................... 16 R ADIO MAINTENANCE .......................................................................................................................................... 17 Cleaning battery packs................................................................................................................................... 17 Cleaning the radio.............…

Text truncated - open the document above for the full version.

External Photos

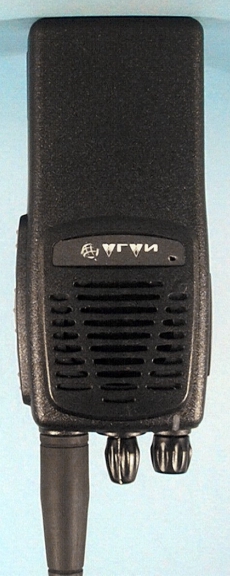

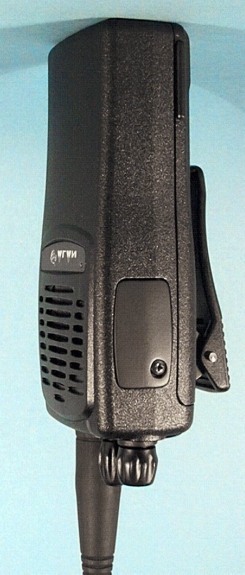

Front View Front View w/Antenna Back View Left Side View Right Side View Top View

ID Label/Location Info

MODEL NO. 80-150 VH F- F M TRANSCEIVER OPERATING VOLTAGE 7.2 VDC. FCC ID: MMA80150 M ADE IN CHINA

Test Report

ENGINEERING STATEMENT For Type Certification of MIDLAND CONSUMER RADIO Model No: HP-105 FCC ID: MMA80150 I am an Electronics Engineer, a principal in the firm of Hyak Laboratories, Inc., Springfield, Virginia. My education and experience are a matter of record with the Federal Communications Commission. Hyak Laboratories, Inc. has been authorized by Midland Consumer Radio to make type certification measurements on the HP- 105 transceiver. These tests made by me or under my supervision in our Springfield laboratory. Test data and documentation required by the FCC for Type Certification are included in this report. The data verifies that the above mentioned transceiver meets FCC requirements and Type Certification is requested. ______________________________ Rowland S. Johnson Dated: February 29, 2000 A. INTRODUCTION The following data are submitted in connection with this request for Type Certification of the HP-105 transceiver in accordance with Part 2, Subpart J of the FCC Rules. The HP-105 is a multi-bandwidth, VHF, frequency modulated transceiver intended for hand-held, portable applications in the 148 - 174 MHz band. It operates from a 7.5-volt battery pack. Output power rating is 1-5 watts. Both 25 kHz and 12.5 kHz channel operation is provided. B. GENERAL INFORMATION REQUIRED FOR TYPE CERTIFICATION (Paragraph 2.983 of the Rules) 1. Name of applicant: MIDLAND CONSUMER RADIO 2. Identification of equipment: MMA80150 a. The equipment identification label is submitted as a separate exhibit. b. Photographs of the equipment are submitted as a separate exhibit. 3. Quantity production is planned. 4. Technical description: a. 16k0F3E; 11k0F3E emission b. Frequency range: 148-174 MHz. c. Operating power of transmitter is fixed at the factory at 5 watts and can be reduced to 1 watt. d. Maximum power permitted under Part 90 of the FCC is 350 watts, and the HP-105 fully complied with those power limitations. e. The dc voltage and dc currents at final amplifier: Collector voltage: 7.4 Vdc Collector current: 1.1 A f. Function of each active semiconductor device: See Appendix 1. g. Complete circuit diagram is submitted as a separate exhibit. h. A draft instruction book is submitted as a separate exhibit. i. The transmitter tune-up procedure is filed as a separate exhibit. j. A description of circuits for stabilizing frequency is included as Appendix 2. k. A description of circuits and devices employed for suppression of spurious radiation and for limiting modulation is included as Appendix 3. l. Not applicable. B. GENERAL INFORMATION...(Continued) 5. Data for 2.985 through 2.997 follow this section. C. RF POWER OUTPUT (Paragraph 2.985(a) of the Rules) RF power output was measured with a Bird 4421 RF power meter and a Narda 765-20 attenuator as a 50 ohm dummy load. Maximum power measured was 5.0 watts; and with internal adjustments minimum power was 1.0 watts. (The transmitter was tuned by the factory.) D. MODULATION CHARACTERISTICS 1. A curve showing frequency response of the transmitter is shown in Figure 1. Reference level was audio signal output from a Boonton 8220 modulation meter with one kHz deviation. Audio output was measured with a Audio Precision System One TRMS voltmeter and tracking generator. 2. Modulation limiting curves are shown in Figures 2a And 2b for wide or narrow channel operation respectively, using a Boonton 8220 modulation meter. Signal level was established with a Audio Precision System One TRMS voltmeter. The curves show compliance with paragraphs 2.987(b), and 90.211(c). 3. Figure 3 is a graph of the post-limiter low pass filter which meets the requirements of paragraph 90.211(d)(1) in providing a roll-off of 60Logf/3 dB where f is audio frequency in kHz. Measurements were made following EIA RS-152B with an Audio Precision System One selective voltmeter on the Boonton 8220 modulation meter audio output. 3 4. Occupied_Bandwidth (Paragraphs 2.989(c), 90.209(b)(4) and 90.210(d) of the Rules) Figures 4a, 4b, 4c and 4d are plots of the sideband envelope of the transmitter for both 5.0 and 1.0 watt output taken with a Advantest R3361A spectrum analyzer. Modulation corresponded to conditions of 2.989(c)(1) and consisted of 2500 Hz tone at an input level 16 dB greater than that necessary to produce 50% modulation at 2909 Hz, the frequency of maximum response. Measured modulation under these conditions was 3.3 kHz, or 1.6 kHz for 25 or 12.5 kHz channelization respectively. For the 12.5 kHz channelization, RBW was 100 Hz, VBW 100 Hz, max hold, multiple scan per 90.210(d)(4). All plots have unmodulated carrier as 0 dBm reference. Emission designators: (2D + 2F) 25 kHz 2x5 + 2x3 = 16k0F3E 12.5 kHz 2x2.5 + 2x3 = 11k0F3E D = rated system deviation, kHz. F = maximum audio frequency, kHz. 4 FIGURE 1 MODULATION FREQUENCY RESPONSE MODULATION FREQUENCY RESPONSE FCC ID: MMA80150 FIGURE 1 5 FIGURE 2a AUDIO LIMITER CHARACTERISTICS AUDIO LIMITER CHARACTERISTICS FCC ID: MMA80150 FIGURE 2a Wideband (5 kHz) 6 FIGURE 2b AUDIO LIMITER CHARACTERISTICS AUDIO LIMITER CHARACTERISTICS FCC ID: MMA80150 FIGURE 2b Narrow band (2.5kHz) 7 FIGURE 3 AUDIO LOW PASS FILTER RESPONSE AUDIO LOW PASS FILTER RESPONSE FCC ID: MMA80150 FIGURE 3 8 FIGURE 4a OCCUPIED BANDWIDTH ATTENUATION IN dB BELOW MEAN OUTPUT POWER Required On any frequency more than 50% up to and including 100% of the 25 authorized bandwidth, 20 kHz (10-20 kHz) On any frequency more than 100%, up to and including 250% of the 35 authorized bandwidth (20-50 kHz) On any frequency removed from the assigned frequency by more 43+10LogP = 50 than 250% of the authorized (P = 5.0 W) bandwidth (over 50 kHz) OCCUPIED BANDWIDTH (5.0W) FCC ID: MMA80150 FIGURE 4a (5 kHz) 9 FIGURE 4b OCCUPIED BANDWIDTH ATTENUATION IN dB BELOW MEAN OUTPUT POWER Required On any frequency more than 50% up to and including 100% of the 25 authorized bandwidth, 20 kHz (10-20 kHz) On any frequency more than 100%, up to and including 250% of the 35 authorized bandwidth (20-50 kHz) On any fr…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Butch Rittmann(Director of Operations)
[email protected]816 241-8500Fax: 816 241-5713

Technical Contact

Hyak LaboratoriesRowland S Johnson
[email protected](703) 451-1188

7011 Calamo Street · Springfield, Virginia · United States

Non-Technical Contact

Hyak LaboratoriesGeorgia Hall
[email protected](703) 451-1188

Test Firm

Hyak Laboratories, Inc.Rowland Johnson
703-451-1188

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
290.21148 MHz - 174 MHz5 W11k0F3E0.00025 %
