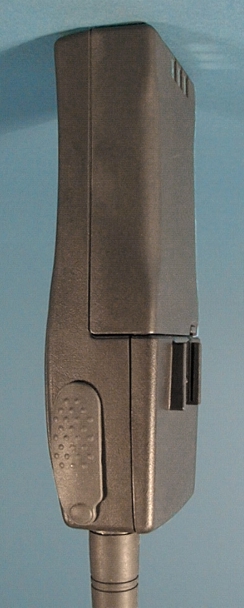

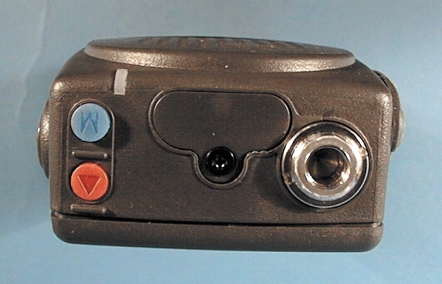

MMAALHP425Handheld UHF Transceiver

HP125 User manual Page. 1 HP125 VHF Handheld PMR Transceiver User’s Manual Copyright  1998 by CTE International Italy; all rights reserved. HP125 User manual Page. 2 In this book... User’s Manual..............................................................................................................................................1 IN THIS BOOK... ................................................................................................................................................... 2 I NTRODUCTION ...................................................................................................................................................... 4 W ARNING NOTES ................................................................................................................................................... 4 S AFETY .................................................................................................................................................................. 4 C ONVENTIONS AND S YMBO LS IN THIS B OOK ......................................................................................................... 6 PART NAMES AND THEIR FUNCTIONS.......................................................................................................... 7 T OP ........................................................................................................................................................................ 7 F RONT ................................................................................................................................................................... 7 S IDE ( LEFT AND RIGHT )........................................................................................................................................... 8 D ISPLAY ................................................................................................................................................................. 8 SETUP.................................................................................................................................................................... 10 U NPACKING ......................................................................................................................................................... 10 F ITTIN G / REMO VIN G THE AN TEN N A ....................................................................................................................... 11 I N STALLIN G / REMO VIN G THE BATTERY PACK ......................................................................................................... 11 I N STALLIN G / REMO VIN G THE BELT CLIP ................................................................................................................. 11 C HARGING THE B ATTERY ...................................................................................................................................... 12 BASIC OPERATIONS ......................................................................................................................................... 13 S WITCHIN G THE RADIO ON/OFF ..........................................................................................................................13 R ECEPTIO N .......................................................................................................................................................... 13 A DJUSTING VOLUME ............................................................................................................................................. 14 C HAN N EL SELECTIO N ........................................................................................................................................... 14 A DJUSTING SQUELCH ........................................................................................................................................... 14 T RANSMISSION .................................................................................................................................................... 15 A DJUSTING T RANSMIT P OWER ............................................................................................................................. 16 S CANNING CHANNELS .......................................................................................................................................... 16 R ADIO LOCK ........................................................................................................................................................ 17 SELCALL AND CTCSS/DCS OPERATION..................................................................................................... 18 R ECEPTIO N .......................................................................................................................................................... 18 T RANSMISSION .................................................................................................................................................... 18 Sending a Selcall ............................................................................................................................................ 18 Stored call (Address book)...............................................................................................................................18 Who-has-called (Call Queue) ...........................................................................................................................19 M ANUAL CALL ..................................................................................................................................................... 20 One touch call ................................................................................................................................................20 ADVANCED OPERATIONS............................................................................................................................…

Text truncated - open the document above for the full version.

HP125 User manual Page. 1 HP125 VHF /HP425 UHF Handheld PMR Transceiver User’s Manual Copyright  1998 by CTE International Italy; all rights reserved. HP125 User manual Page. 2 In this book... I NTRODUCTION ...................................................................................................................................................... 4 M ANUAL ACCURACY NOTES ................................................................................................................................... 4 C ONVENTIONS AND S YMBO LS IN THIS B OOK ......................................................................................................... 4 SAFETY TRAINING INFORMATION................................................................................................................. 4 A DDITIO N AL SAFETY IN FO RMATIO N ....................................................................................................................... 5 NOTE TO USERS OF HP425 TRANSCEIVER:................................................................................................6 WARNING ......................................................................................................................................................6 PART NAMES AND THEIR FUNCTIONS.......................................................................................................... 7 T OP ........................................................................................................................................................................ 7 F RONT ................................................................................................................................................................... 7 S IDE ( LEFT AND RIGHT )........................................................................................................................................... 8 D ISPLAY ................................................................................................................................................................. 8 SETUP.................................................................................................................................................................... 10 U NPACKING ......................................................................................................................................................... 10 F ITTIN G / REMO VIN G THE AN TEN N A ....................................................................................................................... 11 I N STALLIN G / REMO VIN G THE BATTERY PACK ......................................................................................................... 11 I N STALLIN G / REMO VIN G THE BELT CLIP ................................................................................................................. 11 C HARGING THE B ATTERY ...................................................................................................................................... 12 BASIC OPERATIONS ......................................................................................................................................... 13 S WITCHIN G THE RADIO ON/OFF ..........................................................................................................................13 R ECEPTIO N .......................................................................................................................................................... 13 A DJUSTING VOLUME ............................................................................................................................................. 14 C HAN N EL SELECTIO N ........................................................................................................................................... 14 A DJUSTING SQUELCH ........................................................................................................................................... 14 T RANSMISSION .................................................................................................................................................... 15 A DJUSTING T RANSMIT P OWER ............................................................................................................................. 16 S CANNING CHANNELS .......................................................................................................................................... 16 R ADIO LOCK ........................................................................................................................................................ 17 SELCALL AND CTCSS/DCS OPERATION..................................................................................................... 18 R ECEPTIO N .......................................................................................................................................................... 18 T RANSMISSION .................................................................................................................................................... 18 Sending a Selcall ............................................................................................................................................ 18 Stored call (Address book)...............................................................................................................................18 Who-has-called (Call Queue) ...........................................................................................................................19 M ANUAL CALL ..................................................................................................................................................... 20 One touch call ................................................................................................................................................20 ADVANCED OPERATIONS.......................…

Text truncated - open the document above for the full version.

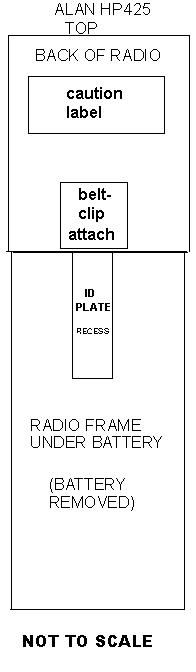

Device must be restricted to occupational use to satisfy FCC RF exposure compliance. See owner’s manual for specific operating requirements.

ALAN HP-425/-425K SPECIFICATION.  1 ALAN HP-425/-425K SERVICE MANUAL INDEX • INDEX1 • SPECIFICATION2 • TEST METHODS2 • GENERAL2 • TRANSMITTER2 • RECEIVER3 • AF & signalling3 • Mechanical Specs3 • ALIGNMENT & REPAIR4 • ALIGNMENT4 • CIRCUIT DESCRIPTION5 • CONTROL PCB12 ALAN HP-425/-425K SPECIFICATION.  2  SPECIFICATION TEST METHODS • ETS 300-086 • ETS 300-113 • IEC 529 IP54 • MIL STD 810 C/D/E GENERAL • Frequency Bands ............................. UHF 440÷470 MHz • Number of Channels ......................... 280 • Frequency Control ............................ Synthetiser • Modulation System .......................... F3E / G3E • Channel spacing ............................... 12,5 / 20 / 25KHz • Temperature Range operative .......... -25 / +55 °C, • Temperature Range storage ............. -40 / +80 °C • Humidity ........................................... 90% not condensing @ -15 / +55°C • Power Supply ................................... 7.2 Vdc (battery NiMH 1200mA/h) • RF Impedance .................................. 50Ω • Antenna socket ................................ MX type • Frequency Stability .......................... better than ±2.5ppm TRANSMITTER • RF Output Power .............................. 5W programm. (programmable Hi/Low channel .......................................................... dependent) • Modulation System ......................... FM (F3E) / PM (G3E) • Maximum Deviation ..........................±2.5 KHz 12.5KHz, ±4 KHz 20KHz, ..........................................................±5 KHz 25KHz • Adjacent Channel Power .................. < -60dB • Spurious Emissions ......................... < 0.25μW 9KHz÷1GHz, <1μW 1÷4GHz • Switching Bandwidth ....................... full band • Tx attack time .................................. max 25ms • Tx release time .................................. max 20ms ALAN HP-425/-425K SPECIFICATION.  3 RECEIVER • Circuit Type ...................................... Double Conversion • Intermediate Frequencies ................. I 45 MHz, II 455 KHz • Sensitivity ......................................... < 0.25μV @ 12 dB SINAD • Distortion .......................................... < 3% • Co-channel Rejection ....................... < -6dB 12.5KHz, < -4dB 25/20KHz • Adjacent Channel Selectivity ........... > 60dB 12.5KHz, 70dB 25/20KHz • Spurious Response Rejection ......... > 70dB • Intermodulation Resp. Rejection ..... > 65dB • Blocking ............................................ > 85dB • Switching Bandwidth ....................... full band • Rx opening delay ............................. max 15ms • Carrier sense delay .......................... max 10ms • Squelch threshold ............................ 0.18μV • Squelch histeresis ............................ < 2dB AF & signalling • audio power ...................................... > 500mW • CTCSS decode sensitivity ................ < 6dB Sinad • CTCSS decode selectivity ................ accept tones ±0,5% • Selcall decode sensibility ................ > 99% @ 12 dB sinad > 97% @ 10 dB sinad • Selcall decode selectivity ................. accept tones ±1,5% reject tones ±3% Mechanical Specs • Dimensions .......................................148 x 36 x 60 mm (with battery pack) • Weight ...............................................385 gr (with battery pack) • display .............................................. 2 x 12 char alphanumeric & backlighted • keyboard ........................................... 12 + 3 function keys + UP/DOWN/MENU keys and Emergency Call button • battery ............................................... Back slide battery • accessory connector Hirose 10 pins connector and mono Jack • radio and key paint ........................... grease resistant • shock resistant ................................. follow MIL STD 810 • water & dust ...................................... IEC529 IP54 ALAN HP-425/-425K ALIGNMENT & REPAIR. • 4 ALIGNMENT & REPAIR ALIGNMENT ALAN HP-425/-425K is full bandwidth radio: adjustments are not necessary. A factory adjustment assures that: • RF power output is stable for the full bandwidth; • Main modulation is equalized for the full bandwidth with or without CTCSS; • CTCSS modulation is equalized for the full frequency bandwidth and for the full subtones frequency range. User can readjust RF power output and modulation according to his specific needs. For Power output and Main/CTCSS modulation adjustment, pls refer to the programming manual. ALAN HP-425/-425K CIRCUIT DESCRIPTION. • 5 CIRCUIT DESCRIPTION This series of radios are comprised of an RF PCB and a Control PCB. The RF PCB contains the Frequency Synthetiser, Transmitter and First IF Receiver circuits. The Control PCB contains the Second IF Receiver circuits, microcontroller, audio processor and associated digital circuits. UHF RF PCB - FREQUENCY SYNTHETISER With data received from the Eeprom IC119 (24LC66ISM) via a dedicated Bus the frequency synthetiser circuit controls and produces the RF carrier frequency for the transmitter during transmit and the local oscillator frequency for the receiver. The frequency synthetiser circuit is comprised of: • Voltage Controlled Oscillator (VCO) module • Charge Pump and Loop Filter • PLL Frequency Synthetiser Voltage Controlled Oscillator (VCO) module The module contains two VCOs. One for producing carrier frequencies during transmit (TX VCO) and one for producing the local oscillator frequency during receive (RX VCO). The module also has RX and TX powerline filters. RX and TX powerline filters Transistor Q5 is configurated as a 5V power supply ripple filter. The filter reduces the noise on the carrier and local oscillator signals. ALAN HP-425/-425K CIRCUIT DESCRIPTION. • 6 RX VCO The RX VCO comprises transistors Q10, coil L15 and varactors D10 and D11. It is configured as a Colpitts oscillator. Its complexity comes from the balance between wide band and low noise needs. The resonant circuit produces a different frequency with a…

Text truncated - open the document above for the full version.

ALIGNMENT ALAN HP-425/-425K is full bandwidth radio: adjustments are not necessary. A factory adjustment assures that: • RF power output is stable for the full bandwidth; • Main modulation is equalized for the full bandwidth with or without CTCSS; • CTCSS mod ulation is equalized for the full freque nc y ba ndw idth a nd for the full sub to nes freq ue ncy ra nge. User can readjust RF power output and modulation according to his specific needs. For Power output and Main/CTCSS modulation adjustment, pls refer to the programming manual.

Mr. Steve Dayhoff Re: FCC ID: MMAALHP425; EA100039 Correspondence Reference Number: 18793 Per referenced inquiry: 1. The type and number of antenna(s) to be used for this device: One antenna, rubber covered flexible, 7-1/4 inches long. 2. Maximum antenna gain for antenna(s): Omnidirectional Gain is – 2 dB. 3. Can this device sustain continuous operation with respect to its hardware capabilities and allowable operation functions: NO 4. Are there any other hardware or operating restrictions that could limit a person’s RF exposure: Internal timer can restrict transmitting time. Time value is programmable from 10 to 180 seconds. 5. Is source-based time averaging applicable to reduce the average output power: NO 6. If this device has headset and beltclip accessories that would allow body-worn operations, what is the minimum separation distance between the antenna and the user’s body in this configuration: 1.25 inches. 7. Can specific operating instructions be given to users to eliminate any potential RF exposure concerns for both front of the face and body worn operating configurations: Yes, see user instructions, page 5. 8. Can this device access wire-line services to make phone calls, either directly or through an operator: NO 9. Other information to be used for ensuring RF exposure compliance: NO

CELLTECH RESEARCH INC. Test Report S/N: 080101-141MMA 1955 Moss Court, Kelowna Date(s) of Tests: August 15, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless portable device has been shown to be compliant for localized Specific Absorption Rate (SAR) for controlled environment / occupational exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information: MIDLAND CONSUMER RADIO 1670 N. Topping Kansas City, MO 64120 FCC ID: MMAALHP425 Trade / Model(s): ALAN HP425, HP425K EUT Type: Portable UHF PTT Radio Transceiver Modulation: FM Tx Frequency Range: 440 - 470 MHz Conducted Power Tested: 4.80 W (440.10MHz) 5.15 W (455.10MHz) 5.05 W (469.95MHz) FCC Rule Part(s): 2.1093; ET Docket 96-326 IC Rule Part(s): RSS-102 Issue 1 CELLTECH RESEARCH INC. Test Report S/N: 080101-141MMA 1955 Moss Court, Kelowna Date(s) of Tests: August 15, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 MEASUREMENT SUMMARY.................................................. 3-4 5.0 DETAILS OF SAR EVALUATION............................................ 5 6.0 EVALUATION PROCEDURES................................................. 5 7.0 SIMULATED EQUIVALENT TISSUES...................................... 6 8.0 TISSUE PARAMETERS......................................................... 6 9.0 SAR LIMITS........................................................................ 7 10.0 SYSTEM VALIDATION.......................................................... 7 11.0 SYSTEM SPECIFICATIONS.................................................... 8 12.0 PROBE SPECIFICATION....................................................... 9 13.0 GENERIC TWIN PHANTOM................................................... 9 14.0 DEVICE HOLDER................................................................. 9 15.0 TEST EQUIPMENT LIST........................................................ 10 16.0 MEASUREMENT UNCERTAINTIES........................................ 11 17.0 REFERENCES...................................................................... 12 APPENDIX A - SAR MEASUREMENT DATA........................................ 13 APPENDIX B - DIPOLE VALIDATION................................................ 14 APPENDIX C - PROBE CALIBRATION............................................... 15 APPENDIX D - SAR TEST SETUP PHOTOGRAPHS............................... 16 CELLTECH RESEARCH INC. Test Report S/N: 080101-141MMA 1955 Moss Court, Kelowna Date(s) of Tests: August 15, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. MIDLAND CONSUMER RADIO FCC ID: MMAALHP425 1 Portable UHF PTT Radio Transceiver (440-470MHz) 1.0 INTRODUCTION This measurement report shows compliance of the MIDLAND CONSUMER RADIO Model: ALAN HP425, HP425K Portable UHF PTT Radio Transceiver FCC ID: MMAALHP425 with the regulations and procedures specified in FCC Part 2.1093, ET Docket 96-326 Rules (controlled exposure), and RSS-102 Issue 1 of Industry Canada for mobile and portable devices. The test procedures, as described in American National Standards Institute C95.1-1992 (1), FCC OET Bulletin 65, Supplement C (Edition 01-01) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) Rule Part(s) FCC 2.1093; ET Docket 96.326 IC RSS-102 Issue 1 Modulation FM EUT Type Portable UHF PTT Radio Transceiver Tx Frequency Range (MHz) 440 - 470 FCC ID MMAALHP425 Conducted Power Tested 4.80 W (440.10MHz) 5.15 W (455.10MHz) 5.05 W (469.95MHz) Model No.(s) ALAN HP425, HP425K Antenna Type Whip Serial No. Pre-production Power Supply 1200mAh Ni-MH Battery Pack Front of EUT Back of EUT Left Side of EUT Right Side of EUT EUT with Speaker/Mic CELLTECH RESEARCH INC. Test Report S/N: 080101-141MMA 1955 Moss Court, Kelowna Date(s) of Tests: August 15, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. MIDLAND CONSUMER RADIO FCC ID: MMAALHP425 2 Portable UHF PTT Radio Transceiver (440-470MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The …

Text truncated - open the document above for the full version.

AA BB CC DD EE 4 4 3 3 2 2 1 1 CPU/HC3644 DTMF/FFSK GENSELL-CALL GEN DCS/CTCSS GEN FX828LIMT FILTER Q116/2SC4116 NOISE FILTER 12.5KHz 25KHz QUADDETECTOR RSSI DET NOISE DET 14 12 10,11 PTT DETQ106DTA123YE VOX DET CTCSS/DCSVCOBalance Adj CTCSS/DCSTCXOBalanceAdj FX828 and FX829Signalling Path C-BUSINTERFACEAND CONTROL LOGIC LCD DRIVERHD66727 COM andSEGPORT UP DOWN Q103DTA123YEEMERGENCYSWITCH CN102EXTERNAL SPTXD AND RXDDEVICE DET LED101-106SML310 Q114,Q1152SB1132QBACKLIGHTDRIVER ANDSWITCH LCDBACKLIGHTLED301-306CL220YG CN103 SOCKET FORFLASH PROGRAMMERSCRAMBLE OPTION MD,FSH,RESETTXD,RXD AUDIO IN AUDIO OUT RESET CKTIC101S-80740SN REGULATORCPU-VDDIC104S81250SGUP CPU-VCC-SW REGULATORSYSTEMVCCIC106TK11250BM S5V,R5V,T5VSWITCH CKTQ110,Q111,Q112RT1P434M R5,T5 S5V,R5V,T5V EMERGENCY CALL EEPROM IC11924LC66ISM DATA-3,CLK DTMF DECODERIC115LC7385 DATA-0-3,CLK DTMF ENBLEDTMF INTERRUPT AUDIO POWER AMP IC103 TA7368F MUTE MUTE CONTROL CHARGE PUMPQ809/Q611 2SA1586Q810/Q612 2SC4116 PLL SYNTHEZIERIC601LMX1511 DC TO DC REGULATOR IC118 TK11806 D603/D6041SV229 TX-VCOQ6012SC4226 D6081SV229 RX-VCO Q6022SC4226 LOCAL BUFFERQ6063SK199 OSC POWER SWITCHQ603,2SA1586GRQ605,2SC4116GR R5 R5 CONTROL SW POWER IN POWER IN FIN S5V REGULATORQ6052SC4116GR S5V REGULATED DOUBLE BALANCEIC501LREMS-1L CRYSTAL FILTER 45MHz CF501/CF50245R15B1 IF AMPLIFIERQ5032SC4215 BPF Q5012SC5085 TX YUNGER AMPQ4052SC4226 TX PRE-AMPQ4042SC3356 BIAS SWITCHQ4032SC4116GR TX5V REGULATORCONTROLLED BY T5VIC402 TK11250 TCXO 12.8MHzX601GFS496 MOD_TCXOFORCTCSS/DCSBANLANCE OSC RF_PWR_EN,CH_SP CHANNEL_SPACE CHANNEL_SPACE UNLOCK SW OFF BIASQ607,RT1N441MQ608,2SA1586GRD607,MC2848 AUTO POWER LEVELCONTROL CIRCUITIC403LM358 SWITCH OFF RFOUTPUT POWERQ401,RT1P434MQ406,RT1N441M RF_PWR_EN PWM CONTROL VOLTAGE (APC) RF POWER MODULEIC401PF 0350 PWR CONTROL VOLTAGE POWER DETD6031SS315 BPF ANTANNA SWITCHD401-RLS135D402-RLS135 LOW PASS FILTER ANALOG LEVEL DET PLL-DATAPLL-CLKPLL-STB UNLOCK UNLOCK TX_5V LOGICPCB LCD PCB RF PCB CHANNEL_SPACE MOD SIGNAL PATH FX829 AUDIO FX829 GENFX828 GEN 23 19 2021 23 18 17 16 17 15 13 14 14 15 D110,D111DAN235U IC116TC4S66 AVCC INPUT AVCC REGULATORIC120S81230GUP EMERGENCY ENBALE PLL-DAT,CLK,STB 2000/11/7 D606DAN235U FORNTEND D601/D6021SV229 VCO BUFFERQ5022SK508 RL-425 SYSTEM BLOCK DIAGRAM 3.5 RL-425 SYSTEM BLOCK DIAGRAM REXON 力山科技股份有限公司 力山科技股份有限公司 力山科技股份有限公司 力山科技股份有限公司 11 TitleSize Document Number Rev Date: Sheet of SQU COMMAND DATAREPLAY DATACSNIRQNSERIAL CLOCK C-BUS PTT-DET VOX-DET S7 S50 C1 S30 S27 S24 S44 S29 S25 S46 S9 S8 C4 S4 S47 S10 C7 S22 S45 S43 S42 S26 S23 C6 S49 S48 S41 S6 S3 S28 S2 S21 S5 S1 C2 C3 C5 C8 CS1 C14 S54 S33 S12 S14 S60 S32 S16 S53 S58 S15 S57 CS2 C13 S59 S51 S18 C16 S35 S55 C11 C12 S11 S56 S13 C9 S37 S20 S31 S38 S36 S34 S19 C15 C10 S39 S52 S40 S17 KSTB1 KIN2 KIN0 KIN1 KSTB4KSTB0KSTB2KSTB3 KSTB3KSTB2KSTB1 KIN3 AF-SW TX LED SQU RSSI RSSI RX LED B+ B+ B+ VCC VPP VCC +B VPP T5V +B VCC 6dB FX828/MOD2 . . 1 1 44.545MHz +- FX829/AMP1 U? SW 1 1 +- +- FX829/AMP1 +- FX828/RXAMP +- IC121/TA75S558F +- FX828/MOD2 +- FX829/AMP1 + - MK101 SKF-2746P 12 FL102 CFWM455E FL101 CFWM455H C203 68P D105 F01J2E +-IC107/TA75S558F+-IC107/TA75S558F FX829/MOD1 .. C209 68P P114 PORT 12 P115 PORT 12 P116 12 LCD301 DISPLAY 40 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 NC CS1 C8 C7 C6 C5 C4 C3 C2 C1 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S41 S42 S43 S44 S45 S46 S47 S48 S49 S50 CS2 NC S60 S59 S58 S57 S56 S55 S54 S53 S52 S51 S40 S39 S38 S37 S36 S35 S34 S33 S32 S31 S20 S19 S18 S17 S16 S15 S14 S13 S12 S11 C16 C15 C14 C13 C12 C11 C10 C9 SP101036S23 FX829/VOLUME/23 .. AA Q102,Q1052SK1588AUDIO SP SWITCH P113 KIN3 12 X102 4.9152M 1 2 LED101SML310 LED101SML310 12 3 + - D405 UDZS5.6B PTT CALL-1 CON601CN 123 123 MX ANT 2 MONI EMERGENCY CALL-2 8 6 5 3 4 # 0 9 K301 *17 HPF HPF POWER-ON K302 MENU K303 C…

Text truncated - open the document above for the full version.
