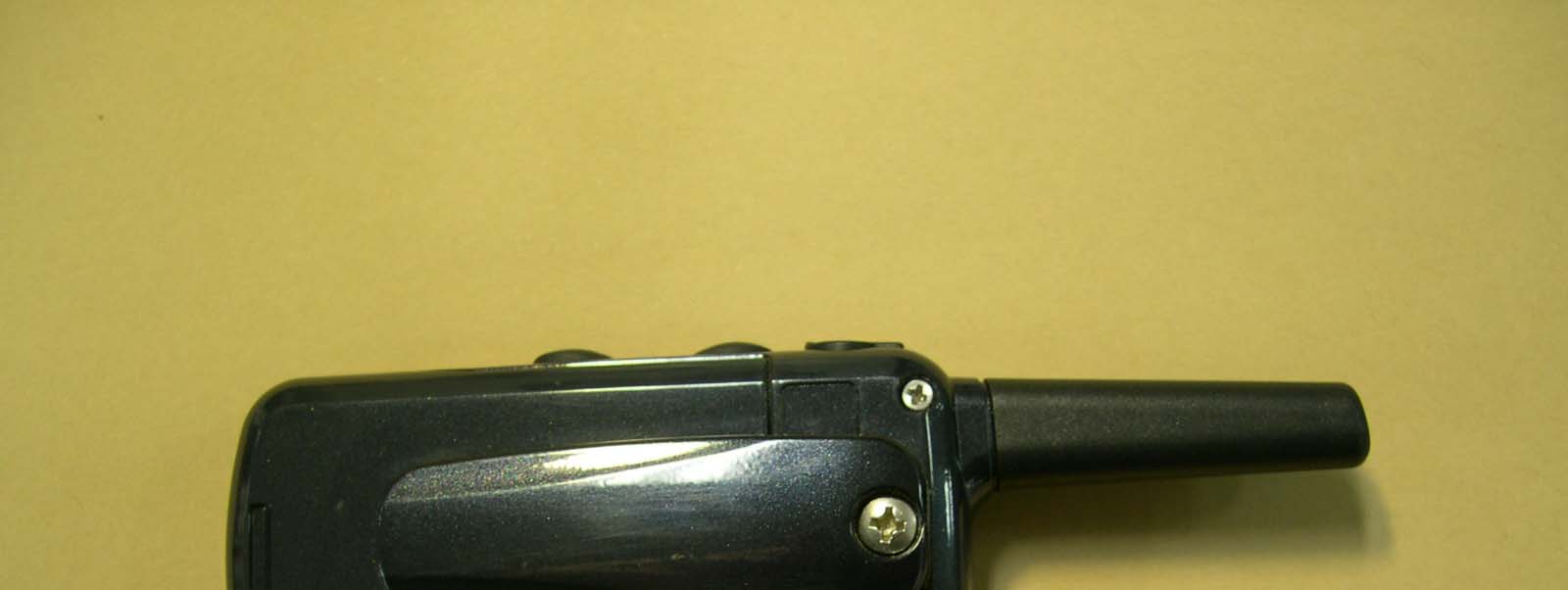

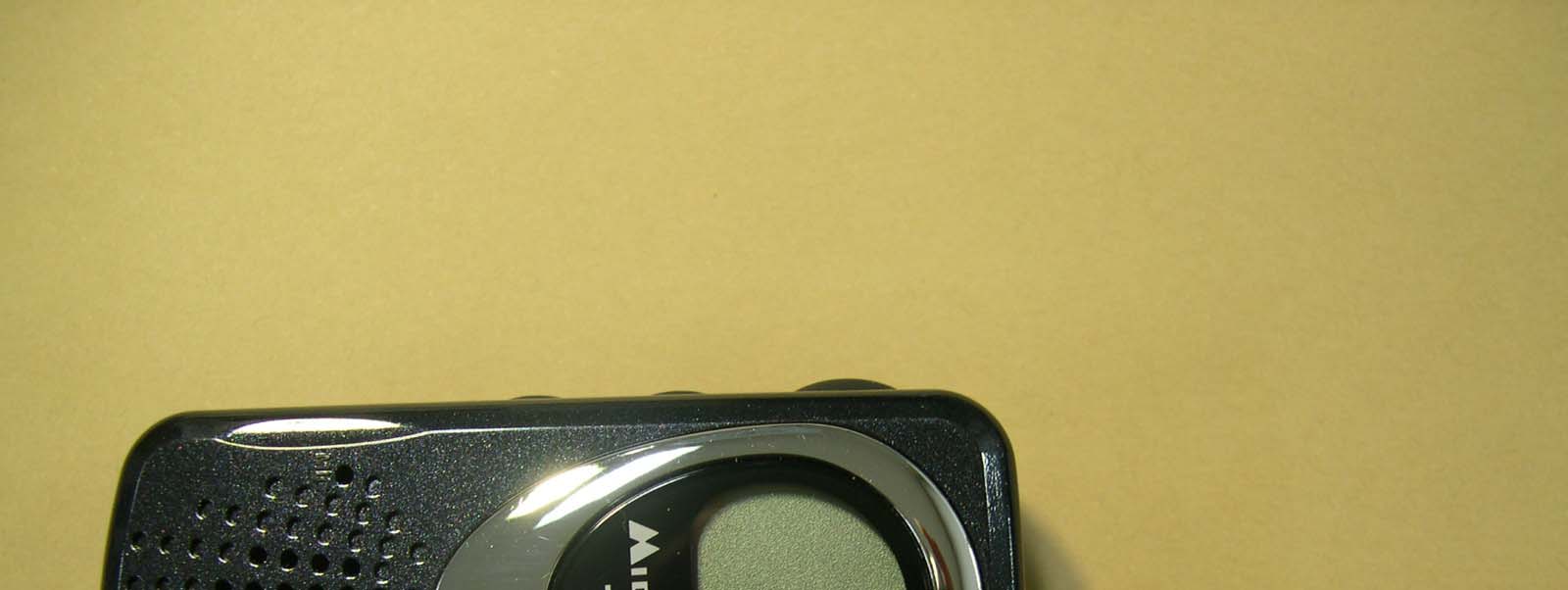

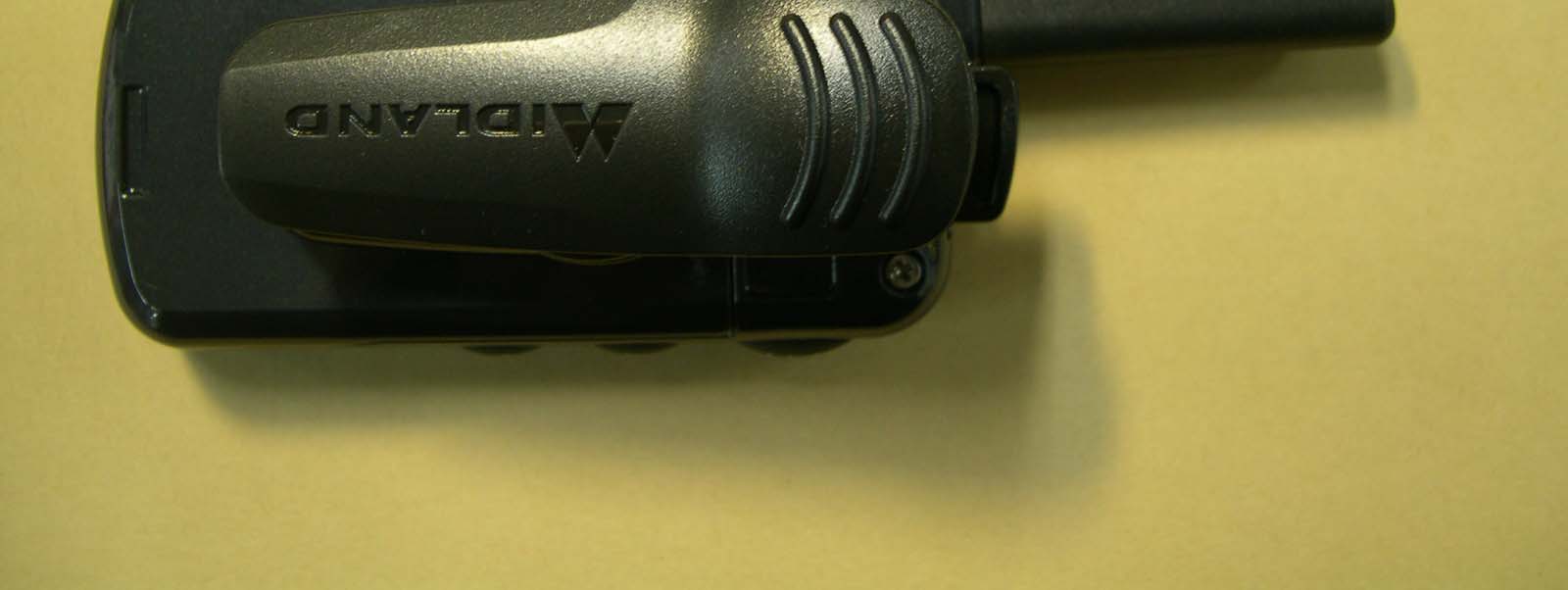

MMABR7774CH LAND MOBILE TRANSCEIVER

BR777 ® OWNER'S MANUAL www.midlandradio.com TWO-WAY RADIO ® Model BR777 Page 1www.midlandradio.com TABLE OF CONTENTS1 Introduction2 Important Notice, FCC Licensing3 LCD Display4 Controls4 Battery Installation5 Installing the Belt Clip6 Installing the Swivel Holster6 Charging the Battery Pack7 Charging thru the Multi-Unit Charger8 Low Battery Level Indicator8 Operating Your Radio9 - 10 Programming your Radio Settings11 - 14 Keypad Lock15 External Speaker/Microphone Jack15 Troubleshooting Guide16 Use and Care16 Specifications and Frequency Charts17 - 19 Warranty Information20 MIDLAND Family Products21 Accessories22 - 23 Accessories Order Form24 ® Page 2www.midlandradio.com Welcome to the world of Midland electronics Congratulations on your purchase of a high quality MIDLAND product. Your 2-way radio represents the state-of-the-art in high-tech engineering. Designed for Business Radio operation, this compact package is big in performance. It is a quality piece of electronic equip- ment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. Your two-way radio is designed for reliable and trouble-free performance for years to come. Features - 4 Selectable Channels - 56 Programmable Frequencies - 121 Privacy Codes - VOX - CALL Alert Function - VIBRATE Alert Function - SCAN Function - Roger Beep Tone - Auto-Squelch Function - Key Pad Lock - Speaker / Microphone Jacks - Battery Meter / Battery Low Indicator This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device does not cause harmful interference, and (2) this radio must accept any interference that may cause undesired operation. To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. (Tested with Headset Model: AVP-1) Model BR777 ® Page 3www.midlandradio.com IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION The BR777 operates on UHF frequencies which require an FCC (Federal Communications Commission) license. You must be licensed prior to operating on these frequencies. Serious penalties could result for unlicensed use of these frequencies, in violation of FCC rules, as stipulated in the Communications Act's Sections 501 and 502 (amended). You will be issued a call sign by the FCC which should be used for station identification when operating the radio on these channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other users, and being prudent with the length of their transmission time. To obtain a license or ask questions about the license application, contact the FCC at 1-888-CALL FCC or go to the FCC's website: www .fcc.gov/services/personal/generalmobile/licensing.html Exposure To Radio Frequency Energy Your Midland radio is designed to comply with the following national and international standards and guidelines regarding exposure of human being to radio frequency electromagnetic energy: - United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J - American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992 - Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition - National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986 - International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998 To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting. Model BR777 IMPORTANT:Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limita- tions. Any adjustment to your radio must be made by qualified technicians. ® Page 4www.midlandradio.com CONTROLS LCD DISPLA Y 1. BATTERY METER– Indicates the battery level. 2. KEY LOCK ICON – Indicates KEY LOCK mode is on. 3. RECEIVE (RX)/TRANSMIT (TX) ICON – Indicates radio is transmitting a signal or receiving a transmission. 4. VOX ICON– Indicates when VOX mode is active. 5. CHANNEL NUMBER– Indicates the Channel (1~4) setting. 6. PRIVACY CODE– Indicates Privacy Code selected by user (oF~121). 7. VIBRATE-ALERT ICON– Indicates when the Vibrate-Alert feature is on. 8. TRANSMIT POWER LEVEL ICON– Indicates TX Power setting (Blank/Lo). 9. PROGRAM ICON– Indicates radio is in Programming mode. 10. CLONE ICON– Indicates radio is in Cloning mode. 11. PRIVACY CODE ICON– Indicates radio is in Privacy Code programming mode. 12. FREQ CODE ICON– Indicates radio is in Frequency programming mode. 13. PTT Button– Press and hold to transmit voice communication. 14. UP Button– Increase the volume level or make adjustments in Program mode. 15. UP Button– Decrease the volume level or make adjustments in Program mode. 16. MIC– Built-in microphone. 17. ANTENNA. 18. EXTERNAL SPEAKER/MIC JACK. 19. SCAN/KEYLOCK Button– Press to enter SCAN mode. Press and hold to turn on/off the Keylock function. 20. MODE/POWER ON/OFF Button– Press and hold to turn the radio on/off. Press activate the MENU mode. 21. SPEAKER– Built-in speaker. 1 2 3 4 5 6 7 8 9 10 13 14 15 16 21 20 19 18 17 Model BR777 11 12 ® Page 5www.midlandradio.com BA TTERY INSTALLATION Your BR777 radio operates with 3.7Vdc 720mAh Li-ion Battery Pack. The belt clip should be removed (see INSTALLING THE BELT CLIP) to ease installat…

Text truncated - open the document above for the full version.

May 19, 2006 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (MMABR777) Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematic Diagram(s) Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Midland Radio Corporation 5900 Parretta, Drive, Kansas City, MO 64120 .

BR777 SEMICONDUCTOR DESIGNATIONS AND FUNCTIONS Page 1 Designator Description Application CPU1 TMP86CH21 Micro controller D1 KDS114E TX,RX switch D3 KDS115 Squelch Rectifier D4 KDS115 VOX rectifier D13 KDS114E TX,RX switch D301 KDS114E VCO TX,RX switch IC1 DBL5018 IF IC IC105 AT93C56 EEPROM IC2 LM386 Speaker amplifier IC201 GP214D PLL IC IC3 XC6201 3V regulator IC4 LM324 OP amp. IC5 LM324 OP amp. IC7 XC6N26 2.6V Reset IC LED1 SML210MT LED for backlit Q1 NE5510279A TX PA Q2 KRC405E RX VCC Mute Q3 KRA226S Vibrator driver Q4 BFQ67W TX driver Q5 KRC404E CTCSS Limitor Q6 2SC4226 RX LNA Q7 KTA2014E PTT switch Q8 2SC4226 RX MIXER Q9 2SC4083 IFA Q10 KRA306E VCO Vcc switch Q11 BFQ67W TX pre-driver Q12 KRC405E Cloning driver Q13 KTA1505 TX Vcc switch Q14 KRA306E RX Vcc switch Q15 KRA304E EEPROM invertorl Q16 XP152A12C0MR Speaker amplifier Vcc switch Q17 KRC405E TX audio Mute Q18 XP152A12C0MR Main VCC switch Q19 KRC401E VCO TX,RX switch Q20 KRA306E TX Power Control Q23 KRC405E RX audio mute Q301 2SC4226 VCO Q302 2SC4226 VCO

BR777 ALIGNMENT PROCEDURE Page 1 1. REFERENCE TEST EQUIPMENT A. HP8921A Cell site test set or HP8920A, B Communication Test Set with Spectrum Analyzer option. B. Fluke 187 Digital Voltmeter C. HP E3615A Power supply 2. TEST POINT A. ANTENNA : Test point is not prepared. Use antenna contact with ANTENNA_GND_T(antenna ground). B. VCO reference voltage : Test point 1 is prepared. C. RX audio output : Test point SPKOUT is prepared. D. TX Mic. Input : Test point MICIN is prepared. E. Battery Vcc : Test point BAT is prepared. F. Up Key : Test point UP is prepared. G. Down Key : Test point DW is prepared. H. Function Key : Test point Menu is prepared. I. Monitor Key : Test point SCAN is prepared. J. PTT Key : Test point PTT is prepared. K. CALL Key : Test point CALL is prepared. Note. : All key can be activated when connect with ground except Power key. 3. VCO ALIGNMENT A. Set unit to Channel 1 and connect a voltmeter to TP1 (VCO PD). B. Press & hold PTT. C. Extend L303 until the voltmeter reads 1.0V. D. Release PTT button so units is in receiving mode and monitor the voltage on TP1. The voltage should be in the range 1.0Vds +/-0.5V E. Set unit to channel 4. F. Press & hold the PTT switch and observe the voltage on TP4. The voltage should be 1 – 2.4 Vdc. G. Release PTT and observe the voltage on TP1. The voltage should read between 1.0 – 2.4 Vdc. Note : VCO shield-can should be soldered after VCO alignment is finished. 4. TRANSMITTER FREQUENCY ALIGNMENT A. Press & hold the PTT button. B. Align CT201 trimmer capacitor such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. CT201 is located on the left side of VCO shield can. BR777 ALIGNMENT PROCEDURE Page 2 5. TRANSMITTER OUTPUT POWER CONFIRMATION A. Set unit to channel 1 and power Hi mode. B. Press & hold the PTT button. C. Transmit power should normally be between 1.0W to 1.5W. 6. TRANSMITTER DEVIATION ALIGNMENT A. Connect an audio generator (600 ohms) to the ear jack. The audio frequency should be set at 1KHz with a level of 200mV RMS. B. Connect an FM deviation meter (communications test set) to Antenna contact. Set the monitor to read peak to peak divided by two [(pk-pk)/2] deviation. Set filter of equipment from 25Hz to 15KHz. C. Press & hold the PTT button. D. Align RV2 for +/- 2.0 kHz deviation (+/-0.1KHz). RV2 is located on the bottom of the VCO shield can. E. Decrease audio generator level until deviation reads +/- 1.5 kHz (approximately 4mV) and record generator level. Level should be between 2 mV and 5 mV. F. Confirm that transmit audio distortion is less than 5%. 7. RECEIVER ALIGNMENT A. Set the output level of the RF signal generator for -47dBm. The generator should be set for 1.5 kHz deviation at 1 kHz audio. B. Set volume level 4 (It is initial.). C. Connect Audio analyzer to SPKOUT. D. Set equipment filter 25Hz to 15KHz. E. Align CF3 to get a maximum output level & a minimum distortion and confirm that Rx audio distortion is less than 3%. F. Confirm that Rx Sensitivity is less than –120dBm (nominally –123dBm) by reducing the output level of the RF signal generator until a 12 dB SINAD reading is achieved. H. Set SSG output level until 9dB sinad sensitivity and confirm until the unit is un-squelched. I. Set signal generator level to –47dBm. J. With 1.5KHz deviation at 1KHz modulation, set volume for maximum audio. Audio level should be on over than 1.5Vrms. 8. BATTERY INDICATOR CONFIRMATION A. Set unit to receiving mode. Don’t set transmitter mode.. B. Set power supply voltage to 3.7 Vdc. C. Decrease power supply voltage until low battery icon blinks. 9. POWER OFF CURRENT CONSUMPTION A. Set power supply voltage to 3.7 Vdc and connect to unit. B. Confirm current. It must be less than 100uA. BR777 ALIGNMENT PROCEDURE Page 3 10. FREQUENCIES TABLE Display # Freq. MHz Display # Freq. MHz 1 464.5000 29 462.9125 2 464.5500 30 464.4875 3 467.7625 31 464.5125 4 467.8125 32 464.5375 5 467.8500 33 464.5625 6 467.8750 34 466.0375 7 467.9000 35 466.0625 8 467.9250 36 466.0875 9 461.0375 37 466.1125 10 461.0625 38 466.1375 11 461.0875 39 466.1625 12 461.1125 40 466.1875 13 461.1375 41 466.2125 14 461.1625 42 466.2375 15 461.1875 43 466.2625 16 461.2125 44 466.2875 17 461.2375 45 466.3125 18 461.2625 46 466.3375 19 461.2875 47 466.3625 20 461.3125 48 467.7875 21 461.3375 49 467.8375 22 461.3625 50 467.8625 23 462.7625 51 467.8875 24 462.7875 52 467.9125 25 462.8125 53 469.4875 26 462.8375 54 469.5125 27 462.8625 55 469.5375 28 462.8875 56 469.5625 BR777 LABORATORY TESTING PROCEDURES Page 1 UNIT TEST - (UNIT ASSEMBLED) TEST PREPARATION 1) Install 1 Lithium Ion battery. z Left bottom terminal is the system plus polarity z Right bottom terminal is the system minus polarity. 2) Press the power button. SYSTEM TEST 1) Radiated Transmit and Receive performance may be observed. 2) Audio out & Audio in are available at the Headset jack. LABORATORY TEST - (UNIT UN-ASSEMBLED) TEST PREPARATION 1) Disassemble unit (4 screws – 2 behind battery cover). Remove the back cabinet. 2) Remove the antenna and install a 50 ohm coax cable in its place. 3) Either clip alligator leads or solder test leads to the power supply connections. The positive terminal is the lower right terminal. The negative terminal is the lower left terminal. (battery side view) 4) Connect 3.7VDC power source to the terminals, observing correct polarity. 5) Connect an 16-ohm load through the Headset jack (right terminal of 2.5mm stereo phone plug). 6) Connect a audio generator with 10uF coupling capacitor through the Headset jack (left terminal of 2.5mm stereo phone plug). 7) Select desired channel 1- 4 using CH up/down keypad switch. BR777 LABORATORY TESTING PROCEDURES Page 2 SPECIFIC TEST METHODS AND GUIDANCE Modulation Characteristics – (paragraph 2.1047(a) of the Rules) FOR TX AUDIO FILTER RESPONSE 1. Connect audio generator with 10uF coupling capacitor to microphone input jack. Press PTT button. 2. Connect RF output with modulation meter. (Filt…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 25mm 25mm Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr [Tissue Liquid Depth : 15cm] 15cm

Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX C – DIPOLE VALIDATION PLOTS Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX D – PROBE CALIBRATION DATA Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX E – DIPOLE CALIBRATION DATA Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: 4 CH land mobile transceiver Model(s): BR777 Tx Frequency: 461.0338 MHz – 469.5621 MHz Max. SAR Measurement(s): 0.876 mW/g(1g) Face SAR ; 0.812 mW/g(1g) Body SAR Max. RF Output Power: 0.4375 W ERP(26.4 dBm) Conducted Power: 1.8 W (32.5dBm) Emission Designator: 10K6F3D Channel Capacity: 4 Application Type: Certification Trade Name(s): Midland FCC Rule Part(s): §95(A)(B), 2(J) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled Environment Occupational exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Manufacture; Midland Radio Corporation. 5900 Parretta Drive, Kansas City, MO 64120 FRN : Date of Issue: May 26, 2006 Test Report No.: HCT-SAR06-0520 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN : 0005866421 FCC ID : APPLICANT : MMABR777 Midland Radio Corporation. Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 7.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 8.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 9.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 10.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 11.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 12.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 13.1 CONCLUSION ------------------------------------------------------------------------------------------------ 14.1 REFERENCES -------------------------------------------------------------------------------------------- APPENDIX A – SAR TEST PLOTS APPENDIX B – TEST SETUP PHOTOGRAPHS APPENDIX C – EUT PROFILE PHOTOGRAPHS APPENDIX D – DIPOLE VALIDATION PLOTS APPENDIX E – PROBE CALIBRATION DATA APPENDIX F – DIPOLE CALIBRATION DATA 3 4 5 6-7 8 9 10 11 12 13 14 15-16 17 18 Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency(RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant 2. • FCC ID: MMABR777 • EUT Type: 4 CH land mobile transceiver Prototype. • Trade Name: Midland • Model(s): BR777 • Tx Frequency: 461.0338 MHz – 469.5621 MHz • Application Type: Certification • Modulation(s): FM • Max SAR Measurement: 0.876 mW/g(1g) Face SAR ; 0.812 mW/g(1g) Body SAR Figure 1. SAR System • Max. RF Output Power: 0.4375W ERP(26.4 dBm) • Conducted Power: 1.8W (32.5dBm) • Power Supply: Li-ion battery (3.7 V, 720mA) • Place of Test(s): Hyundai C- TECH. EMC Lab. • Date(s) of Tests: May 25, 2006 • Report No.: HCT-SAR06-0520 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62 Company Name : Midland Radio Corporation. Address : 5900 Parretta Drive, Kansas City, MO 64120 Attention : Harry Lee / Director R/D & Engineering Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] Th…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR06-0520 FCC ID: MMABR777 DATE: May 26, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31…
