MMAG11GMRS Transceiver

Owner’s Guide Model G-11 GMRS 2 TABLE OF CONTENTS FCC Licensing Information....................................................................................... 3 TIPS FOR GETTING THE MOST FROM YOUR G11............................................... 4 A NOTE ABOUT THE CTCSS or DCS CODES..................................................... 5 PREPARATION........................................................................................................... 5 BATTERIES............................................................................................................. 5 CHARGING THE BATTERIES............................................................................... 5 BELT CLIP............................................................................................................... 6 QUICK USE INSTRUCTIONS: ................................................................................... 6 POWER SAVE CIRCUIT............................................................................................. 6 RANGE OF UHF RADIOS.......................................................................................... 6 DISPLAY SYMBOLS .............................................................................................. 7 FEATURES AND LOCATION OF CONTOLS........................................................... 8 TURNING THE RADIO ON OR OFF ..................................................................... 8 LOCKING THE CONTROLS .................................................................................. 8 UNLOCKING THE CONTROLS ............................................................................. 9 ADJUSTING THE VOLUME................................................................................... 9 ADJUSTING THE SQUELCH ................................................................................. 9 USING THE CALL FUNCTION .............................................................................. 9 USING THE MONITOR FUNCTION ...................................................................... 9 TURNING ON OR OFF THE BUTTON PRESS BEEP........................................... 9 TURNING ON THE DISPLAY BACKLIGHT......................................................... 9 TURNING THE ROGER BEEP ON OR OFF........................................................ 10 TURNING THE CALL VIBRATOR ON OR OFF ................................................. 10 ACTIVATING SCAN FUNCTIONS ...................................................................... 10 ACTIVATING “PRIVACY” CODES..................................................................... 12 RESETTING THE RADIO..................................................................................... 13 OPERATING THE HANDS FREE VOX (VOICE OPERATED TRANSMIT)..... 14 SETTING REMOTE MONITOR MODE............................................................... 15 SETTING MEMORY CHANNELS....................................................................... 16 ACCESSING MEMORY CHANNELS.................................................................. 16 TROUBLESHOOTING.............................................................................................. 17 CARE OF RECHARGEABLE BATTERIES............................................................ 18 SERVICE: .................................................................................................................. 19 TECHNICAL SPECIFICATIONS* ............................................................................ 20 LIMITED WARRANTY............................................................................................. 21 3 FCC Licensing Information This Midland model G-11 radio operates on GMRS frequencies which require a license from the Federal Communications Commission (FCC) for business, personal, and recreational use. A GMRS license held by an individual may be shared by immediate family members. At the date of this publication the application for your FCC license is made on FCC form 605 (with optional Schedule F). To obtain forms, call the FCC forms hotline at: 1-800-418-3676 or go to http://www.fcc.gov. For questions concerning licensing, contact the FCC at 1-888-CALL-FCC (1- 888-225-5322), or go to http://www.fcc.gov. OPTIONAL ACCESSORIES FOR YOUR RADIO Accessory Name Model Number Ni-MH Battery (single “AAA” 4 required).................................18-??? Standard wall Charger......................................................18-396 Charger Stand for Ni-MH....................................................18-383 Dual Charger Stand for Ni-MH............................................ 18-385 Lapel Microphone with Ear-bud Speaker...............................22-405 Speaker/Microphone........................................................22-411 Boom Microphone Headset ..............................................22-540 Call 816 241 8500 ext. 200 to order accessories. THIS RADIO COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERENCE. Your Midland model G11 UHF FM GMRS two-way radio is designed to provide you w ith line-of-sight communications for a range up to 4 miles. The model G11 incorporates channels with 38 different CTCSS and 83 DCS codes to provide the best in quiet communications. Also this radio offers scan, power save, 9 memory channels and a multifunction back-lighted liquid crystal display. This unit also incorporates VOX (voice operated transmit) that allows hands free use when the radio is equipped with certain accessories. 4 TIPS FOR GETTING THE MOST FROM YOUR G11 Due to the band of operation (462 MHz) the G11 provides communications that are virtually free of atmospheric interference (skip) that is common on lower frequency bands. Along with this and an antenna system that is very efficient, communications range is surprisingly good. Many times the limit to maximum possible range is environmental factors such as blockage…

Text truncated - open the document above for the full version.

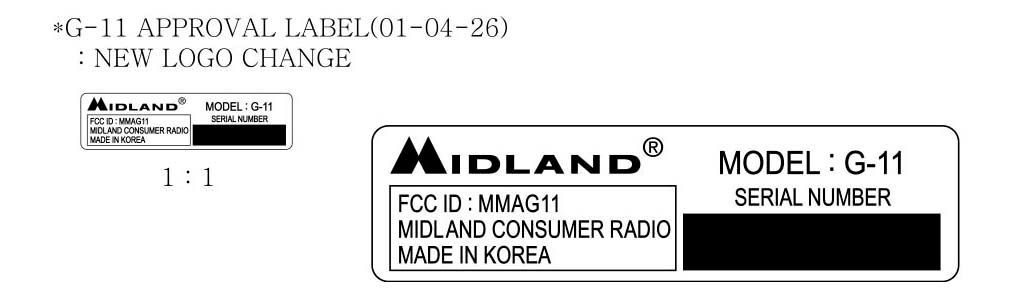

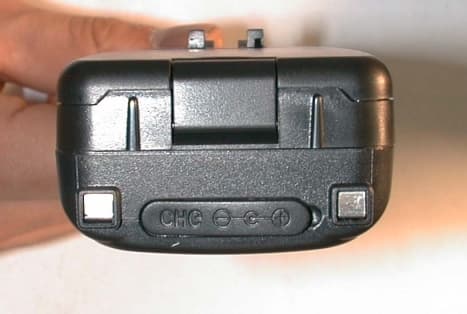

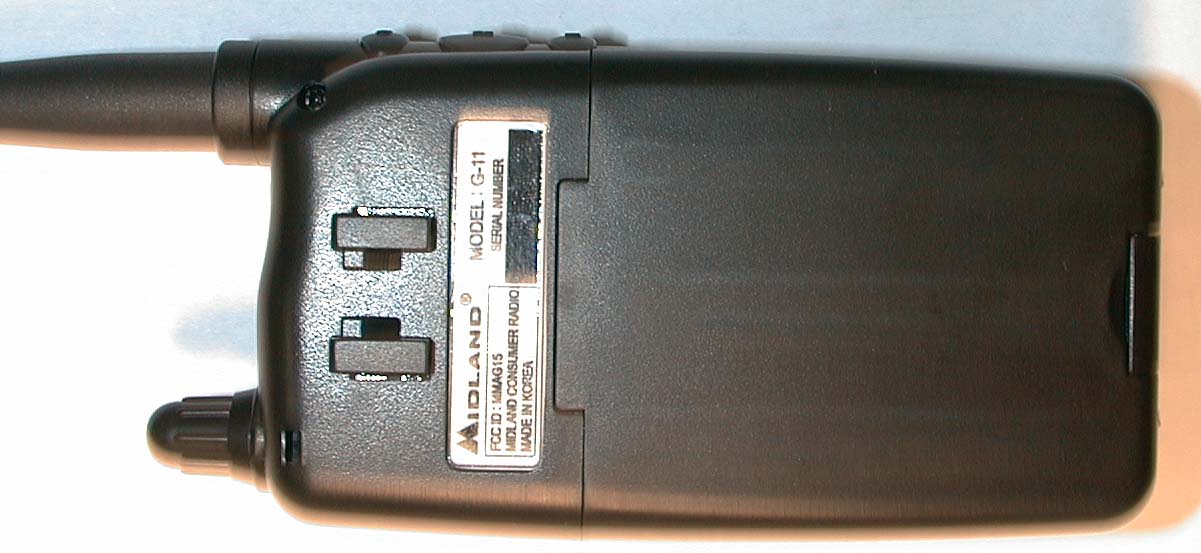

Front View Back View Left Side View Right Side View Top View Botto m View

Botto m PCB Botto m PCB w/shield Top PCB Top PCB w/shield

Alignment instructions WARNING Any repairs or adjustments should be made under the supervision of a Qualified radiotelephone technician. TRANSMITTER 1. Power Supply Voltage The Power supply voltage should be set for 6.0 VDC measured at the radio During transmit. Periodically check the power supply voltage during the alignment procedure. 2. Frequency Setting A.Connect a frequency counter or Communications Service Monitor to the Antenna connector through an RF power attenuator (5 watt minimum rating, 20 dB minimum attenuation). B. Depress the PTT switch. C. Adjust the CTX1 trimmer capacitor such that The output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. D. Release the PTT switch. 3. Output Power Alignment. A. Set the power supply voltage for 6.0 VDC. B. Connect a Communications Service Monitor or a wattmeter and dummy load To the antenna connector. C. Depress the PTT switch. D. To be convinced for 2Watt (50 ohm load) output power with a maximum error of +/- 0.15 Watts. E. Release the PTT switch. 4. Deviation Adjustment. A. Connect an audio generator . The audio frequency should be set at 1 KHz. B. Connect an FM deviation meter or Communications Service Monitor to the antenna connector through an RF power attenuator (5 watt minimum rating, 20 dB minimum attenuation). Set the monitor to read peak deviation. C. Depress the PTT switch. D. Adjust RV201 for +/- 4.0KHz maximum deviation. E. Release the PTT switch.

ENGINEERING STATEMENT For Certification of MIDLAND CONSUMER RADIO Model No. G-11 FCC ID: MMAG11 I am an Electronics Engineer, a principal in the firm of Hyak Laboratories, Inc., Springfield, Virginia. My education and experience are a matter of record with the Federal Communications Commission. Hyak Laboratories, Inc. has been authorized by Midland Consumer Radio to make certification measurements on the G-11 transceiver. These tests were made by me or under my supervision in our Springfield laboratory. Test data and documentation required by the FCC for certification are included in this report. The data verifies that the above mentioned transceiver meets FCC requirements and certification is requested. _________________________ Rowland S. Johnson Dated: May 24, 2001 A. INTRODUCTION The following data are submitted in connection with this request for type acceptance of the G-11 transceiver in accordance with Part 2, Subpart J of the FCC Rules. The G-11 is a hand-held, battery operated, UHF, frequency modulated, 2 W (conducted rating) transceiver intended for voice communications applications in the 462.5500 - 462.7250 MHz band under Part 95 in the GMRS service. (ERP (d) was 1.2 W.) B. GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE (Paragraph 2.983 of the Rules) 1. Name of applicant: Midland Consumer Radio 2. Identification of equipment: FCC ID: MMAG11 a. The equipment identification label is submitted as a separate exhibit. b. Photographs of the equipment are submitted as separate exhibits. 3. Quantity production is planned. 4. Technical description: a. 16k0F3E emission b. Frequency range: 462.5500-462.7250 MHz. c. Operating power of transmitter is fixed at the factory at 2 watts (conducted). d. Maximum power permitted under FCC Part 95 (interstitial) is 5 watts ERP. The G-11 fully complied with that power limitation. d. The dc voltage and dc currents at final amplifier: Collector voltage: 5.8 Vdc Collector current: 0.74 A f. Function of each active semiconductor device: See Appendix 1. g. Complete circuit diagram is submitted as a separate exhibit. h. A draft instruction book is submitted as a separate exhibit. i. The transmitter tune-up procedure is submitted as a separate exhibit. 2 B. GENERAL INFORMATION (continuted) j. A description of circuits for stabilizing frequency is included in Appendix 2. k. A description of circuits and devices employed for suppression of spurious radiation and for limiting modulation is included in Appendix 2. l. Not applicable. 5. Data for 2.985 through 2.997 follow this section. C. RF POWER OUTPUT (Paragraph 2.985(a) of the Rules) RF power output was measured with a Bird 4421 RF power meter and a Narda 765-20 attenuator as a 50 ohm dummy load. Maximum power was 2.0 watts with 6.0 V at the battery terminals. ERP (d), determined by substitution, was 1.2 W. D. MODULATION CHARACTERISTICS 1. A curve showing frequency response of the transmitter is shown in Figure 1. Reference level was audio signal output from a Boonton 8220 modulation meter with one kHz deviation. Audio output was measured with an Audio Precision System One TRMS voltmeter and tracking generator. 2. Modulation limiting curves are shown in Figure 2, using a Boonton 8220 modulation meter. Signal level was established with an Audio Precision System One. The curves show compliance with paragraphs 2.987(b) and 95.633(b). 3. Figure 3 is a graph of the post-limiter low pass filter which meets the requirements of paragraph 95.633(b) in providing a roll-off of 60Logf/3 dB where f is audio frequency in kHz. Measurements were made following EIA RS-152B with an Audio Precision System One on the Boonton 8220 modulation meter audio output. 4. Occupied_Bandwidth (Paragraphs 2.989(c), 90.209(b)(4), and 95.629(a) of the Rules) Figure 4 is a plot of the sideband envelope of the transmitter output taken with a Tektronix 494P spectrum analyzer. Modulation corresponded to conditions of 2.989(c)(1) and consisted of a 2500 Hz tone at an input level 16 dB greater than that necessary to produce 50% modulation at 2997 Hz, the frequency of maximum response. 3 C. MODULATION CHARACTERISTICS (continued) The plot is within the limits imposed by Paragraph 90.211(h) for frequency modulation. The horizontal scale (frequency) is 10 kHz per division and the vertical scale (amplitude) is a logarithmic presentation equal to 10 dB per division. 5. Emission Designator Calculation: (2D + 2F) 2x5.0 + 2x3.0 = 16k0F3E 4 FIGURE 1 MODULATION FREQUENCY RESPONSE MODULATION FREQUENCY RESPONSE FCC ID: MMAG11 FIGURE 1 5 FIGURE 2 AUDIO LIMITER CHARACTERISTICS AUDIO LIMITER CHARACTERISTICS FCC ID: MMAG11 FIGURE 2 6 FIGURE 3 AUDIO LOW PASS FILTER RESPONSE AUDIO LOW PASS FILTER RESPONSE FCC ID: MMAG11 FIGURE 3 7 FIGURE 4 OCCUPIED BANDWIDTH ATTENUATION IN dB BELOW MEAN OUTPUT POWER Required On any frequency more than 50% up to and including 100% of the 25 authorized bandwidth, 20 kHz (10-20 kHz) On any frequency more than 100%, up to and including 250% of the 35 authorized bandwidth (20-50 kHz) On any frequency removed from the assigned frequency by more 43+10LogP = 46 than 250% of the authorized (P = 2.0W Conducted) bandwidth (over 50 kHz) OCCUPIED BANDWIDTH FCC ID: MMAG11 FIGURE 4 8 E. SPURIOUS EMISSIONS AT THE ANTENNA TERMINALS (Paragraph 2.991 of the Rules) The G-11 transmitter was tested for spurious emissions at the antenna terminals while the equipment was modulated with a 2500 Hz signal, 16 dB above minimum input signal for 50% (2.5 kHz deviation) modulation at 2997 Hz, the frequency of highest sensitivity. Measurements were made with Tektronix 494P spectrum analyzer coupled to the transmitter output terminal through Narda 765-20 microwave power attenuator. During the tests, the transmitter was terminated in the 50 ohm attenuator. Power was monitored on a Bird 43 Thru-Line wattmeter; dc supply was 6.0 volts throughout the tests. Spurious emissions were measured throughout the RF spectrum from 21.25 MHz (lowest frequency generated in the…
