MMAG9GMRS Transceiver

Owner’s Guide (PRELIMINARY) Model G-9 GMRS 2 TABLE OF CONTENTS FCC Licensing Information....................................................................................... 3 TIPS FOR GETTING THE MOST FROM YOUR G-9................................................ 4 A NOTE ABOUT THE CTCSS CODES.................................................................. 5 PREPARATION........................................................................................................... 5 BATTERIES............................................................................................................. 5 CHARGING THE BATTERIES............................................................................... 5 BELT CLIP............................................................................................................... 6 QUICK USE INSTRUCTIONS: ................................................................................... 6 POWER SAVE CIRCUIT............................................................................................. 6 RANGE OF UHF RADIOS.......................................................................................... 6 DISPLAY SYMBOLS .............................................................................................. 7 FEATURES AND LOCATION OF CONTOLS........................................................... 8 TURNING THE RADIO ON OR OFF ..................................................................... 8 LOCKING THE CONTROLS .................................................................................. 8 UNLOCKING THE CONTROLS ............................................................................. 9 ADJUSTING THE VOLUME................................................................................... 9 ADJUSTING THE SQUELCH ................................................................................. 9 USING THE CALL FUNCTION .............................................................................. 9 USING THE MONITOR FUNCTION ...................................................................... 9 TURNING ON OR OFF THE BUTTON PRESS BEEP........................................... 9 TURNING ON THE DISPLAY BACKLIGHT......................................................... 9 TURNING THE ROGER BEEP ON OR OFF.......................................................... 9 CHOOSING HIGH OR LOW POWER TRANSMIT.............................................. 10 ACTIVATING SCAN FUNCTIONS ...................................................................... 10 ACTIVATING “PRIVACY” CODES..................................................................... 12 RESETTING THE RADIO..................................................................................... 12 TROUBLESHOOTING.............................................................................................. 13 CARE OF RECHARGEABLE BATTERIES............................................................ 14 SERVICE: .................................................................................................................. 15 TECHNICAL SPECIFICATIONS* ............................................................................ 16 LIMITED WARRANTY............................................................................................. 17 3 FCC Licensing Information This Midland model G-9 radio operates on GMRS frequencies which require a license from the Federal Communications Commission (FCC) for business, personal, and recreational use. A GMRS license held by an individual may be shared by immediate family members. At the date of this publication the application for your FCC license is made on FCC form 605 (with optional Schedule F). To obtain forms, call the FCC forms hotline at: 1-800-418-3676 or go to http://www.fcc.gov. For questions concerning licensing, contact the FCC at 1-888-CALL-FCC (1- 888-225-5322), or go to http://www.fcc.gov. OPTIONAL ACCESSORIES FOR YOUR RADIO Accessory Name Model Number Standard wall Charger...................................................18-396 Charger Stand ..............................................................18-383 Dual Charger Stand ...................................................... 18-385 Lapel Microphone with Ear-bud Speaker............................22-405 Speaker/Microphone.....................................................22-M11 Boom Microphone Headset ............................................22-540 Call 816 241 8500 ext. 200 to order accessories. THIS RADIO COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERENCE. Your Midland model G-9 UHF FM GMRS two-way radio is designed to provide you w ith line-of-sight communications for a range up to 5 miles. The model G-9 incorporates channels with 38 different CTCSS codes to provide the best in quiet communications. Also this radio offers scan, power save, 9 memory channels and a multifunction back-lighted liquid crystal display. This unit also incorporates VOX (voice operated transmit) that allows hands free use when the radio is equipped with certain accessories. 4 TIPS FOR GETTING THE MOST FROM YOUR G-9 Due to the band of operation (462 MHz) the G-9 provides communications that are virtually free of atmospheric interference (skip) that is common on lower frequency bands. Along with this and an antenna system that is very efficient, communications range is surprisingly good. Many times the limit to maximum possible range is environmental factors such as blockage caused by trees, buildings, hills, or other obstructions. If you find communication is not possible, many times this can be overcome by moving only a few feet to a new location. Range is greatly reduced while operating from a metal building or from a vehicle. Battery condition also affects range. The G-9 operates on rechargeable Ni-MH batteries or alkaline batteries. While this unit has been designed w ith gaskets for w ater res…

Text truncated - open the document above for the full version.

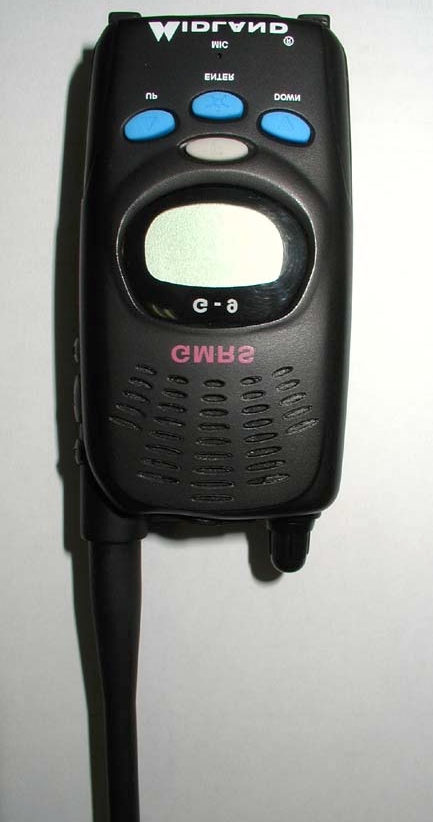

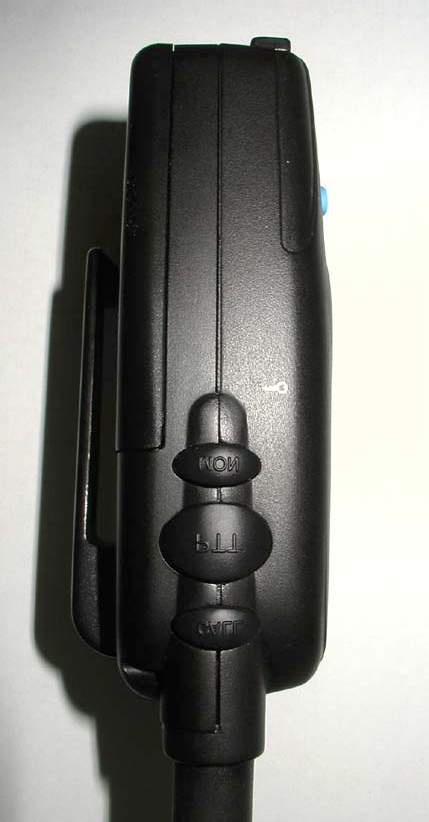

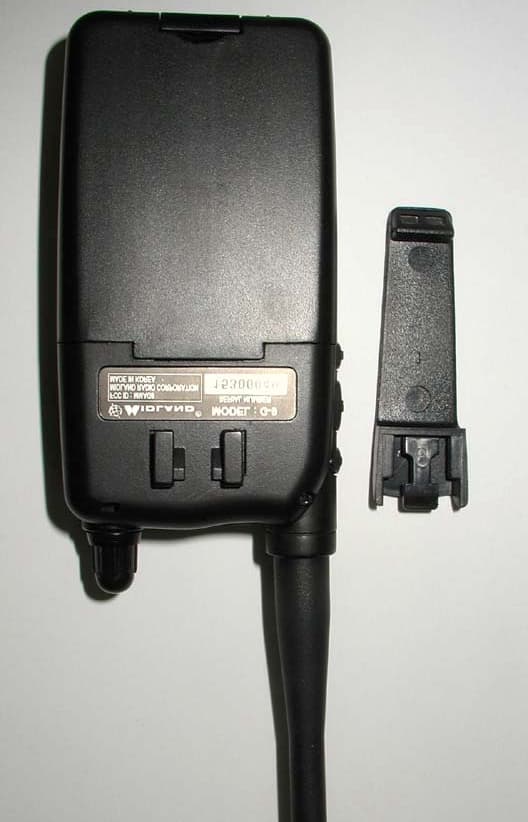

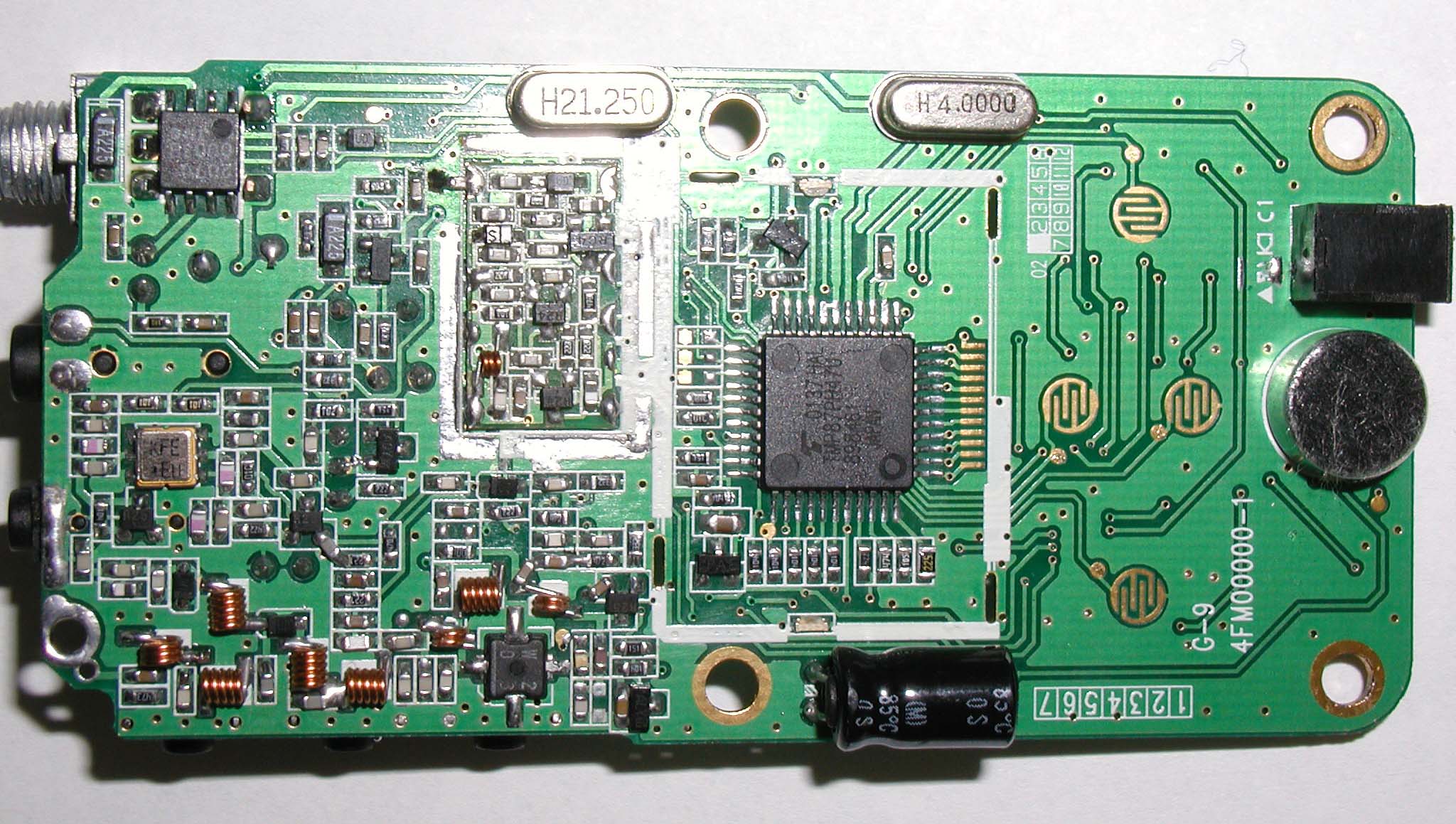

Front View Rear View Left Side View Right Side View Botto m View Top View

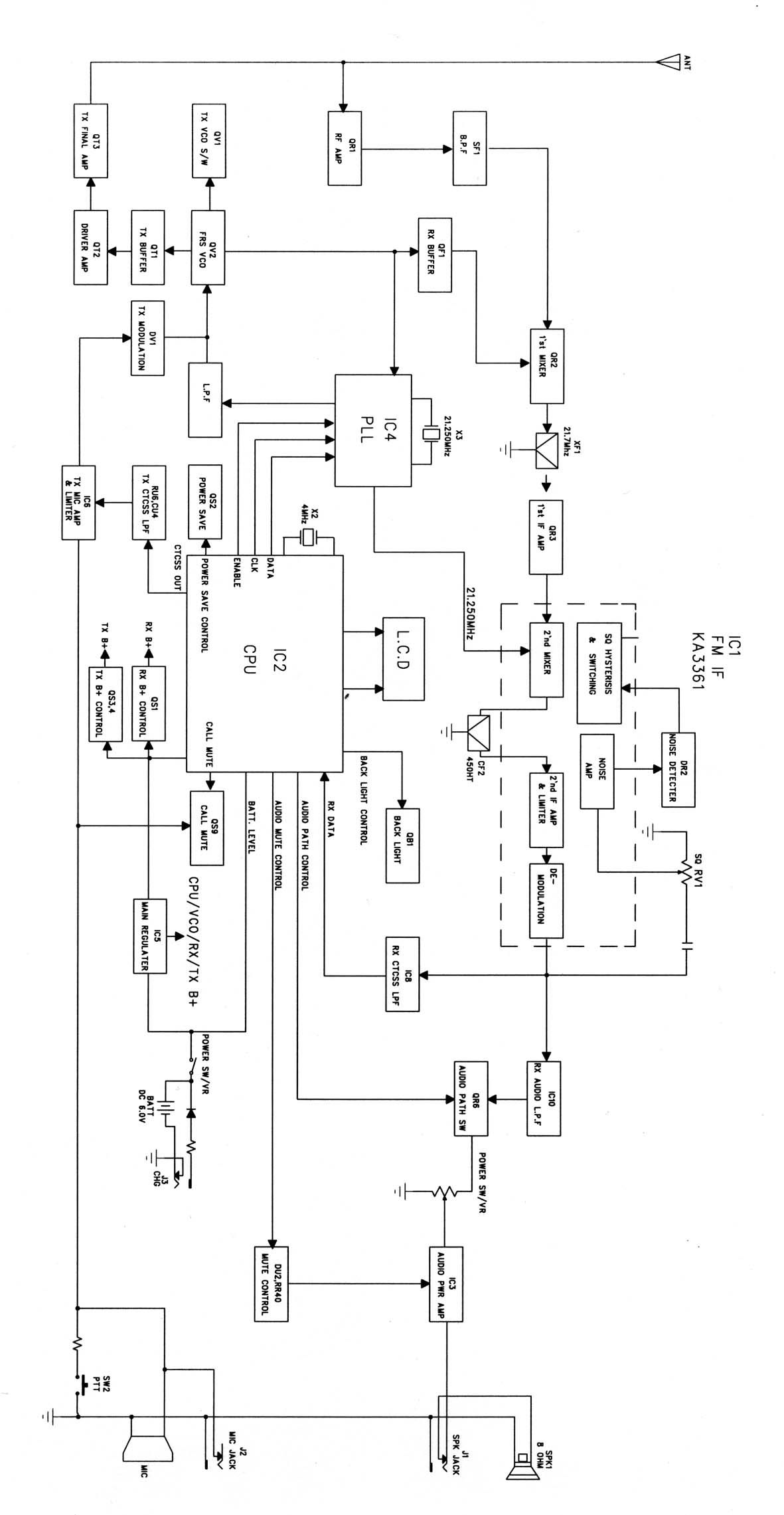

Operational Description Your Midland model G-9 UHF FM GMRS two-way radio is designed to provide you with line-of-sight communications for a range up to 5 miles. The model G-9 incorporates channels with 38 different CTCSS codes to provide the best in quiet communications. Also this radio offers scan, power save, 9 memory channels and a multifunction back-lighted liquid crystal display. This unit also incorporates VOX (voice operated transmit) that allows hands free use when the radio is equipped with certain accessories.

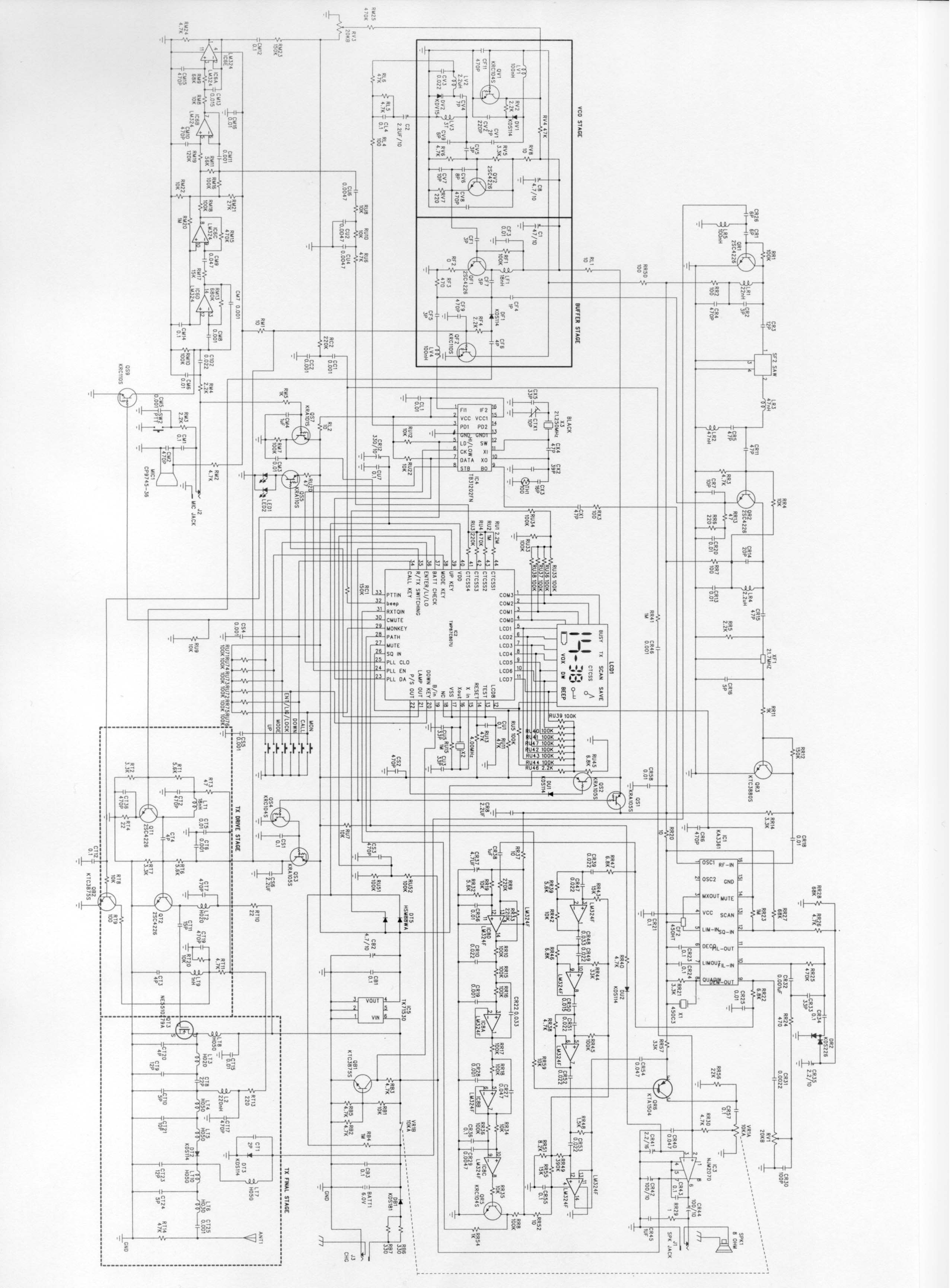

Alignment instructions WARNING Any repairs or adjustments should be made under the supervision of a Qualified radiotelephone technician. TRANSMITTER 1. Power Supply Voltage The Power supply voltage should be set for 6.0 VDC measured at the radio During transmit. Periodically check the power supply voltage during the alignment procedure. 2. Frequency Setting A. Connect a frequency counter or Communications Service Monitor to the Antenna connector through an RF power attenuator (5 watt minimum rating, 20 dB minimum attenuation). B. Depress the PTT switch. C. Adjust the CTX1 trimmer capacitor such that The output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. D. Release the PTT switch. 3. Output Power Alignment. A. Set the power supply voltage for 6.0 VDC. B. Connect a Communications Service Monitor or a wattmeter and dummy load To the antenna connector. C. Depress the PTT switch. D. To be convinced for 2Watt (50 ohm load) output power with a maximum error of +/- 0.15 Watts. E. Release the PTT switch. 4. Deviation Adjustment. A. Connect an audio generator . The audio frequency should be set at 1 KHz. B. Connect an FM deviation meter or Communications Service Monitor to the antenna connector through an RF power attenuator (5 watt minimum rating, 20 dB minimum attenuation). Set the monitor to read peak deviation. C. Depress the PTT switch. D. Adjust RV3 for +/- 4.0KHz maximum deviation. E. Release the PTT switch.

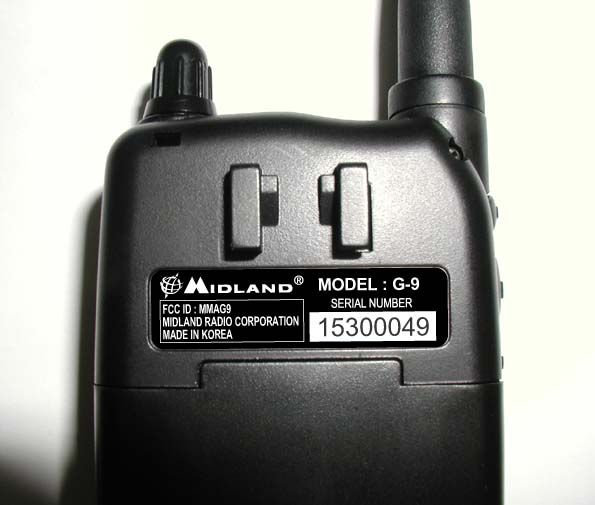

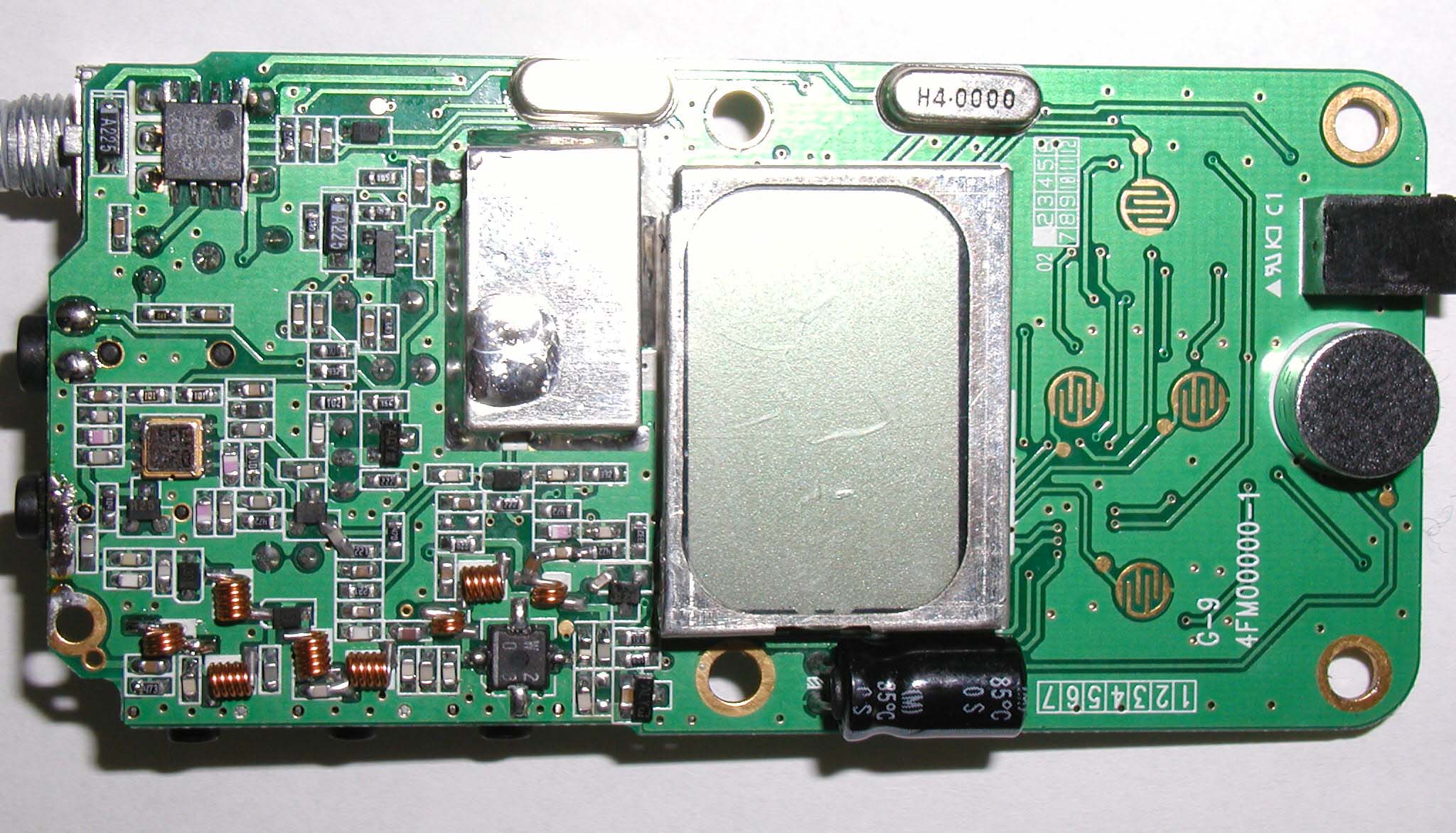

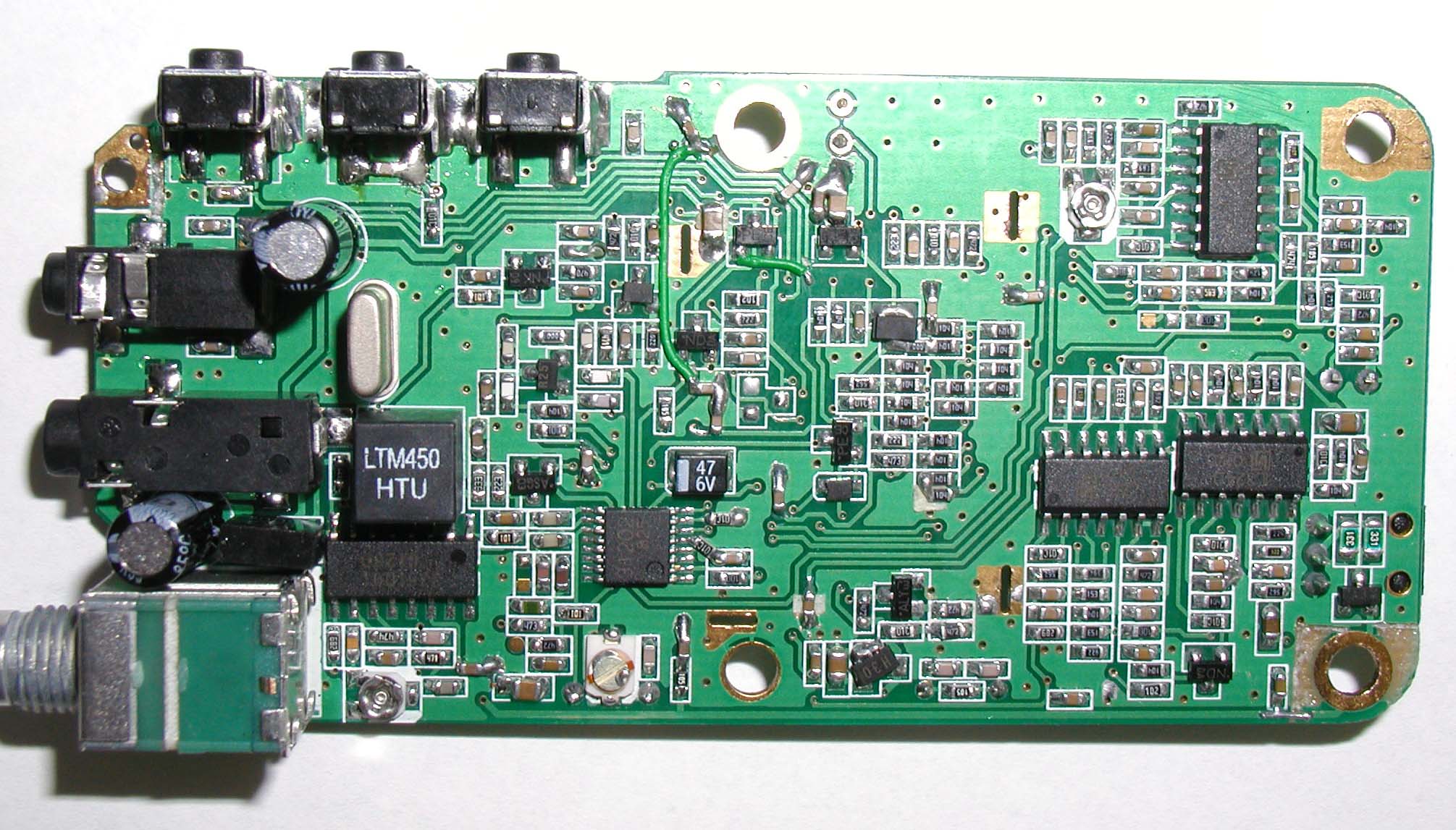

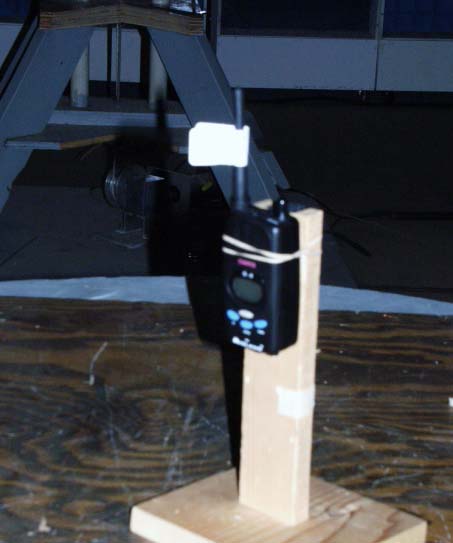

A. INTRODUCTION The following data are submitted in connection with this request for type acceptance of the G-9 transceiver in accordance with Section 2, of FCC Rules. The G-9 is a hand-held, battery operated, UHF, frequency modulated, 1.4 W ERP(d) transceiver intended for voice communications applications in the 462.5500 - 462.7250 MHz band under Part 95 in the GMRS service. B. GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE (Section 2.1033 of the Rules) 1. Name of applicant: Midland Consumer Radio 2. Identification of equipment: FCC ID: MMAG9 a. The equipment identification label is submitted as a separate exhibit. b. Photographs of the equipment are submitted as separate exhibits. 3. Quantity production is planned. 4. Technical description: a. 16k0F3E emission b. Frequency range: 462.5500-462.7250 MHz. c. Operating power of transmitter is fixed at the factory at 2 watts (conducted). d. Maximum power permitted under FCC Part 95 (interstitial) is 5 watts ERP. The G-9 fully complied with that power limitation. d. The dc voltage and dc currents at final amplifier: Collector voltage: 5.8 Vdc Collector current: 0.82 A f. Function of each active semiconductor device: See Appendix 1. g. Complete circuit diagram is submitted as a separate exhibit. h. A draft instruction book is submitted as a separate exhibit. i. The transmitter tune-up procedure is submitted as a separate exhibit. 1 B. GENERAL INFORMATION (continuted) j. A description of circuits for stabilizing frequency is included in Appendix 2. k. A description of circuits and devices employed for suppression of spurious radiation and for limiting modulation is included in Appendix 2. l. Not applicable. 5. Data for 2.1046 through 2.1057 follow this section. C. RF POWER OUTPUT (Section 2.1046 of the Rules) ERP(d), determined by substitution, was 1.4 W. D. MODULATION CHARACTERISTICS (Section 2.1047) 1. A curve showing frequency response of the transmitter is shown in Figure 1. Reference level was audio signal output from a Boonton 8220 modulation meter with one kHz deviation. Audio output was measured with an Audio Precision System One TRMS voltmeter and tracking generator. 2. Modulation limiting curves are shown in Figure 2, using a Boonton 8220 modulation meter. Signal level was established with an Audio Precision System One. The curves show compliance with Section 2.1047 and 95.633(b). 3. Figure 3 is a graph of the post-limiter low pass filter which meets the requirements of paragraph 95.633(b) in providing a roll-off of 60Logf/3 dB where f is audio frequency in kHz. Measurements were made following EIA RS-152B with an Audio Precision System One on the Boonton 8220 modulation meter audio output. 4. Occupied_Bandwidth (Section 2.1047 and 95.629(a)of the Rules) Figure 4 is a plot of the sideband envelope of the transmitter output taken with a Tektronix 494P spectrum analyzer. Modulation corresponded to conditions of 2.1049(c)(1) and consisted of a 2500 Hz tone at an input level 16 dB greater than that necessary to produce 50% modulation at 2697 Hz, the frequency of maximum response. 2 C. MODULATION CHARACTERISTICS (continued) The plot is within the limits imposed by Section 2.1049 and 95.635(b)(1)(3)(7) for frequency modulation. The horizontal scale (frequency) is 10 kHz per division and the vertical scale (amplitude) is a logarithmic presentation equal to 10 dB per division. 5. Emission Designator Calculation: (2D + 2F) 2x5.0 + 2x3.0 = 16k0F3E 3 FIGURE 1 MODULATION FREQUENCY RESPONSE MODULATION FREQUENCY RESPONSE FCC ID: MMAG9 FIGURE 1 4 FIGURE 2 AUDIO LIMITER CHARACTERISTICS AUDIO LIMITER CHARACTERISTICS FCC ID: MMAG9 FIGURE 2 5 FIGURE 3 AUDIO LOW PASS FILTER RESPONSE AUDIO LOW PASS FILTER RESPONSE FCC ID: MMAG9 FIGURE 3 6 FIGURE 4 OCCUPIED BANDWIDTH ATTENUATION IN dB BELOW MEAN OUTPUT POWER Required On any frequency more than 50% up to and including 100% of the 25 authorized bandwidth, 20 kHz (10-20 kHz) On any frequency more than 100%, up to and including 250% of the 35 authorized bandwidth (20-50 kHz) On any frequency removed from the assigned frequency by more 43+10LogP = 44 than 250% of the authorized (P = 1.4W ERP(d)) bandwidth (over 50 kHz) OCCUPIED BANDWIDTH FCC ID: MMAG9 FIGURE 4 7 E. SPURIOUS EMISSIONS AT THE ANTENNA TERMINALS Not applicable, permanently attached antenna. F. MEASUREMENTS OF SPURIOUS RADIATION (Section 2.1053, 95.635(b)(7) of the Rules) Field intensity measurements of radiated spurious emissions from the G-9 were by substitution made with a Tektronix 494P spectrum analyzer using Singer DM-105A calibrated test antennae for the measurements to l GHz, and EMCO 3115 horn from 1 GHz to 5 GHz. The transmitter with the normally supplied antenna was located on an open area test site 3 meters from the test antenna. Supply voltage was a power supply with a terminal voltage under load of 6.0 Vdc. The transmitter and test antenna were arranged to maximize pickup. Both vertical and horizontal test antenna polarization were employed. TABLE 1 TRANSMITTER CABINET RADIATED SPURIOUS 462.5625 MHz, 6.0 Vdc, 1.4 W ERP(d) dB Below Frequency Carrier ___MHz___ Reference 1 462.563 0 925.126 52V 1387.689 49V 1850.252 45V 2312.811 50V Required: 43+10Log(1.4) = 44 1 Worst-case polarization, H-Horizontal, V-Vertical. All other spurious from 21.25 MHz to 4.7 GHz were 20 dB or more below FCC limit. 8 G. FREQUENCY STABILITY (Section 2.1055 and 95.621(b) of the Rules) Measurement of frequency stability versus temperature was made at temperatures from -30 o C to +50 o C. At each temperature, the unit was exposed to test chamber ambient a minimum of 60 minutes after indicated chamber temperature ambient had stabilized to within ±2° of the desired test temperature. Following the 1 hour soak at each temperature, the unit was turned on, keyed and frequency measured within 2 minutes. Test temperature was sequenced in the order shown in Table 2, starting with -30 ° C. A Thermotron S1.2 temperature chamber was used. Temperature was monitored with a Ke…
