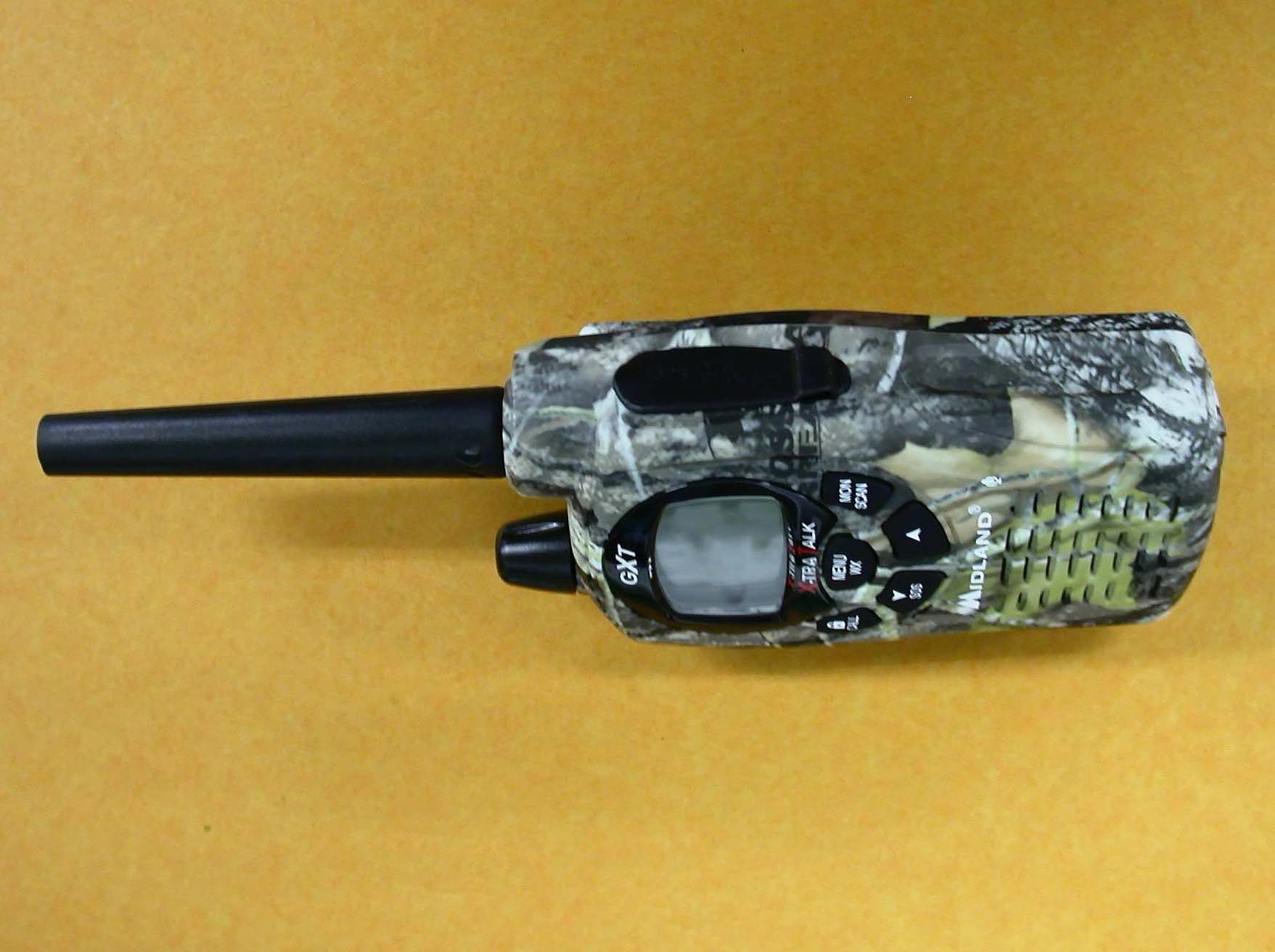

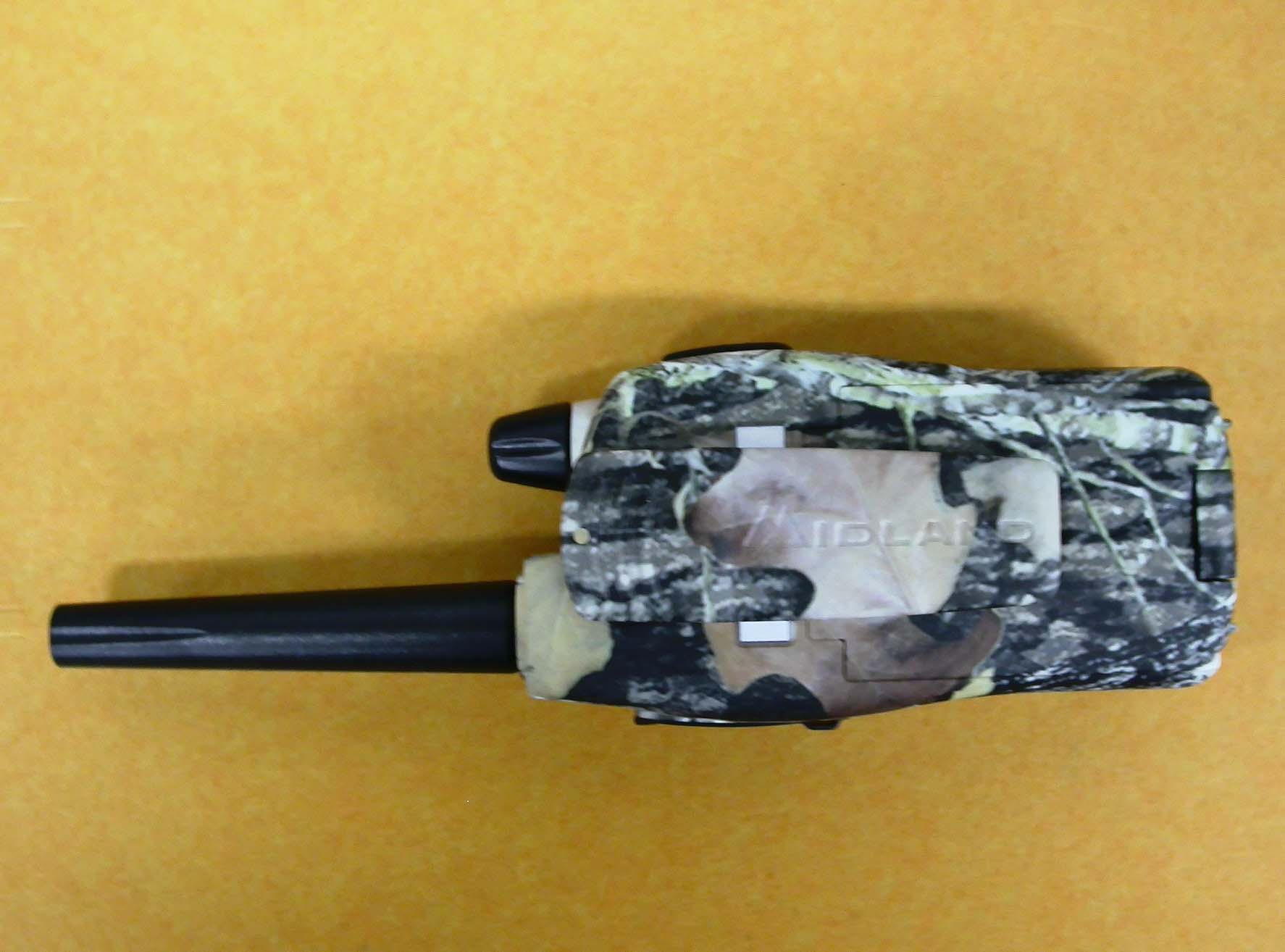

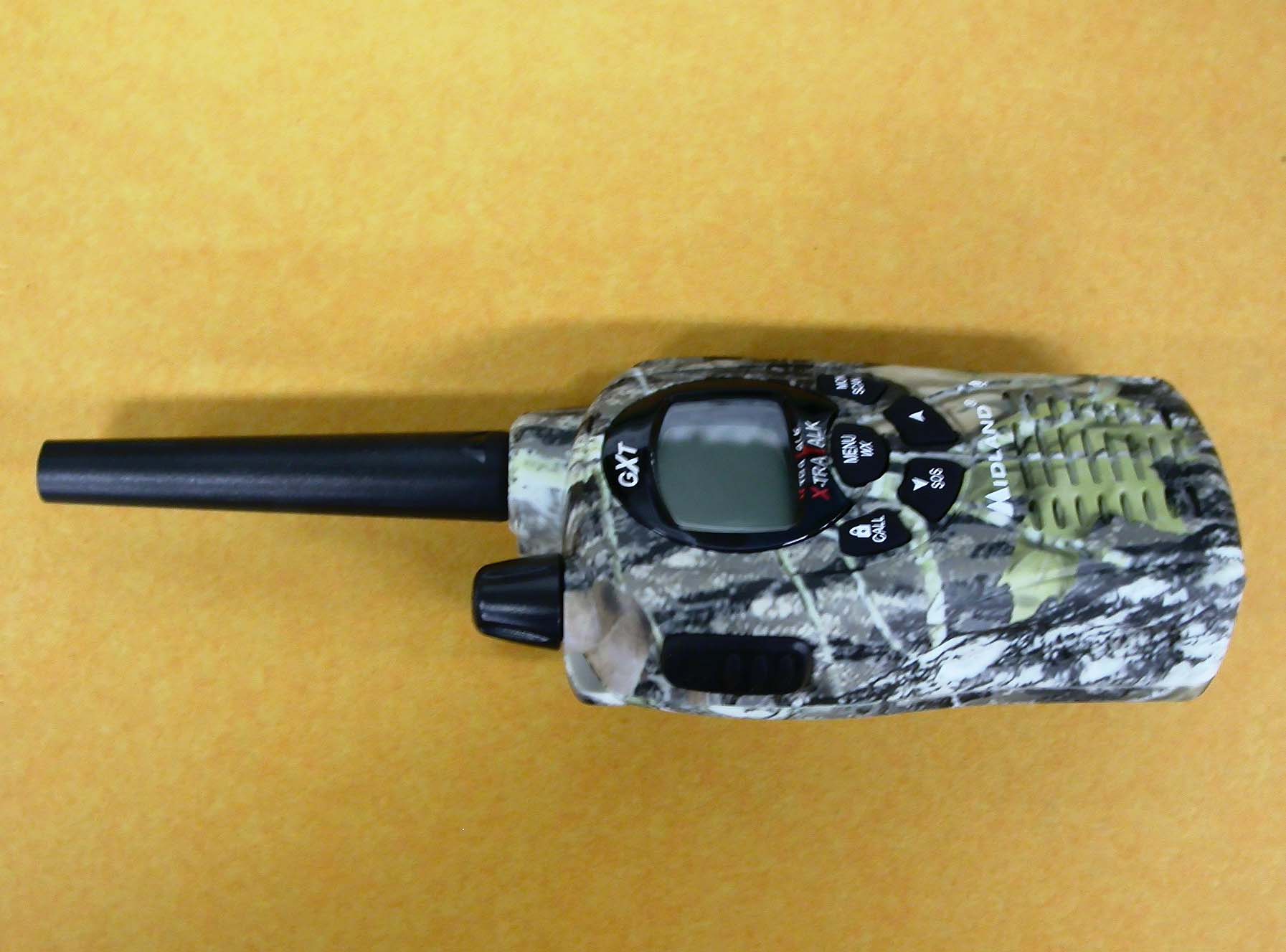

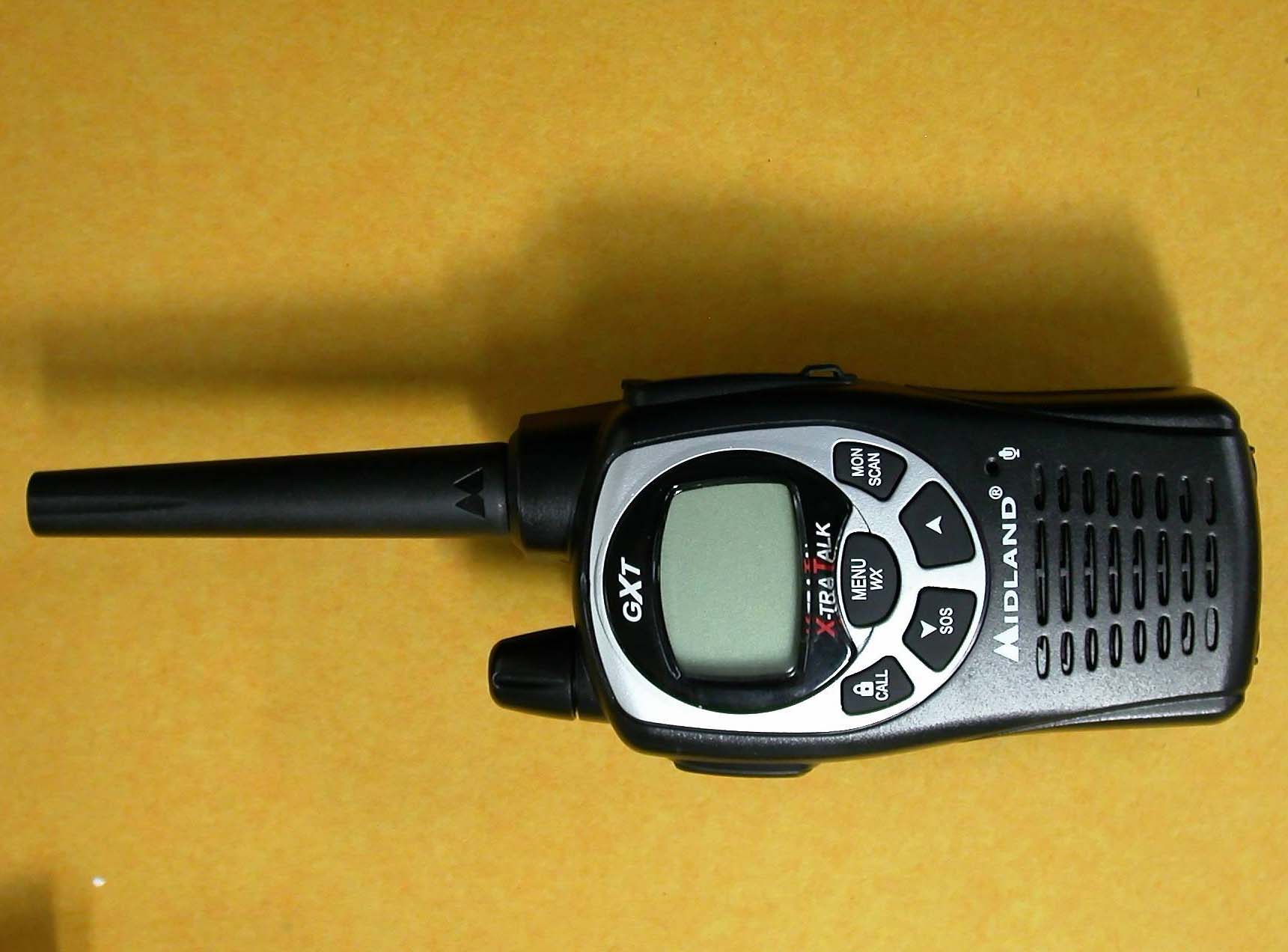

MMAGXT1050PHANDHELD FRS/GMRS TRANSCEIVER

® Model GXT900/950 Series Page 3www.midlandradio.com TABLE OF CONTENTS3 Introduction4 Important Notice, FCC Licensing5 LCD Display6 Controls6 Battery Installation7 Installing the Belt Clip7 Charging the Optional Battery Pack8 Low Battery Level Indicator8 Operating Your Radio9 - 18 External Speaker/Microphone Jack18 Troubleshooting Guide19 Use and Care19 Specifications and Frequency Charts20 - 21 Warranty Information22 MIDLAND Family Products23 Accessories23 - 25 Accessories Order Form27 ® Page 4www.midlandradio.com Welcome to the world of Midland electronics Congratulations on your purchase of a high quality MIDLAND product. Your 2-way radio represents the state-of-the-art in high-tech engineering. Designed for GMRS (General Mobile Radio Service) operation, this compact package is big in performance. It is a quality piece of electronic equipment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. Your two-way radio is designed for reliable and trouble-free performance for years to come. Features - 42 GMRS/FRS Channel - 142 Privacy Codes (38 CTCSS / 104 DCS) - Water Resistant (IP4 Standard) - Direct Call - VOX - Selectable Call Alert (additional Animal Sound on GXT850) - NOAA Weather Radio - NOAA Weather Alert - VIBRATE ALERT - Scrambler Function - Monitor Function - Roger Beep Tone - Silent Operation - Keypad Lock - Power HI/MED/LO Settings - Speaker / Microphone Jacks - Battery Meter / Battery Low Indicator This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device does not cause harmful interference, and (2) this radio must accept any interference that may cause undesired operation. To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. (Tested with Headset Model: AVP-1) Model GXT900/950 Series ® Page 5www.midlandradio.com IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION The GXT900/950 Series operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22, which comprise the GMRS channels of the GXT900/950 Series. Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Act's Sections 501 and 502 (amended). You will be issued a call sign by the FCC which should be used for station identification when operating the radio on GMRS channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time. To obtain a license or ask questions about the license application, contact the FCC at 1-888-CALL FCC or go to the FCC's website: http://www .fcc.govand request form 605. Exposure To Radio Frequency Energy Your Midland radio is designed to comply with the following national and international standards and guidelines regarding exposure of human being to radio frequency electromagnetic energy: - United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J - American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992 - Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition - National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986 - International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998 To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting. Model GXT900/950/850 Series IMPORTANT:Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations. Any adjustment to your radio must be made by qualified technicians. ® Page 6www.midlandradio.com CONTROLS LCD DISPLA Y 1. BATTERY METER– Indicates the battery level. 2. SCRAMBLER ICON – Indicates when the Scrambler feature is on. 3. KEY LOCK ICON – Indicates KEY LOCK mode is on. 4. VOX ICON– Indicates when VOX mode is active. 5. NOAA WEATHER (WX) BAND ICON– Indicates when the radio is in Weather Band mode. 6. CHANNEL NUMBER– Changes from 1~22 on GMRS/FRS band (1~10 on WX band). 7. PRIVACY CODE– Indicates Privacy Code selected by user (oF~38/oF~104). 8. GROUP MODE ICON– Indicates when the Group Mode is on. 9. VIBRATE-ALERT ICON– Indicates when the Vibrate-Alert feature is on. 10. RECEIVE (RX) ICON– Indicates radio is receiving a transmission. 11. TRANSMIT (TX) ICON– Indicates radio is transmitting a signal. 12. TRANSMIT POWER LEVEL ICON– Indicates TX Power setting (H/M/L) 13. PRIVACY CODE ICON– Indicates Privacy Code setting (CTCSS/DCS). 14. POWER/VOLUME KNOB– Turn clock- wise to turn the power on and increase the volume level. Turn counter-clockwise to decrease the volume level and turn the power off. 15. PTT Button– Press and hold to transmit voice communication. 16. CALL/LOCK Button– Press to send a CALL Alert signal. Press and hold to turn KEY LOCK on/off. 17. UPand DOWN Button– Make adjustments in MENU mode.. 18. SPEAKER– Built-in speaker. 19. ANTENNA. 20. EXTERNAL SPEAKER/MIC JACK. 21. MENU Button– Press to access Menu mode. Press and hold for 5 seconds to activate the NOAA Weather Scan function. 22. MONITOR/SCAN Button–…

Text truncated - open the document above for the full version.

5900 Parretta Drive ● KANSAS CITY, MISSOURI ● 64120 TELEPHONE: (816) 241-8500 ● FAX: (816) 241-5713 EMAIL: [email protected] WEBSITE: www.midlandradio.com May 7, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: MMAGXT1050P Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematic Diagram(s) Operational Description Tuning Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, . Midland Radio Corporation 5900 Parretta Drive, Kansas City, MO. 64120 Phone: (816) 241-8500 Fax: (816) 241-5713 Website: wwwl.midlandradio.com E-Mail: [email protected]

S/N

802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Midland Radio Corp. Dates of Test: May 1, 2015 5900 Parretta Drive Test Report Number: SAR.20150501 Kansas City, MO 64120 Revision B This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003 and EN/IEC 62209 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Testing Cert. # 2387.01 FCC ID: MMAGXT1050P Model(s): GXT1000, GXT1050 Test Sample: Engineering Unit Same as Production Serial Number: FCC #2 Equipment Type: Push-To-Talk Handheld Radio for General Population Use Classification: Portable Transmitter Next to Face and Body TX Frequency Range: 462.55 – 467.7125 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 34.77 dBm Conducted Signal Modulation: FM Body Worn Accessories: Standard Belt Clip Audio Accessories: Model Speaker/Mic; Over-the-ear Headset with Boom Microphone Antenna Type: Standard Integral Antenna Battery: Standard (Model BATT-5R NiMH, 4-AA Alkaline) Application Type: Certification FCC Rule Parts: Part 2, 95A KDB Test Methodology: KDB 447498 D01 v05r02, KDB 643646 D01 v01r01, KDB 865664 D01 v01r03, KDB 865664 D02 v01r01 Maximum SAR Value: 0.49 W/kg for Face; 0.54 W/kg for Body Reported Separation Distance: 25 mm for Face; 0 mm for Body © 2015 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20150501 Table of Contents 1. Introduction ........................................................................................................................ 3 SAR Definition [5] ................................................................................................................... 4 2. SAR Measurement Setup ................................................................................................... 5 Robotic System ...................................................................................................................... 5 System Hardware ................................................................................................................... 5 System Electronics ................................................................................................................. 6 Probe Measurement System .................................................................................................. 6 3. Probe and Dipole Calibration .............................................................................................14 4. Phantom & Simulating Tissue Specifications .....................................................................15 Head & Body Simulating Mixture Characterization ................................................................15 5. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ..............................................................16 Uncontrolled Environment .....................................................................................................16 Controlled Environment .........................................................................................................16 6. Measurement Uncertainty .................................................................................................17 7. System Validation..............................................................................................................18 Tissue Verification .................................................................................................................18 Test System Verification ........................................................................................................18 8. SAR Test Data Summary ..................................................................................................19 Procedures Used To Establish Test Signal ...........................................................................19 Device Test Condition ...........................................................................................................19 Radio Body Test .......................................................................................................................20 SAR Data Summary – Head SAR Face Measurements ........................................................23 SAR Data Summary – Body SAR Measurements .................................................................24 9. Test Equipment List ...........................................................................................................25 10. Conclusion ....................................................................................................................26 11. References ....................................................................................................................27 Appendix A – System Validation Plots and Data .......................................................................28 Appendix B – SAR Test Data Plots ...........................................................................................33 Appendix C – SAR Test Setup Photos ......................................................................................36 Append…

Text truncated - open the document above for the full version.

FCC PART 95 FRS/GMRS TRANSCEIVER TEST REPORT APPLICANT MIDLAND RADIO CORPORATION 5900 PARRETTA DRIVE KANSAS CITY MISSOURI 64120 USA FCC ID MMAGXT1050P MODEL NUMBER GXT1050P PRODUCT DESCRIPTION PORTABLE FRF/GMRS TRANSCEIVER FCC STANDARD APPLIED 47 CFR § 95 Personal Radio Service Subpart A – General Mobile Radio Service (GMRS) Subpart B – Family Radio Service (FRS) DATE SAMPLE RECEIVED 4/6/2015 DATE TESTED 2/24/2015 & 4/15/2015 TESTED BY Cory Leverett APPROVED BY Sid Sanders Report Number Version Number Description Issue Date 365AZUT15TestReport Rev.1 Initial Issue 4/23/2015 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Applicant: MIDLAND RADIO CORPORATION FCC ID: MMAGXT1050P Report: M\MIDLAND_MMA\365AZUT15\365AZUT15TestReport.docx Page 2 of 21 Table of Contents GENERAL REMARKS .............................................................................................. 3 GENERAL INFORMATION ....................................................................................... 4 TEST REPORT SUMMARY ....................................................................................... 5 RF POWER OUTPUT .............................................................................................. 6 MODULATION CHARACTERISTICS ........................................................................... 8 EMISSION DESIGNATOR AND FREQUENCIES .......................................................... 12 OCCUPIED BANDWIDTH ...................................................................................... 13 FIELD STRENGTH OF SPURIOUS EMISSIONS .......................................................... 16 FREQUENCY STABILITY ....................................................................................... 19 EMC EQUIPMENT LIST ......................................................................................... 21 Applicant: MIDLAND RADIO CORPORATION FCC ID: MMAGXT1050P Report: M\MIDLAND_MMA\365AZUT15\365AZUT15TestReport.docx Page 3 of 21 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: Fulfill the general approval requirements as identified in this test report Not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Authorized Signatory Name: Cory Leverett Engineering Project Manager Date: 4/23/2015 Table of Contents Applicant: MIDLAND RADIO CORPORATION FCC ID: MMAGXT1050P Report: M\MIDLAND_MMA\365AZUT15\365AZUT15TestReport.docx Page 4 of 21 GENERAL INFORMATION EUT Specification EUT Description PORTABLE FRS/GMRS TRANSCEIVER EUT Application Portable short range communications FCC ID MMAGXT1050P Model Number GXT1050P Operating Frequency GMRS:462.5500-462.7250 MHz FRS: 467.5625-467.7125 MHz Test Frequencies GMRS: 462.5500 MHz FRS: 467.6375 MHz Type of Emission FRS:10K5F3E GMRS:16K0F3E EUT Power Source 110–120Vac/50–60Hz (Optional AC power Adapter) DC Power 13.8V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Fixed Test Conditions Temperature: 24- 26ºC Relative humidity: 50-60%. Modification to the EUT None Applicable Standards FCC CFR 47 Part 95 Subpart A for GMRS; FCC CFR 47 Part 95 Subpart B for FRS; Test Standards ANSI/TIA 603-D:2004, KDB412172 D01 Test Facility Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 USA. Table of Contents Applicant: MIDLAND RADIO CORPORATION FCC ID: MMAGXT1050P Report: M\MIDLAND_MMA\365AZUT15\365AZUT15TestReport.docx Page 5 of 21 TEST REPORT SUMMARY Rule Part No. Scope of Work Status Pass/Fail/NA Part 2.1033(c)(6)(7), Part 2.1046(a), PART 95 Subpart A, Part 95 Subpart B, RF Power Output Pass Part 2.1033(a) (b) Modulation Characteristics Pass 2.1049(c), 95.635(b)(1)(3)(7) Emission Mask and Occupied Bandwidths Pass 2.1051 Antenna Conducted Emissions Pass 2.1053, 95.635(b)(7) Field Strength Spurious Emissions Pass Part 2.1055 Part 95.621(b) Frequency Stability Pass Table of Contents Applicant: MIDLAND RADIO CORPORATION FCC ID: MMAGXT1050P Report: M\MIDLAND_MMA\365AZUT15\365AZUT15TestReport.docx Page 6 of 21 RF POWER OUTPUT Rule Part No.: FCC Part 2.1033(c)(6)(7), FCC Part 2.1046(a), FCC PART 95.639(a) for GMRS, FCC Part 95.639(b) for FRS Requirements: Power output shall not exceed 0.50 Watts ERP for the FRS channels. There can be no provisions for increasing the power or varying the power. No GMRS channel, under any condition of modulation, shall exceed: 50Watts 1. 50W Carrier power (average TP during one modulated RF cycle) when transmitting emissions type A1D, F1D, G1D, A3E, F3E, or G3E. 2. 50W peak envelope TP when transmitting emission type H1D, J1D, R1D, H3E, J3E, or R3E. Method of Measurement: RF power is measured as ERP as the antenna is permanently attached. The substitution method was used. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: Test Data: Tuned Frequency (MHz) ERP (W) 462.55003.0710 Tuned Frequency (MHz) ERP (W) 467.63750.4532 GMRS OUTPUT POWER FRS OUTPUT POWER Results: Pass Table of Contents Applicant: MIDLAND RADIO CORPORATION FCC ID: MMAGXT1050P Report: M\MIDLAND_…
