MMAGXT500FRS/ GMRS Combination

GXT500/550 Series GMRS/FRS Radio X-TRA TALK ® OWNER'S MANUAL www.midlandradio.com Model GXT500/550 Series Page 2www.midlandradio.com TABLE OF CONTENTS2 Introduction3 Important Notice, FCC Licensing4 LCD Display5 Controls5 Battery Installation6 Installing the Belt Clip6 Charging the Optional Battery Pack7 Low Battery Level Indicator7 Operating Your Radio8 - 13 External Speaker/Microphone Jack14 Troubleshooting Guide15 Use and Care15 Specifications and Frequency Charts16 Warranty Information17 MIDLAND Family Products18 Accessories18 Accessories Order Form19 Page 3www.midlandradio.com Welcome to the world of Midland electronics Congratulations on your purchase of a high quality MIDLAND product. Your 2-way radio represents the state-of-the-art in high-tech engineering. Designed for GMRS (General Mobile Radio Service) operation, this compact package is big in performance. It is a quality piece of electronic equipment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. Your two-way radio is designed for reliable and trouble-free performance for years to come. Features - 22 GMRS/FRS Channel - 38 Privacy Codes - eVOX - Selectable CALL Tone - Weather (WX) Band Receiver - VIBRATE ALERT - SCAN Function - MONITOR Function - Roger Beep Tone - Silent Operation - Key Pad Lock - Power High / Power Low Settings - Speaker / Microphone Jacks - Battery Low Indicator This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device does not cause harmful interference, and (2) this radio must accept any interference that may cause undesired operation. To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. (Tested with Headset Model: AVP-1) Model GXT500/550 Series Page 4www.midlandradio.com IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION The GXT500/550 Series operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22, which comprise the GMRS channels of the GXT500/550 Series. Serious penal- ties could result for unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Act's Sections 501 and 502 (amended). You will be issued a call sign by the FCC which should be used for station identification when operating the radio on GMRS channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time. To obtain a license or ask questions about the license application, contact the FCC at 1-886-CALL FCC or go to the FCC's website: www .fcc.gov/wtb/prs/genmbl.html Exposure To Radio Frequency Energy Your Midland radio is designed to comply with the following national and international standards and guidelines regarding exposure of human being to radio frequency electromagnetic energy: - United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J - American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992 - Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition - National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986 - International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998 To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting. Model GXT500/550 Series Page 5www.midlandradio.com CONTROLS LCD DISPLAY 1. LOW BATTERY ICON– Indicates the battery level is low. 2. TRANSMIT (TX) ICON– Indicates radio is transmitting a signal. 3. eVOX– Indicates when eVOX mode is active. 4. CHANNEL NUMBER– Changes from 1~22 on GMRS/FRS band (1~10 on WX band. 5. RECEIVE (RX) ICON– Indicates radio is receiving a transmission. 6. KEY LOCK ICON – Indicates KEY LOCK mode is on. 7. WX BAND ICON– Indicates when the radio is in Weather Band mode 8. VIBRATE-ALERT ICON– Indicates when the Vibrate-Alert feature is on 9. PRIVACY CODE– Indicates Privacy Code selected by user (oF~38) . 10. TRANSMIT POWER LEVEL ICON– Indicates TX Power setting (H/M/L) 11. POWER/VOLUME KNOB– Turn clock- wise to turn the power on and increase the volume level. Turn counter-clockwise to decrease the volume level and turn the power off. 12. PTT Button– Press and hold to transmit voice communication. 13. CALL/LOCK Button– Press to send a CALL tone signal. Press and hold to turn KEY LOCK on/off. 14. MIC– Built-in microphone. 15. SPEAKER– Built-in speaker. 16. ANTENNA. 17. EXTERNAL SPEAKER/MIC JACK. 18. MENU Button– Press to access Menu mode. Press and hold to go to WX Band Receiver mode. 19. MONITOR/SCAN Button– Press to enter SCAN mode. Press and hold to enter MONITOR mode 20. UPand DOWN Button– Make adjustments in MENU mode. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 20 19 18 17 16 Model GXT500/550 Series Page 6www.midlandradio.com BATTERY INSTALLATION Your GXT500/550 Series radio operates with either 4 AA alkaline bat- teries or an optional NiMH battery pack. The belt clip should be removed (see below) to ease installation or removal of the batteries. To install the batteries: 1. With the back of the radio facing you, remove the belt clip (see diagram below) for easy access, then remove the Battery Cover by pressing down on the top center and sliding it down from the radio. 2. Insert 4 AA batteries observing the polarity as shown…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 7.1 SYSTEM SPECIFICATIONS 7.2 Robotic System Specifications Specifications POSITIONER: Stäubli Unimation Corp. Robot Model: RX90LB Repeatability: 0.02 mm No. of axis: 6 Data Acquisition Electronic (DAE) System Cell Controller Processor: Pentium III Clock Speed: 450 MHz Operating System: Windows NT 4.0 Data Card: DASY3 PC-Board Data Converter Features: Signal Amplifier, multiplexer, A/D converter, and control logic Software: DASY3 software Connecting Lines: Optical downlink for data and status info. Optical uplink for commands and clock PC Interface Card Function: 24 bit (64 MHz) DSP for real time processing Link to DAE3 16 bit A/D converter for surface detection system serial link to robot direct emergency stop output for robot E-Field Probes Model: ET3DV6 S/N: 1798, S/N: 1609 Construction: Triangular core fiber optic detection system Frequency: 10 MHz to 6 GHz Linearity: ± 0.2 dB (30 MHz to 3 GHz) Phantom Phantom: SAM Shell Material: Fiberglass Thickness: 2.0 ± 0.1 mm Tissue Parameters Freq. [MHz] Liquid Liquid Temp [°C] Parameters Target Value Measured Value Deviation [%] Limit [%] ε 43.5 43.8 +0.69 5% Head 21.5 σ 0.87 0.86 -1.15 5% ε 56.7 55.0 -2.30 5% 450MHz Body 21.5 σ 0.94 0.93 -1.06 5% Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 8.1 MEASUREMENT PROCESS 8.2 System Verification Prior to assessment, the system is verified to the ±10% of the specifications at 450MHz by using the system validation kit. (Graphic Plots Attached) Freq. [MHz] Liquid Liquid Temp [°C] SAR Average Target Value (mW/g) Measured Value (mW/g) Deviation [%] Limit [%] 450 MHz D450V2, S/N: 1007 Head 21.5 1 g 4.9 4.62 -5.71 10% 8.3 Dosimetric Assessment Setup The evaluation was performed with the following procedure: 1. The SAR value at a fixed location above the ear point was measured and was used as a reference value for assessing the power drop. 2. The SAR distribution at the exposed side of the head was measured at a distance of 3.9mm from the inner surface of the shell. The area covered the entire dimension of the head and the horizontal grid spacing was 20mm x 20mm. Based on this data, the area of the maximum absorption was determined by spline interpolation. 3. Around this point, a volume of 32mm x 32mm x 34mm was assessed by measuring 5 x 5 x 7 points. On this basis of this data set, the spatial peak SAR value was evaluated with the following procedure: a. The data at the surface were extrapolated, since the center of the dipoles is 2.7mm away from the tip of the probe and the distance between the surface and the lowest measuring point is 1.2mm. The extrapolation was based on a least square algorithm [13]. A polynomial of the fourth order was calculated through the points in z-axes. This polynomial was then used to evaluate the points between the surface and the probe tip. b. The maximum interpolated value was searched with a straight-forward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1g or 10g) were computed using the 3D-Spline interpolation algorithm. The 3D-spline is composed of three one-dimensional splines with the “Not a knot” condition (in x,y, and z directions) [13][14]. The volume was integrated with the trapezoidal algorithm. One thousand points (10 x 10 x 10) were interpolated to calculate the average. c. All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Fig. 10. SAR Measurement Point in Area Scan Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 9.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS HUMAN EXPOSURE UNCONTROLLED ENVIRONMENT General Population (W/kg) or (mW/g) CONTROLLED ENVIRONMENT Occupational (W/kg) or (mW/g) SPATIAL PEAK SAR * (Brain) 1.60 8.00 SPATIAL AVERAGE SAR ** (Whole Body) 0.08 0.40 SPATIAL PEAK SAR *** (Hands / Feet / Ankle / Wrist) 4.00 20.00 Table 2. Safety Limits for Partial Body Exposure NOTES: * The Spatial Peak value of the SAR averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube) and over the appropriate averaging time. ** The Spatial Average value of the SAR averaged over the whole-body. *** The Spatial Peak value of the SAR averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube) and over the appropriate averaging time. Uncontrolled Environments are defined as locations where there is the exposure of individuals who have no knowledge or control of their exposure. Controlled Environments are defined as locations where there is exposure that may be incurred by persons who are aware of the potential for exposure, (i.e.as a result of employment or occupation). Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 10.1 MEASUREMENT UNCERTAINTIES Measurement uncertainties in SAR measurements are difficult to quantify due to several variables including biological, physiological, and environmental. However, we estimate the measurement uncertainties in SAR to be less than 15-25 % [16]. According to ANSI/IEEE C95.3, the overall uncertainties are difficult to assess and will vary with the type of meter and usage situation. However, accuracy’s of ± 1 to 3 dB can be expected in practic…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 15mm 25mm Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Date: January 05, 2005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD21046 Subject: GXT-500 Model Battery Type To whom it may concern Here we would like to confirm that the ‘AA’ type batteries only should be used For this subject model GXT-500. (FCC ID: MMAGXT500)

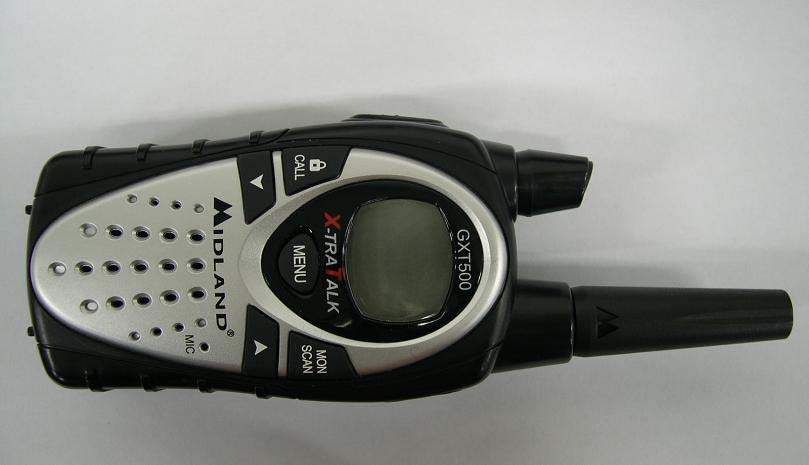

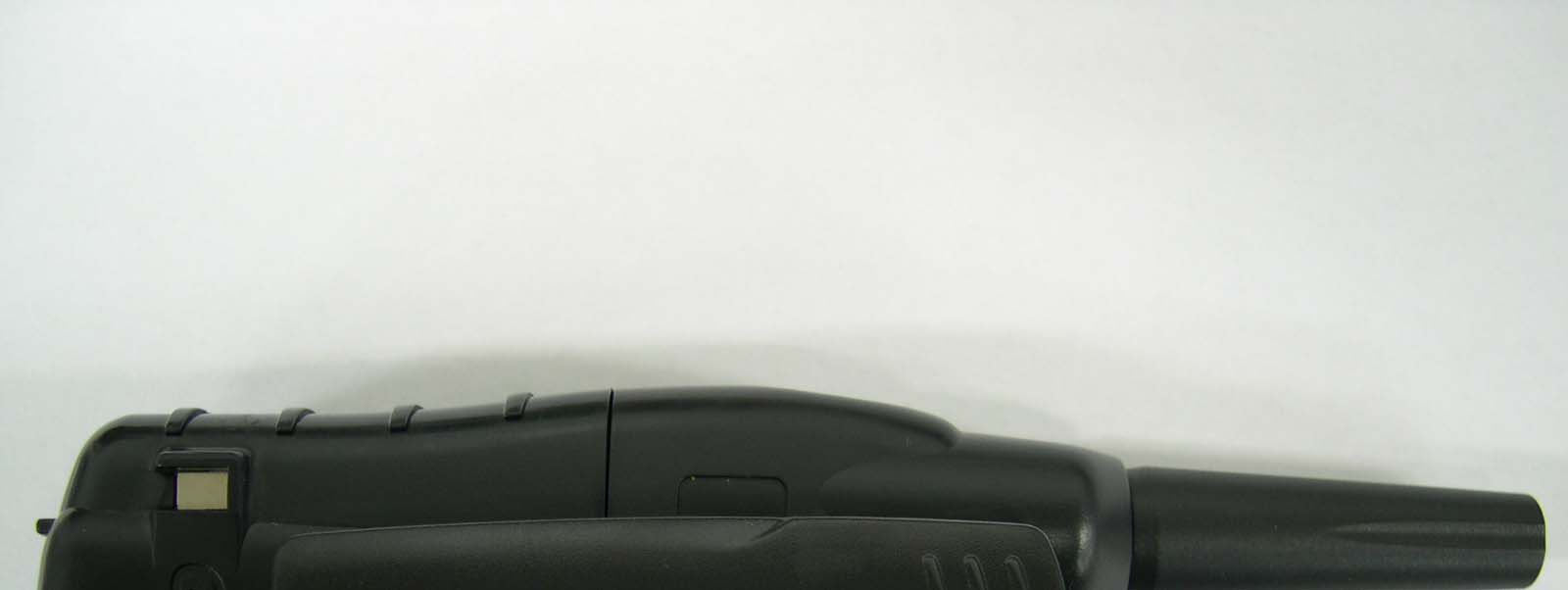

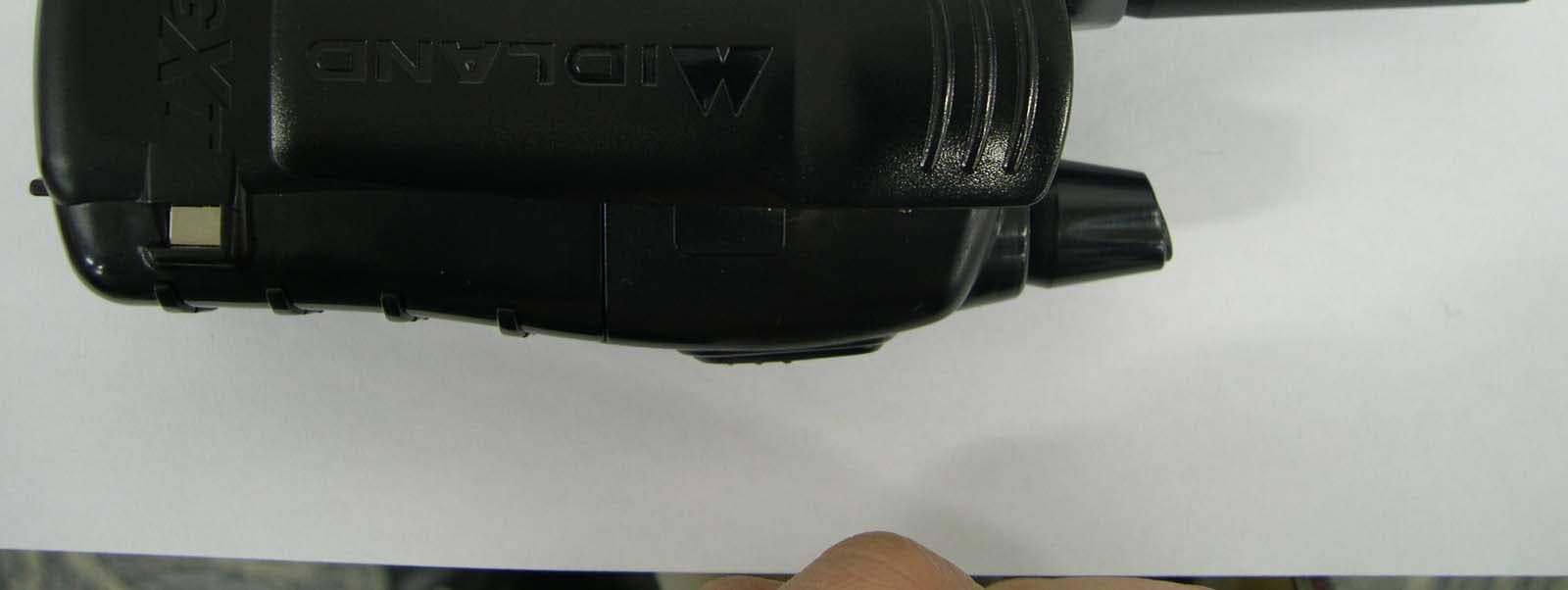

Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX C – EUT PROFILE PHOTOGRAPHS Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX E – PROBE CALIBRATION DATA Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX F – DIPOLE CALIBRATION DATA Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX D – DIPOLE VALIDATION PLOTS Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Date of Issue : January 20, 2005 Test Report No.: HCT-SAR05-0102 Test Site : HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN : 0005866421 Manufacture; Midland Radio Corporation. 1120 Clay St. North Kansas City, MO 64116 FRN : 0005867551 MMAGXT500 Midland Radio Corporation. FCC ID : APPLICANT : EUT Type: 22 CH Combination FRS/GMRS Transceiver. Model(s): GXT-500 Tx Frequency: 462.5500 MHz – 462.7250 MHz (GMRS) 462.5625 MHz – 467.7125 MHz (FRS) Max. SAR Measurement(s): 1.36 mW/g(1g) GMRS Face SAR ; 1.264 mW/g(1g) GMRS Body SAR Max. RF Output Power: 1.515 W ERP(31.8 dBm)GMRS ; 0.354 W ERP(25.5 dBm) FRS Conducted Power: 4.55W (36.58 dBm)GMRS ; 0.538W (27.31dBm) FRS Emission Designator: 10K5F3E Channel Capacity: 22 Application Type: Certification Trade Name(s): Midland FCC Rule Part(s): §95(A)(B), 2(J) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled Environment Occupational exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 7.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 8.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 9.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 10.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 11.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 12.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 13.1 CONCLUSION ------------------------------------------------------------------------------------------------ 14.1 REFERENCES -------------------------------------------------------------------------------------------- 3 4 5 6-7 8 9 10 11 12 13 14 15-16 17 18 APPENDIX A – SAR TEST PLOTS APPENDIX B – TEST SETUP PHOTOGRAPHS APPENDIX C – EUT PROFILE PHOTOGRAPHS APPENDIX D – DIPOLE VALIDATION PLOTS APPENDIX E – PROBE CALIBRATION DATA APPENDIX F – DIPOLE CALIBRATION DATA Report No.: HCT-SAR05-0102 FCC ID: MMAGXT500 DATE: January 20, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr SAR…

Text truncated - open the document above for the full version.
