MMAGXT600FRS/GMRS COMBINATION

GXT600/650 Series GMRS/FRS Radio X-TRA TALK ® OWNER'S MANUAL www.midlandradio.com ® Model GXT600/650 Series Page 2www.midlandradio.com TABLE OF CONTENTS2 Introduction3 Important Notice, FCC Licensing4 LCD Display5 Controls5 Battery Installation6 Installing the Belt Clip6 Charging the Optional Battery Pack7 Low Battery Level Indicator7 Operating Your Radio8 - 13 External Speaker/Microphone Jack14 Troubleshooting Guide15 Use and Care15 Specifications and Frequency Charts16 - 17 Warranty Information18 MIDLAND Family Products19 Accessories19 Accessories Order Form20 ® Page 3www.midlandradio.com Welcome to the world of Midland electronics Congratulations on your purchase of a high quality MIDLAND product. Your 2-way radio represents the state-of-the-art in high-tech engineering. Designed for GMRS (General Mobile Radio Service) operation, this compact package is big in performance. It is a quality piece of electronic equipment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. Your two-way radio is designed for reliable and trouble-free performance for years to come. Features - 22 GMRS/FRS Channel - 121 Privacy Codes (38 CTCSS / 83 DCS) - eVOX - Selectable CALL Tone (Animal Sound on GXT650) - Weather (WX) Band Receiver - Weather (WX) Alert - VIBRATE ALERT - SCAN Function - MONITOR Function - Roger Beep Tone - Silent Operation - Key Pad Lock - Power High / Power Low Settings - Speaker / Microphone Jacks - Battery Meter / Battery Low Indicator This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device does not cause harmful interference, and (2) this radio must accept any interference that may cause undesired operation. To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. (Tested with Headset Model: AVP-1) Model GXT600/650 Series ® Page 4www.midlandradio.com IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION The GXT600/650 Series operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22, which comprise the GMRS channels of the GXT600/650 Series. Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Act's Sections 501 and 502 (amend- ed). You will be issued a call sign by the FCC which should be used for station identification when operating the radio on GMRS channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time. To obtain a license or ask questions about the license application, contact the FCC at 1-888-CALL FCC or go to the FCC's website: www .fcc.gov/services/personal/generalmobile/licensing.html Exposure To Radio Frequency Energy Your Midland radio is designed to comply with the following national and international standards and guidelines regarding exposure of human being to radio frequency electromagnetic energy: - United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J - American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992 - Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition - National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986 - International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998 To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting. Model GXT600/650 Series IMPORTANT:Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limita- tions. Any adjustment to your radio must be made by qualified technicians. ® Page 5www.midlandradio.com MIC R -TRA ALK X T MENU CONTROLS LCD DISPLAY 1. KEY LOCK ICON – Indicates KEY LOCK mode is on. 2. eVOX– Indicates when eVOX mode is active. 3. WX BAND ICON– Indicates when the radio is in Weather Band mode. 4. CHANNEL NUMBER– Changes from 1~22 on GMRS/FRS band (1~10 on WX band). 5. PRIVACY CODE– Indicates Privacy Code selected by user (oF~38/oF~83). 6. BATTERY METER– Indicates the battery level. 7. VIBRATE-ALERT ICON– Indicates when the Vibrate-Alert feature is on. 8. RECEIVE (RX) ICON– Indicates radio is receiving a transmission. 9. TRANSMIT (TX) ICON– Indicates radio is transmitting a signal. 10. TRANSMIT POWER LEVEL ICON– Indicates TX Power setting (H/M/L) 11. PRIVACY CODE ICON– Indicates Privacy Code setting (CTCSS/DCS). 11. POWER/VOLUME KNOB– Turn clock- wise to turn the power on and increase the volume level. Turn counter-clockwise to decrease the volume level and turn the power off. 12. PTT Button– Press and hold to transmit voice communication. 13. CALL/LOCK Button– Press to send a CALL tone signal. Press and hold to turn KEY LOCK on/off. 14. MIC– Built-in microphone. 15. SPEAKER– Built-in speaker. 16. ANTENNA. 17. EXTERNAL SPEAKER/MIC JACK. 18. MENU Button– Press to access Menu mode. Press and hold to go to WX Band Receiver mode. 19. MONITOR/SCAN Button– Press to enter SCAN mode. Press and hold to enter MONITOR mode 20. UPand DOWN Button– Make adjustments in MENU mode. 1 2 3…

Text truncated - open the document above for the full version.

February 15, 2006 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (MMAGXT600) Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematic Diagram(s) Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Midland Radio Corporation 1120 Clay St. North Kansas City, MO 64116 . (AUTHORIZED SIGNATURE)

GXT650 - Bill of Material Ref.NoItemsDescriptionQ'ty Manufacturer 1st Vendor Q7BFQ67WTRANSISTOR CHIP 1VisayArray Q8BFQ67WTRANSISTOR CHIP 1VisayArray Q10BFQ67WTRANSISTOR CHIP 1VisayArray C51PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C291PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C781PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C182PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C392PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C572PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C187A2PF (For "A" Grade 20.95MHz X-tal) CHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C187B3PF (For "A" or "B" Grade 20.95MHz X-tal) CHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C423PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C187C3PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C613.5PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C494PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C624PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C465PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C1806PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C797PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C518PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C459PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C779PFCHIP CAPACITOR 0402 NPO ±0.25PF1 MurataAsung C5210PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C6010PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C6410PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C9210PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C9310PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C1112PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C4112PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C5515PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C5918PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C8018PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C1322PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C1522PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C2122PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C7622PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C14022PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C630PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C1233PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C7533PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C12833PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C15833PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C15933PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C5639PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C5056PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C17182PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C7100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C9100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C20100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C23100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C26100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C27100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C28100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C30100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C31100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C32100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C35100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C43100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C47100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C53100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C58100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C63100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C65100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C66100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C69100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C94100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C98100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C101100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung Global Link Corporation Confidential Proprietarypage1/ 8 GXT650 - Bill of Material Ref.NoItemsDescriptionQ'ty Manufacturer 1st Vendor C121100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C123100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C147100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C148100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C163100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C164100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C170100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C173100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C174100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C175100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C176100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C178100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C179100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C182100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C184100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C185100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C186100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C188100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C189100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C190100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C191100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C192100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C193100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C194100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C196100PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C68150PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C187150PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C169180PFCHIP CAPACITOR 0402 NPO ±5%1 MurataAsung C8270PFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C135390PFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C117470PFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C118470PFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C114560PFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C140.001UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C170.001UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C730.001UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C740.001UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C1410.0012UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C1190.0015UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C1330.0022UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C1430.0022UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C1520.0022UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C1970.0022UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C1390.0033UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C1340.0039UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C1290.0056UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C190.01UFCHIP CAPACITOR 0402 X7R ±10%1 MurataAsung C2…

Text truncated - open the document above for the full version.

Model No:GXT600/650 Drawing No: GXT6XX-TAP-M-02 Customer: Midland Title: GXT600/650/650C Test & Alignment Procedure Rev. Date: Dec.30. 2005 Created by: Y.D KO Approved by: Rev. No: 02 For Stage : FPP Release Date : Dec.30. 2005 Page 0 of 9 These drawings and specifications are the property of Global Link Corporation Ltd. and shall not be reproduced or copied, or used as reference for design, manufacture, and sale of device without permission. Midland GXT600/650/650C Test and Alignment Procedure Model No:GXT600/650 Drawing No: GXT6XX-TAP-M-02 Customer: Midland Title: GXT600/650/650C Test & Alignment Procedure Rev. Date: Dec.30. 2005 Created by: Y.D KO Approved by: Rev. No: 02 For Stage : FPP Release Date : Dec.30. 2005 Page 0 of 9 These drawings and specifications are the property of Global Link Corporation Ltd. and shall not be reproduced or copied, or used as reference for design, manufacture, and sale of device without permission. REVISION SHEET Rev. Code Rev. Date Revision Revised By: M-01 Dec.21.2005 For FPP(2 nd ) Y.D KO M-02 Dec.30.2005 For FPP(3 rd ) Y.D KO Model No:GXT600/650 Drawing No: GXT6XX-TAP-M-02 Customer: Midland Title: GXT600/650/650C Test & Alignment Procedure Rev. Date: Dec.30. 2005 Created by: Y.D KO Approved by: Rev. No: 02 For Stage : FPP Release Date : Dec.30. 2005 Page 0 of 9 These drawings and specifications are the property of Global Link Corporation Ltd. and shall not be reproduced or copied, or used as reference for design, manufacture, and sale of device without permission. TABLE OF CONTENT 1. RECOMMENDED EQUIPMENT ........................................ 4 2. TEST PREPARATION ........................................ 4 3. VOLTAGE REGULATOR TEST ........................................ 4 4. CRYSTAL SELECT ........................................ 4 5. VCO ADJUSTMENT ........................................ 5 6. TRANSMITTER FREQUENCY ALIGNMENT ........................................ 5 7. TRANSMITTER OUTPUT POWER CHECK ........................................ 5 8. TRANSMITTER DEVIATION ADJUSTMENT ........................................ 5 9. RECEIVER ALIGNMENT ........................................ 6 10. SQUELCH THRESHOLD AND HYSTERISIS ........................................ 6 11. VOX TEST ........................................ 6 12. LOW BATTERY LEVEL TEST ........................................ 7 13. JACK CHARGING TEST ........................................ 7 14. DESKTOP CHARGING TEST ........................................ 7 15. FREQUENCIES & CODE TABLE ........................................ 7 15.1 FRS & GMRS ........................................ 7 15.2 WX BAND ........................................ 8 15.3 CTCSS CODE ........................................ 8 15.4 DCS CODE ........................................ 9 Model No:GXT600/650 Drawing No: GXT6XX-TAP-M-02 Customer: Midland Title: GXT600/650/650C Test & Alignment Procedure Rev. Date: Dec.30. 2005 Created by: Y.D KO Approved by: Rev. No: 02 For Stage : FPP Release Date : Dec.30. 2005 Page 0 of 9 These drawings and specifications are the property of Global Link Corporation Ltd. and shall not be reproduced or copied, or used as reference for design, manufacture, and sale of device without permission. 1. RECOMMENDED TEST EQUIPMENT 1.1 HP8920A,B Radio Communication Tester or equivalent with Spectrum Analyzer option. 1.2 Fluke 187 Digital Voltmeter or equivalent 1.3 HPE3615A Power Supply or equivalent 2. TEST PREPARATION 2.1 Connect a 6.0Vdc power supply to the positive battery terminal input point and the negative battery terminal input point (GND) into the negative terminal. 2.3 Connect the HP8920A,B RF Output port to the ANT point. 2.4 SPK (+) should be connected to the Audio In Hi and SPK (-) should be connected to the Audio In Lo of the HP8920B. 2.5 Set the unit at CH1 (462.5625MHz) 3. VOLTAGE REGULATOR TEST 3.1 MCU Regulator - Connect a voltmeter to TP9 (MCU REG) and measure the voltage. The value must be between 2.71V ~ 2.89V. 3.2 RX Regulator - Connect a voltmeter to TP10 (RX REG) and measure the voltage. The value must be between 2.71V ~ 2.89V. 3.3 TX Regulator - Connect a voltmeter to TP11 (TX REG) and measure the voltage. The value must be between 3.9V ~ 4.0V. 3.4 VCO Regulator - Connect a voltmeter to TP12 (VCO REG) and measure the voltage. The value must be between 2.71V ~ 2.89V. 3.5 IC Regulator - Connect a voltmeter to TP13 (IC REG) and measure the voltage. The value must be between 2.71V ~ 2.89V. 4. CRYSTAL SELECT 4.1 X1 crystal is marked with red, blue, and no color marking. Matching capacitors C187A, C187B, and C187C that are in PCB will be determined by the markings and are as follows: Note : Below are matching matrix for each grade of X1 Crystal C187A C187B A Red 3P 3P B NO COLOR NC 3P C Blue NC NC C187C C187BC187A Model No:GXT600/650 Drawing No: GXT6XX-TAP-M-02 Customer: Midland Title: GXT600/650/650C Test & Alignment Procedure Rev. Date: Dec.30. 2005 Created by: Y.D KO Approved by: Rev. No: 02 For Stage : FPP Release Date : Dec.30. 2005 Page 0 of 9 These drawings and specifications are the property of Global Link Corporation Ltd. and shall not be reproduced or copied, or used as reference for design, manufacture, and sale of device without permission. 5. VCO ADJUSTMENT 5.1 Set the unit at CH1 and connect a digital voltmeter to VCO TP(R62 & C96 connect point). 5.2 Press and hold the PTT Button so the unit is in transmit mode. 5.3 Adjust L23 until the voltmeter reads 1.2 to 1.3Vdc (without VCO Plate). L23 is located under the shieldcan. Solder VCO Plate and let temperature stabilize. Recheck TX VCO at CH1, should be 1.0~1.3 Vdc 5.4 Release the PTT button so the unit will be in receive mode. 5.5 Observe the voltage at VCO TP, the voltage should be 0.6~2.6Vdc. 5.6 Set the unit at CH14. 5.7 Press and hold the PTT button so the unit is in transmit mode. 5.8 Observe the voltage at VCO TP, the voltage should be 1.0~2.6Vdc. 5.9 Release the PTT button so the unit will be in receive…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 15mm 25mm Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr [Tissue Liquid Depth : 15cm] 15cm

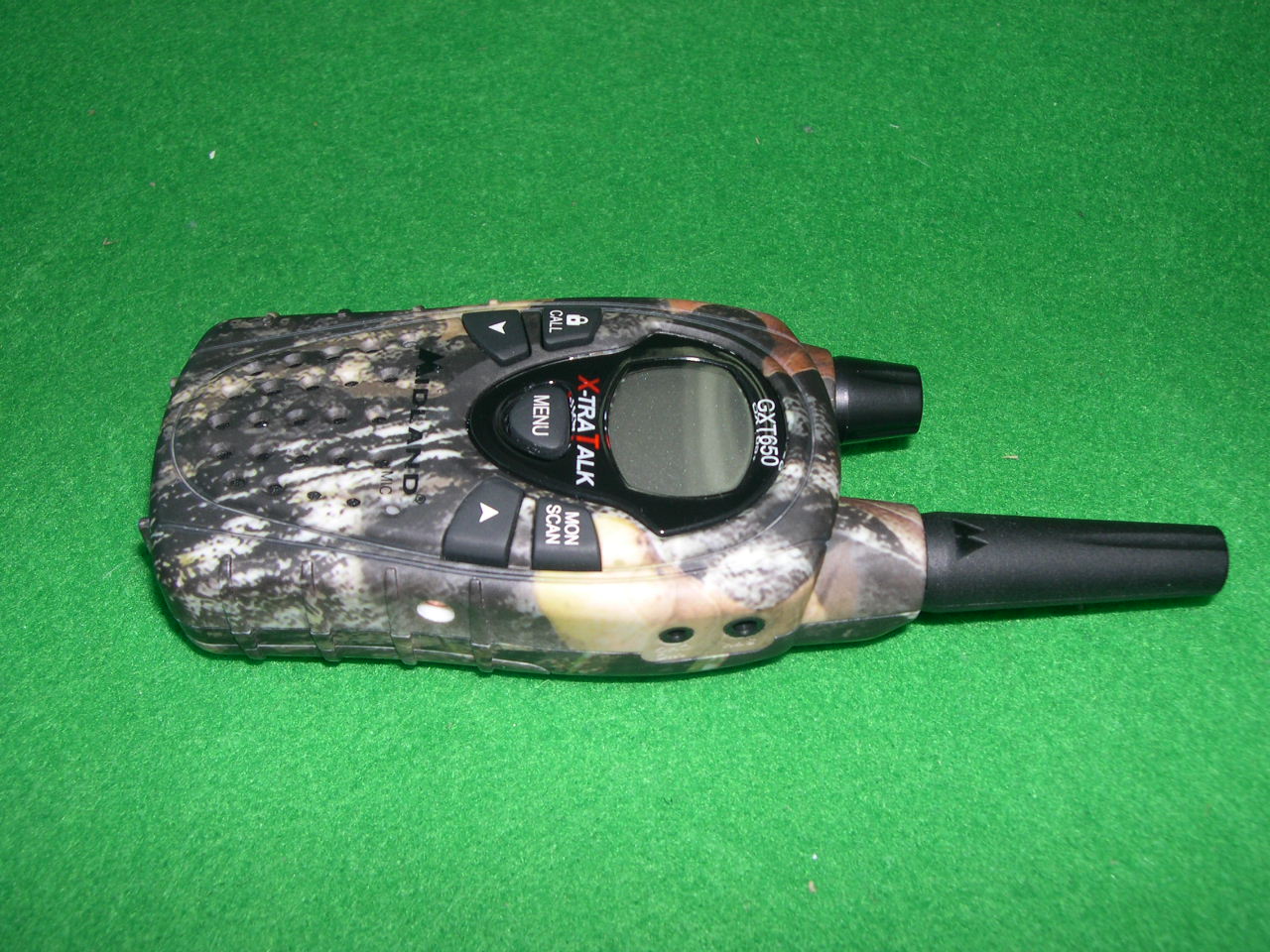

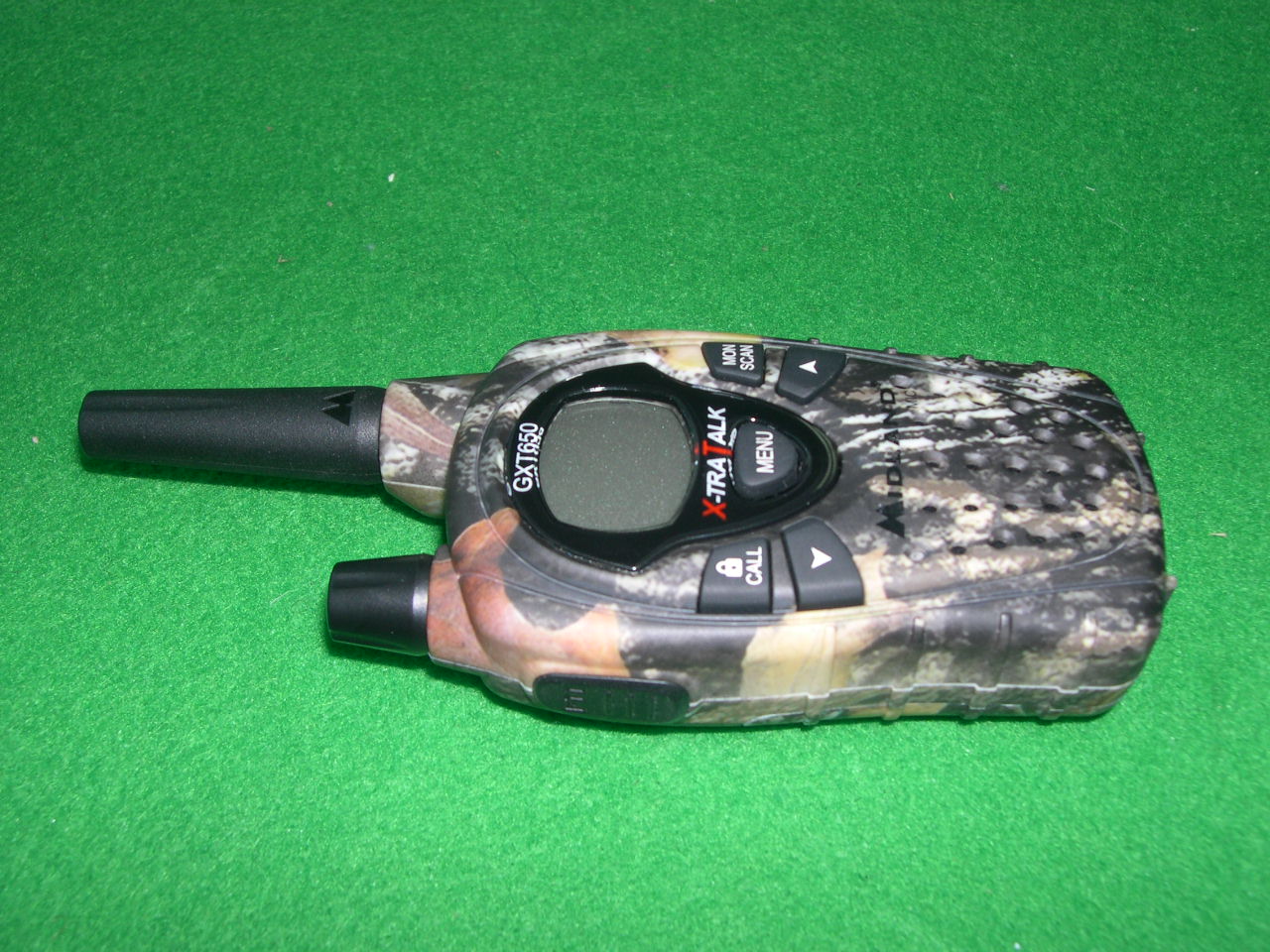

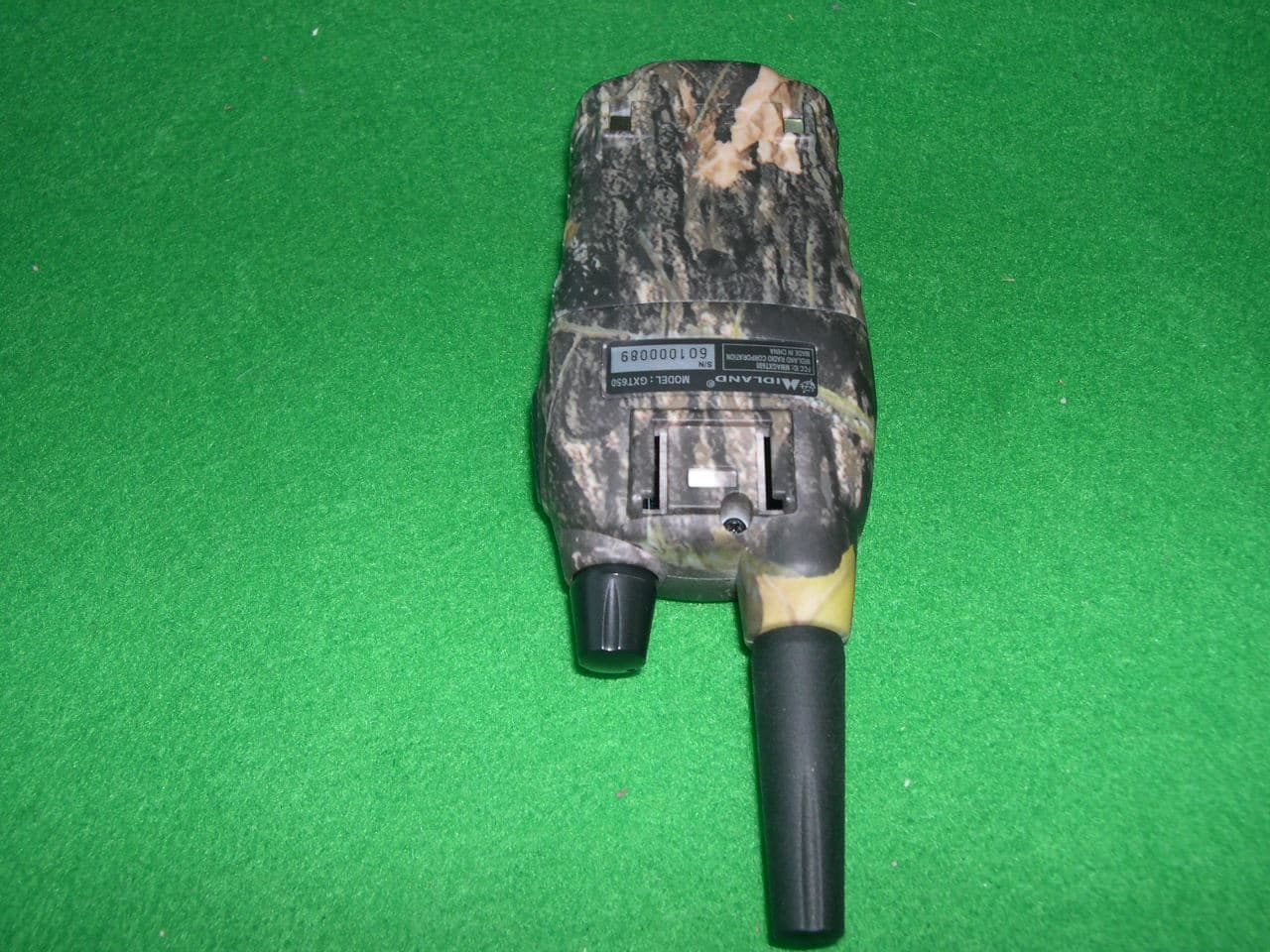

Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX C – EUT PROFILE PHOTOGRAPHS Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX D – DIPOLE VALIDATION PLOTS Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX E – PROBE CALIBRATION DATA Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0207 FCC ID: MMAGXT600 DATE: February 15, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31…
