MMAGXT775FRS/GMRS COMBINATION

GXT720/775 Series GMRS/FRS Radio X-TRA TALK ® OWNER'S MANUAL www.midlandradio.com ® Model GXT720/775 Series Page 2www.midlandradio.com TABLE OF CONTENTS2 Introduction3 Important Notice, FCC Licensing4 LCD Display5 Controls5 Battery Installation6 Installing the Belt Clip6 Charging the Optional Battery Pack7 Low Battery Level Indicator7 Operating Your Radio8 - 14 External Speaker/Microphone Jack14 Troubleshooting Guide15 Use and Care15 Specifications and Frequency Charts16 - 17 Warranty Information18 MIDLAND Family Products19 Accessories19 - 22 Accessories Order Form23 ® Page 3www.midlandradio.com Welcome to the world of Midland electronics Congratulations on your purchase of a high quality MIDLAND product. Your 2-way radio represents the state-of-the-art in high-tech engineering. Designed for GMRS (General Mobile Radio Service) operation, this compact package is big in performance. It is a quality piece of electronic equipment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. Your two-way radio is designed for reliable and trouble-free performance for years to come. Features - 36 GMRS/FRS Channel - 121 Privacy Codes (38 CTCSS / 83 DCS) - VOX - 10 Selectable Call Alert (5 additional Animal Sound on GXT775) - NOAA Weather Radio - NOAA Weather Alert - VIBRATE ALERT - Scan Function - MONITOR Function - Roger Beep Tone - Silent Operation - Keypad Lock - Power HI/MED/LO Settings - Speaker / Microphone Jacks - Battery Meter / Battery Low Indicator This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device does not cause harmful interference, and (2) this radio must accept any interference that may cause undesired operation. To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. (Tested with Headset Model: AVP-1) Model GXT720/775 Series ® Page 4www.midlandradio.com IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION The GXT720/775 Series operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22, which comprise the GMRS channels of the GXT720/775 Series. Serious penal- ties could result for unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Act's Sections 501 and 502 (amended). You will be issued a call sign by the FCC which should be used for station identification when operating the radio on GMRS channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time. To obtain a license or ask questions about the license application, contact the FCC at 1-888-CALL FCC or go to the FCC's website: http://www .fcc.govand request form 605. Exposure To Radio Frequency Energy Your Midland radio is designed to comply with the following national and international standards and guidelines regarding exposure of human being to radio frequency electromagnetic energy: - United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J - American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992 - Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition - National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986 - International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998 To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting. Model GXT720/775 Series IMPORTANT:Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations. Any adjustment to your radio must be made by qualified technicians. ® Page 5www.midlandradio.com CONTROLS LCD DISPLA Y 1. KEY LOCK ICON – Indicates KEY LOCK mode is on. 2. VOX ICON– Indicates when VOX mode is active. 3. NOAA WEATHER (WX) BAND ICON– Indicates when the radio is in Weather Band mode. 4. CHANNEL NUMBER– Changes from 1~36 on GMRS/FRS band (1~10 on WX band). 5. PRIVACY CODE– Indicates Privacy Code selected by user (oF~38/oF~83). It can only be used on Ch 1~22. 6. BATTERY METER– Indicates the battery level. 7. VIBRATE-ALERT ICON– Indicates when the Vibrate-Alert feature is on. 8. RECEIVE (RX) ICON– Indicates radio is receiving a transmission. 9. TRANSMIT (TX) ICON– Indicates radio is transmitting a signal. 10. TRANSMIT POWER LEVEL ICON– Indicates TX Power setting (H/M/L) 11. PRIVACY CODE ICON– Indicates Privacy Code setting (CTCSS/DCS). 12. POWER/VOLUME KNOB– Turn clock- wise to turn the power on and increase the volume level. Turn counter-clockwise to decrease the volume level and turn the power off. 13. PTT Button– Press and hold to transmit voice communication. 14. CALL/LOCK Button– Press to send a CALL Alert signal. Press and hold to turn KEY LOCK on/off. 15. MIC– Built-in microphone. 16. SPEAKER– Built-in speaker. 17. ANTENNA 18. EXTERNAL SPEAKER/MIC JACK. 19. MENU/WX SCAN Button– Press to access Menu mode. Press and hold for 5 seconds to activate the NOAA Weather Scan function. 20. MONITOR/SCAN Button– Press to enter SCAN mode. Press and hold to enter MONITOR mode 21. UPand DOWN…

Text truncated - open the document above for the full version.

5900 Parretta Drive ● KANSAS CITY, MISSOURI ● 64120 TELEPHONE: (816) 241-8500 ● FAX: (816) 241-5713 EMAIL: [email protected] WEBSITE: www.midlandradio.com 10 March 2008 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: MMAGXT775 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Technical Description MMAGXT775 Technical Description.pdf Schematics Diagram(s) MMAGXT775 Schematic Diagram.pdf Block Diagram MMAGXT775 Block Diagram.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Midland Radio Corporation 5900 Parretta, Drive, Kansas City, MO 64120 David Kingsolver, Engineering manager

SEMICONDUCTOR DESIGNATIONS AND FUNCTIONS GXT720/775 Page 1 Designator Description Application CPU1 TMP86CH21 Micro controller D1 KDS114E TX,RX switch D2 KDS120 Charger Switch D3 KDS112 VCO Switch D4 KDV154B WX VCO D5 KDS114E Charger protector D6 KDS114E PA temp. compansation D13 KDS114E TX,RX switch D301 KDS114E VCO TX,RX switch D302 KDV154B GMRS VCO D303 KDV154B GMRS VCO IC2 LM358 OP Amp. IC4 SG6206-2 ANIMAL VOICE SYNTHESIZER IC IC7 AN29160 IC AN29160(ONE CHIP) LED1 SML210MT LED for backlit Q1 NE5510279A TX PA Q2 KRC405E TX Mute Q3 BFQ67W TX driver Q4 BFQ67W TX driver Q5 KRC404E Incoming CTCSS limiter Q6 2SC4226 RX LNA Q7 KRA306E GMRS VCC Switch Q8 2SC4226 RX MIXER Q9 KTC4075E RESET Q10 KRA306E WX VCC Switch Q11 BFQ67W TX pre-driver Q12 STK1828EF RESET Q13 KRC404E WAKE UP VCC Switch Q15 KRA306E MCUREG VCC SWITCH Q16 KRC405E Rx LNA Q17 KRC405E TX Mod. Q18 2SC4083 VCO Q19 KRC401E VCO TX,RX switch Q20 STJ828EF TX Power Hi/Low switch Q21 STJ828EF TX Power Hi/Low switch Q22 KTC4075E SWB SWITCH Q24 KRC405E Vibrator driver Q27 2SC4083 WX Mixer Q301 2SC4226 VCO Q302 2SC4226 VCO

TRANSMITTER ALIGNMENT METHOD GXT720/775 1. Frequency Setting A. Connect a frequency counter or communications service monitor capable of at least five watt RF. B. Press the PTT switch. C. Adjust CT201 trimmer capacitor such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. CT201 is located the right side of VCO Shield can. 2. Output Power Alignment A. Connect a communications service monitor or a wattmeter and dummy load to the antenna connector. B. Press the PTT switch. C. Adjust air coil (L6) by spreading or de-spreading, to achieve maximum power at 6V Vcc. Note: Normally, it is not necessary. D. Adjust semi-resistor(RV1) by rotate, to achieve 0.5W at 6Vcc 3. Deviation Adjustment A. Connect an audio generator with 10uF coupling capacitor to the microphone jack. The audio frequency should be set at 1KHz with a level of 200mV. B. Connect an FM deviation meter or communications service monitor to the antenna connector. Set the monitor to read peak deviation. C. Press the PTT switch. D. Adjust RV2 for +/- 2.0KHz deviation. RV2 is located the bottom right side of PCB. LABORATORY TESTING PROCEDURES GXT720/775 Page 1 UNIT TEST - (UNIT ASSEMBLED) TEST PREPARATION 1) Install Alkaline battery (observe polarity markings). 2) Turn on unit by pressing the power button. SYSTEM TEST 1) Radiated Transmit and Receive performance may be observed. 2) Audio out & Audio in are available at the Headset jack. LABORATORY TEST - (UNIT UN-ASSEMBLED) TEST PREPARATION 1) Disassemble unit (5 screws – 2 behind batteries). Remove the PCB from the cabinet. 2) Remove the antenna with soldering iron and install a 50 ohm coax cable in its place. 3) Either clip alligator leads or solder test leads to the power supply connections. The negative terminal is the lower right PCB area. The positive terminal is the lower left PCB area. 4) Connect 6VDC power source to the terminals, observing correct polarity. 5) Connect an 12-ohm load through the Headset jack 6) Connect a audio generator with 10uF coupling capacitor through the Headset jack 7) Select desired channel 1-36 using CH up/down keypad switch. The rubber keypad may be removed from the front cabinet and used directly on the PCB. LABORATORY TESTING PROCEDURES GXT720/775 Page 2 SPECIFIC TEST METHODS AND GUIDANCE Modulation Characteristics – (paragraph 2.1047(a) of the Rules) FOR TX AUDIO FILTER RESPONSE 1. Connect audio generator with 10uF coupling capacitor to microphone input jack. Press PTT button. 2. Connect RF output with modulation meter. (Filters of modulation meter should be set to a 25Hz to 15KHz.) 3. Adjust audio generator 6-7mVrms of 1KHz audio (approx. 0.75KHz modulation). 4. While transmitting, sweep generator and note measurement. 5. Results should be multiplied by a two times because of compressor. 6. Please compensate the back-ground noise level. Modulation Characteristics – (paragraph 2.1047(b) of the Rules FOR TX AUDIO LOW PASS FILTER RESPONSE. 1. Connect audio generator with 10uF coupling capacitor to microphone input jack. Press PTT button. 2. Connect AC voltmeter or other test equipment via jumper wire with junction (TP9) of C53, R82. 3. Adjust audio generator for 200mV. 4. While transmitting, sweep generator and note measurement. Occupied Bandwidth – (paragraph 2.1049(c) of the Rules) 1. Connect an audio frequency sweep generator with 10uF coupling capacitor to microphone input jack. 2. Adjust audio generator to a frequency of 2500Hz and a level of 51mV rms (+16dB above 8mV per FCC). 3. With a spectrum analyzer, transmit the radio and monitor the transmitter though an antenna. 4. Note required measurements per FCC.

HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: 22 CH Combination FRS/GMRS Transceiver Model(s): GXT775 Additional model (s): GXT720 Tx Frequency: 462.5500 MHz – 462.7250 MHz (GMRS) 462.5625 MHz – 467.7125 MHz (FRS) Max. SAR Measurement(s): 1.035 mW/g (1g) GMRS Face SAR 0.887 mW/g (1g) GMRS Body SAR Max. RF Output Power: 1.202 W ERP (30.80 dBm) GMRS ; 0.150 W ERP (21.76 dBm) FRS Conducted Power: 3.04 W (34.82 dBm) GMRS ; 0.386 W (25.87 dBm) FRS Emission Designator: 10K5F3E Channel Capacity: 22 Application Type: Certification Trade Name(s): Midland FCC Rule Part(s): §95(A)(B), 2(J) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled Environment Occupational exposure limits specified in ANSI/ IEEE Std. C95.1- 2005 and had been tested in accordance with the measurement procedures specified in ANSI FCC/OET Bulletin 65 Supplement C and IEEE Std. 1528-2003. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Manufacture; Midland Radio Corporation 1120 Clay St., North Kansas City, MO 64116 Date of Issue: March 19, 2008 Test Report No.: HCT-SAR08-0310 Test Site: HCT CO., LTD. FCC ID : APPLICANT : MMAGXT775 Midland Radio Corporation Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ２ of 19 Table of Contents 1. SCOPE ---------------------------------------------------------------------------------------------------------- 2. INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3. DESCRIPTION OF TEST EQUIPMENT ------------------------------------------------------------------------ 3.1 SAR MEASUREMENT SETUP ---------------------------------------------------------------- 3.2 DASY E-FIELD PROBE SYSTEM ------------------------------------------------------------- 3.3 PROBE CALIBRATION PROCESS ---------------------------------------------------------- 3.4 SAM Phantom -------------------------------------------------------------------------------------- 3.5 Device Holder for Transmitters --------------------------------------------------------------- 3.6 Brain & Muscle Simulating Mixture Characterization -------------------------------- 4. SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------- 5. MEASUREMENT PROCESS ------------------------------------------------------------------------------ 6. ANSI/ IEEE C95.1 - 2005 RF EXPOSURE LIMITS -------------------------------------------------- 7. MEASUREMENT UNCERTAINTIES --------------------------------------------------------------------- 8. TEST DATA SUMMARY ------------------------------------------------------------------------------------ 8.1 Measurement Results (Mouth/ Face SAR) ---------------------------------------------- 8.2 Measurement Results (Body SAR) --------------------------------------------------------- 9. SAR TEST EQUIPMENT LIST ----------------------------------------------------------------------------- 10. CONCLUSION ------------------------------------------------------------------------------------------------ 11. REFERENCES ---------------------------------------------------------------------------------------------- APPENDIX A – SAR TEST PLOTS APPENDIX B – TEST SETUP PHOTOGRAPHS APPENDIX C – EUT PROFILE PHOTOGRAPHS APPENDIX D – DIPOLE VALIDATION PLOTS APPENDIX E – PROBE CALIBRATION DATA APPENDIX F – DIPOLE CALIBRATION DATA 3 4 5 5 6 7 9 9 10 11 12 13 14 15 15 16 17 18 19 Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ３ of 19 SAR MEASUREMENT REPORT 1. SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency(RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant 1. • FCC ID: MMAGXT775 • EUT Type: 22 CH Combination FRS/GMRS Transceiver. • Trade Name: Midland • Model(s): GXT775 • Additional model (s): GXT720 • Tx Frequency: 462.5500 MHz – 462.7250 MHz (GMRS) 462.5625 MHz – 467.7125 MHz (FRS) • Application Type: Certification • Modulation(s): FM • Power Supply: (x4) AA Alkaline batteries (1.5 V DC) Manufacture( : IBexel / : IIDuracell / : IIIEnergize IV : Rechargeable Battery 6.0 V, 700 mAh) • Place of Test(s): HCT SAR Lab. • Date(s) of Tests: March 13, 2008 • Report No.: HCT-SAR08-0310 Company Name : Midland Radio Corporation Address : 1120 Clay St. North Kansas City, MO 64116 Attention : Mr. Ki Choi / General Manager Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ４ of 19 2. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potentia…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 1 of 16 APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 2 of 16 Test Laboratory: HCT CO., LTD Liquid Temperature: 21.2 °C Ambient Temperature: 21.5 °C Test Date: Mar.13, 2008 DUT: GXT775; Type: Face; Serial: #1 Communication System: 450MHz (FCC); Frequency: 462.563 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 462.563 MHz; σ = 0.87 mho/m; ε r = 45.5; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 176 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(7.25, 7.25, 7.25); Calibrated: 2007-08-30 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn447; Calibrated: 2007-09-13 - Phantom: 835/900 Phamtom ; Type: SAM GMRS 450 Face 1/Area Scan (91x131x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 1.84 mW/g GMRS 450 Face 1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 48.9 V/m; Power Drift = -1.09 dB Peak SAR (extrapolated) = 2.31 W/kg SAR(1 g) = 1.61 mW/g; SAR(10 g) = 1.15 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.69 mW/g 0 dB = 1.69mW/g Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 3 of 16 Test Laboratory: HCT CO., LTD Liquid Temperature: 21.2 °C Ambient Temperature: 21.5 °C Test Date: Mar.13, 2008 DUT: GXT775; Type: Face; Serial: #1 Communication System: 450MHz (FCC); Frequency: 462.55 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 462.55 MHz; σ = 0.87 mho/m; ε r = 45.5; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 176 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(7.25, 7.25, 7.25); Calibrated: 2007-08-30 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn447; Calibrated: 2007-09-13 - Phantom: 835/900 Phamtom ; Type: SAM GMRS 450 Face 15/Area Scan (91x131x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 1.75 mW/g GMRS 450 Face 15/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 48.5 V/m; Power Drift = -1.08 dB Peak SAR (extrapolated) = 2.23 W/kg SAR(1 g) = 1.55 mW/g; SAR(10 g) = 1.11 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.64 mW/g 0 dB = 1.64mW/g Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 4 of 16 Test Laboratory: HCT CO., LTD Liquid Temperature: 21.2 °C Ambient Temperature: 21.5 °C Test Date: Mar.13, 2008 DUT: GXT775; Type: Face; Serial: #1 Communication System: 450MHz (FCC); Frequency: 462.725 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 462.725 MHz; σ = 0.87 mho/m; ε r = 45.5; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 176 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(7.25, 7.25, 7.25); Calibrated: 2007-08-30 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn447; Calibrated: 2007-09-13 - Phantom: 835/900 Phamtom ; Type: SAM GMRS 450 Face 22/Area Scan (91x131x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 1.72 mW/g GMRS 450 Face 22/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 46.6 V/m; Power Drift = -0.975 dB Peak SAR (extrapolated) = 2.18 W/kg SAR(1 g) = 1.52 mW/g; SAR(10 g) = 1.09 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.59 mW/g 0 dB = 1.59mW/g Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 5 of 16 Test Laboratory: HCT CO., LTD Liquid Temperature: 21.2 °C Ambient Temperature: 21.5 °C Test Date: Mar.13, 2008 DUT: GXT775; Type: Face; Serial: #1 Communication System: 450MHz (FCC); Frequency: 467.563 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 467.563 MHz; σ = 0.878 mho/m; ε r = 45.5; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 176 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(7.25, 7.25, 7.25); Calibrated: 2007-08-30 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn447; Calibrated: 2007-09-13 - Phantom: 835/900 Phamtom ; Type: SAM GMRS 450 Face 8/Area Scan (91x131x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.331 mW/g GMRS 450 Face 8/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.4 V/m; Power Drift = -0.864 dB Peak SAR (extrapolated) = 0.429 W/kg SAR(1 g) = 0.297 mW/g; SAR(10 g) = 0.212 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.311 mW/g 0 dB = 0.311mW/g Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUN…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr [Tissue Liquid Depth : 15cm] 15cm

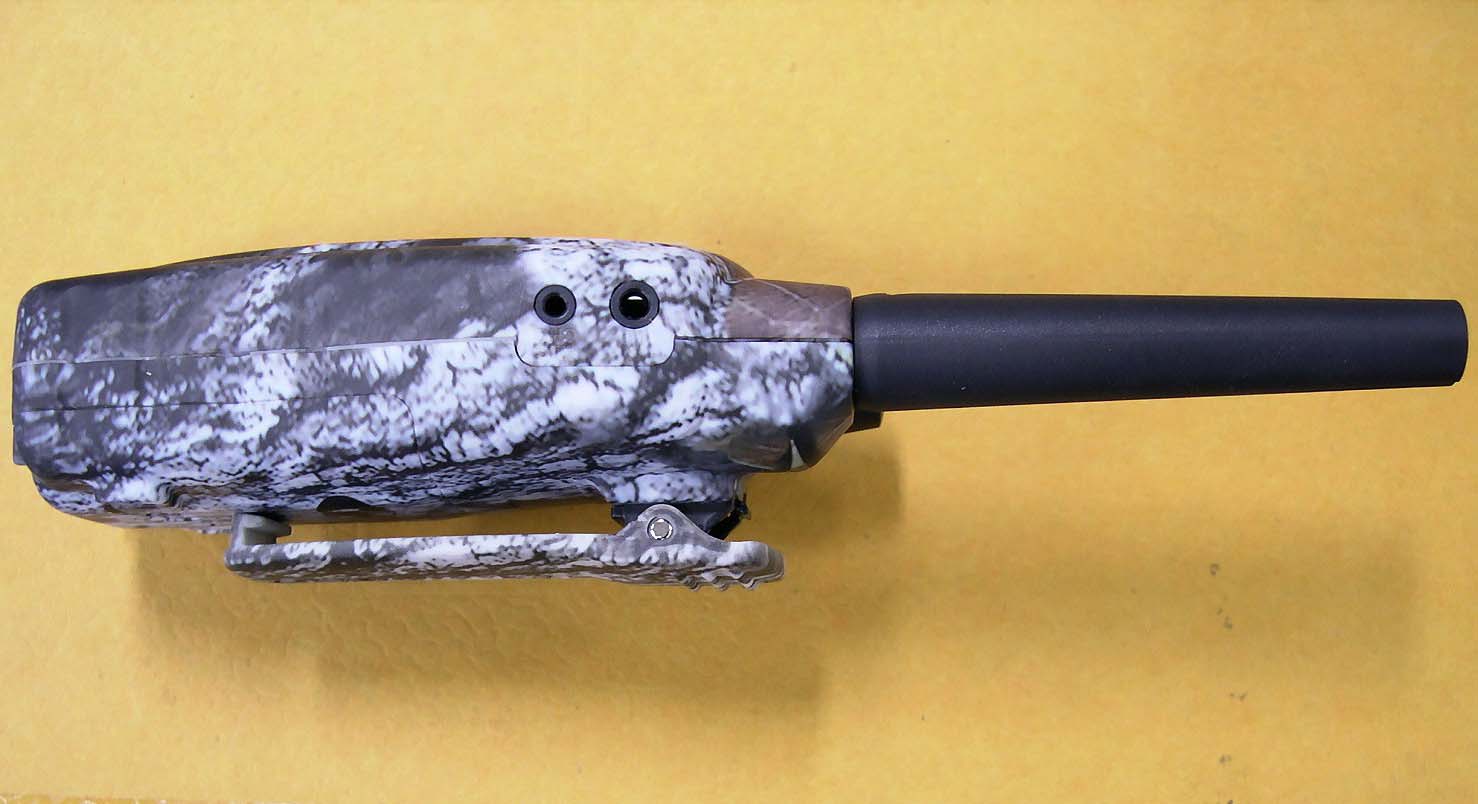

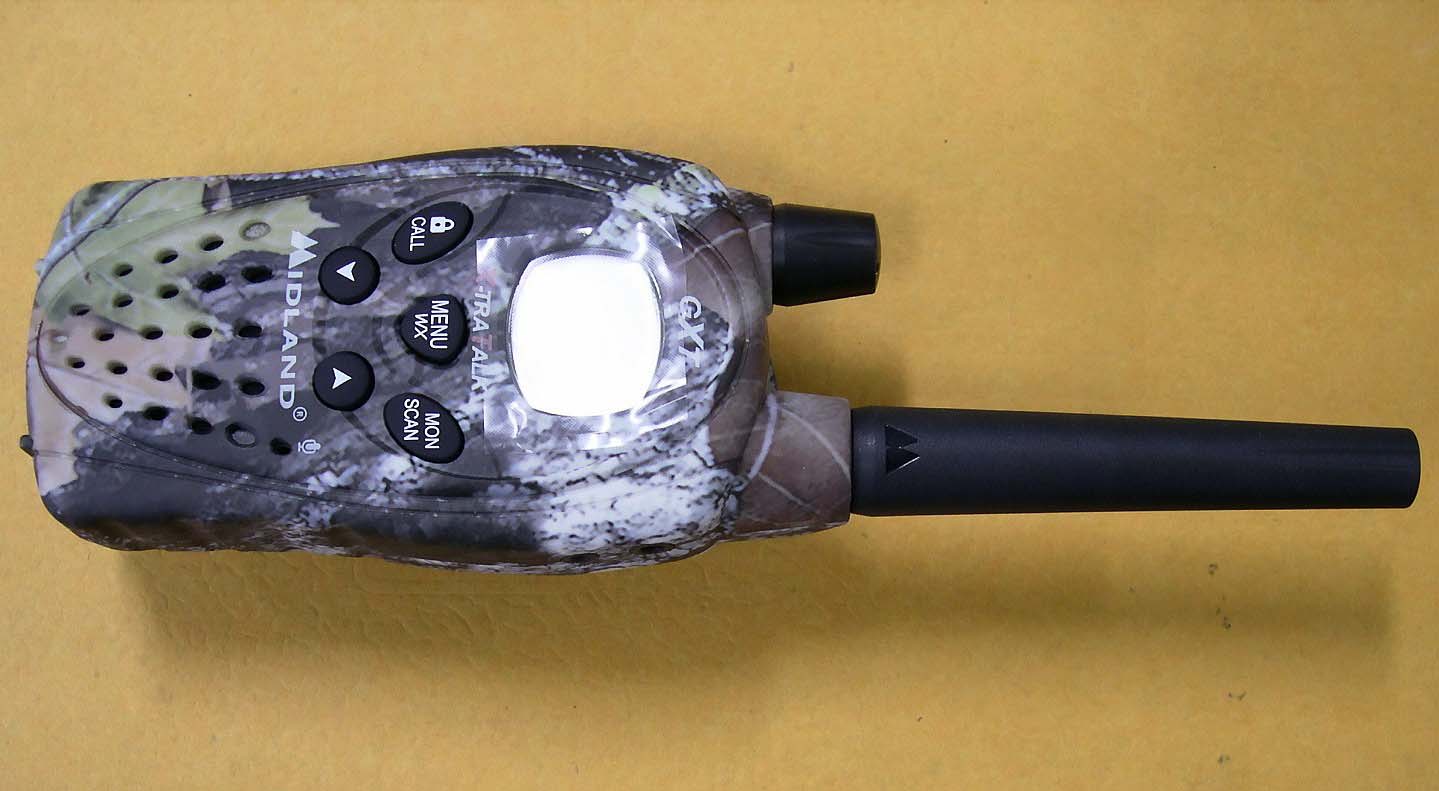

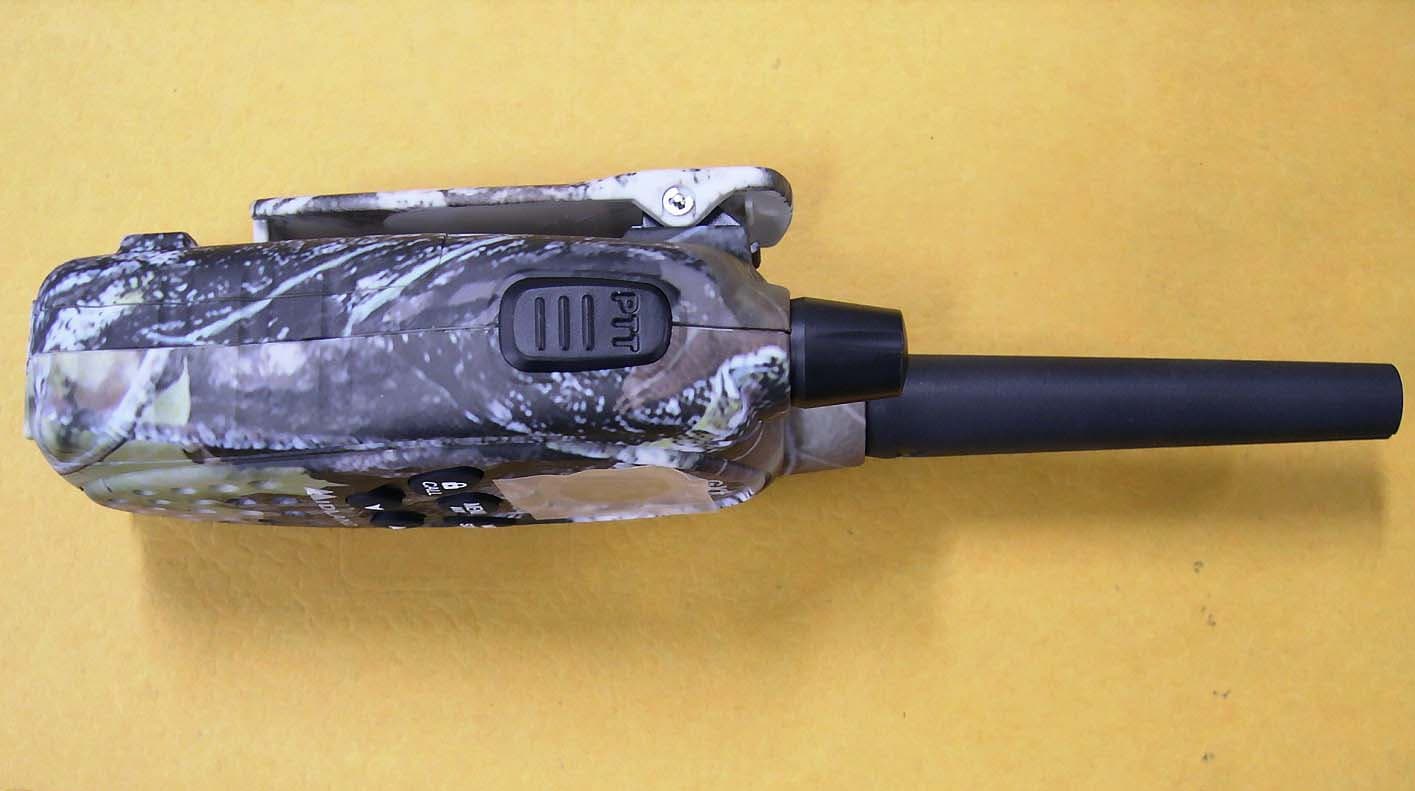

Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr APPENDIX C – EUT PROFILE PHOTOGRAPHS Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr APPENDIX D – DIPOLE VALIDATION PLOTS Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Test Laboratory: HCT CO., LTD Liquid Temperature: 21.2 °C Ambient Temperature: 21.5 °C Test Date: Mar.13, 2008 DUT: Dipole 450 MHz; Type: D450V2; Serial: D450V2 - SN:1007 Communication System: CW; Frequency: 450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 450 MHz; σ = 0.849 mho/m; ε r = 45.6; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 176 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(7.25, 7.25, 7.25); Calibrated: 2007-08-30 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn447; Calibrated: 2007-09-13 - Phantom: SAM 450/835/900 MHz; Type: SAM Validatoin 450 MHz/Area Scan (101x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 5.76 mW/g Validatoin 450 MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.3 V/m; Power Drift = -0.053 dB Peak SAR (extrapolated) = 8.99 W/kg SAR(1 g) = 5.33 mW/g; SAR(10 g) = 3.35 mW/g Maximum value of SAR (measured) = 5.72 mW/g 0 dB = 5.72mW/g Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr APPENDIX E – PROBE CALIBRATION DATA Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR08-0310 FCC ID: MMAGXT775 DATE: Mar. 19, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639…

Text truncated - open the document above for the full version.
