MMAGXT95022 Channel GMRS/FRS Transceiver

® Model GXT900/950 Series Page 3www.midlandradio.com TABLE OF CONTENTS3 Introduction4 Important Notice, FCC Licensing5 LCD Display6 Controls6 Battery Installation7 Installing the Belt Clip7 Charging the Optional Battery Pack8 Low Battery Level Indicator8 Operating Your Radio9 - 18 External Speaker/Microphone Jack18 Troubleshooting Guide19 Use and Care19 Specifications and Frequency Charts20 - 21 Warranty Information22 MIDLAND Family Products23 Accessories23 - 25 Accessories Order Form27 ® Page 4www.midlandradio.com Welcome to the world of Midland electronics Congratulations on your purchase of a high quality MIDLAND product. Your 2-way radio represents the state-of-the-art in high-tech engineering. Designed for GMRS (General Mobile Radio Service) operation, this compact package is big in performance. It is a quality piece of electronic equipment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. Your two-way radio is designed for reliable and trouble-free performance for years to come. Features - 42 GMRS/FRS Channel - 142 Privacy Codes (38 CTCSS / 104 DCS) - Water Resistant (IP4 Standard) - Direct Call - VOX - Selectable Call Alert (additional Animal Sound on GXT850) - NOAA Weather Radio - NOAA Weather Alert - VIBRATE ALERT - Scrambler Function - Monitor Function - Roger Beep Tone - Silent Operation - Keypad Lock - Power HI/MED/LO Settings - Speaker / Microphone Jacks - Battery Meter / Battery Low Indicator This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device does not cause harmful interference, and (2) this radio must accept any interference that may cause undesired operation. To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. (Tested with Headset Model: AVP-1) Model GXT900/950 Series ® Page 5www.midlandradio.com IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION The GXT900/950 Series operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22, which comprise the GMRS channels of the GXT900/950 Series. Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Act's Sections 501 and 502 (amended). You will be issued a call sign by the FCC which should be used for station identification when operating the radio on GMRS channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time. To obtain a license or ask questions about the license application, contact the FCC at 1-888-CALL FCC or go to the FCC's website: http://www .fcc.govand request form 605. Exposure To Radio Frequency Energy Your Midland radio is designed to comply with the following national and international standards and guidelines regarding exposure of human being to radio frequency electromagnetic energy: - United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J - American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992 - Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition - National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986 - International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998 To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting. Model GXT900/950/850 Series IMPORTANT:Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations. Any adjustment to your radio must be made by qualified technicians. ® Page 6www.midlandradio.com CONTROLS LCD DISPLA Y 1. BATTERY METER– Indicates the battery level. 2. SCRAMBLER ICON – Indicates when the Scrambler feature is on. 3. KEY LOCK ICON – Indicates KEY LOCK mode is on. 4. VOX ICON– Indicates when VOX mode is active. 5. NOAA WEATHER (WX) BAND ICON– Indicates when the radio is in Weather Band mode. 6. CHANNEL NUMBER– Changes from 1~22 on GMRS/FRS band (1~10 on WX band). 7. PRIVACY CODE– Indicates Privacy Code selected by user (oF~38/oF~104). 8. GROUP MODE ICON– Indicates when the Group Mode is on. 9. VIBRATE-ALERT ICON– Indicates when the Vibrate-Alert feature is on. 10. RECEIVE (RX) ICON– Indicates radio is receiving a transmission. 11. TRANSMIT (TX) ICON– Indicates radio is transmitting a signal. 12. TRANSMIT POWER LEVEL ICON– Indicates TX Power setting (H/M/L) 13. PRIVACY CODE ICON– Indicates Privacy Code setting (CTCSS/DCS). 14. POWER/VOLUME KNOB– Turn clock- wise to turn the power on and increase the volume level. Turn counter-clockwise to decrease the volume level and turn the power off. 15. PTT Button– Press and hold to transmit voice communication. 16. CALL/LOCK Button– Press to send a CALL Alert signal. Press and hold to turn KEY LOCK on/off. 17. UPand DOWN Button– Make adjustments in MENU mode.. 18. SPEAKER– Built-in speaker. 19. ANTENNA. 20. EXTERNAL SPEAKER/MIC JACK. 21. MENU Button– Press to access Menu mode. Press and hold for 5 seconds to activate the NOAA Weather Scan function. 22. MONITOR/SCAN Button–…

Text truncated - open the document above for the full version.

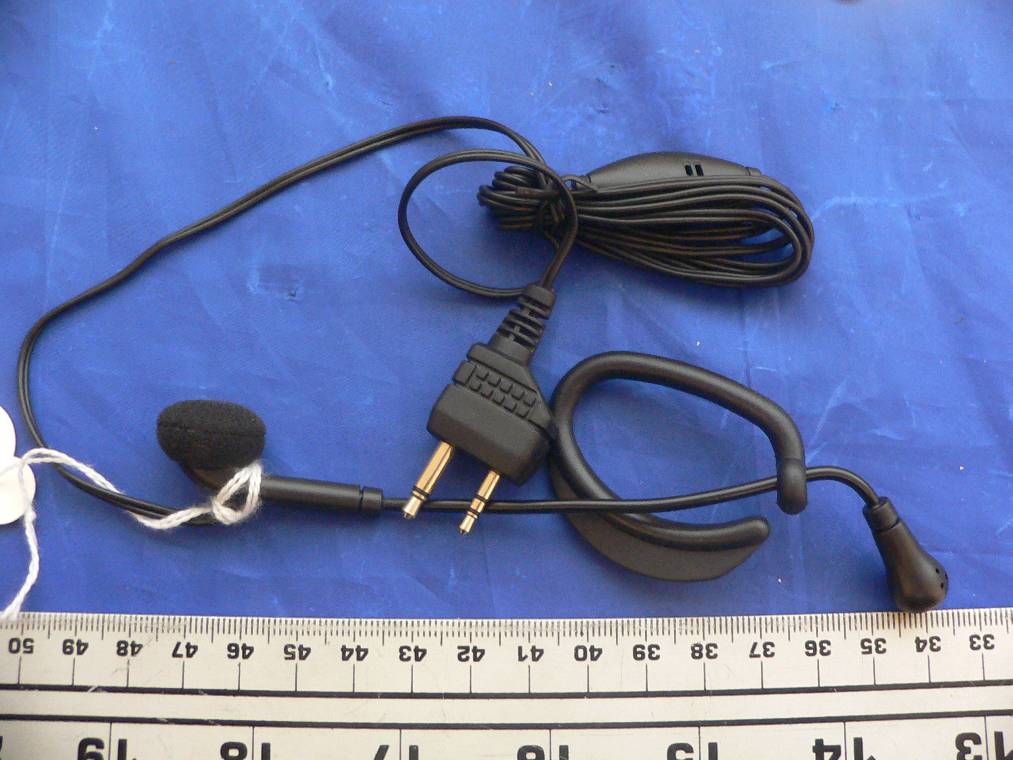

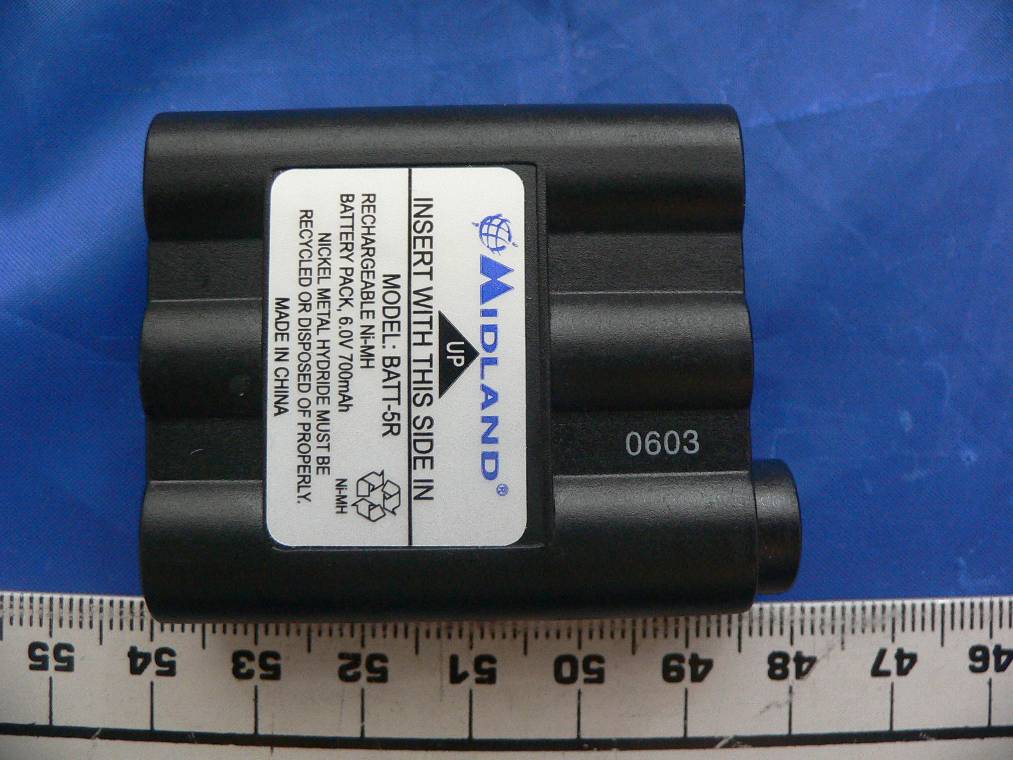

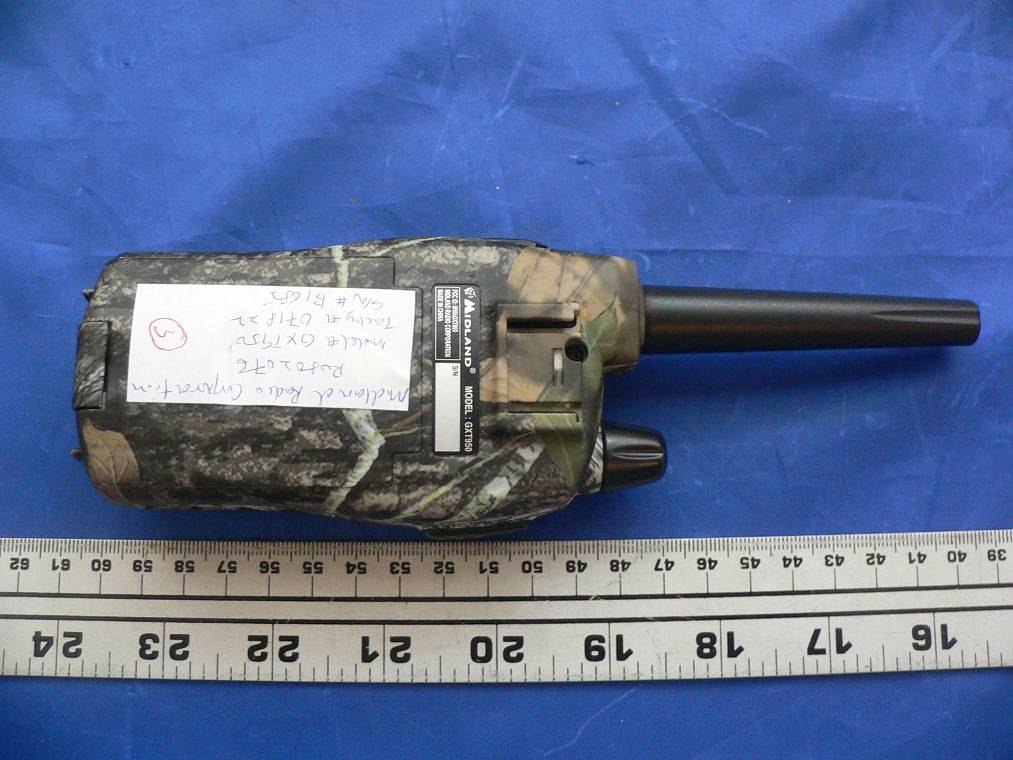

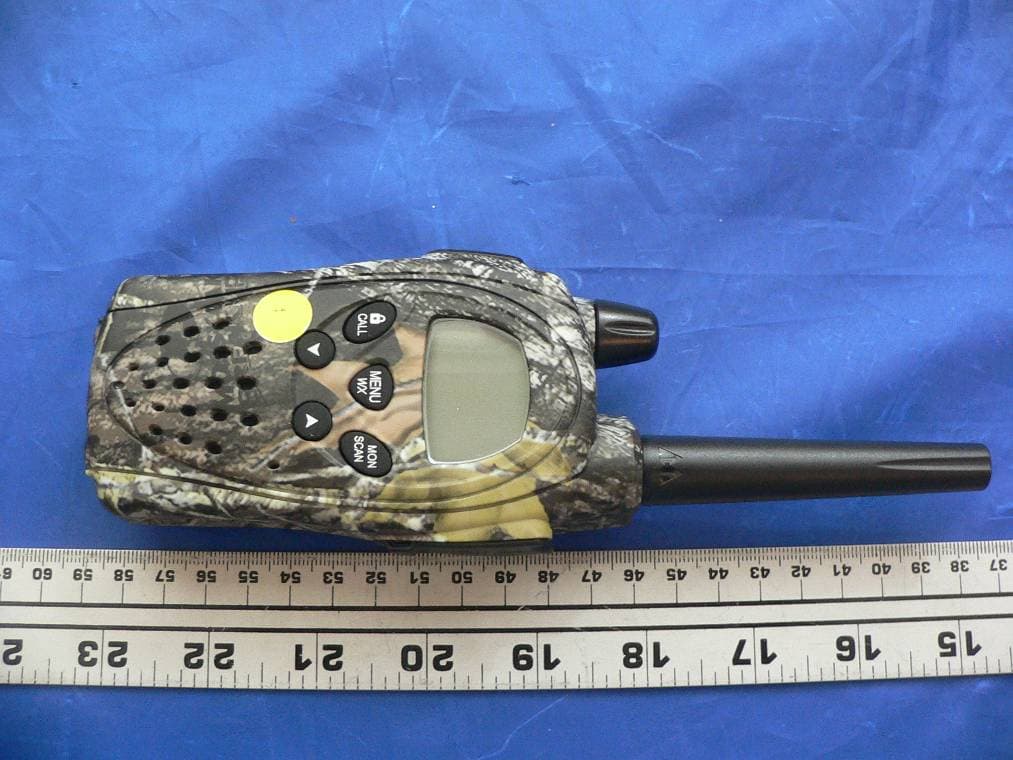

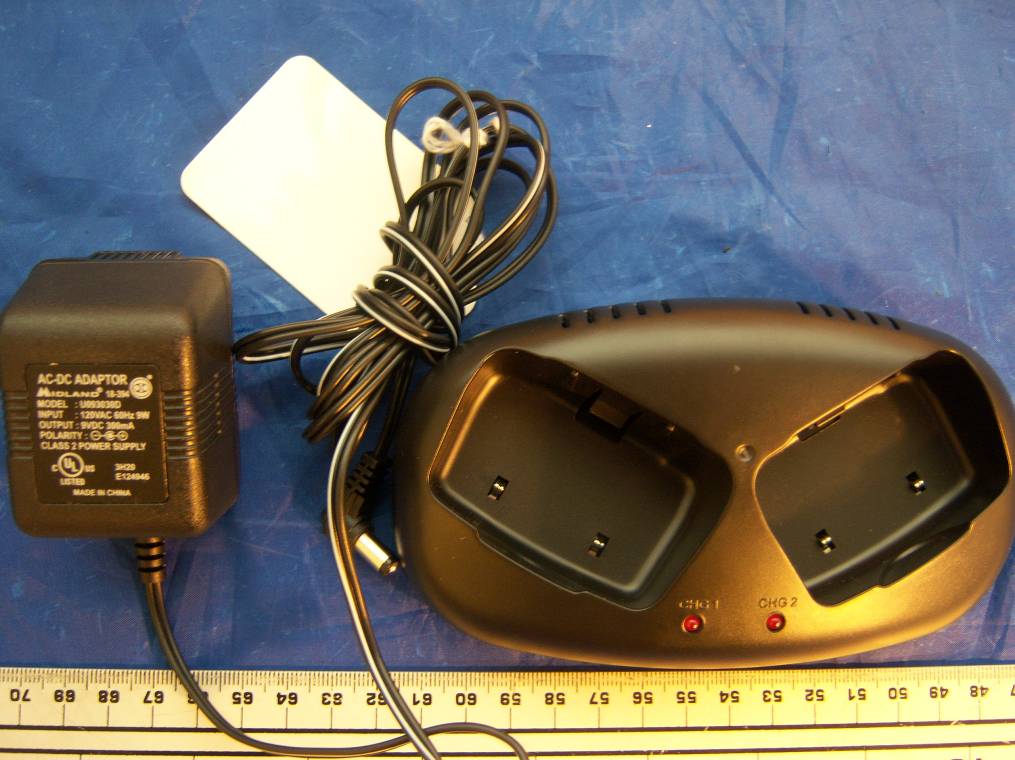

Midland Radio Corporation FCC ID: MMAGXT950 Report No.: R0802076-95 Page 32 of 38 FCC Part 95 Report EXHIBIT C - EUT PHOTOGRAPHS EUT – Front View (GXT950) EUT – Rear View (GXT950) Midland Radio Corporation FCC ID: MMAGXT950 Report No.: R0802076-95 Page 33 of 38 FCC Part 95 Report EUT – Front View (GXT900) EUT – Rear View (GXT900) Midland Radio Corporation FCC ID: MMAGXT950 Report No.: R0802076-95 Page 34 of 38 FCC Part 95 Report EUT – Top View EUT – Rechargeable Battery Midland Radio Corporation FCC ID: MMAGXT950 Report No.: R0802076-95 Page 35 of 38 FCC Part 95 Report EUT Charger and AC/DC Adapter EUT – Headset

Midland Radio Corporation FCC ID: MMAGXT950 Report No.: R0802076-95 Page 36 of 38 FCC Part 95 Report EUT – Battery off View EUT – Cover off View Midland Radio Corporation FCC ID: MMAGXT950 Report No.: R0802076-95 Page 37 of 38 FCC Part 95 Report EUT – Component Board View-1 EUT – Component Board View-2 Midland Radio Corporation FCC ID: MMAGXT950 Report No.: R0802076-95 Page 38 of 38 FCC Part 95 Report EUT – Antenna Port Detail View ***** END OF REPORT *****

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. SAR EVALUATION REPORT For Midland Radio Corporation 5900 Parretta Drive, Kansas City, MO 64120-2134, USA FCC ID: MMAGXT950 MODEL: GXT950, GXT900 This Report Concerns: Original Report Product Name: GMRS FM UHF Portable Transceiver Test Engineer: Victor Zhang Report No.: R0802076-SAR Report Date: 2008-3-5 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratories Corp. (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Midland Radio Corp. FCC ID: MMAGXT950 Report No.: R0802076-SAR SAR Evaluation Report Page 2 of 49 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): FCC §2.1093 & IEEE 1528 Test Procedure(s): FCC OET Bulletin 65 Supplement C & IEEE 1528 Device Category: Exposure Category: Portable transceiver Occupational/Controlled Exposure Device Type: GMRS FM UHF Portable Transceiver Modulation Type: FM TX Frequency Range: FRS: 462.5625 ~ 467.7125MHz GMRS: 462.5625 ~ 462.7125 MHz 462.55 ~ 462.7250 MHz Maximum Conducted Power Tested: 26.30 dBm (FRS) 37.30 dBm (GMRS) Antenna Type(s) Tested: Integer Antenna Body-Worn Accessories: Earphone and Belt Clip Face-Head Accessories: None Max. SAR Level(s) Measured: 1.305 mW/g (1 g Body Tissue), Body-Worn 0.84 mW/g (1g Head Tissue), Face-Hold (with 50% Duty Cycle) This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C. The results and statements contained in this report pertain only to the device(s) evaluated. Tested By: Victor Zhang Testing Engineer Bay Area Compliance Laboratories Corp. EUT Photo Midland Radio Corp. FCC ID: MMAGXT950 Report No.: R0802076-SAR SAR Evaluation Report Page 3 of 49 TABLE OF CONTENTS REFERENCE, STANDARDS, AND GUILDELINES ....................................................................................................4 SAR LIMITS..........................................................................................................................................................................5 EUT DESCRIPTION..........................................................................................................................................................6 EUT PHOTO..........................................................................................................................................................................6 FACILITIES AND ACCREDITATION...........................................................................................................................7 DESCRIPTION OF TEST SYSTEM................................................................................................................................8 MEASUREMENT SYSTEM DIAGRAM....................................................................................................................................10 SYSTEM COMPONENTS........................................................................................................................................................11 TESTING EQUIPMENT .................................................................................................................................................19 EQUIPMENTS LIST & CALIBRATION INFO............................................................................................................................19 SAR MEASUREMENT SYSTEM VERIFICATION....................................................................................................20 SYSTEM ACCURACY VERIFICATION....................................................................................................................................20 SAR MEASUREMENT RESULTS.................................................................................................................................21 SAR BODY WORST-CASE TEST DATA................................................................................................................................21 APPENDIX A – MEASUREMENT UNCERTAINTY..................................................................................................22 APPENDIX B – PROBE CALIBRATION CERTIFICATES ......................................................................................24 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES.....................................................................................33 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS ......................................................................................39 LIQUID MEASUREMENT RESULT.........................................................................................................................................39 APPENDIX E – EUT SCAN RESTLTS .........................................................................................................................41 APPENDIX F – OUTPUT POWER MEASUREMENT ...............................................................................................43 PROVISION APPLICABLE......................................................................................................................................................43 TEST PROCEDURE...............................................................................................................................................................43 TEST EQUIPMENT................................................................................................................................................................…

Text truncated - open the document above for the full version.

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government (REV.1) FCC PART 95 MEASUREMENT AND TEST REPORT For Midland Radio Corporation 5900 Parretta Drive Kansas City, MO 64120, USA FCC ID: MMAGXT950 Report Type: Original Report Product Type: GMRS/FRS Portable Transceiver Test Engineer: Xiao Ming Hu Report Number: R0802076-95 Testing Date(s): 2008-03-07, 2008-03-10, 2008-03-12 Report Date: 2008-03-17 Reviewed By: Daniel Deng, RF Engineering Lead Prepared By: (12) Bay Area Compliance Laboratories Corp. (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 Midland Radio Corporation FCC ID: MMAGXT950 Report No.: R0802076-95 Page 2 of 38 FCC Part 95 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 MECHANICAL DESCRIPTION.........................................................................................................................................4 OBJECTIVE...................................................................................................................................................................5 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................5 TEST METHODOLOGY..................................................................................................................................................5 MEASUREMENT UNCERTAINTY....................................................................................................................................6 TEST FACILITY.............................................................................................................................................................6 SYSTEM TEST CONFIGURATION ..........................................................................................................................7 JUSTIFICATION.............................................................................................................................................................7 BLOCK DIAGRAM.........................................................................................................................................................7 EQUIPMENT MODIFICATIONS.......................................................................................................................................7 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................7 INTERFACE PORTS AND CABLING.................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §2.1046, §95.639 – RF OUTPUT POWER ..................................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 ENVIRONMENTAL CONDITIONS....................................................................................................................................9 TEST RESULTS...........................................................................................................................................................10 §2.1047 & §95.637 - MODULATION CHARACTERISTICS.................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 ENVIRONMENTAL CONDITIONS..................................................................................................................................11 TEST RESULTS...........................................................................................................................................................11 §2.1049, §95.633 AND §95.335 - OCCUPIED BANDWIDTH AND EMISSION MASK......................................17 APPLICABLE STANDARDS...........................................................................................................................................17 TEST PROCEDURE......................................................................................................................................................17 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................17 ENVIRONMENTAL CONDITIONS............................................................................…

Text truncated - open the document above for the full version.

Midland Radio Corporation FCC ID: MMAGXT950 Report No.: R0802076-95 Page 30 of 38 FCC Part 95 Report EXHIBIT B - TEST SETUP PHOTOGRAPHS Radiated Emissions – Front View Midland Radio Corporation FCC ID: MMAGXT950 Report No.: R0802076-95 Page 31 of 38 FCC Part 95 Report Radiated Emissions – Rear View
