MMALXT110FRS/GMRS COMBINATION

LXT110 COVER PAGE ® Model LXT110/80 Page 3www.midlandradio.com TABLE OF CONTENTS3 Introduction4 Important Notice, FCC Licensing5 LCD Display6 Controls6 Battery Installation7 Installing the Belt Clip7 Charging the Battery8 Low Battery Level Indicator8 Operating Your Radio9 - 11 Troubleshooting Guide12 Use and Care12 Specifications and Frequency Charts13 Warranty Information14 MIDLAND Family Products15 Accessories15 - 17 Accessories Order Form19 ® Page 4www.midlandradio.com Welcome to the world of Midland electronics Congratulations on your purchase of a high quality MIDLAND product. Your 2-way radio represents the state-of-the-art in high-tech engineering. Designed for GMRS (General Mobile Radio Service) operation, this compact package is big in performance. It is a quality piece of electronic equipment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. Your two-way radio is designed for reliable and trouble-free performance for years to come. Features - 22 GMRS/FRS Channel - Call Alert - Scan Function - Keypad Lock - Auto Squelch - Speaker / Microphone Jacks - Battery Life Extender - Battery Low Indicator This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device does not cause harmful interference, and (2) this radio must accept any interference that may cause undesired operation. To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Model LXT110/80 ® Page 5www.midlandradio.com IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION (Only Applicable for GMRS Radio Use in the United States) The LXT110/80 Series operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22, which comprise the GMRS channels of the LXT110/80 Series. Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Act's Sections 501 and 502 (amended). You will be issued a call sign by the FCC which should be used for station identification when operating the radio on GMRS channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time. To obtain a license or ask questions about the license application, contact the FCC at 1-888-CALL FCC or go to the FCC's website: http://www .fcc.govand request form 605. Exposure To Radio Frequency Energy Your Midland radio is designed to comply with the following national and international standards and guidelines regarding exposure of human being to radio frequency electromagnetic energy: - United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J - American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992 - Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition - National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986 - International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998 To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting. Model LXT110/80 IMPORTANT:Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations. Any adjustment to your radio must be made by qualified technicians. ® Page 6www.midlandradio.com CONTROLS LCD DISPLA Y 1. TRANSMIT (TX) ICON– Indicates radio is transmitting a signal. 2. VOLUME METER– Indicates the volume setting of the radio. 3. RECEIVE (RX) ICON– Indicates radio is receiving a transmission. 4. LOW BATTERY ICON– Indicates the battery level is low. 5. VOX ICON– Indicates when VOX mode is active. 6. CHANNEL NUMBER– Changes from 1~22 on GMRS/FRS band. 7. PTT Button– Press and hold to transmit voice communication. 8. SCAN/LOCK Button– Press to enter SCAN mode. Press and hold to turn KEY LOCK on/off. 9. UPand DOWN Button– Make adjustments in MENU mode. 10. SPEAKER– Built-in speaker. 11. ANTENNA 12. EXTERNAL SPEAKER/MIC/CHG. JACK 13. POWER / MODE Button– Press and hold for at least 3 seconds to turn the radio on/off. Press momentarily to access Menu mode. 14. MIC– Built-in microphone. mode. 1 2 3 4 5 6 7 8 9 10 15 14 13 11 Model LXT110/80 12 ® Page 7www.midlandradio.com BA TTERY INSTALLATION Your LXT110/80 Series radio operates with 3 AAA alkaline batteries or a NiMH rechargeable battery. The belt clip should be removed (see below) to ease installation or removal of the batteries. To install the batteries: 1. With the back of the radio facing you, remove the belt clip (see diagram below) for easy access, then remove the Battery Cover by pressing down on the top center and sliding it down from the radio. 2. Insert 3 AAA batteries observing the polarity as shown on the Battery Compartment. Installing the batteries incorrectly will prevent the unit from operating or may damage the unit. 3. Return the Battery Cover by sliding it up on the radio. Replace the belt clip, making sure it locks into place. BATTERY COMPARTMENT BATTERY COMPARTMENT COVER Press here and push down to open Model LXT110/80 INSTALLING THE BELT CLIP …

Text truncated - open the document above for the full version.

5900 Parretta Drive ● KANSAS CITY, MISSOURI ● 64120 TELEPHONE: (816) 241-8500 ● FAX: (816) 241-5713 EMAIL: [email protected] WEBSITE: www.midlandradio.com 24 December 2007 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: MMALXT110 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Technical Description MMALXT110 - Technical Description.PDF Schematics Diagram(s) MMALXT110 - Schematics.PDF Block Diagram MMALXT110 - BlockDiagram.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Midland Radio Corporation 5900 Parretta, Drive, Kansas City, MO 64120 David Kingsolver, Engineering manager

LXT110 SEMICONDUCTOR DESIGNATIONS AND FUNCTIONS Page 1 Designator Description Application CPU1 W541C250 Micro controller D1 KDS114E TX,RX switch D3 KDS114E Squelch temperature compensation D4 KDS114E CPU protection D13 KDS114E TX,RX switch D301 KDS114E VCO TX,RX switch IC1 DBL5018 IF IC IC2 UTC34119 Speaker amplifier IC201 GP214D PLL IC IC3 XC6201 3V regulator IC4 LM324 OP amp. Q1 NE55250134 TX PA Q3 BFQ67W TX driver Q6 2SC4226 RX LNA Q7 KTA2014E PTT switch Q8 2SC4226 RX MIXER Q11 BFQ67W TX pre-driver Q13 KRA226 TX Vcc switch Q19 KRC401E VCO TX,RX switch Q23 KRC405E RX audio mute Q29 KRA306E RX Vcc switch Q30 KRA226 Main Vcc switch Q101 KTC4075E CPU Reset Q102 STK828EF CPU Reset Q301 2SC4226 VCO Q302 2SC4226 VCO

LXT110 ALIGNMENT PROCEDURE Page 1 1. REFERENCE TEST EQUIPMENT A. HP8921A Cell site test set or HP8920A, B Communication Test Set with Spectrum Analyzer option. B. Fluke 187 Digital Voltmeter C. HP E3615A Power supply 2. TEST POINT A. ANTENNA : Test point is not prepared. Use antenna contact with ANTENNA_GND_T(antenna ground). B. VCO reference voltage : Test point TP1 is prepared. C. RX audio output : Test point SPKOUT is prepared or use ear-jack(3.5mm). D. TX Mic. Input : Test point MICIN is prepared or use ear-jack(2.5mm) with 10uF coupling capacitor. E. Battery Vcc : Test point TP2 is prepared. F. Up Key : Test point UP is prepared. G. Down Key : Test point DW is prepared. H. Function Key : Test point Menu is prepared. I. Monitor Key : Test point SCAN is prepared. J. PTT Key : Test point PTT is prepared. Note. : All key can be activated when connect with ground. 3. VCO ALIGNMENT A. Set unit to Channel 1 and connect a voltmeter to TP1 (VCO PD). B. Press & hold PTT. C. Extend L303 until the voltmeter reads 1.2V. D. Cover shield-plate on VCO can and monitor the voltage on TP1. The voltage should be 1.2Vdc +/-0.2Vdc. If the voltage is not 1.2Vdc +/-0.2Vdc, realign L303 until meet to requirement. E. Release PTT button so units is in receiving mode and monitor the voltage on TP1. The voltage should be in the range 1.0Vds +/-0.3V F. Set unit to channel 14. 6. Press & hold the PTT switch and observe the voltage on TP4. The voltage should be 1.5 – 2.5 Vdc. 7. Release PTT and observe the voltage on TP4. The voltage should read between 1.5 - 2.5 Vdc. Note : VCO shield-can should be soldered after VCO alignment is finished. 4. TRANSMITTER FREQUENCY ALIGNMENT A. Press & hold the PTT button. B. Align CT201 trimmer capacitor such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. CT201 is located on the left side of 20.95MHz X-tal. LXT110 ALIGNMENT PROCEDURE Page 2 5. TRANSMITTER OUTPUT POWER CONFIRMATION A. Set unit to channel 1 and power Hi mode. B. Press & hold the PTT button. C. Transmit power should normally be between 0.35W to 0.8W. D. Set unit to channel 14. E. Press & hold the PTT button. Ensure that Tx Power should be between 0.35-0.8W. 6. TRANSMITTER DEVIATION ALIGNMENT A. Connect an audio generator (600 ohms) to the ear jack. The audio frequency should be set at 1KHz with a level of 200mV RMS. B. Connect an FM deviation meter (communications test set) to Antenna contact. Set the monitor to read peak to peak divided by two [(pk-pk)/2] deviation. Set filter of equipment from 25Hz to 15KHz. C. Press & hold the PTT button. D. Align RV2 for +/- 2.0 kHz deviation (+/-0.1KHz). RV2 is located on the bottom of the VCO shield can. E. Decrease audio generator level until deviation reads +/- 1.5 kHz (approximately 7mV) and record generator level. Level should be between 4 mV and 10 mV. F. Confirm that transmit audio distortion is less than 5%. 7. RECEIVER ALIGNMENT A. Set the output level of the RF signal generator for -47dBm. The generator should be set for 1.5 kHz deviation at 1 kHz audio. B. Set volume level 4 (It is initial.). C. Connect Audio analyzer to SPKOUT. D. Set equipment filter 25Hz to 15KHz. E. Confirm that Rx Sensitivity is less than –119dBm (nominally –121dBm) by reducing the output level of the RF signal generator until a 12 dB SINAD reading is achieved. F. Set signal generator level to –47dBm. G. With 1.5KHz deviation at 1KHz modulation, set volume for maximum audio. Audio level should be on over than 1.4Vrms. 8. BATTERY INDICATOR CONFIRMATION A. Set unit to receiving mode. Don’t set transmitter mode.. B. Set power supply voltage to 4.5V. C. Decrease power supply voltage until low battery icon blinks. 9. POWER OFF CURRENT CONSUMPTION A. Set power supply voltage to 6V and connect to unit. B. Confirm current. It must be less than 300uA. 10. FREQUENCIES TABLE Channel Freq. MHz Channel Freq. MHz LXT110 ALIGNMENT PROCEDURE Page 3 1 462.5625 12 467.6625 2 462.5875 13 467.6875 3 462.6125 14 467.7125 4 462.6375 15 462.5500 5 462.6625 16 462.5750 6 462.6875 17 462.6000 7 462.7125 18 462.6250 8 467.5625 19 462.6500 9 467.5875 20 462.6750 10 467.6125 21 462.7000 11 467.6375 22 462.7250 LXT110 LABORATORY TESTING PROCEDURES Page 1 UNIT TEST - (UNIT ASSEMBLED) TEST PREPARATION 1) Install 3 “AAA” alkaline batteries (observe polarity markings). z Right middle terminal is the system plus polarity z Left bottom terminal is the system minus polarity. 2) Press the power button. SYSTEM TEST 1) Radiated Transmit and Receive performance may be observed. 2) Audio out & Audio in are available at the Headset jack. LABORATORY TEST - (UNIT UN-ASSEMBLED) TEST PREPARATION 1) Disassemble unit (6 screws – 2 behind batteries). Remove the PCB from the cabinet. 2) Remove the antenna and install a 50 ohm coax cable in its place. 3) Either clip alligator leads or solder test leads to the power supply connections. The positive terminal is the lower left PCB mounting hole. The negative terminal is the lower right PCB mounting hole top of the 20.95MHz X-tal. (battery side view) 4) Connect 4.5VDC power source to the terminals, observing correct polarity. 5) Connect an 12-ohm load through the Headset jack (3.5mm mono-phone plug). 6) Connect a audio generator with 10uF coupling capacitor through the Headset jack ( 2.5mm mono-phone plug). 7) Select desired channel 1- 22 using CH up/down keypad switch. The rubber keypad may be removed from the front cabinet and used directly on the PCB. LXT110 LABORATORY TESTING PROCEDURES Page 2 SPECIFIC TEST METHODS AND GUIDANCE Modulation Characteristics – (paragraph 2.1047(a) of the Rules) FOR TX AUDIO FILTER RESPONSE 1. Connect audio generator with 10uF coupling capacitor to microphone input jack. Press PTT button. 2. Connect RF output with modulation meter. (Filters of modulation meter should be set to a 50Hz to 15KHz.) 3. Adjust audio generator about 3-5mVrms for 0.75KHz modulation. 4. While transmitting, sweep generator and note measurement. …

Text truncated - open the document above for the full version.

Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Test Laboratory: HCT CO., LTD Liquid Temperature: 21.2 °C Ambient Temperature: 21.4 °C Test Date: Dec.19, 2007 DUT: LXT110; Type: Face; Serial: #1 Communication System: 450MHz (FCC); Frequency: 462.563 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 462.563 MHz; σ = 0.905 mho/m; ε r = 44.9; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 176 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(7.25, 7.25, 7.25); Calibrated: 2007-08-30 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2007-01-25 - Phantom: 835/900 Phamtom ; Type: SAM GMRS 450 Face 1/Area Scan (71x121x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.420 mW/g GMRS 450 Face 1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.3 V/m; Power Drift = -0.791 dB Peak SAR (extrapolated) = 0.513 W/kg SAR(1 g) = 0.364 mW/g; SAR(10 g) = 0.267 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.381 mW/g 0 dB = 0.381mW/g Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Test Laboratory: HCT CO., LTD Liquid Temperature: 21.2 °C Ambient Temperature: 21.4 °C Test Date: Dec.19, 2007 DUT: LXT110; Type: Face; Serial: #1 Communication System: 450MHz (FCC); Frequency: 462.55 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 462.55 MHz; σ = 0.905 mho/m; ε r = 44.9; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 176 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(7.25, 7.25, 7.25); Calibrated: 2007-08-30 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2007-01-25 - Phantom: 835/900 Phamtom ; Type: SAM GMRS 450 Face 15/Area Scan (71x121x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.436 mW/g GMRS 450 Face 15/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.7 V/m; Power Drift = -0.823 dB Peak SAR (extrapolated) = 0.536 W/kg SAR(1 g) = 0.383 mW/g; SAR(10 g) = 0.280 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.403 mW/g 0 dB = 0.403mW/g Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Test Laboratory: HCT CO., LTD Liquid Temperature: 21.2 °C Ambient Temperature: 21.4 °C Test Date: Dec.19, 2007 DUT: LXT110; Type: Face; Serial: #1 Communication System: 450MHz (FCC); Frequency: 462.725 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 462.725 MHz; σ = 0.905 mho/m; ε r = 44.9; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 176 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(7.25, 7.25, 7.25); Calibrated: 2007-08-30 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2007-01-25 - Phantom: 835/900 Phamtom ; Type: SAM GMRS 450 Face 22/Area Scan (71x121x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.443 mW/g GMRS 450 Face 22/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.8 V/m; Power Drift = -0.824 dB Peak SAR (extrapolated) = 0.537 W/kg SAR(1 g) = 0.385 mW/g; SAR(10 g) = 0.282 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.405 mW/g 0 dB = 0.405mW/g Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Test Laboratory: HCT CO., LTD Liquid Temperature: 21.2 °C Ambient Temperature: 21.4 °C Test Date: Dec.19, 2007 DUT: LXT110; Type: Face; Serial: #1 Communication System: 450MHz (FCC); Frequency: 467.563 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 467.563 MHz; σ = 0.909 mho/m; ε r = 44.8; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 176 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(7.25, 7.25, 7.25); Calibrated: 2007-08-30 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2007-01-25 - Phantom: 835/900 Phamtom ; Type: SAM GMRS 450 Face 8/Area Scan (71x121x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.571 mW/g GMRS 450 Face 8/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.3 V/m; Power Drift = -0.951 dB Peak SAR (extrapolated) = 0.680 W/kg SAR(1 g) = 0.501 mW/g; SAR(10 g) = 0.369 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.527 mW/g 0 dB = 0.527mW/g Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEO…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr [Tissue Liquid Depth : 15cm] 15cm

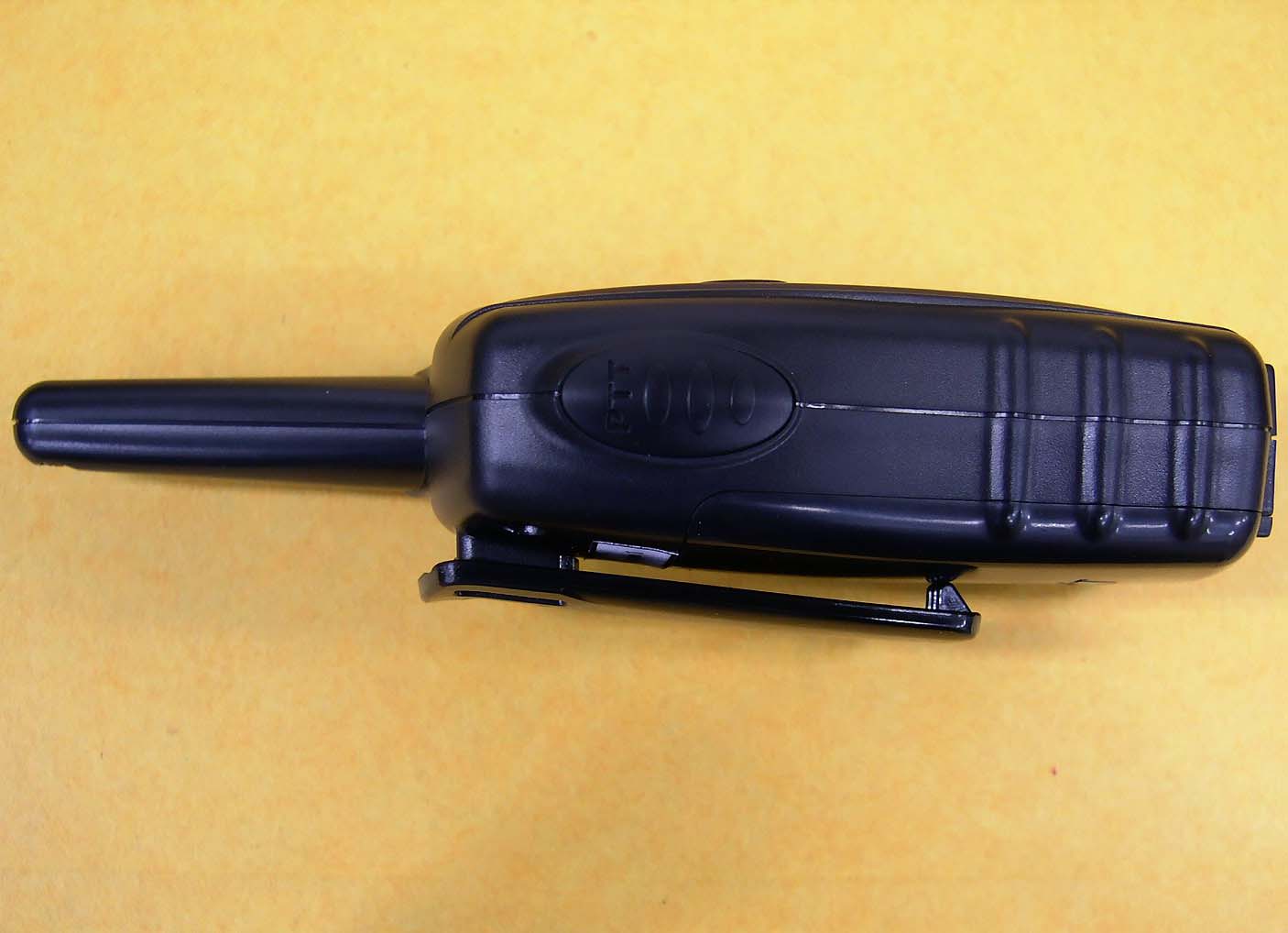

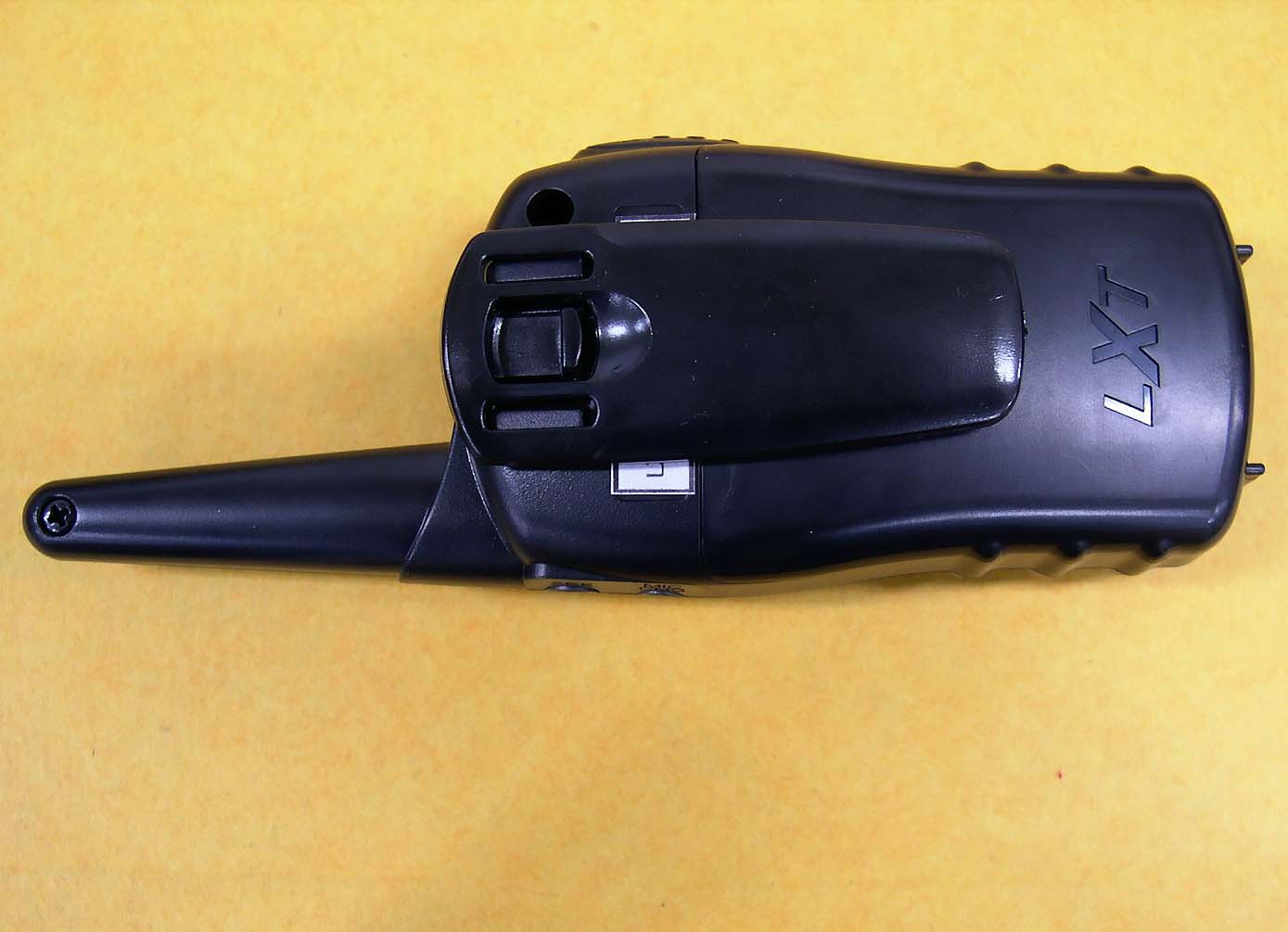

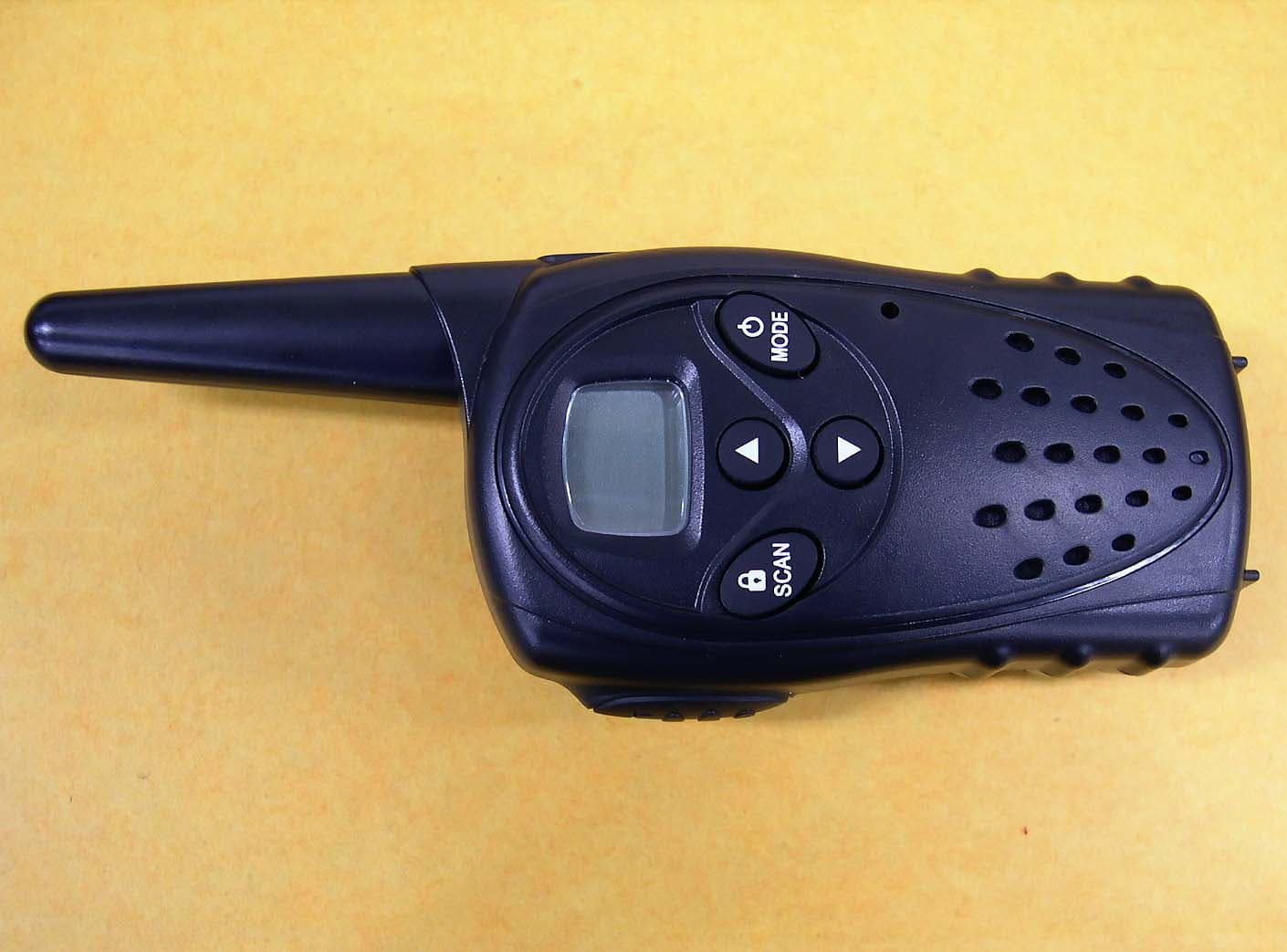

Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr APPENDIX C – EUT PROFILE PHOTOGRAPHS Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr APPENDIX D – DIPOLE VALIDATION PLOTS Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Test Laboratory: HCT CO., LTD Liquid Temp: 21.2 Test Date: Dec.19, 2007 DUT: Dipole 450 MHz; Type: D450V2; Serial: D450V2 - SN:1007 Communication System: CW; Frequency: 450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 450 MHz; σ = 0.895 mho/m; ε r = 45.1; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 176 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(7.25, 7.25, 7.25); Calibrated: 2007-08-30 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2007-01-25 - Phantom: SAM 835/900 MHz; Type: SAM Validatoin 450 MHz/Area Scan (101x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 5.38 mW/g Validatoin 450 MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 78.4 V/m; Power Drift = -0.017 dB Peak SAR (extrapolated) = 8.03 W/kg SAR(1 g) = 5.03 mW/g; SAR(10 g) = 3.32 mW/g Maximum value of SAR (measured) = 5.40 mW/g 0 dB = 5.40mW/g Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr APPENDIX E – PROBE CALIBRATION DATA Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr APPENDIX F – DIPOLE CALIBRATION DATA Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr

HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: 22 CH Combination FRS/GMRS Transceiver Model(s): LXT110 Tx Frequency: 462.5500 MHz – 462.7250 MHz (GMRS) 462.5625 MHz – 467.7125 MHz (FRS) Max. SAR Measurement(s): 0.335 mW/g (1g) GMRS Face SAR 1.002 mW/g (1g) FRS Body SAR Max. RF Output Power: 0.175 W ERP (22.43 dBm) GMRS ; 0.271 W ERP (24.33 dBm) FRS Conducted Power: 0.436 W (26.39 dBm) GMRS ; 0.420 W (26.23 dBm) FRS Emission Designator: 10K9F3E Channel Capacity: 22 Application Type: Certification Trade Name(s): Midland FCC Rule Part(s): §95(A)(B), 2(J) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled Environment Occupational exposure limits specified in ANSI/ IEEE Std. C95.1- 2005 and had been tested in accordance with the measurement procedures specified in ANSI FCC/OET Bulletin 65 Supplement C and IEEE Std. 1528-2003. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Manufacture; Midland Radio Corporation 1120 Clay St., North Kansas City, MO 64116 Date of Issue: December 20, 2007 Test Report No.: HCT-SAR07-1209 Test Site: HCT CO., LTD. FCC ID : APPLICANT : MMALXT110 Midland Radio Corporation Report No.: HCT-SAR07-1209 FCC ID: MMALXT110 DATE: December 20, 2007 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ２ of 19 Table of Contents 1. SCOPE --------------------------------------------------------…

Text truncated - open the document above for the full version.
