MMALXT118PGMRS / FRS

Midland Radio Corporation

Click to zoom

Application Details

Equipment Class: FRF - Part 95 Family Radio Face Held Transmitter
Date of Grant: Mar 17, 2015
Application Purpose: Original Equipment
Date of Application: Mar 17, 2015
Equipment Note: GMRS / FRS
Frequency Range: 467.56250000 - 467.71250000
Company: Midland Radio Corporation
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Welcome to the world of Midland electronicsCongratulations on your purchase of a high quality MIDLAND product. Your2-way radio represents state-of-the-art high-tech engineering. Designed forGMRS (General Mobile Radio Service) operation, this compact package isbig on performance. It is a quality piece of electronic equipment, skillfullyconstructed with the finest components. The circuitry is all solid-state andmounted on a rugged printed circuit board. Your two-way radio is designedfor reliable and trouble-free performance for years to come.LCD DISPLA Y 1. TRANSMIT (TX) ICON – Indicates radio is transmitting a signal. 2. VOLUME METER – Indicates the volume setting of the radio. 3. RECEIVE (RX) ICON – Indicates radio is receiving a transmission. 4. LOW BATTERY ICON – Indicates the battery level is low. 5. VOX ICON – Indicates when VOX mode is active. 6. CHANNEL NUMBER – Changes from 1~22 on GMRS/FRS band. 1 CONTR OLS 7. PTT Button – Press and hold to transmit voice communication. 8. SCAN/LOCK Button – Press to enter SCAN mode. Press and hold to turnKEY LOCK on/off. 9. UP s and DOWN t Buttons – Make adjustments in MENU mode. 10. SPEAKER – Built-in speaker. 11. ANTENNA12. EXTERNAL SPEAKER/MIC/CHG JACK 13. POWER / MODE Button – Press and hold for at least 3 seconds to turn theradio on/off. Press momentarily toaccess Menu mode. 14. MIC – Built-in microphone. This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) this device does not cause harmful interference, and (2) thisradio must accept any interference that may cause undesired operation.To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation,this radio has been tested and meets the FCC RF exposure guidelines when used withMidland Radio Corp. accessories supplied or designated for this product. Use of otheraccessories may not ensure compliance with FCC RF exposure guidelines. 141312 11 10 98 7 654 32 IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION(Only Applicable for GMRS Radio Use in the United States)The radios operate on GMRS (General Mobile Radio Service) frequencieswhich require an FCC (Federal Communications Commission) license. Youmust be licensed prior to operating on channels 1 - 7 or 15 - 22, whichcomprise the GMRS channels of the radios. Serious penalties could resultfrom unlicensed use of GMRS channels, in violation of FCC rules, asstipulated in the Communications Acts Sections 501 and 502 (amended).You will be issued a call sign by the FCC which should be used for stationidentification when operating the radio on GMRS channels. You should alsocooperate by engaging in permissible transmissions only, avoiding channelinterference with other GMRS users, and being prudent with the length of yourtransmission time.To obtain a license or ask questions about the license application, contactthe FCC at 1-888-CALL FCC or go to the FCC's website: http://www .fcc.gov and request form 605 . Exposure To Radio Frequency EnergyYour Midland radio is designed to comply with the following national andinternational standards and guidelines regarding exposure of human beingsto radio frequency electromagnetic energy:- United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J - American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992 - Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition- National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986 - International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998 To control your exposure and ensure compliance with the general populationor uncontrolled environment exposure limits, transmit no more than 50% ofthe time. The radio generates measurable RF energy exposure only whentransmitting. IMPORTANT: Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is againstthe law to alter or adjust the settings inside the COMMUNICATOR to exceedthose limitations. Any adjustment to your radio must be made by qualifiedtechnicians. MM II DD LL AA NN DD RR AA DD II OO CC OO RR PP OO RR AA TT II OO NN 5900 Parretta Drive Kansas City, MO 64120 Call 816.241.8500 We’d love to hear from you! Let us know what you think of your new Midland product on or by visiting us at midlandusa.com Note: Features & Specifications are subject to change withoutnotice. MIDLAND is not responsible for unintentional errors oromissions on its packaging. BA T TER Y INS T ALLA TION Your radio operates with 3 AAA alkaline batteries or NiMH rechargeablebatteries. The belt clip should be removed to ease installation or removalof the batteries. To install the batteries:1. With the back of the radio facing you, remove the belt clip (see diagram below) for easy access, then remove the Battery Cover by pressing down on the top center and sliding it down from the radio. 2. Insert 3 AAA batteries observing the polarity as shown on the Battery Compartment. Installing the batteries incorrectly will prevent the unit from operating or may damage the unit. 3. Return the Battery Cover by sliding it up on the radio. Replace the belt clip, making sure it locks into place. BATTERYCOMPARTMENT BATTERYCOMPARTMENTCOVER Press here and push down to open BELT CLIPLOCK TABBELT CLIP LATCH CHAR GING THE BA T TER Y Your radio is equipped for using rechargeable NiMH batteries which can berecharged by inserting the AC adapter into the radio charge jack. Initialcharge time is 24 hours. Charge time is about 12 hours thereafter. Formaximum battery life, we recommend charging the batteries when the lowbattery icon comes on. Remove the radios from the charger when thecharge time expires. 1. Only use our NiMH batteries.2. Do not attempt to charge alkaline batteries or …

Text truncated - open the document above for the full version.

Cover Letter(s)

Midland Radio Corporation 5900 Parretta Drive, Kansas City, Missouri United States 64120 Date: March 16, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: MMALXT118P Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Diagram(s) CONF APPENDIX_LXT118P_Schemetics.PDF Block diagram CONF APPENDIX_LXT118P_Block diagram.PDF Operation description CONF APPENDIX_LXT118P_Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jeff Brame

Cover Letter(s)

Midland Radio Corporation 5900 Parretta Drive, Kansas City, Missouri United States 64120 March 16, 2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Midland Radio Corporation FCC ID : MMALXT118P Label Justification Letter Dear Sir/Madame, Because the device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the User’s Manual. - The available label area on the device is limited because it is relatively small and has many contoured surfaces, keypads, LDC display, and other connectors. - The batteries are designed for easy removal and the label will be visible whenever the batteries are removed for replacement. - The label will be readily visible at the time of purchase because the device will be marketed without the battery installed. - FCC ID will be printed on the gift box which will be readily visible to the purchaser at the time of purchase. Sincerely, Jeff Brame Midland Radio Corporation 5900 Parretta Drive, Kansas City, Missouri United States 64120 Label and Location Model:LXT118P FCC ID: MMALXT118P IC: 3690A-LXT118P MIDLAND RADIO CORPORATION MADE IN CHINA

External Photos

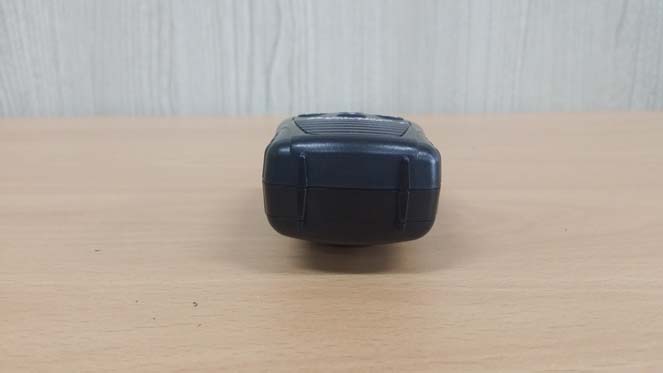

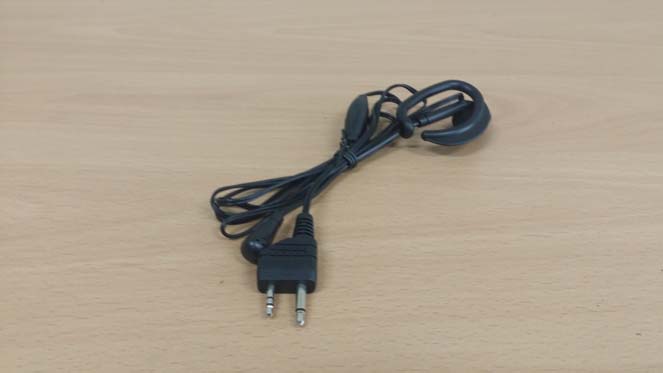

www.kes.co.kr Model No.: LXT118P Page 1 of 5 EUT External photographs www.kes.co.kr Model No.: LXT118P Page 2 of 5 www.kes.co.kr Model No.: LXT118P Page 3 of 5 www.kes.co.kr Model No.: LXT118P Page 4 of 5 www.kes.co.kr Model No.: LXT118P Page 5 of 5

Internal Photos

www.kes.co.kr Model No.: LXT118P Page 1 of 2 EUT Internal photographs Helical Antenna www.kes.co.kr Model No.: LXT118P Page 2 of 2

Parts List/Tune Up Info

GLOBAL LINK CORP. LTD. LXT118P Series - Bill of Material Dwg. No. : LXT118P-BOM-M-02 Rev. Date: 29/01/15 C133 CHIP CAPACITOR 0805 X5R ±10% 10UF/10V (05)1 C33 CHIP CAPACITOR 0805 X5R ±10% 10UF/10V (05)1 C48 CHIP CAPACITOR 0805 X5R ±10% 10UF/10V (05)1 L12 Inductor Chip 0402 39NH1 L14 Inductor Chip 0402 27NH1 L4 Inductor Chip 0402 33NH1 L5 Inductor Chip 0402 18NH1 R68Thermistor (47ohms) 0402NCP15XC470J03RC1 Antenna Coil (Talker 1/2/3/4)0.6X5.0X21T SWP0.61 D1 Chip Diode SwitchingKDS114E1 D13 Chip Diode SwitchingKDS114E1 D2 Chip Diode SwitchingKDS114E1 Q1 TRANSISTOR CHIP KRA226S1 Q15 TRANSISTOR CHIP KRA226S1 Q2 TRANSISTOR CHIP KTC4075E1 Q7 TRANSISTOR CHIP KRC405E1 Q8 TRANSISTOR CHIP KRA306E1 L1 Inductor Air 0.35X1.5X5T(R)1 L16 Inductor Air 0.3X1.0X5T(R)1 L18 Inductor Air 0.4X1.1 X2T(R)1 L19 Inductor Air 0.3X1.0X5T(R)1 L3 Inductor Air 0.35X1.7X5T(R)1 L6 Inductor Air 0.4X1.0X2T(L)1 L7 Inductor Air 0.35X1.7X5T(R)1 L8 Inductor Air 0.4X2.0X8T(L)1 X201X-tal 12.00MHzFTX12.000M16S-30/30B1 CPU1 IC CPU (Flash)WT56F108 1 Q1APower Transistor2SK3078A1 Q11 TRANSISTOR CHIP 2SC5085Y1 Q3 TRANSISTOR CHIP 2SC5085Y1 Q6 TRANSISTOR CHIP 2SC5085Y1 IC1Analog Radio ICBK48131 CT110P (Trimmer) 3 diaSTC3M10-T11 CMIC1Condensor MicF9745AP342-98 (RoHS)1 IC3IC Audio AmplifierD2822N (SOP-8)1 IC4 IC EEPROMK24C02 SOIC-81 PCB2 LAYER FR-4 1T Gold PlatingLXT118P_X11 LCD1HTN 2.7Vdc LCD (Reflective Polarizer)KWH15930W1 JACK1 EXT MIC JACK DUALEXT MIC JACK DUAL LT2510C1 IC52.4Vdc Detector ICXC61CN2402MR1 IC2IC Regulator 2.8VdcXC6201P282MR1 D3SMT Schottky Barrier DiodeSM130A1 R781WS Axial Mini Metalfilm Resistor 5%15ohms 1WS MF100S-15R-F-TB1 Q21MOS-FETSSM3J16FV1 C131Elect capacitor 220UF/6.3v (5x11)KR3-6.3V221MA1 C43Elect capacitor 220UF/6.3v (5x11)KR3-6.3V221MA1 SPK1Speaker 36dia 12ohms 0.5WB0036N12K01R01 L10 Inductor Chip 0603 18NH(03)1 L15Inductor Chip 060312NH(03)1 L20Inductor Chip 0603220NH(03)1 L9 Inductor Chip 0603 18NH(03)1 C148 CHIP CAPACITOR 0402 NPO ±0.25PF 5P 1 C17A CHIP CAPACITOR 0402 NPO ±0.25PF 1P 1 C21 CHIP CAPACITOR 0402 NPO ±0.25PF 7P 1 C223 CHIP CAPACITOR 0402 NPO ±0.25PF3P1 C223A CHIP CAPACITOR 0402 NPO ±0.25PF 2P 1 C223B CHIP CAPACITOR 0402 NPO ±0.25PF 2P 1 C304 CHIP CAPACITOR 0402 NPO ±0.25PF3P1 C37 CHIP CAPACITOR 0402 NPO ±0.25PF 8P 1 C4 CHIP CAPACITOR 0402 NPO ±0.25PF3P1 C64 CHIP CAPACITOR 0402 NPO ±0.25PF 7P 1 C997 CHIP CAPACITOR 0402 NPO ±0.25PF 2P 1 C1 CHIP CAPACITOR 0402 NPO ±5%100P1 C10 CHIP CAPACITOR 0402 NPO ±5%100P1 C104 CHIP CAPACITOR 0402 NPO ±5%100P1 C122 CHIP CAPACITOR 0402 NPO ±5%100P1 C13 CHIP CAPACITOR 0402 NPO ±5%100P1 C14 CHIP CAPACITOR 0402 NPO ±5%100P1 C142 CHIP CAPACITOR 0402 NPO ±5%100P1 C144 CHIP CAPACITOR 0402 NPO ±5%100P1 C15 CHIP CAPACITOR 0402 NPO ±5%100P1 C162 CHIP CAPACITOR 0402 NPO ±5%100P1 C166 CHIP CAPACITOR 0402 NPO ±5%100P1 C172 CHIP CAPACITOR 0402 NPO ±5%100P1 C173 CHIP CAPACITOR 0402 NPO ±5%100P1 C174 CHIP CAPACITOR 0402 NPO ±5%100P1 C178 CHIP CAPACITOR 0402 NPO ±5%100P1 C179 CHIP CAPACITOR 0402 NPO ±5% 22P1 Ref.NoQ'tyDescriptionItemsRemark Global Link Corporation Confidential Proprietary page1/4 GLOBAL LINK CORP. LTD. LXT118P Series - Bill of Material Dwg. No. : LXT118P-BOM-M-02 Rev. Date: 29/01/15 Ref.NoQ'tyDescriptionItemsRemark C182 CHIP CAPACITOR 0402 NPO ±5%100P1 C19 CHIP CAPACITOR 0402 NPO ±5%100P1 C207 CHIP CAPACITOR 0402 NPO ±5%100P1 C208 CHIP CAPACITOR 0402 NPO ±5%33P1 C209 CHIP CAPACITOR 0402 NPO ±5%33P1 C22 CHIP CAPACITOR 0402 NPO ±5%100P1 C224 CHIP CAPACITOR 0402 NPO ±5%12P1 C224A CHIP CAPACITOR 0402 NPO ±5%12P1 C224B CHIP CAPACITOR 0402 NPO ±5%12P1 C23 CHIP CAPACITOR 0402 NPO ±5%100P1 C26 CHIP CAPACITOR 0402 NPO ±5%100P1 C31 CHIP CAPACITOR 0402 NPO ±5%100P1 C32 CHIP CAPACITOR 0402 NPO ±5%100P1 C35 CHIP CAPACITOR 0402 NPO ±5%100P1 C39 CHIP CAPACITOR 0402 NPO ±5%100P1 C41 CHIP CAPACITOR 0402 NPO ±5%100P1 C45 CHIP CAPACITOR 0402 NPO ±5%100P1 C46 CHIP CAPACITOR 0402 NPO ±5%100P1 C47 CHIP CAPACITOR 0402 NPO ±5%100P1 C56 CHIP CAPACITOR 0402 NPO ±5%100P1 C59 CHIP CAPACITOR 0402 NPO ±5%10P1 C60 CHIP CAPACITOR 0402 NPO ±5%100P1 C61 CHIP CAPACITOR 0402 NPO ±5%100P1 C62 CHIP CAPACITOR 0402 NPO ±5%100P1 C66 CHIP CAPACITOR 0402 NPO ±5%10P1 C67 CHIP CAPACITOR 0402 NPO ±5%100P1 C68 CHIP CAPACITOR 0402 NPO ±5%100P1 C69 CHIP CAPACITOR 0402 NPO ±5%18P1 C7 CHIP CAPACITOR 0402 NPO ±5%100P1 C70 CHIP CAPACITOR 0402 NPO ±5%100P1 C71 CHIP CAPACITOR 0402 NPO ±5%10P1 C74 CHIP CAPACITOR 0402 NPO ±5%100P1 C76 CHIP CAPACITOR 0402 NPO ±5%100P1 C8 CHIP CAPACITOR 0402 NPO ±5%100P1 C80 CHIP CAPACITOR 0402 NPO ±5%100P1 C93 CHIP CAPACITOR 0402 NPO ±5%100P1 C95 CHIP CAPACITOR 0402 NPO ±5%100P1 C11CHIP CAPACITOR 0402 X7R +/- 10%0.1UF (X7R)1 C140CHIP CAPACITOR 0402 X7R +/- 10%470P(X7R)1 C55CHIP CAPACITOR 0402 X7R +/- 10%0.1UF (X7R)1 C125 CHIP CAPACITOR 0402 X7R ±10%0.001UF1 C145 CHIP CAPACITOR 0402 X7R ±10%0.001UF1 C3 CHIP CAPACITOR 0402 X7R ±10%0.001UF1 C44 CHIP CAPACITOR 0402 X7R ±10%0.0018UF1 C49 CHIP CAPACITOR 0402 X7R ±10%0.01UF1 C57 CHIP CAPACITOR 0402 X7R ±10%0.01UF1 C73 CHIP CAPACITOR 0402 X7R ±10%0.01UF1 C77 CHIP CAPACITOR 0402 X7R ±10%0.01UF1 C20 CHIP CAPACITOR 0402 Y5V0.1UF1 C24 CHIP CAPACITOR 0402 Y5V0.1UF1 C25 CHIP CAPACITOR 0402 Y5V0.1UF1 C29 CHIP CAPACITOR 0402 Y5V0.1UF1 C5 CHIP CAPACITOR 0402 Y5V0.1UF1 C51 CHIP CAPACITOR 0402 Y5V0.1UF1 C52 CHIP CAPACITOR 0402 Y5V0.1UF1 C53 CHIP CAPACITOR 0402 Y5V0.1UF1 C58 CHIP CAPACITOR 0402 Y5V0.1UF1 C63 CHIP CAPACITOR 0402 Y5V0.1UF1 C65 CHIP CAPACITOR 0402 Y5V0.1UF1 C85 CHIP CAPACITOR 0402 Y5V0.1UF1 C90 CHIP CAPACITOR 0402 Y5V0.1UF1 C98 CHIP CAPACITOR 0402 Y5V0.1UF1 C17 CHIP CAPACITOR 0603 NPO ±0.25PF 3P(03) 1 C30 CHIP CAPACITOR 0603 NPO ±0.25PF 6P(03) 1 C3A CHIP CAPACITOR 0603 NPO ±0.25PF 2P(03) 1 C6 CHIP CAPACITOR 0603 NPO ±0.25PF 9P(03) 1 C9 CHIP CAPACITOR 0603 NPO ±0.25PF 10P(03) 1 C2 CHIP CAPACITOR 0603 NPO ±5% 100P(0603)1 C12 CHIP CAPACITOR 0603 Y5V1UF1 C16 CHIP CAPACITOR 0603 Y5V1UF1 C18 CHIP CAPACITOR 0603 Y5V2.2UF(03)1 C28 CHIP CAPACITOR 0603 Y5V1UF1 C50 CHIP CAPACITOR 0603 Y5V1UF1 C72 CHIP CAPACITOR 0603 Y5V1UF1 R10 CHIP RESISTOR 0402 1% …

Text truncated - open the document above for the full version.

Parts List/Tune Up Info

1) Set the unit at channel 1.(462.5625MHz) Press the PTT button so the unit will be in transmit mode. 2)Adjust CT1 trimmer until Fc +/- 200Hz. 4. Maximum Audio Deviation 2) Go to Max. deviation alignment mode by press and holding the Call button then turn on the radio. 3. Transmitter Output Power at conducted condition. 3) TX power check the 24dBm +/- 1dBm. 1) TP(ALG) is short to GND. 1) Set the power supply at 3.6Vdc. Set the unit at GMRS ch 1.(462.5625MHz) and FRS ch 8. (467.5625MHz) 2) Press the PTT button so the unit will be in transmit mode. LXT118P Alignment Procedure 2015. 02. 07. 1. VCO Alignment ; Fixed. 2. Transmitter Frequency Alignment 3) LCD become on display such as belows. Press the Up or Down button to align if necessory each step. Display Default value ① GMRS Maximum Deviation Alignment td 0b Test frequency ; 462.5625MHz ① GMRS Squelch Alignment gr 09 Test frequency ; 462.7125MHz 6. Memory clear by press and holding the Up button then turn on the radio. 5. Receiver Squelch Alignment 1) TP(ALG) is short to GND. 2) Go to RX squelch alignment mode by press and holding the Down button then turn on the radio. Display Default value 3) LCD become on display such as belows. Press the Up or Down button to align if necessory each step. 7. If TP(ALG) is short to GND, Alignment mode is enable. If TP(ALG) is open to GND, Alignment mode is disable.

RF Exposure Info

Test Lab S ystem v DUT: Di Commun Medium Phanto m Measure m DASY4 C      Flat-Sec t Maximum Flat-Sec t Referenc Peak SAR SAR(1 g Maximum oratory: KES verification_4 ipole 450 MH nication System parameters us m section: Flat ment Standard Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: EL Measuremen t tion_HSL_45 m value of SA tion_HSL_45 ce Value = 38. R (extrapolate g) = 1.21 mW/ m value of SA Co., Ltd. 450_HSL Hz; Type: D45 m: CW; Frequ sed: f = 450 M Section d: DASY4 (H n: DV4 - SN3879 ce: 4mm (Mec DAE4 Sn1344 I v5.0_2013_0 t SW: DASY4 50/Area Scan AR (interpolat 50/Zoom Scan .4 V/m; Powe ed) = 1.68 W/k /g; SAR(10 g) AR (measured) 50V3; Serial: uency: 450 M MHz; σ = 0.85 igh Precision ; ConvF(9.98 chanical Surfa 4; Calibrated: 01_23; Type: 4, V4.7 Build n (41x201x1): ed) = 1.27 mW n (7x7x7)/Cu r Drift = 0.043 kg ) = 0.875 mW ) = 1.28 mW/g : D450V3 - SN MHz;Duty Cycl 5 mho/m; ε r = Assessment) , 9.98, 9.98); ace Detection) 2014-11-12 QDOVA002 A 80; Postproce Measurement W/g ube 0: Measur 3 dB W/g /g D N:1081 le: 1:1 42.5; ρ = 100 0 Calibrated: 20 ) AA; Serial: TP essing SW: SE t grid: dx=15m rement grid: dx Date/Time: 20 0 kg/m 3 014-11-19 P:1190 EMCAD, V1.8 mm, dy=15mm x=5mm, dy=5 15-02-27 AM 8 Build 186 m 5mm, dz=5mm M 10:57:58 m Test Lab S ystem v DUT: Di Commun Medium Phanto m Measure m DASY4 C      Flat-Sec t Maximum Flat-Sec t Referenc Peak SAR SAR(1 g Maximum oratory: KES verification_4 ipole 450 MH nication System parameters us m section: Flat ment Standard Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: EL Measuremen t tion_MSL_45 m value of SA tion_MSL_45 ce Value = 37. R (extrapolate g) = 1.18 mW/ m value of SA Co., Ltd. 450_MSL Hz; Type: D45 m: CW; Frequ sed: f = 450 M Section d: DASY4 (H n: DV4 - SN3879 ce: 4mm (Mec DAE4 Sn1344 I v5.0_2013_0 t SW: DASY4 50/Area Scan AR (interpolat 50/Zoom Sca .0 V/m; Powe ed) = 1.67 W/k /g; SAR(10 g) AR (measured) 50V3; Serial: uency: 450 M MHz; σ = 0.90 igh Precision ; ConvF(10.2 chanical Surfa 4; Calibrated: 01_23; Type: 4, V4.7 Build n (41x201x1): ed) = 1.25 mW an (7x7x7)/Cu r Drift = 0.006 kg ) = 0.822 mW ) = 1.26 mW/g : D450V3 - SN MHz;Duty Cycl 08 mho/m; ε r = Assessment) 5, 10.25, 10. 2 ace Detection) 2014-11-12 QDOVA002 A 80; Postproce : Measuremen W/g ube 0: Measur 6 dB W/g /g N:1081 le: 1:1 = 56.2; ρ = 100 25); Calibrated ) AA; Serial: TP essing SW: SE nt grid: dx=15 rement grid: d Date/Time: 2 00 kg/m 3 d: 2014-11-19 P:1190 EMCAD, V1.8 mm, dy=15mm dx=5mm, dy=5 2015-02-27 PM 9 8 Build 186 mm 5mm, dz=5m m M 2:22:14 m Plot 1 Test Lab Face _GM DUT: LX Commun Medium Phanto m Measure m DASY4 C      Face _GM dy=15mm Info: Int e Maximum Face _GM dy=5mm Referenc Peak SAR SAR(1 g Info: Int e Maximum oratory: KES MRS_Analog XT118P; Typ nication System parameters us m section: Flat ment Standard Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: EL Measuremen t MRS_Analog m erpolated med m value of SA MRS_Analog m, dz=5mm ce Value = 16. R (extrapolate g) = 0.267 mW erpolated med m value of SA Co., Ltd. g_25mm Gap_ pe: Bar; Seria m: CW; Frequ sed (interpolat Section d: DASY4 (H n: DV4 - SN3879 ce: 4mm (Mec DAE4 Sn1344 I v5.0_2013_0 t SW: DASY4 g_25mm Gap_ dium paramete AR (interpolat g_25mm Gap_ .2 V/m; Powe ed) = 0.315 W W/g; SAR(10 dium paramete AR (measured) _462.6375 al: N/A uency: 462.63 ted): f = 462.6 igh Precision ; ConvF(9.98 chanical Surfa 4; Calibrated: 01_23; Type: 4, V4.7 Build _462.6375/Ar ers used for SA ed) = 0.263 m _462.6375/Zo r Drift = 0.050 W/kg g) = 0.218 mW ers used for SA ) = 0.276 mW 37 MHz;Duty 637 MHz; σ = Assessment) , 9.98, 9.98); ace Detection) 2014-11-12 QDOVA002 A 80; Postproce rea Scan (51x AR evaluation mW/g oom Scan (7x 0 dB W/g AR evaluation W/g Cycle: 1:1 = 0.87 mho/m; Calibrated: 20 ) AA; Serial: TP essing SW: SE x111x1): Mea n. x7x7)/Cube 0 n. Date/Time: 2 ε r = 42.5; ρ = 014-11-19 P:1190 EMCAD, V1.8 asurement grid : Measuremen 2015-02-27 PM = 1000 kg/m 3 8 Build 186 d: dx=15mm, nt grid: dx=5m M 1:11:42 mm, Plot 2 Test Lab Face _FR DUT: LX Commun Medium Phanto m Measure m DASY4 C      Face _FR Info: Int e Maximum Face _FR dy=5mm Referenc Peak SAR SAR(1 g Info: Int e Maximum oratory: KES RS_Analog_2 XT118P; Typ nication System parameters us m section: Flat ment Standard Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: EL Measuremen t RS_Analog_2 erpolated med m value of SA RS_Analog_2 m, dz=5mm ce Value = 19. R (extrapolate g) = 0.404 mW erpolated med m value of SA Co., Ltd. 5mm Gap _46 pe: Bar; Seria m: CW; Frequ sed (interpolat Section d: DASY4 (H n: DV4 - SN3879 ce: 4mm (Mec DAE4 Sn1344 I v5.0_2013_0 t SW: DASY4 5mm Gap_46 dium paramete AR (interpolat 5mm Gap _46 .8 V/m; Powe ed) = 0.487 W W/g; SAR(10 dium paramete AR (measured) 67.6375 al: N/A uency: 467.63 ted): f = 467.6 igh Precision ; ConvF(9.98 chanical Surfa 4; Calibrated: 01_23; Type: 4, V4.7 Build 67.6375/Area ers used for SA ed) = 0.403 m 67.6375/Zoom r Drift = 0.153 W/kg g) = 0.323 mW ers used for SA ) = 0.421 mW 37 MHz;Duty 637 MHz; σ = Assessment) , 9.98, 9.98); ace Detection) 2014-11-12 QDOVA002 A 80; Postproce a Scan (51x11 AR evaluation mW/g m Scan (7x7x 3 dB W/g AR evaluation W/g D Cycle: 1:1 = 0.876 mho/m Calibrated: 20 ) AA; Serial: TP essing SW: SE 11x1): Measur n. x7)/Cube 0: M n. Date/Time: 20 m; ε r = 42.3; ρ 014-11-19 P:1190 EMCAD, V1.8 rement grid: d Measurement g 015-02-27 PM = 1000 kg/m 3 8 Build 186 dx=15mm, dy= grid: dx=5mm M 12:50:25 3 =15mm m, Plot 3 Test Lab Body _GM DUT: LX Commun Medium Phanto m Measure m DASY4 C      Bod y_GM Info: Int e Maximum Bod y_GM dz=5mm Referenc Peak SAR SAR(1 g Info: Int e Maximum oratory: KES MRS_Analog XT118P; Typ nication System parameters us m section: Flat ment Standard Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: EL Measuremen t MRS_Analog erpolated med m value of SA MRS_Analog m ce Value = 22. R (extrapolate g) = 0.608 mW erpolated med m value of SA Co., Ltd. g_Touch_462 pe: Bar; Se…

Text truncated - open the document above for the full version.

Test Report

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0024 Page (2 ) of (29) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Revision history Revision Date of issue Test report No. Description - 2015.03.16 KES-RF-15T0024Initial KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0024 Page (3 ) of (29) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 TABLE OF CONTENTS 1. General information ................................................................................................................................... 4 1.1. EUT description ......................................................................................................................... 4 1.2. Test configuration ....................................................................................................................... 4 1.3. Frequency/channel operations .................................................................................................... 5 1.4. Information about derivative model ........................................................................................... 5 1.5. Device modifications .................................................................................................................. 5 1.6. Conclusion of worst-case for each mode of representative channel respectively ...................... 6 2. Summary of tests ........................................................................................................................................ 7 3. Test results .................................................................................................................................................. 8 3.1. RF output power and radiated spurious emission ....................................................................... 8 3.2. Modulation limiting .................................................................................................................. 15 3.3. Audio frequency response ........................................................................................................ 18 3.4. Low-pass filter response ........................................................................................................... 20 3.5. Occupied bandwidth and emission mask ................................................................................. 22 3.6. Frequency stability ................................................................................................................... 25 Appendix A. Measurement equipment .......................................................................................................... 28 Appendix B. Test setup photo ........................................................................................................................ 29 KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0024 Page (4 ) of (29) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1. General information Applicant: Midland Radio Corporation Applicant address: 5900 Parretta Drive, Kansas City, Missouri United States 64120 Test site: KES Co., Ltd. Test site address: C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do,431-716, Korea 473-29, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea FCC rule part(s): FCC Part 95 IC rule part(s): RSS-210 Model: LXT118P FCC ID: MMALXT118P IC Certification: 3690A-LXT118P Test device serial No.: Production Pre-production Engineering 1.1. EUT description Equipment under test FRS / GMRS Serial number S1501000001 Frequency range 462.562 5 ㎒ ~ 462.712 5 ㎒ (GMRS Channels 1 ~7) 467.562 5 ㎒ ~ 467.712 5 ㎒ (FRS Channels 8 ~ 14) 462.550 0 ㎒ ~ 462.725 0 ㎒ (GMRS Channels 15 ~ 22) Type of Emission 11K0F3E E.R.P. GMRS: 0.169 W// FRS: 0.147 W Number of channels 22 Power source DC 3.6 V(Rechargeable Ni-MH Battery) 1.2. Test configuration The GMRS / FRS 2-way Radio FCC ID: MMALXT118P was tested per the guidance of ANSI C63.10-2013, ANSI/TIA 603C: 2004 and RSS-210 (Issue 8) was used to reference the appropriate EUT setup for radiated spurious emissions testing. KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0024 Page (5 ) of (29) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1.3. Frequency/channel operations Mode Ch. Frequency (㎒) GMRS 1 462.562 5 2 462.587 5 3 462.612 5 4 462.637 5 5 462.662 5 6 462.687 5 7 462.712 5 FRS 8 467.562 5 9 467.587 5 10 467.612 5 11 467.637 5 12 467.662 5 13 467.687 5 14 467.712 5 GMRS 15 462.550 0 16 462.575 0 17 462.600 0 18 462.625 0 19 462.650 0 20 462.675 0 21 462.700 0 22 462.725 0 1.4. Information about derivative model N/A 1.5. Device modifications N/A KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0024 Page (6 ) of (29) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-…

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Butch Rittmann(Director of Operations)

[email protected]816 241-8500Fax: 816 241-5713

Test Firm

KES Co., LtdInsung Ryu

[email protected]82-31-425-6200Fax: 82-31-424-0450

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	95B	467.5625 MHz - 467.7125 MHz	147.00 mW	11K0F3E	0.838 ppm

Confidentiality

Long Term

Grant Notes

Power listed is ERP. SAR compliance for body-worn operating configurations is limited to the specific body-worn accessories, such as belt-clips and holsters, tested for this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. This device is authorized to operate in the following radio services: FRS (Part 95B) or GMRS (Part 95A). There must be an informational insert inside the box (product package) or the User Manual must include information that clearly informs the consumer (buyer/owner) when the radio is transmitting on GMRS frequencies, that operation on GMRS frequencies requires an FCC license and such operation is subject to additional rules specified in 47 C.F.R. Part 95. The reported SAR values are for a maximum duty factor of 50 %. The highest reported SAR values for head and body-worn accessory are 0.29 W/kg and 0.45W/kg, respectively.
