MMAMXT500GMRS Mobile Radio

Page 2 midlandusa.com Model MXT500 TABLE OF CONTENTS WELCOME TO THE WORLD OF MIDLAND..............................................................................3 FEATURES.......................................................................................................................3 FCC NOTICE....................................................................................................................4 Exposure to Radio Frequency Energy......................................................................................4 INSTALLING YOUR RADIO.................................................................................................5 Preparation for Installation............................................................................5 Installing the Mounting Bracket.....................................................................6 Installing the Antenna.................................................................................7 Connecting the Radio to a Power source........................................................8 Connecting the Microphone.........................................................................8 Using an External Speaker...........................................................................8 Using an Intercom........................................................................................8 CONTROLS AND INDICATORS............................................................................................9 Radio Operating Controls..............................................................................9 Microphone Operating Controls..................................................................10 Rear Panel Connections.............................................................................11 LCD Display............................................................................................12 OPERATING YOUR RADIO................................................................................................13 About Range...........................................................................................13 Power On/Off..........................................................................................14 Selecting the Active Channel.......................................................................14 Adjusting the Volume................................................................................14 Transmit and Receiving a Call....................................................................15 UTILITY FUNCTIONS.......................................................................................................15 Locking the Keypad..................................................................................15 Using Monitor Mode.................................................................................15 Scanning for Active Channels.....................................................................17 Using Scan Skip.........................................................................................17 Call Alert.....................................................................................................18 Menu Functions........................................................................................18 MENU MODE FUNCTIONS...............................................................................................19 Selecting a Privacy Code..........................................................................19 Selecting the Transmit (TX) Power Level......................................................21 Selecting a Channels Bandwidth..................................................................22 Automatic Power Off Function....................................................................24 Squelch Sensitivity...................................................................................24 Display Color...........................................................................................25 Display Brightness...................................................................................25 Repeater Channels.........................................................................................26 USB-C Programming Function....................................................................26 RESTORING THE DEFAULT SETTINGS..............................................................................27 CARE AND MAINTENANCE...............................................................................................27 MENU - QUICK REFERENCE CHART....................................................................................28 TROUBLESHOOTING GUIDE...............................................................................................28 SPECIFICATIONS................................................................................................................29 GMRS Frequency Chart...............................................................................30 GMRS Repeater Frequency Chart................................................................30 CTCSS Privacy Codes Frequency Chart..........................................................31 DCS Privacy Codes Frequency Chart...................................................................31 FCC WARNING AND STATEMENTS.....................................................................................32 LIMITED WARRANTY..........................................................................................................33 ~I OLAN r::/ ____________ _ Page 3 midlandusa.com Model MXT500 WELCOME TO THE WORLD OF MIDLAND RADIO Congratulations on your purchase of a high-quality Midland product. Your MXT500 2-way radio represents state-of-the-art high-tech engineering. Designed for General Mobile Radio Service (GMRS) operation, this compact package is big on performance. It is a quality piece of electronic HTXLSPHQWVNLOOIXOO\FRQVWUXFWHGZLWKWKH¿QHVWFRPSRQHQW…

Text truncated - open the document above for the full version.

Midland Radio Corporation Agent Authorization Company: Midland Radio Corporation Address: 5900 Parretta Drive, Kansas City, MO 64120-2134, USA Product Name: GMRS Mobile Radio Model Number(s): MXT500 Product Description: GMRS Mobile Radio We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-13 Name: Butch Rittmann Company: Midland Radio Corporation

Midland Radio Corporation Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-05-13 Subject; Request for Confidentiality FCC ID: MMAMXT500 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Midland Radio Corporation Contact person: Butch Rittmann

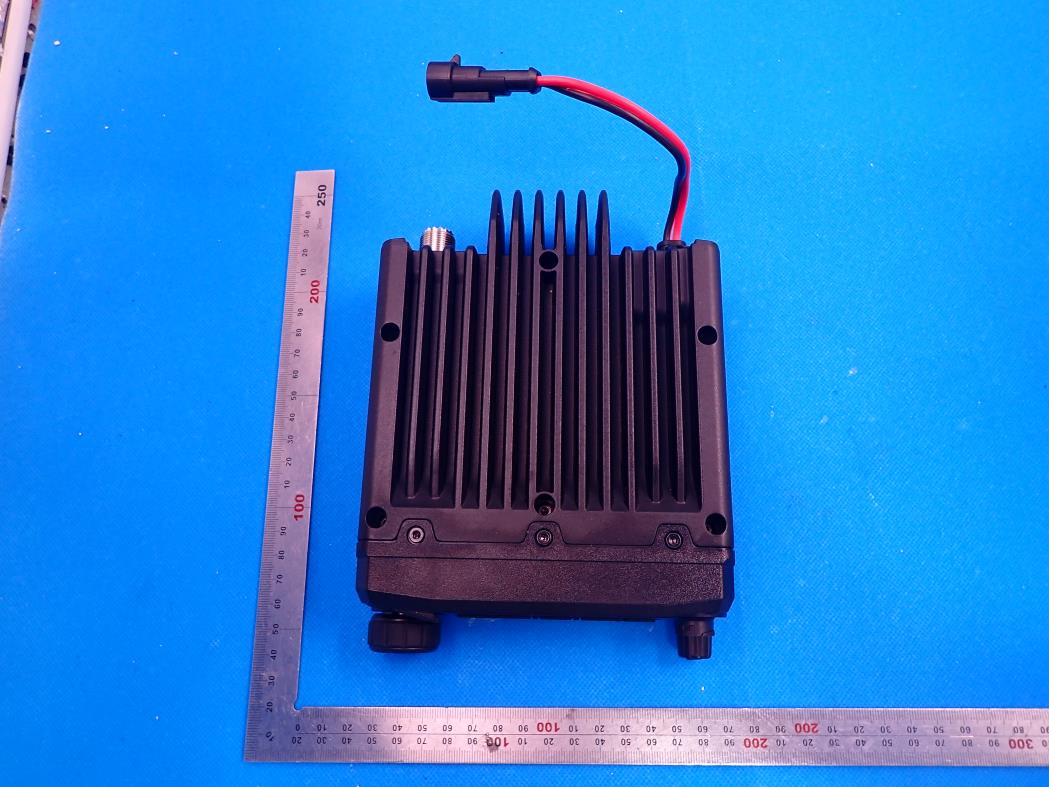

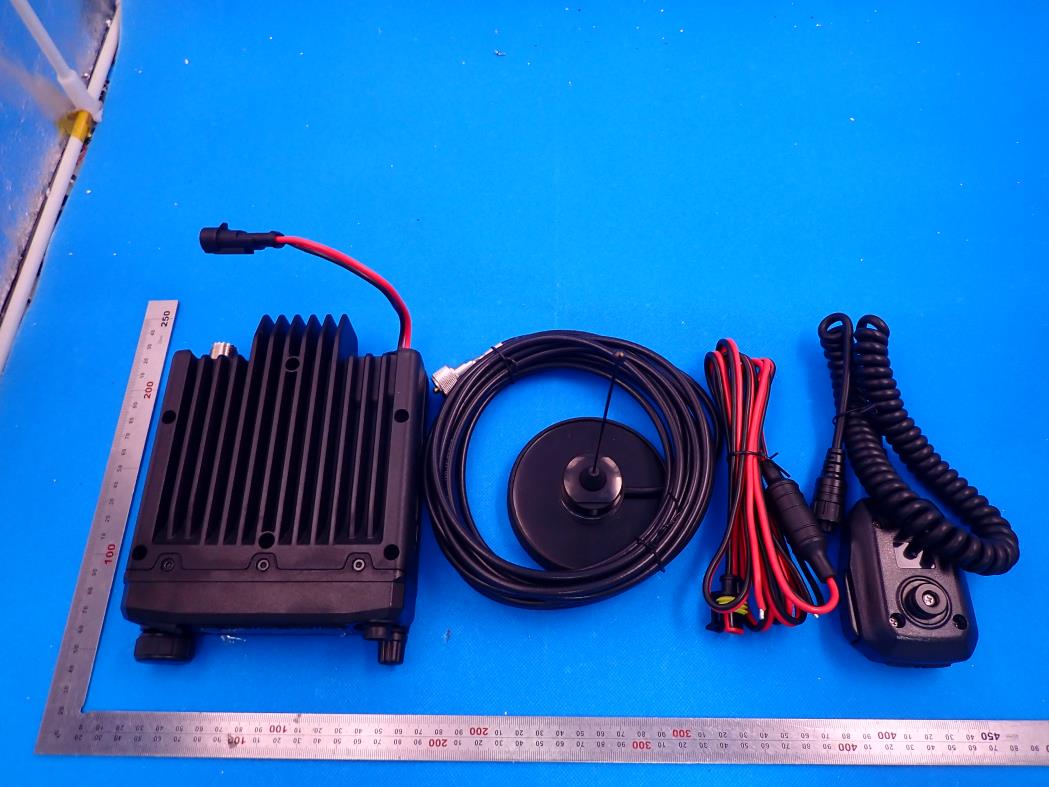

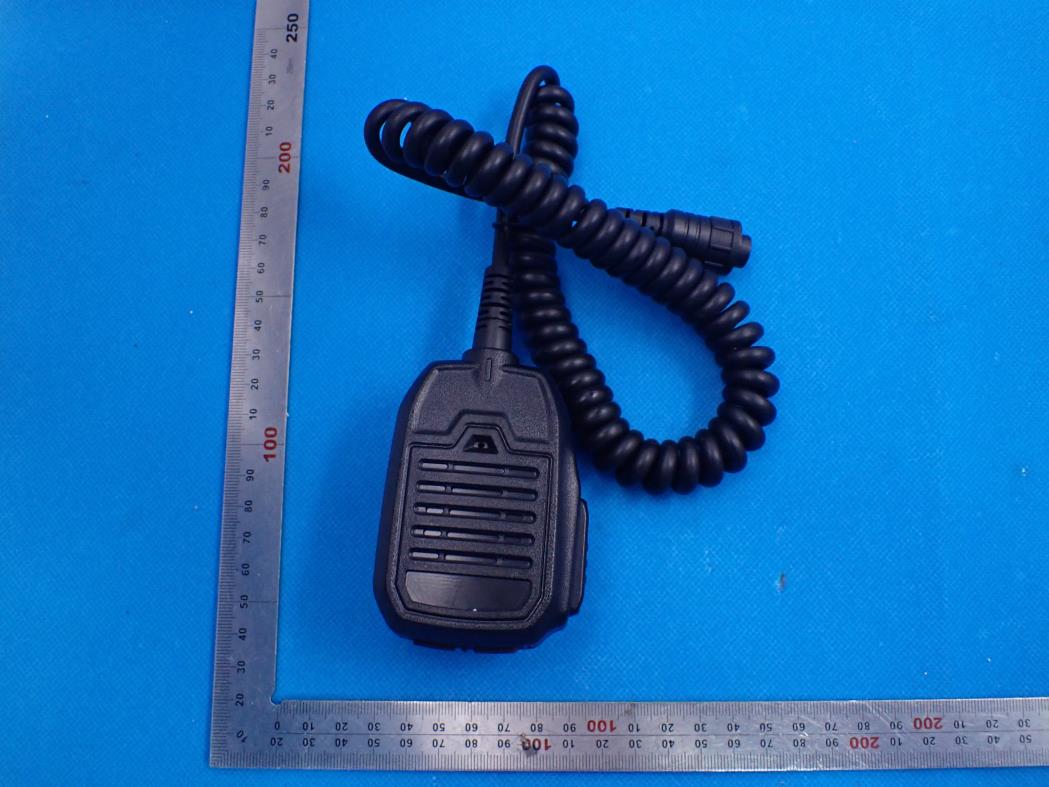

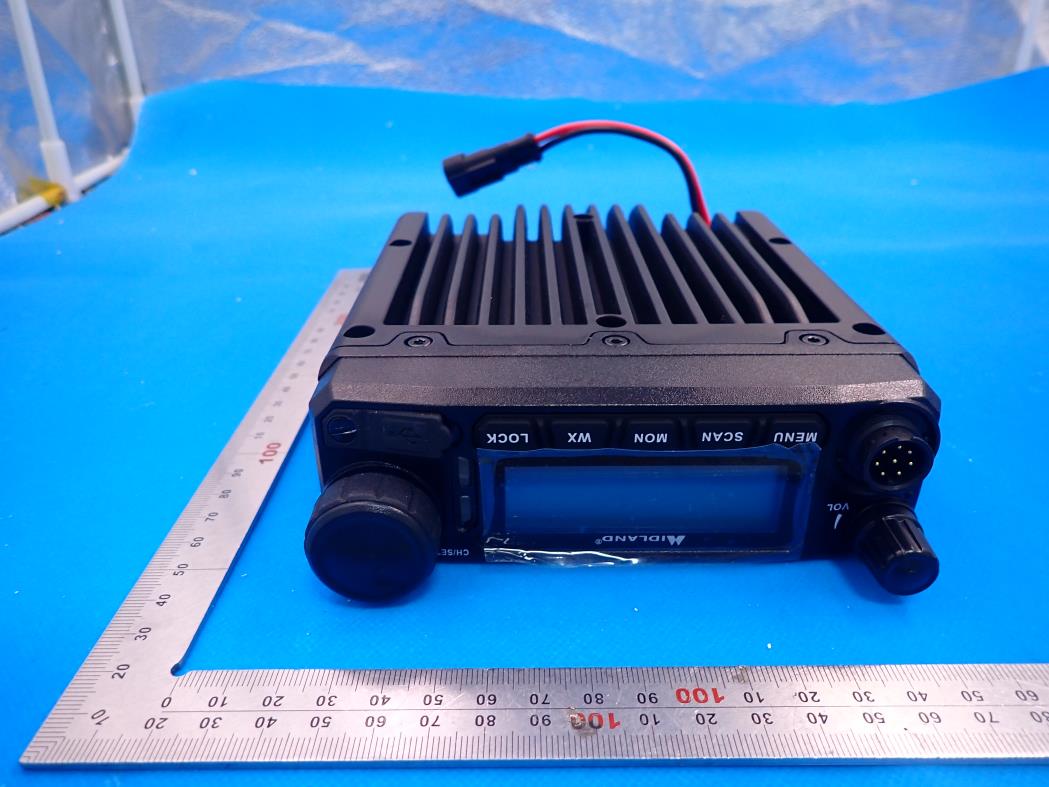

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT Antenna BOTTOM VIEW OF EUT FRONT VIEW OF EUT Antenna Port BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Hand microphone TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 30mm&30mm FCC ID: MMAMXT500

Internal Photos OPEN VIEW- OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT INTERNAL VIEW-10 OF EUT INTERNAL VIEW-11 OF EUT INTERNAL VIEW-12 OF EUT INTERNAL VIEW-13 OF EUT INTERNAL VIEW-14 OF EUT Hand microphone OPEN VIEW 1- OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-1 OF EUT

RF EXPOSURE EVALUATION 1.TEST RESULT CERTIFICATION Applicant Midland Radio Corporation Address 5900 Parretta Drive, Kansas City, MO 64120,USA manufacturer Midland Radio Corporation Address 5900 Parretta Drive, Kansas City, MO 64120,USA Factory Midland Radio Corporation Address 5900 Parretta Drive, Kansas City, MO 64120,USA Product Designation: GMRS Mobile Radio Brand Name: MIDLAND Test Model: MXT500 FCC ID: MMAMXT500 Date of Test: Mar. 26, 2021~Apr. 29, 2021 2.TECHNICAL INFORMATION A major technical description of EUT is described as following: Operation Frequency GMRS: 462.5500MHz-462.7250MHz 462.5625MHz-462.7125MHz 467.5500MHz-467.7250MHz Modulation FM Antenna Designation Detachable Antenna type External Antenna Output power 50W/5W Antenna gain 2.5dBi Power Supply DC 13.8V Channel list: Channel. No CH. Freq Rated Power CH. No CH. Freq Rated Power 1 462.5625 5W 16 467.5500 50W 2 462.5875 17 467.5750 3 462.6125 18 467.6000 4 462.6375 19 467.6250 5 462.6625 20 467.6500 6 462.6875 21 467.6750 7 462.7125 22 467.7000 8 462.5500 50W 23 467.7250 9 462.5750 24 -- -- 10 462.6000 25 -- 11 462.6250 26 -- 12 462.6500 27 -- 13 462.6750 28 -- 14 462.7000 29 -- 15 462.7250 30 -- 3.RF EXPOSURE MEASUREMENT 3.1 INTRODUCTION Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. The 1992 ANSI/IEEE standard (See Listed limit table) specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. 3.2 FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. 3.3 CLASSIFICATION OF THE ASSESSMENT METHODS According to user manual, The antenna of the product, under normal use condition is at least 151.8cm away from the body of the user. Warning statement to the user for keeping at least 151.8cm separation distance and the prohibition of operating to a person has been printed on the user’s manual. So, this product under normal use is located on electromagnetic far field between the human body. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 3.4 EUT OPERATION CONDITION Make the EUT to transmit at Bottom channel, Middle channel and Top channel individually. 3.5 TEST RESULTS Note: report the worst result in this part Antenna Gain=2.5dBi (Numeric 1.78), π=3.141 TEST Frequency (MHz) Tune-up Tolerance (dBm) Max tune-up (dBm) Max tune-up (mW) Power Density (mW/cm 2 ) Power Density Limit (mW/cm 2 ) Result (Pass/Fail) 462.6500 46.5±0.5 47 50118.7234 0.308140322 0.3084 Pass Note: 1. The output power is refer to AGC01284210304FE10. 2. According to the user manual, the minimum separate distance which used for MPE calculate is 151.8cm.

Page 1 of 49 FCC Test Report Report No.: AGC01284210304FE10 FCC ID : MMAMXT500 PRODUCT DESIGNATION : GMRS Mobile Radio BRAND NAME : Midland Radio Corporation MODEL NAME : MXT500 APPLICANT : Midland Radio Corporation DATE OF ISSUE : Apr. 29, 2021 STANDARD(S) : FCC Part 95 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC01284210304FE10 Page 2 of 49 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr. 29, 2021 Valid Initial Release Report No.: AGC01284210304FE10 Page 3 of 49 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................... 5 2. PRODUCT INFORMATION .............................................................................................................................. 6 2.1 PRODUCT TECHNICAL DESCRIPTION ................................................................................................ 6 2.2 TEST FREQUENCY LIST ........................................................................................................................ 7 2.3 RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................. 8 2.4 TEST METHODOLOGY .......................................................................................................................... 8 2.5 CALCULATION OF EMISSION INDICATORS ........................................................................................ 8 2.6 SPECIAL ACCESSORIES ....................................................................................................................... 8 2.7 EQUIPMENT MODIFICATIONS .............................................................................................................. 8 2.8 ANTENNA REQUIREMENT .................................................................................................................... 9 3. TEST ENVIRONMENT ................................................................................................................................... 10 3.1 ADDRESS OF THE TEST LABORATORY ............................................................................................ 10 3.2 TEST FACILITY ..................................................................................................................................... 10 3.3 ENVIRONMENTAL CONDITIONS......................................................................................................... 11 3.4 MEASUREMENT UNCERTAINTY ........................................................................................................ 11 3.5 LIST OF EQUIPMENTS USED ............................................................................................................. 12 4.SYSTEM TEST CONFIGURATION ................................................................................................................. 13 4.1 EUT CONFIGURATION ......................................................................................................................... 13 4.2 EUT EXERCISE ..................................................................................................................................... 13 4.3 CONFIGURATION OF TESTED SYSTEM ............................................................................................ 13 4.4 EQUIPMENT USED IN TESTED SYSTEM........................................................................................... 13 4.5 SUMMARY OF TEST RESULTS ........................................................................................................... 14 5. DESCRIPTION OF TEST MODES ................................................................................................................. 15 6.FREQUENCY STABILITY ............................................................................................................................... 16 6.1 PROVISIONS APPLICABLE .................................................................................................................. 16 6.2 MEASUREMENT PROCEDURE ........................................................................................................... 16 6.3 MEASUREMENT SETUP ...................................................................................................................... 16 6.4 MEASUREMENT RESULTS.................................................................................................................. 17 7. EMISSION BANDWIDTH ............................................................................................................................... 18 7.1 PROVISIONS APPLICABLE .................................................................................................................. 18 7.2 MEASUREMENT PROCEDURE ........................................................................................................... 18 7.3 MEASUREMENT SETUP ...................................................................................................................... 18 7.4 MEASUREMENT RESULTS.................................................................................................................. 20 8. SPURIOUS RATIATED EMISSION ................................................................................................................. 22 8.1 PROVISIONS APPLICABLE .................................................................................................................. 22 Report No.: AGC01284210304FE10 Page 4 of 49 8.2 MEASUREMENT PROCEDURE ........................................................................................................... 22 8.3 MEASUREMENT SETUP ...................................................................................................................... 24 8.4 MEASUREMENT RESULTS.................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC01284210304FE10 Page 30 of 49 Test plot as follows: 12.5kHz, Emission Mask @ 462.6375MHz-5W 12.5kHz, Emission Mask @ 462.6500MHz-50W 12.5kHz, Emission Mask @ 467.6500MHz-50W 25kHz, Emission Mask @ 462.6375MHz-5W 25kHz, Emission Mask @ 462.6500MHz-50W 25kHz, Emission Mask @ 467.6500MHz-50W Report No.: AGC01284210304FE10 Page 31 of 49 9.MODULATION CHARACTERISTICS 9.1 PROVISIONS APPLICABLE According to FCC§2.1047 and §95.1775, for Voice Modulation Communication Equipment, the frequency response of the audio modulation circuit over a range of 100 to 5000Hz shall be measured. Each GMRS transmitter type must be designed to satisfy the modulation requirements in this section. Operation of GMRS stations must also be in compliance with these requirements. (a) Main channels. The peak frequency deviation for emissions to be transmitted on the main channels must not exceed ± 5 kHz. (b) 462 MHz interstitial channels. The peak frequency deviation for emissions to be transmitted on the 462 MHz interstitial channels must not exceed ± 5 kHz. (c) 467 MHz interstitial channels. The peak frequency deviation for emissions to be transmitted on the 467 MHz interstitial channels must not exceed ± 2.5 kHz, and the highest audio frequency contributing substantially to modulation must not exceed 3.125 kHz. 9.2 MEASUREMENT METHOD 9.2.1 Modulation Limit (1). Configure the EUT as shown in figure 1, adjust the audio input for 60% of rated system deviation at 1kHz using this level as a reference (0dB) and vary the input level from –20 to +20dB. Record the frequency deviation obtained as a function of the input level. (2). Repeat step 1 with input frequency changing to 300, 1000, 1500 and 3000Hz in sequence. 9.2.2 Audio Frequency Response (1). Configure the EUT as shown in figure 1. (2). Adjust the audio input for 20% of rated system deviation at 1 kHz using this level as a reference (0 dB). (3). Vary the Audio frequency from 100 Hz to 10 kHz and record the frequency deviation. (4). Audio Frequency Response = 20log10 (Deviation of test frequency/Deviation of 1 kHz reference). 9.3 MEASUREMENT SETUP Report No.: AGC01284210304FE10 Page 32 of 49 9.4 MEASUREMENT RESULTS (A). MODULATION LIMIT: 12.5kHz, FM modulation, Assigned Frequency:462.6500MHz-50W Modulation Level (dB) Peak Freq. Deviation At 300 Hz (kHz) Peak Freq. Deviation At 1000 Hz (kHz) Peak Freq. Deviation At 1500 Hz (kHz) Peak Freq. Deviation At 3000 Hz (kHz) -20 0.17 0.33 0.61 0.81 -15 0.32 0.58 0.72 0.93 -10 0.49 0.74 0.83 1.23 -5 0.65 0.99 1.23 1.52 0 0.74 1.05 1.42 1.62 +5 0.91 1.13 1.53 1.73 +10 0.92 1.29 1.61 1.81 +15 1.18 1.34 1.68 1.91 +20 1.12 1.33 1.58 1.77 Report No.: AGC01284210304FE10 Page 33 of 49 25kHz, FM modulation, Assigned Frequency:462.6500MHz-50W Modulation Level (dB) Peak Freq. Deviation At 300 Hz (kHz) Peak Freq. Deviation At 1000 Hz (kHz) Peak Freq. Deviation At 1500 Hz (kHz) Peak Freq. Deviation At 3000 Hz (kHz) -20 0.53 0.69 0.83 1.13 -15 0.71 0.98 1.32 1.72 -10 0.88 1.11 1.58 1.96 -5 0.93 1.85 2.13 2.54 0 1.23 1.93 2.45 2.68 +5 1.44 2.53 2.66 3.25 +10 2.18 2.76 2.98 3.31 +15 2.25 2.89 3.11 3.42 +20 2.24 2.83 3.03 3.38 Note: All the modes had been tested, but only the worst data recorded in the report Report No.: AGC01284210304FE10 Page 34 of 49 (B). AUDIO FREQUENCY RESPONSE: 12.5kHz, Analog modulation, Assigned Frequency:462.6500MHz-50W Frequency (Hz) Deviation (kHz) Audio Frequency Response(dB) 100 -- -- 200 -- -- 300 0.13 -12.37 400 0.19 -9.07 500 0.25 -6.69 600 0.31 -4.82 700 0.38 -3.05 800 0.41 -2.39 900 0.46 -1.39 1000 0.54 0.00 1200 0.56 0.32 1400 0.71 2.38 1600 0.82 3.63 1800 0.85 3.94 2000 0.99 5.26 2400 1.13 6.41 2500 1.25 7.29 2800 1.37 8.09 3000 1.41 8.34 Report No.: AGC01284210304FE10 Page 35 of 49 Note: All the modes had been tested, but only the worst data recorded in the report. 25kHz, Analog modulation, Assigned Frequency:462.6500MHz-50W Frequency (Hz) Deviation (kHz) Audio Frequency Response(dB) 100 -- -- 200 -- -- 300 0.15 -12.46 400 0.22 -9.14 500 0.26 -7.69 600 0.35 -5.11 700 0.42 -3.52 800 0.45 -2.92 900 0.51 -1.84 1000 0.63 0.00 1200 0.74 1.40 1400 0.82 2.29 1600 0.91 3.19 1800 1.03 4.27 2000 1.19 5.52 2400 1.28 6.16 2500 1.31 6.36 2800 1.42 7.06 3000 1.58 7.99 Report No.: AGC01284210304FE10 Page 36 of 49 10. MAXIMUMN TRANSMITTER POWER 10.1 PROVISIONS APPLICABLE FCC Part 95.1767 For GMRS, the maximum permissible transmitter output power effective radiated power (e.r.p.) as follows. This section contains transmitting power limits for GMRS stations. The maximum transmitting power depends on which channels are being used and the type of station. 462/467 MHz main channels. The limits in this paragraph apply to stations transmitting on any of the 462 MHz main channels or any of the 467 MHz main channels. Each GMRS transmitter type must be capable of operating within the allowable power range. GMRS licensees are responsible for ensuring that their GMRS stations operate in compliance with these limits. The transmitter output power of mobile, repeater and base stations must not exceed 50 Watts. The transmitter output power of fixed stations must not exceed 15 Watts. 462 MHz interstitial channels. The effective radiated power (ERP) of mobile, hand-held portable and base stations transmitting on the 462 MHz interstitial channels must not exceed 5 Watts. (467 MHz interstitial channels. The effective radiated power (ERP) of hand-held portable units transmitting on the 467 MHz interstitial channels must not exceed 0.5 Watt. Each GMRS transmitter type capable of transmitting on these channels must be designed such that the ERP does not exceed 0.5 Watt. 10.2 MEASUREMENT METHOD 10) EUT was placed on a 0.8 or 1.5meter high non-conductive stand at a 3 meter test distance from the receive antenna. A receiving antenna was placed on the antenna mast 3 meters from the EUT for emission measurements. The disturbance of the transmitter was maximized on the test receiver display by raising and lowering from 1m to 4m the receiv…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP RADIATED EMISSION ABOVE 1G TEST SETUP CONDUCTED TEST SETUP
