THIS PAGE IS INTENTIONALLY LEFT BLANK Model T50 Series Page 2 midlandusa.com Welcome to the world of Midland electronics Congratulations on the purchase of your high quality MIDLAND product. Your two-way radio represents state-of-the-art high-tech engineering and is designed for GMRS (General Mobile Radio Service) operation. It is a quality piece of electronic equipment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. Your two- way radio is designed for reliable and trouble-free performance for years to come. Features - 22 GMRS/FRS Channels - 38 Privacy Codes (CTCSS) - VOX - Call Alert - NOAA Weather Radio - NOAA Weather Alert - Scan Function - Monitor Function - Roger Beep Tone - Silent Operation - Key Pad Lock - Speaker / Microphone Jacks - Battery Meter / Battery Low Indicator - USB Jack Charging This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device does not cause harmful interference, and (2) this radio must accept any interference that may cause undesired operation. To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Model T50 Series Page 3 midlandusa.com IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION (Only Applicable for GMRS Radio Use in the United States) The radios operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22, which comprise the GMRS channels of the radios. Serious penalties could result from unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Acts Sections 501 and 502 (amended). You will be issued a call sign by the FCC which should be used for station identification when operating the radio on GMRS channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of your transmission time. To obtain a license or ask questions about the license application, contact the FCC at 1-888-CALL FCC or go to the FCC's website: http://www .fcc.govand request form 605. Exposure To Radio Frequency Energy Your Midland radio is designed to comply with the following national and international standards and guidelines regarding exposure of human beings to radio frequency electromagnetic energy: - United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J - American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992 - Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition - National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986 - International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998 To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting. IMPORTANT:Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations. Any adjustment to your radio must be made by qualified technicians. Model T50 Series Page 4 midlandusa.com LCD DISPLAY 1.NOAA WEATHER (WX) BAND ICON– Indicates when the radio is in Weather Band mode. 2. KEY LOCK ICON – Indicates KEY LOCK mode is on. 3. VOX ICON– Indicates when VOX mode is active. 4. CHANNEL NUMBER– Changes from 1~22 on GMRS/FRS band (1~10 on WX band). 5. PRIVACY CODE– Indicates Privacy Code selected by user (oF~38). 6. BATTERY METER– Indicates the battery level. 7. RECEIVE (RX) ICON– Indicates radio is receiving a transmission . 8. TRANSMIT (TX) ICON– Indicates radio is transmitting a signal. 9. PRIVACY CODE ICON– Indicates Privacy Code is on. 1 CONTROLS 10. PTT Button– Press and hold to transmit voice communication. 11. CALL/LOCK Button– Press to send a CALL ALERT signal. Press and hold to turn KEY LOCK on/off. 12. MIC– Built-in microphone. 13. USB CHARGING JACK 14. ANTENNA 15. EXTERNAL SPEAKER/MIC JACK 16. MENU Button– Press momentarily to access Menu mode. 17. MONITOR/SCAN Button– Press to enter SCAN mode. Press and hold to enter MONITOR mode. 18. UP/WX SCAN s and DOWN t Buttons– Make adjustments in MENU mode. Press and hold the UP button for 3 seconds to activate the NOAA Weather Radio function. 19. SPEAKER– Built-in speaker. 16 15 14 12 11 10 7 6 3 2 13 17 4 5 8 9 18 19 Model T50 Series Page 5 midlandusa.com BATTER Y INSTALLATION Your radio operates with either a NiMH battery pack or optional 3 AAA alkaline batteries. The belt clip should be removed (see below) to ease installation or removal of the batteries. To install the batteries: 1. With the back of the radio facing you, remove the belt clip (see diagram below) for easy access, then remove the Battery Cover by pressing down on the top center and sliding it down from the radio. 2. Insert NiMH battery pack or 3 AAA batteries observing the polarity as shown. Installing the batteries incorrectly will prevent the unit from operating or may damage the unit. 3. Return the Battery Cover by sliding it up on the radio. Replace the belt clip, making sure it locks into place. BATTERY COMPARTMENT BATTERY COMPARTMENT COVER Press here and push down to open BELT CLIP LOCK TAB BELT CLIP LATCH INSTALLING THE BEL…

Text truncated - open the document above for the full version.

Midland Radio Corporation 5900 Parretta Drive, Kansas City, Missouri United States 64120 Date: November 03, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: MMAT55 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Diagram(s) CONF APPENDIX_ T55_Schemetics.PDF Block diagram CONF APPENDIX_ T55_Block diagram.PDF Operation description CONF APPENDIX_ T55_Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jeff Brame

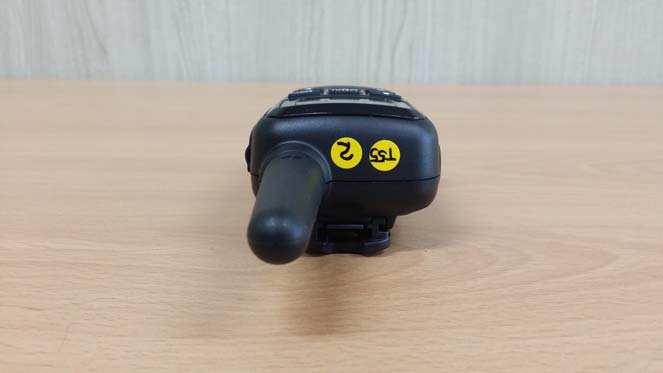

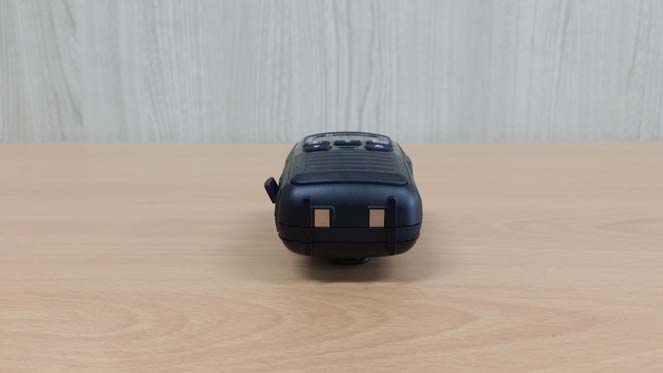

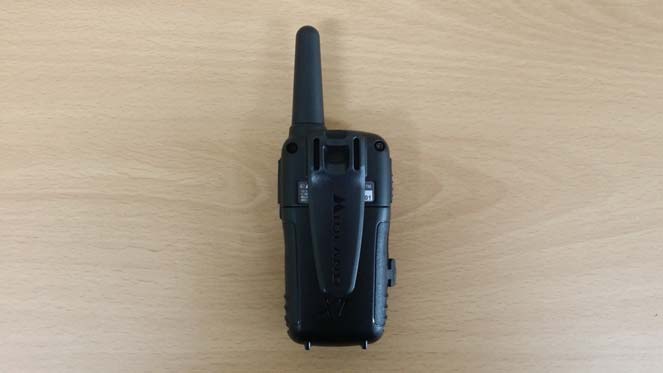

www.kes.co.kr Model No.: T55 Page 1 of 4 EUT External photographs www.kes.co.kr Model No.: T55 Page 2 of 4 www.kes.co.kr Model No.: T55 Page 3 of 4 www.kes.co.kr Model No.: T55 Page 4 of 4 N/A

Label and Location Model No.: T55 Page 1 of 1 Model:T55 FCC ID: MMAT55 IC: 3690A-T55 MIDLAND RADIO CORPORATION MADE IN CHINA

www.kes.co.kr Model No.: T55 Page 1 of 2 EUT Internal photographs www.kes.co.kr Model No.: T55 Page 2 of 2 Helical Antenna

GLOBAL LINK CORP. LTD. TALKER5 Series - Bill of Material Dwg. No. : TALKER 5-BOM-M-08 Rev. Date: 07/10/14 US$1 = HKD7.75 & RMB6.05C133 CHIP CAPACITOR 0805 X5R ±10% 10UF/10V (05) 1 Murata ASKO C33 CHIP CAPACITOR 0805 X5R ±10% 10UF/10V (05) 1 Murata ASKO C48 CHIP CAPACITOR 0805 X5R ±10% 10UF/10V (05) 1 Murata ASKO C998 CHIP CAPACITOR 0805 X5R ±10% 10UF/10V (05) 1 Murata ASKO PA-TKR12-B0047 12-Sep-14 L5 Inductor Chip 0402 18NH 1 Murata ASKO L14 Inductor Chip 0402 27NH 1 Murata ASKO L4 Inductor Chip 0402 33NH 1 Murata ASKO L12 Inductor Chip 0402 39NH 1 Murata ASKO R68 Thermistor 0402 33ohms NCP15XC330J03RC 1 Murata ASKO PA-TKR12-B0009 27-Mar-14 Antenna Coil (Talker 5,6,7) 0.6x6.8x11.5T SWP0.6 1 CXL CXL PA-TKR12-B0025 1-Jul-14 D1 Chip Diode Switching KDS114E 1 KEC Eon D13 Chip Diode Switching KDS114E 1 KEC Eon D4 Chip Diode Switching KDS114E 1 KEC Eon D7 Chip Diode Switching KDS114E 1 KEC Eon Q1 TRANSISTOR CHIP KRA226S 1 KEC Eon Q15 TRANSISTOR CHIP KRA226S 1 KEC Eon PA-TKR12-B0009 27-Mar-14 Q9 TRANSISTOR CHIP KRA226S 1 KEC Eon PA-TKR12-B0009 27-Mar-14 Q5 TRANSISTOR CHIP KRA306E 1 KEC Eon Q8 TRANSISTOR CHIP KRA306E 1 KEC Eon Q17 TRANSISTOR CHIP KRC404E 1 KEC Eon Q16 TRANSISTOR CHIP KRC405E 1 KEC Eon PA-TKR12-B0009 27-Mar-14 Q7 TRANSISTOR CHIP KRC405E 1 KEC Eon Q2 TRANSISTOR CHIP KTC4075E 1 KEC Eon L1 Inductor Air 0.35X1.5X5T(R) 1 Fine Fine L3 Inductor Air 0.35X1.7X5T(R) 1 Fine Fine L7 Inductor Air 0.35X1.7X5T(R) 1 Fine Fine L18A Inductor Air 0.4X1.1 X2T(R) 1 Fine Fine L6 Inductor Air 0.4X1.35X2T(L) 1 Fine Fine L8 Inductor Air 0.4X1.5X5T(L) 1 Fine Fine SF1 Saw Filter (465MHz) FTF465BS 1 Fronter Fronter X201 X-tal 12.00MHz FTX12.000M16S-30/30B 1 Fronter Fronter CPU1 IC CPU (Flash) WT56F108 1 Weltrend GL by & sell IC1 Analog Radio IC BK4813 1 Beken GL consign Q1A Power Transistor 2SK3078A 1 Toshiba GL consign CT1 10P (Trimmer) 3 dia STC3M10-T1 1 STC Homi PA-TKR12-B0047 12-Sep-14 CMIC1 Condensor Mic F9745AP342-98 (RoHS) 1 Innovation Innovation IC3 IC Audio Amplifier D2822N (SOP-8) 1 JBX JBX IC4 IC EEPROM K24C02 SOIC-8 1 JBX JBX Q11 TRANSISTOR CHIP 2SC4226 (R25) 1 NEC Kaga 2SC5085Y - Toshiba PA-TKR12-B0028 7-Jul-14 Q13 TRANSISTOR CHIP 2SC4226 (R25) 1 NEC Kaga 2SC5085Y - Toshiba PA-TKR12-B0028 7-Jul-14 Q4 TRANSISTOR CHIP 2SC4226 (R25) 1 NEC Kaga 2SC5085Y - Toshiba PA-TKR12-B0028 7-Jul-14 Q6 TRANSISTOR CHIP 2SC4226 (R25) 1 NEC Kaga 2SC5085Y - Toshiba PA-TKR12-B0028 7-Jul-14 PCB 2 LAYER FR-4 Talker 5 X3 PCB 1 Kingsonic Kingsonic PA-TKR12-B0047 12-Sep-14 PCB2 2 LAYER FR-4 TALKER 6_LED_X0 1 Kingsonic Kingsonic PA-TKR12-B0028 7-Jul-14 LCD1 LCD Talker 5 KWH15076W 2.7v HTN LCD 1 Kingway Kingway PA-TKR12-B0037 13-Aug-14 JACK1 EXT MIC JACK DUAL EXT MIC JACK DUAL LT2510C 1 Leadcentury Leadcentury IC101 2.4Vdc Detector IC XC61CN2402MR 1 Torex Linpo PA-TKR12-B0028 7-Jul-14 IC2 IC Regulator 2.8Vdc XC6201P282MR 1 Torex Linpo D3 SMT Schottky Barrier Diode Diode SM130A 1 LRC LRC PA-TKR12-B0028 7-Jul-14 R78 Axial Mini Metalfilm Resistor 5% 7.5ohms 1/2W 1 open open PA-TKR12-B0028 7-Jul-14 Q21 Chip transistor BRT SSM3J16FV 1 Toshiba Protech Manufacturer Description Items Remark 1st Vendor 2nd Vendor ECO Ref.No Q'ty Global Link Corporation Confidential Proprietary page1/7 GLOBAL LINK CORP. LTD. TALKER5 Series - Bill of Material Dwg. No. : TALKER 5-BOM-M-08 Rev. Date: 07/10/14 Manufacturer Description Items Remark 1st Vendor 2nd Vendor ECO Ref.No Q'ty C131 Elect capacitor 220UF/6.3v (5x11) KR3-6.3V221MA 1 Samcon Samcon C43 Elect capacitor 220UF/6.3v (5x11) KR3-6.3V221MA 1 Samcon Samcon SPK1 Speaker 36dia 12ohms 0.5W B0036N12K01R0 1 Smartglory Smartglory L13 Inductor Chip 0603 180NH(03) 1 Sunlord Sunlord L17 Inductor Chip 0603 180NH(03) 1 Sunlord Sunlord L10 Inductor Chip 0603 18NH(03) 1 Sunlord Sunlord L11 Inductor Chip 0603 18NH(03) 1 Sunlord Sunlord L9 Inductor Chip 0603 18NH(03) 1 Sunlord Sunlord L20 Inductor Chip 0603 220NH(03) 1 Sunlord Sunlord L15 Inductor Chip 0603 6.8NH(03) 1 Sunlord Sunlord C17A CHIP CAPACITOR 0402 NPO ±0.25PF 1.5P 1 Yageo Yageo C223A CHIP CAPACITOR 0402 NPO ±0.25PF 2P 1 Yageo Yageo PA-TKR12-B0038 13-Aug-14 C223B CHIP CAPACITOR 0402 NPO ±0.25PF 2P 1 Yageo Yageo PA-TKR12-B0051 07-Oct-14 C998 CHIP CAPACITOR 0402 NPO ±0.25PF 2P 1 Yageo Yageo PA-TKR12-B0047 12-Sep-14 C223 CHIP CAPACITOR 0402 NPO ±0.25PF 3P 1 Yageo Yageo PA-TKR12-B0038 13-Aug-14 C304 CHIP CAPACITOR 0402 NPO ±0.25PF 3P 1 Yageo Yageo C148 CHIP CAPACITOR 0402 NPO ±0.25PF 5P 1 Yageo Yageo C36 CHIP CAPACITOR 0402 NPO ±0.25PF 6P 1 Yageo Yageo C4 CHIP CAPACITOR 0402 NPO ±0.25PF 6P 1 Yageo Yageo C21 CHIP CAPACITOR 0402 NPO ±0.25PF 7P 1 Yageo Yageo C64 CHIP CAPACITOR 0402 NPO ±0.25PF 7P 1 Yageo Yageo C37 CHIP CAPACITOR 0402 NPO ±0.25PF 8P 1 Yageo Yageo PA-TKR12-B0028 7-Jul-14 C1 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C10 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C104 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C122 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C13 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C14 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C142 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo PA-TKR12-B0047 12-Sep-14 C144 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C15 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C162 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C166 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C172 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C173 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C174 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C177 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C178 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C182 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C19 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C207 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C22 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C23 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo PA-TKR12-B0009 27-Mar-14 C26 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C31 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C32 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Yageo C34 …

Text truncated - open the document above for the full version.

8. If TP(ALG) is short to GND, Alignment mode is enable. If TP(ALG) is open to GND, Alignment mode is disable. 6. Charging Stop Voltage Alignment ; Fixed 4.30V 1) Set the unit at channel 1.(462.5625MHz) Press the PTT button so the unit will be in transmit mode. 2)Adjust CT1 trimmer until Fc +/- 200Hz. 4. Maximum Audio Deviation 2) Go to Max. deviation alignment mode by press and holding the Call button then turn on the radio. 3. Transmitter Output Power at conducted condition. 3) TX power check the 26dBm +/- 1dBm 1) TP(ALG) is short to GND. 1) Set the power supply at 3.6Vdc. Set the unit at ch 1.(462.5625MHz) 2) Press the PTT button so the unit will be in transmit mode. T55 Alignment Procedure 2014. 12. 05. 1. VCO Alignment ; Fixed. 2. Transmitter Frequency Alignment 3) LCD become on display such as belows. Press the Up or Down button to align if necessory each step. Display Default value ① GMRS Maximum Deviation Alignment td 0b Test frequency ; 462.5625MHz ① GMRS Squelch Alignment gr 09 Test frequency ; 462.7125MHz 7. Memory clear by press and holding the Up button then turn on the radio. 5. Receiver Squelch Alignment 1) TP(ALG) is short to GND. 2) Go to RX squelch alignment mode by press and holding the Down button then turn on the radio. Display Default value 3) LCD become on display such as belows. Press the Up or Down button to align if necessory each step.

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0051 Page (2 ) of (29) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Revision history Revision Date of issue Test report No. Description - 2014.11.24 KES-RF-14T0051Initial KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0051 Page (3 ) of (29) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 TABLE OF CONTENTS 1. General information ................................................................................................................................... 4 1.1. EUT description ......................................................................................................................... 4 1.2. Test configuration ....................................................................................................................... 4 1.3. Frequency/channel operations .................................................................................................... 5 1.4. Information about derivative model ........................................................................................... 5 1.5. Conclusion of worst-case for each mode of representative channel respectively ...................... 6 2. Summary of tests ........................................................................................................................................ 7 3. Test results .................................................................................................................................................. 8 3.1. RF output power and radiated spurious emission ....................................................................... 8 3.2. Modulation limiting .................................................................................................................. 15 3.3. Audio frequency response ........................................................................................................ 18 3.4. Low-pass filter response ........................................................................................................... 20 3.5. Occupied bandwidth and emission mask ................................................................................. 22 3.6. Frequency stability ................................................................................................................... 25 Appendix A. Measurement equipment .......................................................................................................... 28 Appendix B. Test setup photo ........................................................................................................................ 29 KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0051 Page (4 ) of (29) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1. General information Applicant: Midland Radio Corporation Applicant address: 5900 Parretta Drive, Kansas City, Missouri United States 64120 Test site: KES Co., Ltd. Test site address: C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do,431-716, Korea 473-29, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea FCC rule part(s): FCC Part 95 IC rule part(s): RSS-210 Model: T55 FCC ID: MMAT55 IC Certification: 3690A-T55 Test device serial No.: Production Pre-production Engineering 1.1. EUT description Equipment under test FRS / GMRS Serial number 1409000001 Frequency range 462.562 5 ㎒ ~ 462.712 5 ㎒ (GMRS Channels 1 ~7) 467.562 5 ㎒ ~ 467.712 5 ㎒ (FRS Channels 8 ~ 14) 462.550 0 ㎒ ~ 462.725 0 ㎒ (GMRS Channels 15 ~ 22) Type of Emission 11K0F3E E.R.P. GMRS: 0.079 W// FRS: 0.094 W Number of channels 22 Power source Rechargeable Ni-MH battery pack(DC 3.6 V) 1.2. Test configuration The GMRS / FRS 2-way Radio FCC ID: MMAT55 was tested per the guidance of ANSI C63.10-2009, ANSI/TIA 603C: 2004 and RSS-210 (Issue 8) was used to reference the appropriate EUT setup for radiated spurious emissions testing. KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0051 Page (5 ) of (29) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1.3. Frequency/channel operations Mode Ch. Frequency (㎒) GMRS 1 462.562 5 2 462.587 5 3 462.612 5 4 462.637 5 5 462.662 5 6 462.687 5 7 462.712 5 FRS 8 467.562 5 9 467.587 5 10 467.612 5 11 467.637 5 12 467.662 5 13 467.687 5 14 467.712 5 GMRS 15 462.550 0 16 462.575 0 17 462.600 0 18 462.625 0 19 462.650 0 20 462.675 0 21 462.700 0 22 462.725 0 1.4. Information about derivative model N/A KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0051 Page (6 ) of (29) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1.5. Conclusion of worst-case for each mode of representative channel respectively The EUT has 2 type of mode (GMRS and FRS). Each conducted output power as foll…
