MMAT65GMRS / FRS

Model T60 Series Page 2 midlandusa.com Welcome to the world of Midland electronics Congratulations on the purchase of your high quality MIDLAND product. Your two-way radio represents state-of-the-art high-tech engineering and is designed for GMRS (General Mobile Radio Service) operation. It is a quality piece of electronic equipment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. Your two- way radio is designed for reliable and trouble-free performance for years to come. Features - 36 GMRS/FRS Channels - 121 Privacy Codes (38 CTCSS / 83 DCS) - VOX - 5 Selectable Call Alerts (5 additional Animal Sounds on T65) - Vibrate Alert (T65 only) - NOAA Weather Scan - NOAA Weather Radio - NOAA Weather Alert - Scan Function - Monitor Function - Roger Beep Tone - Silent Operation - Key Pad Lock - Power High / Low Settings - Speaker / Microphone Jacks - Battery Meter / Battery Low Indicator - USB Jack Charging This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device does not cause harmful interference, and (2) this radio must accept any interference that may cause undesired operation. To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Model T60 Series Page 3 midlandusa.com IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION (Only Applicable for GMRS Radio Use in the United States) The radios operate on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22, which comprise the GMRS channels of the radios. Serious penalties could result from unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Acts Sections 501 and 502 (amended). You will be issued a call sign by the FCC which should be used for station identification when operating the radio on GMRS channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of your transmission time. To obtain a license or ask questions about the license application, contact the FCC at 1-888-CALL FCC or go to the FCC's website: http://www .fcc.govand request form 605. Exposure To Radio Frequency Energy Your Midland radio is designed to comply with the following national and international standards and guidelines regarding exposure of human beings to radio frequency electromagnetic energy: - United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J - American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992 - Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition - National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986 - International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998 To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting. IMPORTANT:Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations. Any adjustment to your radio must be made by qualified technicians. Model T60 Series Page 4 midlandusa.com LCD DISPLAY 1.NOAA WEATHER (WX) BAND ICON – Indicates when the radio is in Weather Band mode. 2. KEY LOCK ICON – Indicates KEY LOCK mode is on. 3. VOX ICON– Indicates when VOX mode is active. 4. CHANNEL NUMBER– Changes from 1~36 on GMRS/FRS band (1~10 on WX band). 5. TRANSMIT POWER LEVEL ICON– Indicates TX Power setting (H/L). 6. PRIVACY CODE– Indicates Privacy Code selected by user (oF~38/oF~83). It can only be set in Ch 1~22. 7. VIBRATE ALERT ICON– Indicates when the Vibrate-Alert feature is on (Model T65 only). 8. BATTERY METER– Indicates the battery level. 9. RECEIVE (RX) ICON– Indicates radio is receiving a transmission. 10. TRANSMIT (TX) ICON– Indicates radio is transmitting a signal. 11. PRIVACY CODE ICON– Indicates Privacy Code setting (CTCSS/DCS). 1 CONTROLS 12. POWER/VOLUME KNOB– Turn clock- wise to turn the power on and increase the volume level. Turn counter-clockwise to decrease the volume level and turn the power off. 13. PTT Button– Press and hold to transmit voice communication. 14. CALL/LOCK Button– Press to send a CALL ALERT signal. Press and hold to turn KEY LOCK on/off. 15. MIC– Built-in microphone. 16. USB CHARGING JACK 17. ANTENNA 18. EXTERNAL SPEAKER/MIC JACK 19. MENU Button– Press momentarily to access Menu mode. 20. MONITOR/SCAN Button– Press to enter SCAN mode. Press and hold to enter MONITOR mode. 21. UP/WX SCAN s and DOWN t Buttons– Make adjustments in MENU mode. Press and hold the UP button for 5 seconds to activate the NOAA Weather Scan function. 22. SPEAKER– Built-in speaker. 19 18 17 15 14 13 12 7 6 3 2 16 20 4 5 8 9 10 21 11 22 Model T60 Series Page 5 midlandusa.com BATTER Y INSTALLATION Your radio operates with either a NiMH battery pack or optional 3 AAA alkaline batteries. The belt clip should be removed (see below) to ease installation or removal of the batteries. To install the batteries: 1. With the back of the radio facing you, remove the belt clip (see diagram below) for easy access, then remove the Battery Cover by pressing down…

Text truncated - open the document above for the full version.

Midland Radio Corporation 5900 Parretta Drive, Kansas City, Missouri United States 64120 Date: December 20, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: MMAT65 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Diagram(s) CONF APPENDIX_ T65_Schemetics.PDF Block diagram CONF APPENDIX_ T65_Block diagram.PDF Operation description CONF APPENDIX_ T65_Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jeff Brame

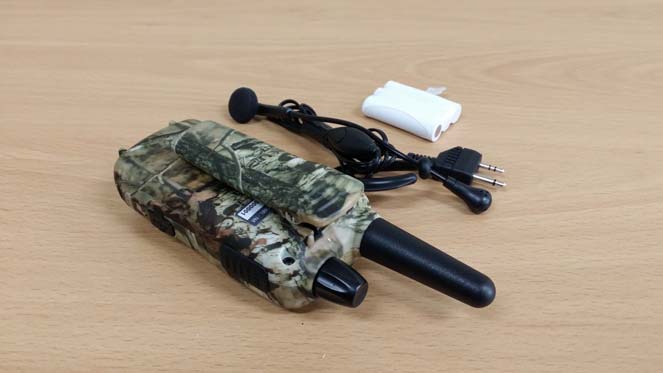

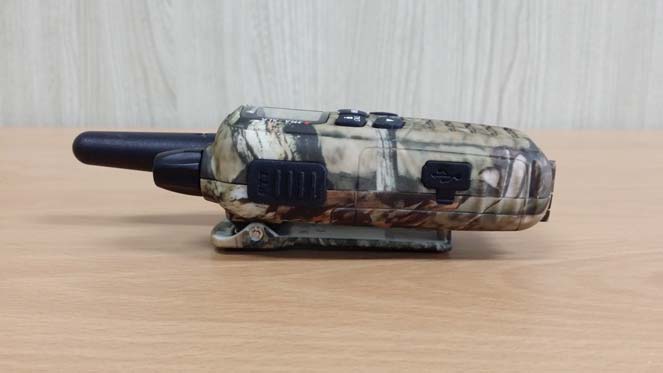

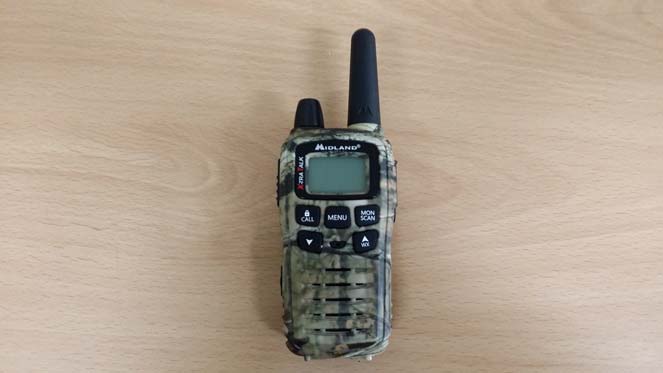

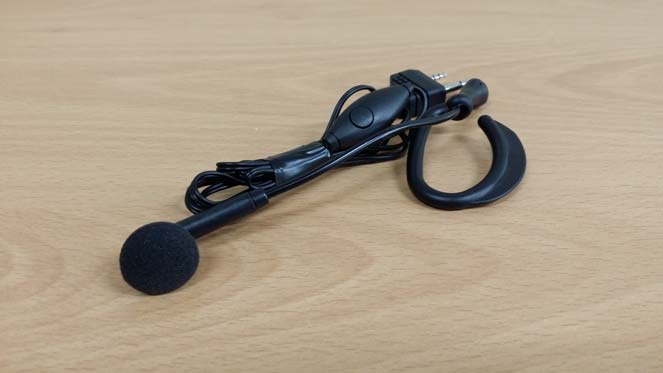

www.kes.co.kr Model No.: T65 Page 1 of 5 EUT External photographs www.kes.co.kr Model No.: T65 Page 2 of 5 www.kes.co.kr Model No.: T65 Page 3 of 5 www.kes.co.kr Model No.: T65 Page 4 of 5 www.kes.co.kr Model No.: T65 Page 5 of 5

Midland Radio Corporation 5900 Parretta Drive, Kansas City, Missouri United States 64120 December 20, 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Midland Radio Corporation FCC ID : MMAT65 Label Justification Letter Dear Sir/Madame, Because the device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the User’s Manual. - The available label area on the device is limited because it is relatively small and has many contoured surfaces, keypads, LDC display, and other connectors. - The batteries are designed for easy removal and the label will be visible whenever the batteries are removed for replacement. - The label will be readily visible at the time of purchase because the device will be marketed without the battery installed. - FCC ID will be printed on the gift box which will be readily visible to the purchaser at the time of purchase. Sincerely, Jeff Brame Midland Radio Corporation 5900 Parretta Drive, Kansas City, Missouri United States 64120 Label and Location Model:T65 FCC ID: MMAT65 IC: 3690A-T65 MIDLAND RADIO CORPORATION MADE IN CHINA

Label and Location Model No.: T65 Page 1 of 1 Model:T65 FCC ID: MMAT65 IC: 3690A-T65 MIDLAND RADIO CORPORATION MADE IN CHINA

www.kes.co.kr Model No.: T65 Page 1 of 2 EUT Internal photographs Helical Antenna www.kes.co.kr Model No.: T65 Page 2 of 2

GLOBAL LINK CORP. LTD. TALKER 6 CAMO Series - Bill of Material Dwg. No. : TALKER 6 CAMO-BOM-M-06 Rev. Date: 01/09/14 US$1 = HKD7.75 & RMB6.05C133 CHIP CAPACITOR 0805 X5R ±10% 10UF/10V (05) 1 Murata PA-LXT12-B0004 C33 CHIP CAPACITOR 0805 X5R ±10% 10UF/10V (05) 1 Murata PA-LXT12-B0004 C48 CHIP CAPACITOR 0805 X5R ±10% 10UF/10V (05) 1 Murata PA-LXT12-B0004 C999 CHIP CAPACITOR 0805 X5R ±10% 10UF/10V (05) 1 Murata PA-TKR12-B0041 L5 Inductor Chip 0402 18NH 1 Murata L14 Inductor Chip 0402 27NH 1 Murata PA-LXT12-B0011 L4 Inductor Chip 0402 33NH 1 Murata L12 Inductor Chip 0402 39NH 1 Murata PA-LXT12-B0011 R68 Thermistor (33ohms) 0402 NCP15XC330J03RC 1 Murata PA-TKR12-B0012 TH1 Thermistor 0402 680ohm NCP15XQ681J03RC 1 Murata VIBRATION MOTOR CK6A2.8*2.5070 (5.6mm Head) 1 Changke PA-TKR12-B0021 Antenna Coil (Talker 5,6,7) 0.6x6.8x11.5T SWP0.6 1 CXL PA-TKR12-B0025 D1 Chip Diode Switching KDS114E 1 KEC D13 Chip Diode Switching KDS114E 1 KEC D2 Chip Diode Switching KDS114E 1 KEC Talker 6 D4 Chip Diode Switching KDS114E 1 KEC PA-LXT12-B0011 D7 Chip Diode Switching KDS114E 1 KEC PA-LXT12-B0011 Q1 TRANSISTOR CHIP KRA226S 1 KEC Q10 TRANSISTOR CHIP KRA306E 1 KEC PA-TKR12-B0012 Q5 TRANSISTOR CHIP KRA306E 1 KEC PA-LXT12-B0011 Q8 TRANSISTOR CHIP KRA306E 1 KEC PA-LXT12-B0004 Q12 TRANSISTOR CHIP KRC404E 1 KEC Talker 6 Q17 TRANSISTOR CHIP KRC404E 1 KEC Talker 6 Q16 TRANSISTOR CHIP KRC405E 1 KEC Talker 6 Q24 TRANSISTOR CHIP KRC405E 1 KEC PA-TKR12-B0021 Q7 TRANSISTOR CHIP KRC405E 1 KEC Q9 TRANSISTOR CHIP KTB1151Y 1 KEC Talker 6 Q2 TRANSISTOR CHIP KTC4075E 1 KEC L1 Inductor Air 0.35X1.5X5T(R) 1 Fine PA-LXT12-B0004 L3 Inductor Air 0.35X1.7X5T(R) 1 Fine PA-LXT12-B0011 L7 Inductor Air 0.35X1.7X5T(R) 1 Fine PA-LXT12-B0011 L18A Inductor Air 0.4X1.1 X2T(R) 1 Fine L6 Inductor Air 0.4X1.35X2T(L) 1 Fine Talker 6 CAMO Y3 L8 Inductor Air 0.4X1.5X5T(L) 1 Fine SF1 SAW Filter 465MHz FTF465BS 1 Fronter PA-LXT12-B0011 X201 X-tal 12.00MHz FTX12.000M16S-30/30B 1 Fronter PA-LXT12-B0001 IC6 Animal Voice Synthesizer IC GT809118 (2009) 1 SiGma Talker 6 CAMO Y3 CPU1 IC CPU (Flash) WT56F216 1 Weltrend IC1 Analog Radio IC BK4813 1 Beken PA-LXT12-B0011 CT1 6pF 3mm dia Trimmer Cap STC3M06-T1 1 STC CMIC1 Condensor Mic F9745AP342-98 (RoHS) 1 Innovation IC3 IC Audio Amplifier D2822N (SOP-8) 1 JBX PA-LXT12-B0004 IC4 IC EEPROM K24C02 SOIC-8 1 JBX PA-LXT12-B0004 Q11 Chip transistor 2SC4226 (R25) 1 NEC 2SC5085Y - Toshiba PA-TKR12-B0012 Q13 Chip transistor 2SC4226 (R25) 1 NEC 2SC5085Y - Toshiba PA-TKR12-B0012 2nd Vendor ECO Ref.No Q'ty Manufacturer Description Items Global Link Corporation Confidential Proprietary page1/8 GLOBAL LINK CORP. LTD. TALKER 6 CAMO Series - Bill of Material Dwg. No. : TALKER 6 CAMO-BOM-M-06 Rev. Date: 01/09/14 2nd Vendor ECO Ref.No Q'ty Manufacturer Description Items Q14 Chip transistor 2SC4226 (R25) 1 NEC 2SC5085Y - Toshiba PA-TKR12-B0012 Q3 Chip transistor 2SC4226 (R25) 1 NEC 2SC5085Y - Toshiba PA-TKR12-B0012 Q4 Chip transistor 2SC4226 (R25) 1 NEC 2SC5085Y - Toshiba PA-TKR12-B0012 Q6 Chip transistor 2SC4226 (R25) 1 NEC 2SC5085Y - Toshiba PA-TKR12-B0012 Q1A Power Transistor NESG270034 1 NEC PCB 2 LAYER FR-4 Talker 6 X2 PCB 1 Kingsonic PA-TKR12-B0041 PCB2 2 LAYER FR-4 TALKER 6_LED_X0 1 Kingsonic PA-TKR12-B0023 LCD1 LCD Talker 6 (HTN) KWH14814W (29 x 22mm) 1 Kingway PA-TKR12-B0017 JACK1 EXT MIC JACK DUAL EXT MIC JACK DUAL LT2510C 1 Leadcentury IC2 IC Regulator 2.8Vdc XC6201P282MR 1 Torex PA-LXT12-B0009 D3 SMT Schottky Barrier Diode Diode SM130A 1 LRC PA-TKR12-B0016 RV1 Semifixed Resistor 3dia 10K(B) 1 Noble VR1 VOLUME SWITCH (Brass Rivet & Gasket) F-09115S-45 A10K L15FCX7 1 Polyshine Q21 Chip transistor BRT SSM3J16FV 1 Toshiba C131 Elect capacitor 220UF/6.3v (5x11) KR3-6.3V221MA 1 Samcon C43 Elect capacitor 220UF/6.3v (5x11) KR3-6.3V221MA 1 Samcon SPK1 Speaker 36dia 12ohms 0.5W B0036N12K01R0 1 Smartglory L13 Inductor Chip 0603 180NH(03) 1 Sunlord PA-LXT12-B0011 L17 Inductor Chip 0603 180NH(03) 1 Sunlord PA-LXT12-B0011 L10 Inductor Chip 0603 18NH(03) 1 Sunlord L11 Inductor Chip 0603 18NH(03) 1 Sunlord PA-LXT12-B0011 L9 Inductor Chip 0603 18NH(03) 1 Sunlord L20 Inductor Chip 0603 220NH(03) 1 Sunlord L15 Inductor Chip 0603 6.8NH(03) 1 Sunlord Talker 6 CAMO Y3 LED1 Chip LED (Orange) L-S110JFCT-5A (Rank N only) 1 Paralight C17A CHIP CAPACITOR 0402 NPO ±0.25PF 1.5P 1 Yageo PA-LXT12-B0004 C998 CHIP CAPACITOR 0402 NPO ±0.25PF 1P 1 Yageo PA-TKR12-B0041 C223A CHIP CAPACITOR 0402 NPO ±0.25PF 2P 1 Yageo PA-TKR12-B0038 C115 CHIP CAPACITOR 0402 NPO ±0.25PF 3P 1 Yageo C223 CHIP CAPACITOR 0402 NPO ±0.25PF 3P 1 Yageo PA-TKR12-B0038 C304 CHIP CAPACITOR 0402 NPO ±0.25PF 3P 1 Yageo PA-TKR12-B0041 C81 CHIP CAPACITOR 0402 NPO ±0.25PF 4P 1 Yageo PA-LXT12-B0007 C148 CHIP CAPACITOR 0402 NPO ±0.25PF 5P 1 Yageo PA-LXT12-B0007 C36 CHIP CAPACITOR 0402 NPO ±0.25PF 6P 1 Yageo PA-LXT12-B0011 C4 CHIP CAPACITOR 0402 NPO ±0.25PF 6P 1 Yageo PA-LXT12-B0011 C21 CHIP CAPACITOR 0402 NPO ±0.25PF 7P 1 Yageo C64 CHIP CAPACITOR 0402 NPO ±0.25PF 7P 1 Yageo C37 CHIP CAPACITOR 0402 NPO ±0.25PF 8P 1 Yageo PA-TKR12-B0012 C1 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C10 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C104 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C118 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C121 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C122 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C13 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C14 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo Global Link Corporation Confidential Proprietary page2/8 GLOBAL LINK CORP. LTD. TALKER 6 CAMO Series - Bill of Material Dwg. No. : TALKER 6 CAMO-BOM-M-06 Rev. Date: 01/09/14 2nd Vendor ECO Ref.No Q'ty Manufacturer Description Items C142 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo PA-TKR12-B0041 C144 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C15 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C162 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C166 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C172 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C173 CHIP CAPACITOR 0402 NPO ±5% 100P 1 Yageo C174 CHIP CAPACITOR 0402 NPO ±5% 100P 1 …

Text truncated - open the document above for the full version.

3) TP(ALG1) is open to GND, because of share to up button. 3) TP(ALG1) is open to GND, because of share to up button. 4) LCD become on display such as belows. Press the Up or Down button to align if necessory each step. Display Default value ① GMRS Maximum Deviation Alignment td 0b Test frequency ; 462.5625MHz ① WX Squelch Alignment W 0F Test frequency ; 162.550MHz ② GMRS Squelch Alignment gr 0d Test frequency ; 462.7125MHz 6. CPU version and Memory clear by press and holding the Up button then turn on the radio. 5. Receiver Squelch Alignment 1) TP(ALG1) is short to GND. 7. If TP(ALG1) is short to GND, Alignment mode is enable. If TP(ALG1) is open to GND, Alignment mode is disable. T65 Alignment Procedure 2014. 12. 08. 1. VCO Alignment ; Fixed. 2. Transmitter Frequency Alignment 1) Set the unit at channel 1.(462.5625MHz) Press the PTT button so the unit will be in transmit mode. 2)Adjust CT1 trimmer until Fc +/- 200Hz. 4. Maximum Audio Deviation 2) Go to Max. deviation alignment mode by press and holding the Call button then turn on the radio. 3. Transmitter Output Power 2) Set the unit on low power. Press the PTT button so the unit will be in transmit mode. 3) Adjust RV1 semi-volume until 24dBm +/- 1dBm 1) Set the power supply at 3.6Vdc. Set the unit at GMRS ch 1.(462.5625MHz) 1) TP(ALG1) is short to GND. 4) Set the unit on Hi power. Press the PTT button so the unit will be in transmit mode. 5) Tx Hi power only cofirm the 28dBm +/- 1dBm 6) Set the unit at FRS Ch 8.(467.5625MHz) 7) Set the unit on Hi power. Press the PTT button so the unit will be in transmit mode. 8) Adjust RV1 semi-volume until 21dBm +/- 1dBm 2) Go to RX squelch alignment mode by press and holding the Menu button then turn on the radio. 4) LCD become sequential on display such as belows. Press the Menu button to change each step. Display Default value and Press the Up or Down button to align if necessory each step.

Test Lab S ystem v DUT: Di Commun Medium Phanto m Measure m DASY4 C      Flat-Sec t Maximum Flat-Sec t Referenc Peak SAR SAR(1 g Maximum oratory: KES verification_4 ipole 450 MH nication System parameters us m section: Flat ment Standard Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: EL Measuremen t tion_HSL_45 m value of SA tion_HSL_45 ce Value = 38. R (extrapolate g) = 1.22 mW/ m value of SA Co., Ltd. 450_HSL Hz; Type: D45 m: CW; Frequ sed: f = 450 M Section d: DASY4 (H n: DV4 - SN3879 ce: 4mm (Mec DAE4 Sn1344 I v5.0_2013_0 t SW: DASY4 50/Area Scan AR (interpolat 50/Zoom Scan .6 V/m; Powe ed) = 1.68 W/k /g; SAR(10 g) AR (measured) 50V3; Serial: uency: 450 M MHz; σ = 0.87 igh Precision ; ConvF(9.98 chanical Surfa 4; Calibrated: 01_23; Type: 4, V4.7 Build n (41x201x1): ed) = 1.30 mW n (7x7x7)/Cu r Drift = -0.06 kg ) = 0.887 mW ) = 1.29 mW/g : D450V3 - SN MHz;Duty Cycl 73 mho/m; ε r = Assessment) , 9.98, 9.98); ace Detection) 2014-11-12 QDOVA002 A 80; Postproce Measurement W/g ube 0: Measur 69 dB W/g /g D N:1084 le: 1:1 = 43.4; ρ = 100 Calibrated: 20 ) AA; Serial: TP essing SW: SE t grid: dx=15m rement grid: dx Date/Time: 20 00 kg/m 3 014-11-19 P:1190 EMCAD, V1.8 mm, dy=15mm x=5mm, dy=5 014-12-15 PM 8 Build 186 m 5mm, dz=5mm M 12:05:10 m Test Lab S ystem v DUT: Di Commun Medium Phanto m Measure m DASY4 C      Flat-Sec t Maximum Flat-Sec t Referenc Peak SAR SAR(1 g Maximum oratory: KES verification_4 ipole 450 MH nication System parameters us m section: Flat ment Standard Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: EL Measuremen t tion_MSL_45 m value of SA tion_MSL_45 ce Value = 37. R (extrapolate g) = 1.18 mW/ m value of SA Co., Ltd. 450_MSL Hz; Type: D45 m: CW; Frequ sed: f = 450 M Section d: DASY4 (H n: DV4 - SN3879 ce: 4mm (Mec DAE4 Sn1344 I v5.0_2013_0 t SW: DASY4 50/Area Scan AR (interpolat 50/Zoom Sca .3 V/m; Powe ed) = 1.71 W/k /g; SAR(10 g) AR (measured) 50V3; Serial: uency: 450 M MHz; σ = 0.92 igh Precision ; ConvF(10.2 chanical Surfa 4; Calibrated: 01_23; Type: 4, V4.7 Build n (41x201x1): ed) = 1.26 mW an (7x7x7)/Cu r Drift = -0.04 kg ) = 0.815 mW ) = 1.26 mW/g : D450V3 - SN MHz;Duty Cycl 23 mho/m; ε r = Assessment) 5, 10.25, 10. 2 ace Detection) 2014-11-12 QDOVA002 A 80; Postproce : Measuremen W/g ube 0: Measur 46 dB W/g /g D N:1084 le: 1:1 = 57.4; ρ = 100 25); Calibrated ) AA; Serial: TP essing SW: SE nt grid: dx=15 rement grid: d Date/Time: 20 00 kg/m 3 d: 2014-11-19 P:1190 EMCAD, V1.8 mm, dy=15mm dx=5mm, dy=5 14-12-16 AM 9 8 Build 186 mm 5mm, dz=5m m M 10:54:49 m Plot 1 Test Lab Face _GM DUT: T6 Commun Medium Phanto m Measure m DASY4 C      Face _GM dy=15mm Info: Int e Maximum Face _GM dy=5mm Referenc Peak SAR SAR(1 g Info: Int e Maximum oratory: KES MRS_Analog 65; Type: Bar nication System parameters us m section: Flat ment Standard Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: EL Measuremen t MRS_Analog m erpolated med m value of SA MRS_Analog m, dz=5mm ce Value = 30. R (extrapolate g) = 0.699 mW erpolated med m value of SA Co., Ltd. g_25mm Gap_ r; Serial: N/A m: CW; Frequ sed (interpolat Section d: DASY4 (H n: DV4 - SN3879 ce: 4mm (Mec DAE4 Sn1344 I v5.0_2013_0 t SW: DASY4 g_25mm Gap_ dium paramete AR (interpolat g_25mm Gap_ .6 V/m; Powe ed) = 0.840 W W/g; SAR(10 dium paramete AR (measured) _462.6375 A uency: 462.63 ted): f = 462.6 igh Precision ; ConvF(9.98 chanical Surfa 4; Calibrated: 01_23; Type: 4, V4.7 Build _462.6375/Ar ers used for SA ed) = 0.782 m _462.6375/Zo r Drift = -0.08 W/kg g) = 0.567 mW ers used for SA ) = 0.725 mW 37 MHz;Duty 637 MHz; σ = Assessment) , 9.98, 9.98); ace Detection) 2014-11-12 QDOVA002 A 80; Postproce rea Scan (51x AR evaluation mW/g oom Scan (7x 84 dB W/g AR evaluation W/g Cycle: 1:1 = 0.884 mho/m Calibrated: 20 ) AA; Serial: TP essing SW: SE x121x1): Mea n. x7x7)/Cube 0 n. Date/Time: 2 m; ε r = 43.2; ρ 014-11-19 P:1190 EMCAD, V1.8 asurement grid : Measuremen 2014-12-15 PM = 1000 kg/m 3 8 Build 186 d: dx=15mm, nt grid: dx=5m M 4:11:40 3 mm, Plot 2 Test Lab Face _FR DUT: T6 Commun Medium Phanto m Measure m DASY4 C      Face _FR Info: Int e Maximum Face _FR dy=5mm Referenc Peak SAR SAR(1 g Info: Int e Maximum oratory: KES RS_Analog_2 65; Type: Bar nication System parameters us m section: Flat ment Standard Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: EL Measuremen t RS_Analog_2 erpolated med m value of SA RS_Analog_2 m, dz=5mm ce Value = 23. R (extrapolate g) = 0.430 mW erpolated med m value of SA Co., Ltd. 5mm Gap _46 r; Serial: N/A m: CW; Frequ sed (interpolat Section d: DASY4 (H n: DV4 - SN3879 ce: 4mm (Mec DAE4 Sn1344 I v5.0_2013_0 t SW: DASY4 5mm Gap_46 dium paramete AR (interpolat 5mm Gap _46 .6 V/m; Powe ed) = 0.521 W W/g; SAR(10 dium paramete AR (measured) 67.6375 A uency: 467.63 ted): f = 467.6 igh Precision ; ConvF(9.98 chanical Surfa 4; Calibrated: 01_23; Type: 4, V4.7 Build 67.6375/Area ers used for SA ed) = 0.470 m 67.6375/Zoom r Drift = -0.20 W/kg g) = 0.349 mW ers used for SA ) = 0.446 mW 37 MHz;Duty 637 MHz; σ = Assessment) , 9.98, 9.98); ace Detection) 2014-11-12 QDOVA002 A 80; Postproce a Scan (51x12 AR evaluation mW/g m Scan (7x7x 03 dB W/g AR evaluation W/g Cycle: 1:1 = 0.882 mho/m Calibrated: 20 ) AA; Serial: TP essing SW: SE 21x1): Measur n. x7)/Cube 0: M n. Date/Time: 2 m; ε r = 42.9; ρ 014-11-19 P:1190 EMCAD, V1.8 rement grid: d Measurement g 2014-12-15 PM = 1000 kg/m 3 8 Build 186 dx=15mm, dy= grid: dx=5mm M 1:28:37 3 =15mm m, Plot 3 Test Lab Bod y_GM DUT: T6 Commun Medium Phanto m Measure m DASY4 C      Bod y_GM Info: Int e Maximum Bod y_GM dz=5mm Referenc Peak SAR SAR(1 g Info: Int e Maximum oratory: KES MRS_Analog 65; Type: Bar nication System parameters us m section: Flat ment Standard Configuration Probe: EX3D Sensor-Surfac Electronics: D Phantom: EL Measuremen t MRS_Analog erpolated med m value of SA MRS_Analog m ce Value = 33. R (extrapolate g) = 0.940 mW erpolated med m value of SA Co., Ltd. g_Touch_462 r; Seria…

Text truncated - open the document above for the full version.

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0063 Page (2 ) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Revision history Revision Date of issue Test report No. Description - 2014.12.24 KES-RF-14T0063Initial KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0063 Page (3 ) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 TABLE OF CONTENTS 1. General information ................................................................................................................................... 4 1.1. EUT description ......................................................................................................................... 4 1.2. Test configuration ....................................................................................................................... 4 1.3. Frequency/channel operations .................................................................................................... 5 1.4. Information about derivative model ........................................................................................... 5 1.5. Device modifications .................................................................................................................. 5 1.6. Conclusion of worst-case for each mode of representative channel respectively ...................... 6 2. Summary of tests ........................................................................................................................................ 8 3. Test results .................................................................................................................................................. 9 3.1. RF output power and radiated spurious emission ....................................................................... 9 3.2. Modulation limiting .................................................................................................................. 17 3.3. Audio frequency response ........................................................................................................ 20 3.4. Low-pass filter response ........................................................................................................... 22 3.5. Occupied bandwidth and emission mask ................................................................................. 24 3.6. Frequency stability ................................................................................................................... 29 Appendix A. Measurement equipment .......................................................................................................... 32 Appendix B. Test setup photo ........................................................................................................................ 33 KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0063 Page (4 ) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1. General information Applicant: Midland Radio Corporation Applicant address: 5900 Parretta Drive, Kansas City, Missouri United States 64120 Test site: KES Co., Ltd. Test site address: C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do,431-716, Korea 473-29, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea FCC rule part(s): FCC Part 95 IC rule part(s): RSS-210 Model: T65 FCC ID: MMAT65 IC Certification: 3690A-T65 Test device serial No.: Production Pre-production Engineering 1.1. EUT description Equipment under test FRS / GMRS Serial number S1409000001 Frequency range 462.562 5 ㎒ ~ 462.712 5 ㎒ (GMRS Channels 1 ~7, 23 ~ 26, 31 ~ 33) 467.562 5 ㎒ ~ 467.712 5 ㎒ (FRS Channels 8 ~ 14, 34 ~ 36) 462.550 0 ㎒ ~ 462.725 0 ㎒ (GMRS Channels 15 ~ 22, 27 ~ 30) Type of Emission 11K0F3E E.R.P. GMRS: 0.545 W(High power), 0.162 W(Low power) // FRS: 0.095 W Number of channels 36 Power source Rechargeable Ni-MH battery pack(DC 3.6 V) 1.2. Test configuration The GMRS / FRS 2-way Radio FCC ID: MMAT65 was tested per the guidance of ANSI C63.10-2009, ANSI/TIA 603C: 2004 and RSS-210 (Issue 8) was used to reference the appropriate EUT setup for radiated spurious emissions testing. KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0063 Page (5 ) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1.3. Frequency/channel operations Mode Ch. Frequency (㎒) GMRS 1 / 23 462.562 5 2 / 31 462.587 5 3 / 24 462.612 5 4 / 32 462.637 5 5 / 25 462.662 5 6 / 33 462.687 5 7 / 26 462.712 5 FRS 8 / 34 467.562 5 9 467.587 5 10 / 35 467.612 5 11 467.637 5 12 / 36 467.662 5 13 467.687 5 14 467.712 5 GMRS 15 / 27 462.550 0 16 462.575 0 17 / 28 462.600 0 18 462.625 0 19 / 29 462.650 0 20 462.675 0 21 / 30 462.700 0 22 462.725 0 1.4. Information about derivative model N/A 1.5. Device modifications N/A KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0063 Page (6 ) of (33) This report shall not be reproduced ex…

Text truncated - open the document above for the full version.

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-SR-14T0011 Page (2 ) of (20) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Revision history Revision Date of issue Test report No. Description - 2014.12.24 KES-SR-14T0011 Initial KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-SR-14T0011 Page (3 ) of (20) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 TABLE OF CONTENTS 1. General information ................................................................................................................................................... 4 1.1. EUT description ........................................................................................................................................ 4 1.2…

Text truncated - open the document above for the full version.
