MMAXT511FRS/ GMRS Combination & AM/ FM/ Weather Receiver

® Model XT511 Series Page 2www.midlandradio.com TABLE OF CONTENTS2 Introduction3 Important Notice, FCC Licensing4 LCD Display5 Controls5 Battery Installation6 Installing the Belt Clip6 Charging the Optional Battery Pack7 Low Battery Level Indicator7 Operating Your Radio8 - 13 External Speaker/Microphone Jack14 Troubleshooting Guide15 Use and Care15 Specifications and Frequency Charts16 - 17 Warranty Information18 MIDLAND Family Products19 Accessories19 - 22 Accessories Order Form23 ® Model XT511 Series Page 3www.midlandradio.com Welcome to the world of Midland electronics Congratulations on your purchase of a high quality MIDLAND product. Your 2-way radio represents the state-of-the-art in high-tech engineering. Designed for GMRS (General Mobile Radio Service) operation, this compact package is big in performance. It is a quality piece of electronic equipment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. Your two-way radio is designed for reliable and trouble-free performance for years to come. Features - 22 GMRS/FRS Channel - 121 Privacy Codes (38 CTCSS / 83 DCS) - AM/FM Receiver - VOX - Selectable Call Alert - NOAA Weather Radio - NOAA Weather Alert - VIBRATE ALERT - Scan Function - MONITOR Function - Dual Watch Function - Roger Beep Tone - Silent Operation - Keypad Lock - Power HI/MED/LO Settings - Flashlight - Watch/Alarm Clock Function - Crank Dynamo Battery Charging Capability - USB Jack (For Mobile Phone Charging) - Speaker / Microphone Jacks - Battery Meter / Battery Low Indicator This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device does not cause harmful interference, and (2) this radio must accept any interference that may cause undesired operation. To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. (Tested with Headset Model: AVP-1) ® Model XT511 Series Page 4www.midlandradio.com IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION The XT511 Series operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22, which comprise the GMRS channels of the XT511 Series. Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Act's Sections 501 and 502 (amended). You will be issued a call sign by the FCC which should be used for station identification when operating the radio on GMRS channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time. To obtain a license or ask questions about the license application, contact the FCC at 1-888-CALL FCC or go to the FCC's website: http://www .fcc.govand request form 605. Exposure To Radio Frequency Energy Your Midland radio is designed to comply with the following national and international standards and guidelines regarding exposure of human being to radio frequency electromagnetic energy: - United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J - American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992 - Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition - National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986 - International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998 To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting. IMPORTANT:Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations. Any adjustment to your radio must be made by qualified technicians. ® Model XT511 Series Page 5www.midlandradio.com LCD DISPLAY 1. NOAA WEATHER (WX) ALERT ICON – Indicates the NOAA Weather Alert function is on. 2. TRANSMIT (TX) ICON– Indicates radio is transmitting a signal. 3. RECEIVE (RX) ICON– Indicates radio is receiving a transmission. 4. DUAL WATCH ICON– Indicates the Dual Watch function is on. 5. TRANSMIT POWER LEVEL ICON– Indicates TX Power setting (H/L) 6. WATCH AM/PM ICON– Indicates the watch is set in AM or PM. 7. CHANNEL NUMBER– Changes from 1~22 on GMRS/FRS band (1~7 on WX band). This is also used to indicate in part the current AM/FM receiver frequency setting and the current Watch setting. 8. AM/FM RECEIVER ICON– Indicates radio is in AM or FM receiver mode. 9. PRIVACY CODE– Indicates Privacy Code selected by user (oF~38/oF~83). This is also used to indicate in part the current AM/FM receiver frequency setting and the current Watch setting. 2 1 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 10. VOX ICON– Indicates when VOX mode is active. 11. KEY LOCK ICON – Indicates KEY LOCK mode is on. 12. SCAN ICON– Indicates when the radio is in Scan mode. 13. KEY TONE ICON– Indicates radio’s Key Beep Tone is on. 14. BATTERY METER– Indicates the battery level. 15. ROGER BEEP ICON– Indicates radio’s Roger Beep Tone is on. 16. ALARM CLOCK ICON– Indicates when the Alarm Clock is on. 17. NOAA WEATHER (WX) BAND ICON– Indicates when the radio is in Weather Band mode. 18. PRIVACY CODE ICON– …

Text truncated - open the document above for the full version.

5900 Parretta Drive ● KANSAS CITY, MISSOURI ● 64120 TELEPHONE: (816) 241-8500 ● FAX: (816) 241-5713 EMAIL: [email protected] WEBSITE: www.midlandradio.com May 10, 2007 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: MMAXT511 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Technical Description MMAXT511 - Technical Description.PDF Schematics Diagram(s) MMAXT511 - Schematics.PDF Block Diagram MMAXT511 - BLOCK DIAGRAM.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Midland Radio Corporation 5900 Parretta, Drive, Kansas City, MO 64120 Thomas L. Bishop

XT511 SEMICONDUCTOR DESIGNATIONS AND FUNCTIONS Designator Description Application D1 KDS114E WX Alert switch D3 KDS114 RX / TX Switch for LPF D4 KDS114E Protect RX B+ D5 KDS120 Chargeing Switch D7 KDS120 Charging for Dynamo D9 KDS120 Charging for Dynamo D10 KDS120 Charging for Dynamo D11 KDS120 Charging for Dynamo D12 KDS120 Charging for Dynamo D13 KDS120 Charging for Dynamo D101 KDV1472B Frequency Tuning D102 KDS114E RX / TX Switch D141 KDS114E RX / TX Switch for VCO DV1 KDV1472B Temperature Tuning DV2 KDV1472B WX VCO OSC DV141 KDV1472B GMRS VCO OSC D201 KDS114E RX / TX Switch for LPF D202 KDS114 RX / TX Switch for LPF D204 KDS114E TX B+ Switch D401 KDS115 SQ Detect D402 KDS114E Protect RF signal D601 KDV147B FM VCO OSC D603 KDV147B FM VCO OSC D605 KDV149 AM VCO OSC D606 KDV147 AM Antenna Matching D607 KDV149 AM VCO OSC LDE1,2,3 Super Bright Fresh LED201,202 203,204 SML210MT Backlit LED IC1 TEA5757H AM / FM controller IC102 GP214D PLL IC103 LM324 OP AMP XT511 SEMICONDUCTOR DESIGNATIONS AND FUNCTIONS Designator Description Application IC104 XC6201B402MR 4V Regulator IC105 XC6201B502MR 5V Regulator IC401 DBL5018 2’nd Mixer and Audio Demodulator IC402 LM386 Speaker Amp IC403 LM324 OP AMP IC404 LM386 Speaker Amp IC602 LM324 OP AMP IC701 AT93C46 EEPROM IC702 XC61CN2402MR Reset CPU1 TMP86CH21U Micro-controller CPU2 TMP86CH21U Micro-controller Q1 2SC4083 WX VCO Q2 KRA305E WX B+ Switch Q3 KRC246S Speaker Mute Q4 2SC4226 WX LNA Q5 2SC4083 WX Mixer Q6 KRA226 Back Light LED on/off Q7 KRC404E Fresh LED on/off Q8 KRA226 Fresh LED on/off Q9 KRC246S RGB Mute Q10 KRA305E Power VCC Q103 KTA2014 EXT PTT Q141 KRC405E RX/TX VCO Switch of GMRS VCO Q142, Q143 KRA226 VCO OSC of GMRS Q144 KRC405E VCO B+ Switch Q201 NE5511279A TX Power FET Q203 BFQ67W TX Driver Q204 BFQ67W TX Driver Q205 BFQ67W TX Pri-Driver Q207, Q208, Q209 STJ828EF TX B+ Switch Q210 KRC404E RX B+ Switch XT511 SEMICONDUCTOR DESIGNATIONS AND FUNCTIONS Designator Description Application Q401 2SC4226 GMRS LNA Q402 2SC4226 WX Mixer Q403 KRC405E CTCSS and WX Alert Detect Q406 2SC4083 GMRS IF Amp Q407 KRC405E TX B+ Switch Q409 KRA226 Speaker B+ Switch Q410 KRC404E Speaker B+ Switch Q601 KRA226 AM/FM B+ Switch Q702 KRC404E AM Antenna matching

XT511 ALIGNMENT PROCEDURE Page 1 1. REFERENCE TEST EQUIPMENT A. HP8921A Cell site test set or HP8920A, B Communication Test Set with Spectrum Analyzer option. B. Fluke 187 Digital Voltmeter C. HP E3615A Power supply 2. TEST POINT A. ANTENNA : Test point is not prepared. Use antenna contact with ANTGND1(antenna ground). B. GMRS VCO reference voltage: Test point 1 is prepared. C. RX audio output : Speaker terminals & ear jack are prepared. D. TX Mic. Input : Use ear-jack(3.5mm) with 10uF coupling capacitor. E. Battery Vcc : Test point is not prepared. Please use mechanical contact. Plus terminal is posited on upper right corner of PCB (Battery cover side view). F. Call Key : Test point UP is prepared. G. Menu Key : Test point MENU is prepared. H. Monitor Key : Test point MONITOR is prepared. I. PTT Key : Test point PTT is prepared. J. Scan key : Test point SCAN is prepared. Note. : All key can be activated when connect with ground. 3. VCO ALIGNMENT A. Set unit to Channel 1 and connect a voltmeter to TP1 (VCO PD). B. Press & hold PTT. C. Extend L141 until the voltmeter reads 1.5V. D. Put shield-can on VCO area and monitor the voltage on TP1. The voltage should be 1.5Vdc +/-0.2Vdc. If the voltage is not 1.5Vdc +/-0.2Vdc, realign L141 until meet to requirement. E. Release PTT button so units is in receiving mode and monitor the voltage on TP1. The voltage should be in the range 1.5Vds +/-0.5V F. Set unit to channel 14. 6. Press & hold the PTT switch and observe the voltage on TP1. The voltage should be 2 – 3,5 Vdc. 7. Release PTT and observe the voltage on TP1. The voltage should read between 2.0 - 3.5 Vdc. Note : VCO shield-can should be soldered after VCO alignment is finished. 4. TRANSMITTER FREQUENCY ALIGNMENT A. While Press & hold the PTT, Menu and Menu buttons, the knob clockwise to switch on the radio.. B. Align Up or Down button such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. XT511 ALIGNMENT PROCEDURE Page 2 5. TRANSMITTER OUTPUT POWER CONFIRMATION A. Set unit to channel 1. B. Press & hold the PTT button. C. Transmit power should normally be between 3.0W to 4.0W. (Conducted) D. Set unit to channel 14. E. Press & hold the PTT button. Ensure that Tx Power meets 0.2W – 0.8W. (conducted) 6. TRANSMITTER DEVIATION ALIGNMENT A. Connect an audio generator (600 ohms) to the ear jack. The audio frequency should be set at 1KHz with a level of 200mV RMS. B. Connect an FM deviation meter (communications test set) to Antenna contact. Set the monitor to read peak to peak divided by two [(pk-pk)/2] deviation. Set filter of equipment from 25Hz to 15KHz. C. Press & hold the PTT button. D. Align RV201 for +/- 2.1 kHz deviation (+/-0.1KHz). RV201 is located on the left of X102. E. Decrease audio generator level until deviation reads +/- 1.5 kHz (approximately 12mV) and record generator level. Level should be between 6 mV and 10 mV. F. Confirm that transmit audio distortion is less than 5%. 7. RECEIVER ALIGNMENT A. Set the output level of the RF signal generator for -47dBm. The generator should be set for 1.5 kHz deviation at 1 kHz audio. B. Set volume level 4 (It is initial.). C. Connect Audio analyzer to TP10. D. Set equipment filter 25Hz to 15KHz. E. Align L407 to get a maximum output level & a minimum distortion and confirm that Rx audio distortion is less than 5%. F. Confirm that Rx Sensitivity is less than –118dBm (nominally –120dBm) by reducing the output level of the RF signal generator until a 12 dB SINAD reading is achieved. H. Set SSG output level until 9dB sinad sensitivity and align RV1 until the unit is un-squelched. I. While Press & hold the Call, Scan and Menu buttons, the knob clockwise to switch on the radio. J. Set SSG output level until 12dB sinad sensitivity. And then push the menu button. K. Set signal generator level to –47dBm. L. With 1.5KHz deviation at 1KHz modulation, set volume for maximum audio. Audio level should be on over than 1.7Vrms. 8. LOW BATTERY INDICATOR CONFIRMATION A. Set unit to receiving mode. Don’t set transmitter mode.. B. Set power supply voltage to 6.0Vdc. C. Decrease power supply voltage until low battery icon blinks. 9. POWER OFF CURRENT CONSUMPTION A. Set power supply voltage to 6V and connect to unit. B. Confirm current. It must be less than 100uA. XT511 ALIGNMENT PROCEDURE Page 3 10. FREQUENCIES TABLE Channel Freq. MHz Channel Freq. MHz 1 462.5625 12 467.6625 2 462.5875 13 467.6875 3 462.6125 14 467.7125 4 462.6375 15 462.5500 5 462.6625 16 462.5750 6 462.6875 17 462.6000 7 462.7125 18 462.6250 8 467.5625 19 462.6500 9 467.5875 20 462.6750 10 467.6125 21 462.7000 11 467.6375 22 462.7250 XT511 CAMP RADIO LABORATORY TESTING PROCEDURES Page 1 UNIT TEST - (UNIT ASSEMBLED) TEST PREPARATION 1) Install 4 “AA” alkaline batteries (observe polarity markings). z Left upper terminal is the system plus polarity z Right bottom terminal is the system minus polarity. 2) Turn on unit by pressing the power button. SYSTEM TEST 1) Radiated Transmit and Receive performance may be observed. 2) Audio out & Audio in are available at the Headset jack. LABORATORY TEST - (UNIT UN-ASSEMBLED) TEST PREPARATION 1) Disassemble unit (8 screws – 5 behind battery cover). Remove the PCB from the cabinet. 2) Remove the antenna and install a 50 ohm coax cable in its place. 3) Either clip alligator leads or solder test leads to the power supply connections. The positive terminal is the lower right PCB mounting hole. The negative terminal is the lower left PCB mounting hole below the VCO shield can. (battery side view) 4) Connect 6VDC power source to the terminals, observing correct polarity. 5) Connect an 8 ohm load through the Headset jack (3.5mm stereo-phone right plug). 6) Connect a audio generator with 10uF coupling capacitor through the Headset jack ( 3.5mm stereo-phone left plug). 7) Select desired channel 1-22 using CH up/down keypad switch. The rubber keypad may be removed from the front cabinet and used directly on the PCB. XT511 CA…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 25mm 25mm Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

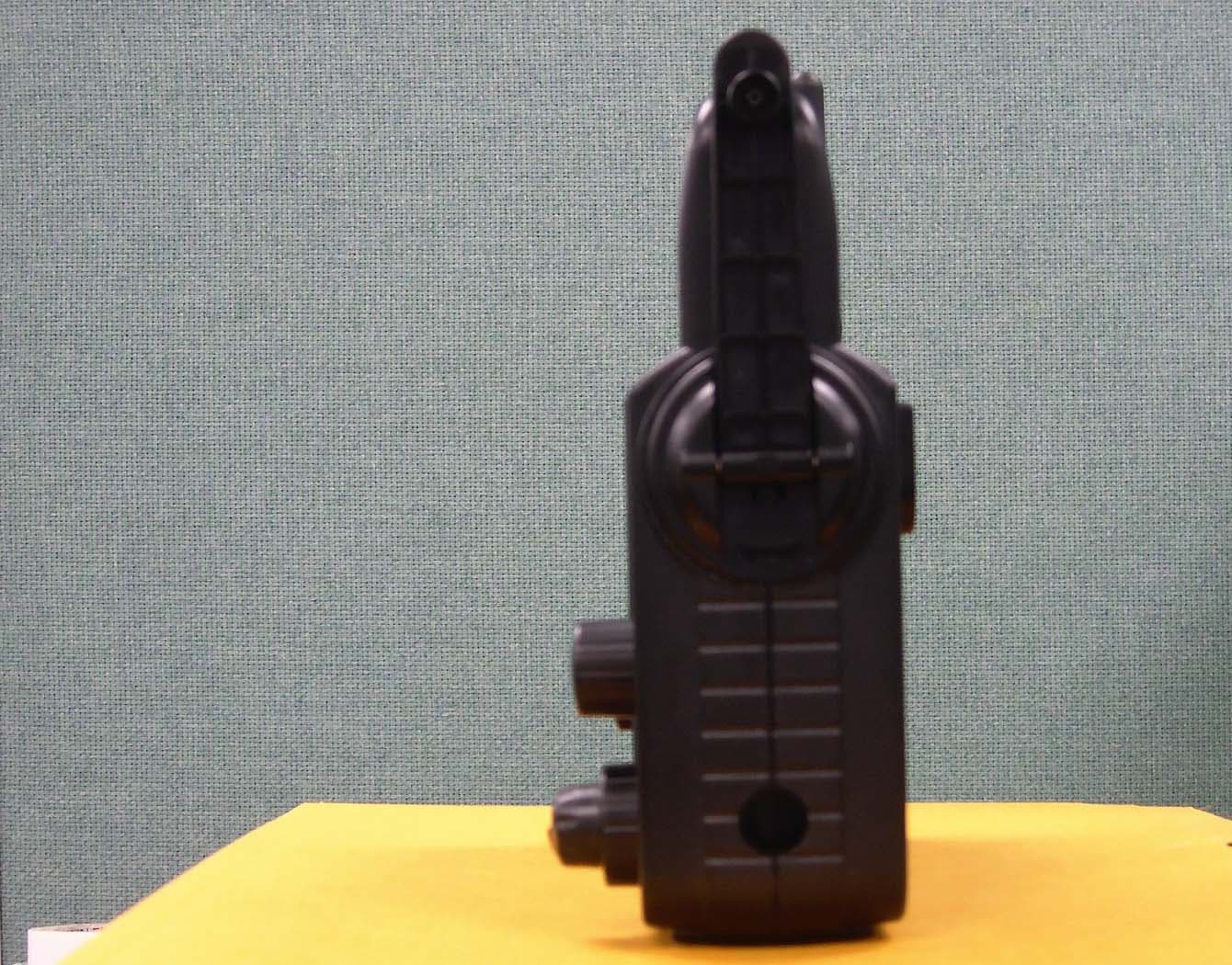

Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX C – EUT PROFILE PHOTOGRAPHS Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX D – DIPOLE VALIDATION PLOTS Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX E – PROBE CALIBRATION DATA Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX F – DIPOLE CALIBRATION DATA Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR07-0511 FCC ID: MMAXT511 DATE: May 25, 2007 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: 22 CH Combination FRS/GMRS Transceiver. Model(s): XT511 Tx Frequency: 462.5500 MHz – 462.7250 MHz (GMRS) 462.5625 MHz – 467.7125 MHz (FRS) Max. SAR Measurement(s): 0.237 mW/g(1g) GMRS Body SAR Max. RF Output Power: 1.08W ERP(30.33 dBm)GMRS ; 0.2622 W ERP(24.14dBm) FRS Conducted Power: 2.70W (34.31dBm) GMRS ; 1.01W (30.04dBm) FRS Emission Designator: 10K2F3E Channel Capacity: 22 Application Type: Certification Trade Name(s): Midland FCC Rule Part(s): 95(A)(B), 2(J) ANSI/ IEEE Std. C95.1- 2005 and had been tested in accordance with the measurement procedures specified in ANSI FCC/OET Bulletin 65 Supplement C and IEEE Std. 1528-2003. Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Manufacture; Midland Radio Corporation. 5900 Parretta Drive, Kansas City, MO 64120 Date of Issue: May 25, 2007 Test Report No.: HCT-SAR07-0511 Test Site: HYUNDAI CALIBRATION &…
