MMFCL4XXEAWRFID Printer

CL408e/412e Quick Guide FCC COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: — Reorient or locate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. PN9001067 Rev B Page 1 DECLARATION OF CONFORMITY SATO America, Inc. 10350A Nations Ford Road, Charlotte, North Carolina 28273 TEL (704) 644-1650 declare under our sole responsibility that the product CL408e, CL412e complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION Please maintain the distance at least 20 cm (7.9 in) in an uncontrolled environment from the antenna's surface when using the device. See FCC OET Bulletin 56 "Hazards of radio frequency and electromagnetic fields" and Bulletin 65 "Human exposure to radio frequency electromagnetic fields." This device shall not be co-located with any other transmitting antenna. The distance from outside the case PN9001067 Rev B Page 1-1 Antenna Position (Cover open view) 2cm 0cm (It leaves sufficiently) 18cm 6cm 12cm 9cm CL408e/412e Quick Guide Table of Contents What You Get ................................................................................. 3 Controls and Indicators ................................................................... 4 Operator Panel ................................................................... 4 LED Indicators .................................................................... 4 Adjustments ........................................................................ 4 Keys ..................................................................................... 5 Rear Panel Connections ..................................................... 5 Initial Setup ..................................................................................... 6 Connecting the Printer ........................................................ 6 Printing a Test Label ........................................................... 7 Configuring the Printer ........................................................ 8 Computer Connections ....................................................... 8 CL408e/412e Software and Drivers ................................................. 10 Label Wizard SE ................................................................. 10 Windows Drivers ................................................................. 11 What to do if it will not print ............................................................... 11 CL408e/412e Specifications ............................................................ 15 Media and Supplies ......................................................................... 16 Options ............................................................................................ 16 Safety Considerations ...................................................................... 17 Safety Information ............................................................................ 18 This Quick Guide was prepared to get you up and running quickly. It will enable you to get your new SATO CL408e/412e installed and printing with a minimum of effort. However, it is recommended that you familiarize yourself with the contents of the CL408e/412e Operator and Technical Reference Manual for detailed descriptions so you will be able to properly use the printer to its full potential. PN9001067 Rev B Page 2 WhatYouG et T heC L 408e/412eT hermalTransferprintercomespackedinaprotective carton.I ncludedinthecartonarethefollowingitems: • C L 408e/412ePrinter • QuickG uide • OperatorandTechnicalR eferenceManual • H eadC leaningSheet • SampleR ibbonsandR ibbonTake-U pC ore • PowerC able • TestPrintoutL abels • L abelWizardSEC D-R OM A ftertakingtheC L 408e/412efromthecartonandremovingtheprotective plasticcover,itisreadyforinstallation. P N9001067R evBP a ge3 C L 4 0 8 e /4 1 2 eQ u i ckG u i d e C ontrolsandI ndicator s O per atorP anel L E DI ndicator s Status:DarkwhenOffL ine G reenwhenprinterisOnL ine. R edwhenanerrorconditionexists. L C DDisplay:I lluminatedwhenpowerisapplied. A dj ustments(controlsbehindfrontpanel) Print:A djustsprintdarkness. Offset:A djustsamountofback/forwardfeedfordis- pense/cut/tear-offposition. Pitch:A djustshomepositionofthelabel+/-3.75mm.A ffects stoppositionoflabel,printpositionanddispense/cutpo- sition. DSW2-3:Setsprinterconfiguration P a ge4PN9001067R evB C L 4 0 8 e /4 1 2 eQ u i ckG u i d e I nitialSet-U p C onnectingtheP r inter 1.L ocateasuitablespotfortheprinter.Itshouldbewithin6ft.ofthe hostifusinganI E E E 1284Parallelinterfaceorwithin35ft.ifusinga H ighSpeedR S232interface.F orothertypesofPlug-I ninterface cards,seetheOperatorandTechnicalR eferenceManual.Makesure thereisadequateroomaboveandtotherightoftheprinterforthela- belaccessdoortoswingopen. 2.PlugtheA Ccableprovidedintothebackoftheprinterandconnect toasuitable115VA Coutlet. 3.Opentheprintheadandloadtheribbonusingtheribbonroutin…

Text truncated - open the document above for the full version.

APPLIED WIRELESS ID Applied Wireless Identifications Group, Inc. 382 Route 59, Section 292, Monsey NY 10952 TEL: 845- 369-8800, FAX: 845-369-1195 January 20, 2005 Federal Communication Commission Authorization and Evaluation division 7435 Oakland Mills Road Columbia, Maryland 21046 Reference: Application for FCC certification of frequency hopping spread spectrum transceiver. Application #: __________________ Gentleman AWID hereby requests confidentiality per CFR 47 0.457 and 0.459, with regard to the following document in the filing docket identified by FCC ID: MMFCL4XXEAW. (1) Block diagram (2) Schematic diagrams and parts list. AWID submits that these documents contain details of the proprietary operation of the equipment, which are not readily discernable from simple inspection of the equipment; and this is true even to the technically sophisticated individuals. It is therefore the opinion of AWID that disclosure of this information would result in significant lost of revenue and technology leverage. This information should be kept confidential for a period of 7 to 10 years. We request that these document and this letter be segregated from the body of our evaluation report and withheld from public inspection. Thank you for your attention. Yours truly, Donny V. Lee Chairman & CEO

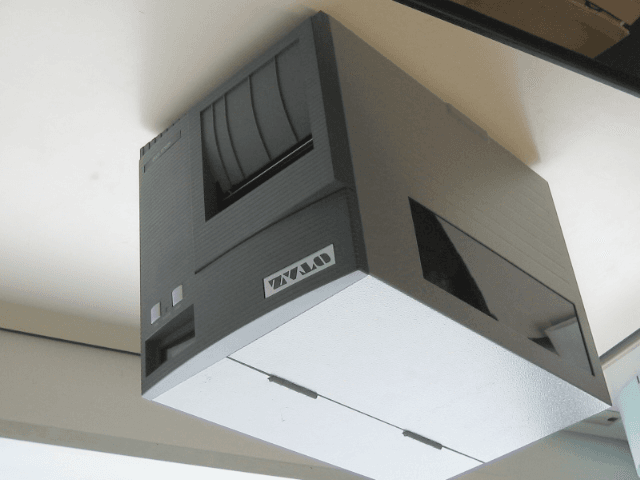

Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Front, right side and top of the printer Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Back, left side and bottom of the printer

Label Measurements (unit: mm) Material: Matt Silver Polyester (Thickness: 0.05mm), on Laminate Adhesive: Hot melt pressure sensitive adhesives, or Synthetic resin emulsion Label Position (Printer Back View) MODEL: CL408e FCC ID : MMFCL4XXEAW MODEL: CL412e FCC ID : MMFCL4XXEAW FCC Label for CL408e FCC Label for CL412e

Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Transmit Antenna Placement Antenna Position (Bottom View) Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Transmit Antenna Placement Antenna Holder Position (Side view) Antenna Board

Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Front of the CONT Board (MAIN Board) Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Back of the CONT Board (MAIN Board) Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Front of the MEMORY Board Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Back of the MEMORY Board Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Front of the KB Board (Key switch & Display Board) Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Back of the KB Board (Key switch & Display Board) Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Front of the DCDC Board (Reader power supply) Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Back of the DCDC Board (Reader power supply) Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Front, left side and top of the main power supply This is OEM parts. MAKER: DENSEI-LAMBDA k.k. MODEL: STD-260 Company: SATO CORPORATION Product: CL408e, CL412e FCC ID#: MMFCL4XXEAW Photo Description: Back, right side and bottom of the main power supply This is OEM parts. MAKER: DENSEI-LAMBDA k.k. MODEL: STD-260

Underwriters Laboratories Inc. A not-for-profit organization dedicated 1285 Walt Whitman Rd. to public safety and committed to Melville, NY 11747 quality service for over 100 years Tel: (631) 271-6200 Fax: (631)439-6095 Project: 04CA52274 File: E133631 Date: 11/20/04 Model: CL4XXE FCC ID: MMFCL4XXEAW Test Report On Electromagnetic Compatibility Testing Copyright  2003 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. File Number: E133631 Issued: 3/4/2005 Project Number: O4CA52274 Model Number: CL4XXE FCC ID: MMFCL4XXEAW ____________________________________________________________________________________________________ Page 2 of 104 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Test Report Details Tests Performed By: Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 Tests Performed For: SATO Corporation TECHNO Center 1-207 OHNARI-CHO SHITAMA-SHI, SAI-TAMA-KEN 330-0852 1-207, Onari-chom,Omiya-ku,Saitama-shi, Applicant Contact: Mr. Lince Berchmans Title: Phone: 81-486638118 Fax: 81-486516662 E-mail: [email protected] Test Report Date: 3/2/2005 Product Type: RFID Printer Model Number: CL4XXE Sample Serial Number: 45590308 Sample Tag Number: 0630745001 Sample Receive Date: 11/19/2004 EUT Category: Radio Transmitter Testing Start Date: 11/22/2004 Date Testing Complete: 1/19/2005 Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA certificates provided at the end of this report. File Number: E133631 Issued: 3/4/2005 Project Number: O4CA52274 Model Number: CL4XXE FCC ID: MMFCL4XXEAW ____________________________________________________________________________________________________ Page 3 of 104 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Report Directory 1.0 G E N E R A L - Product Description..........................................................................................4 1.1 Device Configuration During Test......................................................................................................6 1.1.1 Equipment Used During Test:......................................................................................................6 1.1.2 Input/Output Ports:.....................................................................................................................6 1.1.3 EUT Internal Operating Frequencies:...........................................................................................6 1.1.4 Power Interface:.........................................................................................................................7 1.2 EUT Operation Modes:......................................................................................................................7 1.3 EUT Configuration Modes:................................................................................................................7 1.4 Block Diagram:.................................................................................................................................8 1.5 Deviations from standard test methods................................................................................................8 1.6 Device Modifications Necessary for Compliance.................................................................................9 1.7 Test Summary.................................................................................................................................14 2.0 Conclusion:.................................................................................................................................15 3.0 FCC Labeling Information........................................................................................................16 4.0 Calibration of Equipment Used for Measurement....................................................................17 5.0 EMISSIONS TEST REGULATIONS........................................................................................18 5.1.1 AC Mains Conducted Emissions Tests.......................................................................................19 5.1.2 Spurious RF Conducted Emissions Tests....................................................................................31 5.1.3 Occupied Bandwidth.................................................................................................................45 5.1.4 Peak Output Power...................................................................................................................49 5.1.5 Number of Hopping Frequencies...............................................................................................53 5.1.6 Carrier Frequency Separation....................................................................................................57 5.1.7 Time of Occupancy (Dwell Time)..............................................................................................59 …

Text truncated - open the document above for the full version.

Test Setup Photographs SATO CL408E Radiated Emissions Test Setup 30-1000 MHz Radiated Emissions Test Setup 1-10 GHz
