MMFMB200-W1802.11b Transceiver module for printer

Barcode Printer MB200 MB200 Quick Guide SATO#MB200#E#Hyo_1.p6502.5.17, 2:50 PM1 2 Warning! SATO#MB200##E.p6502.5.17, 2:23 PM2 Operation is subject to the following two conditions: (1)This device may not cause harmful interference,and (2)This device must accept any interference received, including interference that may cause undesired operation. NOTE : This equipment has been tested and found to comply Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference interference will not occur in a particular installation. which can be determined by turning the equipment off and on, more of the following measures: -Reorientate or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit -Consult the dealer or an experienced radio/TV technician for help. with the limits for a Class B digital device, pursuant to a residential installation.This equipment generates and can to radio communications. However, there is no guarantee that If this equipment does cause harmful interference to radio or the user is encouraged to try to correct the interference by one or different from that to whcih the receiver is connected. This device complies with Part 15 of the FCC Rules. FCC Caution: Changes or modifications not expressly approved by the manufacturer for compliance could void the user's authority to operate the equipment. television reception, 3 SATO#MB200##E.p6502.5.17, 2:23 PM3 Warning! The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that same biological effects might occur, but such findings have not been confirmed by additional research. The (Wireless LAN Module (WM-B-AG-02)) has been tested and found to comply with the Federal Communications Commission (FCC) guidelines on radio fequency energy (RF) exposures. The maximum SAR levels tested for the (Wireless LAN Module (WM-B-AG-02))has been shown to be (0.449)W/kg at (Body). This device should not be co-located or operated with any other antenna transmitter. Wireless LAN specification. This manual show that both the specification of Bluetooth and wireless LAN. Please reffer to the corresponding section which shows specification of Bluetooth or wireless LAN. 4 Table of Contents 1. Safety Precautions ...................................... 5 Markings and Symbols ............................. 5 Precautions in Use ................................. 13 2. Unpacking .................................................. 14 3. Parts Name ................................................ 15 Name and Function of Operating Parts .. 17 4. Before Starting ........................................... 18 Charging the Battery Pack ...................... 18 Installing and removing the Battery Pack ..20 Setting Labels ......................................... 22 Preparation/Operation SATO#MB200##E.p65 02.5.17, 2:23 PM4 With its compact and lightweight body combined with high performance, this printer prints crisp barcodes on various types of thermal paper. ÐExcellent Printing Performance Not only does this printer print barcodes clearly, but it can also enlarge and print various types of fonts and Kanji characters in a free layout. ÐDurable and Easy to Use This printer is also superb in durability, as it has been designed specially for printing barcodes. Also, special consideration has been taken so that the printer can be easily cleaned everyday. ÐDispenser Function As a portable printer, this printer can easily print and dispense labels to enable the application of labels on site. Features of the MB200 4 5 Safety Precautions 1 1. Safety Precautions In this section, safety precautions about printer operation are explained to ensure proper care and usage. Make sure to read these carefully before using your printer. Markings and Symbols The following symbols or markings are used in this quick guide and on the printer so that you can properly use the printer, and to prevent any damage to property, harm or injury to yourself and others. Make sure to read their explanations carefully to familiarize yourself with their meanings. This symbol indicates information that, if ignored or applied incorrectly, creates the danger of death or serious personal injury. This symbol indicates information that, if ignored or applied incorrectly, creates the possibility of personal injury or property damage. Warning Caution SATO#MB200##E.p6502.5.17, 2:23 PM5 The specification of wireless LAN for MB400 conforms to R&TTE. 1 6 Safety Precautions Symbol example The triangle ( ) indicates something you should take absolute care with. The cautions are indicated concretely within the symbol. The symbol on the left indicates risk of electric shock. A diagonal line within a circle ( ) indicates something you should not do. The symbol on the left indicates you should not try to take the unit apart. A black circle ( ) indicates something you need to do. The symbol on the left indicates you should unplug the unit from the wall outlet. SATO#MB200##E.p6502.5.17, 2:23 PM6 7 Safety Precautions 1 Warning! Liquids Do not place any containers with water or chemicals, such as flower vases or cups, as well as small metallic objects, near the printer. If any of these should fall into the printer, imm…

Text truncated - open the document above for the full version.

FCC ID : MMFMB200-W1 Date: June 30, 2004 Model : WM-B-AG-02 Applicant : SATO CORPORATION Request for Limited Modular Approval The modular transmitter (Model: WM-B-AG-02) is designed by SATO CORPORATION. This modular transmitter will be equipped only on Barcode Printer, which is produced by SATO CORPORATION or the manufacturer consigned the production by SATO CORPORATION. The modular transmitter complies the module basic requirement (Item 1 to 8) in FCC Public Notice: Part 15 Unlicensed Modular Transmitter Approval (DA00-1407) as indicated below: [Module basic requirement] (1) Have its own RF shielding.: This modular transmitter has it own RF shielding. Please refer to the A1 Photo. (2) The modular transmitter must have buffered modulation/data inputs.: Data input to Modular transmitter is controlled as not generating excessive data speed and abnormal modulation. (3) The modular transmitter must have its own power supply regulation.: The modular transmitter does not have its own power supply, but regulated power of 3.3V is supplied from host equipment Bar code Printer. Therefore, the equipment meets this requirement. (4)The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).: The modular transmitter is installed in the end product by the professionals. Neither antenna nor cable is to be exchanged with any other replacement. Neither does the length of cable change. Please refer to the A1 and A2 Photo. (5)The modular transmitter must be tested in a stand alone.: The modular transmitter has been performed the testing as a stand alone and then confirmed the compliance. Please refer to the Test report. (No. 24GE0192-HO-1) (6)The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module.: This modular transmitter is complied with this requirement. Please refer to the Label drawing and location. (7)The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.: The necessary explanation to be complied with this requirement is contained in the manual. (8)The modular transmitter must comply with any applicable RF exposure requirements.: Please refer to SAR Test Report. (No.24GE0195-HO-1) Keisuke Yamada Senior Manager, R&D Division SATO CORPORATION Antenna connector Antenna A1 Photo (Modular transmitter) A2 Photo (Modular transmitter) RF Shielding

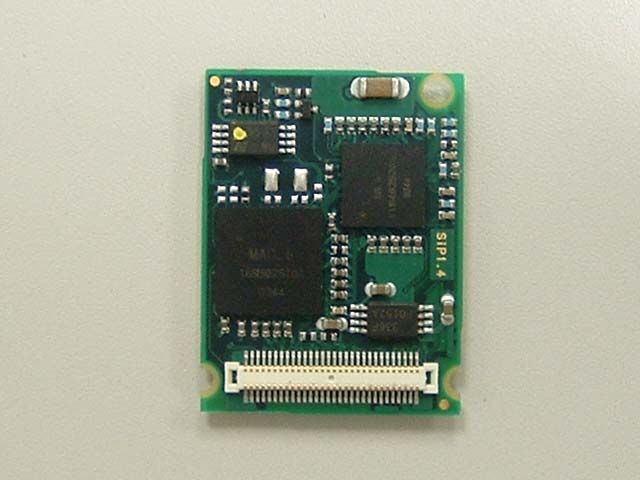

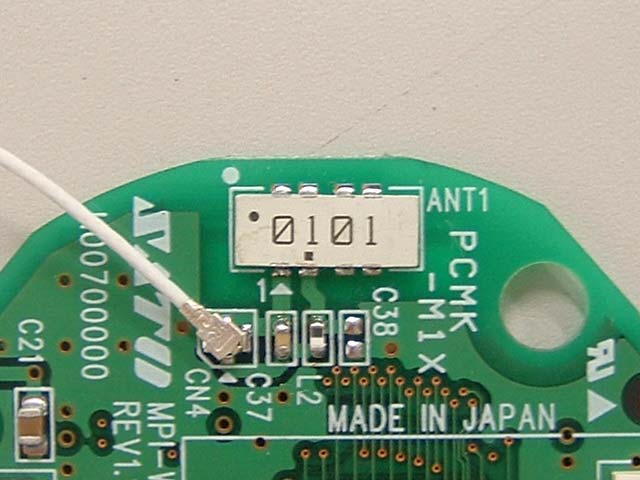

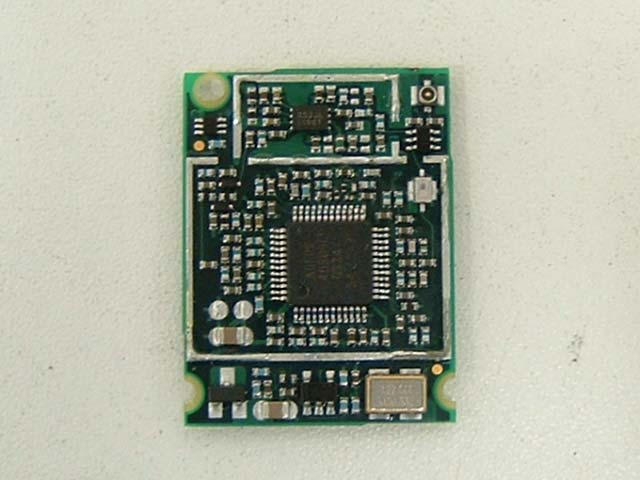

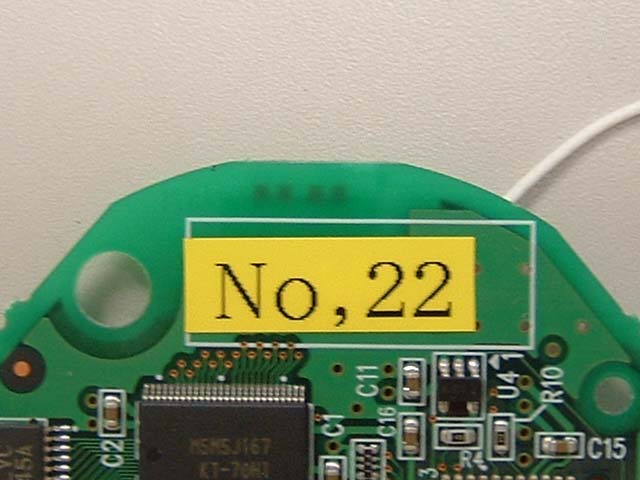

SATO CORPORATION FCC ID: MMFMB200-W1 Photo Front with Shield Front without Shield SATO CORPORATION FCC ID: MMFMB200-W1 Rear Wireless Module with Antenna and PWB SATO CORPORATION FCC ID: MMFMB200-W1 Antenna and PWB (zoomed) – Front Antenna and PWB (zoomed) – Rear

P/N:8601-600024-31 S/N:???????????? MAC:???????????? FCC ID:MMFMB200-W1 IC :4407A-MB200W1 SATO CORP. Made in Taiwan WM-B-AG-02 P/N:8601-600024-31 S/N:???????????? MAC:???????????? FCC ID:MMFMB200-W1 IC :4407A-MB200W1 SATO CORP. Made in Taiwan WM-B-AG-02

SATO CORPORATION FCC ID: MMFMB200-W1 Photo Front with Shield Front without Shield SATO CORPORATION FCC ID: MMFMB200-W1 Rear Wireless Module with Antenna and PWB SATO CORPORATION FCC ID: MMFMB200-W1 Antenna and PWB (zoomed) – Front Antenna and PWB (zoomed) – Rear

Test report No. : 24GE0192-HO-1 Page : 2 of 34 Issued date : June 25, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information ............................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................... 3 SECTION 3: Test specification, procedures & results............................................................................4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 6 [FHSS / DSSS and other forms of modulation’s test requirements] ....................................................... 9 SECTION 5: Conducted Emission, Section 15.207 .................................................................................9 SECTION 6: Spurious Emission 15.247(c)............................................................................................. 10 SECTION 7: Bandwidth, Section 15.247(a)(1)(2)..................................................................................11 SECTION 8: Maximum Peak Output Power, Section 15.247(b)(1)(3) ................................................ 11 SECTION 9: Peak Power Density, Section 15.247 (d) .......................................................................... 11 APPENDIX 1: Photographs of test setup ............................................................................................... 12 Conducted Emission ...................................................................................................................................12 Spurious Emission (Radiated)....................................................................................................................13 Worst Case Position (X-axis:Horizontal / X-axis:Vertical)......................................................................14 APPENDIX 2:Test instruments ............................................................................................................... 15 APPENDIX 3: Data of EMI test............................................................................................................... 16 Conducted Emission ...................................................................................................................................16 6dB Bandwidth(DSSS and other forms of modulation)...........................................................................18 Maximum Peak OutPut Power (DSSS and other forms of modulation) ................................................20 Radiated Spurious Emission(DSSS and other forms of modulation ) ....................................................21 Conducted Spurious Emission(DSSS and other forms of modulation) ..................................................27 Conducted emission Band Edge compliance (DSSS and other forms of modulation) ..........................30 Power Density (DSSS and other forms of modulation )...........................................................................31 99%Occupied Bandwidth(DSSS and other forms of modulation) .........................................................33 Test report No. : 24GE0192-HO-1 Page : 3 of 34 Issued date : June 25, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : SATO CORPORATION Brand name : SATO Address : 1-207, Onari-cho, Omiya-ku, Saitama-shi, Saitama 330-0852 Japan Telephone Number : +81-48-663-8118 Facsimile Number : +81-48-651-6662 Contact Person : Masahiko Nanri SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN SiP Module Model No. : WM-B-AG-02 Serial No. : 03UT02481658 Country of Manufacture : Malaysia Rating : DC 3.3V Receipt Date of Sample : March 11, 2004 Condition of EUT : Engineering Prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description SATO CORPORATION, Model No: WM-B-AG-02 is the Wireless LAN module. [IEEE 802.11b] Equipment Type : Transceiver Frequency of operation : 2412-2462MHz Type of modulation : DSSS Channel spacing : 5MHz Channel number : 11 Antenna Type : chip Antenna Antenna connector Type : W, FL-LP-N Antenna Gain : 2.044 dBi ITU code : G1D Power Supply : DC3.3V Temperature of operation : +5 deg. C. to +35 deg. C. FCC 15.31 (e) The modular transmitter does not have its own power supply, but regulated power of 3.3V is supplied from host equipment Bar code Printer. Therefore, the equipment meets this requirement. FCC Part 15.203 Antenna requirement The modular transmitter must comply with the antenna requirements of Section 15.203.: The modular transmitter is installed in the end product by the professionals. Neither antenna nor cable is to be exchanged with any other replacement. Neither does the length of cable change. Test report No. : 24GE0192-HO-1 Page : 4 of 34 Issued date : June 25, 2004 Revised date : July 5, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C : 2003 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits : 2003 Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz : 2003 3.2 Procedures and results [DSSS and other forms of modulation ] No. Item Test Procedure Specification Remarks DeviationWorst margin Results 1 Conducted e…

Text truncated - open the document above for the full version.

Test report No. : 24GE0195-HO-1 Page : 2 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1 : Client information ................................................................................................................. 3 SECTION 2 : Equipment under test ............................................................................................................ 4 SECTION 3 : Requirements for compliance testing defined by the FCC ................................................ 5 SECTION 4 : Dosimetry assessment setup .................................................................................................. 5 SECTION 5 : Test system specifications...................................................................................................... 9 SECTION 6 : Measurement outline ........................................................................................................... 10 SECTION 7 : Test setup of EUT ................................................................................................................ 11 SECTION 8 : Measurement uncertainty ................................................................................................... 14 SECTION 9 : Simulated tissue liquid parameter...................................................................................... 15 SECTION 10: System validation data ....................................................................................................... 16 SECTION 11 : Evaluation procedure ........................................................................................................ 17 SECTION 12 : Exposure limit .................................................................................................................... 18 SECTION 13 : SAR Measurement results................................................................................................. 19 SECTION 14 : Equipment & calibration information ............................................................................. 20 SECTION 15 : References........................................................................................................................... 21 APPENDIX 1 : Photographs of test setup................................................................................................ 22 APPENDIX 2 : SAR Measurement data .................................................................................................. 29 APPENDIX 3 : Validation Measurement data ........................................................................................43 APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713)............................................................. 45 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1685) ...................................... 54 Test report No. : 24GE0195-HO-1 Page : 3 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1 : Client information Company Name : SATO CORPORATION Brand Name : SATO Address : 1-207,Onari-cho,Omiya-ku,Saitama-shi,Saitama 330-0852, Japan Telephone Number : +81-48-663-8118 Facsimile Number : +81-48-651-6662 Contact Person : masahiko nanri E-mail : [email protected] Test report No. : 24GE0195-HO-1 Page : 4 of 66 Issued date : May 17, 2004 Revised date : June 25, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 2 : Equipment under test 2.1 Identification of EUT Applicant : SATO CORPORATION Type of Equipment : Wireless LAN SiP Module Model No. : WM-B-AG-02 Serial No. : No.7 Country of Manufacture : Japan Receipt Date of Sample : May 10,2004 Condition of EUT : Engineering prototype (Not for sale: This sample is equivalent to mass-produced items.) Category Identified : Portable device 2.2 Product description of EUT Tx Frequency : 2412MHz~2462MHz Modulation : DSSS (IEEE802.11b) Rating : DC 3.3 V Max.Output Power Tested : 15.51 dBm Peak Conducted Antenna Type : chip Antena Test report No. : 24GE0195-HO-1 Page : 5 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 3 : Requirements for compliance testing defined by the FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. SECTION 4 : Dosimetry assessment setup These measurements were performed with the automated near…

Text truncated - open the document above for the full version.

Test report No. : 24GE0195-HO-1 Page : 51 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 52 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 53 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 54 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1685) Test report No. : 24GE0195-HO-1 Page : 55 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 56 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 57 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 58 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 59 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 60 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 61 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 62 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 63 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 64 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 65 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24GE0195-HO-1 Page : 66 of 66 Issued date : May 17, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124

Test report No. : 24GE0192-HO-1 Page : 12 of 34 Issued date : June 25, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 24GE0192-HO-1 Page : 13 of 34 Issued date : June 25, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated) Front Rear Test report No. : 24GE0192-HO-1 Page : 14 of 34 Issued date : June 25, 2004 FCC ID : MMFMB200-W1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (X-axis:Horizontal / X-axis:Vertical) X-axis Y-axis Z-axis
