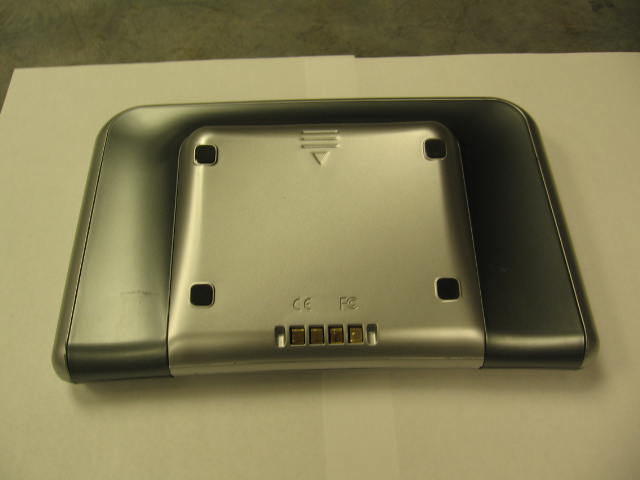

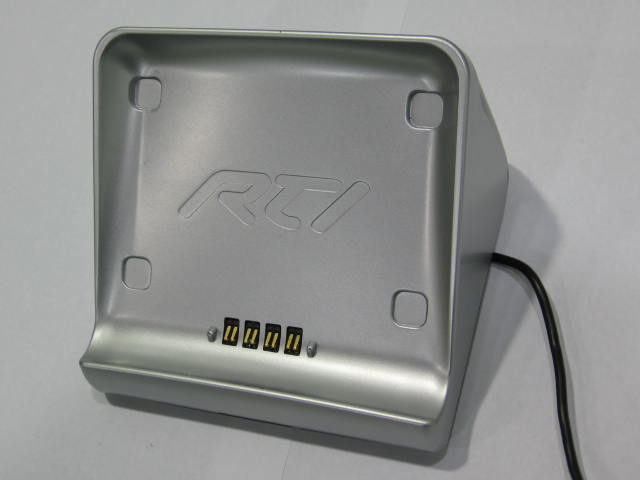

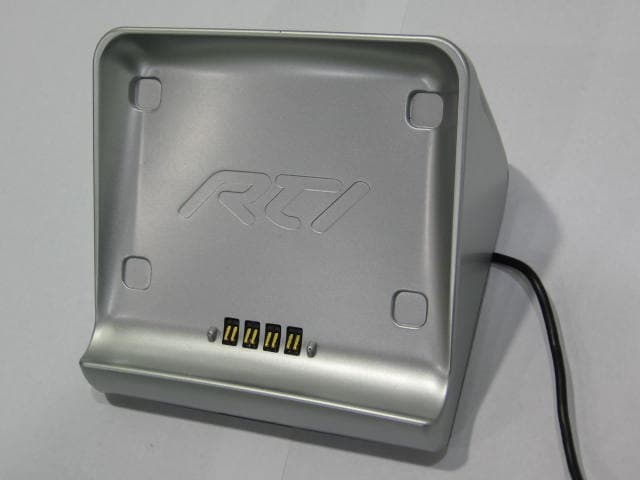

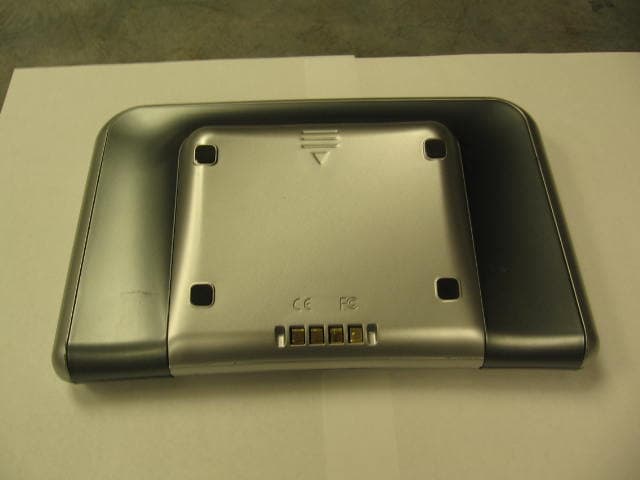

MMURT10500T4 Universal System Controller

IR-PRO Professional Infrared Code Capture System Remote Technologies Incorporated Remote Technologies Incorporated Remote Technologies Incorporated Remote Technologies Incorporated 7651 Anagram Drive Eden Prairie, MN 55344 Tel: 952-253-3100 Fax: 952-253-3131 www.rticorp.com © 2006 Remote Technologies Inc. All rights reserved. Printed in Taiwan. It’s Under Control ® IR-PRO Professional Infrared Code Capture System T4 Universal System Controller T4 Installation & Operation Guide v1.0 i FEDERAL COMMUNICATIONS COMMISSION NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: MMURTI0500 CAN: 3166-RTI0500 T4 Universal System Controller ii BATTERY DISPOSAL For environmental reasons, your T4 universal system controller uses “environmentally sound” Lithium-ion rechargeable batteries. These batteries do not contain any poisonous heavy metals that can damage the environment. In the interest of recycling, please do not dispose of these batteries in the household waste at the end of their useful life. Instead, dispose of them at an appropriate collection site. SAFETY SUGGESTIONS Read Instructions. Read all safety and operating instructions before operating the unit. Heat. Keep the unit away from heat sources such as radiators, heat registers, stoves, etc., including amplifiers that produce heat. Power Sources. Connect the docking station only to the power supply that was included with the unit. Recharge the battery only with the docking station that was included with the unit. Power Cord Protection. Route power supply cords so that they are not likely to be walked on or pinched by items placed on or against them, paying particular attention to the cords at power receptacles and at the point at which they exit from the unit. Nonuse Periods. Unplug the power supply from the outlet when the unit is to be left unused for a long period. Water and Moisture. Do not use the unit near water—for example, near a sink, in a wet basement, near a swimming pool, near an open window, etc. Object and Liquid Entry. Do not allow objects to fall or liquids to be spilled into the enclosure through openings. Cleaning. The unit should be cleaned only as recommended in the operating guide. Li-polymer iii Servicing. Do not attempt any service beyond that described in the operating guide. Refer all other service needs to qualified service personnel. Damage Requiring Service. The unit should be serviced by qualified service personnel when: • The power supply cord or the plug has been damaged. • Objects have fallen or liquid has been spilled into the unit. • The unit does not appear to operate normally or exhibits a marked change in performance. LIMITED WARRANTY Remote Technologies Incorporated warrants its products for a period of one (1) year from the date of purchase from Remote Technologies Incorporated or an authorized Remote Technologies Incorporated distributor. This warranty may be enforced by the original purchaser and subsequent owners during the warranty period, so long as the original dated sales receipt or other proof of warranty coverage is presented when warranty service is required. Except as specified below, this warranty covers all defects in material and workmanship in this product. The following are not covered by the warranty: Damage resulting from: 1. Accident, misuse, abuse, or neglect. 2. Failure to follow instructions contained in this Guide. 3. Repair or attempted repair by anyone other than Remote Technologies Incorporated. 4. Causes other than product defects, including lack of skill, competence or experience of user. 5. Shipment of this product (claims must be made to carrier). 6. Being altered or which the serial number has been defaced, modified or removed. T4 Universal System Controller iv Remote Technologies Incorporated is not liable for any damages caused by its products or for its failure of its products to perform, including any lost profits, lost savings, incidental damages, or consequential damages. Remote Technologies Incorporated is not liable for damages based upon inconvenience, loss of use of the product, loss of time, interrupted operation, commercial loss, any claim made by a third party or made by you for a third party. Remote Technologies Incorporated’s liability for any defective product is limited to repair or replacement of the product, at our option. If your T4 needs service, please contact Remote Technologies Incorporated by telephone, fax or e-mail for return information. Please do not return products to RTI without return authorization. DISCLAIMER All rights are reserved. No part of this document may be photocopied, reproduced, or translated without the prior written notice of Remote Tec…

Text truncated - open the document above for the full version.

Remote Technologies Incorporated TheaterTouch T4 System Controlle r Block/Signal Diagram 433 MHz Keypad Boards (R + L) Battery LCD Po w e r Inverter Voltage Regulators (Backlights) MCU (C8051 F311 ) CPU Po w e r Supp l y Flash PXA255 3.68 64M h z Cr y s ta l SDR A M Codec & Speakers 24. 576 MHz Battery Char ge r RF Dau g hterbo ard LCD Disp l ay Linx Splatch Antenna Linx RF Transmitte r 433Mhz 802.11 SDIO Card

1.65" 0.12" 5.19" 4.51"

Universal System Controller Operational Description Purpose of the TheaterTouch The intended use of the Universal System Controller is to transmit IR, (infrared) control signals to home electronic devices. These devices include VCRs, DVD players, TV cable boxes, audio surround decoders, satellite receivers, televisions, etc. The Universal System Controller is a custom programmable device that contains a touchscreen display and keypad buttons. The Touchscreen display and keypad are programmed with the users set of electronic equipment and the parameters that can be controlled. The user interface on the touchscreen display is also custom programmable. The Universal System Controller is then programmed with the IR controls for each electronic device that the user desires to use. Universal System Controller Transmitter When the user interface for the electronic devices to be controlled and the IR control signals have been programmed into the Universal System Controller it is ready to use. When a user presses on the touchscreen or keypad to transmit, for example to start the play control on a VCR, the microprocessor, PXA255, senses the push. The PXA sends a serial command to the C8051F311 microcontroller. The IR control signal corresponding to that location on the touchscreen or keypad is then pulled from internal FLASH memory. When the IR control signal is identified, the control signal is routed to the RF transmitter board. The control signal is modulated on the RF transmitter board and output. The PXA255 microprocessor uses an internal PLL running at 400 MHz which is fed from an external 3.6864 crystal. The microcontroller uses an internal 24.5 MHz oscillator. The RF module uses an internal 433MHz SAW oscillator. TheaterTouch Antenna The antenna on the Universal System Controller is a grounded line SMD Planar (Splatch), soldered to the RF module, internal to the chassis and is not easily accessible. 802.11 Function The 802.11 functionality is provided by an off-the-shelf SDIO Card. This card has its own FCC ID certified by the original manufacturer. Remote Technologies Incorporated •7630 Executive Dr. • Eden Prairie, MN 55344 • Tel. 612.937.2600 • Fax 612.937.7527
