MMURTI1500Dual transmitter module

TXB-DB Dual Transmitter Module Installation Instructions Purpose of the TXB-DB Dual Transmitter Module The TXB-DB Dual Transmitter Module is a module that can be installed in applicable Remote Technologies Inc. (RTI) products only. This module is not sold retail, nor is it provided as an OEM product to other manufacturers or companies for installation into their products. RTI and its authorized Contract Manufacturers are the only authorized installers of this module and it is not provided as a field or end-user upgrade. When properly and permanently installed in an applicable RTI product, the module will provide 2.4GHz transceiver communication with other TXB-DB Transceiver Module equipped RTI products or like 2.4GHz transceiver RTI products, along with 433MHz communication to other RTI products containing like 433MHz receivers. Installation Instructions When a TXB-DB Dual Transmitter module is installed in an RTI product it is permanently affixed to the host product and cannot be removed without the use of additional equipment. This TXB- DB module is also not visible, nor accessible by the end-user. Any attempted access or removal of the TXB-DB module by anyone other than RTI or its authorized Contract Manufacturers is strictly prohibited. When installed in a host RTI product, the host RTI product will display verbiage to the effect of the following in accordance with FCC 47 CFR Part 15 Section 15.212: Contains Transmitter Module FCC ID: MMURTI1500 Contains IC: 3166A‐RTI1500 or Contains FCC ID: MMURTI1500 Contains IC: 3166A‐RTI1500 The Operation Manual of the host RTI product will also display the following information in accordance with FCC 47 CFR Part 15 Section 15.19: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: MMURTI1500 Part 15 Unlicensed Modular Transmitter Approval Justification per DA 00-1407, released: June 26, 2000 requirement reference 1 The modular transmitter must have its own RF shielding. RTI Custom Shield. See pictures “TXB-DB – Top with Shield.jpg” and “TXB-DB – Top without Shield.jpg 2 The modular transmitter must have buffered modulation/data inputs 2.4GHz - Transmission data is generated within the MCU based on commands received via a serial port that contains a dedicated, buffered DMA controller with buffered data management schemes. The host serial port also contains buffered data management schemes. 433MHz – Input data is buffered and modulated on- module before transmission. Input data does not directly create the modulated data. An OOK modulation scheme is implemented. 3 The modular transmitter must have its own power supply regulation. Both MCUs contain an integrated voltage regulator that generates a regulated 1.8V reference voltage from an unregulated supply voltage. This voltage is used to supply the 1.8V to the core logic to each MCU. 4 The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The unit uses 2 permanently attached surface mount antennas. The unit can also only be installed and repaired by RTI. It is not end-user accessible/serviceable. There is no authorized external power amplifier that may be used with either bands of this device. 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The module was tested with a support board to enable proper operation. 6 The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. See “TXB-DB Labeling Information.doc” and “TXB-DB – Top.jpg” 7 The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. No Specific Rules are Applicable 8 The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). It was determined the module needs to comply with Section 15.247 in order to comply with FCC RF Exposure Requirements. The module was tested to be in compliance with Section 15.247. See FCC Test Report.

TXB-DB Dual Transmitter Module Labeling Information Labeling Information When a TXB-DB module is installed in an RTI product it is permanently affixed to the host product and cannot be removed without the use of additional equipment. This TXB-DB module is also not visible, nor accessible by the end-user. Any attempted access or removal of the TXB-DB module by anyone other than RTI or its authorized Contract Manufacturers is strictly prohibited. The TXB-DB Transceiver module will contain the following FCC Identifier in accordance with FCC 47 CFR Part 15, Section 19 and FCC 47 CFR Part 2, Section 925: FCC ID MMURTI1500 The FCC Identifier will be displayed on the TXB-DB Module via a permanent silkscreen on the printed circuit board. When installed in a host RTI product, the host RTI product will display verbiage to the effect of the following in accordance with FCC 47 CFR Part 15, Section 212: Contains Transmitter Module FCC ID: MMURTI1500 Contains IC: 3166A‐RTI1500 or Contains FCC ID: MMURTI1500 Contains IC: 3166A‐RTI1500 The Operation Manual of the host RTI product will also display the following information in accordance with FCC 47 CFR Part 15, Section 19: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

TEST REPORT Report Number: 100105670MIN-002 Project Number: G100105670 Testing performed on the 2.4GHz TXB-DB Dual Transmitter Module FCC ID: MMURTI1500 Industry Canada ID: 3166A-RTI1500 to 47 CFR Part 15. 247:2009 RSS- 210, Issue 7, 2007 For Remote Technologies Inc. Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 Remote Technologies Inc. 5775 12 th Avenue East, Suite 180 Shakopee, MN 55379 Prepared by: Date: July 1, 2010 Norman Shpilsher Reviewed by: Date: July 1, 2010 Simon Khazon This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report No: 100105670MIN-002 FCC ID: MMURTI1500 IC ID: 3166A-RTI1500 Page 2 of 48 TABLE OF CONTENTS 1.0GENERAL DESCRIPTION..........................................................................................................3 1.1 Product Description; Test Facility......................................................................................4 1.3 Environmental conditions ..................................................................................................5 1.4 Measurement uncertainty..................................................................................................6 1.5 Field Strength Calculation .................................................................................................6 2.0TEST SUMMARY..........................................................................................................................7 3.0TEST CONDITIONS AND RESULTS........................................................................................8 3.1 Maximum peak output power ............................................................................................8 3.2 6dB bandwidth of the digital modulation .........................................................................12 3.3 Power spectral density ....................................................................................................16 3.4 Antenna conducted spurious emissions..........................................................................20 3.5 Radiated spurious emissions ..........................................................................................27 3.6 RF Exposure Compliance ...............................................................................................41 3.7 Transmitter power line conducted emissions ..................................................................42 3.8 Receiver/digital device radiated emissions .....................................................................43 3.9 Digital device conducted emissions ................................................................................47 4.0TEST EQUIPMENT.....................................................................................................................48 EMC Report No: 100105670MIN-002 FCC ID: MMURTI1500 IC ID: 3166A-RTI1500 Page 3 of 48 1.0 GENERAL DESCRIPTION Model: 2.4GHz TXB-DB Type of EUT: Dual Transmitter Module Serial Number: N/A FCC ID: MMURTI1500 Industry Canada ID: 3166A-RTI1500 Related Submittal(s) Grants: None Company: Remote Technologies Inc. Customer: Mr. Mark Melville Address: 5775-12 th Avenue East Suite 180 Shakopee MN 55379 Phone: (952) 253-3116 Fax: (952) 253-3131 e-mail: Remote Technologies Inc. Test Standards: 47 CFR, Part 15:2009, §15.247 RSS–210, Issue 7, 2007 RSS-Gen, Issue 2, 2007 47 CFR, Part 15:2008, §15.107 and §15.109, Class B Other  Type of radio: Stand -alone Module Hybrid Date Sample Submitted: May 25, 2010 Test Work Started: May 25, 2010 Test Work Completed: June 1, 2010 Test Sample Conditions: Damaged Poor (Usable) Good EMC Report No: 100105670MIN-002 FCC ID: MMURTI1500 IC ID: 3166A-RTI1500 Page 4 of 48 1.1 Product Description; Test Facility Product Description: Dual Transmitter Module Transmitter Type: FHSS Digital Modulation WiFi Blue Tooth Operating Frequency Range(s): from 2400 to 2483.5 MHz Number of Channels: 16 Modulation: OQPSK Emission Designator: 1M62G7D Antenna(s) Info: Antenna Type: Integral. Temporary RF connector provided. Solder direct to circuit board via coax. Gain: 1.8 dBi Antenna Installation: User Professional Factory Transmitter power configuration: Internal battery External power source 120VAC 230VAC 400VAC 3.3 VDC Other:   Amp. 50Hz 60Hz Special Test Arrangement: As a hand-held device the EUT was rotated through three orthogonal axes to determine and tested with the maximum emissions Test Facility Accreditation: A2LA (Certificate No. 1427.01) Test Methodology: Measurements performed according to the procedures in ANSI C63.4- 2003 and FCC Public Notice DA 00-705 EMC Report No: 100105670MIN-002 FCC ID: MMURTI1500 IC ID: 3166A-RTI1500 Page 5 of 48 1.2 EUT Configuration The equipment under test was operated during the measurement under the following conditions: - Standby - Continuous transmitting mode - Continuous receiving /standby mode - Test program (customer specific) -  Operating modes of the EUT: No. Description 1 The transmitter…

Text truncated - open the document above for the full version.

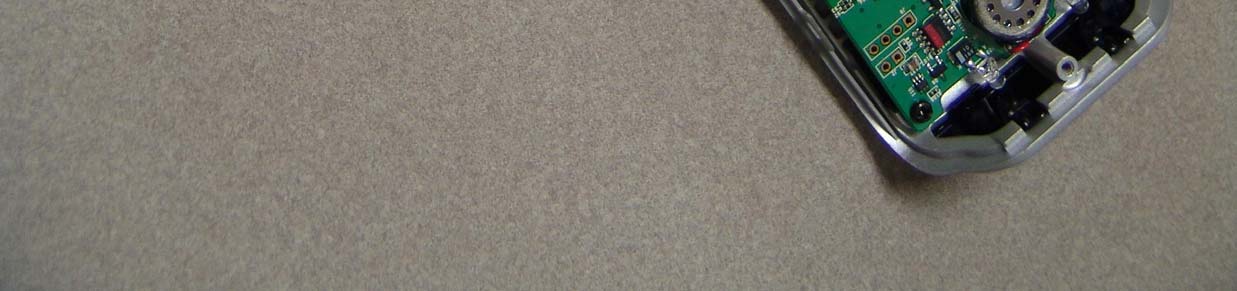

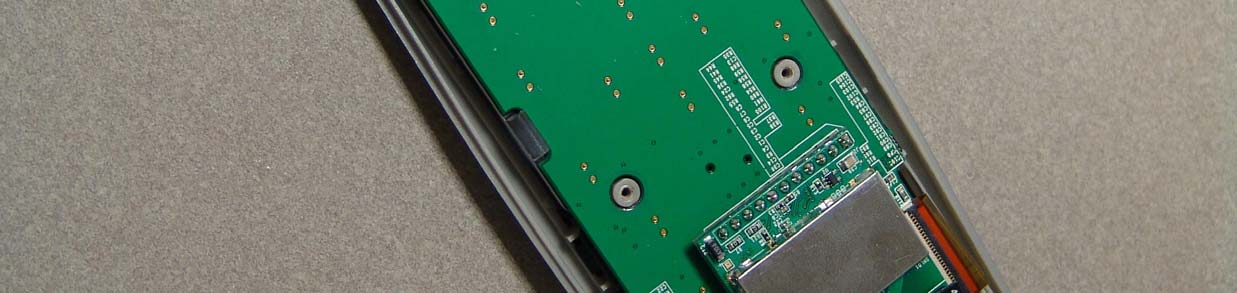

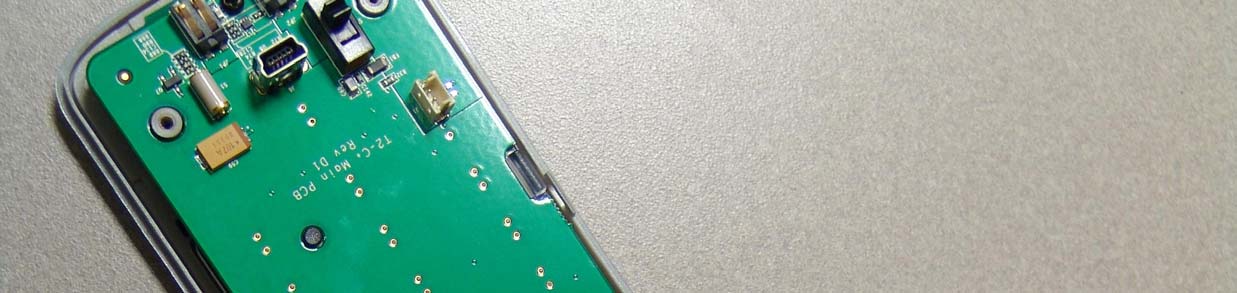

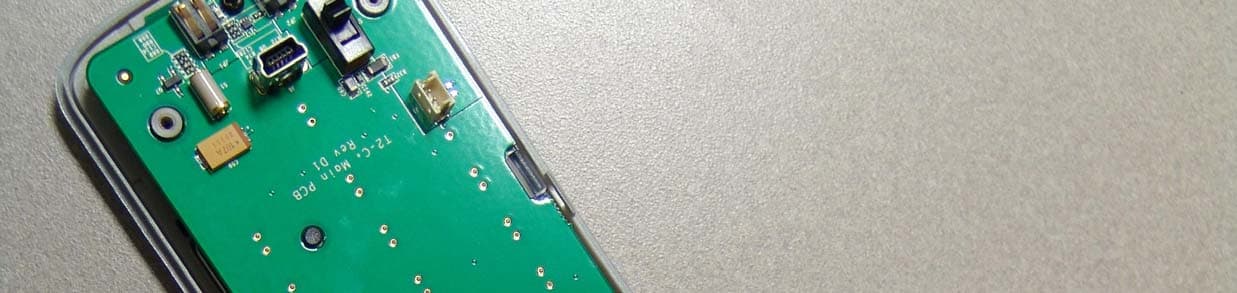

Test Setup Photos
