MOZB23RGReceiver

Receiver Model B23RG FCC ID: MOZB23RG Locking/Unlocking the doors INSTRUCTIONS When you push the “Lock” button on the transmitter, all the doors can be locked from outsider the vehicle. Make sure all the doors are locked when you leave the vehicle. When you push the “Unlock” button on the transmitter, all the doors can be unlocked from outside the vehicle. (If applicable) When you push the “Trunk” button on the transmitter, the car trunk lid can be opened from outside the vehicle. (If applicable) When you push the “Back Window” button on the transmitter, the back window can be opened from outside the vehicle. (If applicable) When you push the “Panic” button on the transmitter, alarms can be operated/unoperated from outside the vehicle. For vehicles sold in U.S.A.: NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada: NOTE This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE +81-3-3416-0111, FAX +81-3-3416-9691 December 25, 2009 Compliance Certification Services 47173 Benicia Street, Fremont, CA 94538, USA Subject: Certification Application for Part 15 Equipment Authorization Applicant : Tokai Rika Co., Ltd. Product : Receiver Model Number : B23RG FCC ID : MOZB23RG Dear Sir/Madame: We are submitting application documents through electronic filing for Certification of FCC Part 15 Equipment Authorization with request of confidentiality for the above-mentioned product as an attached request letter. Application fee will be sent you in accordance with your instruction. We shall appreciate your immediate attention and approval. Sincerely, Katsunori Miura E-Mail: [email protected] EMC Engineering Dept. Japan Quality Assurance Organization FCC ID: MOZB23RG LIST OF SUBMITTED DOCUMENTS (December 25, 2009) (1) Exhibit_A: Cover Letter and List of Submitted Documents (2) Exhibit_B: Authorization Agreement (3) Exhibit_C: Confidential Request Letter (4) Exhibit_D: Operational Description (5) Exhibit_E: Label (6) Exhibit_F: Schematics (7) Exhibit_G: Block Diagram (8) Exhibit_H: Parts List (9) Exhibit_J: External Photographs (10) Exhibit_K: Internal Photographs (11) Exhibit_L: User’s Manual (12) Exhibit_M: Test Report (13) Exhibit_N: EUT Setup Photographs (14) Section 2.1033(b)(8) requirement: N/A (15) Section 2.1033(b)(9) requirement: This product has been tested with new rules and is not affected by Sec.15.37. (16) Section 2.1033(b)(10)-(12) requirements: N/A (17) Section 2.1033(c) requirement: N/A

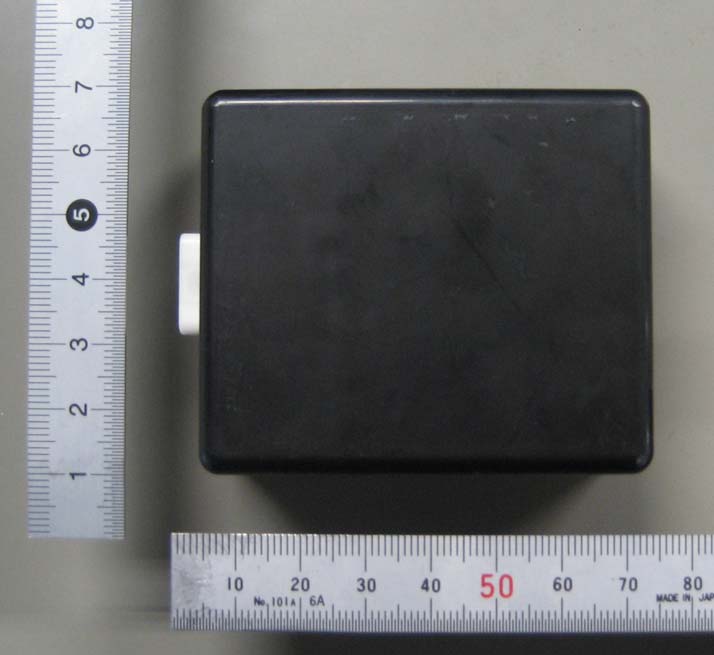

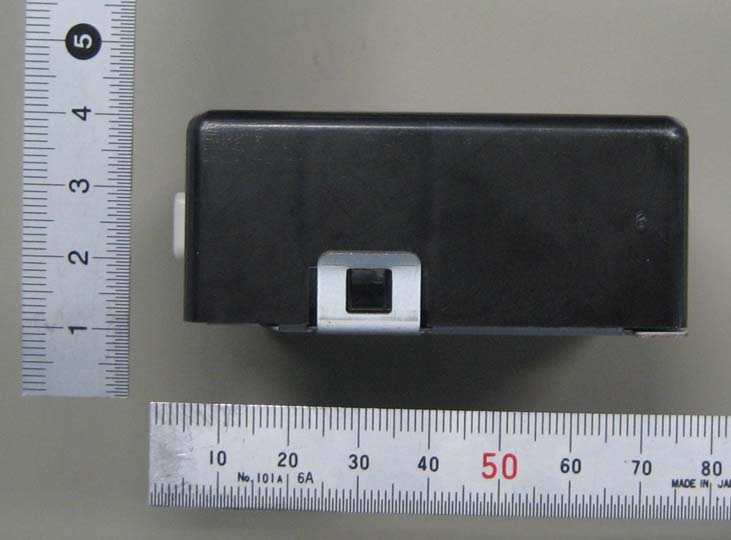

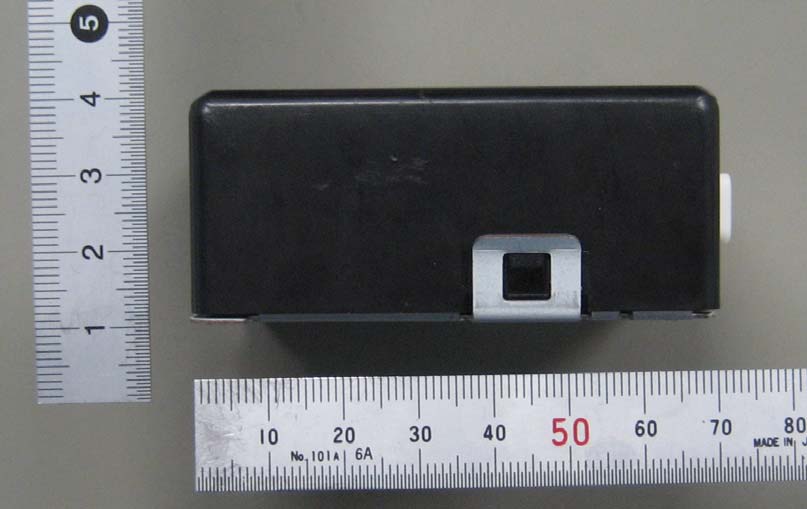

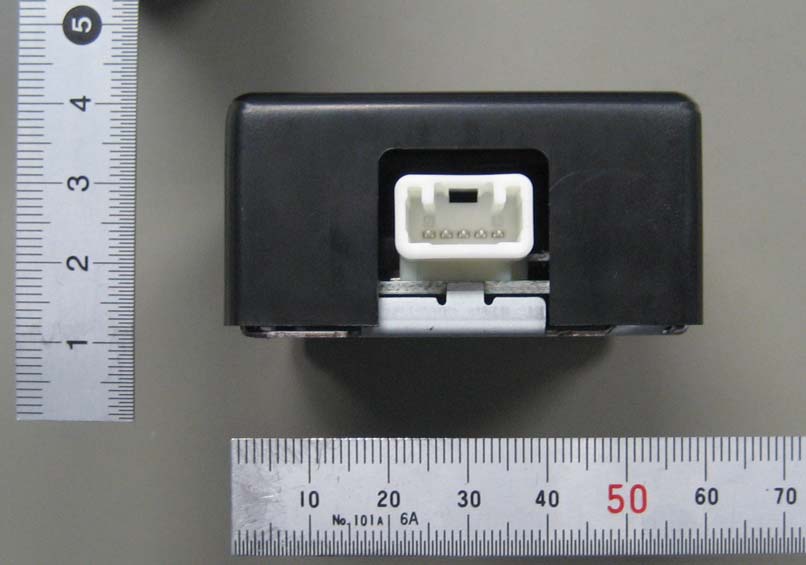

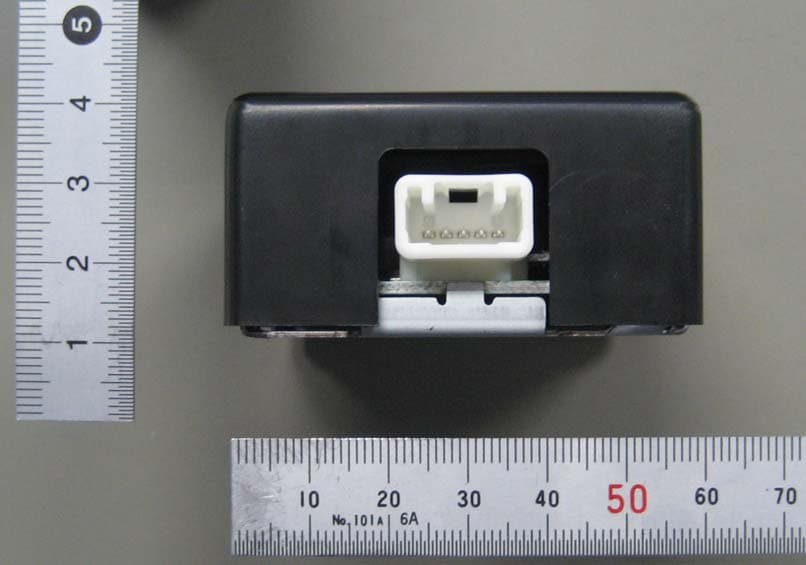

Receiver Model B23RG FCC ID: MOZB23RG External Photograph Appearance (Front view) Appearance (Reverse View) Receiver Model B23RG FCC ID: MOZB23RG Appearance (Top view) Appearance (Bottom view) Receiver Model B23RG FCC ID: MOZB23RG Appearance (Side view) Appearance (Side view)

Receiver Model B23RG FCC ID: MOZB23RG NAME RECEIVER MODEL B23RG Label Layout SCALE Free NOTE: The layout and design of the approval label may be change d.

Receiver Model B23RG FCC ID: MOZB23RG Internal Photograph Mother Board (Front View) Mother Board (Reverse View) Receiver Model B23RG FCC ID: MOZB23RG RF Module (Front View) RF Module (Reverse View)

Page 1 of 31 Technical document No. 23160-0701 JQA File No. : 400-090276 Issue Date : December 22, 2009 TEST REPORT APPLICANT : Tokai Rika Co., Ltd. ADDRESS : 260, Toyota 3-chome, Oguchi-cho, Niwa-gun, Aichi-ken 480-0195, Japan PRODUCTS : Receiver MODEL No. : B23RG SERIAL No. : None FCC ID : MOZB23RG TEST STANDARD : CFR 47 FCC Rules and Regulations Part 15 Subpart A and B TESTING LOCATION : Japan Quality Assurance Organization SAFETY & EMC CENTER EMC Engineering Department Testing Division 1-21-25, Kinuta, Setagaya-ku, Tokyo 157-8573, Japan TEST RESULTS : Passed DATE OF TEST : December 2, 2009 This report must not used by the client to Eiichi Saegusa claim product endorsement by NVLAP or Manager NIST or any agency of the U.S. Government. Japan Quality Assurance Organization SAFETY & EMC CENTER EMC Engineering Dept. Testing Division 1-21-25, Kinuta, Setagaya-ku, Tokyo 157-8573, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. COPY JQA File No. : 400-090276 Issue Date : December 22, 2009 Model No. : B23RG FCC ID : MOZB23RG Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart A and B Page 2 of 31 Technical document No. 23160-0701 Table of Contents Documentation Page 1 Test Regulation 3 2 Test Location 3 3 Recognition of Test Laboratory 3 4 Description of the Equipment Under Test 4 5 Test Condition 5-7 6 Preliminary Test and Test Setup 8-11 7 Equipment Under Test Modification 12 8 Responsible Party 12 9 Deviation from Standard 12 10 Test Results 13-15 11 Summary 16 12 Operating Condition 17 13 Test Configuration 18 14 Equipment Under Test Arrangement (Drawings) 19 Appendix A : Test Data 20-23 Appendix B : Test Arrangement (Photographs) 24-28 Appendix C : Test Instruments 29-31 Definitions for Abbreviation and Symbols Used In This Test Report “EUT” means Equipment Under the Test. “AE” means Associated Equipment. “N/A” means that Not Applicable. “N/T” means that Not Tested. -indicates that the listed condition, standard or equipment is applicable for this report. -indicates that the listed condition, standard or equipment is not applicable for this report. COPY JQA File No. : 400-090276 Issue Date : December 22, 2009 Model No. : B23RG FCC ID : MOZB23RG Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart A and B Page 3 of 31 Technical document No. 23160-0701 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart A and B Test Procedure : ANSI C63.4-2003. 2 Test Location Japan Quality Assurance Organization SAFETY & EMC CENTER EMC Engineering Department Testing Division 1-21-25, Kinuta, Setagaya-ku, Tokyo 157-8573, Japan 3 Recognition of Test Laboratory Japan Quality Assurance Organization SAFETY & EMC CENTER EMC Engineering Dept. Testing Division is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility of Testing Division is registered by the following bodies. VLAC Code : VLAC-001-1 (Effective through : April 3, 2010) NVLAP Lab Code : 200189-0 (Effective through : June 30, 2010) VCCI Registration Number : R-002, R-003, C-002, C-966 (Effective through : April 3, 2010) FCC Registration Number : 349652 (Date of Listing : April 1, 2010) IC Registration Number : 2079A-1, 2079A-2 (Effective through : October 22, 2010) Accredited as conformity assessment body for Japan electrical appliances and material law by METI. (Effective through : February 22, 2010) COPY JQA File No. : 400-090276 Issue Date : December 22, 2009 Model No. : B23RG FCC ID : MOZB23RG Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart A and B Page 4 of 31 Technical document No. 23160-0701 4 Description of the Equipment Under Test 1 Manufacturer : Tokai Rika Co., Ltd. 260, Toyota 3-chome, Oguchi-cho, Niwa-gun, Aichi-ken 480-0195, Japan 2 Products : Receiver(Super Heterodyne) 3 Trade Name : Tokai Rika 4 Model No. : B23RG 5 Serial No. : None 6 FCC ID : MOZB23RG 7 Product Type : Pre-Production 8 Date of Manufacture : None 9 Power Rating : 12.0 VDC 10 EUT Grounding : None 11 Category : All other receivers subject to part 15 12 Received Date of EUT : December 1, 2009 13 EUT Authorization : Certification 14 Fundamental Frequency Generated/used in the EUT : 37.68125 MHz 15 Tuning Range : 312.15 MHz 16 Tuning Frequency (Local Oscillator) : 312.15 MHz (301.45 MHz) 17 Intermediate Frequency : 10.7 MHz 18 EUT Highest Frequency Used/Generated : 312.15 MHz (the part of Fundamental Frequency) 301.45 MHz (the part of Local Oscillator) COPY JQA File No. : 400-090276 Issue Date : December 22, 2009 Model No. : B23RG FCC ID : MOZB23RG Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart A and B Page 5 of 31 Technical document No. 23160-0701 5 Test Condition 5.1 Receiver 5.1.1 AC Powerline Conducted Emission The requirements are -Applicable [-Tested -Not tested by applicant request.] -Not Applicable Test site & instruments : Type Number of test site & instruments (Refer to Appendix C) Test Site -- Test Receiver -- Spectrum Analyzer -- Cable -- AMN(for EUT) -- AMN(for Peripheral) -- Pulse-Limiter -- Termination -- Thermo-Hygrometer -- 5.1.2 Radiated Emission The requirements are -Applicable [-Tested -Not tested by applicant request.] -Not Applicable Test site & instruments (for 30 MHz - 1000 MHz) : Type Number of test site & instruments (Refer to Appendix C) Test Site 1 Test Receiver 13 Spectrum Analyzer -- Antenna 167 168 Cable 38 Thermo-Hygro…

Text truncated - open the document above for the full version.

JQA File No. : 400-090276 Issue Date : December 22, 2009 Model No. : B23RG FCC ID : MOZB23RG Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart A and B Page 25 of 31 Technical document No. 23160-0701 B.1.2 Radiated Emissions - X axis - - Y axis - Photograph present configuration with maximum emission COPY JQA File No. : 400-090276 Issue Date : December 22, 2009 Model No. : B23RG FCC ID : MOZB23RG Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart A and B Page 26 of 31 Technical document No. 23160-0701 - Z axis - Photograph present configuration with maximum emission COPY
