MOZB41RHReceiver

Receiver Model B41RH Locking/Unlocking the doors INSTRUCTIONS When you push the “Lock” button on the transmitter, all the doors can be locked from outsider the vehicle. Make sure all the doors are locked when you leave the vehicle. When you push the “Unlock” button on the transmitter, all the doors can be unlocked from outside the vehicle. For vehicles sold in U.S.A.: NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

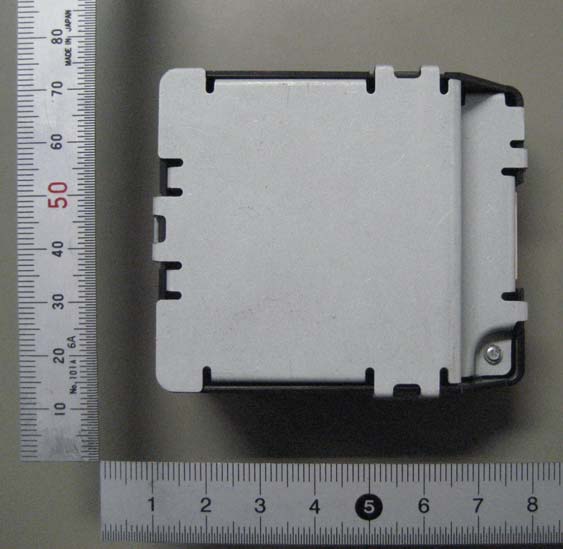

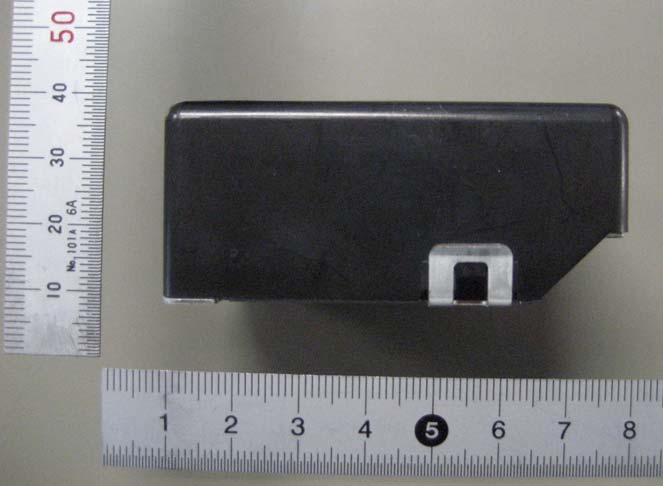

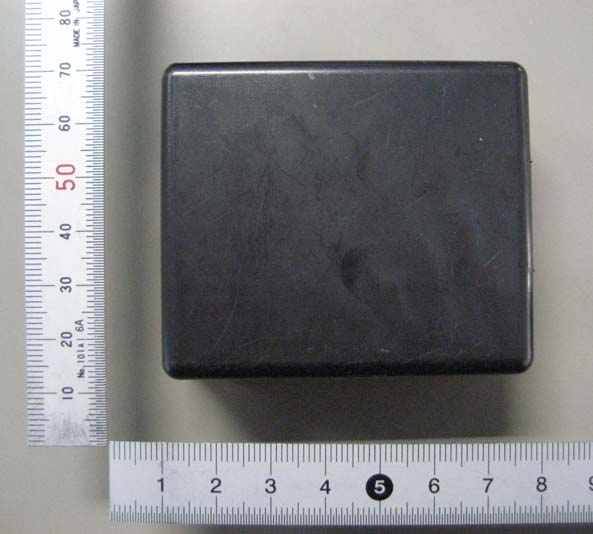

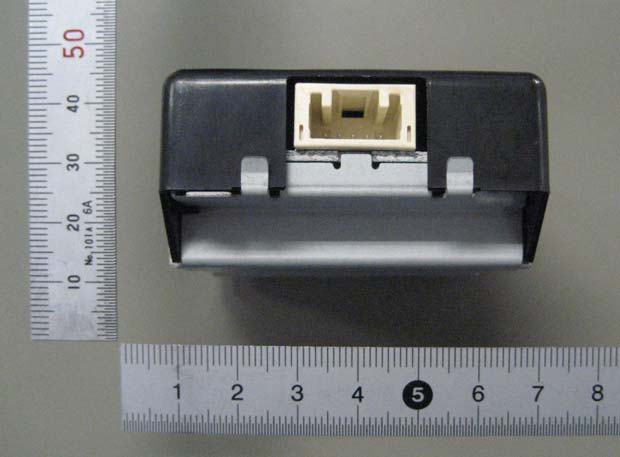

Receiver Model B41RH External Photograph (Representative) Appearance (Front view) Appearance (Reverse View) Receiver Model B41RH Appearance (Top view) Appearance (Bottom view) Receiver Model B41RH Appearance (Side view) Appearance (Side view)

Receiver Model B41RH NAME RECEIVER MODEL B41RH Label Layout SCALE (Front view) (Reverse View) NOTE: The layout and design of the approval label may be changed. Free

Receiver Model B41RH PC boards in the case Receiver Model B41RH Internal Photograph (Representative) PC Board (Front View) ANTENNA PC Board (Reverse View)

Test report No. : 32FE0237-HO-01-B Page : 1 of 12 Issued date : February 8, 2012 FCC ID : MOZB41RH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 EMI TEST REPORT Test Report No. : 32FE0237-HO-01-B Applicant : Tokai Rika Co., Ltd. Type of Equipment : Receiver Model No. : B41RH Test standard : FCC Part 15 Subpart B: 2012 FCC ID : MOZB41RH Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Date of test: ______________________________ Tested by: ______________________________ Satofumi Matsuyama Engineer of WiSE Japan, UL Verification Service Approved by: ______________________________ Shinya Watanabe Leader of WiSE Japan, UL Verification Service May 13, 2010 13-EM-F0429 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 32FE0237-HO-01-B Page : 2 of 12 Issued date : February 8, 2012 FCC ID : MOZB41RH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 6 SECTION 5: Radiated Emission ............................................................................................ 7 APPENDIX 1: Photographs of test setup............................................................................... 8 Radiated Emission ......................................................................................................................... 8 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) ....................................................... 9 APPENDIX 2: Data of EMI test ........................................................................................... 10 Radiated Emission ....................................................................................................................... 10 APPENDIX 3: Test instruments ........................................................................................... 12 Test report No. : 32FE0237-HO-01-B Page : 3 of 12 Issued date : February 8, 2012 FCC ID : MOZB41RH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Tokai Rika Co., Ltd. Address : 260 Toyota 3-chome, Oguchi-cho, Niwa-gun, Aichi-ken 480-0195 Japan Telephone Number : +81-587-95-0093 Facsimile Number : +81-587-95-5471 Contact Person : Masahiro Kato SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Receiver Model No. : B41RH Serial No. : Refer to Clause 4.2 Rating : DC12.0V Receipt Date of Sample : May 11, 2010 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: B41RH (referred to as the EUT in this report) is the Receiver. Radio Specification Radio Type : Receiver Equipment Type : Super Heterodyne Frequency of Operation : 314.35MHz Intermediate Frequency : 220kHz Other Clock frequency : 9.956MHz Inner Voltage : DC5.0V Antenna type : Pattern Antenna FCC15.111(b) The receiving antenna (of this EUT) is installed inside the EUT and cannot be removed (permanently attached). Therefore, Radiated emission test was performed. Test report No. : 32FE0237-HO-01-B Page : 4 of 12 Issued date : February 8, 2012 FCC ID : MOZB41RH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B: 2012, final revised on February 1, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators *The revision on February 1, 2012 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Limits DeviationWorst margin Result Conducted emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Part 15 Subpart B 15.107(a) N/A N/A N/A *1) Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements Part 15 Subpart B 15.109(a) N/A 18.9dB 943.710MHz, QP Horizontal / Vertical Complied *Note: UL Japan, Inc’s EMI Work Procedure 13-EM-W0420. *1) The test is not applicable since the EUT is not the device that is designed to be connected to the public utility (AC) power line. 3.3 Addition to standard Other than above, no addition, exclusion nor deviation has been made from the standard. 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Test room (semi- anechoic chamber) Radiated e…

Text truncated - open the document above for the full version.

Test report No. : 32FE0237-HO-01-B Page : 10 of 12 Issued date : February 8, 2012 FCC ID : MOZB41RH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2010/05/13 Company : Tokai Rika Co., Ltd. Report No. : 30IE0290-HO-01 Kind of EUT : RKE Receiver Power : DC 12.0V Model No. : B41RH Temp./Humi. : 22deg.C / 35% Serial No. : 1 Operator : Satofumi Matsuyama Mode / Remarks : Rx 314.35MHz, Worst-axis, Hor:X-axis Ver:X-axis LIMIT : RSS-Gen Receiver Spurious Emission at 3m, below 1GHz:QP, above 1GHz:PK All other spurious emissions were less than 20dB for the limit. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 3010005070100200300500700 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 314.57023.7QP14.8-21.716.8174100Hori.46.029.2 314.57022.7QP14.8-21.715.8326100Vert.46.030.2 629.14023.1QP19.8-20.022.955167Hori.46.023.1 629.14023.4QP19.8-20.023.2209100Vert.46.022.8 943.71021.6QP22.8-17.327.10100Hori.46.018.9 943.71021.6QP22.8-17.327.10100Vert.46.018.9 *The limit is rounded down to one decimal place. *The test result is rounded off to one or two decimal places, so some differences might be observed. 32FE0237-HO-01 FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK Except for the data below: adequate margin data below the limits. Test report No. : 32FE0237-HO-01-B Page : 11 of 12 Issued date : February 8, 2012 FCC ID : MOZB41RH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2010/05/13 Company : Tokai Rika Co., Ltd. Report No. : 30IE0290-HO-01 Kind of EUT : RKE Receiver Power : DC 12.0V Model No. : B41RH Temp./Humi. : 22deg.C / 35% Serial No. : 1 Operator : Satofumi Matsuyama Mode / Remarks : Rx 314.35MHz, Worst-axis, Hor:X-axis Ver:X-axis LIMIT : RSS-Gen Receiver Spurious Emission at 3m, below 1GHz:QP, above 1GHz:PK RSS-Gen Receiver Spurious Emission at 3m, below 1GHz:QP, above 1GHz:AV CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< AV/PEAK DATA >> Horizontal Vertical Horizontal Vertical 10002000 0 10 20 30 40 50 60 70 80 90 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 1257.40044.8PK26.0-32.538.30100Hori.73.935.6 1257.40044.8PK26.0-32.538.30100Vert.73.935.6 1257.40033.4AV26.0-32.526.90100Hori.53.927.0 1257.40033.4AV26.0-32.526.90100Vert.53.927.0 1571.75044.0PK27.1-31.539.60100Hori.73.934.3 1571.75044.1PK27.1-31.539.70100Vert.73.934.2 1571.75032.6AV27.1-31.528.20100Hori.53.925.7 1571.75032.6AV27.1-31.528.20100Vert.53.925.7 1886.10042.9PK28.0-30.640.30100Hori.73.933.6 1886.10042.8PK28.0-30.640.20100Vert.73.933.7 1886.10031.4AV28.0-30.628.80100Hori.53.925.1 1886.10031.4AV28.0-30.628.80100Vert.53.925.1 *The limit is rounded down to one decimal place. *The test result is rounded off to one or two decimal places, so some differences might be observed. 32FE0237-HO-01 FCC15.109(a) 3m, below 1GHz:QP, above: 1GHz:PK FCC15.109(a) 3m, below 1GHz:QP, above: 1GHz:AV Test report No. : 32FE0237-HO-01-B Page : 12 of 12 Issued date : February 8, 2012 FCC ID : MOZB41RH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Test instruments EMI test equipment Control No. Instrument Manufacturer Model No Serial No Test Item Calibration Date * Interval(month) MAEC-03 Semi Anechoic Chamber(NSA) TDK Semi Anechoic Chamber 3m DA-10005 RE 2010/02/01 * 12 MOS-13 Thermo-Hygrometer Custom CTH-180 - RE 2010/02/09 * 12 MJM-06 Measure PROMART SEN1955 - RE - COTS-MEMI EMI measurement program TSJ TEPTO-DV - RE - MSA-10 Spectrum Analyzer Agilent E4448A MY46180655RE 2010/02/03 * 12 MTR-08 Test Receiver Rohde & Schwarz ESCI 100767 RE 2009/06/30 * 12 MBA-03 Biconical Antenna Schwarzbeck BBA9106 1915 RE 2010/01/23 * 12 MLA-03 Logperiodic Antenna Schwarzbeck USLP9143 174 RE 2010/01/23 * 12 MCC-51 Coaxial cable UL Japan - - RE 2009/07/02 * 12 MAT-09 Attenuator(6dB) Weinschel Corp 2 BK7973 RE 2009/11/12 * 12 MPA-13 Pre Amplifier SONOMA INSTRUMENT 310 260834 RE 2010/03/23 * 12 MHA-20 Horn Antenna 1- 18GHz Schwarzbeck BBHA9120D 258 RE 2010/05/07 * 12 MCC-56 Microwave Cable Suhner SUCOFLEX104 174410(1m) / 284655(5m) RE 2010/01/25 * 12 MPA-11 MicroWave System Amplifier Agilent 83017A MY39500779RE 2010/03/03 * 12 The expiration date of the calibration is the end of the expired month. All equipment is calibrated with valid calibrations. Each measurement data is traceable to the national or international standards. As for some calibrations performed after the tested dates, those test equipment have been controlled by means of an unbroken chains of calibrations. Test Item: RE: Radiated emission

Test report No. : 32FE0237-HO-01-B Page : 8 of 12 Issued date : February 8, 2012 FCC ID : MOZB41RH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 32FE0237-HO-01-B Page : 9 of 12 Issued date : February 8, 2012 FCC ID : MOZB41RH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis
