MOZB95THRKE Transmitter

RKE Transmitter Model B95TH Our product, RKE Transmitter Model B95TH is supplied to a vehicle manufacturer as original equipment (OE). Therefore, we will not issue any user manual. We will ask the vehicle manufacturer to put the following statements on the vehicle user manual. For vehicles sold in U.S.A.: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The FCC ID/IC Certification number is affixed inside the equipment. You can find the ID/number when replacing the battery. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. User Manual

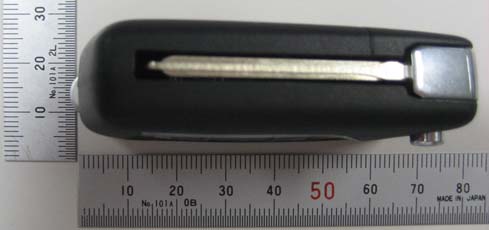

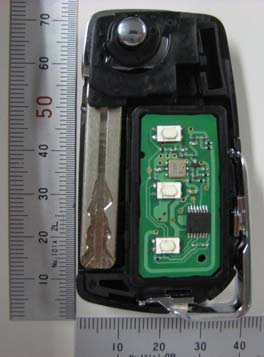

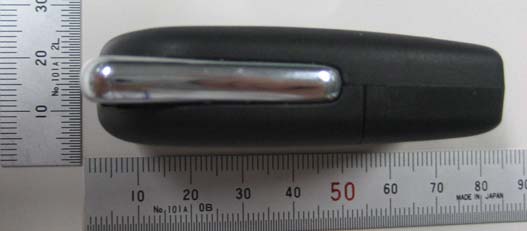

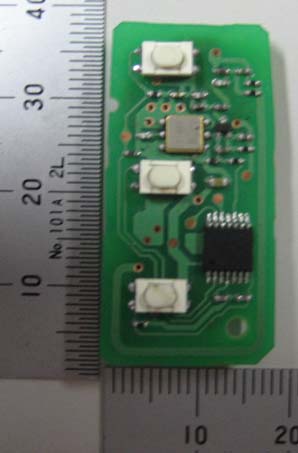

1/2 RKE Transmitter Model B95TH Photographs (Representative) Appearance (Front View) Appearance (Rear View) PC board (Front View) RF PATTERN ANTENNA PC board (Rear View) PC board inside the case 2/2 RKE Transmitter Model B95TH Appearance (Top View) Appearance (Bottom View) Appearance (Side View)

RKE Transmitter Model B95TH 11. Label Drawing SCALE: FREE NOTE: The layout of approval number(s) etc. may be changed. -end-

Test report No. : 32LE0207-HO-01-A Page : 1 of 20 Issued date : September 10, 2012 FCC ID : MOZB95TH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 32LE0207-HO-01-A Applicant : Tokai Rika Co., Ltd. Type of Equipment : RKE Transmitter Model No. : B95TH Test regulation : FCC Part 15 Subpart C: 2012 FCC ID : MOZB95TH Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Date of test: ______________________________ Tested by: ______________________________ Tomotaka Sasagawa Engineer of WiSE Japan, UL Verification Service Approved by: ______________________________ Shinya Watanabe Leader of WiSE Japan, UL Verification Service 13-EM-F0429 August 30, 2012 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 32LE0207-HO-01-A Page : 2 of 20 Issued date : September 10, 2012 FCC ID : MOZB95TH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 3 SECTION 2: Equipment under test (E.U.T.) ···································································· 3 SECTION 3: Test specification, procedures & results························································· 4 SECTION 4: Operation of E.U.T. during testing ······························································· 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 8 SECTION 6: Automatically deactivate ········································································· 10 SECTION 7: -20dB and 99% Occupied Bandwidth ························································· 10 APPENDIX 1: Data of EMI test ·················································································· 11 Automatically deactivate................................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 12 -20dB and 99% Occupied Bandwidth ............................................................................................... 13 Duty Cycle ........................................................................................................................................ 14 APPENDIX 2:Test Instruments ··················································································· 17 APPENDIX 3: Photographs of test setup ······································································· 18 Radiated emission ............................................................................................................................. 18 Worst case position ........................................................................................................................... 19 Test report No. : 32LE0207-HO-01-A Page : 3 of 20 Issued date : September 10, 2012 FCC ID : MOZB95TH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Tokai Rika Co., Ltd. Address : 260 Toyota 3-chome, Oguchi-cho, Niwa-gun, Aichi-ken 480-0195 Japan Telephone Number : +81-587-95-0093 Facsimile Number : +81-587-95-5471 Contact Person : Masahiro Kato SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : RKE Transmitter Model No. : B95TH Serial No. : Refer to Clause 4.2 Rating : DC 2.5 to 3.2V Receipt Date of Sample : August 28, 2012 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: B95TH (referred to as the EUT in this report) is the RKE Transmitter. Radio Specification Radio Type : Transmitter Frequency of Operation : 314.35MHz Modulation : ASK Antenna type : Pattern Antenna Test report No. : 32LE0207-HO-01-A Page : 4 of 20 Issued date : September 10, 2012 FCC ID : MOZB95TH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on July 23, 2012 and effective August 22, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 7.2.2 IC: RSS-Gen 7.2.2 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measu…

Text truncated - open the document above for the full version.

Test report No. : 32LE0207-HO-01-A Page : 18 of 20 Issued date : September 10, 2012 FCC ID : MOZB95TH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 32LE0207-HO-01-A Page : 19 of 20 Issued date : September 10, 2012 FCC ID : MOZB95TH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis Test report No. : 32LE0207-HO-01-A Page : 20 of 20 Issued date : September 10, 2012 FCC ID : MOZB95TH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (folded out) Worst Mechanical Key (folded in) End of Report
