MOZB97TZRKE Transmitter

For vehicles sold in U.S.A.: NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada: NOTE This device complies with Industry Canada’s license -exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : 1) l'appareil ne doit pas produire de brouillage; 2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The FCC ID/IC Certification number is affixed inside the equipment. You can find the ID/number when replacing the battery. Note: We will not supply the user’s manual because our product(B97TZ) is one of the vehicle parts. However, we will ask the vehicle manufacturer to include the above statements in the vehicle user’s manual in accordance FCC & IC requirements. RKE Transmitter Model:B97TZ FCC ID:MOZB97TZ IC:2584A-B97TZ

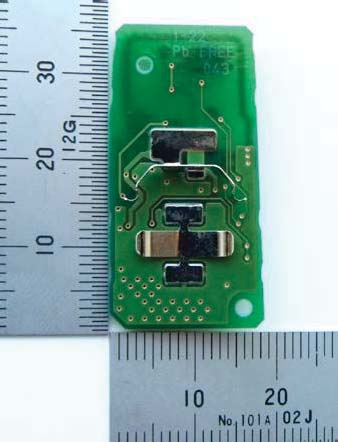

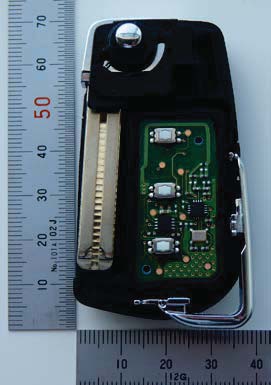

㻾㻷㻱㻌㼀㼞㼍㼚㼟㼙㼕㼠㼠㼑㼞㻌㻹㼛㼐㼑㼘㻦㻮㻥㻣㼀㼆㻌 㻲㻯㻯㻌㻵㻰㻦㻹㻻㼆㻮㻥㻣㼀㼆㻌 㻵㻯㻦㻞㻡㻤㻠㻭㻙㻮㻥㻣㼀㼆㻌 Photographs (Representative) Appearance (Front View) Appearance (Rear View) PC board (Front View) RF PATTERN ANTENNA PC board (Rear View) PC board inside the case 1/2 㻾㻷㻱㻌㼀㼞㼍㼚㼟㼙㼕㼠㼠㼑㼞㻌㻹㼛㼐㼑㼘㻦㻮㻥㻣㼀㼆㻌 㻲㻯㻯㻌㻵㻰㻦㻹㻻㼆㻮㻥㻣㼀㼆㻌 㻵㻯㻦㻞㻡㻤㻠㻭㻙㻮㻥㻣㼀㼆㻌  Appearance (Top View) Appearance (Bottom View) Appearance (Side View) 2/2

RKE Transmitter Model:B97TZ FCC ID:MOZB97TZ IC:2584A-B97TZ 11. Label Drawing SCALE: FREE NOTE: The layout of approval number(s) etc. may be changed. -end- Model：B97TZ TOKAI RIKA FCC ID:MOZB97TZ IC：2584A-B97TZ

㻾㻷㻱㻌㼀㼞㼍㼚㼟㼙㼕㼠㼠㼑㼞㻌㻹㼛㼐㼑㼘㻦㻮㻥㻣㼀㼆㻌 㻲㻯㻯㻌㻵㻰㻦㻹㻻㼆㻮㻥㻣㼀㼆㻌 㻵㻯㻦㻞㻡㻤㻠㻭㻙㻮㻥㻣㼀㼆㻌 Photographs (Representative) Appearance (Front View) Appearance (Rear View) PC board (Front View) RF PATTERN ANTENNA PC board (Rear View) PC board inside the case 1/2

Test report No. : 10956978H-A-R1 Page : 1 of 20 Issued date : September 24, 2015 Revised date : December 14, 2015 FCC ID : MOZB97TZ UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10956978H-A-R1 Applicant : TOKAI RIKA CO., LTD. Type of Equipment : RKE Transmitter Model No. : B97TZ Test regulation : FCC Part 15 Subpart C: 2015 FCC ID : MOZB97TZ Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7. This report is a revised version of 10956978H-A. 10956978H-A is replaced with this report. Date of test: September 10 and 11, 2015 Representative test engineer: Keisuke Kawamura Engineer Consumer Technology Division Approved by: Motoya Imura Engineer Consumer Technology Division NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://japan.ul.com/resources/emc_accredited/ Test report No. : 10956978H-A-R1 Page : 2 of 20 Issued date : September 24, 2015 Revised date : December 14, 2015 FCC ID : MOZB97TZ UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10956978H-A Revision Test report No. Date Page revised Contents - (Original) 10956978H-A September 24, 2015 - - 1 10956978H-A-R1 December 14, 2015 P. 4 Correction of Rating 1 10956978H-A-R1 December 14, 2015 P. 4 Correction of Clock frequencies 1 10956978H-A-R1 December 14, 2015 P. 4 Addition of Operating Voltage Range 1 10956978H-A-R1 December 14, 2015 P. 5 Correction of “FCC Part 15.203 Antenna requirement” 1 10956978H-A-R1 December 14, 2015 P. 5 Update to FCC version Test report No. : 10956978H-A-R1 Page : 3 of 20 Issued date : September 24, 2015 Revised date : December 14, 2015 FCC ID : MOZB97TZ UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 4 SECTION 2: Equipment under test (E.U.T.) ···································································· 4 SECTION 3: Test specification, procedures & results························································· 5 SECTION 4: Operation of E.U.T. during testing ······························································· 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 9 SECTION 6: Automatically deactivate ········································································· 10 SECTION 7: -20 dB and 99 % Occupied Bandwidth ························································ 10 APPENDIX 1: Test data ···························································································· 11 Automatically deactivate................................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 13 -20dB and 99% Occupied Bandwidth ............................................................................................... 15 APPENDIX 2: Test Instruments ················································································· 17 APPENDIX 3: Photographs of test setup ······································································· 18 Radiated emission ............................................................................................................................. 18 Worst case position ........................................................................................................................... 19 Test report No. : 10956978H-A-R1 Page : 4 of 20 Issued date : September 24, 2015 Revised date : December 14, 2015 FCC ID : MOZB97TZ UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : TOKAI RIKA CO., LTD Address : 3-260 Toyota, Oguchi-cho, Niwa-gun, Aichi-ken, 480-0195 Japan Telephone Number : +81-587-95-0093 Facsimile Number : +81-587-95-5471 Contact Person : Hiroki Unno SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : RKE Transmitter Model No. : B97TZ Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.0 V Receipt Date of Sample : September 10, 2015 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description Model No: B97TZ (referred to as the EUT in this report) is the RKE Transmitter. General Specification Clock frequencies in the system : 8 MHz, 18.37 MHz Radio Specification Radio Type : Transmitter Frequency of Operation : CH1: 314.35 MHz CH2: 312.10 MHz Modulation : FSK Method of Frequency Generation : Crystal Antenna Type : Pattern Antenna Operating Temperature Range : -20 to +60 deg. C Operating Voltage Range : DC 2.5 to 3.2 V Test report No. : 10956978H-A-R1…

Text truncated - open the document above for the full version.

Test report No. : 10956978H-A-R1 Page : 18 of 20 Issued date : September 24, 2015 Revised date : December 14, 2015 FCC ID : MOZB97TZ UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 10956978H-A-R1 Page : 19 of 20 Issued date : September 24, 2015 Revised date : December 14, 2015 FCC ID : MOZB97TZ UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position Below 1GHz (Horizontal: X-axis / Vertical: Y-axis) Above 1GHz (Horizontal: Z-axis / Vertical: Y-axis) X-axis Y-axis Z-axis Test report No. : 10956978H-A-R1 Page : 20 of 20 Issued date : September 24, 2015 Revised date : December 14, 2015 FCC ID : MOZB97TZ UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (Not Inserted) Worst Mechanical Key (Inserted) End of Report
