MOZF01TGRKE Transmitter

RKE Transmitter Model F01TG FCC ID: MOZF01TG Locking/Unlocking the doors INSTRUCTIONS When you push the “Lock” button on the transmitter, all the doors can be locked from outsider the vehicle. Make sure all the doors are locked when you leave the vehicle. When you push the “Unlock” button on the transmitter, all the doors can be unlocked from outside the vehicle. For vehicles sold in U.S.A.: NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada: NOTE Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Dear Tim, Please find our answer to your comments for MOZF01TG/ 2584A - F01TG below "==>". This is quite urgent project for our client, so please issue us FCC/IC certificate until Feb.1. We truly appreciate for your speedy action. All revised & additional documents are already uploaded to ATCB web. 1) 15.231 has a 5 second maximum timing requirement, but information in the block diagram and Operational Description mentions a 7 second maximum requirement. Please review. ==> "7 second maximum" is when user is keep pushing the switch. When user release it, it will stop transmitting within 5 seconds. We deleted the "7 second maximum " from the documents. 2) The block diagram should include the oscillator frequency. Please update. ==> Please find revised Block Diagram. 3) Due to recent FCC requirements about proper authority being given to others for FCC and/or IC matters, the agency letter (and confidentiality letters as well) should be signed by someone traceable to have the proper authority. For instance, the FCC site shows Reiko Kagimoto as the correct contact of authority for FCC matters. Therefore the agency letters should be signed by this contact or alternatively a letter showing who he has “deputized” (i.e. Toshihito Kunii) to sign on his behalf may be provided as well. Please see attachments and correct. Additionally note that although UL is authorized as an agent, the FCC has now asked: If a group “entity” is designated as the authorized agent, the letter of authorization must identify those individuals within the group who are authorized to take action on the application; or alternatively a statement must be provided indicating that as the authorized agent, any individual within the group “entity” is authorized to act on behalf of the applicant / grantee and take action on the application. ==> Our client changed the Grantee Code Contact information to Mr.Toshihito Kunii. Please find "ModifyRoutineGrantee.pdf " Pleas find agent letter from Mr.Toshihito Kunii to our group manager Mr.Naoki Sakamoto. 4) Many of the component values in the parts list and schematics appear to be ranges instead of actual values. Please review/explain as this is unusual. ==>We deleted component values from the schematics and revised the component values in the parts list. The range 10 % is manufacturing variations. 5) Users manual suggests functions beyond what the device contains (back window, panic, trunk). Please review/correct. ==> Please find revised Block Diagram. 6) It appears that QP was used for Fundamental and Harmonics below 1 GHz. For QP detectors to be valid, it must be shown that a 20 Hz. Rep rate on the packets was achieved during test (see 15.35 (a)). If this can not be done, then peak and average measurements should be used. It appears that maybe a rep rate of around 22 Hz may have been used, but this needs to be verified. ==> Already answered. Please find revised test report. 7) Duty cycle information is looking at the fundamental in a 3 kHz RBW. This is only looking at one of the FSK positions of the carrier and not the true overall on/of nature of the fundamental. To obtain a true picture of the fundamental, the RBW should be >> Bandwidth of the signal and use a 0 Hz span. It is uncertain if correct average information has been supplied. Note that averaging is subtracting a value from the Peak reading. However peak readings are generally taken in 120 kHz for < 1 GHz or 1 MHz for > 1 GHz. However the switching nature between carrier positions of FSK will both occur in < 120 kHz. Therefore looking at only one position of the carrier is actually missing about 50% of the information. Note that if this device is not actually pulsing, an AVG detector may be used instead. ==> Already answered. Please find revised test report. Keijiro UL Japan

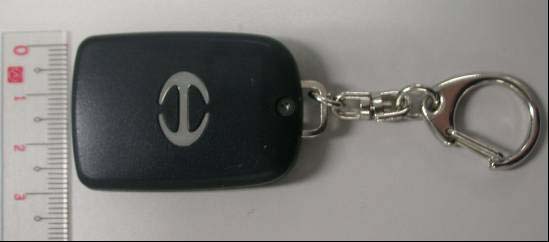

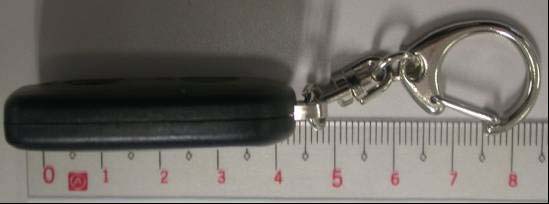

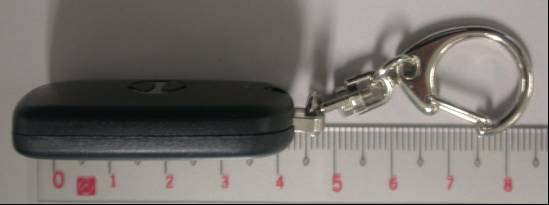

1/5 RKE Transmitter Model F01TG FCC ID: MOZF01TG External Photograph Appearance (Front View) Appearance (Reverse View) 2/5 RKE Transmitter Model F01TG FCC ID: MOZF01TG Appearance (Top View) Appearance (Bottom View) 3/5 RKE Transmitter Model F01TG FCC ID: MOZF01TG Appearance (Side View) Appearance (Side View)

NAME RKE Transmitter MODEL F01TG Label Layout SCALE Free NOTE: The layout and design of t he approval label may be change d. RKE Transmitter Model F01TG FCC ID: MOZF01TG

4/5 RKE Transmitter Model F01TG FCC ID: MOZF01TG Internal Photograph PC board inside the case 5/5 RKE Transmitter Model F01TG FCC ID: MOZF01TG PC board (Front View) PC board (Reverse View) Pattern Antenna

Test report No. : 28EE0022-HO-01-A-R2 Page : 1 of 17 Issued date : January 15, 2008 Revised date : February 5, 2008 FCC ID : MOZF01TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 28EE0022-HO-01-A-R2 Applicant : Tokai Rika Co., Ltd. Type of Equipment : RKE Transmitter Model No. : F01TG Test standard : FCC Part 15 Subpart C Section 15.231:2007 FCC ID : MOZF01TG Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with above regulation. 4. The test results in this report are traceable to the national or international standards. 5. Original test report number of this report is 28EE0022-HO-01-A. Date of test : December 23, 2007 and February 2, 2008 Tested by : Makoto Kosaka EMC Services Approved by : Mitsuru Fujimura Assistant Manager of EMC Services NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://uljapan.co.jp/emc/nvlap.htm MF060b (18.06.07) Test report No. : 28EE0022-HO-01-A-R2 Page : 2 of 17 Issued date : January 15, 2008 Revised date : February 5, 2008 FCC ID : MOZF01TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...............................................................................................................3 SECTION 2: Equipment under test (E.U.T.)..................................................................................................3 SECTION 3: Test specification, procedures & results ..................................................................................4 SECTION 4: Operation of E.U.T. during testing ...........................................................................................8 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ....................................................9 APPENDIX 1: Photographs of test setup ......................................................................................................10 Radiated emission ...................................................................................................................................... 10 Worst case position .................................................................................................................................... 11 APPENDIX 2: Data of EMI test......................................................................................................................12 Automatically deactivate ........................................................................................................................... 12 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ....................... 13 -20dB Bandwidth ....................................................................................................................................... 14 99% Occupied Bandwidth ........................................................................................................................ 15 Duty Cycle .................................................................................................................................................. 16 APPENDIX 3:Test Instruments ......................................................................................................................17 Test report No. : 28EE0022-HO-01-A-R2 Page : 3 of 17 Issued date : January 15, 2008 Revised date : February 5, 2008 FCC ID : MOZF01TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Tokai Rika Co., Ltd. Address : 3-260 Toyota, Oguchi-cho, Niwa-gun, Aichi-ken, 480-0195 Japan Telephone Number : +81-587-95-0093 Facsimile Number : +81-587-95-5471 Contact Person : Toshihito Kunii SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : RKE Transmitter Model No. : F01TG Serial No. : 2 Rating : DC3.0V (Lithium Battery CR1616) Country of Manufacture : Japan Receipt Date of Sample : December 20, 2007 Condition of EUT : Production model Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: F01TG (referred to as the EUT in this report) is the RKE Transmitter. Equipment Type : Transmitter Frequency of Operation : 312.15MHz Type of modulation : FSK Power Control : No Mode of Operation : Simplex ITU code : F1D Antenna Type : Pattern Antenna Test report No. : 28EE0022-HO-01-A-R2 Page : 4 of 17 Issued date : January 15, 2008 Revised date : February 5, 2008 FCC ID : MOZF01TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C : 2007 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V). Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 28EE0022-HO-01-A-R2 Page : 5 of 17 Issued date : January 15, 2008 Revised date : Febr…

Text truncated - open the document above for the full version.

Test report No. : 28EE0022-HO-01-A-R2 Page : 12 of 17 Issued date : January 15, 2008 Revised date : February 5, 2008 FCC ID : MOZF01TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber COMPANY: Tokai Rika Co., Ltd.REPORT NO: 28LE0022-HO-01 EQUIPMENT : RKE TransmitterREGULATION: FCC15.231(a)(1) MODEL: F01TGTEST DISTANC E: - S/N: 2DATE: 12/23/2007 POWER: DC 3.0V(CR1616)TEMPERATURE : 24 deg.C. Mode: Normal use modeHUMIDITY: 42% EUT Axis: -ENGINEER: Makoto Kosaka Time ofLimit Result Transmitting [sec][sec] 0.595.00Pass Test report No. : 28EE0022-HO-01-A-R2 Page : 13 of 17 Issued date : January 15, 2008 Revised date : February 5, 2008 FCC ID : MOZF01TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) *The test above 1GHz was performed with PK DETECT (RBW: 1MHz, VBW: 1MHz) and AV (PK DETECT [RBW: 1MHz, VBW: 10Hz]). *Duty Factor was calculated with the assumption of the worst condition in 100msec. * The result is rounded off to the second decimal place, so some differences might be observed. *The limit was converted from V to dBuV, and it is rounded off to the second decimal place. *Except for the above table : All other spurious emissions were less than 20dB for the limit. The carrier level (or, noise levels) was (or were) measured at each position of all three axes X, Y and Z, and the position that has the maximum noise was determined. With the position, the noise levels of all the frequencies was measured. UL Japan, Inc. Head Office EMC Lab. No.3 & 4 Semi Anechoic Chamber COMPANY: Tokai Rika Co., Ltd.REPORT NO: 28LE0022-HO-01 EQUIPM ENT: RKE TransmitterREGULATION : FCC Part15 Subpart C 15.231(b) / 15.205 / 15.209 MODEL: F01TGTEST DISTANCE: 3m S/N: 2DATE: 12/23/2007 02/02/2008 POWER: DC 3.0V(CR1616)TEMPERATURE: 24deg. C. 21deg.C. M ode: Transmitting modeHUM IDITY: 42% 34% EUT Axis: Hor.: X-axis , Ver.: Y-axisENGINEER: M akoto Kosaka QP DETECT No.FREQT/R READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 1312.1566.062.614.532.010.0-58.555.175.416.920.3 2624.3032.231.319.332.111.8-31.230.355.424.225.1 3936.4526.023.722.330.913.3-30.728.455.424.727.0 PK DETECT (RBW: 1MHz , VBW: 1MHz)(Inside Restricted bands) No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 51560.7549.850.525.932.62.3-45.446.173.928.527.8 82497.2047.645.627.531.53.1-46.744.773.927.229.2 92809.3552.247.728.031.43.3-52.147.673.921.826.3 PK DETECT Result = Reading (RBW : 1M Hz , VBW : 1M Hz)(Outside Restricted bands) No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 41248.6045.646.225.333.52.0-39.440.075.436.035.4 61872.9047.749.326.531.92.5-44.846.475.430.629.0 72185.0548.546.727.031.62.8-46.744.975.428.730.5 103121.5054.255.728.231.83.1-53.755.275.421.720.2 AV (PK DETECT) Result = Reading (RBW: 1MHz , VBW: 10Hz)(Outside Restricted bands) No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 103121.5051.053.028.231.83.1-50.552.555.44.92.9 REMARKSANTENNA TYPE:30-300MHz Biconical / 300-1000MHz Logperiodic / 1-3.2GHz Horn CALCULATION RESULT=Reading + ANT Factor - Amp Gain + LOSS (Cable+ ATTEN.)+Duty factor Duty cycle Factor Measurement :0.0 dB [dBuV][dBuV/m] [dBuV][dBuV/m] [dBuV][dBuV/m] [dBuV][dBuV/m] Test report No. : 28EE0022-HO-01-A-R2 Page : 14 of 17 Issued date : January 15, 2008 Revised date : February 5, 2008 FCC ID : MOZF01TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 -20dB Bandwidth UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber COMPANY : Tokai Rika Co., Ltd.REPORT NO: 28EE0022-HO-01 EQUIPMEN T: RKE TransmitterREGULATION: FCC15.231( c ) MODEL: F01TGTEST DISTANCE: 3m S/N: 2DATE: 12/23/2007 POWER: DC 3.0V(CR1616)TEMPERATURE: 24 deg.C. Mode: Transmitting modeHUMIDITY: 42% Axis: Hor.: X-axis ENGINEER: Makoto Kosaka Bandwidth Limit : Fundamental Frequency 312.15 MHz X 0.25% = 780.38kHz -20dB BandwidthResult [kHz] 52.00Pass Bandwidth Limit [kHz] 780.38 Test report No. : 28EE0022-HO-01-A-R2 Page : 15 of 17 Issued date : January 15, 2008 Revised date : February 5, 2008 FCC ID : MOZF01TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 99% Occupied Bandwidth UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber COMPANY: Tokai Rika Co., Ltd.REPORT NO: 28EE0022-HO-01 EQUIPMENT : RKE TransmitterREGULATION: RSS-210 A1.1.3 MODEL: F01TGTEST DISTANC E: 3m S/N: 2DATE: 12/23/2007 POWER: DC 3.0V(CR1616)TEMPERATURE : 24 deg.C. Mode: Transmitting modeHUMIDITY: 42% Axis: Hor.: X-axis ENGINEER: Makoto Kosaka Bandwidth Limit : Fundamental Frequency 312.15 MHz X 0.25% = 780.38 kHz Result Pass 99% Occupied Bandwidth [kHz] 44.50 Bandwidth Limit [kHz] 780.38 Test report No. : 28EE0022-HO-01-A-R2 Page : 16 of 17 Issued date : January 15, 2008 Revised date : February 5, 2008 FCC ID : MOZF01TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber COMPANY: Tokai Rika Co., Ltd.REPORT NO: 28LE0022-HO-01 EQUIPMENT: RKE TransmitterREGULATION: FCC 15.231(b) / 15.35(c) MODEL: F01TGTEST DISTANCE: - S/N: 2DATE: 02/02/2008 POWER: DC 3.0V(CR1616)TEMPERATURE: 21 deg.C. Mode: Transmitting modeHUMIDITY: 34% Axis: -ENGINEER: Makoto K…

Text truncated - open the document above for the full version.

Test report No. : 28EE0022-HO-01-A-R2 Page : 10 of 17 Issued date : January 15, 2008 Revised date : February 5, 2008 FCC ID : MOZF01TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Front Rear Test report No. : 28EE0022-HO-01-A-R2 Page : 11 of 17 Issued date : January 15, 2008 Revised date : February 5, 2008 FCC ID : MOZF01TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis
