RKE Transmitter Model F02RG FCC ID: MOZF02RG Locking/Unlocking the doors INSTRUCTIONS When you push the “Lock” button on the transmitter, all the doors can be locked from outsider the vehicle. Make sure all the doors are locked when you leave the vehicle. When you push the “Unlock” button on the transmitter, all the doors can be unlocked from outside the vehicle. For vehicles sold in U.S.A.: NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada: NOTE Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 16, 2008 RE: Tokai Rika Co., Ltd. FCC ID: MOZF02RG After a review of the submitted information, I have a few comments on the above referenced Application. Depending on your responses, kindly understand there may be additional comments. 1) Due to recent FCC requirements about proper authority being given to others for FCC and/or IC matters, the agency letter (and confidentiality letters as well) should be signed by someone traceable to have the proper authority. For instance, the FCC site shows Reiko Kagimoto as the correct contact of authority for FCC matters. Therefore the agency letters should be signed by this contact or alternatively a letter showing who he has “deputized” (i.e. Toshihito Kunii) to sign on his behalf may be provided as well. Please see attachments and correct. Additionally note that although UL is authorized as an agent, the FCC has now asked: If a group “entity” is designated as the authorized agent, the letter of authorization must identify those individuals within the group who are authorized to take action on the application; or alternatively a statement must be provided indicating that as the authorized agent, any individual within the group “entity” is authorized to act on behalf of the applicant / grantee and take action on the application. 2) Many of the component values in the parts list and schematics appear to be ranges instead of actual values. Please review/explain as this is unusual. 3) Kindly provide test photographs as a separate exhibit. FCC requires we upload these separately. 4) ANSI C63.4 requires a signal generator operating at the RX frequency nearby. Please see ANSI C63.4 12.1.1.2. Please review. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Tim, Please find our answer to your comments for MOZF02RG/ 2584A - F02RG below "==>". This is quite urgent project for our client, so please issue us FCC/IC certificate until Feb.1. We truly appreciate for your speedy action. All revised & additional documents are already uploaded to ATCB web. Additionally there was an error in already submitted label drawing and location. We uploaded revised label drawing and location. Please confirm. There was only stated "FCC" before FCCID, so we revised to "FCC ID". 1) Due to recent FCC requirements about proper authority being given to others for FCC and/or IC matters, the agency letter (and confidentiality letters as well) should be signed by someone traceable to have the proper authority. For instance, the FCC site shows Reiko Kagimoto as the correct contact of authority for FCC matters. Therefore the agency letters should be signed by this contact or alternatively a letter showing who he has “deputized” (i.e. Toshihito Kunii) to sign on his behalf may be provided as well. Please see attachments and correct. Additionally note that although UL is authorized as an agent, the FCC has now asked: If a group “entity” is designated as the authorized agent, the letter of authorization must identify those individuals within the group who are authorized to take action on the application; or alternatively a statement must be provided indicating that as the authorized agent, any individual within the group “entity” is authorized to act on behalf of the applicant / grantee and take action on the application. ==> Our client changed the Grantee Code Contact information to Mr.Toshihito Kunii. Pleas find agent letter from Mr.Toshihito Kunii to our group manager Mr.Naoki Sakamoto. 2) Many of the component values in the parts list and schematics appear to be ranges instead of actual values. Please review/explain as this is unusual. ==>We deleted component values from the schematics and revised the component values in the parts list. The range 10 % is manufacturing variations. 3) Kindly provide test photographs as a separate exhibit. FCC requires we upload these separately. ==> Uploaded. 4) ANSI C63.4 requires a signal generator operating at the RX frequency nearby. Please see ANSI C63.4 12.1.1.2. Please review. ==> Already answered. We uploaded revised test report. Keijiro UL Japan Page 1 of 1In 1/30/2008Printed for "Timothy R. Johnson" <[email protected]>

Dear Tim, This is reply to your comment No.4) for test report of MOZF02RG. If you agree with our action, we will send you revised test report from ATCB web. So, please confirm. For other comments about application documents, we will soon reply to you separately. 4) ANSI C63.4 requires a signal generator operating at the RX frequency nearby. Please see ANSI C63.4 12.1.1.2. Please review. A4)==> It is not in the test setup photo of page 9 of the test report, however, actually we operated RKE Transmitter(F01TG) manually and performed the testing with receiving 312.15MHz from RKE Transmitter(F01TG). We will add following sentence to page 7 of "The mode is used". "No.C RKE Transmitter(F01TG) was operated manually by a test engineer and the test was performed with the EUT receiving 312.15MHz." Best Regards, Keijiro

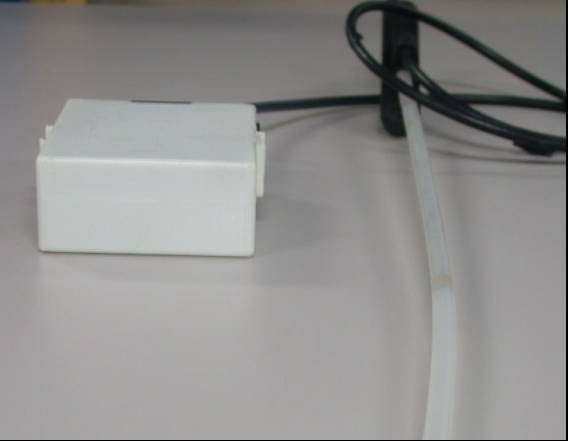

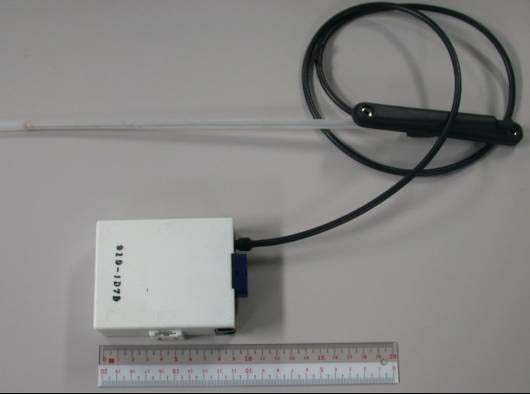

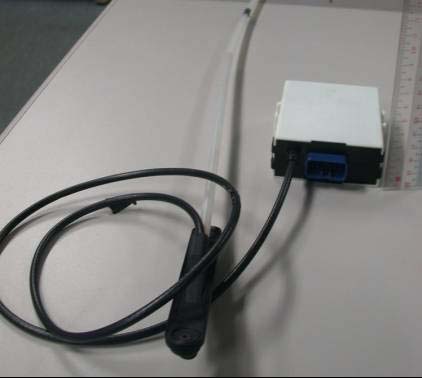

Receiver Model F02RG FCC ID: MOZF02RG External Photograph Appearance (Front view) Appearance (Reverse View) Receiver Model F02RG FCC ID: MOZF02RG Appearance (Top view) Appearance (Bottom view) Receiver Model F02RG FCC ID: MOZF02RG Appearance (Side view) Appearance (Side view)

NAME RECEIVER MODEL F02RG Label Layout SCALE Free NOTE: The layout and design of t he approval label may be change d. Receiver Model F02RG FCC ID: MOZF02RG

Receiver Model F02RG FCC ID: MOZF02RG PC boards in the case Receiver Model F02RG FCC ID: MOZF02RG Internal Photograph Mother Board (Front View) Mother Board (Front View) Mother Board (Reverse View) Receiver Model F02RG FCC ID: MOZF02RG RF Module (Front View) RF Module (Reverse View)

Test report No. : 28EE0022-HO-01-B-R1 Page : 1 of 14 Issued date : January 15, 2008 Revised date : January 23, 2008 FCC ID : MOZF02RG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 EMI TEST REPORT Test Report No. : 28EE0022-HO-01-B-R1 Applicant : Tokai Rika Co., Ltd. Type of Equipment : Receiver Model No. : F02RG Test standard : FCC Part 15 Subpart B 2007 FCC ID : MOZF02RG Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. Original test report number of this report is 28EE0022-HO-01-B. Date of test: ______________________________ Tested by: ______________________________ Makoto Kosaka EMC Services Approved by : ______________________________ Mitsuru Fujimura Assistant Manager of EMC Services December 23 , 2007 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://uljapan.co.jp/emc/nvlap.htm MF060b (18.06.07) Test report No. : 28EE0022-HO-01-B-R1 Page : 2 of 14 Issued date : January 15, 2008 Revised date : January 23, 2008 FCC ID : MOZF02RG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 7 SECTION 5: Radiated Emission ............................................................................................ 8 APPENDIX 1: Photographs of test setup............................................................................... 9 Radiated Emission ......................................................................................................................... 9 Worst Case Position..................................................................................................................... 10 APPENDIX 2: Data of EMI test ........................................................................................... 12 Radiated Emission ....................................................................................................................... 12 APPENDIX 3: Test instruments ........................................................................................... 14 Test report No. : 28EE0022-HO-01-B-R1 Page : 3 of 14 Issued date : January 15, 2008 Revised date : January 23, 2008 FCC ID : MOZF02RG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Tokai Rika Co., Ltd. Address : 3-260 Toyota, Oguchi-cho, Niwa-gun, Aichi-ken, 480-0195 Japan Telephone Number : +81-587-95-0093 Facsimile Number : +81-587-95-5471 Contact Person : Toshihito Kunii SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Receiver Model No. : F02RG Serial No. : 4 Country of Manufacture : Japan Receipt Date of Sample : December 20, 2007 Condition of EUT : Production model Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: F02RG is the Receiver. Clock frequency in the system : CPU:4.981MHz Type of Receiver : Super Heterodyne Receiving Frequency : 312.15MHz Local Oscillator Frequency : 308.55MHz (102.85MHz x 3) Intermediate Frequency : 3.6MHz Method of Frequency Generation : Crystal Power Supply : DC12.0V FCC15.111(b ) The receiving antenna (of this EUT) is installed inside the vehicle in which the EUT is installed, and cannot be removed by the user. Therefore, this EUT complies with the requirement in section 15.111(b). Test report No. : 28EE0022-HO-01-B-R1 Page : 4 of 14 Issued date : January 15, 2008 Revised date : January 23, 2008 FCC ID : MOZF02RG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B 2007 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result FCC: ANSI C63.4: 2003 7. AC powerline conducted emission measurements Conducted emission IC: RSS-Gen 7.2.2 Receiver N/A N/A *1) N/A FCC: ANSI C63.4: 2003 8. Radiated emission measurements Radiated emission IC: RSS-Gen 4.10 Receiver N/A 19.5B 925.650MHz Horizontal/Vertical Complied *Note: UL Japan, Inc’s EMI Work Procedure QPM05. *1) The test is not applicable since the EUT is not the device that is designed to be connected to the public utility (AC) power line. *These tests were performed without any deviations from test procedure except for additions or exclusions. 3.3 Additions or deviations to standards No addition nor deviation has been made from standards. Test report No. : 28EE0022-HO-01-B-R1 Page : 5 of 14 Issued date : January 15, 2008 Revised date : January 23, 2008 FCC ID : MOZF02RG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.4 Uncertain…

Text truncated - open the document above for the full version.

Test report No. : 28EE0022-HO-01-B-R1 Page : 12 of 14 Issued date : January 15, 2008 Revised date : January 23, 2008 FCC ID : MOZF02RG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2007/12/23 Company : Tokai Rika Co., Ltd. Report No. : 28EE0022-HO-01 Kind of EUT : Receiver Power : DC 12.0V Model No. : F02RG Temp./Humi. : 24deg.C. / 42% Serial No. : 4 Operator : Makoto Kosaka Mode / Remarks : Rx 312.15MHz worst axis Hor:X-axis Ver:X-axis LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK All other spurious emissions were less than 20dB for the limit. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[Hz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 30M1G50M70M100M200M300M500M700M 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 49.14824.4QP10.8-24.710.50339Hori.40.029.5 49.14833.3QP10.8-24.719.4359280Vert.40.020.6 52.39521.8QP10.1-24.57.40228Hori.40.032.6 52.39532.5QP10.1-24.518.10280Vert.40.021.9 102.85724.7QP10.8-24.011.5273316Hori.43.532.0 102.85732.3QP10.8-24.019.1235100Vert.43.524.4 308.57225.7QP14.3-22.018.00100Hori.46.028.0 308.57222.9QP14.3-22.015.20100Vert.46.030.8 617.14323.2QP19.3-20.322.2185100Vert.46.023.8 617.14322.8QP19.3-20.321.8146183Hori.46.024.2 925.65022.0QP22.1-17.626.5146183Hori.46.019.5 925.65022.0QP22.1-17.626.5185100Vert.46.019.5 *The limit is rounded down to one decimal place. *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 28EE0022-HO-01-B-R1 Page : 13 of 14 Issued date : January 15, 2008 Revised date : January 23, 2008 FCC ID : MOZF02RG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2007/12/23 Company: Tokai Rika Co., Ltd.Report No.: 28EE0022-HO-01 Kind of EUT : Receiver Power:DC 12.0V(Car Battery) Model No. : F02RG Temp./Humi.:24deg.C. / 42% Serial No. : 4 Operator:Makoto Kosaka Mode / Remarks : Rx 312.15MHz worst axis Hor:X-axis Ver:X-axis LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:AV CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[Hz] [dBuV/m] << AV/PEAK DATA >> Horizontal Vertical Horizontal Vertical 1G 2G 0 10 20 30 40 50 60 70 80 90 _ Frequency _ Reading _ DET _ Antenna _ Loss& _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ Comment _ Frequency _ Reading _ DET _ Factor _ Gain _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ Comment _ [MHz] _ [ dBuV ] _ DET _ [ dB/m] _ [dB] _ [dBuV/m] _ [Deg] _ [cm] _ Polar. _ [dBuV/m] _ [dB] _ Comment _ 1234. 200 _ 46 . 0 _ PK _ 25.3 _ -31.5 _ 39.8 _ 178 _ 125 _ Hori. _ 73.9 _ 34.1 _ 1234. 200 _ 45 . 8 _ PK _ 25.3 _ -31.5 _ 39.6 _ 8 _ 132 _ Vert. _ 73.9 _ 34.3 _ 1234. 200 _ 31 . 5 _ AV _ 25.3 _ -31.5 _ 25.3 _ 178 _ 125 _ Hori. _ 53.9 _ 28.7 _ 1234. 200 _ 31 . 6 _ AV _ 25.3 _ -31.5 _ 25.4 _ 8 _ 132 _ Vert. _ 53.9 _ 28.5 _ 1542. 750 _ 46 . 3 _ PK _ 25.9 _ -30.4 _ 41.8 _ 178 _ 125 _ Hori. _ 73.9 _ 32.1 _ 1542. 750 _ 45 . 5 _ PK _ 25.9 _ -30.4 _ 41.0 _ 8 _ 132 _ Vert. _ 73.9 _ 32.9 _ 1542. 750 _ 32 . 1 _ AV _ 25.9 _ -30.4 _ 27.6 _ 178 _ 125 _ Hori. _ 53.9 _ 26.3 _ 1542. 750 _ 32 . 0 _ AV _ 25.9 _ -30.4 _ 27.5 _ 8 _ 132 _ Vert. _ 53.9 _ 26.4 _ 1851. 300 _ 45 . 3 _ PK _ 26.5 _ -29.4 _ 42.4 _ 178 _ 125 _ Hori. _ 73.9 _ 31.5 _ 1851. 300 _ 45 . 2 _ PK _ 26.5 _ -29.4 _ 42.3 _ 8 _ 132 _ Vert. _ 73.9 _ 31.6 _ 1851. 300 _ 32 . 1 _ AV _ 26.5 _ -29.4 _ 29.2 _ 178 _ 125 _ Hori. _ 53.9 _ 24.7 _ 1851. 300 _ 32 . 2 _ AV _ 26.5 _ -29.4 _ 29.3 _ 8 _ 132 _ Vert. _ 53.9 _ 24.6 *The limit is rounded down to one decimal place. *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 28EE0022-HO-01-B-R1 Page : 14 of 14 Issued date : January 15, 2008 Revised date : January 23, 2008 FCC ID : MOZF02RG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Test instruments Control No. Instrument Manufacturer Model No Test Item Calibration Date * Interval(month) MAEC-03 Anechoic Chamber TDK Semi Anechoic Chamber 3m RE 2007/03/05 * 12 MBA-03 Biconical Antenna Schwarzbeck BBA9106 RE 2007/01/19 * 12 MLA-03 Logperiodic Antenna Schwarzbeck USLP9143 RE 2007/01/19 * 12 MAT-30 Attenuator(6dB) TME UFA-01 RE 2007/03/05 * 12 MCC-51 Coaxial cable UL Japan - RE 2007/07/26 * 12 MPA-13 Pre Amplifier SONOMA INSTRUMENT 310 RE 2007/03/16 * 12 MHA-20 Horn Antenna 1- 18GHz Schwarzbeck BBHA9120D RE 2007/04/14 * 12 MCC-56 Microwave Cable 1G-26.5GHz Suhner SUCOFLEX104 RE 2007/03/29 * 12 MPA-11 MicroWave System Amplifier Agilent 83017A RE 2007/03/02 * 12 MTR-02 Test Receiver Rohde & Schwarz ESCS30 RE 2007/02/03 * 12 MSA-09 Spectrum Analyzer Advantest R3273 RE 2007/12/21 * 12 MOS-13 Thermo-Hygrometer Custom CTH-180 RE 2006/01/19 * 24 MLDM-03 Digital laser distance meter BOSCH DLE 50 RE 2007/06/21 * 36 MSTW-14 EMI measurement program TSJ TEPTO-DV RE - The expiration date of the calibration is the end of the expired month. All equipment is calibrated with traceable calibrations. Each calibration is traceable to the national or international st…

Text truncated - open the document above for the full version.

Test report No. : 28EE0022-HO-01-B-R1 Page : 9 of 14 Issued date : January 15, 2008 Revised date : January 23, 2008 FCC ID : MOZF02RG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Emission Front Rear Test report No. : 28EE0022-HO-01-B-R1 Page : 10 of 14 Issued date : January 15, 2008 Revised date : January 23, 2008 FCC ID : MOZF02RG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Receiver (Horizontal: X-axis/ Vertical: X-axis) Antenna (Horizontal: X-axis/ Vertical: X-axis) Receiver/ X-axis, Antenna/ Y-axis Receiver/ Y-axis, Antenna/ Y-axis Receiver/ Z-axis, Antenna/ Y-axis Test report No. : 28EE0022-HO-01-B-R1 Page : 11 of 14 Issued date : January 15, 2008 Revised date : January 23, 2008 FCC ID : MOZF02RG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Receiver (Horizontal: X-axis/ Vertical: X-axis) Antenna (Horizontal: X-axis/ Vertical: X-axis) Receiver/ X-axis, Antenna/ X-axis Receiver/ Y-axis, Antenna/ X-axis Receiver/ Z-axis, Antenna/ X-axis
