RKE Transmitter Model F51TG FCC ID: MOZF51TG IC: 2584A-F51TG Locking/Unlocking the doors INSTRUCTIONS When you push the โLockโ button on the transmitter, all the doors can be locked from outsider the vehicle. Make sure all the doors are locked when you leave the vehicle. When you push the โUnlockโ button on the transmitter, all the doors can be unlocked from outside the vehicle. For vehicles sold in U.S.A.: NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the userโs authority to operate the equipment. For vehicles sold in Canada: NOTE Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

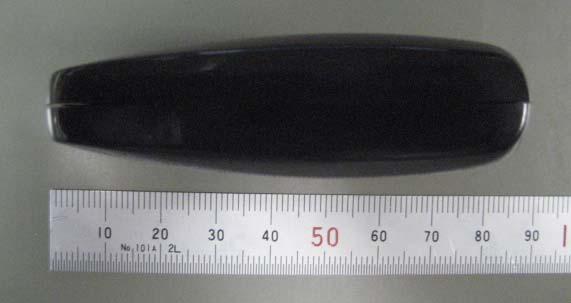

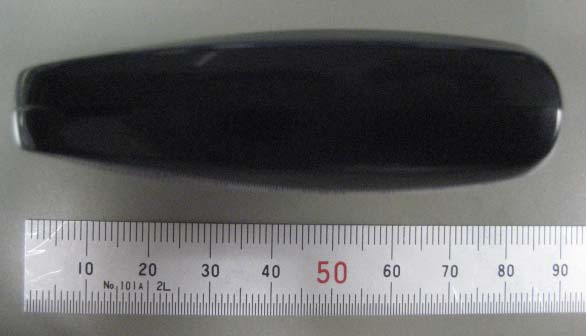

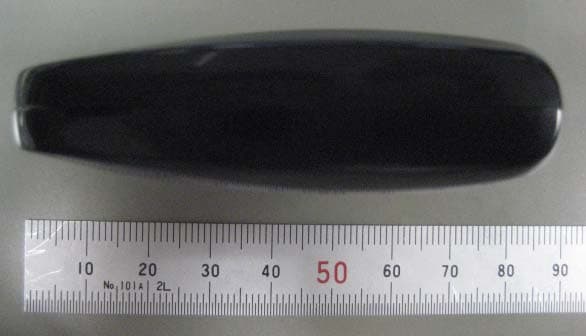

RKE Transmitter Model F51TG FCC ID : MOZF51TG IC : 2584A-F51TG External Photograph (Representative) Appearance (Front View) Appearance (Reverse View) 1/5 RKE Transmitter Model F51TG FCC ID : MOZF51TG IC : 2584A-F51TG Appearance (Top View) Appearance (Bottom View) 2/5 RKE Transmitter Model F51TG FCC ID : MOZF51TG IC : 2584A-F51TG Appearance (Side View) Appearance (Side View) 3/5
RKE Transmitter Model F51TG FCC ID : MOZF51TG IC : 2584A-F51TG NAME RKE Transmitter MODEL F51TG Label Layout SCALE Free NOTE: The layout and design of the approval label may be change d.
RKE Transmitter Model F51TG FCC ID : MOZF51TG IC : 2584A-F51TG Internal Photograph (Representative) PC board inside the case 4/5 RKE Transmitter Model F51TG FCC ID : MOZF51TG IC : 2584A-F51TG PC board (Front View) Antenna PC board (Reverse View) 5/5
Test report No. : 31BE0178-HO-01-A Page : 1 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 31BE0178-HO-01-A Applicant : Tokai Rika Co., Ltd. Type of Equipment : RKE Transmitter Model No. : F51TG Test regulation : FCC Part 15 Subpart C: 2010 FCC ID : MOZF51TG Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Date of test: ______________________________ Representative test engineer: ______________________________ Hiroyuki Furutaka Engineer of EMC Service Approved by: ______________________________ Shinya Watanabe Leader of EMC Service MF058b (15.09.10) October 5, 2010 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 31BE0178-HO-01-A Page : 2 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer informationยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 3 SECTION 2: Equipment under test (E.U.T.) ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 3 SECTION 3: Test specification, procedures & results ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 4 SECTION 4: Operation of E.U.T. during testingยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission)ยท 8 SECTION 6: Automatically deactivate ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 9 SECTION 7: -20dB and 99% Occupied Bandwidthยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 9 APPENDIX 1: Photographs of test setup ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 10 Radiated emission .............................................................................................................................10 Worst case position ...........................................................................................................................11 APPENDIX 2: Data of EMI test ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 12 Automatically deactivate...................................................................................................................12 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) .....................13 -20dB and 99% Occupied Bandwidth...............................................................................................14 Duty Cycle ........................................................................................................................................15 APPENDIX 3:Test Instruments ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 18 Test report No. : 31BE0178-HO-01-A Page : 3 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Tokai Rika Co., Ltd. Address : 260 Toyota 3-chome, Oguchi-cho, Niwa-gun, Aichi-ken 480-0195 Japan Telephone Number : +81-587-95-0093 Facsimile Number : +81-587-95-5471 Contact Person : Masahiro Kato SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : RKE Transmitter Model No. : F51TG Serial No. : Refer to Clause 4.2 Rating : DC3.0V Receipt Date of Sample : October 2, 2010 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: F51TG (referred to as the EUT in this report) is the RKE Transmitter. Radio Specification Radio Type : Transmitter Frequency of Operation : 312.15MHz Modulation : ASK Method of Frequency Generation : SAW Antenna type : Pattern Antenna Antenna Gain : -37.27dBi Operating voltage (Inner) : DC3.0V Test report No. : 31BE0178-HO-01-A Page : 4 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 Conducted emission ICโฆ
Text truncated - open the document above for the full version.
Test report No. : 31BE0178-HO-01-A Page : 12 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31BE0178-HO-01 Date 10/05/2010 Temperature/ Humidity 23 deg.C./ 63% Engineer Hiroyuki Furutaka Mode Normal use mode Time of Transmitting [sec] Limit [sec] Result 0.8333 5.00 Pass Test report No. : 31BE0178-HO-01-A Page : 13 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31BE0178-HO-01 Date 10/05/2010 Temperature/ Humidity 23 deg.C./ 63% Engineer Hiroyuki Furutaka Mode Transmitting mode PK Frequenc yDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 312.150 PK78.574.514.710.131.8-71.567.595.423.927.9 Carrier 624.300 PK52.952.619.712.032.0-52.652.375.422.823.1 Outside 936.450 PK39.743.722.713.530.8-45.149.175.430.326.3 Outside 1248.600 PK53.858.226.01.934.4-47.351.775.428.123.7 Outside 1560.750 PK46.247.127.12.133.6-41.842.773.932.131.2 Inside 1872.900 PK53.050.827.92.333.0-50.248.075.425.227.4 Outside 2185.050 PK58.957.928.02.532.6-56.855.875.418.619.6 Outside 2497.200 PK42.342.227.62.732.4-40.240.173.933.733.8 Inside 2809.350 PK50.450.028.62.932.2-49.749.373.924.224.6 Inside 3121.500 PK47.647.429.33.132.1-47.947.775.427.527.7 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor Frequenc yDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 312.150 PK78.574.514.710.131.8-7.364.260.275.411.215.2 Carrier ใญใฃใชใขใQP 624.300 PK52.952.619.712.032.0-7.345.345.055.410.110.4 Outside ใญใฃใชใขใQP 936.450 PK39.743.722.713.530.8-7.337.841.855.417.613.6 Outside ใญใฃใชใขใQP 1248.600 PK53.858.226.01.934.4-7.340.044.455.415.411.0 Outside 1560.750 PK46.247.127.12.133.6-7.334.535.453.919.418.5 Inside 1872.900 PK53.050.827.92.333.0-7.342.940.755.412.514.7 Outside 2185.050 PK58.957.928.02.532.6-7.349.548.555.45.96.9 Outside 2497.200 PK42.342.227.62.732.4-7.332.932.853.921.021.1 Inside 2809.350 PK50.450.028.62.932.2-7.342.442.053.911.511.9 Inside 3121.500 PK47.647.429.33.132.1-7.340.640.455.414.815.0 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). Margin [dB] Margin [dB] ReadingResult Reading [dBuV] Result [dBuV/m] [dBuV][dBuV/m] * The test above 1GHz was performed with PK detect. Average emission measurements were calculated with PK detect and Duty cycle factor. * Duty Factor was calculated with the assumption of the worst condition in 100msec. * The noise measured with PK detect was pulse emission. Test report No. : 31BE0178-HO-01-A Page : 14 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 -20dB and 99% Occupied Bandwidth Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31BE0178-HO-01 Date 10/05/2010 Temperature/ Humidity 23 deg.C./ 63% Engineer Hiroyuki Furutaka Mode Transmitting mode Bandwidth Limit : Fundamental Frequency 312.15 MHz x 0.25% = 780.38kHz -20dB BandwidthResult [kHz] 53.61Pass 99% Occupied BandwidthResult [kHz] 111.93Pass [kHz] 780.38 Bandwidth Limit [kHz] 780.38 Bandwidth Limit Test report No. : 31BE0178-HO-01-A Page : 15 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31BE0178-HO-01 Date 10/05/2010 Temperature/ Humidity 23 deg.C./ 63% Engineer Hiroyuki Furutaka Mode Normal use mode ON time(One pulse)ON time(in 30ms)ON time(in 100ms) TypeTimes[ms][ms][ms] A70.73335.133 17.110 B230.33677.744 25.814 *1)ON time(in 100ms) = Times * ON time(One pulse) *2)The train of pulses was exceeding 100msec, and that sampled 100msec was the worst case against the pulse train. (Total) ON timeCycleDutyDuty [ms][ms](On time/Cycle)[dB] 42.92100.000.4292-7.3 *3)ON time = Type A's ON time (in 100ms) + Type B's ON time (in 100ms) *4)Duty = 20log 10 (ON time/Cycle) Test report No. : 31BE0178-HO-01-A Page : 16 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle 4ms 30ms ๏ผ Type A ๏ผ Type B Type B Type A Test report No. : 31BE0178-HO-01-A Page : 17 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle 50m 100ms Test report No. : 31BE0178-HO-01-A Page : 18 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3:Test Instruments EMI test equipment Control No. Instrument Manufacturer Model No Serial No Test Item Calibration Date * Interval(month) MAEC-03 Semi Anechoic Chamber(NSA) TDK Semi Anechoic Chamber 3m DA-10005 RE 2010/02/01 * 12 MOS-13 Thermo-Hygrometer Custom CTH-180 - RE 2010/02/09 * 12 MJM-06 Measure PROMART SEN1955 - RE - COTS-MEMI EMI measโฆ
Text truncated - open the document above for the full version.
Test report No. : 31BE0178-HO-01-A Page : 10 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 31BE0178-HO-01-A Page : 11 of 18 Issued date : October 13, 2010 FCC ID : MOZF51TG UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis
