MOZRI-33BTYImmobilizer

INSTRUCTIONS The immobilizer is a theft prevention system. When you insert the Key in the cylinder, the transponder chip built in the key’s head transmits an electronic code to the vehicle. The vehicle allows the engine to start, only when the electronic code is identified. For vehicles sold in U.S.A.: NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

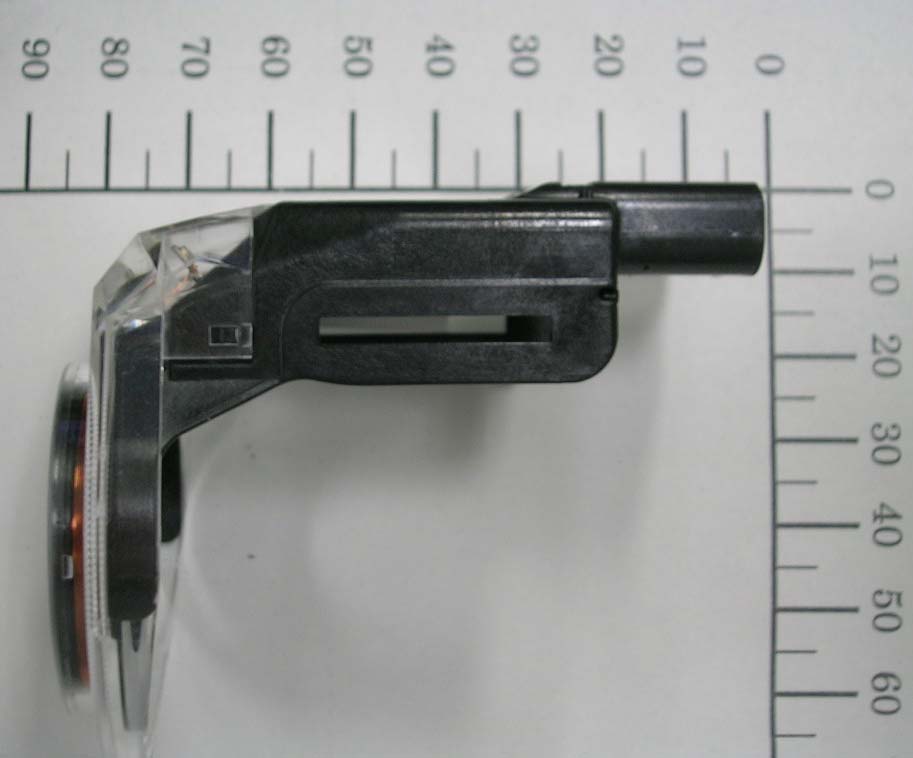

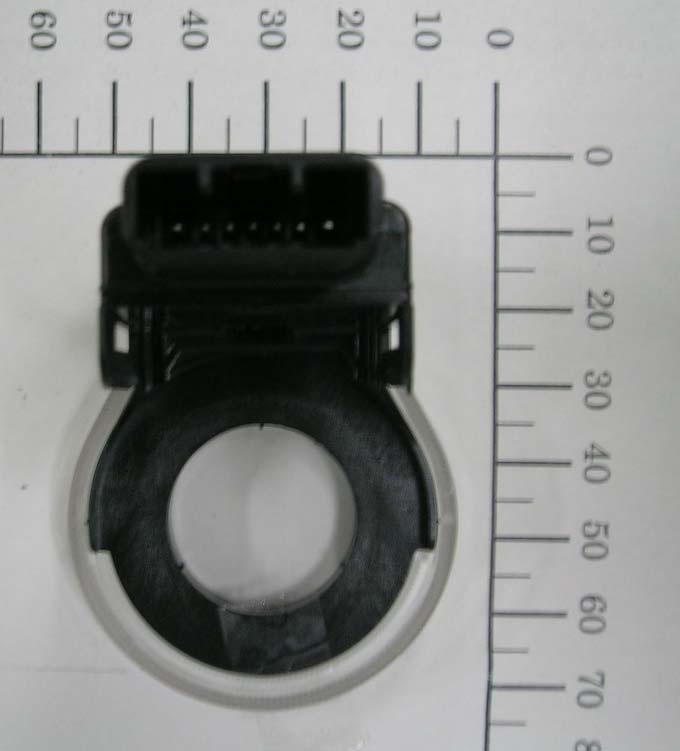

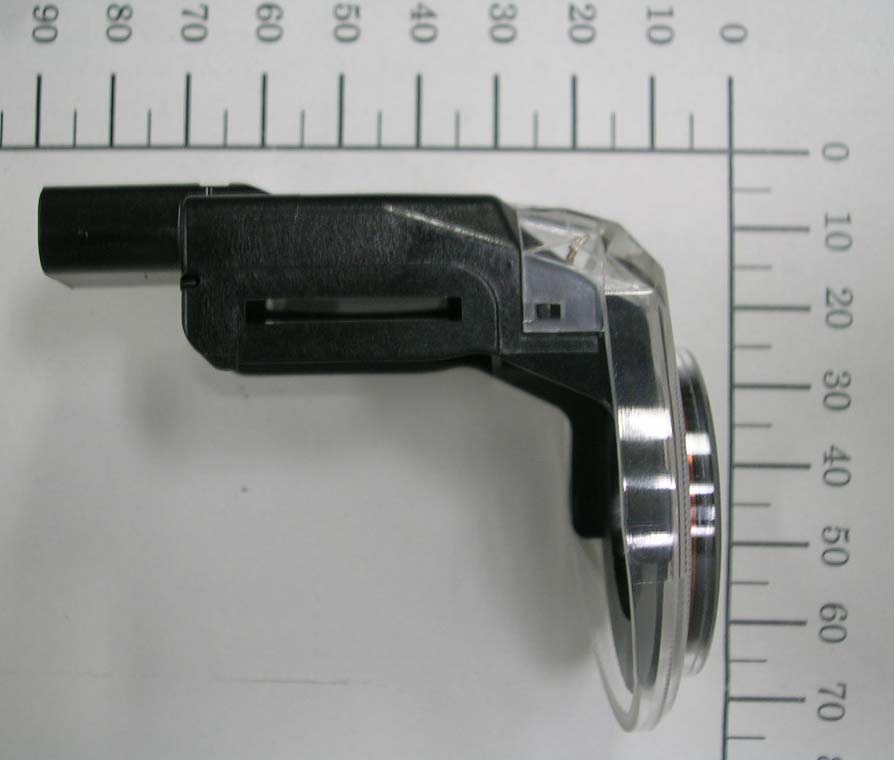

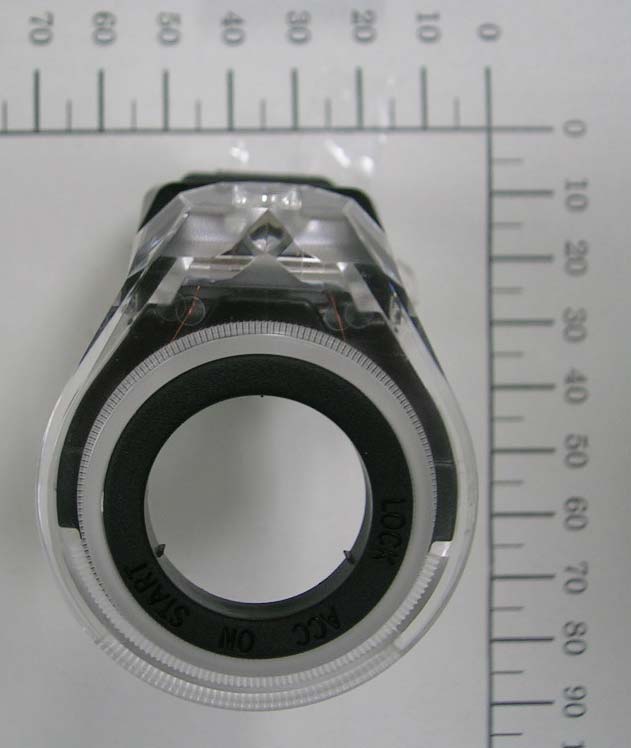

Immobilizer FCC ID: MOZRI-33BTY External Photograph Appearance、(Front View) Appearance (Reverse View) 1/6 Immobilizer FCC ID: MOZRI-33BTY Appearance (Top View) Appearance (Buttom View) 2/6 Immobilizer FCC ID: MOZRI-33BTY Appearance (Side View) Appearance (Side View) 3/6

Approval Label Immobilizer FCC ID：MOZRI-33BTY

Immobilizer FCC ID: MOZRI-33BTY Internal Photograph PC board inside the case 4/6 Immobilizer FCC ID: MOZRI-33BTY PC board (Front View) PC board (Reverse View) 5/6 Immobilizer FCC ID: MOZRI-33BTY PC board (Front View) PC board (Reverse View) 6/6

Page 1 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 JQA File No.: 441-70885 Issued Date: December 26, 2007 TEST REPORT APPLICANT : Tokai Rika Co., Ltd. ADDRESS : 260, Toyota 3-chome, Oguchi-cho, Niwa-gun, Aichi-ken, 480-0195Japan PRODUCTS : Immobilizer MODEL No. : RI-33BTY SERIAL No. : 079-0046 FCC ID : MOZRI-33BTY TEST STANDARD : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C TEST LOCATION : Japan Quality Assurance Organization Safety & EMC Center EMC Engineering Department, TSURU EMC Branch 2096, Ohata, Tsuru-shi, Yamanashi-ken 402-0045, Japan TEST RESULTS : Passed DATE OF TEST : December 21, 2007 This report must not used by the client to Masanori Takahashi claim product endorsement by NVLAP or Manager NIST or any agency of the U.S. Government. Japan Quality Assurance Organization Safety & EMC Center EMC Engineering Department, TSURU EMC Branch 2096, Ohata, Tsuru-shi, Yamanashi-ken 402-0045, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. COPY JQA File No. : 441-70885 Issue Date: December 26, 2007 Model No. : RI-33BTY FCC ID: MOZRI-33BTY Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 2 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 Table of Contents Documentation Page 1 Test Regulation 3 2 Test Location 3 3 Recognition of Test Laboratory 3 4 Description of the Equipment Under Test 4 5 Test Condition 5-7 6 Preliminary Test and Test-Setup 8-13 7 Equipment Under Test Modification 14 8 Responsible Party 14 9 Deviation from Standard 14 10 Test Results 15-16 11 Summary 17 12 Operating Condition 18 13 Test Configuration 18 14 Equipment Under Test Arrangement (Drawings) 18 Appendix A : Test Data 19-21 Appendix B : Test Arrangement (Photographs) 22-23 Appendix C : Test Instruments 24-27 Definitions for Abbreviation and Symbols Used In This Test Report “EUT” means Equipment Under the Test. “AE” means Associated Equipment. “N/A” means that Not Applicable. “N/T” means that Not Tested. -indicates that the listed condition, standard or equipment is applicable for this report. -indicates that the listed condition, standard or equipment is not applicable for this report. COPY JQA File No. : 441-70885 Issue Date: December 26, 2007 Model No. : RI-33BTY FCC ID: MOZRI-33BTY Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 3 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Test procedure : ANSI C63.4-2003 2 Test Location Japan Quality Assurance Organization Safety & EMC Center EMC Engineering Department, TSURU EMC Branch 2096, Ohata, Tsuru-shi, Yamanashi-ken 402-0045, JAPAN 3 Recognition of Test Laboratory Japan Quality Assurance Organization, Safety & EMC Center EMC Engineering Department, TSURU EMC Branch is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility of Testing Division is accredited by the following bodies . VLAC Code: VLAC-001-4 (Effective through : April 3, 2008) NVLAP Lab Code:200192-0 (Effective through : June 30, 2008) BSMI Recognition Number: SL2-IN-E-6004, SL2-IS-E-6004, SL2-A1-E-6004 (Effective through : September 14, 2010) VCCI Registration Number: R-004, R-824, R-828, C-003, C-005, C-859, C-860, C-864 (Effective through : April 3, 2008) FCC Registration Number : 342182 (Date of Listing : March 30, 2005) IC Registration Number : 4126-1, 4126-2, 4126-3 (Effective through : August 29, 2008) Accredited as conformity assessment body for Japan electrical appliances and material law by METI. (Effective through : February 22, 2010) COPY JQA File No. : 441-70885 Issue Date: December 26, 2007 Model No. : RI-33BTY FCC ID: MOZRI-33BTY Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 4 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 4 Description of the Equipment Under Test 1 Manufacturer : Tokai Rika Co., Ltd. 260, Toyota 3-chome, Oguchi-cho, Niwa-gun, Aichi-ken, 480-0195 Japan 2 Products : Immobilizer 3 Model No. : RI-33BTY 4 Serial No. : 079-0046 5 Product Type : Prototype 6 Date of Manufacture : - 7 Power Rating : 5VDC 8 EUT Grounding : None 10 EUT Authorization : Certification 11 EUT Highest Frequency Used/Generated : 134.2kHz 12 Modulation : ASK 13 Antenna type : Fixed Use COPY JQA File No. : 441-70885 Issue Date: December 26, 2007 Model No. : RI-33BTY FCC ID: MOZRI-33BTY Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 5 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 5 Test Condition 5.1 AC Powerline Conducted Emission The requirements are -Applicable [-Tested -Not tested by applicant request.] -Not Applicable Used test site & instruments : Type Number of test site & instruments (Refer to Appendix C) Test Site OS-1 OS-2 AC-1 SR-A SR-B SR-C Test Receiver R-3 R-4 R-5 Cable CB-3 CB-4 CB-5 Network (for EUT) L-1 L-2 L-3 L-4 L-5 L-6 L-7 L-8 L-9 L-10 L-11 L-12 L-13 Network (for AE) L-1 L-2 L-3 L-4 L-5 L-6 L-7 L-8 L-9 Pulse Limiter PL-3 PL-4 PL-5 Termination TM-1 TM-2 COPY JQA File No. : 441-70885 Issue Date: December 26, 2007 Model No. : RI-33BTY FCC ID: MOZRI-33BTY Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 6 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION Techn…

Text truncated - open the document above for the full version.

JQA File No. : 441-70885 Issue Date: December 26, 2007 Model No. : RI-33BTY FCC ID: MOZRI-33BTY Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 22 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 Appendix B : Test Arrangement (Photographs) B.1 AC Powerline Conducted Emission & Frequency Stability Not Applicable B.2 Radiated Emissions & Occupied Bandwidth - Front View - - Rear View - Photograph present configuration with maximum emission COPY JQA File No. : 441-70885 Issue Date: December 26, 2007 Model No. : RI-33BTY FCC ID: MOZRI-33BTY Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 23 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 B.3 EUT PHOTO COPY
