MOZRI-38BFHAuto Ignition Immobilizer

Immobilizer Model RI-38BFH INSTRUCTIONS The immobilizer is a theft prevention system. When you insert the Key in the cylinder, the transponder chip built in the key’s head transmits an electronic code to the vehicle. The vehicle allows the engine to start, only when the electronic code is identified. For vehicles sold in U.S.A.: NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada: NOTE Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

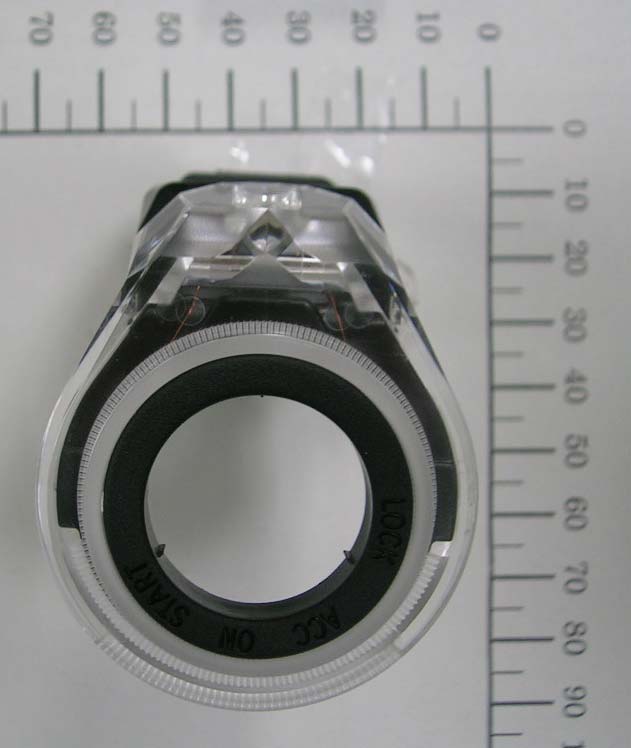

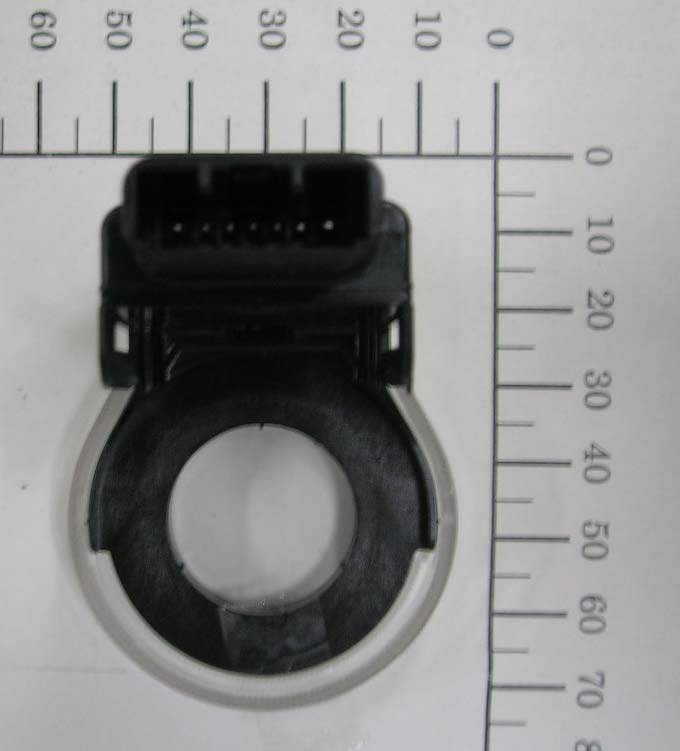

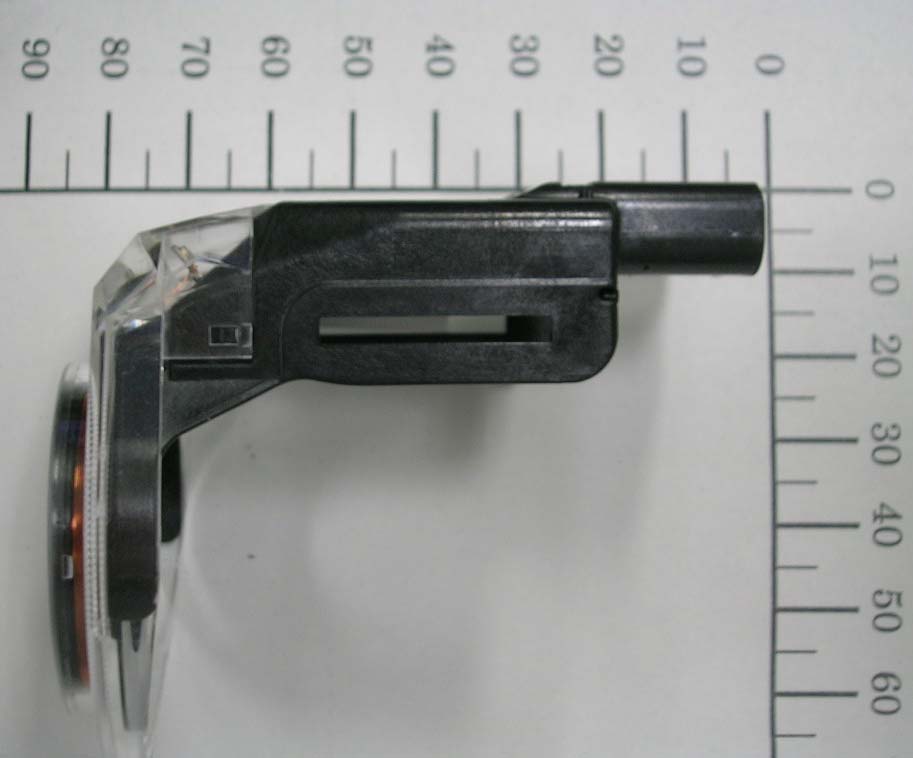

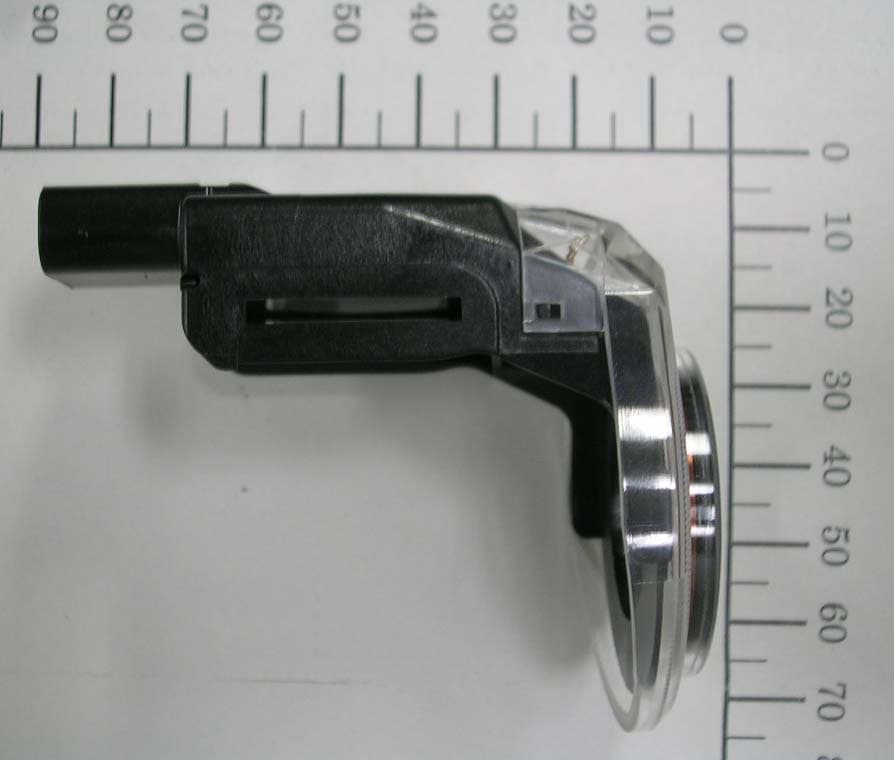

Immobilizer FCC ID: MOZRI-38BFH External Photograph Appearance、(Front View) Appearance (Reverse View) 1/5 Immobilizer FCC ID: MOZRI-38BFH Appearance (Top View) Appearance (Buttom View) 2/5 Immobilizer FCC ID: MOZRI-38BFH Appearance (Side View) Appearance (Side View) 3/5

Immobilizer FCC ID：MOZRI-38BFH Approval Label

Immobilizer FCC ID: MOZRI-38BFH Internal Photograph PC board inside the case 4/5 Immobilizer FCC ID: MOZRI-38BFH PC board (Front View) PC board (Reverse View) 5/5

Test report No. : 30KE0286-HO-01-A-R1 Page : 1 of 18 Issued date : July 27, 2010 Revised date : September 3, 2010 FCC ID : MOZRI-38BFH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 30KE0286-HO-01-A-R1 Applicant : Tokai Rika Co., Ltd. Type of Equipment : Immobilizer Model No. : RI-38BFH FCC ID : MOZRI-38BFH Test regulation : FCC Part 15 Subpart C 2010 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 30KE0286-HO-01-A.30KE0286-HO-01-A is replaced with this report. Date of test: _______________________________ Representative test engineer: _________________________________ Keisuke Kawamura Engineer of EMC Service Approved by: _________________________________ Makoto Kosaka Engineer of EMC Service MF058b (02.09.10) NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap July 16 and 22, 2010 Test report No. : 30KE0286-HO-01-A-R1 Page : 2 of 18 Issued date : July 27, 2010 Revised date : September 3, 2010 FCC ID : MOZRI-38BFH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ..................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results ........................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................7 SECTION 5: Radiated emission (Fundamental and Spurious Emission) .......................................... 8 SECTION 6: -26dB Bandwidth............................................................................................................ 10 SECTION 7: 99% Occupied Bandwidth.............................................................................................10 APPENDIX 1: Photographs of test setup ............................................................................................ 11 Radiated Emission............................................................................................................................. 11 Worst Case Position .......................................................................................................................... 12 APPENDIX 2: Data of EMI test........................................................................................................... 14 Radiated Emission below 30MHz (Fundamental and Spurious Emission) ................................. 14 Radiated Emission above 30MHz (Spurious Emission)................................................................. 15 -26dB Bandwidth............................................................................................................................... 16 99% Occupied Bandwidth............................................................................................................... 17 APPENDIX 3: Test instruments .......................................................................................................... 18 Test report No. : 30KE0286-HO-01-A-R1 Page : 3 of 18 Issued date : July 27, 2010 Revised date : September 3, 2010 FCC ID : MOZRI-38BFH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Tokai Rika Co., Ltd. Address : 260 Toyota 3-chome, Oguchi-cho, Niwa-gun, Aichi-ken 480-0195 Japan Telephone Number : +81-587-95-0093 Facsimile Number : +81-587-95-5471 Contact Person : Masahiro Kato SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Immobilizer Model No. : RI-38BFH Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 5.0V Receipt Date of Sample : July 16, 2010 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 4MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 134.2kHz Modulation : ASK Antenna type : Coil antenna Test report No. : 30KE0286-HO-01-A-R1 Page : 4 of 18 Issued date : July 27, 2010 Revised date : September 3, 2010 FCC ID : MOZRI-38BFH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, general requirements FCC 15.31 (e) This EUT provides stable voltage (DC 5.0V) constantly to RF Module regardless of input voltage. T…

Text truncated - open the document above for the full version.

Test report No. : 30KE0286-HO-01-A-R1 Page : 14 of 18 Issued date : July 27, 2010 Revised date : September 3, 2010 FCC ID : MOZRI-38BFH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Radiated Emission below 30MHz (Fundamental and Spurious Emission) DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2010/07/22 Company : Tokai Rika Co.,Ltd. Report No. : 30KE0286-HO-01 Kind of EUT : Immobilizer Power : DC 5.0V Model No. : RI-38BFH Temp./ Humi. : 23deg.C. / 70% Serial No. : 1 Engineer : Keisuke Kawamura Mode / Remarks : Tx 134.2kHz Worst axis X With key LIMIT : FCC15.209(a) 10m, 9-90kHz:PK, 110-490kHz:PK, other:QP FCC15.209(a) 10m, 9-90kHz:AV, 110-490kHz:AV, other:QP CHART: WITH FACTOR , ANT TYPE: LOOP , Except for the data below : adequate margin data below the limits. CALCULATION : RESULT[dBuV] = READING[dBuV] + ANT FACTOR[dB] + LOSS[dB]( CABLE + ATTEN.- AMP.) Frequency[Hz] [dBuV/m]<< QP/AV/PEAK DATA >> 90 deg:C 45 deg:B 0 deg:A 30M.01M.02M.03M.05M.07M.1M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 Freq.Reading DET Ant.FacLossGainResultLimitMarginAntenna Table Comment Freq.Reading DET Ant.FacLossGainResultLimitMarginAntenna Table Comment [MHz][dBuV] DET [dB/m][dB][dB][dBuV/m][dBuV/m][dB][deg] [deg] Comment 0.1342047.9PEAK20.06.032.441.5104.162.60A2Worst 0.1342047.8PEAK20.06.032.441.4104.162.745B322 0.1342047.6PEAK20.06.032.441.2104.162.990C283 0.1342047.2AV20.06.032.440.884.143.30A2Worst 0.1342047.5PEAK20.06.032.441.1104.163.0135A2 0.1342046.7AV20.06.032.440.384.143.8135A2 0.1342047.7PEAK20.06.032.441.3104.162.8180A359 0.1342046.8AV20.06.032.440.484.143.7180A359 0.1342047.1AV20.06.032.440.784.143.445B322 0.1342036.0PEAK20.06.032.429.6104.174.50B359Hori 0.1342032.7AV20.06.032.426.384.157.80B359Hori 0.1342046.6AV20.06.032.440.284.143.990C283 0.5368033.9QP19.86.132.127.752.024.30A359 *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 30KE0286-HO-01-A-R1 Page : 15 of 18 Issued date : July 27, 2010 Revised date : September 3, 2010 FCC ID : MOZRI-38BFH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission above 30MHz (Spurious Emission) DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.2 Anechoic Chamber Date : 2010/07/16 Company : Tokai Rika Co.,Ltd. Report No. : 30KE0286-HO-01 Kind of EUT : Immobilizer Power : DC 5.0V Model No. : RI-38BFH Temp./Humi. : 21deg.C. / 68% Serial No. : 1 Engineer : Keisuke Kawamura Mode / Remarks : Tx 134.2KHz Worst axis (Hori: X, Vert: Z) With Key LIMIT : FCC15.209 3m, below 1GHz:QP, above 1GHz:PK All other spurious emissions were less than 20dB for the limit. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 3010005070100200300500700 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 36.91136.5QP16.1-21.930.7250100Vert.40.09.3 71.26145.8QP7.0-21.331.5208100Vert.40.08.5 80.15751.9QP7.0-21.237.7212100Vert.40.02.3 80.15435.0QP7.0-21.220.8147204Hori.40.019.2 112.34826.5QP12.5-21.018.0315143Hori.43.525.5 112.34841.4QP12.5-21.032.9221100Vert.43.510.6 128.24435.6QP14.2-20.729.1158100Vert.43.514.4 128.24424.4QP14.2-20.717.9233168Hori.43.525.6 160.31128.4QP16.1-20.324.293129Hori.43.519.3 176.34927.1QP16.6-20.123.6291100Hori.43.519.9 192.36333.0QP17.2-19.930.3208100Vert.43.513.2 192.36327.0QP17.2-19.924.3321100Hori.43.519.2 *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 30KE0286-HO-01-A-R1 Page : 16 of 18 Issued date : July 27, 2010 Revised date : September 3, 2010 FCC ID : MOZRI-38BFH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 -26dB Bandwidth UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber REPORT NO : 30KE0286-HO-01 DATE : 07/22/2010 TEMPERATUR E: 22 deg.C HUMIDITY : 32 % Engineer: Keisuke Kawamura MODE : Tx 134.2kHz FREQ -26dB Bandwidth [kHz] 134.73.330 [kHz] Test report No. : 30KE0286-HO-01-A-R1 Page : 17 of 18 Issued date : July 27, 2010 Revised date : September 3, 2010 FCC ID : MOZRI-38BFH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 99% Occupied Bandwidth UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber REPORT NO : 30KE0286-HO-01 DATE : 07/22/2010 TEMPERATUR E: 22 deg.C HUMIDITY : 32 % Engineer: Keisuke Kawamura MODE : Tx 134.2kHz FREQ [kHz] 134.7 99% Occupied Bandwidth [kHz] 2.171 Test report No. : 30KE0286-HO-01-A-R1 Page : 18 of 18 Issued date : July 27, 2010 Revised date : September 3, 2010 FCC ID : MOZRI-38BFH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Test instruments EMI test equipment Control No. Instrument Manufacturer Model No Serial No Test Item Calibration Date * Interval(month) MAEC-02 Semi Anechoic Chamber(NSA) TDK Semi Anechoic Chamber 3m DA-06902 RE 2009/08/17 * 12 MOS-22 Thermo-Hygrometer Custom CTH-201 0003 RE 2010/02/09 * 12 MJM-05 Measure PROMART SEN1955 - RE - COTS-MEMI EMI measurement program TSJ TEPTO-DV - RE - MSA-03 Spectrum Analyzer Agilent E4448A MY44020357 RE 2009/11/20 * 12 MTR-03 Test Receiver Rohde & Schwarz ESCI 100300 RE 2010/04/19 * …

Text truncated - open the document above for the full version.

Test report No. : 30KE0286-HO-01-A Page : 11 of 18 Issued date : July 27, 2010 FCC ID : MOZRI-38BFH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 30KE0286-HO-01-A Page : 12 of 18 Issued date : July 27, 2010 FCC ID : MOZRI-38BFH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Below 30MHz: X-axis Above 30MHz Hori:X-axis / Vert:Z-axis X-axis Y-axis Z-axis Test report No. : 30KE0286-HO-01-A Page : 13 of 18 Issued date : July 27, 2010 FCC ID : MOZRI-38BFH UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position Without Key (Not Inserted) With Key (Inserted) Worst
