MQX550660-001Wireless STAT TX

Specifications EDITION: 0.4 UPDATED: 10/18/2001 B900SRC Radio Modem Card (FCC Part15.249) ADCON TELEMETRY FCC ID : MQX-550660-001 JOB : 903AU1 EXHIBIT # : 10 2 ADCON. AG Les Cardoulines - Bâtiment B4 1360 route des Dolines 06560 Valbonne Sophia Antipolis - France Tel 33 (0)4 97 21 33 10 Fax 33 (0)4 97 21 33 11 Internet Site http://www.adcon.at E-mail [email protected] The information within this document may be modified without notice. No part of this manual can be duplicated or transferred, electronically or mechanically in any way, without ADCON AG.'s strict and written consent. 3 INDEX Chapter 1. .................................................................................................................. Objective 4 1.1. Description........................................................................................................................4 1.2. Specifications..................................................................................................................5 1.2.1. General........................................................................................................................................................................5 1.2.2. Specifications of the B900SRC.............................................................................................................5 1.2.3. Schematic..................................................................................................................................................................7 1.2.4. Connectors description................................................................................................................................8 4 Chapter 1. Objective The objective of this document is to present the mean characteristic of the B900SRC radio module. 1.1. Description The B900SRC is an FM radio transceiver using an F.S.K modulation. The receiver is of a super beat oscillator type with heterodyning. It operates on the 902-928 MHz band and, therefore, is within U.S. FCC part 15.249 standard. Using the frequency synthesis, it has a minimum of 20 channels spaced by 300 kHz and can communicate with equipment via a serial interface with NRZ standard and TTL levels. The radio rate is established at 20 KBits/s. The B900SRC uses the most recent technology of flash memory microcontroller, which allows the user to update or to load new features through the serial link. 5 1.2. Specifications 1.2.1. General The B900SRC is a radio card component that receives and transmits data according to a frequency table selected by the user. 1.2.2. Specifications of the B900SRC Dimensions Dimensions : 30 x 52 x 7 mm (without antenna). Connectors : one 30 pins and two 4 pins connectors. Electronics • Radio part Frequency: 902 to 928 MHz (FCC part 15-249). Number of channels: 20 , channel 0 to 19. Radio rate: 20KBits/s. Modulation/Demodulation: FSK (Frequency Shift Keying). F1=8 Khz and F2= 12 Khz DEV=40Khz RF sensitivity: -95 dBm (± 1dB) at 50 Ohms. RF powermax radiated: 50 mV/m at 3m. Error rate: 10 -3 to -95 dBm. Saturation: Two modules communicate at -10dBm. Operation Temp.: Standard operation: 32°F to +122°F. Storage Temp.: -40°F to +176°F. Relative humidity: from 20% to 90% RH (without condensation). 6 • Digital Part Processor: FLASH Texas Microcontroller : MSP430F135IPM. Programming: Upload and download with a PC through the RS232 serial link and a specific interface. Program Memory : 16 Kb of Flash (10.000 write cycle minimum). Data Memory : 512 bytes of Ram. Input/Output : 28 digital I/O, with 7 analog inputs with 12 bits precision. Serial Link : One hardware UART and a possibility of one software UART. • Power Supply Supply voltage: 3-3.6V monitored (± 5%). Consumption : Stand-By : < 5μA. Réception : < 35mA. Emission : < 45mA. 7 1.2.3. Schematic The connectors used on the B900SRC are : ƒ For the 2x15 points Connector : ̧ Female (B900SRC) : Samtec CLP-115-02-L-D-A. ̧ Male (motherboard) : Samtec FTSH-115-04-L-DV-A. ƒ For the two 2x2 points Connector: ̧ Female (B900SRC) : Samtec CLP-102-02-L-D ̧ Male (motherboard) : Samtec FTSH-102-04-L-DV. Tranceiver Radio Texas TRF6900 MicroControler Texas MSP430F135 Prog. PLL Cde Radio Data Tx Radio Data Rx Radio Analog RSSI Antenna Swicth Antenna Connector (2x2pts) Input/Outpout Connector (2x15pts) UART0 : Rx,Tx,CTS,RTS 9 Logic I/O 7 analog input ou Logic I/O Power : 3 to 3.6V Reset, StandBy UART1 : Rx1,Tx1 Flash Program : TxD, RxD, TCK 8 1.2.4. Connectors description Description of the 2x15 points connector : 30 Pin Name Description 30 Pin N° μC Pin N° μC Pin Name Interru pt ADC GND GND 1 - - - - RESET Reset μC 2 - - Yes - TCK_Flash Flash Programmation Clock 3 57 TCK - - EA1 Analog Input N°1 4 60 P61/A1 - Yes EA2 Analog Input N°2 5 61 P62/A2 - Yes EA4 Analog Input N°4 6 3 P64/A4 - Yes EA3 Analog Input N°3 7 2 P63/A3 - Yes EA6 Analog Input N°6 8 5 P66/A6 - Yes EA5 Analog Input N°5 9 4 P65/A5 - Yes TxD_1 Transmit software UART 10 34 P36 - - EA7 Analog Input N°4 11 6 P67/A7 - Yes TxD Transmit hardware UART 12 32 P34/UTXD0 - - RxD Receive hardware UART 13 33 P35/URXD0 - - EL1 Logic Input / Output N°1 14 12 P10/TACLK Yes - CTS Clear To Send hardware UART 15 31 P33/UCLK0 - - EL2 Logic Input / Output N°2 16 14 P12/TA1 Yes - TxD_Flash Flash Programmation Tx Data 17 13 P11/TA0 - - RTS Request To Send hardware UART 18 30 P32/SOMI0 - - EL3 Logic Input / Output N°3 19 15 P13/TA2 Yes - EL4 Logic Input / Output N°4 20 16 P14/SMCLK Yes - TEST_BANC Detection for Test software 21 28 P30/STE0 - - STAND-BY Hardware Low-Power mode 22 25 P25/Rosc Yes - RxD_Flash Flash Programmation Rx Data 23 22 P22/TA0 - - EL8 Logic Input / Output N°8 24 21 P21/TA1CLK Yes - EL6 Logic Input / Output N°6 25 18 P16/TA1 Yes - EL5 Logic Input / Output N°5 26 17 P15/TA0 Yes - RxD_1 Receive software UART 27 35 P37 - - EL7 Logic Input / Output N°7 28 19 P17/TA2 Yes - EL9 Logic Input / Output N°9 29 23 P23/TA1 Yes - Vbat Vcc 30 - - - - Description of the 2x2 points connector : 2 Pin Name Descrip…

Text truncated - open the document above for the full version.

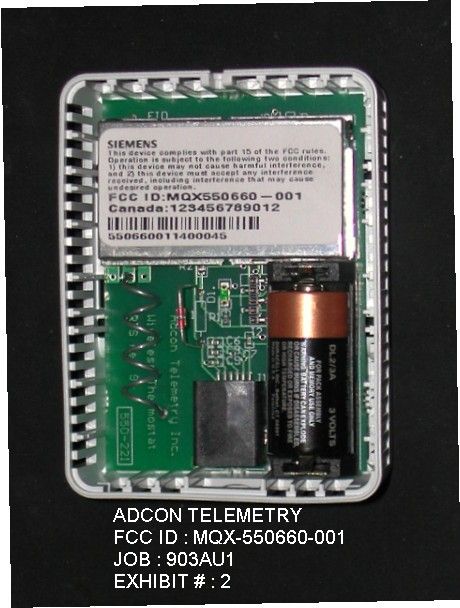

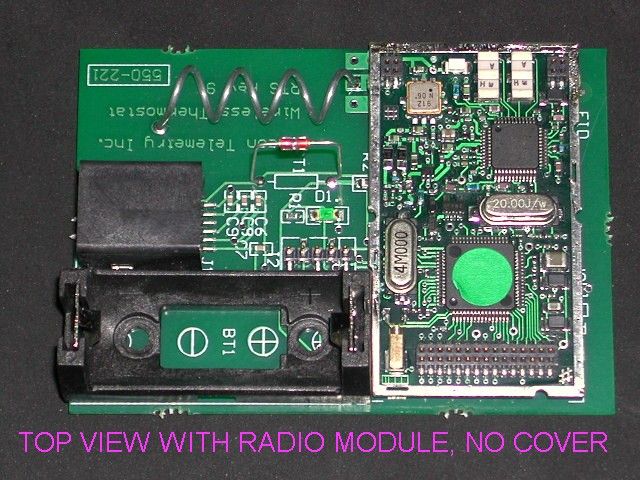

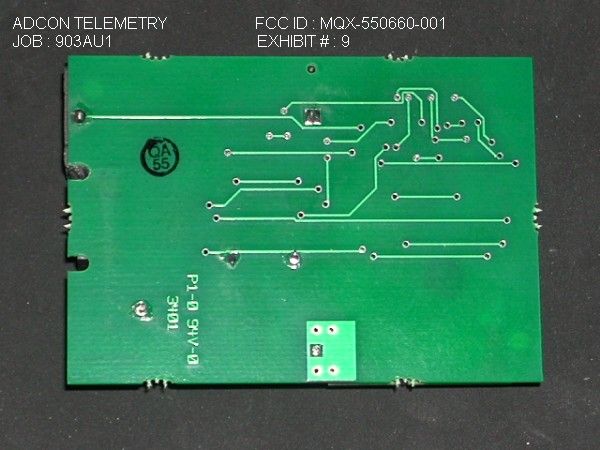

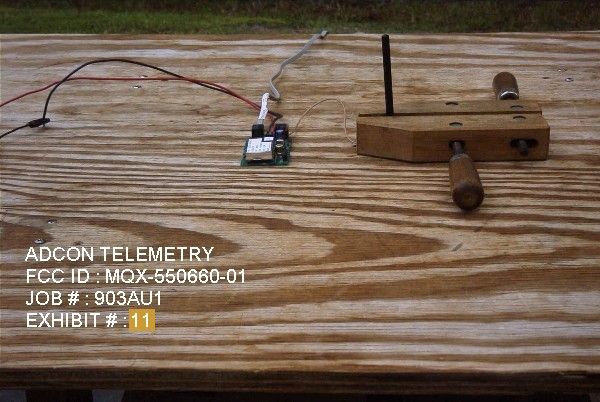

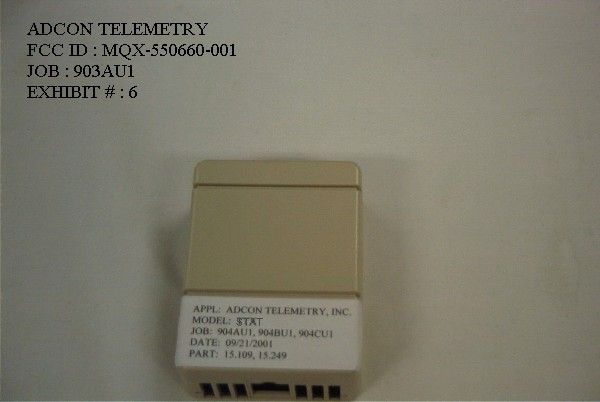

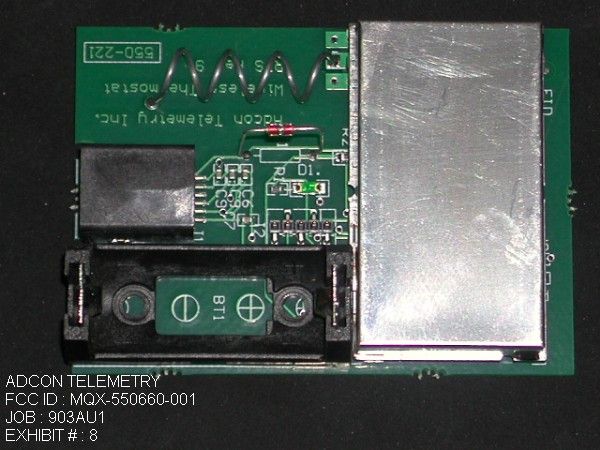

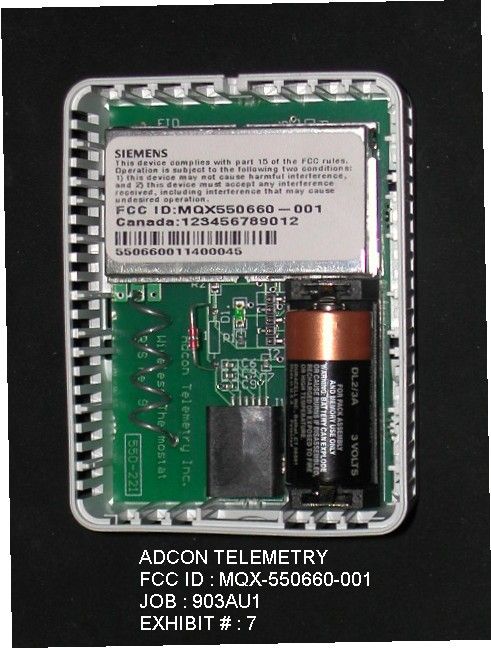

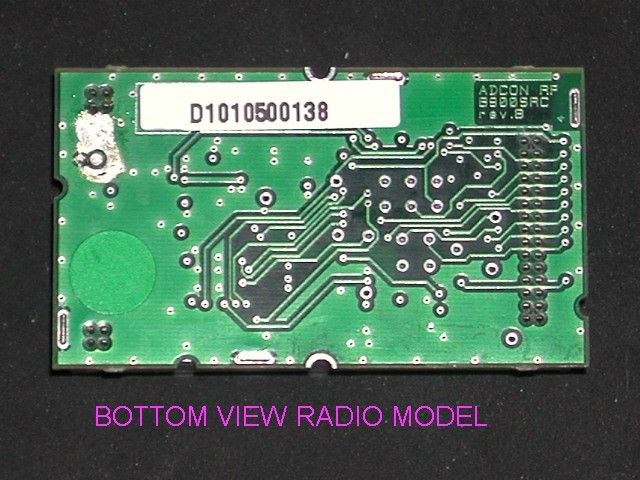

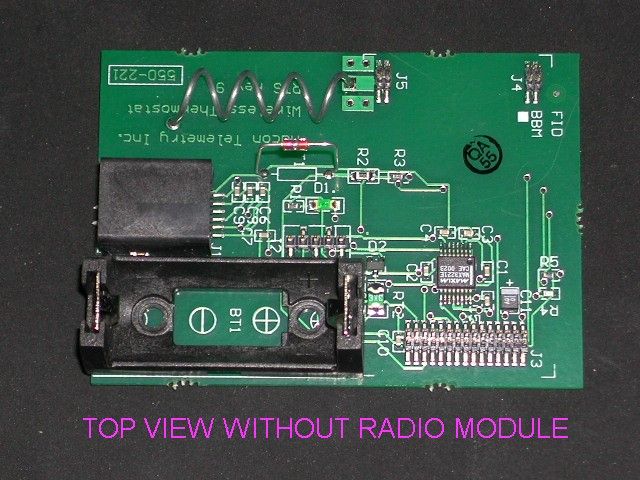

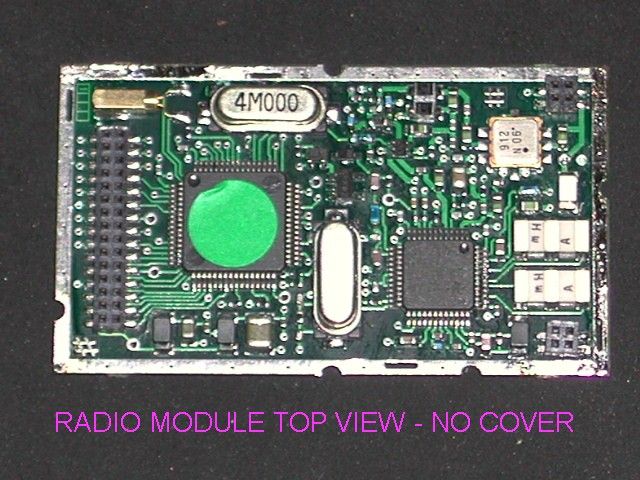

APPLICANT: ADCON TELEMETRY, INC. FCC ID: MQX550660-001 REPORT #: T:\A\ADCON\903au1\903AU1TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: ADCON TELEMETRY, INC. FCC ID: MQX550660-001 TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST & TEST PROCEDURE PAGE 2.............TEST PROCEDURE CONTD. PAGE 3-4...........RADIATION INTERFERENCE TEST DATA PAGE 5.............OCCUPIED BANDWIDTH PAGE 6.............OCCUPIED BANDWIDTH PLOT EXHIBIT ATTACHMENTS: EXHIBIT 1...........FCC ID LABEL SAMPLE EXHIBIT 2...........SKETCH OF LABEL LOCATION EXHIBIT 3...........BLOCK DIAGRAM EXHIBIT 4A-4C.......SCHEMATICS EXHIBIT 5...........INSTRUCTION MANUAL EXHIBIT 6...........EXTERNAL PHOTO – FRONT VIEW EXHIBIT 7...........EXTERNAL PHOTO – REAR VIEW EXHIBIT 8...........INTERNAL PHOTO – COMPONENT VIEW EXHIBIT 9...........INTERNAL PHOTO – COPPER VIEW EXHIBIT 10..........CIRCUIT DESCRIPTION EXHIBIT 11..........TEST SET UP PHOTO EXHIBIT 12..........REQUEST FOR CONFIDENTIALITY LETTER EXHIBIT 13A-13B.....INTERNAL PHOTO – COMPONENT W/O SHIELD EXHIBIT 14A-14B.....INTERNAL PHOTO – SOLDER W/O SHIELD APPLICANT: ADCON TELEMETRY, INC. FCC ID: MQX550660-001 REPORT #: T:\A\ADCON\903au1\903AU1TestReport.doc Page 1 of 6 TEST EQUIPMENT LIST 1. Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 2. Biconnical Antenna: Eaton Model 94455-1, S/N 1057 3. Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 4. Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 5. Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 6. Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 7. 18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 8. Horn 40-60GHz: ATM Part #19-443-6R 9. Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, w/NEMA Adapter S/N 2682 10. Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 11. Frequency Counter: HP Model 5385A, S/N 3242A07460 12. Peak Power Meter: HP Model 8900C, S/N 2131A00545 13. Open Area Test Site #1-3meters 14. Signal Generator: HP 8640B, S/N 2308A21464 15. Signal Generator: HP 8614A, S/N 2015A07428 16. Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 17. Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 18. AC Voltmeter: HP Model 400FL, S/N 2213A14499 19. Digital Multimeter: Fluke Model 8012A, S/N 4810047 20. Digital Multimeter: Fluke Model 77, S/N 43850817 21. Oscilloscope: Tektronix Model 2230, S/N 300572 APPLICANT: ADCON TELEMETRY, INC. FCC ID: MQX550660-001 REPORT #: T:\A\ADCON\903au1\903AU1TestReport.doc Page 2 of 6 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. The UUT was transmit- ting a test signal during the testing. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100kHz and the video bandwidth was 300kHz up to 1.0GHz and 1.0MHz with a video BW of 3.0MHz above 1.0GHz. The ambient temperature of the UUT was 77oF with a humidity of 77%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. POWER LINE CONDUCTED: This is a battery operated device. APPLICANT: ADCON TELEMETRY, INC. FCC ID: MQX550660-001 REPORT #: T:\A\ADCON\903au1\903AU1TestReport.doc Page 3 of 6 APPLICANT: ADCON TELEMETRY, INC. FCC ID: MQX550660-001 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.109(b) - Class A Computing Device REQUIREMENTS: 30-88 MHz 49.0 dBuV/m measured at 3 meters 88-216 MHz 53.5 dbuV/m 216-960 MHz 56.4 dbuV/m ABOVE 960 MHz 59.5 dbuV/m TEST DATA: TEST RESULTS: This unit DOES meet the FCC requirements. TEST DATA FOR CLASS A COMPUTING DEVICE PORTION: Emission Frequency MHz Meter Reading dBuv Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuv/m Margin dB 43.60 23.0 v 0.74 10.76 34.50 14.50 48.00 26.0 v 0.78 10.92 37.70 11.30 49.20 26.9 v 0.79 10.97 38.66 10.34 56.10 28.6 v 0.86 9.02 38.48 10.52 57.30 30.8 v 0.87 8.63 40.30 8.70 59.90 33.2 v 0.90 7.78 41.88 7.12 61.60 36.3 v 0.92 7.59 44.81 4.19 62.20 36.0 v 0.92 7.53 44.45 4.55 83.70 32.9 v 1.07 12.33 46.30 2.70 110.00 18.0 v 1.24 9.49 28.73 24.77 120.40 18.0 v 1.28 10.78 30.06 23.44 137.60 18.9 v 1.35 14.15 34.40 19.10 142.70 18.2 v 1.37 15.28 34.85 18.65 151.70 18.2 v 1.41 16.88 36.49 17.01 174.10 14.1 v 1.59 16.68 32.37 21.13 199.90 13.8 v 1.80 12.62 28.22 25.28 205.00 22.2 v 1.82 11.70 35.72 17.78 211.00 15.7 v 1.84 11.57 29.11 24.39 APPLICANT: ADCON TELEMETRY, INC. FCC ID: MQX550660-001 REPORT #: T:\A\ADCON\903au1\903AU1TestReport.doc Page 4 of 6 APPLICANT: ADCON TELEMETRY, INC. FCC ID: MQX550660-001 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.249, 15.209 REQUIREMENTS: FIELD STRENGTH FIELD STRENGTH S15.209 of Fundamental: of Harmonics 30 - 88 MHz 40 dBuV/m @3M 902-928 MHZ 88 -216 MHz 43.5 2.…
