MSAB19BF19" LCD MONITER

Printed in KoreaPart No. 942205010002- 01 Printed on the recyclable paper TFT-LCD Color Monitor USER'S MANUAL 19 Parts 3 Connection to Signal Source 4 the range of control Angle 5 Installing Monitor Driver 6 Name and Function of Front 8 Power Management Feature 10 Adjusting OSD 11 Hot Key 19 Standard Signal Table 19 Specification 20 Troubleshooting 22 Warning 24 Table of Contents INFORMATION TO USER : This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmfulinterference in a residential installation.This equipment generates, uses and canradiate radio frequency energy and,if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particularinstallation; if this equipment does cause harmful interference to radio ortelevision reception, which can be determined by determined by turning theequipment off and on, the user is encouraged to try to crrent the interference byone or more of the fllowing measures: 1. Reorient/Relocate the receiving antenna.2. Increase the separation between the equipment and receiver.3. Connect the equipment into an outlet on a circuit difference from that to which the recerver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. CAUTION Changes or modifications not expressly approved by themanufacturer responsible for compliance could void the user's authority to operate the equipment ENERGY STAR As an ENERGY STAR partner, Hansol Electronics Inc. has determined that this product meets energy Star guidelines for energy efficiency. English - 3 2 - English Parts LCD Monitor Place the monitor to face the user and then adjust the monitor angle.Take a break (for about 10 minutes) at every hour during the work with monitor. Refer to the following figure to take the correct posture. about 50cm Look down the monitor below the horizon. Relax shoulders and arms, and sit back on the chair. Adjust the monitor to prevent reflection. Adjust the monitor stand to acquire required angle. Keep feet flat on the ground. Maintain the arms horizontally and place hands softly on the keyboard. Good Posture Guide User's Manual / Warranty Card Signal Cable (Analog) AC Power Cable Installation Diskette Stereo Cable(Option) Signal Cable (DVI) English - 5 4 - English Connection to Signal Source 1. Use 220 V or 110 V. (Free Voltage)2. Connect monitor and Signal Source via Signal cable3. Power on the monitor and computer.4. Connection is finished. General For Macintosh Adapter for Macintosh (Optional)Refer to the table on the rear side ofthe optional Macintosh adapter andadjust DIP switch by the resolution. T he range of control Angle < Power source connection > < Signal cable connection> Basic Connection How to Adjust the Stand Forward 5 Default Backward 33 Port for AC power cable Port for Audio cable from a udio source. Port for Head Phone or External SpeakerPort for signal cable from DVI signal source. Kensington Lock Port for signal cable from analog signal source. English - 7 6 - English Click 'Finish'. Click 'Next>'. Click 'Advanced..'. Click 'Next>'. Click 'Monitor'. Click 'Change..'. Click 'Display a list of all...'.Click 'Next>'. Click 'Have Disk..'. Select the driver and click 'OK'. Click 'Next>'. 3. Select "Exit" if the monitor model is changed, and then reboot the Windows. Installing Monitor Driver 1. Insert the Diskette to the Floppy Diskette driver. 2. Double-click "Install.exe". 3. Select the model and click "OK" button.4. Select inf file, and then click "OK" button.5. Click "Exit" button to close the installation. Automatic Installation Manual Installation 1. Insert the Diskette to the Floppy Diskette driver.2. Click 'My Computer' and follow the procedure below. Click 'Control Panel'. Click 'Display'. Click 'Settings'. Run (Click) "Install" at Floppy Diskette driver and select the model name toset the optimum display in Window 95, 98 or 2000, XP. Use the Driver provided. +/ -/ English - 9 8 - English Power button Power button is located in the lower center of the Front Bezel.You can push the button to turn on/off the power. Power Indicating LED Dark : Power off Green : Normal modeGreen blinking : DPMS mode or Check Signal Cable mode. On Screen Display (OSD) Function Button OSD buttons on the front of bezel perform the following functions. SOURCE : Press this button to change Analog/DVI display. MENU/EXIT : Press this button to display menus. if you press this button when OSD is displayed, you can switch display to the previous menu and exit menu. SELECT/ AUTO : Press this button, when OSD is not displayed, to perform automatic setting. When OSD is displayed, You can select icons. POWER : Power button. : By pressing these button when OSD is displayed, You can move cursor into the menus which you want. After press the SELECT button, you can change gauge level or select submenus.When OSD is not displayed, you can adjust brightness or contrast. VOLUME / MUTE : Press this button for volume control. when control is displayed, You can control mute by pressing this button Name and Function of Front Front panel Functions SELECT/ AUTO BUTTON MENU/EXIT BUTTON SOURCE BUTTON VOL / MUTE BUTTON / + BUTTON POWER BUTTON / - BUTTON English - 11 10 - English No image is displayed with Green blinking. Monitor is in power saving mode.Use mouse or keyboard to release power saving mode. No image is displayed without LED on. Power cable plug must be pulled out.Check the power plug on monitor and on the wall. "Out of range" displayed on the screen. This message is displayed when the signal from video card exceeds themaximum frequency of the monitor. Readjust resolution and frequency inaccordance with the monitor capacity. (Refer to Standard Signal Table) Power Management Feature The monitor is equipped …

Text truncated - open the document above for the full version.

Block-Diagram(B19BF) MST9131) : EmbeddedADC, LVDSTRANSMITTERIC ANALOG/ DVI ( PC) AUDIO IN/OUT

Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 38 of 55 APPENDIX D – EUT PHOTOGRAPHS

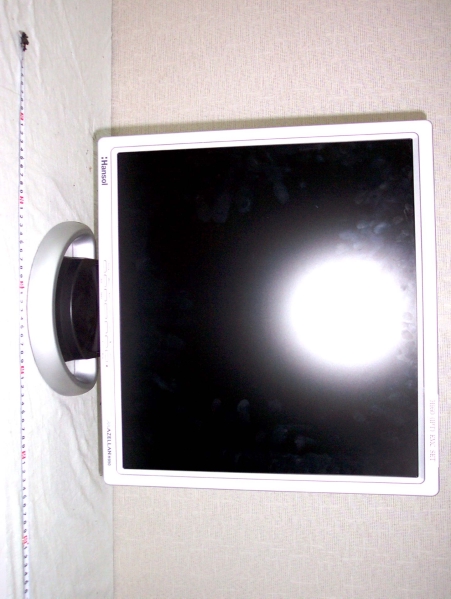

Front View of EUT Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 39 of 55
Rear View of EUT

Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 34 of 55 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.
FCC ID Location of EUT Labelling Requirements

REV. DATE.ECO NO.DESCRIPTION OF CHANGEDRAWNAPPROVED UNLESS OTHERWISE SPECIFIED PRESS : APPLY TO KSB-0413 ( ) MOLD : APPLY TO ( ) RESIN BY DIN 16901 CUSHION : APPLY TO KSA-1513 THIRD ANGLE PROJECTION APROVALSDATE DRAWN G.C.JANG REVIEWED APPROVAL Y.H.KOO OTHER TITLE PRODUCT LABEL H950,OWN,TCO99,HJ REV. A SIZE A4 SHEET 1 OF 1 UNIT mm SCALE 1 / 1 MATERIAL POLYESTER FILM Q’TY 1 DWG. NO. 5 0.5 REF. Made in KOREA HJ HSManufactured: ELECTRICAL RATING AC 100 -240V 50/60 Hz, 0.6A CAUTION TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ATTENTION AFIN D’EVITER TOUT RISQUE D’ELECTROCUTION, NE PAS ENLEVER L’ARRIERE. AUCUNE PIECE REPARABLE PAR L’USAGER A L’INTERIEUR. POUR REPARATIONS, APPELER UN TECHNICIEN QUALIFIE. This Class B digital apparatus complies with Canadian ICES- 003. APPARATET Må KUN TILKOPLES JORDET STIKKONTAKT. Apparaten skall anslutas till jordat uttag nar den ansluts till ett natverk. FCC ID : MSA B19BF This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Hansol LCD Inc. 27-29 Hanchon-Ri Duksan-Myun Jinchon-Kun Choongbuk, KOREA MODEL Name : H950 MODEL No. : B19BF

Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 40 of 55
Inside View of EUT1 Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 41 of 55
Inside View of EUT2 Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 42 of 55
Front View of Main Board Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 43 of 55
Rear View of Main Board Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 44 of 55
Front View of OSD Board Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 45 of 55
Rear View of OSD Board Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 46 of 55
Front View of Combo Board1 (IPHS4L19) Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 47 of 55
Rear View of Combo Board1 (IPHS4L19) Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 48 of 55
Front View of Combo Board2 (AI-0018) Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 49 of 55
Rear View of Combo Board2 (AI-0018) Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 50 of 55
Front View of Combo Board3 (IPHS19-S) Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 51 of 55
Rear View of Combo Board3 (IPHS19-S) Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 52 of 55
Front View of LCD Panel (LTM190E1-***) Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 53 of 55
Rear View of LCD Panel (LTM190E1-***)

Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 1 of 55 Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Hansol LCD Inc. Dates of Issue :July 21, 2003 #27-29, Hancheon-Ri, Ducksan-Myun, Test Report No. : NK2DE454 Jincheon-Gun, Choongbuk, Korea Test Site : Nemko Korea Co., Ltd. Attn : Mr. W. S. Lee EMC site, Korea FCC ID Brand Name Contact Person FCC Rule Part(s): Part 15 & 2 Classification : FCC Class B Device EUT Type: 19” LCD Monitor The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. K. Lee Reviewed By : H.H. Kim Engineer Manager & Chief Engineer MSAB19BF Hansol Hansol LCD Inc. #27-29, Hancheon-Ri, Ducksan-Myun, Jincheon-Gun, Choongbuk, Korea Mr. W. S. Lee Telephone No. : +82 +43 530 8554 Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 2 of 55 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) TEST CONDITION & EUT INFORMATION DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOTS OF EMISSIONS Conducted Emissions Diagram SAMPLE CALCULATIONS ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT RECOMMENDATION/CONCLUSION APPENDIX A – SAMPLE LABEL APPENDIX B - CIRCUIT DIAGRAM APPENDIX C - PHOTOGRAPHS OF TEST SET-UP APPENDIX D - EUT PHOTOGRAPHS APPENDIX E - USER’S MANUAL APPENDIX F - SCHEMATIC DIAGRAM 3 4 5 7 8 9 12 18 30 31 32 33 34 35 36 38 54 55 Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 3 of 55 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party* : Contact Person : Manufacturer : Factory : Hansol LCD Inc. Mr. W. S. Lee Tel No.: +82 +43 530 8554 Hansol LCD Inc. #27-29, Hancheon-ri, Ducksan-Myun, Jincheon-Gun, Choongbuk, Korea Tel No.: +82 +43 530 8554 1) Hansol Electronics (Thailand) Co., Ltd. 168 Moo 1 Tambon Banbung, Amphoe Banbung, Chonburi Province 20170 Thailand 2) Bitronic Soemmerda Hardware Service GmbH Rheinmetallstrasse 18-99610 Soemmerda, Germany
FCC ID: MSAB19BF
MODEL: B19BF
Brand Name: Hansol
EUT Type: 19” LCD Monitor
Electric Rating: 100-240V AC, 50/60Hz, 0.6A
Port/Connector: D-Sub, DVI, Audio In, Audio Out
Classification:
Rule Part(s):
Test Procedure(s):
Dates of Test:
Place of Tests:
Test Report No.: FCC Class B FCC Part 15 & Part 2 ANSI C63.4 (1992) July 07, 2003 to July 14,2003 Nemko Korea Co., Ltd. EMC Site NK2DE454 . Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 4 of 55 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from Hansol LCD Inc. FCC ID : MSAB19BF, 19” LCD Monitor. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation LTD. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of
2.948 according to ANSI C63.4 on October 19, 1992. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 5 of 55 TEST CONDITIONS & EUT INFORMATION Operating During Test The EUT was operated by the software. The PC sent “H” pattern to monitor(EUT) and The monitor displayed “H” pattern on screen. It also sent “H” pattern to printer, then the printer printed it out. This software had above all functions conduct in order. And a audio signal from HDD was played continuously. The two video interface ports of EUT(monitor) were applied to the tests. Three kinds of combo board and a LCD panel of EUT (monitor) were applied to the emission tests. Support Equipment Monitor(EUT) Hansol, FCC ID: MSAB19BF 1.5m unshielded AC power cable 1.8m shielded D-sub cable 1.8m shielded DVI cable S/N: N/A PC Dell ,Model: Dimension 4600 1.8m unshielded AC power cable S/N: B56481S PS/2 Mouse Microsoft Corp., Model: Intelli Mouse 1.3A 1.5m unshielded Din cable S/N: N/A USB Mouse Immanuel, Model: Magicsecure 3100 1.5m shielded USB cable S/N: N/A Serial Mouse IO.Tec., Model: Laser Mouse 1.5m unshielded Dsub cable S/N: N/A Keyboard Silitek Yet Foundate, Model: SK-8110 1.8m unshielded Din cable S/N: N/A…

Text truncated - open the document above for the full version.

Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 36 of 55 APPENDIX C – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement.
Conducted Test Picture(Front)
Conducted Test Picture(Rear) Test Report No.: NK2DE454 FCC Certification Hansol LCD Inc. FCC ID:MSAB19BF Page 37 of 55
Radiated Test Picture(Front)
Radiated Test Picture(Rear)
