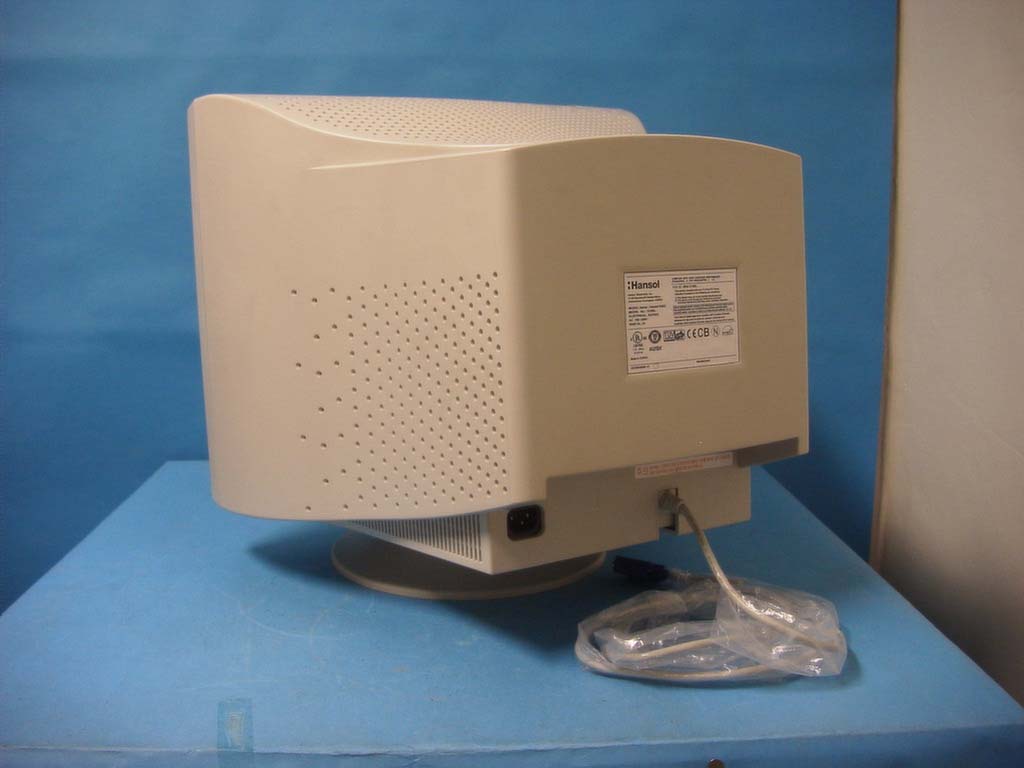

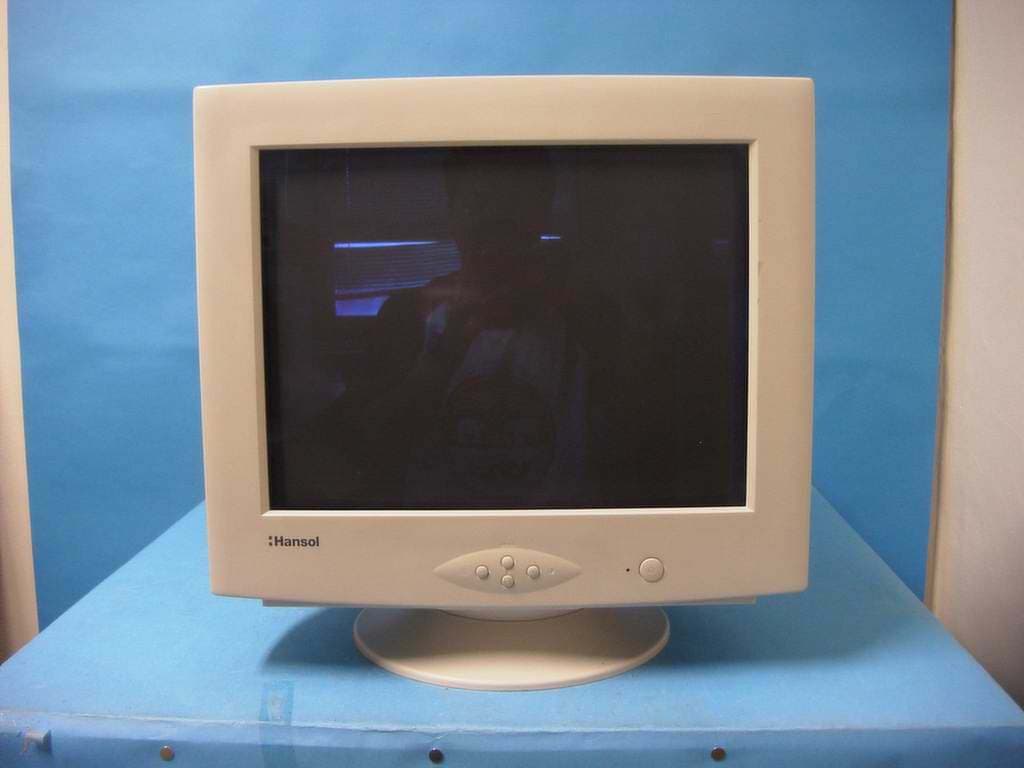

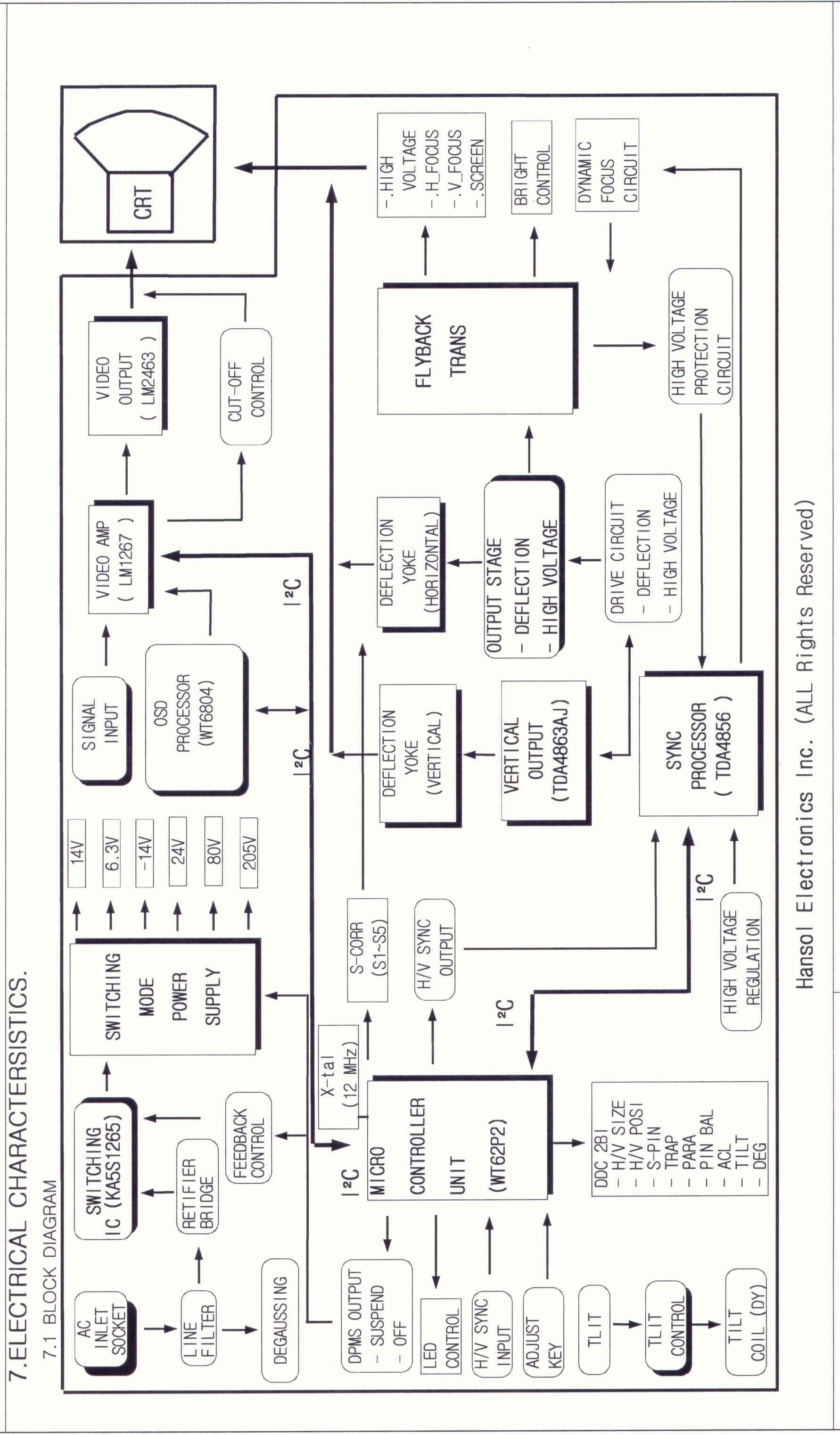

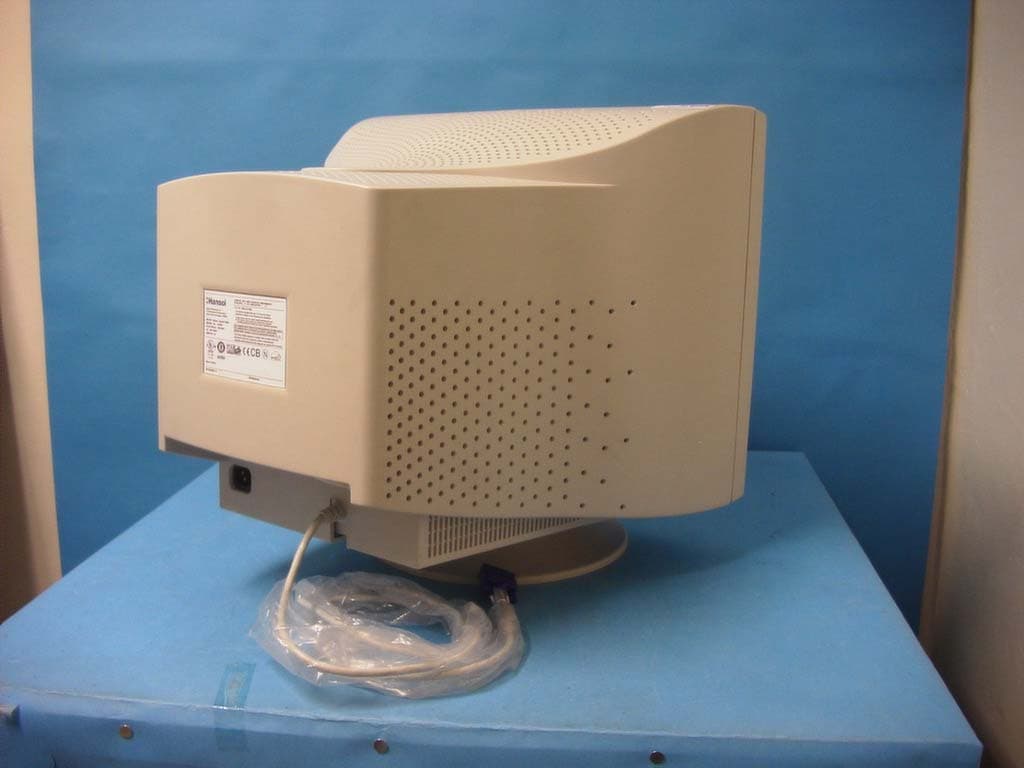

MSAD19BLColor Monitor

User’s Manual 3 FCC Information This equipment has been tested and found to comply with limits for a class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful inteference to radioCommunications. However, there is no guarantee that interference will not occur in a particularinstallation.If this equipment does cause unacceptable interference to radio and television reception, whichcan be determined by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures. Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced Radio/TV technician for help. User’s Manual 2 Introduction Package 4 Features 5 Safety Information 6 Power Management System 7 Installation Connection to your computer 7 Pin assignment table D-Sub mini 15 pin connector 8 Controls Function of controls 8 OSD Menu 9 Troubleshooting Troubleshooting Guide 13 Specifications Electrical specifications 14 Mechanical specifications 14 Environmental specifications 14 Appendix Preset timings 15 English Introduction User’s Manual 4 Caution Changes or modifications not expressly approved by the party responsible for compliancecould void the user’s authority to operate the equipment. Warning If this equipment has more than one interface connector, do not leave cables connected tounused interfaces. Canadian Notice This Class B digital apparatus meets all requirements of the Cannadian Interference CausingEquipment Regulations. Avis Canadien Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur lematériel brouilleur du Canada. Notice The information contained in this document is subject to change without notice. Package First, we would like to thank you for your purchase of this monitor. This monitor is 19inch, highresolution, color display monitor. This manual covers the use, and points of caution, whenoperating this monitor. Please take the time to read this manual so that you will obtain the best performance and mostuse from your monitor. After reading the manual, store it in a safe place for future reference.This items illustrated below are contained in the carton.First, be sure that your carton includes the following items.If any items are missing or damaged, please contact your local dealer or supplier. D19BL - Color Monitor- AC Power input cable- User’s Manual (Warranty Registration Card)- Signal Cable (15pin 3layer D-sub) Introduction User’s Manual 5 ENGLISH Features 19-inch(18 inch visual)high performance display color monitorAutomatically scans frequencies from - Horizontal frequency: 30 to 96KHz- Vertical frequency: 50 to 160Hz Compatible with VGA, SVGA, VESA, MAC Standards and maximum resolution modes up to 1600 1200 Supports VESA flicker free modes including 85Hz refresh rate. On Screen menu fingertip control system to visually select and adjust screen images using control buttons on front panel and on screen menus. Power supply operates on AC 100-240V( 10%), 50/60Hz for use all over the world. Equipped with DDC 2B for Plug & Play capability.Equipped with an energy-saving feature. Power management circuit signaled by the computer system, will reduce power consumptionwhen the computer system is not in use. Monitors with nonglare/antistatic screens are compliant with MPR 1990 Emissions standards and meets requirements for CE Marking. TCO : (option) Introduction User’s Manual 6 Safety information Provided with this monitor is a detachable power supply cord with IEC320 style terminations. It may be suitable for connection to any UL listed personal computer with similarconfiguration. Before making the connection ensure that the voltage rating of the computerconvenience outlet is the same as the monitor and that the ampere rating of the computerconvenience outlet is equal to or exceeds the monitor current rating. For 120Volt applications use only UL listed detachable power cord with NEMA configuration5-15P type(parallel blades) plug cap.For 240Volt applications use only UL listed detachable power cord with NEMA configuration6-15P type(tandem blades) plug cap. Use only a power source and connection appropriate for the monitor as indicated on the marking label. Slots and openings in the cabinet are provided for ventilation; these openings must not be blocked or covered. Never push objects of any kind into cabinetslots or other openings. Never insert anything metallic into the monitor openings. Doing so may create a danger of electric shock. To avoid electric shock, never touch the inside of the monitor. Only a qualified technician should open the monitor s case. Unplug the monitor from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp, lint-free cloth for cleaning. Install the monitor near an outlet that you can reach easily. Disconnect the product by grasping the plug firmly and pulling in from the outlet. Never disconnect it by pulling the cord. Introduction / Installation User’s Manual 7 ENGLISH Power management system This monitor meets VESA(Video Electronics Standards Association) DPMS(Display PowerManagement Signalling)standards. In order for the monitor s power saving feature to function, the video board or computer must also meet VESA ® DPMS TM standards. Power management table Note : The monitor automatically goes through the DPMS steps when it is idle. To release the monitor from the DPMS condition, press any key on the keyboard. Connection to your computer CAUTIONEnsure that both the PC and the display monitor are switched off. To…

Text truncated - open the document above for the full version.

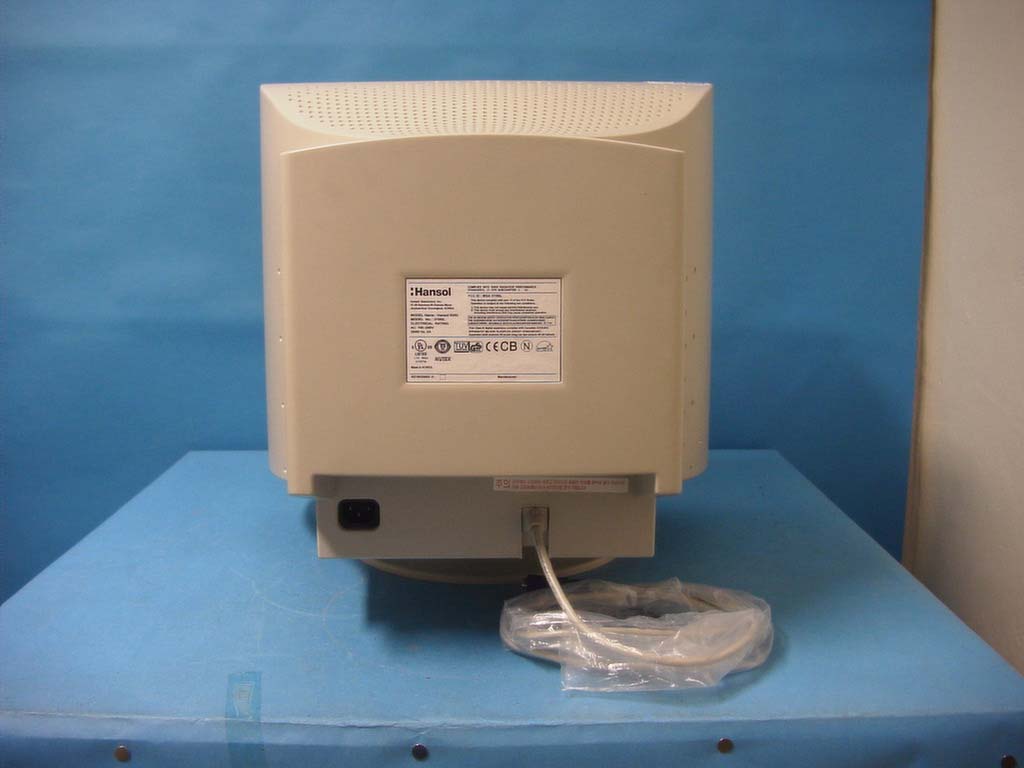

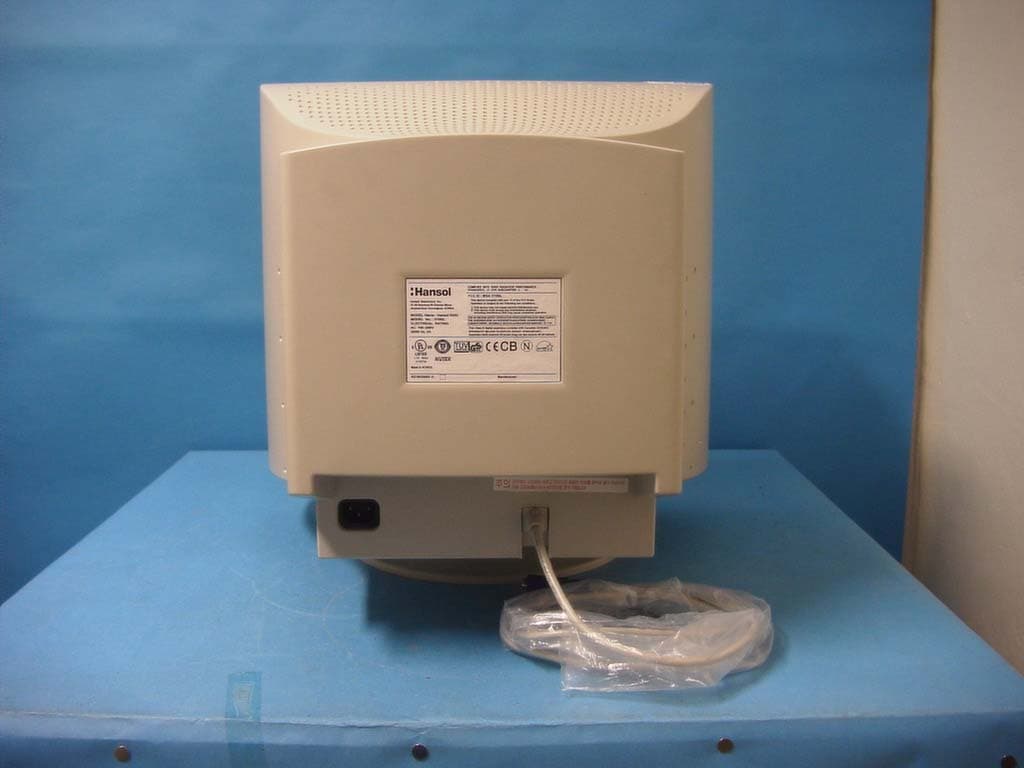

ID Label Sample & Location Information

File No. 02-IST-191/FB IST EMC LAB. Page 1 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 02-IST-191/FB Date of issue : Sep. 18, 2002 Model / Type No. : D19BL ■ Basic □ Alternate Kind of product Brand name Applicant Manufacturer License holder Address : 19” Color Display Monitor : Hansol : Hansol Electronics Inc. : Hansol Electronics Inc. : Hansol Electronics Inc. : #27-29, Hanchun-ri, Ducksan-Myun, Jinchun-Kun, Choongbuk, Korea Test result according to the regulation(s) „ Positive † Negative at page 3. This test report with appendix consists of 16 pages. The test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 02-IST-191/FB IST EMC LAB. Page 2 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Information of Test Laboratory Test Conditions Equipment under Test Test Result Test-setup Summary 2 3 3 4 ~ 5 6 7 8 ~ 10 16 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 11 ~ 13 14 ~ 15 C) Appendix File No. 02-IST-191/FB IST EMC LAB. Page 3 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; ■ - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. File No. 02-IST-191/FB IST EMC LAB. Page 4 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jul. 25, 2002 892108/018 3725/2 LISN EMCO Aug. 22, 2002 9101-2068 KNW-407 LISN Hyup-Rip Aug. 21, 2002 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 25, 2002 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : Y. J. Kim / Research Engineer IST EMC Lab. File No. 02-IST-191/FB IST EMC LAB. Page 5 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : Location : Open Site No. 1 Open Site No. 2 Open Site No. 3 Distance : 3 meters 10 meters Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESVP Test Receiver Rohde & Schwarz Aug. 16, 2002 861744/004 VULB 9160 Antenna Schwarzbeck Jul. 10, 2002 3048 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement procedures Radiated measurements were in accordance with ANSI C63.4-1992 “Method of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurements were performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a EMI/Field Intensity Meter. The measurements were made with the detector set for “quasi-peak” within a bandwidth of 120kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : Y. J. Kim / Research Engineer IST EMC Lab. File No. 02-IST-191/FB IST EMC LAB. Page 6 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description : CRT Type 19”, 90 ̊ deflection, Flat CRT Horizontal Dot pitch 0.20mm CRT Surface : Anti-Reflection & Anti-Static Sync H/V Separate, TTL, positive/negative H/V Composite, TTL, positive/negative Input Signal Video RGB Analog (0.7Vp-p), positive 75Ω Terminated Horizontal 30KHz ~ 96KHz (Automatically) Scanning frequency Vertical 50Hz ~ 160Hz (Automatically) Maximum Resolution 1600Dots x 1299Lines (Non-interlace) Power Consumption(Normal) 95W …
