MSAE19BL19 Inches CRT Monitor

Hansol Electronics Inc. Printed in KoreaPart No. 942189020001-01 www.hansolel.co.kr USER'S MANUAL 19 Printed on the recyclable paper User’s Manual 2 User’s Manual 3 FCC Information This equipment has been tested and found to comply with limits for a class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation.This equipment can generates, uses, and radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful inteference to radioCommunications. However, there is no guarantee that interference will not occur in a particularinstallation.If this equipment does cause unacceptable interference to radio and television reception, whichcan be determined by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures. Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced Radio/TV technician for help. PRODUCT NAME : 19" COLOR MONITORMODEL NUMBER : E19BLFCC RULES : TESTED TO COMPLY WITH FCC PART 15, CLASS BOPERATING ENVIRONMENT : FOR HOME OR OFFICE USEFCC COMPLIANCE STATEMENT :This device complies with part 15 of FCC Rules. Operation is subject to the following twoconditions : (1) This device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation. THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE HANSOL MULTITECH, INC. 7001, VILLAGE DRIVE, SUITE 255, BUENA PARK, CA. 90621, USA TEL : (714)562-5151 Introduction Package 4 Safety Information 4 Features 5 Power management system 6 Installation Connection to your personal computer. 7 Pin assignment table D-sub mini 15 pin connector 7 Controls OSD Controls 8 OSD Menus 9 Troubleshooting No picture 12 Image is scrolling or unstable 12 Picture is fuzzy 12 Picture bounces or a waving pattern is present in the picture 12 Edges of the display image are not square 12 Display image is not centered, too small, or too large 12 Specifications Electrical specifications 13 Mechanical specifications 13 Environmental specifications 13 Appendix Preset Timings 14 Caution Changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate the equipment. Canadian Notice This Class B digital apparatus meets all requirements of the CanadianInterference Causing Equipment Regulations. Avis Canadien Cet appareil numérique de la classe B respecte toutes les exigences duRèglement sur le matériel brouilleur du Canada. Notice The information contained in this document is subject to change without notice. English Introduction User’s Manual 5 Introduction User’s Manual 4 ENGLISH Package Congratulations on your purchase of this top quality color monitor!The items illustrated below are contained in the carton.First, be sure that your carton includes all of them. If any items are missing or damaged, please contact your local dealer or supplier. - Color Monitor- AC Power input cable- User’s Manual Safety information Provided with this monitor is a detachable power supply cord with IEC320 style terminations. It may be suitable for connection to any UL listed personal computer with similarconfiguration. Before making the connection ensure that the voltage rating of the computerconvenience outlet is the same as the monitor and that the ampere rating of the computerconvenience outlet is equal to or exceeds the monitor current rating. For 120Volt applications use only UL listed detachable power cord with NEMA configuration5-15P type(parallel blades) plug cap.For 240Volt applications use only UL listed detachable power cord with NEMA configuration6-15P type(tandem blades) plug cap. Use only a power source and connection appropriate for the monitor as indicated on the marking label. Slots and openings in the cabinet are provided for ventilation; these openings must not be blocked or covered. Never push objects of any kind into cabinetslots or other openings. Never insert anything metallic into the monitor openings. Doing so may create a danger of electric shock. To avoid electric shock, never touch the inside of the monitor. Only a qualified technician should open the monitor s case. Unplug the monitor from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp, lint-free cloth for cleaning. Install the monitor near an outlet that you can reach easily. Disconnect the product by grasping the plug firmly and pulling in from the outlet. Never disconnect it by pulling the cord. Features Superior image On Screen menu fingertip control system to visually select and adjust screen using buttons on front panel and on screen menus. The exclusive double dynamic focus system with a hyperbolic focus compensation circuit controls the electron beams resulting in a fine image display over the entire area of thescreen. Super contrast screen for superior contrast and richer color.Advanced INVAR Shadow mask for superior focus, brightness and color.19", 0.26dot pitch high resolution, non-interlaced technology provides sharp, flicker-free images. On screen menu color control system easily allows the white of the image to be adjusted as well as R.G. B signals, resulting in true-to-life colors. Ergonomic Design Flat, square screen to reduce image distortion and glare, thus relieving eye strain.Tilt base allowing 90 rotation in the horizontal and 17 in the vertical for greater user comfort. Low-leak radiation prevention meeting MPR I I and the very stringent TCO (option) magnetic field emissions standards for increased user safety. Environmentally Friendly Power management circuit conforming to VESA DPMS s…

Text truncated - open the document above for the full version.

7.1BLOCKDIAGRAM LINE FILTER FEEDBACK CONTROL BridgeD (G3SBA60) SWITCHING MODE POWER SUPPLY SWITCHING IC(KA5S1265) DEGAUSSING AC INLET SOCKET 50V -10V 13V 6.3V 75V BRIGHT CONTROL FLYBACK TRANS -.HIGH VOLTAGE -.H.FOCUS -.V.FOCUS -.SCREEN HIGHVOLTAGE PROTECTION CIRCUIT DYNAMIC FOCUS CIRCUIT DRIVECIRCUIT -DEFLECTION -HIGHVOLTAGE OUTPUTSTAGE -DEFLECTION -HIGHVOLTAGE TLIT VERTICAL OUTPUT (TDA8172) H/VSYNC OUTPUT TLIT CONTROL TILT COIL(DY) DEFLECTION YOKE (VERTICAL) DEFLECTION YOKE (HORIZONTAL) PRE-AMP (LM1267) HIGHVOLTAGE REGULATION VIDEO OUTPUT (LM2465) SIGNAL INPUT MICRO CONTROLLER UNIT (S3F8647XZZ) ADJUST KEY DDC2BI -H/VSIZE -H/VPOSI -S-PIN -TRAP -PARA -PINBAL -ACL -TILT -DEG LED CONTROL H/VSYNC INPUT DPMSOUTPUT -SUSPEND -OFF S-CORR (S1~S3) SYNC PROCESSOR (TDA9113) I C I C I C I C CRT OSDIC (S5D2508A) CLAMPIC (LM2480)

RE: Hansol Electronics Inc., FCC ID:MSAE19BL, Assessment no:AN01T 1572From: MICHAEL [[email protected]] Sent: Thursday, November 08, 2001 4:37 PM To: 'Mike Kuo' Subject: RE: Hansol Electronics Inc., FCC ID:MSAE19BL, Assessment no:AN01T 1572 Dear Mike Kuo Thank you for your cooperation. Please see the attached fcc-report 'page 5' for your question 1. And, see the attached Label Side for your question 2. Best regards, Michael -----Original Message----- From: Mike Kuo [mailto:[email protected]] Sent: Friday, November 09, 2001 3:17 AM To: Àåâȣ Subject: FW: Hansol Electronics Inc., FCC ID:MSAE19BL, Assessment no:AN01T 1572 -----Original Message----- From: CERTADM Sent: Thursday, November 08, 2001 10:15 AM To: '[email protected]' Subject: Hansol Electronics Inc., FCC ID:MSAE19BL, Assessment no:AN01T1572 Notice_content ------------- Question #1: This device is capable of running at 1280 x 1024 resolution. Through out the test report, there is no where mentioned the active resolution was used during the tests. How many video resolutions were investigated and the test data presented in the test report is for which resolution ? Question #2: FCC ID label format only show the label location. Please provide a clear copy to show FCC ID label format. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

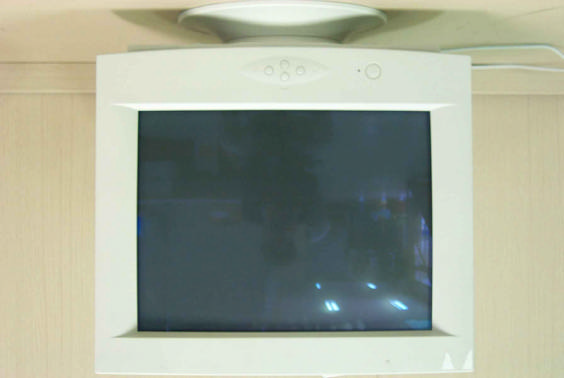

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: CTK01-F168 Date: November 8, 2001 Page 1 of 1 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.1 CERTiTEK EUT External Photographs

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: CTK01-F168 Date: November 8, 2001 Page 1 of 1 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.1 CERTiTEK Photographs related to Label

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: CTK01-F168 Date: November 8, 2001 Page 1 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.1 CERTiTEK EUT Internal Photographs CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: CTK01-F168 Date: November 8, 2001 Page 2 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.1 CERTiTEK CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: CTK01-F168 Date: November 8, 2001 Page 3 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.1 CERTiTEK PCB CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: CTK01-F168 Date: November 8, 2001 Page 4 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.1 CERTiTEK

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: CTK01-F168 Date: November 8, 2001 Page 1 of 14 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.1 CERTiTEK EMC TEST REPORT For FCC Test Report No. : CTK01-F168 Date of Issue : November 8, 2001 Model/Type No: : E19BL Kind of Product : CRT Monitor Applicant : Hansol Electronics Inc. Applicant Address : 27-29, Hanchon-Ri, Ducksan-Myun, Jinchon-Gun, Chungbuk, 365-840, Korea Manufacturer : Hansol Electronics Inc. Manufacturer Address : 27-29, Hanchon-Ri, Ducksan-Myun, Jinchon-Gun, Chungbuk, 365-840, Korea Contact Person : S. P. Yang Telephone : +82-43-530-8503 Received Date : October 29, 2001 Test period : Start: Oct. 22, 2001 End: Nov. 6, 2001 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. CERTiTEK Standards Laboratory Co., Ltd. is accredited by Korea Laboratory Accreditation Scheme (KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Tested by Reviewed by Michael Jang EMC Test Engineer James Hong EMC Technical Manager Date: November 8, 2001 Date: November 8, 2001 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: CTK01-F168 Date: November 8, 2001 Page 2 of 14 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.1 CERTiTEK REPORT REVISION HISTORY Date Revision Page No Nov. 8, 2001 (CTK01-F168) Issued All This report shall not be reproduced except in full, without the written approval of CERTiTEK Standards Laboratory Co., Ltd. This document may be altered or revised by CERTiTEK Standards Laboratory Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CERTiTEK Standards Laboratory Co., Ltd. will constitute fraud and shall nullify the document. CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: CTK01-F168 Date: November 8, 2001 Page 3 of 14 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.1 CERTiTEK TABLE OF CONTENTS 1.0 General Product Description......................................................................................4 1.0 General Product Description......................................................................................4 1.1 Model Differences....................................................................................................4 1.2 Device Modifications.................................................................................................4 1.3 EUT Configuration(s)................................................................................................5 1.4 Test Software..........................................................................................................5 1.5 EUT Operating Mode(s).............................................................................................5 1.6 Calibration Details of Equipment Used for Measurement................................................6 1.7 Test Facility.............................................................................................................6 1.8 Measurement Procedure...........................................................................................6 1.9 Laboratory Accreditations and Listings........................................................................7 2.0 Emissions Test Regulations........................................................................................8 2.1 Conducted Voltage Emissions....................................................................................9 2.2 Radiated Electric Field Emissions..............................................................................10 Configurations.............................................................................................................11 APPENDIX A - TEST DATA.............................................................................................12 Conducted Voltage Emissions (Quasi-Peak reading)....................................................12 Radiated Electric Field Emissions (Quasi-Peak reading)...............................................14 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: CTK01-F168 Date: November 8, 2001 Page 4 of 14 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.1 CERTiTEK 1.0 General Product Description The product is CRT Monitor. 1.0.1 Tested Equipment Unless otherwise indicated, all tests were conducted on Model E19BL. Tests performed on Model were considered to be representative of Model(s) . 1.0.2 Equipment Size, Mobility and Identification Dimensions: 470 by 462 by 466 mm in Mobility: Hand-Held Table-top Floor-standing Serial No.: Not Applicable 1.0.3 Electrical Ratings Input: 100-240 V ac, 50/60 Hz Output: Not applicable 1.0.4 Test Voltage & Frequency Unless indicated otherwise on the individual data sheet or test results, the test voltage and frequency was as indicated below. Voltage: 110 V ac Frequency: 60 Hz 1.0.5 Clock & Other Frequencies Utilized Micro Controller Unit: 7.993 MHz 1.1 Model Differences Not applicable 1.2 Device Modifications The following modifications were necessary for compliance: Not applicable CERTiTEK Standards Laboratory C…

Text truncated - open the document above for the full version.

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: CTK01-F168 Date: November 8, 2001 Page 1 of 2 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.1 CERTiTEK APPENDIX B - Test Setup Photos and Configuration Conducted Voltage Emissions CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: CTK01-F168 Date: November 8, 2001 Page 2 of 2 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.1 CERTiTEK Radiated Electric Field Emissions
