MTF010147Phonecell SX4T

09/03/03 Número de pieza 56030101 P HONECELL ® SX4T CDMA2000 1X T ERMINAL INALAMBRICO FIJO 800 MH Z CDMA 1900 MH Z CDMA C OMUNICACIONES POR VOZ F AX /D ATOS DE COMPUTADORA F AX ANALOGICO ( OPCIONAL ) M ANUAL DEL USUARIO 09/03/03 Part Number 56030101 P HONECELL ® SX4T CDMA2000 1X F IXED W IRELESS T ERMINAL 800 MH Z CDMA 1900 MH Z CDMA V OICE C OMMUNICATION C OMPUTER F AX /D ATA A NALOG F AX (O PTIONAL ) U SER M ANUAL Antes de instalar su Phonecell ® SX4T , saque el contenido de la caja con cuidado y revise si hay evidencia de daños durante el transporte. Si tiene daños, póngase en contacto con su distribuidor Telular autorizado o su agente de despacho inmediatamente. INSTRUCCIONES DE USO SEGURO¡IMPORTANTE! Antes de instalar o usar este producto, lea la sección INFORMACION DE SEGURIDAD Y GENERALIDADES de esta guía. •• Instale la unidad en interiores. •• Instale la unidad en una superficie plana y dura para una ventilación adecuada. •• No exponga la unidad a la lluvia o a la humedad. •• No coloque la unidad encima o cerca de fuentes de calor. A VISOS IMPORT ANTES TERMINOS Y CONDICIONES DE USO DE PRODUCTOS PHONECELL ® (“Producto”) Los términos y condiciones siguientes son un contrato legal entre usted y Telular Corporation que afecta la posesión y el uso d el Producto. AL RETENER Y USAR EL PRODUCTO DESPUES DE HABERLO RECIBIDO, USTED MANIFIESTA ESTAR DE ACUERDOCON LOS TERMINOS Y CONDICIONES, INCLUYENDO LOS DESCARGOS DE GARANTIA, LIMITACIONES DERESPONSABILIDAD Y PROVISIONES DE INDEMNIZACION DADOS A CONTINUACION. SI USTED NO ESTA DE ACUERDO CONESTOS TERMINOS Y CONDICIONES, NO UTILICE EL PRODUCTO Y DEVUELVA DE INMEDIATO EL PRODUCTO SIN USAR PARARECIBIR UN REEMBOLSO. Usted acuerda aceptar la responsabilidad total por el mal uso del Producto, y, además, por todanegligencia, acto ilegal u omisión por parte suya o de sus agentes, contratistas, sirvientes, empleados u otros usuarios del Pr oducto siempre y cuando éstos hayan obtenido el producto de usted, como parte del uso y funcionamiento del Producto. INDEMNIZACION DE TELULAR CORPORATION (“TELULAR”)USTED INDEMNIZARA, DEFENDERA Y CONSIDERARA A TELULAR LIBRE DE CONSECUENCIAS POR LOS COSTOS,INCLUYENDO TARIFAS RAZONABLES DE ABOGADOS Y POR RECLAMOS PRESENTADOS POR USTED, POR SUSCLIENTES O TERCEROS A CAUSA DEL USO O FUNCIONAMIENTO DEL PRODUCTO: (i) POR EL MAL USO O EL USO EN UNAFORMA NO CONTEMPLADA POR USTED Y POR TELULAR O EN UNA FORMA INCONSISTENTE CON LO INDICADO EN ESTEMANUAL; (ii) POR EL USO DE FORMA ILEGAL O CONTRA EL BIEN PUBLICO; (iii) POR EL USO ESPECIFICAMENTE NOAUTORIZADO POR ESTE MANUAL; (iv) POR EL USO DAÑINO O PELIGROSO A TERCEROS; (v) POR RECLAMOSPRESENTADOS POR CUALQUIER PARTE EN CUANTO A PROBLEMAS, ERRORES O EQUIVOCACIONES DEL PRODUCTO;O (vi) UNA COMBINACION DEL PRODUCTO CON OTROS MATERIALES, MODIFICACION DEL PRODUCTO O EL USO DELMISMO EN UN ENTORNO NO AUTORIZADO NI APROBADO POR ESCRITO POR TELULAR. LAS PARTES DARANNOTIFICACION OPORTUNA DE DICHOS COSTOS O RECLAMOS Y COOPERARAN ENTRE SI PARA LLEVAR A CABO ESTAINDEMNIZACION, DEFENSA Y CONSIDERACION SIN CONSECUENCIA. SX4T CDMA 800 • SX4T CDMA 1900 2 Manual del usuario POR FAVOR, CONSULTE LA SECCION DE A VISOS IMPORT ANTES DE ESTA GUIA PARA OBTENER INFORMACION IMPORTANTE EN CUANTO AL USO, GARANTIAE INDEMNIZACIONES. CONTENIDO T elular Corporation Casa matriz 647 North Lakeview Parkway Vernon Hills, Illinois 60061, EE.UU. Apoyo técnico Tel: +1-954-217-0522 • Fax: +1-954-217-9593 Correo electrónico: [email protected] • http://www.telular.com Fuente de alimentación Terminal inalámbrico fijo Phonecell ® SX4T CDMA Antena tipo látigo Número de pieza 56030101 ©2003 Telular Corporation, todos los derechos reservados Cordón de alimentación de CA Before installing your Phonecell ® SX4T , carefully remove the contents from the shipping carton and check for evidence of shipping damage. If damage is found, contact your Authorized Telular Distributor or shipping agent immediately . SAFE OPERA TION INSTRUCTIONS IMPORTANT! Before installing or operating this product, read the SAFETY AND GENERAL INFORMATION section of this guide. •• Install the unit indoors. •• Install the unit on a hard, flat surface for proper ventilation. •• Do not expose the unit to rain or moisture. •• Do not place the unit on or close to sources of heat. IMPORT ANT NOTICES TERMS AND CONDITIONS FOR USE OF PHONECELL ® PRODUCTS ("Product") These Terms and Conditions are a legal contract between you and Telular Corporation for the title to and use of the Product.BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONSINCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND INDEMNIFICATION PROVISIONS BELOW. IFYOU DO NOT AGREE TO THE TERMS AND CONDITIONS, DO NOT USE THE PRODUCT AND IMMEDIATELY RETURNTHE UNUSED PRODUCT FOR A COMPLETE REFUND. You agree to accept sole responsibility for any misuse of the Productby you; and, in addition, any negligent or illegal act or omission of your or your agents, contractors, servants, employees, orother users of the Product so long as the Product was obtained from you, in the use and operation of the Product.INDEMNIFICATION OF TELULAR CORPORATION ("TELULAR")YOU SHALL INDEMNIFY, DEFEND AND HOLD HARMLESS TELULAR FOR ANY OF THE COST, INCLUDING REASON-ABLE ATTORNEYS' FEES, AND FROM CLAIMS ARISING OUT OF YOU, YOUR CLIENTS' OR OTHER THIRD PARTIES'USE OR OPERATION OF THE PRODUCT: (i) FOR MISUSE OR IN A MANNER NOT CONTEMPLATED BY YOU ANDTELULAR OR INCONSISTENT WITH THE PROVISIONS OF THIS MANUAL; (ii) IN AN ILLEGAL MANNER OR AGAINSTPUBLIC POLICY; (iii) IN A MANNER SPECIFICALLY UNAUTHORIZED IN THIS MANUAL; (iv) IN A MANNER HARMFULOR DANGEROUS TO THIRD PARTIES; (v) FROM CLAIMS BY ANYONE RESPECTING PROBLEMS, ERRORS OR MIS-TAKES OF THE PRODUCT; OR (vi) COMBINATION OF THE PRODUCT WITH MATERIAL, MODIFICATION OF THEPRODUCT OR USE OF THE PRODUCT IN AN ENVIRONMENT NOT PROVIDED, OR PERMITTED, BY TELULAR INWRITING. THE PARTIES SHALL GIVE EACH OTHER PROMPT NOTICE OF ANY SUCH COST OR CLA…

Text truncated - open the document above for the full version.

October 20, 2003 Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request FCC ID: MTF010147 & MTF071473 Product: Phonecell SX4T (CDMA) 800 - 1x & Phonecell SX4T (CDMA) 1900 - 1x It is requested that the following items associated with this submission be held confidence in accordance with FCC Rule Section 0.459: a) Schematics b) Block diagram c) Parts List The reasons for withholding the above materials from inspection are trade secrets and substantial competitive harm. The above exhibits contain designs and information proprietary to Telular. This information is available only for internal company use, and is not available publicly. Public release of this information would allow competitors to copy key elements of Telular’s design, and also provide them with engineering specifications that have been based on Telular’s many years of experience. We feel that this material should be held confidential in perpetuity, because the trade secrets that are based on Telular’s years of experience will always be applicable to the design of a similar product. Sincerely, Daniel Giacopelli Executive Vice President

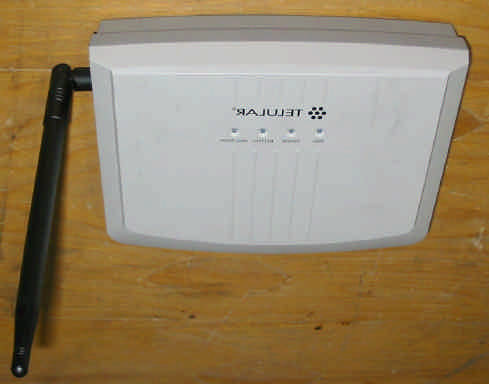

Front Side Back Side Antenna Side Non-Antenna Side

 SX4T 800MHz Main Label





SX4T CDMA2000 1X FIXED WIRELESS TERMINAL Model: T4X80D FCC ID: MTF010147 Description: Label Information

 SX4T 1900MHz Main Label





SX4T CDMA2000 1X FIXED WIRELESS TERMINAL Model: T4X09D FCC ID: MTF071473 Description: Label Information

Top Cover Bottom Cover Circuit Boards Mounted in Chassis Main Circuit Board Main Circuit Board Daughter Card on Main Board Daughter Card on Main Board LED Board LED Board

09/03/03 Part Number 56030201 P HONECELL ® SX4T CDMA2000 1X F IXED W IRELESS T ERMINAL 800 MH Z CDMA 1900 MH Z CDMA V OICE C OMMUNICATION C OMPUTER F AX /D ATA A NALOG F AX (O PTIONAL ) T ECHNICAL M ANUAL 09/03/03 Número de pieza 56030201 P HONECELL ® SX4T CDMA2000 1X T ERMINAL INALAMBRICO FIJO 800 MH Z CDMA 1900 MH Z CDMA C OMUNICACIONES POR VOZ F AX /D ATOS DE COMPUTADORA F AX ANALOGICO ( OPCIONAL ) M ANUAL TECNICO Before installing your Phonecell ® SX4T , carefully remove the contents from the shipping carton and check for evidence of shipping damage. If damage is found, contact your Authorized Telular Distributor or shipping agent immediately . SAFE OPERA TION INSTRUCTIONS IMPORTANT! Before installing or operating this product, read the SAFETY AND GENERAL INFORMATION section of this guide. •• Install the unit indoors. •• Install the unit on a hard, flat surface for proper ventilation. •• Do not expose the unit to rain or moisture. •• Do not place the unit on or close to sources of heat. IMPORT ANT NOTICES TERMS AND CONDITIONS FOR USE OF PHONECELL ® PRODUCTS ("Product") These Terms and Conditions are a legal contract between you and Telular Corporation for the title to and use of the Product.BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONSINCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND INDEMNIFICATION PROVISIONS BELOW. IFYOU DO NOT AGREE TO THE TERMS AND CONDITIONS, DO NOT USE THE PRODUCT AND IMMEDIATELY RETURNTHE UNUSED PRODUCT FOR A COMPLETE REFUND. You agree to accept sole responsibility for any misuse of the Productby you; and, in addition, any negligent or illegal act or omission of your or your agents, contractors, servants, employees, orother users of the Product so long as the Product was obtained from you, in the use and operation of the Product.INDEMNIFICATION OF TELULAR CORPORATION ("TELULAR")YOU SHALL INDEMNIFY, DEFEND AND HOLD HARMLESS TELULAR FOR ANY OF THE COST, INCLUDING REASON-ABLE ATTORNEYS' FEES, AND FROM CLAIMS ARISING OUT OF YOU, YOUR CLIENTS' OR OTHER THIRD PARTIES'USE OR OPERATION OF THE PRODUCT: (i) FOR MISUSE OR IN A MANNER NOT CONTEMPLATED BY YOU ANDTELULAR OR INCONSISTENT WITH THE PROVISIONS OF THIS MANUAL; (ii) IN AN ILLEGAL MANNER OR AGAINSTPUBLIC POLICY; (iii) IN A MANNER SPECIFICALLY UNAUTHORIZED IN THIS MANUAL; (iv) IN A MANNER HARMFULOR DANGEROUS TO THIRD PARTIES; (v) FROM CLAIMS BY ANYONE RESPECTING PROBLEMS, ERRORS OR MIS-TAKES OF THE PRODUCT; OR (vi) COMBINATION OF THE PRODUCT WITH MATERIAL, MODIFICATION OF THEPRODUCT OR USE OF THE PRODUCT IN AN ENVIRONMENT NOT PROVIDED, OR PERMITTED, BY TELULAR INWRITING. THE PARTIES SHALL GIVE EACH OTHER PROMPT NOTICE OF ANY SUCH COST OR CLAIMS AND COOP-ERATE, EACH WITH THE OTHER, TO EFFECTUATE THIS INDEMNIFICATION, DEFENSE AND HOLD HARMLESS. SX4T CDMA 800 • SX4T CDMA 1900 2 Technical Manual PLEASE SEE THE IMPORT ANT NOTICES SECTION OF THIS GUIDE FOR IMPORTANT INFORMATION ON USE, WARRANTY AND INDEMNIFICATION CONTENTS T elular Corporation Corporate Headquarters 647 North Lakeview Parkway Vernon Hills, Illinois 60061, USA T echnical Support Tel: 847-247-9400 · Fax: 847-247-0021 E-mail: [email protected] · http://www.telular.com Power Supply Phonecell ® SX4T CDMA FWT Spike Antenna Part Number 56030201 ©2003 Telular Corporation, All Rights Reserved AC Power Cord Antes de instalar su Phonecell ® SX4T , saque el contenido de la caja con cuidado y revise si hay evidencia de daños durante el transporte. Si tiene daños, póngase en contacto con su distribuidor Telular autorizado o su agente de despacho inmediatamente. INSTRUCCIONES DE USO SEGURO¡IMPORTANTE! Antes de instalar o usar este producto, lea la sección INFORMACION DE SEGURIDAD Y GENERALIDADES de esta guía. •• Instale la unidad en interiores. •• Instale la unidad en una superficie plana y dura para una ventilación adecuada. •• No exponga la unidad a la lluvia o a la humedad. •• No coloque la unidad encima o cerca de fuentes de calor. A VISOS IMPORT ANTES TERMINOS Y CONDICIONES DE USO DE PRODUCTOS PHONECELL ® (“Producto”) Los términos y condiciones siguientes son un contrato legal entre usted y Telular Corporation que afecta la posesión y el uso d el Producto. AL RETENER Y USAR EL PRODUCTO DESPUES DE HABERLO RECIBIDO, USTED MANIFIESTA ESTAR DE ACUERDOCON LOS TERMINOS Y CONDICIONES, INCLUYENDO LOS DESCARGOS DE GARANTIA, LIMITACIONES DERESPONSABILIDAD Y PROVISIONES DE INDEMNIZACION DADOS A CONTINUACION. SI USTED NO ESTA DE ACUERDO CONESTOS TERMINOS Y CONDICIONES, NO UTILICE EL PRODUCTO Y DEVUELVA DE INMEDIATO EL PRODUCTO SIN USAR PARARECIBIR UN REEMBOLSO. Usted acuerda aceptar la responsabilidad total por el mal uso del Producto, y, además, por todanegligencia, acto ilegal u omisión por parte suya o de sus agentes, contratistas, sirvientes, empleados u otros usuarios del Pr oducto siempre y cuando éstos hayan obtenido el producto de usted, como parte del uso y funcionamiento del Producto. INDEMNIZACION DE TELULAR CORPORATION (“TELULAR”)USTED INDEMNIZARA, DEFENDERA Y CONSIDERARA A TELULAR LIBRE DE CONSECUENCIAS POR LOS COSTOS,INCLUYENDO TARIFAS RAZONABLES DE ABOGADOS Y POR RECLAMOS PRESENTADOS POR USTED, POR SUSCLIENTES O TERCEROS A CAUSA DEL USO O FUNCIONAMIENTO DEL PRODUCTO: (i) POR EL MAL USO O EL USO EN UNAFORMA NO CONTEMPLADA POR USTED Y POR TELULAR O EN UNA FORMA INCONSISTENTE CON LO INDICADO EN ESTEMANUAL; (ii) POR EL USO DE FORMA ILEGAL O CONTRA EL BIEN PUBLICO; (iii) POR EL USO ESPECIFICAMENTE NOAUTORIZADO POR ESTE MANUAL; (iv) POR EL USO DAÑINO O PELIGROSO A TERCEROS; (v) POR RECLAMOSPRESENTADOS POR CUALQUIER PARTE EN CUANTO A PROBLEMAS, ERRORES O EQUIVOCACIONES DEL PRODUCTO;O (vi) UNA COMBINACION DEL PRODUCTO CON OTROS MATERIALES, MODIFICACION DEL PRODUCTO O EL USO DELMISMO EN UN ENTORNO NO AUTORIZADO NI APROBADO POR ESCRITO POR TELULAR. LAS PARTES DARANNOTIFICACION OPORTUNA DE DICHOS COSTOS O RECLAMOS Y COOPERARAN ENTRE SI PARA LLEVAR A CABO ESTAINDEMNIZACION, DEFENSA Y CONSIDERACION SIN CONSECUENCI…

Text truncated - open the document above for the full version.

SX4T CDMA 800 • SX4T CDMA 1900 15 Technical Manual Supplemental Technician CommandsAuto Send Time* *0 + 0 ~ 9 ( 0 : 10 seconds, ~ 9 seconds, just select one of ten buttons) + “#” (Set / Confirm Tone),“*” (Cancel / Just Dial Tone) on the phone keypad.Setting The Country Dial Tone* *2 + 1 ~ 6 + “#” (Set / Confirm Tone), “*” (Cancel / Just Dial Tone).Ring Cadence* *04 + 1 ~3 + “#” (Set / Confirm tone), “*” (Cancel / Just dial tone). ON TIME OFF TIME ON TIME OFF TIME 1 1 s 2 s - - 2 1 s 4s - - 3 400 ms 200 ms 400 ms 3500 ms Number Country Low Frequency High Frequency 1 Korea, U.S. 350 Hz 440 Hz 2 Latin America 425 Hz 425 Hz 3 East Europe 425 Hz 425 Hz 4 China, Syria 450 Hz 450 Hz 5 Nicaragua 450 Hz 450 Hz 6 India 375.5 Hz 412.5 Hz Acquisition SID 02 > 02(NAM 1)/03(NAM 2) > 07 > 01/02/03/04 (SID1 ~SID4) > > 5digits(0~9) > *(Cancel)/#(Save) LOCK SID 02 > 02(NAM 1)/03(NAM 2) > 08 > 01/02/03/04 (lock SID1 ~ lockSID4)> 5digits(0~9) > *(Cancel)/#(Save) HOME SID/NID Enable 02 > 02(NAM 1)/03(NAM 2) > 09 > 1(Yes)/2(No) > *(Cancel)/#(Save) HOME SID/NID SID : 02 > 02(NAM 1)/03(NAM 2) > 10 > 01/03/~/37/39(odd number) >5digits(0~9) > *(Cancel)/#(Save) NID : 02 > 02(NAM 1)/03(NAM 2) > 10 > 02/04/~/38/40(even number) >5digits(0~9) > *(Cancel)/#(Save) SID/NID LOCK SID : 02 > 02(NAM 1)/03(NAM 2) > 11 > 01/03/~/17/19(odd number) >5digits(0~9) > *(Cancel)/#(Save)NID : 02 > 02(NAM 1)/03(NAM 2) > 11 > 02/04/~/18/20(even number) >5digits(0~9) > *(Cancel)/#(Save) FSID 02 > 02(NAM 1)/03(NAM 2) > 12 > 1(Yes)/2(No) > *(Cancel)/#(Save) FNID 02 > 02(NAM 1)/03(NAM 2) > 13 > 1(Yes)/2(No) > *(Cancel)/#(Save) CDMA Pref 02 > 02(NAM 1)/03(NAM 2) > 14 > 1(A only) / 2(B only) / 3(Home only) /4(Standard-Home pref) > *(Cancel)/#(Save) PRL Enabled 02 > 02(NAM 1)/03(NAM 2) > 15 > 1(Enable) / 2(Disable) >*(Cancel)/#(Save) Hot Line (enable) 03 > 01 > 2 # <NUMBER> # # * (unit will reset)To prevent calling the hot line number for a call, press the # key. Hot Line (disable) 03 > 01 > 1 # * (unit will reset) Emergency (phone num-bers that are allowedeven when call restrictionis enabled) 03 > 02 01/02/03 <emergency phone number> * (Cancel) / # (Save) SX4T CDMA 800 • SX4T CDMA 1900 15 Manual técnico SX4T CDMA 800 • SX4T CDMA 1900 16 Technical Manual Ring Frequency:* *04 + 1 ~ 3 + “#” (Set / Confirm tone), “*” (Cancel / Just dial tone).Hook Flash Time (in milliseconds):* *05 + 4 digits (0 ~ 9, 50ms < = hook flash time < on hook time) + “#” (Set / Confirm tone), “*”(Cancel / Just dial tone). The default value is 300ms.On Hook Detection Time (in milliseconds):**06 + 4 digits (0 ~ 9, hook flash time < on hook time) + “#” (Set / Confirm tone), “*” (Cancel / Justdial tone). The default value is 800 ms.Off Hook Detection Time (in milliseconds):* *07 + 3 digits (0 ~ 9, 20ms < = on hook time < = 300ms) + “#” (Set / Confirm tone), “*” (Cancel /Just dial tone). The off hook time is the amount of time between when the user picks up the handset(off-hook) and hearing dial tone. The default is 20ms.NOTE: Off Hook Time < Hook Flash Time < On Hook Time A-Key can be entered using the # # 1 # command 1. Press # # 1 # to get into “A-Key storage mode”.2. Input 26 digits of A-Key and press #.3. To confirm, repeat step 2. Polarity Line Reversal/Metering PulsesDepending on the network, you can select the following commands for metering. Number Frequency 1 20Hz 2 25Hz 3 16Hz 12KHz Pulse Press 08# 16KHz Pulse Press 09# Polarity Reverse Press 10# Stop Metering/Line reversal Press # SX4T CDMA 800 • SX4T CDMA 1900 16 Manual técnico SX4T CDMA 800 • SX4T CDMA 1900 17 Technical Manual PHONECELL SX4T TROUBLESHOOTING Telephone Service is Not WorkingIf the telephone service is not working, first check the operation of the telephone equipment andwiring connected to your Phonecell. Test the equipment on a different service or piece of equipmentto ensure proper operation, or connect a known good telephone device to the phone port on thePhonecell unit. This will verify the condition of the telephone equipment and the internal wiring of thetelephone service to ensure that it’s working properly. If the telephone system or wiring is not work-ing properly, replace or repair the equipment as required. Otherwise, contact your cellular provideror your authorized Telular distributor.Unable to Receive Incoming CallsIf more than one telephone or telephone device is connected to your Phonecell, make sure that alldevices are “on-hook” (hung up). If one extension is “off-hook” (off its cradle), none of the exten-sions on your phone line will ring when an incoming call occurs.Moisture or Ventilation ProblemsVisually inspect your Phonecell’s unit enclosure. Moisture can damage the equipment. Ventilation isalso very important. If there are moisture or ventilation problems, move your Phonecell to correct asnecessary. See the Temperature Environment section of this manual.No PowerThe power LED lamp on the front of your Phonecell SX4T indicates the unit’s power condition. If theLED is GREEN, your Phonecell is receiving power. If the power cord is connected and the LEDlamp is not lit, the Phonecell is not receiving power. Verify that the AC power source and its corre-sponding circuit breaker are functioning properly. Battery Backup FailureIf you’re using the battery, the unit must be connected to AC power for at least 15 hours to fullycharge the battery before it will provide back-up power to your Phonecell. Verify that the battery hasbeen charged for at least 15 hours and that the power source and its corresponding circuit breakerare functioning properly. Then, examine the battery for physical damage and corrosion. Replace thebattery if necessary.GENERAL INFORMA TION AND SAFETY Your Phonecell SX4T Fixed Wireless Terminal (FWT) functions as both a radio transmitter andreceiver. When it is ON, the FWT receives and sends out radio frequency (RF) energy. The CDMA800 unit operates in the frequency range between 824 and 894 MHz, and the CDMA 1900 between1850 MHz and 1990 MHz. Both employ commonly used…

Text truncated - open the document above for the full version.

This report may be reproduced only with the written permission of Intertek and if reproduced must be reproduced in its entirety. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. The results contained in this report were derived from measurements performed on the identified test samples. Any implied performance of other samples based on this report is dependent on the representative adequacy of the samples tested. TEST REPORT Report Number: 3047435-0013047393-001 Project Number: 3047393 September 28, 2003 Evaluation of the CDMA 800/1900 Wireless Desk Phone Model Number: Phonecell SX4T (CDMA) 800-1x and Phonecell SX4T (CDMA) 1900-1x FCC ID: MTF010147 and MTF071473 FCC Part 2 FCC Part 15 FCC Part 24 Subpart E For Telular, Inc. Test Performed by:Test Authorized by: Intertek 731 Enterprise Drive Lexington, KY 40510 Telular, Inc. 580 Old Willets Path Hauppauge, NY 11788 Prepared By:_______________________________Date:____10/17/03_________ Bryan C. Taylor, Team Leader Approved By:______________________________Date:____10/17/03_________ David Schramm, EMC Team Leader Intertek 731 Enterprise Drive, Lexington, KY 40510 Telephone: 859-226-1000 Fax: 859-226-1040 Web: www.etlsemko.com 731 Enterprise Drive, Lexington KY 40510 Evaluation For:Telular, Inc.FCC ID: MTF010147 and MTF071473 Model No: Phonecell SX4T (CDMA) 800-1x and Phonecell SX4T (CDMA) 1900-1x File: 3047393Page 2 of 51FCC Part 2, 15, and 24 Evaluation TABLE OF CONTENTS 1EXECUTIVE SUMMARY.......................................................................................................4 2JOB DESCRIPTION................................................................................................................5 2.1CLIENT INFORMATION...........................................................................................................5 2.2TEST PLAN REFERENCE:.........................................................................................................5 2.3EQUIPMENT UNDER TEST (EUT)............................................................................................6 2.3.1System Support Equipment.............................................................................................7 2.3.2Cables associated with EUT...........................................................................................7 2.3.3System Block Diagram...................................................................................................7 2.3.4Justification..................................................................................................................8 2.3.5Mode(s) of operation.....................................................................................................8 2.4MODIFICATIONS REQUIRED FOR COMPLIANCE.........................................................................8 2.5RELATED SUBMITTAL(S) GRANTS..........................................................................................8 3TEST FACILITY.....................................................................................................................9 4CONDUCTED RF POWER...................................................................................................10 4.1TEST PROCEDURE................................................................................................................10 4.2TEST EQUIPMENT................................................................................................................10 4.3TEST RESULTS....................................................................................................................10 5RADIATED RF POWER.......................................................................................................11 5.1TEST PROCEDURE................................................................................................................11 5.2TEST EQUIPMENT................................................................................................................11 5.3TEST RESULTS....................................................................................................................12 6EMISSION LIMITATIONS, OCCUPIED BANDWIDTH.....................................................13 6.1TEST PROCEDURE................................................................................................................13 6.2TEST EQUIPMENT................................................................................................................13 6.3TEST RESULTS....................................................................................................................14 7OUT OF BAND EMISSION AT ANTENNA TERMINALS..................................................21 7.1TEST PROCEDURE................................................................................................................21 7.2TEST EQUIPMENT................................................................................................................21 7.3TEST RESULTS....................................................................................................................22 8FIELD STRENGTH OF SPURIOUS RADIATION...............................................................28 8.1TEST PROCEDURE................................................................................................................28 731 Enterprise Drive, Lexington KY 40510 Evaluation For:Telular, Inc.FCC ID: MTF010147 and MTF071473 Model No: Phonecell SX4T (CDMA) 800-1x and Phonecell SX4T (CDMA) 1900-1x File: 3047393Page 3 of 51FCC Part 2, 15, and 24 Evaluation 8.2TEST EQUIPMENT................................................................................................................28 8.3TEST RESULTS....................................................................................................................29 9POWER LINE CONDUCTED EMISSIONS..................................................................…

Text truncated - open the document above for the full version.

Telular Corporation FCCID: MTF010147 Page 1 of 1 CDMA 800 Wireless Desk Phone Phonecell SX4T (CDMA) 800-1x DC Voltage and Current into final RF stages The DC voltage into the final stages of the RF circuitry is 3.815 Volts, and the final current into the final stages of the RF circuitry is 800 mA.

RF Safety Requirements to 2.1091 for Mobile Transmitters FCC ID:MTF010147 EUT TX Characteristics Antenna type:External whip type folding antenna Measured ERP (dBm):26.59or0.46 Watts At frequency (MHz):848.31 MPE Limit (mW/cm^2):2.8277 Given the following equation Equation 1: Solve for r: Equation 2: Using Equation 1, the power density at 20 cm is:0.91 mW/cm^2 Using Equation 2, the MPE limit is met at:11.3 cm 2 4r GP P tt d π = d tt P GP r π4 =

Conducted Voltage Emissions – Front Conducted Voltage Emissions – Back Radiated Emissions – Front Radiated Emissions - Back
