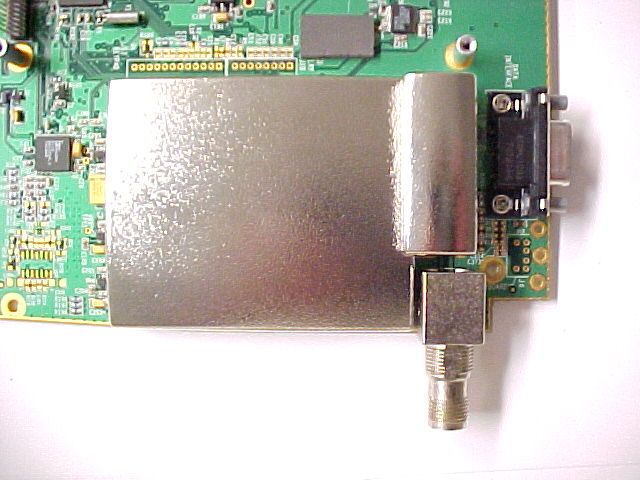

01/30/02Part Number 5602xxxx PHONECELL ® SX5D GSM DESKTOPPHONE 900/1800 MHZGSM (DUALBAND) 1900 MHZGSM VOICECOMMUNICATIONANDCOMPUTERFAX/DATA TECHNICALMANUAL STANDARD CONNECTIONS DESKPHONE MODEL ONLY Phonecell ® SX5D2Technical Manual FAX PHONE MODEL ONLY PERSONAL LEAST COST ROUTING MODEL ONLY Phonecell ® SX5D3Technical Manual Phonecell ® SX5D4Technical Manual Before installing your Phonecell ® SX5D, carefully remove the contents from the shipping carton and check for evidence of shipping damage. If damage is found, contact your Authorized Telular Distributor or shipping agent immediately. SAFE OPERATION INSTRUCTIONS IMPORTANT!Before installing or operating this product, read the SAFETY AND GENERAL INFORMATIONsection of this manual. • Install unit indoors. • Install unit on hard, flat surface for proper ventilation. • Do not expose unit to rain or moisture. •Do not place unit on or close to sources of heat IMPORTANT NOTICES TERMS AND CONDITIONS FOR USE OF PHONECELL ® PRODUCTS ("Product") These Terms and Conditions are a legal contract between you and Telular Corporation for the title to and use of the Product. BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONS INCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND INDEMNIFICATION PROVISIONS BELOW. IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS, DO NOT USE THE PRODUCT AND IMMEDIATELY RETURN THE UNUSED PRODUCT FOR A COMPLETE REFUND. You agree to accept sole responsibility for any misuse of the Product by you; and, in addition, any negligent or illegal act or omission of your or your agents, contractors, servants, employees, or other users of the Product so long as the Product was obtained from you, in the use and operation of the Product. Changes or modifications not expressly approved by Telular Corporation will void your authority to operate the equipment per FCC part 15 paragraph 15.21. INDEMNIFICATION OF TELULAR CORPORATION ("TELULAR") YOU SHALL INDEMNIFY, DEFEND AND HOLD HARMLESS TELULAR FOR ANY OF THE COST, INCLUDING REA- SONABLE ATTORNEYS' FEES, AND FROM CLAIMS ARISING OUT OF YOU, YOUR CLIENTS' OR OTHER THIRD PARTIES' USE OR OPERATION OF THE PRODUCT: (i) FOR MISUSE OR IN A MANNER NOT CONTEMPLATED BY YOU AND TELULAR OR INCONSISTENT WITH THE PROVISIONS OF THIS MANUAL; (ii) IN AN ILLEGAL MANNER OR AGAINST PUBLIC POLICY; (iii) IN A MANNER SPECIFICALLY UNAUTHORIZED IN THIS MANUAL; (iv) IN A MAN- NER HARMFUL OR DANGEROUS TO THIRD PARTIES; (v) FROM CLAIMS BY ANYONE RESPECTING PROBLEMS, ERRORS OR MISTAKES OF THE PRODUCT; OR (vi) COMBINATION OF THE PRODUCT WITH MATERIAL, MODIFI- CATION OF THE PRODUCT OR USE OF THE PRODUCT IN AN ENVIRONMENT NOT PROVIDED, OR PERMITTED, BY TELULAR IN WRITING. THE PARTIES SHALL GIVE EACH OTHER PROMPT NOTICE OF ANY SUCH COST OR CLAIMS AND COOPERATE, EACH WITH THE OTHER, TO EFFECTUATE THIS INDEMNIFICATION, DEFENSE AND HOLD HARMLESS. CONTENTS TELULAR CORPORATION Corporate Headquarters 647 North Lakeview Parkway Vernon Hills, Illinois 60061, USA Technical Support Tel: 847-247-9400 · Fax: 847-247-0021 E-mail: [email protected] · http://www.telular.com Power SupplyPhonecell ® SX5D GSM Desktop PhoneSpike Antenna PLEASE SEE THE IMPORTANT NOTICES SECTIONOF THIS MANUAL FOR IMPORTANT INFORMATION ON USE, WARRANTY AND INDEMNIFICATION TABLE OF CONTENTS IMPORTANT NOTICES..................................................................................................2 Technical Support.......................................................................................................2 INSTALLATION..............................................................................................................5 Location and Setup....................................................................................................5 Connect the Handset................................................................................................... Optional Wedge........................................................................................................... Wall Mounting............................................................................................................... Connect Your Phonecell ® SX5D to AC Power.............................................................. Battery Backup............................................................................................................. External Connectors..................................................................................................... OPERATION..................................................................................................................... Function Keys.............................................................................................................. LCD Display................................................................................................................. SIM Card Installation.................................................................................................... SIM PIN Setup............................................................................................................. Service Indication......................................................................................................... Network Registration.................................................................................................... Call Functions.............................................................................................................. Volume......................................................................................................................... Alert Tones................................................................................................................... Speakerphone.............................................................................................................. Internal Phone Book........................................................................................…

Text truncated - open the document above for the full version.

01/30/02 Part Number 5602xxxx PHONECELL ® SX5eGSM FIXEDWIRELESSTERMINAL 900 MHZGSM 1800 MHZGSM 1800 MHZGSM VOICECOMMUNICATION COMPUTERFAX/DATA STANDARDFAX(OTIONAL) USER’SMANUAL Phonecell ® SX5e GSM2Technical Manual Before installing your Phonecell ® SX5e, carefully remove the contents from the shipping carton and check for evidence of shipping damage. If damage is found, contact your Authorized Telular Distributor or shipping agent immediately. SAFE OPERATION INSTRUCTIONS IMPORTANT!Before installing or operating this product, read the SAFETY AND GENERAL INFORMATIONsection of this guide. • Install the unit indoors. • Install the unit on a hard, flat surface for proper ventilation. • Do not expose the unit to rain or moisture. •Do not place the unit on or close to sources of heat. IMPORTANT NOTICES TERMS AND CONDITIONS FOR USE OF PHONECELL ® PRODUCTS ("Product") These Terms and Conditions are a legal contract between you and Telular Corporation for the title to and use of the Product. BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONS INCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND INDEMNIFICATION PROVISIONS BELOW. IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS, DO NOT USE THE PRODUCT AND IMMEDIATELY RETURN THE UNUSED PRODUCT FOR A COMPLETE REFUND. You agree to accept sole responsibility for any misuse of the Product by you; and, in addition, any negligent or illegal act or omission of your or your agents, contractors, servants, employees, or other users of the Product so long as the Product was obtained from you, in the use and operation of the Product. Changes or modifications not expressly approved by Telular Corporation will void your authority to operate the equipment per FCC part 15 paragraph 15.21. INDEMNIFICATION OF TELULAR CORPORATION ("TELULAR") YOU SHALL INDEMNIFY, DEFEND AND HOLD HARMLESS TELULAR FOR ANY OF THE COST, INCLUDING REASON- ABLE ATTORNEYS' FEES, AND FROM CLAIMS ARISING OUT OF YOU, YOUR CLIENTS' OR OTHER THIRD PARTIES' USE OR OPERATION OF THE PRODUCT: (i) FOR MISUSE OR IN A MANNER NOT CONTEMPLATED BY YOU AND TELULAR OR INCONSISTENT WITH THE PROVISIONS OF THIS MANUAL; (ii) IN AN ILLEGAL MANNER OR AGAINST PUBLIC POLICY; (iii) IN A MANNER SPECIFICALLY UNAUTHORIZED IN THIS MANUAL; (iv) IN A MANNER HARMFUL OR DANGEROUS TO THIRD PARTIES; (v) FROM CLAIMS BY ANYONE RESPECTING PROBLEMS, ERRORS OR MIS- TAKES OF THE PRODUCT; OR (vi) COMBINATION OF THE PRODUCT WITH MATERIAL, MODIFICATION OF THE PRODUCT OR USE OF THE PRODUCT IN AN ENVIRONMENT NOT PROVIDED, OR PERMITTED, BY TELULAR IN WRITING. THE PARTIES SHALL GIVE EACH OTHER PROMPT NOTICE OF ANY SUCH COST OR CLAIMS AND COOP- ERATE, EACH WITH THE OTHER, TO EFFECTUATE THIS INDEMNIFICATION, DEFENSE AND HOLD HARMLESS. PLEASE SEE THE IMPORTANT NOTICES SECTIONOF THIS GUIDE FOR IMPOR- TANT INFORMATION ON USE, WARRANTY AND INDEMNIFICATION CONTENTS Telular Corporation Corporate Headquarters 647 North Lakeview Parkway Vernon Hills, Illinois 60061, USA Technical Support Tel: 847-247-9400 · Fax: 847-247-0021 E-mail: main [email protected] · http://www.telular.com Power SupplyPhonecell ® SX5e CDMA FWTSpike Antenna Part Number 56023001©2002 Telular Corporation, All Rights Reserved Phonecell ® SX5e GSM3Technical Manual TABLE OF CONTENTS Contents........................................................................................................................2 Safe Operation Instructions........................................................................................2 Important Notices........................................................................................................2 Installation....................................................................................................................... Location and Setup...................................................................................................... Optional Wall-Mount Instructions................................................................................. Connect Your Phonecell ® SX5to AC Power................................................................... Emergency Battery Backup......................................................................................... Plug in Your Telephone................................................................................................ Phonecell ® SX5 Operation............................................................................................. How to Use the LED Status Indicators........................................................................ How to Place a Call..................................................................................................... How to Receive a Call................................................................................................. How to End a Call........................................................................................................ The Hookflash Function............................................................................................... Important Tones and Alerts.......................................................................................... Supplementary Features (Network Dependent).......................................................... Call Waiting.................................................................................................................. Three-Way Calling........................................................................................................ Call Forwarding............................................................................................................ Caller ID....................................................................................................................... Voice Mail Service........................................................................................................ Digital Data Service.......................................................…

Text truncated - open the document above for the full version.

ES025A (6-94) NOTE:1. MATERIAL: 2“ x 1” ADHESIVE-BACKED WHITE POLYESTER: ZEBRA #65598 (Z-ULTIMATE 3000 WHITE LABEL)ZEBRA #5095BK (06045 2.36” X 450 METER BLACK RESIN RIBBON) 2. TEXT FONTS, SIZE AND LOCATION SHALL BE APPROVED BY THE MARKETING DEPARTMENT PRIOR TO VOLUME PRODUCTION. ALL TEXT TO BE BLACK. 3. BARCODES TO BE CODE 128.4. AAAAAAAAAAAAAAAA TO BE REPLACED WITH IMEI OF RADIO.5. YYWWLTXXXX TO COMPLY WITH TELULAR SPEC. 90006502.6. DDDDDDDDDDDDDDDD TO BE REPLACED WITH ONE OF THE FOLLOWING DESCRIPTIONS: a) GSM 900/1800 FWT b) GSM 900/1800 DPc) GSM 1900 FWTd) GSM 1900 DP PN: 96027101 CCA SN: YYWWLTXXXXDESC: DDDDDDDDDDDDDDDDIMEI: AAAAAAAAAAAAAAAA DRAWNBY: DRAWING NUMBER: APPROVEDBY: DES. ENG.MFG.MECH. DESIG. TITLE: DATE: SHT. OF 11 LABEL, IMEI, GSM SX5 96027100 01/15/02 D. TOBIAS P. WOJCIK REV DESCRIPTION BY DATE APPROVED XA RELEASE FOR PROTOTYPE RLK 01/30/02 XB ADD 1900 FCC ID: MTF052651 RLK 03/11/02 N. Joslyn D. Krasowski D. Tobias P/N 96027102 - GSM-1900P/N 96027101 - GSM-900/1800 -01 (GSM-900/1800) PN: 96027102 CCA SN: YYWWLTXXXXDESC: DDDDDDDDDDDDDDDDIMEI: AAAAAAAAAAAAAAAA -02 (GSM-1900) FCC ID: MTF052651 ES025A (6-94) DRAWNBY: DRAWING NUMBER: APPROVEDBY: DES. ENG.MFG.MECH. DESIG. TITLE: DATE: SHT. OF 11 LABEL, LOGO/PATENTS/FCC, ENGLISH/SPANISH 96026500 04/23/01 D. TOBIAS RLK REV DESCRIPTION BY DATE APPROVED - RELEASED TO RECORDS; CD488 RLK 4/30/01 NOTE:1. MATERIAL: 2“ x 3” ADHESIVE-BACKED WHITE POLYESTER OR APPROVED EQUIVALENT PER THE DURABILITY TEST OF 1.7.15 OF BS EN 60950: 1992 (BS 7002: 1992). 2. TEXT FONTS, SIZE AND LOCATION SHALL BE APPROVED BY THE MARKETING DEPARTMENT PRIOR TO VOLUME PRODUCTION. 3. COLOR: ALL TEXT AND SYMBOLS TO BE BLACK.4. MMMMMM TO BE REPLACED WITH COUNTRY WHERE UNIT IS MANUFACTURED. G. KNIGHT D. KRASOWSKI D. TOBIAS P/N 96026501 -01 PN: 96026501 R CORPORATION 647 North Lakeview Parkway Vernon Hills, Illinois 60061 U.S.A. Covered by one or more of the following U.S. patents and their foreign equivalents: 4,658,096; 4,737,975; 4,775,997; 4,868,519; 4,922,517; 5,469,494; 5,134,651; 5,361,297; 5,715,296; 5,046,085 and patents pending. SEE MANUAL FOR OPERATION & MAINTENANCE INSTRUCTIONS FAVOR REFERIRSE AL MANUAL DE OPERACION Y MANTENIMIENTO ! MADE IN MMMMMM FOR TECHNICAL SUPPORT CALL +1-847-247-9400 PARA ASISTENCIA TECNICA +1-954-217-0522 REDIALREMARCA = FLASHESPERA = This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. ASSEMBLY PARTS LIST ASSEMBLY : ORIGINATOR : PAGE OF PHONECELL SX5D ASSEMBLY, RAY KANCIUS 1 1 GSM-1900, V/F/D DATE : DRAWING NO : APPROVED : 01027600 DAVID TOBIAS 01/23/02 FIND QTY REQ P/N DESCRIPTION REFERENCE DESIGNATOR NO: 01 1 1 15T28901 TESTED CCA,DP,SX5D GSM-1900 MOTHERBOARD 2 1 15028301 CCA, SX5 GSM, DAUGHTERBOARD CO/FAX 3 1 75006201 KIT, GSM, SX5D DESKPHONE 4 1 96027302 LABEL,PHONECELL SX5 GSM-1900 ASSY 5 1 96026501 LABEL, LOGO/PATENTS, FCC, ENGLISH/SPANISH 6 3 44005002 STANDOFF, 3/16 RND, 4-40 X 3/8 FEM AL 7 6 25003839 SCREW, MACH, INTWS 4-40 X 3/16 PNH XREC 8 1 25020801 WASHER,INTL 1/2ID, 5/8OD,.022THK 9 1 25020901 NUT, HEX 1/2-28, FOR TNC BULKHEAD 10111213 141516171819202122232425 REV DESCRIPTION DATE APPD XA RELEASE FOR PROTOTYPE 03/07/02 RLK ES025A (6-94) DRAWNBY: DRAWING NUMBER: APPROVEDBY: DES. ENG.MFG.MECH. DESIG. TITLE: DATE: SHT. OF 11 LABEL, LOGO/PATENTS 96026200 1/22/01 D. TOBIAS PRW REV DESCRIPTION BY DATE APPROVED XA RELEASE FOR PROTOTYPE;SX161 RLK 1/22/01 - RELEASED TO RECORDS RLK 8/01/01 NOTE:1. MATERIAL: 2“ x 3” ADHESIVE-BACKED WHITE POLYESTER OR APPROVED EQUIVALENT PER THE DURABILITY TEST OF 1.7.15 OF BS EN 60950: 1992 (BS 7002: 1992). 2. TEXT FONTS, SIZE AND LOCATION SHALL BE APPROVED BY THE MARKETING DEPARTMENT PRIOR TO VOLUME PRODUCTION. 3. COLOR: ALL TEXT AND SYMBOLS TO BE BLACK. G. KNIGHT D. KRASOWSKI D. TOBIAS P/N 96026202 WITHOUT FCC RULESP/N 96026201 WITH FCC RULES PN: 96026201 R CORPORATION 647 North Lakeview Parkway Vernon Hills, Illinois 60061 U.S.A. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Covered by one or more of the following U.S. patents and their foreign equivalents: 4,658,096; 4,737,975; 4,775,997; 4,868,519; 4,922,517; 5,469,494; 5,134,651; 5,361,297; 5,715,296; 5,046,085 and patents pending. SEE MANUAL FOR OPERATION & MAINTENANCE INSTRUCTIONS ! -01 -02 FOR TECHNICAL SUPPORT CALL +1-847-247-9400 PN: 96026202 R CORPORATION 647 North Lakeview Parkway Vernon Hills, Illinois 60061 U.S.A. Covered by one or more of the following U.S. patents and their foreign equivalents: 4,658,096; 4,737,975; 4,775,997; 4,868,519; 4,922,517; 5,469,494; 5,134,651; 5,361,297; 5,715,296; 5,046,085 and patents pending. SEE MANUAL FOR OPERATION & MAINTENANCE INSTRUCTIONS ! FOR TECHNICAL SUPPORT CALL +1-847-247-9400 ASSEMBLY PARTS LIST ASSEMBLY : ORIGINATOR : PAGE OF PHONECELL SX5e ASSEMBLY, RAY KANCIUS 1 1 GSM-1900, V/F/D DATE : DRAWING NO : APPROVED : 01027400 DAVID TOBIAS 01/23/02 FIND QTY REQ P/N DESCRIPTION REFERENCE DESIGNATOR NO: 01 1 1 15T28701 TESTED CCA, FWT, SX5e GSM-1900 MTHBD 2 1 15028301 CCA, SX5 GSM, DTRBRD CO/FAX 3 1 75006101 KIT, FWT, GSM, SX5e 4 1 96027302 LABEL,PHONECELL SX5 GSM-1900 ASSY 5 1 96026201 LABEL, LOGO/PATENTS/FCC PT15, B&W 6 3 44005002 STANDOFF, 3/16 RND, 4-40 X 3/8 FEM AL 7 6 25003839 SCREW, MACH, INTWS 4-40 X 3/16 PNH XREC 8 1 25020801 WASHER,INTL 1/2ID, 5/8OD,.022THK 9 1 25020901 NUT, HEX 1/2-28, FOR TNC BULKHEAD 10111213 141516171819202122232425 REV DESCRIPTION DATE APPD XA RELEASE FOR PROTOTYPE 03/07/02 RLK

Phonecell ® SX5D Fixed Wireless F·A·X Phone • Voice • GPRS Packet Data • Circuit Switched Data • Short Message Service (SMS) • Group 3 Analog Fax • Circuit Switched Computer Fax Also Featuring
Access the Internet and E-Mail
Dual RJ-11 connections for multiple extensions
Automatic end-of-dialing (no SEND key)
Caller ID, call waiting/call hold, call forwarding
Speakerphone
Large, easy to read LCD
PC keyboard can be attached for text messaging
Easy set up Models • Dual Band 900/1800 GSM Phase 2+ • Single Band 1900 GSM Phase 2+ Compact design for voice, data, FAX AND MULTIPLE EXTENSIONS (F·A·X) Fixed Wireless F·A·X Phone Features •GPRS packet data, multi-slot Class 10 (up to 85.6 kbps)* •Circuit switched digital computer fax and data (up to 14.4 kbps)* •Short Message Service (SMS)* • Group 3 analog fax* •Compatible with popular supplementary services including caller ID, call waiting/call hold, call forwarding, call barring, multi-party calling, and more* • DTMF keypad with half duplex speakerphone, mute, redial and flash • Fully pixilated LCD display for text messaging, phone book, set up, signal-strength indication, etc. • Soft key access to menu, voice mail, SMS and phone book • Speed dial • Volume control and configurable rings per service •Call logs, clock and call timer • Extensive security control features •Built-in signal-strength indication • Single jack or dual jack for voice and fax operation •DTMF and pulse-dialing •Automatic end-of-dialing (no SEND key) •Supports up to five phones (5 REN) • Emergency battery backup • Simple desktop or wall-mount installation •Standard GSM Mini-SIM (Subscriber Identification Module) 3 volt and 5 volt compatible • Supports SIM Application Toolkit •Supports GSM personalization features (GSM 02.22) Connectivity Options Models •Dual Band 900/1800 GSM Phase 2+ •Single Band 1900 GSM Phase 2+ Specifications Air Interface Standard • GSM 900/1800 Phase 2+ • GSM 1900 TIA/EIA J-STD-007 PCS 1900 Transmit Power • GSM 900: 2 watts • GSM 1800: 1 watt • GSM 1900: 1 watt Frequency Ranges TransmitReceive •GSM 900890-915 MHz935-960 MHz •GSM 18001710-1785 MHz1805-1880 MHz •GSM 19001850-1910 MHz1930-1990 MHz FWT Dimensions and Weight • Metric (cm) 18.3 x 5.1 x 21.1 • U.S. (inches) 7.2 x 2.0 x 8.3 • 0.73 kg. (1.6 lb.) Environment • Operating temperature range: -10°C to +50°C • Storage temperature range: -40°C to + 60°C • Humidity: 5% to 95% Intelligent RJ-11 Interface • Ringer equivalence number (REN) 5.0A • Dynamic echo cancellation • PSTN Emulation LCD Display • Resolution: 64 pixels high x 132 pixels long • Characters: Icons and alphanumeric • Adjustable contrast Connectors • RJ-11 interface jack for telephone • RJ-11 interface jack for Group 3 analog fax • DB-9 port for GPRS or circuit switched digital PC fax/data •DIN connector for PC keyboard • TNC antenna connector (50 ohms) • DC power input jack Antenna • Dipole antenna (included) GSM 900/1800: 2 dBi dual band GSM 1900: 2 dBi single band • Optional higher gain antennas available AC-to-DC Switching Power Supply (Included) • Voltage: 90 - 300 VAC • Frequency: 50/60 Hz • Plug options: U.S., U.K., Euro., Australia Emergency Battery Backup • 4 “AA” alkaline batteries provide up to 1 hour of air time. (Batteries not included.) External Battery Backup (Optional) • External battery backup unit/charger (provides up to 8 hours of air time or 14 hours of standby) Phonecell ® SX5D Copyright ©2002 Telular Corporation, all rights reserved. SX5DGSM V/PC FAX 01/28/02 • Specifications subject to change without notice. Drawings may vary from actual equipment supplied. Telular Corporation •Corporate Headquarters • 647 North Lakeview Parkway •Vernon Hills, Illinois 60061 USA Phone: 847-247-9400 • Fax: 847-247-0021 • E-mail: [email protected] • http://www.telular.com Europe/Middle East/Africa• Phone: +44-1753-486-500 • [email protected] Latin America• Phone: +1-954-217-0522 • [email protected] Asia/Pacific• Phone: +65-735-7728 • [email protected] * Subject to network availability. Computer (Internet, E-Mail, Fax, Data) Serial Port AC Power Power Supply External Battery Backup Unit w/Power Supply (optional) Phone (Voice) Phone Port Keyboard (SMS) Keyboard Port Fax Machine Fax Port

• Voice • GPRS Packet Data • Circuit Switched Data • Short Message Service (SMS) • Optional Group 3 Analog Fax • Circuit Switched Computer Fax Also Featuring
Access the Internet and E-Mail
Automatic end-of-dialing (no SEND key)
Caller ID, call waiting/call hold, call forwarding
Easy set up
7 LEDs for signal strength, message alert and terminal status Models • Dual Band 900/1800 GSM Phase 2+ • Single Band 1900 GSM Phase 2+ Phonecell ® SX5e Fixed Wireless Terminal Wireless CONNECTIVITYfor standard telephone, fax, and computer equipment Fixed Wireless Terminal Features •GPRS packet data, multi-slot Class 10 (up to 85.6 kbps)* •Circuit switched digital computer fax and data (up to 14.4 kbps)* •Short Message Service (SMS)* • Group 3 analog fax (optional)* •Compatible with popular supplementary services including caller ID, call waiting/call hold, call forwarding, call barring, multi-party calling, and more* • Single jack or dual jack for voice and fax operation • DTMF and pulse-dialing •Automatic end-of-dialing (no SEND key) •Supports up to five phones (5 REN) • Emergency battery backup •Easy set-up using DTMF telephone •Built-in signal-strength indication •Simple desktop or wall-mount installation •Standard GSM Mini-SIM (Subscriber Identification Module) 3 volt and 5 volt compatible • Supports SIM Application Toolkit •Supports GSM personalization features (GSM 02.22) Connectivity Options Models(G3 Analog Fax Optional) •Dual Band 900/1800 GSM Phase 2+ •Single Band 1900 GSM Phase 2+ Specifications Air Interface Standard • GSM 900/1800 Phase 2+ • GSM 1900 TIA/EIA J-STD-007 PCS 1900 Transmit Power • GSM 900: 2 watts • GSM 1800: 1 watt • GSM 1900: 1 watt Frequency Ranges TransmitReceive •GSM 900890-915 MHz935-960 MHz •GSM 18001710-1785 MHz1805-1880 MHz •GSM 19001850-1910 MHz1930-1990 MHz FWT Dimensions and Weight • Metric (cm) 18.3 x 5.1 x 21.1 • U.S. (inches) 7.2 x 2.0 x 8.3 • 0.73 kg. (1.6 lb.) Environment • Operating temperature range: -10°C to +50°C • Storage temperature range: -40°C to + 60°C • Humidity: 5% to 95% Intelligent RJ-11 Interface • Ringer equivalence number (REN) 5.0A • Dynamic echo cancellation • PSTN Emulation LED Indicators • Power/Battery status • Signal status • Message status (SMS, voice mail) • ON/OFF hook status Connectors • RJ-11 interface jack for telephone • RJ-11 interface jack for Group 3 analog fax (model dependent) • DB-9 port for GPRS or circuit switched digital PC fax/data • TNC antenna connector (50 ohms) • DC power input jack Antenna • Dipole antenna (included) GSM 900/1800: 2 dBi dual band GSM 1900: 2 dBi single band • Optional higher gain antennas available AC-to-DC Switching Power Supply (Included) • Voltage: 90 - 300 VAC • Frequency: 50/60 Hz • Plug options: U.S., U.K., Euro., Australia Emergency Battery Backup • 4 “AA” alkaline batteries provide up to 1 hour of air time. (Batteries not included.) External Battery Backup (Optional) •External battery backup unit/charger (provides up to 8 hours of air time or 14 hours of standby) Phonecell ® SX5e Copyright ©2002 Telular Corporation, all rights reserved. SX5eGSM V/F/PC 01/28/02 • Specifications subject to change without notice. Drawings may vary from actual equipment supplied. Telular Corporation •Corporate Headquarters • 647 North Lakeview Parkway •Vernon Hills, Illinois 60061 USA Phone: 847-247-9400 • Fax: 847-247-0021 • E-mail: [email protected] • http://www.telular.com Europe/Middle East/Africa• Phone: +44-1753-486-500 • [email protected] Latin America• Phone: +1-954-217-0522 • [email protected] Asia/Pacific• Phone: +65-735-7728 • [email protected] * Subject to network availability. Computer (Internet, E-Mail, Fax, Data) Serial Port AC Power Power Supply External Battery Backup Unit w/Power Supply (optional) Phone (Voice) Fax Machine

MPE CALCULATION The MPE calculation for Telular (EIRP = 32 dBm) @ 20cm: P = E 2 / 120*pi = { 32 (field strength@1meter) +20log(1/0.2) (distance correction factor for 0.2 meter)} 2 /120*pi = { 32 (dBm) +14 dB(distance correction factor for 0.2 meter)} 2 /120*pi = { 46 (dBm) } 2 /120*pi = { 45 (V/m) } 2 /120*pi = (45 x 45)/376.6 = 5.38 W/m 2 *P is power density in W/m 2 and E is field strength in V/m *The power density P =5.38 W/m 2 is less than 10 W/m 2 (listed MPE limit)

May 29, 2002 Telular Corporation 647 North Lakeview Parkway Vernon Hills, IL 60061 Reference:Phonecell SX5 FCC ID: MTF052651 Dear Mr. Jeff Hickey: Enclosed is the EMC Test Report for the Telular Corporation Phonecell SX5. The Telular Corporation Phonecell SX5 was tested to the requirements of the FCC Rules and Regulations, Part 24 Subpart E, of Title 47 of the CFR, for a Broadband PCS device. Thank you for using the testing services of MET Laboratories. If you have any questions regarding these results, or if MET can be of further assistance to you, please feel free to contact me. We appreciate your business and look forward to working with you again soon. Kindest Regards, MET LABORATORIES, INC. Marianne T. Bosley Documentation Department Enclosures: (\Telular Corporation\EMC12089-FCC24.rpt) DOCTEM-23 Jan 02 Telular Corporation Phonecell SX5 FCC ID: MTF052651 May 29, 2002 Page 1 of 47 Electro-Magnetic Compatibility Test Report for the Phonecell SX5 Tested Under FCC Part 24, Subpart E Title 47 of the CFR for Broadband PCS Devices MET REPORT: EMC12089-FCC24 May 29, 2002 PREPARED FOR: Telular Corporation 647 North Lakeview Parkway Vernon Hills, IL 60061 PREPARED BY: MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, Maryland 21230-3432 Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Telular Corporation Phonecell SX5 FCC ID: MTF052651 May 29, 2002 Page 2 of 47 Electro-Magnetic Compatibility Test Report for the Phonecell SX5 Tested Under FCC Part 24 Subpart E Title 47 of the CFR for Broadband PCS Devices MET REPORT: EMC12089-FCC24 May 29, 2002 PREPARED FOR: Telular Corporation 647 North Lakeview Parkway Vernon Hills, IL 60061 Report Prepared By:Report Reviewed By: ____________________________________________________ Marianne T. Bosley Liming Xu EMC ADMINISTRATOR PROJECT ENGINEER Final Review By: ______________________________ CHRISTOPHER R. HARVEY EMC LAB DIRECTOR Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 24, Subpart E, of the FCC Rules under normal use and maintenance. ________________________________ Liming Xu PROJECT ENGINEER Telular Corporation Phonecell SX5 FCC ID: MTF052651 May 29, 2002 Page 3 of 47 TABLE OF CONTENTS I.Executive Summary.......................................................................7 A.Purpose of Test.............................................................8 B.Executive Summary.........................................................8 IIGeneral................................................................................9 A.Test Site.................................................................10 B.Description of Test Sample...................................................10 C.General Test Setup.........................................................10 D.Mode of Operation.........................................................10 E.Test Types...............................................................13 F.Modifications.............................................................13 G.Disposition of Test Sample...................................................13 III. Electromagnetic Compatibility RF Power Output Requ…
