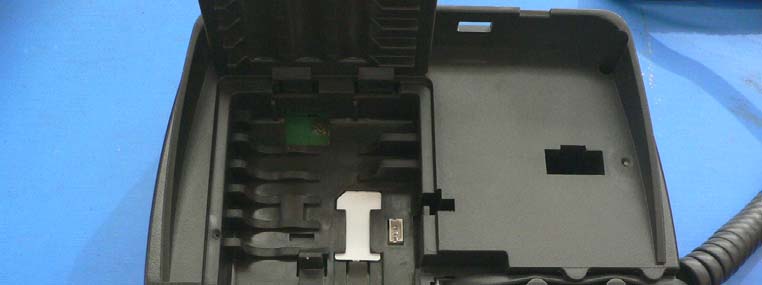

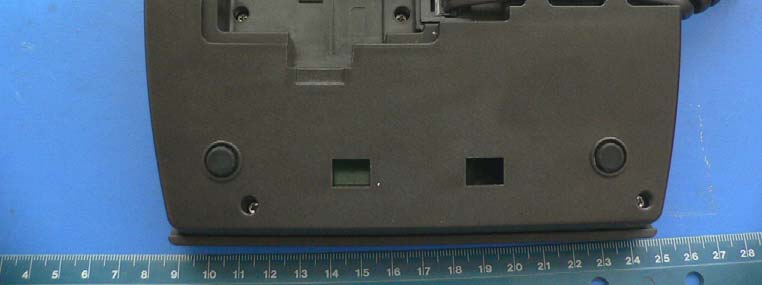

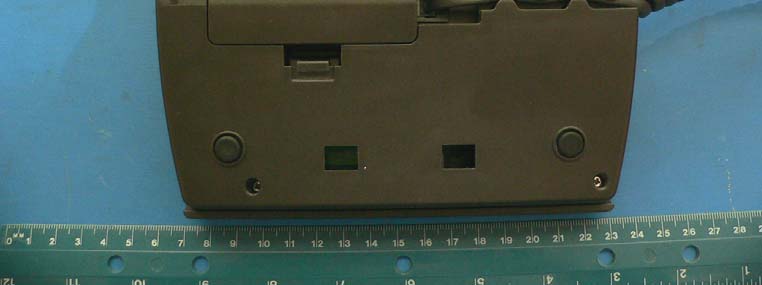

Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 38 of 50 FCC Part 22, 24 Type Approvals Report EXHIBIT C - EUT PHOTOGRAPHS EUT – External Front View with Wall Mount, Back up Battery and Power Supply EUT – External Front View Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 39 of 50 FCC Part 22, 24 Type Approvals Report EUT – External Rear View EUT – Backup Battery Compartment/Port and SIM Card Slot Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 40 of 50 FCC Part 22, 24 Type Approvals Report EUT – Head Set Port View

Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 36 of 49 FCC Part 22, 24 Type Approvals Report EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Suggested FCC ID Label The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in Section 2.925(d) of this chapter. "Permanently affixed" means that the label is etched, engraved, stamped, silk-screened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable. Proposed Label Location on EUT Bottom View of the EUT/Suggested ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: MTF060304

Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 40 of 49 FCC Part 22, 24 Type Approvals Report EUT – Head Set Port View EUT - Cover off View (keypad and speaker connected) Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 41 of 49 FCC Part 22, 24 Type Approvals Report EUT - Cover off View (keypad removed) EUT – PCBA 1 Keyboard detail view side 1 Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 42 of 49 FCC Part 22, 24 Type Approvals Report EUT – PCBA 1 Keyboard Component view side 2 EUT – LCD with radio board view 1 Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 43 of 49 FCC Part 22, 24 Type Approvals Report EUT – LCD with radio board view 2 EUT – Radio Board side 1 view 1 (with shielding) Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 44 of 49 FCC Part 22, 24 Type Approvals Report EUT – Radio Board side 1 view 2 (without shielding) EUT – Radio Board side 2 view 1 (with shielding) Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 45 of 49 FCC Part 22, 24 Type Approvals Report EUT – Radio Board side 2 view 2 (without shielding) EUT – Power Adaptor Side View Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 46 of 49 FCC Part 22, 24 Type Approvals Report EUT – Power Adaptor Label View

Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 10 of 49 FCC Part 22, 24 Type Approvals Report 5 - §1.1307(b) (1) & §2.1091 - RF EXPOSURE 5.1 Applicable Standard According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 5.2 MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna GSM Band Maximum peak output power at antenna input terminal: 32.56 (dBm ) Maximum peak output power at antenna input terminal: 1786.49 (mW) Prediction distance: 20 (cm) Predication frequency: 836. 6 (MHz) Antenna Gain (typical): 0.5 (dBi) Antenna gain: 1.122 (numeric) Power density at predication frequency at 20 cm: 0.399 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 0.560 (mW/cm 2 ) Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 11 of 49 FCC Part 22, 24 Type Approvals Report PCS Band Maximum peak output power at antenna input terminal: 29.22 (dBm ) Maximum peak output power at antenna input terminal: 835.60 (mW) Prediction distance: 20 (cm) Predication frequency: 1880 (MHz ) Antenna Gain (typical): 0.5 (dBi) Antenna gain: 1.122 (numeric) Power density at predication frequency at 20 cm: 0.187 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm 2 ) 5.3 Test Result The EUT is a mobile device. The power density level at 20 cm is 0.399 mW/cm², which is below the uncontrolled exposure limit of 0.560 mW/cm² at 836.580 MHz for GSM band. The power density level at 20 cm is 0.187 mW/cm², which is below the uncontrolled exposure limit of 1mW/cm² at 1880 MHz for PCS band.

Note: This test report is specially limited to the above client company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. FCC PART 22, 24 TYPE APPROVALS EMI MEASUREMENT AND TEST REPORT For TELULAR CORPORATION 580 Old Willets Path Hauppuage, New York 11772 FCC ID: MTF060304 This Report Concerns: Original Report Equipment Type: GSM Dual Band Table Top Cellular Phone Test Engineer: Dan Coronia Report Number: R0701162-22 Report Date: 2007-02-02 Reviewed By: Hans Mellberg, VP of Engineering Prepared By: (63) Bay Area Compliance Laboratories Corp. (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 Telular Corporation FCC ID: MTF060304 Report # R0701162 Page 2 of 49 FCC Part 22, 24 Type Approvals Report TABLE OF CONTENTS 1 - GENERAL INFORMATION .................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 MECHANICAL DESCRIPTION...................................................................................................................................4 1.3 EUT PHOTO: ..........................................................................................................................................................4 1.4 OBJECTIVE.............................................................................................................................................................4 1.5 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................4 1.6 TEST METHODOLOGY.............................................................................................................................................5 1.7 TEST FACILITY.......................................................................................................................................................5 2 - SYSTEM TEST CONFIGURATION ....................................................................................................................6 2.1 JUSTIFICATION.......................................................................................................................................................6 2.2 EQUIPMENT MODIFICATIONS.................................................................................................................................6 2.3 POWER SUPPLY AND LINE FILTERS........................................................................................................................6 2.4 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS...................................................................................................6 2.5 INTERFACE PORTS AND CABLING...........................................................................................................................6 3 - SUMMARY OF TEST RESULTS .........................................................................................................................7 4 - §2.1047 - MODULATION CHARACTERISTIC .................................................................................................8 4.1 APPLICABLE STANDARD.........................................................................................................................................8 4.2 TEST PROCEDURE...................................................................................................................................................8 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST RESULTS........................................................................................................................................................8 5 - §1.1307(B) (1) & §2.1091 - RF EXPOSURE ........................................................................................................10 5.1 APPLICABLE STANDARD.......................................................................................................................................10 5.2 MPE PREDICTION.................................................................................................................................................10 5.3 TEST RESULT.......................................................................................................................................................11 6 - §2.1053 - SPURIOUS RADIATED EMISSIONS................................................................................................12 6.1 APPLICABLE STANDARD.......................................................................................................................................12 6.2 TEST PROCEDURE.................................................................................................................................................12 6.3 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 6.4 TEST RESULT.......................................................................................................................................................13 7 - §2.1046, §22.913(A), & §24.232 – RF OUTPUT POWER ..................................................................................14 7.1 APPLICABLE STANDARD.......................................................................................................................................14 7.2 TEST PROCEDURE..............................................................................................…
