MTFCDMAFWT2004CDMA800 and 1900 Fixed Wireless Terminal

4/19/04 Part Number 56029901 Phonecell ® SX5T CDMA2000 ® 1X Fixed Wireless Terminal 800/1900 MHZCDMA U SERMANUAL Phonecell ® SX5T CDMAiiUser Manual QUICK CONNECTION GUIDE SX5 Fixed Wireless Terminal Phonecell ® SX5T CDMAiiiUser Manual Before installing the Phonecell ® SX5T, carefully remove the contents from the shipping carton and check for evidence of shipping damage. If damage is found, contact your Authorized Telular Distributor or shipping agent immediately. SAFE OPERATION INSTRUCTIONS IMPORTANT!Before installing or operating this product, read the SAFETY INFORMATION section of this manual. •• Install the unit indoors. •• Install the unit on a hard, flat surface for proper ventilation. •• Do not expose the unit to rain or moisture. •• Do not place the unit on or close to sources of heat. IMPORTANT NOTICES TERMS AND CONDITIONS FOR USE OF PHONECELL ® PRODUCTS ("Product") These Terms and Conditions are a legal contract between you and Telular Corporation for the title to and use of the Product. BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONS INCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND INDEMNIFICATION PROVISIONS BELOW. IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS, DO NOT USE THE PRODUCT AND IMMEDIATELY RETURN THE UNUSED PRODUCT FOR A COMPLETE REFUND. You agree to accept sole responsibility for any misuse of the Product by you; and, in addition, any negligent or illegal act or omission of your or your agents, contractors, servants, employees, or other users of the Product so long as the Product was obtained from you, in the use and operation of the Product. INDEMNIFICATION OF TELULAR CORPORATION ("TELULAR") YOU SHALL INDEMNIFY, DEFEND AND HOLD HARMLESS TELULAR FOR ANY OF THE COST, INCLUDING REASON- ABLE ATTORNEYS' FEES, AND FROM CLAIMS ARISING OUT OF YOU, YOUR CLIENTS' OR OTHER THIRD PARTIES' USE OR OPERATION OF THE PRODUCT: (i) FOR MISUSE OR IN A MANNER NOT CONTEMPLATED BY YOU AND TELULAR OR INCONSISTENT WITH THE PROVISIONS OF THIS MANUAL; (ii) IN AN ILLEGAL MANNER OR AGAINST PUBLIC POLICY; (iii) IN A MANNER SPECIFICALLY UNAUTHORIZED IN THIS MANUAL; (iv) IN A MANNER HARMFUL OR DANGEROUS TO THIRD PARTIES; (v) FROM CLAIMS BY ANYONE RESPECTING PROBLEMS, ERRORS OR MIS- TAKES OF THE PRODUCT; OR (vi) COMBINATION OF THE PRODUCT WITH MATERIAL, MODIFICATION OF THE PRODUCT OR USE OF THE PRODUCT IN AN ENVIRONMENT NOT PROVIDED, OR PERMITTED, BY TELULAR IN WRITING. THE PARTIES SHALL GIVE EACH OTHER PROMPT NOTICE OF ANY SUCH COST OR CLAIMS AND COOP- ERATE, EACH WITH THE OTHER, TO EFFECTUATE THIS INDEMNIFICATION, DEFENSE AND HOLD HARMLESS. PLEASE SEE THE IMPORTANT NOTICESSECTION OF THIS MANUAL FOR IMPORTANT INFORMATION ON USE, WARRANTY AND INDEMNIFICATION CONTENTS Telular Corporation Corporate Headquarters 647 North Lakeview Parkway Vernon Hills, Illinois 60061, USA Technical Support Tel: 847-247-9400 • Fax: 847-247-0021 E-mail: [email protected] • http://www.telular.com Phonecell ® SX5T CDMA FWTSpike Antenna Part Number 56029901©2004 Telular Corporation, All Rights Reserved Power Supply AC Power Cord Phonecell ® SX5T CDMAivUser Manual TABLE OF CONTENTS QUICK CONNECTION GUIDE ......................................................................................ii IMPORTANT NOTICES.................................................................................................iii Technical Support ......................................................................................................iii SETUP............................................................................................................................1 Emergency Batteries..................................................................................................1 SX5 Location and Installation ....................................................................................2 Wall Mounting.............................................................................................................2 Connect the SX5 to AC Power...................................................................................3 Attach a Telephone to the SX5 ..................................................................................3 GETTING TO KNOW YOUR SX5 ..................................................................................4 LED Status Indicators ................................................................................................4 Important Dial Tones ..................................................................................................5 CALL FUNCTIONS ........................................................................................................6 Making Calls...............................................................................................................6 Receiving Calls ..........................................................................................................6 Ending Calls ...............................................................................................................6 In-Call Features..........................................................................................................6 SX5 USER FEATURES..................................................................................................7 Messages (Voice Mail and Text Messages)...............................................................7 Audio Settings ............................................................................................................7 Dial Settings ...............................................................................................................7 Caller ID .....................................................................................................................8 Setting Time and Date ...............................................................................................8 Reset User Factory Defaults ...............................................…

Text truncated - open the document above for the full version.

-----Original Message----- From: Bryan Taylor ES-Lex Sent: Thursday, May 06, 2004 2:16 PM To: Roland Gubisch ES-Box Cc: Danielle Fontaine ES-Box Subject: RE: Telular FCC ID: MTFCDMAFWT2004 We actually performed the measurement using a 10 kHz bandwidth. We then repeated the measurement at a 30 kHz bandwidth and observed the change in the displayed amplitude. We then used a linear interpolation to come up with an amplitude correction for going from 10 kHz to 12.3 kHz. The correction factor ended up being about 0.5 dB. Best regards, Bryan -----Original Message----- From: Roland Gubisch ES-Box Sent: Thursday, May 06, 2004 12:42 PM To: Bryan Taylor ES-Lex Cc: Danielle Fontaine ES-Box Subject: RE: Telular FCC ID: MTFCDMAFWT2004; last question Bryan, The test report band-edge emission plots figs. 8-5 and 8-6, the RBW and VBW are given as 12.3 kHz. The R&S ESIB 26 can't do that directly, how did you do it? Thanks, Roland -----Original Message----- From: Bryan Taylor ES-Lex Sent: Thursday, May 06, 2004 12:09 PM To: Roland Gubisch ES-Box Cc: Danielle Fontaine ES-Box Subject: RE: Telular FCC ID: MTFCDMAFWT2004; last question Attached is the assembly drawing showing the location of the FCC ID label. Let me know if there is anything else needed. Best regards, Bryan << File: SX5T_assembly.pdf >> -----Original Message----- From: Roland Gubisch ES-Box Sent: Thursday, May 06, 2004 10:23 AM To: Bryan Taylor ES-Lex Cc: Danielle Fontaine ES-Box Subject: Telular FCC ID: MTFCDMAFWT2004 Importance: High Bryan: I cannot find any indication of location for the FCC ID label; please provide a photo with callout, or drawing. Thank you, Roland

March 17, 2004 Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request FCC ID: MTFCDMAFWT2004 Product: Phonecell SX5T CDMA1X Terminal It is requested that the following items associated with this submission be held confidence in accordance with FCC Rule Section 0.459: a) Schematics b) Block diagram c) Parts List The reasons for withholding the above materials from inspection are trade secrets and substantial competitive harm. The above exhibits contain designs and information proprietary to Telular. This information is available only for internal company use, and is not available publicly. Public release of this information would allow competitors to copy key elements of Telular’s design, and also provide them with engineering specifications that have been based on Telular’s many years of experience. We feel that this material should be held confidential in perpetuity, because the trade secrets that are based on Telular’s years of experience will always be applicable to the design of a similar product. Sincerely, Daniel Giacopelli Executive Vice President

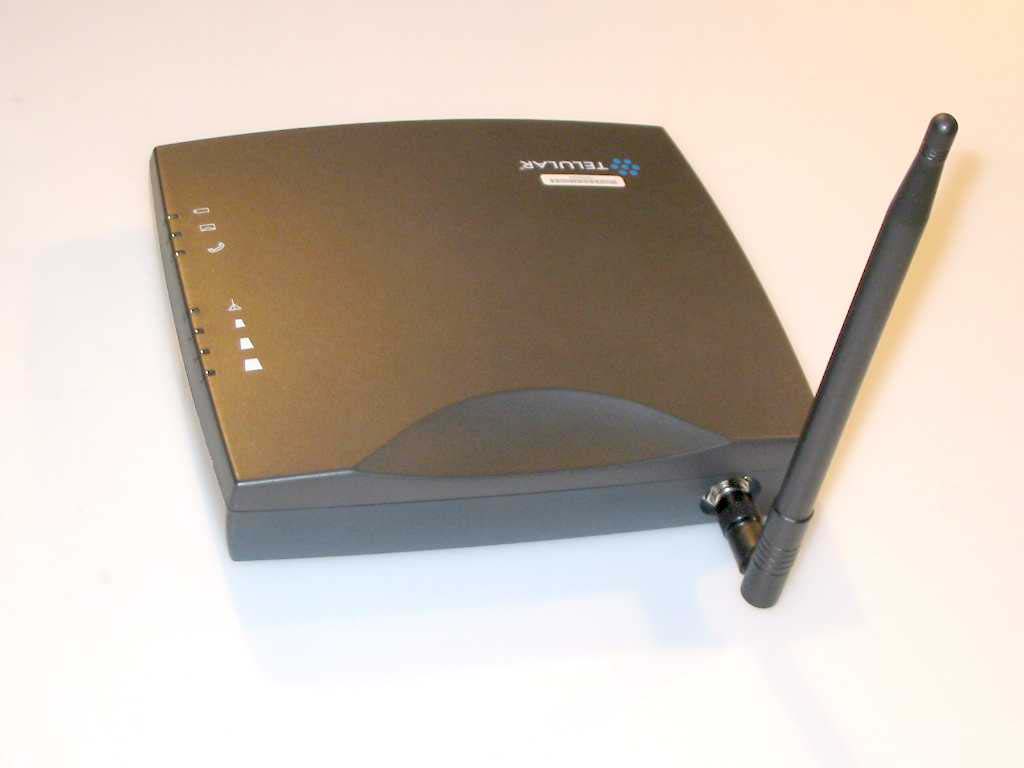

Figure 1: External Front Side Figure 2: External Rear Figure 3: External Rear with Antenna Installed

ES025A (6-94) DRAWNBY: DRAWING NUMBER: APPROVEDBY: DES. ENG.MFG.MECH. DESIG. TITLE: DATE: SHT. OF 11 LABEL, SX5 PHONECELL ASSEMBLY P/T 96029900 11/19/03 D. TOBIAS PRW REV DESCRIPTION BY DATE APPROVED - RELEASED TO RECORDS RLK 11/20/03 A XF086; CREATE -02 FOR FWT XXX 03/xx/04 NOTE:1. MATERIAL: 2“ x 1” ADHESIVE-BACKED WHITE POLYESTER: TELULAR P/N 67020501 (ZEBRA #65598, Z-ULTIMATE 3000 WHITE LABEL) ZEBRA #5095BK (06045 2.36” X 450 METER BLACK RESIN RIBBON) 2. TEXT FONTS, SIZE AND LOCATION SHALL BE APPROVED BY THE MARKETING DEPARTMENT PRIOR TO VOLUME PRODUCTION. ALL TEXT TO BE BLACK. 3. BARCODES TO BE CODE 128.4. AAAAAAAA TO BE REPLACED WITH ESN OF UNIT IN HEX FORM.6. YYWWLTXXXX TO COMPLY WITH TELULAR SPEC. 90006502.7. NNNNNNNN TO BE REPLACED WITH TELULAR MODEL NUMBER.8. DDDDDDDDDDD TO BE REPLACED WITH ABBREVIATED PRODUCT MODEL DESCRIPTION. 9. RR TO BE REPLACED WITH PRODUCT REVISION IDENTIFIER.5. CCCCCCCC TO BE REPLACED WITH ESN OF UNIT IN DECIMAL FORM.10. MMMMMM TO BE REPLACED WITH COUNTRY OF MANUFACTURE. N. JOSLYN D. KRASOWSKI D. TOBIAS P/N 96029901 - SX5P DESKPHONESP/N 96029902 - SX5T TERMINALS MADE IN MMMMMM REV. RR Model No.: NNNNNNNN ESN (hex): AAAAAAAAMSN: YYWWLTXXXX Desc: DDDDDDDDDDDDDD ESN (dec): CCCCCCCC FCC ID: MTF050398 MADE IN MMMMMM REV. RR Model No.: NNNNNNNN ESN (hex): AAAAAAAAMSN: YYWWLTXXXX Desc: DDDDDDDDDDDDDD ESN (dec): CCCCCCCC FCC ID: MTFCDMAFWT2004 -01 Deskphones SX5P -02 Terminals SX5T

ASSEMBLY PARTS LIST ASSEMBLY : ORIGINATOR : PAGE OF PHONECELL SX5T ASSEMBLY, RAY KANCIUS 1 1 CDMA-1X, DUAL, GPS, V/F/D DATE : DRAWING NO : APPROVED : 01033200 DAVID TOBIAS 03/15/04 FIND QTY REQ P/N DESCRIPTION REFERENCE DESIGNATOR NO: 01 1 1 15032701 CCA, CDMA-800/1900, ESN, GPS, SX5T 2 1 15033601 CCA, SX5 DAUGHTERBOARD V/F/D 3 1 75007301 KIT, FWT, SX5T 4 1 77017502 COVER, CONFIG, GPS/MODULE, SX5T 5 1 96030102 LABEL, LOGO/PATENTS/FCC, SX5T 6 3 44005002 STANDOFF, 3/16 RND, 4-40 X 1/2 FEM AL 7 6 25003839 SCREW, MACH, INTWS 4-40 X 3/16 PNH XREC (EFFECTIVE 05/03/04 - ECO XF098) 8 1 25020801 WASHER,INTL 1/2ID, 5/8OD,.022THK 9 1 25020901 NUT, HEX 1/2-28, FOR TNC BULKHEAD 10 1 25021302 WASHER, FLAT .505 X .755 X .015 STLZP 11 1 44006201 PLUG, HOLE, 0.312 DIAMETER, NYLON, BLACK (EFFECTIVE 05/03/04 - ECO XF098) 12 A/R 85000701 ADHESIVE, HOT MELT, CLEAR, 3M #3764 (EFFECTIVE 05/03/04 - ECO XF098) 13 14 1 96030001 LABEL, CCA, SN/ESN (HEX), SX5P/T 15 1 96030601 LABEL, SOFTWARE REVISION, SX5 16 1 96029902 LABEL, SX5T PHONECELL ASSEMBLY 17 REF 87F18100 REFLASH,CDMA1X GPS ESN, SX5T 18 REF 88018100 SRO, CDMA-1X GPS ESN, SX5T 19 20 21 22 23 24 25 REV DESCRIPTION DATE APPD XA RELEASE FOR PROTOTYPE 03/22/04 RLK XB ECO XF098 05/03/04 RLK

Figure 1: Internal with Cover Removed Figure 2: Main Board Back Side Figure 3: Main Board Front Figure 4: Main Board with Covered Area Exposed Figure 5: Main Board Close up of Covered Area Figure 6: Daughter Board Front Figure 7: Daughter Board Back Figure 8: DC Power Board Front Figure 9: DC Power Board Back

Operational Description Transmit power is adjusted by a closed looped feedback controller, initially based upon detected power output. Once in a call, power control is also based upon the received signal at the Base Station. By design, regardless of calibration data values, transmitter is incapable of exceeding maximum specified power output by more than approximately 1 dB. Transmit frequency initially uses the accuracy of the internal 19.2 MHz standard. Once registered with a cellular base station, unit locks onto base station, thereby further improving accuracy. Generates an offset table of receiver AGC level vs frequency (channel number). The DC Voltage/Current into the final stages is 4.05 Volts, 500 milliamps maximum.

R R CORPORATION Technology Center
580 Old Willets Path
Hauppauge, NY 11788
Phone: 631-232-6070
Fax 631-232-6082 SX5P/T CDMA Tuning Procedure No mechanical adjustments exist within this unit. An automated factory Test and Calibration program is used for initial check out and setup of this unit. None of the following calibration adjustments are available to the end user. No hidden "back door" commands exist to allow changes to the non-volatile memory from the keypad. The following items are measured and correction tables are generated. Upon successful completion of all tests, this data is written into the radio's nonvolatile memory. Specifically: 1) 19.2 MHz Frequency Standard Sets the internal frequency standard exactly to 19.2 MHz, compensating for manufacturing tolerances. 2) Receiver gain control vs signal level, CELL 850 MHz band Calibrates receiver Automatic Gain Control (AGC) vs received signal level. 3) Receiver gain control vs channel number (frequency), CELL 850 band Generates and offset table of receiver AGC vs frequency. 4) Receiver gain control vs signal level, PCS 1900 band Calibrates receiver AGC vs received signal level. 5) Receiver gain control vs channel number (frequency), PCS 1900 band Generates an offset table of receiver AGC vs frequency. 6) Transmit gain control vs output power, CELL 850 band Calibrates transmitter AGC vs requested transmit signal level. 7) Transmit gain control vs channel number (frequency), CELL 850 band Generates an offset table of transmitter AGC vs frequency. 8) Transmit power detector vs power level, CELL 850 band Calibrates 850 power detector sensitivity. 9) Transmit gain control vs output power, PCS 1900 band Calibrates transmitter AGC vs requested transmit signal level. 10) Transmit gain control vs channel number (frequency), PCS 1900 band Generates an offset table of transmitter AGC vs frequency. 11) Transmit power detector vs power level, PCS 1900 band Calibrates 1900 power detector sensitivity R R CORPORATION Technology Center
580 Old Willets Path
Hauppauge, NY 11788
Phone: 631-232-6070
Fax 631-232-6082 These data points are utilized by the radio to form multi-dimensional smoothed contour maps of exact correction values for each channel. Transmit power is adjusted by a closed looped feedback controller, initially based upon detected power output. Once in a call, power control is also based upon the received signal at the Base Station. By design, regardless of calibration data values, transmitter is incapable of exceeding maximum specified power output by more than approximately 1 dB. Transmit frequency initially uses the accuracy of the internal 19.2 MHz standard. Once registered with a cellular base station, unit locks onto base station, thereby further improving accuracy. Generates an offset table of receiver AGC level vs frequency (channel number). The DC Voltage/Current into the final stages is 4.05 Volts, 500 milliamps maximum.

731 Enterprise Drive, Lexington KY 40510 Evaluation For:Telular Corporation FCC ID: MTFCDMAFWT2004 Model No: SX5T File: 3055914 Page 13 of 40 FCC Part 2, 22, and 24 Evaluation 6 MAXIMUM PERMISSIBLE EXPOSURE (MPE) CALCULATIONS The § 1.1310 Radiofrequency radiation exposure limits are listed in the table below. Frequency Range (MHz) Power Density Limit (mW/cm 2 ) 0.3-3.0 100 3.0-30 900/ Frequency2 30-300 1.0 300-1500 Frequency/300 Limits for Occupational/Controlled Exposures 1500-100,000 5.0 0.3-1.34 100 1.34-30 180/Frequency2 30-300 0.2 300-1500 Frequency/1500 Limits for General Population/Uncontrolled Exposure 1500-100,000 1.0 6.1 Test Procedure The ERP and EIRP were measure in section 5, Radiated RF Power. The radiated RF power was used to calculate the maximum RF exposure at a 20 cm distance using the formula: Maximum RF Exposure at 20cm = (EIRP in mW)/(4Pi(20cm) 2 ) If ERP was measured in section 5, a 2.15dB conversion factor was added to the reading to convert it to EIRP before applying the Maximum RF Exposure formula above. Once the Maximum RF Exposure calculations were complete the results were compared to the MPE limits above. 6.2 Test Results The following table shows the Maximum RF Exposure from the SX5T Fixed Wireless Terminal at 20cm. The maximum exposure for the SX5T Fixed Wireless Terminal is 0.23 mW/cm 2 which is well below the limit at that frequency (0.565 mW/cm 2 ) EUT Mode TX Channel Frequency (MHz) Vertical ERP (dBm) Horizontal ERP (dBm) Vertical ERP (mW) Horizontal ERP (mW) ERP to EIRP Factor Vertical Max. Exposure at 20cm (mW/cm^2) Horizontal Max Exposure at 20cm (mW/cm^2) CDMA 800 384 836.52 26.89 23.17 488.65 207.49 2.15 0.16 0.07 CDMA 800 777 848.31 28.51 18.55 709.58 71.61 2.15 0.23 0.02 CDMA 800 1013 824.7 28.3 17.03 676.08 50.47 2.15 0.22 0.02 CDMA 1900 25 1851.25 29.93 19.02 984.01 79.80 0 0.20 0.02 CDMA 1900 600 1880 28.42 18.45 695.02 69.98 0 0.14 0.01 CDMA 1900 1175 1908.75 27.55 18.47 568.85 70.31 0 0.11 0.01

This report may be reproduced only with the written permission of Intertek and if reproduced must be reproduced in its entirety. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. The results contained in this report were derived from measurements performed on the identified test samples. Any implied performance of other samples based on this report is dependent on the representative adequacy of the samples tested. TEST REPORT Report Number: 3055914-001 Project Number: 3055914 3/28/2004 Evaluation of the SX5T Fixed Wireless Terminal Model Number: SX5T FCC ID: MTFCDMAFWT2004 FCC Part 2 FCC Part 22 FCC Part 24 For Telular Corporation Test Performed by: Test Authorized by: Intertek 731 Enterprise Drive Lexington, KY 40510 Telular Corporation 647 North Lakeview Parkway Vernon Hills, IL 60061 Prepared By:_______________________________Date:____3/28/2004________ Jason Centers, Project Engineer Approved By:_ _____________________________Date:____3/28/2004_________ Bryan C. Taylor, EMC Team Leader Intertek 731 Enterprise Drive, Lexington, KY 40510 731 Enterprise Drive, Lexington KY 40510 Evaluation For:Telular Corporation FCC ID: MTFCDMAFWT2004 Model No: SX5T File: 3055914 Page 2 of 40 FCC Part 2, 22, and 24 Evaluation TABLE OF CONTENTS 1 EXECUTIVE SUMMARY................................................................................................................. 4 2 JOB DESCRIPTION .......................................................................................................................... 5 2.1 CLIENT INFORMATION................................................................................................................. 5 2.2 TEST PLAN REFERENCE: ............................................................................................................... 5 2.3 EQUIPMENT UNDER TEST (EUT) ................................................................................................. 6 2.3.1 System Support Equipment...................................................................................................... 7 2.3.2 Cables associated with EUT ................................................................................................... 7 2.3.3 System Block Diagram ............................................................................................................7 2.3.4 Justification ............................................................................................................................. 8 2.3.5 Mode(s) of operation............................................................................................................... 8 2.4 MODIFICATIONS REQUIRED FOR COMPLIANCE............................................................................ 8 2.5 RELATED SUBMITTAL(S) GRANTS............................................................................................... 8 3 TEST FACILITY................................................................................................................................ 9 4 CONDUCTED RF POWER ............................................................................................................ 10 4.1 TEST PROCEDURE...................................................................................................................... 10 4.2 TEST EQUIPMENT....................................................................................................................... 10 4.3 TEST RESULTS........................................................................................................................... 10 5 RADIATED RF POWER ................................................................................................................. 11 5.1 TEST PROCEDURE...................................................................................................................... 11 5.2 TEST EQUIPMENT....................................................................................................................... 11 5.3 TEST RESULTS........................................................................................................................... 12 6 MAXIMUM PERMISSIBLE EXPOSURE (MPE) CALCULATIONS ...................................... 13 6.1 TEST PROCEDURE...................................................................................................................... 13 6.2 TEST RESULTS........................................................................................................................... 13 7 EMISSION LIMITATIONS, OCCUPIED BANDWIDTH .......................................................... 14 7.1 TEST PROCEDURE...................................................................................................................... 14 7.2 TEST EQUIPMENT....................................................................................................................... 14 7.3 TEST RESULTS........................................................................................................................... 15 8 OUT OF BAND EMISSION AT ANTENNA TERMINALS........................................................ 19 8.1 TEST PROCEDURE...................................................................................................................... 19 8.2 TEST EQUIPMENT....................................................................................................................... 19 731 Enterprise Drive, Lexington KY 40510 Evaluation For:Telular Corporation FCC ID: MTFCDMAFWT2004 Model No: SX5T File: 3055914 Page 3 of 40 FCC Part 2, 22, and 24 Evaluation 8.3 TEST RESULTS........................................................................................................................... 20 9 FIELD STRENGTH OF SPURIOUS RADIATION ..................................................................... 25 9.1 TEST PROCEDURE...................................................................…

Text truncated - open the document above for the full version.

Figure 1: Conducted Testing Figure 2: Environmental Testing Figure 3: Radiated Testing Back Side Figure 4: Radiated Testing Back Side
