MTFSX6P360C112005CDMA 800 MHz Wireless Deskphone

12 / 22 /05 Part Number 56031602 P HONECELL ® SX6P CDMA2000 1X • Fixed Wireless Phone 800 MH Z CDMA 1900 MH Z CDMA U SER M ANUAL QUICK CONNECTION GUIDE Phonecell ® SX6P CDMA i User Manual Fixed Wireless Phone Serial Cable or USB Cable(SX6P-300Cseries only) Spike Antenna This manual is for use with the SX6P-300C series deskphone only. To determinewhich model of phone you have, pick up the phone and view the label underneathfor verification. Phonecell ® SX6P CDMA ii User Manual SX6P MENU STRUCTURE Phonebook ViewAddEditErase Time/Alarm AlarmTime FormatDate Format Phone Settings BannerMy Phone NumberDTMF LengthKey VolumeAuto Send DelayFreq. Dial NumberLanguageDial Tone TypeLCD Control Call Log MissedOutgoingIncomingErase LogsCall TimeAir TimeClear Air Time Menu Ring/Alert Ring ToneRing Volume1 Min AlertService AlertAlarm Tone Data Settings Baud RateSelftest CycleRX Data ModeTech Mode Security New Lock CodeRestrictVoice PrivacyRUIM CHV1 (RUIM Models Only)Auto LockUser DefaultsSW Version InfoHotline Before installing your Phonecell ® SX6P, carefully remove the contents from the shipping carton and check for evidence of shipping damage. If damage is found, contact your Authorized Telular Distributor or shipping agent immediately . SAFE OPERA TION INSTRUCTIONS IMPORTANT! Before installing or operating this product, read the SAFETY INFORMATION section of this manual. •• Install unit indoors. •• Install unit on hard, flat surface for proper ventilation. •• Do not expose unit to rain or moisture. •• Do not place unit on or close to sources of heat IMPORT ANT NOTICES TERMS AND CONDITIONS FOR USE OF PHONECELL ® PRODUCTS ("Product") These Terms and Conditions are a legal contract between you and Telular Corporation for the title to and use of the Product.BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONSINCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND INDEMNIFICATION PROVISIONS BELOW. IFYOU DO NOT AGREE TO THE TERMS AND CONDITIONS, DO NOT USE THE PRODUCT AND IMMEDIATELY RETURNTHE UNUSED PRODUCT FOR A COMPLETE REFUND. You agree to accept sole responsibility for any misuse of the Productby you; and, in addition, any negligent or illegal act or omission of your or your agents, contractors, servants, employees, orother users of the Product so long as the Product was obtained from you, in the use and operation of the Product.INDEMNIFICATION OF TELULAR CORPORATION ("TELULAR")YOU SHALL INDEMNIFY, DEFEND AND HOLD HARMLESS TELULAR FOR ANY OF THE COST, INCLUDING REASON-ABLE ATTORNEYS' FEES, AND FROM CLAIMS ARISING OUT OF YOU, YOUR CLIENTS' OR OTHER THIRD PARTIES'USE OR OPERATION OF THE PRODUCT: (i) FOR MISUSE OR IN A MANNER NOT CONTEMPLATED BY YOU ANDTELULAR OR INCONSISTENT WITH THE PROVISIONS OF THIS MANUAL; (ii) IN AN ILLEGAL MANNER OR AGAINSTPUBLIC POLICY; (iii) IN A MANNER SPECIFICALLY UNAUTHORIZED IN THIS MANUAL; (iv) IN A MANNER HARMFULOR DANGEROUS TO THIRD PARTIES; (v) FROM CLAIMS BY ANYONE RESPECTING PROBLEMS, ERRORS OR MIS-TAKES OF THE PRODUCT; OR (vi) COMBINATION OF THE PRODUCT WITH MATERIAL, MODIFICATION OF THEPRODUCT OR USE OF THE PRODUCT IN AN ENVIRONMENT NOT PROVIDED, OR PERMITTED, BY TELULAR IN WRIT-ING. THE PARTIES SHALL GIVE EACH OTHER PROMPT NOTICE OF ANY SUCH COST OR CLAIMS AND COOPER-ATE, EACH WITH THE OTHER, TO EFFECTUATE THIS INDEMNIFICATION, DEFENSE AND HOLD HARMLESS. TELULAR CORPORA TIO N Corporate Headquarters 647 North Lakeview Parkway Vernon Hills, Illinois 60061, USA http://www.telular.com Power Supply Wall Cube Phonecell ® SX6P Desktop Phone Spike Antenna PLEASE SEE THE IMPORT ANT NOTICES SECTION OF THIS MANUAL FOR IMPORTANT INFORMATION ON USE, WARRANTY AND INDEMNIFICATION LIST OF COMPONENTSPart Number 56031602 ©2005 Telular Corporation, All Rights Reserved Phonecell ® SX6P CDMA iii User Manual T ABLE OF CONTENTS QUICK CONNECTION GUIDE .......................................................................................iSX6P MENU STRUCTURE............................................................................................iiLIST OF COMPONENTS ..............................................................................................iiiSAFE OPERATION INSTRUCTIONS ...........................................................................iiiIMPORTANT NOTICES.................................................................................................iiiTABLE OF CONTENTS ................................................................................................ivSX6P SETUP..................................................................................................................1 RUIM Card Installation...............................................................................................1Install Batteries ..........................................................................................................1Battery Operation.......................................................................................................2Location and Setup....................................................................................................2Connect the Handset .................................................................................................2Wall Mounting ............................................................................................................3Connect the SX6P to AC Power ................................................................................4RUIM Usage ..............................................................................................................5 GETTING TO KNOW YOUR SX6 ..................................................................................6 Function Keys ............................................................................................................6LCD Screen Icons......................................................................................................7Service Indication .........................…

Text truncated - open the document above for the full version.

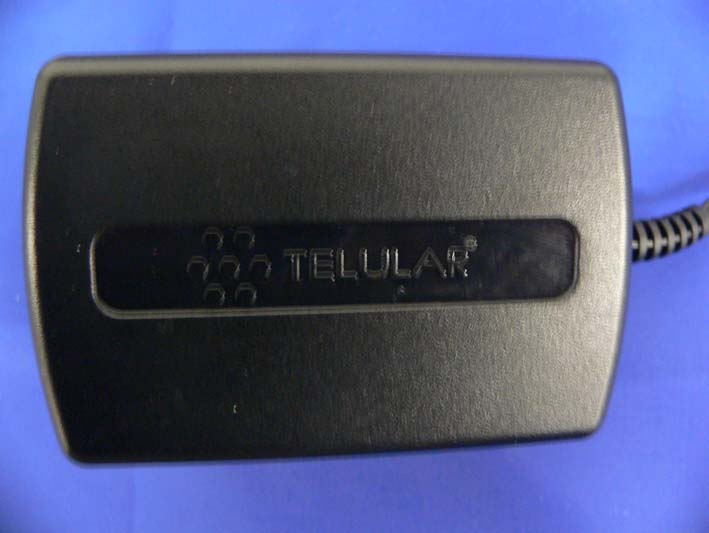

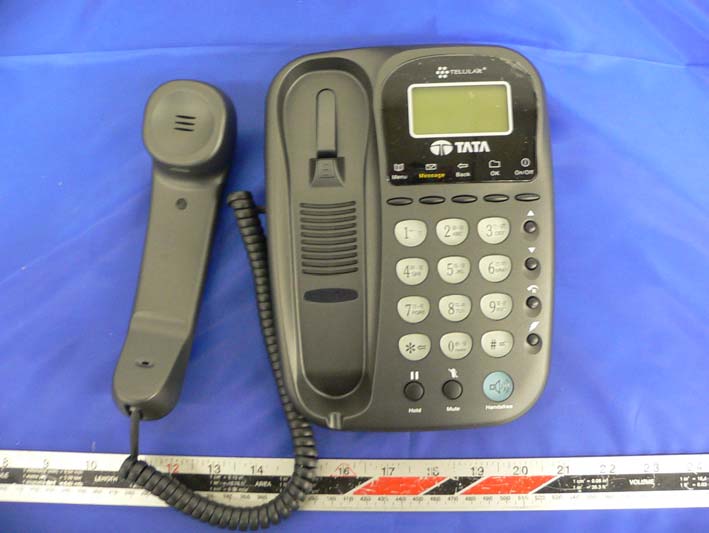

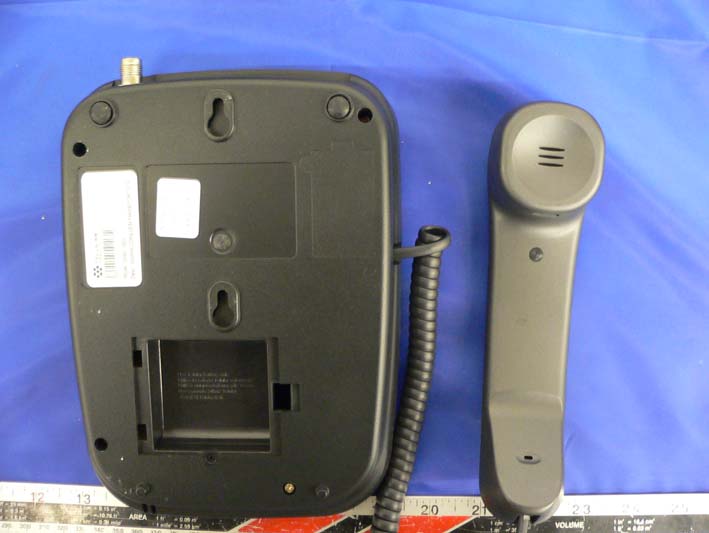

Telular Corporation FCC ID: MTFSX6P360C112005 Report # R0511171Exhibits FCC Part 22 Type Approval Report EXHIBIT C - EUT PHOTOGRAPHS EUT-Top View EUT-Rear View Telular Corporation FCC ID: MTFSX6P360C112005 Report # R0511171Exhibits FCC Part 22 Type Approval Report EUT-Port View EUT – Power Supply Top View Telular Corporation FCC ID: MTFSX6P360C112005 Report # R0511171Exhibits FCC Part 22 Type Approval Report EUT – Power Supply Bottom View

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: MTFSX6360C112005

Telular Corporation FCC ID: MTFSX6P360C112005 Report # R0511171Exhibits FCC Part 22 Type Approval Report EUT-Cover off View EUT-Keypad board Component View Telular Corporation FCC ID: MTFSX6P360C112005 Report # R0511171Exhibits FCC Part 22 Type Approval Report EUT-Keypad board Solder View EUT-Main board Component View Telular Corporation FCC ID: MTFSX6P360C112005 Report # R0511171Exhibits FCC Part 22 Type Approval Report EUT-Main board Solder View EUT-TX Close View Telular Corporation FCC ID: MTFSX6P360C112005 Report # R0511171Exhibits FCC Part 22 Type Approval Report EUT – Antenna View EUT – Antenna Port View

DRAWN BY: DRAWING NUMBER: APPROVED BY: DES. ENG. F. ENGELKING MFG. MECH. DESIGN TITLE: DATE: SHT. OF ANTENNA, 2dBi, DIPOLE, 800MHz, TNC-MALE, KNUCKLE G. EHRLICH 72000900 7/19/01 14 ® ® ACROBAT DOCUMENT Note: Vendor part numbers do not reflect production packaging. Packaging is left to the discretion of purchasing and/or Contract Manufacturer to optimize with insertion equipment. D.A.T. CORPORATION 647 North Lakeview Pkwy. Vernon Hills, IL 60061 847-247-9400 REV DESCRIPTION DATE APPROVED F PER ECO CD519 12/17/01 PRW Antenna Requirements Design: Dipole-type with adjustable 0-90 degree swivel Antenna Gain 3 : 824 ~ 849 MHz 0 to 3dBi (XMT) Frequency Range: 824 ~ 894 MHz Impedence (Nominal): 50W Polarization: Linear Radiation Pattern: Omnidirectional (nominal) RF Connector: TNC - male (dimensions per MIL-C-39012) Temperature Range: -30 C ~ +60 C (operating) O O VSWR: Less than 2.0 : 1 (PREFER XMT <= 1.5 : 1) G PER ECO DP088; ADD 01-M 04/15/02 RLK H PER ECO CD559; RMV ACE 01/20/03 RLK J PER ECO CD629; ADD NOTE 3 07/19/05 RLK K ECO XS049; ADD ANTE TEC 10/24/05 RLK 849 ~ 869 MHz -3 to 3dBi 869 ~ 894 MHz -1 to 3dBi (RCV) HANKOOK PartANTE TEC(Dist. MK Int.)RADIALL/LARSENAntenna No.Part No.Part No.Part No.Color 01AT015N1C1-BLTB-800TSPDA-17832Black 01-MAT015N1C1-BLTB-800TSPDA-17832Black NOTES: 1) PACKAGE ANTENNA IN A BAG; OR MANNER WHICH IS IDENTIFIED WITH TELULAR PART NO. 72000901 AND REVISION. 2) MECHANICAL SPECIFICATIONS WILL VARY FROM PART TO PART. REFER TO VENDOR DATASHEET FOR DETAILS. 3) ANTENNA GAIN MUST BE MEASURED IN A PLANE PERPENDICULAR TO THE LONG (E) AXIS OF THE ANTENNA. 4) ANTENNA VSWR TO BE ACCEPTANCE TESTED PER TELULAR SPEC. 910001700. TELULAR 72000900 Rev. K 1 of 4 Products >> Antenna >> AT015N1C1 Product S/N: AT015N1C1 Product Parameters:824-894 (MHz) Product Introduction:Frequency Range (MHz): 824-894 Gain (dBi): 2 VSWR: less 1.5 : 1 Nominal Impedance (Ohm): 50 Connector of Antenna: TNC male Polarization: Vertical Max Power (W): 50 Color: Gray; Add "-BL" for Black Dimensions (mm): 212(length when straight angle) x 15(diameter) 184(length when right angle) x 15(diameter) x 41 Weight: 36g Antenna Marking: "N1" for 800MHz TELULAR 72000900 Rev. K 2 of 4 TB - 800/TB - 1900/TB - 2400 800/1900/2400MHz, Tilt base type :: TB - 800/TB - 1900/ TB - 2400 :: :: Electrical specifications Item TB-800TB-1900TB-2400 Frequency Range 800MHz BAND 1900MHz BAND 2400MHz BAND Nominal Impedance 50 ohms Radiation Omni-directional PolarizationVertical V.S.W.RLess than 1 : 1.9 Gain 1.5 dBi minimum :: Mechanical specifications Item TB-800 TB- 1900 TB-2400 Connector SMA, TNC, BNC Length230mm 197mm178mm Others 90 deg. Tilt Base Operating Temp. -30C ~ +70C TELULAR 72000900 Rev. K 3 of 4 PORTABLE ANTENNAS Radiall/Larsen introduces the new half wave dipole designs offering the highest performance for portable antenna applications. MODELFREQUENCYCONN. SPDP15832790-874 MHzBNC SPDP15860820-900 MHzBNC SPDP15918872-964 MHzBNC SPDP17832790-874 MHzTNC SPDP17860820-900 MHzTNC SPDP17918872-964 MHzTNC SPDP1724002400-2500 MHzTNC SPDP20832790-874 MHzSMA MALE SPDP20860820-900 MHzSMA MALE SPDP20918872-964 MHzSMA MALE SPDP2024002400-2500 MHzSMA MALE SPECIFICATIONS TYPECenter Fed Dipole VSWR (see bandwidth) 2.0 : 1 BANDWIDTH10% CONNECTORStraight Mount MAX HEIGHT8" Centerfed 1/2 wave dipole antenna. MODELFREQUENCYCONN. SPDA15832790-874 MHzBNC SPDA15860820-900 MHzBNC SPDA15918872-964 MHzBNC SPDA17832790-874 MHzTNC SPDA17860820-900 MHzTNC SPDA17918872-964 MHzTNC SPDA1724002400-2500 MHzTNC SPDA20832790-874 MHzSMA MALE SPDA20860820-900 MHzSMA MALE SPDA20918872-964 MHzSMA MALE SPDA2024002400-2500 MHzSMA MALE SPECIFICATIONS TYPE Center Fed Dipole VSWR (see bandwidth) 2.0 : 1 BANDWIDTH 10% CONNECTOR Articulating Right Angle MAX HEIGHT 203mm 800/900 MHz RADIALL/LARSEN 3611 NE112thAvenue Vancouver,WA98682 www.radialllarsen.com [email protected] Phone:800-ANTENNA Phone:360-944-7551 Fax:800-525-6749 Fax:360-944-7556 167mm 1800/1900 MHz 148mm 2400 MHz Nominal Impedance 50 Ohms WIDTH 11mm GAIN 1.5dBi POLARIZATION Vertical COLOR Black SLEEVE MATERIAL Polyurethane TELULAR 72000900 Rev. K 4 of 4

Copyright  2005 by Telular Corporation. All Rights Reserved. Printed in the United States of America. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written consent of Telular Corporation. TELULAR CORPORATION Product Specification Phonecell SX6P CDMA 300 Series Distribution Date: December 3, 2004 File Name: 90020001 R R PRODUCT SPECIFICATION Phonecell SX6P CDMA 300 Series Filename: 90020001 Page 2 of 25 Confidential and Proprietary 12/3/04 Specification subject to change without notice. Table of Contents 1.0 OVERVIEW..........................................................................................................................................6 1.1. Purpose and Scope ..................................................................................................................................6 1.2. Introduction.............................................................................................................................................6 1.3. Summary of Capabilities.........................................................................................................................6 1.4. Cellular Network Usage..........................................................................................................................6 1.5. Power Supply..........................................................................................................................................6 1.6. R-UIM.....................................................................................................................................................6 2.0 USER INTERFACE .............................................................................................................................7 2.1. Hook Operations .....................................................................................................................................7 2.1.1. Recognition of Seizure (Off-Hook) ...................................................................................................................................... 7 2.1.2. Recognition of Release of Seizure (On-Hook)..................................................................................................................... 7 2.2. Tone Generation .....................................................................................................................................7 2.2.1. Service Dial Tone ................................................................................................................................................................ 7 2.2.2. Non-Registered Dial Tone ................................................................................................................................................... 7 2.2.3. No-Service Tone................................................................................................................................................................... 7 2.2.4. Other Tones and Announcements ........................................................................................................................................ 7 2.2.5. Reorder Tone ....................................................................................................................................................................... 7 2.2.6. Receiver Off Hook (ROH) Tone........................................................................................................................................... 8 2.2.7. Post Receiver Off-Hook Operation ..................................................................................................................................... 8 2.2.8. Error Alert Tone .................................................................................................................................................................. 8 2.2.9. DTMF Tones ........................................................................................................................................................................ 8 2.3. Dialing ....................................................................................................................................................8 2.3.1. Dialing Buffer ...................................................................................................................................................................... 8 2.3.2. Recognition of Address Signaling ....................................................................................................................................... 8 2.3.3. End of Address Signaling .................................................................................................................................................... 9 2.4. Hookflash................................................................................................................................................9 2.5. In-Call DTMF Signaling.........................................................................................................................9 2.6. Alerts.......................................................................................................................................................9 2.6.1. On-Hook Call Alert (Ring Type) ......................................................................................................................................... 9 2.6.2. Off-Hook Call Alert (Ring Tone) ......................................................................................................................................... 9 2.6.3. Ring Volume....................................................................................................................................................................... 10 2.6.4. One-Minute Alert ..............................…

Text truncated - open the document above for the full version.

R R CORPORATION 11/21/05 Technology Center • 580 Old Willets Path • Hauppauge, NY 11788 • Phone: 631-232-6070 • Fax 631-232-6082 SX6P-360C CDMA Deskphone Tuning Procedure No mechanical adjustments exist within this unit. An automated factory Test and Calibration program is used for initial check out and setup of this unit. None of the following calibration adjustments are available to the end user. No hidden "back door" commands exist to allow changes to the non-volatile memory from the keypad. The following items are measured and correction tables are generated. Upon successful completion of all tests, this data is written into the radio's nonvolatile memory. Specifically: 1) 19.2 MHz Frequency Standard Sets the internal frequency standard exactly to 19.2 MHz, compensating for manufacturing tolerances. 2) Receiver gain control vs signal level, CELL 850 MHz band Calibrates receiver Automatic Gain Control (AGC) vs received signal level. 3) Receiver gain control vs channel number (frequency), CELL 850 band Generates and offset table of receiver AGC vs frequency. 4) Transmit gain control vs output power, CELL 850 band Calibrates transmitter AGC vs requested transmit signal level. 5) Transmit gain control vs channel number (frequency), CELL 850 band Generates an offset table of transmitter AGC vs frequency. 6) Transmit power detector vs power level, CELL 850 band Calibrates 850 power detector sensitivity. These data points are utilized by the radio to form multi-dimensional smoothed contour maps of exact correction values for each channel. Transmit power is adjusted by a closed looped feedback controller, initially based upon detected power output. Once in a call, power control is also based upon the received signal at the Base Station. By design, regardless of calibration data values, transmitter is incapable of exceeding maximum specified power output by more than approximately 1 dB. Transmit frequency initially uses the accuracy of the internal 19.2 MHz standard. Once registered with a cellular base station, unit locks onto base station, thereby further improving accuracy. The DC Voltage/Current into the final stages is 4.05 Volts, 500 milliamps maximum.

§1.1307(b)(1) & §2.1091 - RF EXPOSURE According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23.15 (dBm ) Maximum peak output power at antenna input terminal: 206.54 (mW) Prediction distance: 20 (cm) Predication frequency: 835 (MHz) Antenna Gain (typical): 2 (dBi) antenna gain: 1.6 (numeric) Power density at predication frequency at 20 cm: 0.066 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 0.56 (mW/cm 2 ) Test Result The EUT is a mobile device. The power density level at 20 cm is 0.08 mW/cm², which is below the uncontrolled exposure limit of 0.56 mW/cm² at 835 MHz.

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 22 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For Telular Corporation 580 Old Willets Path, Hauppauge, NY 11788 FCC ID: MTFSX6P360C112005 This Report Concerns: Original Report Equipment Type: CDMA 800MHz Wireless Deskphone Test Engineer: Snell Leong / Report No.: R0511171 Report Date: 2005-12-13 Reviewed By: Daniel Deng / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Telular Corporation FCC ID: MTFSX6P360C112005 Report # R0511171Rpt-a Page 2 of 27 FCC Part 22 Type Approval Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 BLOCK DIAGRAM.........................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 REMOTE SUPPORT EQUIPMENT LIST AND DETAILS......................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §2.1047 - MODULATION CHARACTERISTIC .......................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 TEST RESULTS : N/A ...................................................................................................................................................8 §2.1053, 22.917 - SPURIOUS RADIATED EMISSIONS...........................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 TEST RESULT.............................................................................................................................................................10 §1.1307(B)(1) & §2.1091 - RF EXPOSURE...............................................................................................................11 §2.1046, §22.913(A) – CONDUCTED OUTPUT POWER & ERP .........................................................................12 APPLICABLE STANDARD............................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 ENVIRONMENTAL CONDITIONS..................................................................................................................................12 TEST RESULTS...........................................................................................................................................................12 §2.1049, §22.917(D) - OCCUPIED BANDWIDTH ...................................................................................................15 APPLICABLE STANDARD............................................................................................................................................15 TEST PRO…

Text truncated - open the document above for the full version.

Telular Corporation FCC ID: MTFSX6P360C112005 Report # R0511171Exhibits FCC Part 22 Type Approval Report EXHIBIT B - TEST SETUP PHOTOGRAPHS TX Radiated Emission - Front View TX Radiated Emission - Rear View Telular Corporation FCC ID: MTFSX6P360C112005 Report # R0511171Exhibits FCC Part 22 Type Approval Report Receiver Spurious Emission-Front View Receiver Spurious Emission-Rear View
