MTFSX7EVDO2007SX7 Fixed Wireless Terminal

Copyright © 2007 by Telular Corporation. All Rights Reserved. Printed in the United States of America. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written consent of Telular Corporation. 1 of 25 r Telular Corporation Requirements Document SX7M / SX7T Fixed Wireless Modem / Terminal 5/16/2007 Part Number: TBD Copyright © 2007 by Telular Corporation. All Rights Reserved. Printed in the United States of America. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written consent of Telular Corporation. 2 of 25 r Table of Contents 1 INTRODUCTION ................................................................................................................................ 5 2 PRODUCT VARIANTS....................................................................................................................... 5 2.1 CELLULAR VARIANTS..................................................................................................................... 5 2.2 SX7T VS. SX7M ............................................................................................................................. 5 2.3 WIFI................................................................................................................................................ 5 2.4 SKUS.............................................................................................................................................. 5 3 ENCLOSURE ....................................................................................................................................... 7 4 CONNECTORS .................................................................................................................................... 7 5 POWER SWITCH................................................................................................................................ 8 6 CONFIGURATION RESET SWITCH .............................................................................................. 9 7 EXTERNAL POWER SUPPLY ......................................................................................................... 9 8 BATTERY PACK AND BATTERY OPERATION........................................................................ 10 9 WAN REQUIREMENTS................................................................................................................... 10 9.1 INTERNET ACCESS OVER CELLULAR............................................................................................. 10 9.2 IP MANAGEMENT.......................................................................................................................... 10 9.3 REMOTE DEVICE MANAGEMENT (RDM) ...................................................................................... 12 10 LAN REQUIREMENTS ................................................................................................................13 10.1 LAN - WIRED CONNECTIONS........................................................................................................ 13 10.2 LAN UTILITIES............................................................................................................................. 13 10.3 LOCAL DEVICE MANAGEMENT..................................................................................................... 14 10.4 WIFI 802.11B/G............................................................................................................................. 15 11 ETHERNET PORT........................................................................................................................ 15 12 GPS .................................................................................................................................................. 15 13 USB DEVICE PORT...................................................................................................................... 15 14 SIMULATED PSTN....................................................................................................................... 16 14.1 VOICE SERVICE............................................................................................................................. 16 14.2 ANALOG FAX (G3) SERVICE.......................................................................................................... 17 14.3 ANALOG MODEM SERVICE............................................................................................................ 17 14.4 RJ-11 JACK PROGRAMMABILITY AND MODES............................................................................... 17 14.5 POTS PROGRAMMING................................................................................................................... 19 15 IP MODEMS................................................................................................................................... 20 16 USB HOST ...................................................................................................................................... 20 16.1 THE USB HOST PORT SHALL SUPPORT USB 2.0 – FULL SPEED (12 MBITS/SECOND) .................... 20 16.2 THE USB HOST PORT SHALL SUPPLY A NOMINAL 5 VOLTS AT 100 MILLIAMPS............................. 20 16.3 TARGETED USB DEVICES.............................................................................................................. 20 Copyright © 2007 by Telular Corporation. All Rights Reserved. Printed in the United States of America. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written consent of Telular Corpor…

Text truncated - open the document above for the full version.

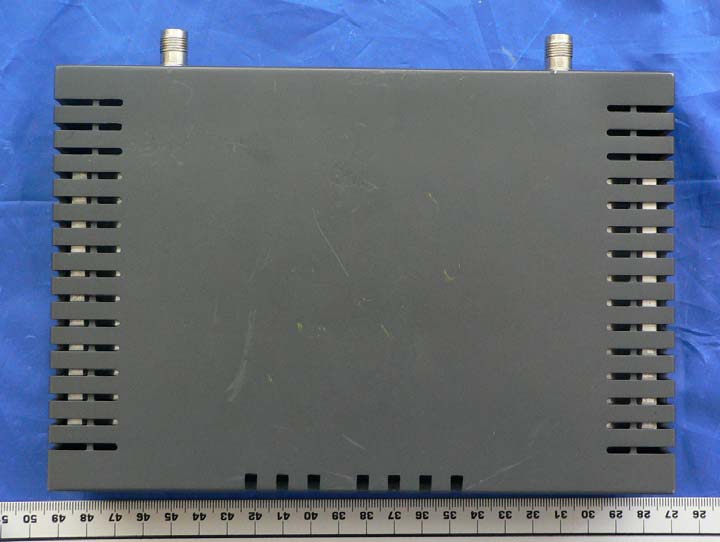

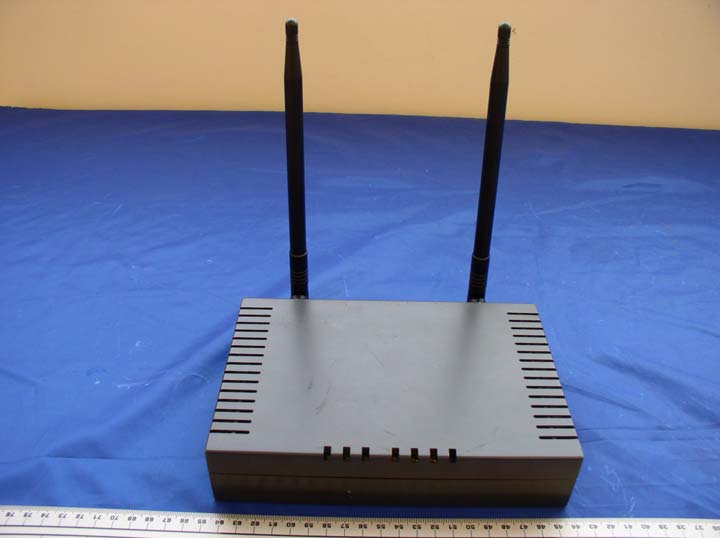

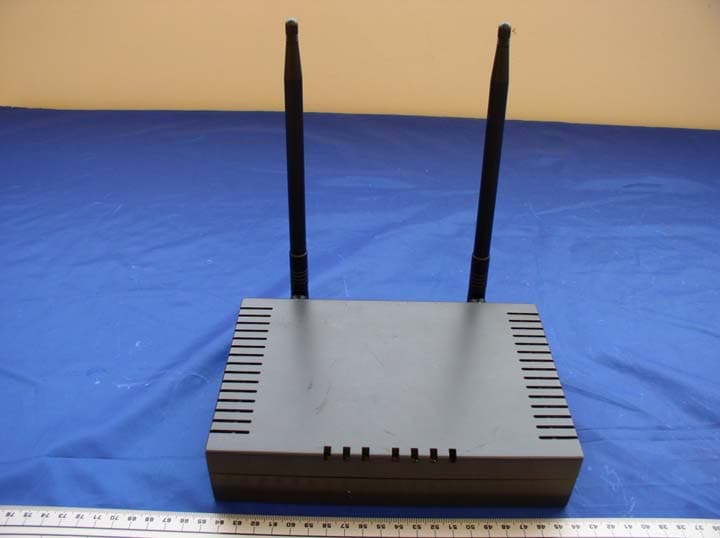

Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 38 of 46 FCC Part 22, 24 EXHIBIT C - EUT PHOTOGRAPHS EUT– Front View with antenna attached EUT– Front View Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 39 of 46 FCC Part 22, 24 EUT – Top View EUT –Rear View

Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 35 of 46 FCC Part 22, 24 EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT FCC ID Label The FCC labels should contain FCC statement in FCC 15.19 paragraph (3). A sample of the statement is presented hereinafter as reference. Also, as per FCC §15.19 a(4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: MTFSX7EVDO2007” Contains FCC ID: N7N-MC5725 Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 36 of 46 FCC Part 22, 24 Proposed Label Location on EUT Back View of EUT / Proposed FCC ID Location As per FCC §15.19 (b)(4), the label shall not be a stick-on, paper label. The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in Section 2.925(d) of this chapter. "Permanently affixed" means that the label is etched, engraved, stamped, silk-screened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable.

Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 40 of 46 FCC Part 22, 24 EUT – Top cover off with “Faraday shield” View EUT– Port View Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 41 of 46 FCC Part 22, 24 EUT- Top cover off without “Faraday shield” View PCB solder side View Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 42 of 46 FCC Part 22, 24 PCB component side View RF module close-up View Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 43 of 46 FCC Part 22, 24 RF module front View RF module rear View Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 44 of 46 FCC Part 22, 24 RF module front-side shield off View RF module rear-side shield off view Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 45 of 46 FCC Part 22, 24 Antenna view AC-DC adaptor View Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 46 of 46 FCC Part 22, 24 Battery View END OF REPORT

Operational Description The Telular SX7T/M Series of Fixed Cellular Terminals product family offers CSD, SMS, and Internet services over various broadband cellular technologies. Product variants include: HSDPA The SX7T HSDPA products shall use the Sierra Wireless MC8775V Radio Module which has the following features. a) HSDPA/UMTS frequency bands (850, 1900, 2100 MHz) b) EDGE/GPRS/GSM bands (850, 900, 1800, and 1900 MHz) c) HR/FR/EFR/AMR Vocoders 1xEVD0 Rev A The SX7T 1xEVDO Rev A products shall use the Sierra Wireless MC5725V Radio Module which has the following features. a) 1xEVDO Rev. A service b) Dual-Band 800/1900 MHz c) EVRC and 13KQCELP Vocoders d) GPS The Telular SX7T/M Series of Fixed Cellular Terminals support Ethernet, USB device and USB host interfaces. Additionally, the product family supports a simulated PSTN port, supporting POTS phones, analog modems, analog fax machines, caller ID boxes, and telephone answering machines.

R R CORPORATION May 30, 2007 To: Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 Dear Sir/Madam, Re: Tune-up Procedure, SX7 Product Family We, _ Telular Corporation______________ hereby state that the SX7 product family contains a third party radio module, and does not have tune-up capability. Bay Area Compliance Laboratory Corp has been contracted to act as a laboratory for testing and test report generation for the following project(s): SX7 EVDO Fixed Wireless Terminal SX7 HSDPA Fixed Wireless Terminal Sincerely, Gerard Knight/VP-Engineering Telular Corporation 580 Old Willets Path Hauppauge, NY 11788 Telular Corporation Technology Center „ 580 Old Willets Path, Hauppauge, NY 11788 „ „ Phone 631-232-6070 „ Fax 631-232-6082 „

Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 9 of 46 FCC Part 22, 24 5 - §1.1307(b) (1) & §2.1091 - RF EXPOSURE 5.1 Applicable Standard According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 5.2 MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Cellular band Maximum peak output power at antenna input terminal: 25.20 (dBm ) Maximum peak output power at antenna input terminal: 331 (mW) Prediction distance: 20 (cm) Predication frequency: 836.52 (MHz) Antenna Gain (typical): 3 (dBi) Antenna gain: 1.995 (numeric) Power density at predication frequency at 20 cm: 0.1313 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 0.558 (mW/cm 2 ) Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 10 of 46 FCC Part 22, 24 PCS band Maximum peak output power at antenna input terminal: 24.40 (dBm ) Maximum peak output power at antenna input terminal: 275 (mW) Prediction distance: 20 (cm) Predication frequency: 1880 (MHz) Antenna Gain (typical): 3 (dBi) Antenna gain: 1.995 (numeric) Power density at predication frequency at 20 cm: 0.109 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm 2 ) 5.3 Test Result The EUT is a mobile device. The power density level at 20 cm is 0.1313 mW/cm², which is below the uncontrolled exposure limit of 0.558 mW/cm² at 836.52 MHz for Cellular band. The power density level at 20 cm is 0.109 mW/cm², which is below the uncontrolled exposure limit of 1mW/cm² at 1880 MHz for PCS band.

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government (REV.1) FCC PART 22 AND 24 MEASUREMENT AND TEST REPORT For Telular Corp. 580 Old Willets Path Hauppauge, NY 11788 FCC ID: MTFSX7EVDO2007 Report Type: Original Report Product Type: Wireless CDMA Access Point Test Engineer: Oscar Au Report Number: R0702141-22 Report Date: 2007-03-14 Reviewed By: RF Engineering Lead: Daniel Deng Prepared By: (00) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave. Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 2 of 46 FCC Part 22, 24 TABLE OF CONTENTS 1 - GENERAL INFORMATION .................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 MECHANICAL DESCRIPTION...................................................................................................................................4 1.3 EUT PHOTO...........................................................................................................................................................4 1.4 OBJECTIVE.............................................................................................................................................................4 1.5 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................5 1.6 TEST METHODOLOGY.............................................................................................................................................5 1.7 MEASUREMENT UNCERTAINTY..............................................................................................................................5 1.8 TEST FACILITY.......................................................................................................................................................5 2 - SYSTEM TEST CONFIGURATION ....................................................................................................................6 2.1 JUSTIFICATION.......................................................................................................................................................6 2.2 EQUIPMENT MODIFICATIONS.................................................................................................................................6 2.3 POWER SUPPLY AND LINE FILTERS........................................................................................................................6 2.4 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS...................................................................................................6 2.5 INTERFACE PORTS AND CABLING...........................................................................................................................6 3 - SUMMARY OF TEST RESULTS .........................................................................................................................7 4 - §2.1047 - MODULATION CHARACTERISTIC .................................................................................................8 4.1 APPLICABLE STANDARD.........................................................................................................................................8 5 - §1.1307(B) (1) & §2.1091 - RF EXPOSURE ..........................................................................................................9 5.1 APPLICABLE STANDARD.........................................................................................................................................9 5.2 MPE PREDICTION...................................................................................................................................................9 5.3 TEST RESULT.......................................................................................................................................................10 6 - §2.1053 - SPURIOUS RADIATED EMISSIONS................................................................................................11 6.1 APPLICABLE STANDARD.......................................................................................................................................11 6.2 TEST PROCEDURE.................................................................................................................................................11 6.3 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 6.4 TEST RESULT.......................................................................................................................................................12 7 - §2.1046, §22.913(A), & §24.232 – RF OUTPUT POWER ..................................................................................13 7.1 APPLICABLE STANDARD.......................................................................................................................................13 7.2 TEST PROCEDURE.................................................................................................................................................13 7.3 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 7.4 TEST RESULTS......................................................................................................................................................14 8 - §2.1049, §22.91…

Text truncated - open the document above for the full version.

Telular Corp. FCC ID: MTFSX7EVDO2007 Report #: R0702141-22 Page 37 of 46 FCC Part 22, 24 EXHIBIT B - TEST SETUP PHOTOGRAPHS Radiated Emissions - Front View Radiated Emissions - Rear View
