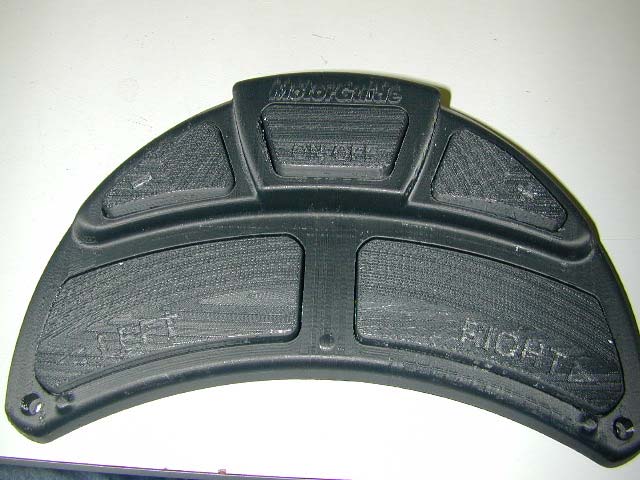

MVUFP01Remote Control Transmitter

90-MM5981 835 W. 41 st Street Tulsa, Oklahoma 74107 www.motorguide.com © 2005, MotorGuide FCC and IC Compliance Statement FCC ID #MVUFP01 IC ID 6094AFP01 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This device complies with FCC Rules. Changes or modifications not expressly approved by MotorGuide could void the user's authority to operate the equipment. Congratulations ... on your purchase of the MotorGuide Wireless Trolling Motor. This motor has been designed, engineered, and manufactured to give you the best possible dependability and exceptional performance for years of enjoyment. These features offer an unrivaled fishing experience: Durability Oversized brushes for efficient and dependable power Fully Remote Operation Integrated, Quick Release Mount Modular Digital Electronics Three-year Limited Warranty IMPORTANT!! REGISTER YOUR PRODUCT The warranty registration card (located inside the box) should be completed and mailed to MotorGuide to validate your warranty. WARRANTY CARD REGISTRATION IS INCLUDED IN THE BOX AND IS SEPARATE FROM THIS MANUAL. PLEASE FILL OUT IMMEDIATELY AND MAIL TO VALIDATE YOUR WARRANTY. At MotorGuide, we’ve taken all the victories, failures, blood, sweat, tears, hours, days and years to heart and built what are possibly the best performing, most reliable trolling motors ever. It’s a result of re-engineering from top to bottom, from our new digital modules, to new switches and props. Why? The reason is simple. To give you the advantage—and, in this case it’s a digital advantage. Because at MotorGuide, we believe there are some things you should Never Stop doin g, NEVER STOP LEARNING, NEVER STOP IMPROVING, AND NEVER EVER STOP FISHING. TABLE OF CONTENTS GENERAL INFORMATION....................................................................2 Safety DO’s and DON’Ts ...................................................................3 Operating Safety................................................................................4 NOTES:..................................................................................................5 FEATURES.............................................................................................6 Remote Capabilities ...........................................................................6 COMPONENTS......................................................................................7 Wireless Remote Foot-Pedal.............................................................7 Lower Unit..........................................................................................7 Column...............................................................................................7 Top Housing.......................................................................................7 Cradle Lock™ Mount.........................................................................8 Battery Indicator.................................................................................8 INSTALLATION....................................................................................10 Mount Installation.............................................................................10 Wiring & Battery Information............................................................13 Wire & Cable Routing..................................................................13 Establishing a Common Ground..................................................14 Recommendations.......................................................................14 Activating the Foot-Pedal Electronic ID...........................................17 Erasing the Receiver’s Memory.......................................................17 MOTOR & MOUNT OPERATION........................................................18 General Information Features & Components Installation Motor & Mount Operation Adjusting the Motor Depth and Deploying the Motor.......................18 Stowing the Motor............................................................................19 Operating the Foot-Pedal.................................................................20 MAINTENANCE...................................................................................21 Foot-Pedal Battery Replacement.....................................................21 Care & Cleaning Instructions...........................................................22 Customer Responsibilities................................................................22 Battery..........................................................................................22 Freezing Temperature Storage....................................................23 Installing or Replacing the Propeller ................................................23 TROUBLESHOOTING.........................................................................25 Frequently Asked Questions............................................................25 MOTORGUIDE ACCESSORIES 28 Troubleshooting & Accessories Warranty Maintenance MOTORGUIDE LIMITED THREE-YEAR WARRANTY.......................29 MOTORGUIDE WIRELESS 90-MM5981 For Questions, Contact Consumer Affairs at #1-920-929-5040 1 © 2005, MotorGuide www.motorguide.com NOTES: ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ _____________________________…

Text truncated - open the document above for the full version.

FCC ID.: MVUFP01 IC: 6094A-FP01 FCC and IC Compliance Statement BATT. TYPE CR2032 PAT. 6,054,831 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that ay cause undesired operation. 5 MIL POLYESTER, GLOSSY, UV STABALIZED OR APPROVED EQUIVALENT PER MERCURY SPEC: N/A TOP COATED WITH A COMPATIBLE HIGH GLOSS CLEAR COAT. PER MERCURY SPEC: N/A N/AN/A N/A N/A 1 1 .02 .020 N/A 0 KPC'S PER MERC SPEC M-251-G AS NOTED BY OR . FULL P. LUEBKE MOTORGUIDE J. SPAULDING T. SARGENT G. HOLLINGSWORTH M-251-G, M-264-G 21-SEP-05 37-MVP04803 DECAL - WIRELESS FOOT PEDAL NOTES: 1) DECAL TO MEET PERFORMANCE MERCURY SPEC. #M-264-G WITH EXTERNAL CRITERIA. 2) DECAL TO BE DIE CUT SUPPLIED AS A ROLL LABEL. 3) PART NUMBER, DATE AND/OR LOT NUMBER MUST APPEAR ON ROLL AND/OR PACKAGE. 4) FINAL ART PROOFS TO BE SUBMITTED TO THE STYLING DEPT. AT MERCURY MARINE FOR APPROVAL. --- DRAWING RELEASE PJL 22-SEP-2005 065-01975-05 BLACK BRIGHT RED COLOR MATCH #30118 4 MIL WHITE VINYL MVP04803 0.00 0.00 1 2 3 NO COLOR SPECIFICATIONS 1.50 [38.10] 2.80 [71.12] ALL TEXT, UNLESS SPECIFIED 1 2 3

OPERATIONAL DESCRIPTION FCC ID. MVUFP01 Frequency of operation: 915 MHz Radio Chip: Infineon TDA 5102 Crystal Frequency: 7.1505 MHz Frequency tolerance: +/- 20 ppm –10 deg. C to +70 deg. C The DRC 01 Digital Remote Control Transmitter is used to control direction and speed of the motor in a fishing boat. It is used with the model M887651 receiver/controller. The radio transmitter is based on the Infineon TDA 5102 radio chip. An integral loop antenna is etched on the PCB.

Nemko Test Report: 5L0314RUS1 Applicant: MotorGuide Equipment Under Test: Transmitter M887649 (E.U.T.) In Accordance With: FCC Part 15, Subpart C, 15.249 Transmitters Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Brian Boyea, Rescource Manager Date: 26 August, 2005 Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Page 2 of Table Of Contents Section 1. Summary Of Test Results ................................................................ 3 Section 2. General Equipment Specification ..................................................... 5 Section 3. Radiated Emissions.......................................................................... 7 Section 4.Test Equipment List........................................................................... 11 ANNEX A TEST DIAGRAMS ........................................................................... 12 Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Page 3 of Section 1. Summary Of Test Results Manufacturer: MotorGuide Model No.: Transmitter M887649 Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15.249. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated Emissions were made on an open area test site. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 NEMKO USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. NEMKO USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Page 4 of Summary Of Test Data NAME OF TEST PARA. NO. RESULT Conducted Emissions 15.207 Not Applicable Radiated Emissions 15.249 Complies Footnotes For N/A’s: This device is battery powered. Testing was performed using a fully charged battery. Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Page 5 of Section 2. General Equipment Specification Frequency Range: Single Operating Frequency(ies) of Sample: 915.2 MHz Tunable Bands: N/A User Frequency Adjustment: Dip Switches Integral Antenna Yes No Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Page 6 of Description of Device Tested Remote control for trolling motor. System Diagram Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Page 7 of Section 3. Radiated Emissions NAME OF TEST: Radiated Emissions PARA. NO.: 15.249 TESTED BY: David Light DATE: 8/19/2005 Minimum Standard: Para no. 15.249 (a) The field strengths shall not exceed the following: Fundamental (MHz) Field Strength (mV/m) Field Strength (dBμ μμ μV) Harmonic (mV/m) Harmonic (dBμ μμ μV) 902-928 50 94 0.5 54 2400-2483.5 50 94 0.5 54 (b) Field strength limits are specified at a distance of 3 metres. (c) Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the general radiated limits of 15.209 whichever is the less attenuation. (d) ...for frequencies above 1000 MHz, the above field strength limits are based on average limits. However, the peak field strength of any emission shall not exceed the maximum permitted average limits specified above by more than 20 dB under any condition of modulation. Test Results: Complies Measurement Data: See attached table. Test Equipment Used: 759-791-1484-1485-1464-1016-1304 Test Equipment Settings: RBW=1 MHz, VBW=1 MHz Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Page 8 of Test Data - Radiated Emissions Meas.Ant.Atten.MeterAntennaPathRFCorrectedSpec.CR/SLPass Freq. Pol.ReadingFactorLossGainReadinglimitDiff.FailQP readings (MHz)(H/V)(dB)(dBuV)(dB)(dB)(dB)(dBuV/m) (dBuV/m)(dB)Unc.Comment 915.2H084.623.58.224.292.194.0-1.9Pass 915.2V078.323.58.224.285.894.0-8.2Pass There were no emissions detected above the noise floor. Spectrum was searched from 30 MHz to 9200 MHz. Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Page 9 of 20 dB Bandwidth Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Page 10 of Radiated Photographs Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Page 11 of Section 4. Test Equipment List Nemko ID Description ManufacturerSerial Number Calibration Calibration Model NumberDate Due 759 ANTENNA, LOG PERIODIC A.H. SYSTEMS55607/23/04 08/23/05 SAS-200/510 791 PREAMP, 25dB ICC39811/12/04 11/12/05 LNA25 1484 Cable 2.0-18.0 Ghz StormN/A08/26/04 08/26/05 PR90-010-072 1485 Cable 2.0-18.0 Ghz StormN/A08/26/04 08/26/05 PR90-010-216 1464 Spectrum analyzer Hewlett Packard3551A04428 01/14/05 01/15/07 8563E 1016 Pre-Amp HEWLETT PACKARD2749A00159 11/12/04 11/12/05 8449A 1304 HORN ANTENNA ELECTRO METRICS615109/22/03 09/22/05 RGA-60 Note: Calibration was exended for 30 days on asset 759 Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Page 12 of 14 ANNEX A TEST DIAGRAMS Nemko USA FCC PART 15, SUBPART C TRANSMI…

Text truncated - open the document above for the full version.

Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Radiated Photographs Section 4. Test Equipment List Nemko ID Description ManufacturerSerial Number Calibration Calibration Model NumberDate Due 759 ANTENNA, LOG PERIODIC A.H. SYSTEMS55607/23/04 08/23/05 SAS-200/510 791 PREAMP, 25dB ICC39811/12/04 11/12/05 LNA25 1484 Cable 2.0-18.0 Ghz StormN/A08/26/04 08/26/05 PR90-010-072 1485 Cable 2.0-18.0 Ghz StormN/A08/26/04 08/26/05 PR90-010-216 1464 Spectrum analyzer Hewlett Packard3551A04428 01/14/05 01/15/07 8563E 1016 Pre-Amp HEWLETT PACKARD2749A00159 11/12/04 11/12/05 8449A 1304 HORN ANTENNA ELECTRO METRICS615109/22/03 09/22/05 RGA-60 Note: Calibration was exended for 30 days on asset 759 Page 1 of 3 Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 ANNEX A TEST DIAGRAMS Radiated Prescan SPECTRUM ANALYZER AND PLOTTER OR TEST RECEIVER COMPUTER ANTENNA E.U.T. SHIELDED ROOM Page 2 of 3 Nemko USA FCC PART 15, SUBPART C TRANSMITTERS PROJECT NO.:5L0314RUS1 EQUIPMENT: Transmitter M887649 Test Site For Radiated Emissions 3 METERS E.U.T. NON-CONDUCTING TURN-TABLE 0.8 METER VARIABLE SEARCH HEIGHT (1 TO 4 m) TO TEST RECEIVER/SPECTRUM ANALYZER SEARCH ANTENNA Page 3 of 3
