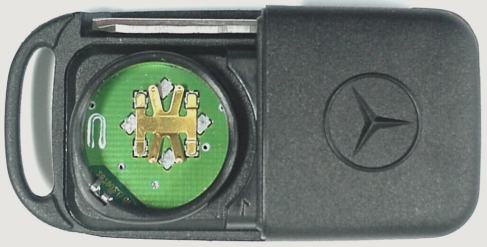

MYT00007259TIMLN 7259

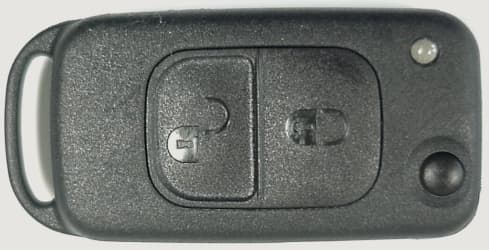

Cockpit Controls Practical hints Index Operation Service products, Technical data 21 Central locking Radio remote controlNote:For operation in USA only: This device complies with Part 15 Subpart C Section 231 of the FCC Rules. Operation is subject to the following two conditions:1 This device may not cause harmful interference, and2 this device must accept any interference received, including interference that may cause undesired operation. Warning:Any unauthorized modification to this device could void the user’s authority to operate the equipment. Controls Practical hints Index Operation Service products, Technical data 22 Central locking 1 Release button for mechanical key2 Indicator lamp3 Lock button ‹ 4 Unlock button Œ Notes:Malfunctions could occur if the radio remote control is exposed to moisture. As a precaution, both radio remote controls should always be carried.The radio remote control transmits in all directions. It does not have to be pointed at the vehicle. Do not expose the radio remote control to high levels of electromagnetic radiation. Risk of malfunctions.The radio remote control has an average range of about 32 ft (approx. 10 m). Always verify the correct operation of the radio remote control by listening for the locking noise and by checking that the white patch on the interior door handle is visible.When pressing the Œ or ‹ buttons, the indicator lamp illuminates. If the indicator lamp does not illuminate, the batteries must be replaced. For instructions on replacing the batteries in the radio remote control, see page 189.The remote control will not function when there is a vehicle key inserted in the ignition lock. N80.35-2002-20 (2c) Cockpit Controls Practical hints Index Operation Service products, Technical data 23 Unlocking with radio remote control:Press the Œ button once. The driver’s door is unlocked and the hazard warning light, as well as the radio remote control indicator lamp, blink once.Press the Œ button a second time. The passenger door and cargo doors are unlocked and the turn signal lamps, as well as the radio remote control indicator lamp, blink once again. The button must be pressed a second time within 2,5 seconds, otherwise the second request to open can not be performed.Notes:The vehicle is automatically locked again, if within 40 seconds of unlocking with the remote control, none of the doors are opened. The hazard warning light doesn’t blink.The hazard warning light doesn’t blink, if there is a key in the ignition lock. Central locking Controls Practical hints Index Operation Service products, Technical data 24 Locking with radio remote control:Press the ‹ button. The entire vehicle is locked and the hazard warning light blinks three times. The radio remote control indicator lamp blinks once.If the hazard warning light does not blink, at least one door is improperly closed. Check to see if there is a door that is not properly closed or if there is a key in the ignition lock. Remove key from ignition lock and/or close doors properly and press the ‹ button again. Note:The hazard warning light doesn’t blink, if there is a key in the ignition lock. Central locking Controls Practical hints Index Operation Service products, Technical data 189 Replacing batteries in radio remote control Replacing batteries in radio remote controlDo not touch the battery contact surfaces (insert the batteries with a lint-free cloth).G Warning! Keep batteries away from children.Consult a doctor immediately if a battery is swallowed. Dispose of used batteries in an environmentally responsible manner.– Release the mechanical key by pressing the release button.– Remove the battery cover.– Remove the battery (note correct polarity; positive terminal up).– Press on the battery cover until it snaps into place.Note:Do not operate the remote control while the battery is being replaced. N80.00-0228-20 (2c) + - N80.00-0228-20 N80.00-0229-20 (2c) N80.00-0229-20

ATTESTATION STATEMENT FCC ID: PGT00007259 Transmitter 315 MHz TIMLN 7259 SUMMARY: All tests according to FCC Part Subpart C Paragraph 15.231 ! - Performed The equipment under test ! - Fulfills the general approval requirements of FCC Part Subpart C Paragraph 15.231 - MIKES BABT PRODUCT SERVICE GmbH - Responsible Engineer _____________________________ Josef Knab

FCC ID: MYT0007259 Block diagram

Attachment E 1 FCC ID: MYT00007259 TIMLN 7259 File-No. T 19656-00 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 Attachment E 2 FCC ID: MYT00007259 TIMLN 7259 File-No. T 19656-00 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760

Attachment E 3 FCC ID: MYT00007259 TIMLN 7259 File-No. T 19656-00 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760

FCC ID: MYT00007259 TTI - P-G 009 / 98-00 TTI - P-G 089 / 94-50 File No. T 19656-1-00 KJ , Page 1 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 E M I S S I O N -- T E S T R E P O R T Testreport file no. : T 19656-1-00 KJ ______________ Date : February 06, 2001 of issue __________________ Model / Type No. : TIMLN 7259 ______________________________________________ Type : Transmitter 315 MHz ______________________________________________ Applicant : Temic Telefunken microelectronic GmbH ______________________________________________ Manufacturer : Temic Telefunken microelectronic GmbH ______________________________________________ (Philippines) ______________________________________________ Licence holder : Temic Telefunken microelectronic GmbH ______________________________________________ Address : Ringlerstr. 17 ______________________________________________ D-85057 Ingolstadt, Germany ______________________________________________ Test result accrdg. to the regulation(s) at page 3 : POSITIVE This testreport with appendix consists of 29 pages. The testresult only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the testlaboratory. FCC ID: MYT00007259 File No. T 19656-1-00 KJ , Page 2 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 D I R E C T O R Y Page A) Documentation Directory2________ Testregulations3________ General information4-5________ Discovery of worst case condition 6________ Equipment under Test16________ Summary17________ B) Testdata Conducted emissions 10/150 kHz - 30 MHz 7________ Spurious emissions (magnetic field) 10 kHz - 30 MHz 8-9 ________ Spurious emissions (electric field) 30 MHz - 1000 MHz 10-11 ________ Spurious emissions (electric field) 1 GHz - 18 GHz 12-13 ________ Raiated power of the fundamental wave 14 ________ Conducted power of the fundamental wave measured on 15 the antenna terminals ________ Attachment A) Testdata /Bandwith plots A1-A3________ B) List of Test Equipment B1________ C) Photos of the test setup C1-C2________ D) Technical description of the test sample D1-D3 (e.g.CDF, Declaration) ________ E) Photos of the EuTE1-E3________ F) Measurement Protocol for FCC, VCCI and AUSTEL --________ FCC ID: MYT00007259 File No. T 19656-1-00 KJ , Page 3 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 T E S T R E G U L A T I O N S The tests were performed according to following regulations : o - EN 50081-1 / 2.1991 o - EN 50081-2 / 7.1993 -------------------------------------------------------------------------------- o - EN 55011 / 3.1991 o - Group 1 o - Group 2 o - class A o - class B o - EN 55014 / 4.1993 o - Household appliances and similar o - tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55104 / 5.1995 Category: o - EN 55015 / A1:1990 o - EN 55015 / 12.1993 o - EN 55022 / 5.1995 o - class A o - class B o - prEN 55103-1/ 3.1995 o - prEN 50121-3-2 / 3.1995 o - EN 60601-1-2 / 4.1994 o - VCCI o - class 1 o - class 2 o - Part 15 Subpart C (15.209) !- Part 15 Subpart C (15.231) FCC ID: MYT00007259 File No. T 19656-1-00 KJ , Page 4 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 A D D R E S S O F T H E T E S T L A B O R A T O R Y !-MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 D - 94342 Strasskirchen o - ______________________________________ ______________________________________ ______________________________________ E N V I R O N M E N T A L C O N D I T I O N S Temperature: 15-35 ° C______ Humidity 45-60 %______ Atmospheric pressure 860-1060 mbar_________ POWER SUPPLY SYSTEM UTILIZED Power supply system : Battery Unom = 6 V DC STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error of ±4dB. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) Transmitter for "Keyless Entry Systems" (for automobiles). Number of received/tested samples: 3 / 3 Serial Number: Prototype DEFINITIONS FOR SYMBOLS USED IN THIS TEST REPORT ! - Black box indicates that the listed condition, standard or equipment is applicable for this Report. o - Blank box indicates that the listed condition, standard or equipment was not applicable for this Report. FCC ID: MYT00007259 File No. T 19656-1-00 KJ , Page 5 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 M E A S U R E M E N T P R O T O C O L F O R F C C , V C C I A N D A U S T E L Test Methodology Conducted and radiated emission testing is performed according to the procedures in International Special Committee on Radio Interference (CISPR) Publication 22 (1993), European Standard EN 55022 and Australian Standard AS 3548 (which are based on CISPR 22). The Japanese standard, "Voluntary Control Council for Interference (VCCI) by Data Processing Equipment and Electronic Office Machines, Technical Requirements" is technically equivalent to CISPR 22 (1993). For official compliance, a conformance report must be sent to and accepted by the VCCI. In compliance with FCC Docket 92-152, "Harmonization of Rules for Digital Devices Incorporate International Standards", testing for FCC compliance may be done following the ANSI C63.4-1992 procedures and using the FCC limits or the CISPR 22 Limits. Measurement Error The test system for conducted emissions is defined as the LISN, tuned receiver and coaxial cable. The test sys…
