MYT3X6898ASecurity Device Transmitter

APPLIC ANT: TEM IC TELEF UNKEN M ICROELEC TRONIC GMB H FCC ID: MYT3X6898A FCC ID LABEL SAMPLE: TO BE MOLDED INTO PLASTIC CASE. FCC ID: MYT3X6898A CANADA: XXXXXX TEMIC TELEFUNKEN MICROELECTRONIC GMBH. FCC ID: MYT3X6898A JOB #: 259U0 EXHIBIT #: 4 TEMIC TELEFUNKEN MICROELECTRONIC GMBH. FCC ID : MYT3X6898A JOB # : 259U0 EXHIBIT # : 4

OPERATIONAL DESCRIPTION EXCERPT FROM TEST REPORT This RF transmitter works with a battery voltage of 3V. A single lithium battery of type CR2032 will be used. The microcomputer (I001) monitors the transmitter keypad buttons and generates the corresponding data word when a button is pressed. To meet high security require- ments, the data word is encoded using an 64 bit encryption algorithm. The transmitter identification data is stored in a non-volatile memory (EEPROM) I003. The data word is sent to the final transmitter (a stage of IC002) in a serial pulse form, Manchester encoded. The pulse train switches the RF power amplifier on and off. The RF emission is independent of the data content of the switched carrier which has a duty cycle of 0.5 during the pulse trains without considering the breaks between two subsequent pulse trains of an actuation. The transmitter antenna is realized in the form of a magnetic loop. The transmission freqeuncy of 315 MHz is generated by a quartz stabilized PLL oscillator which is also part of IC002.

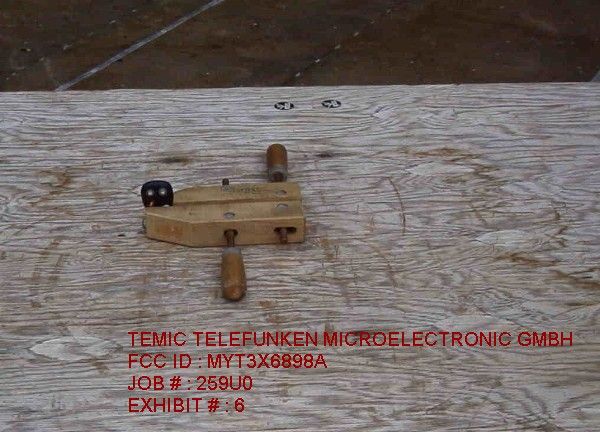

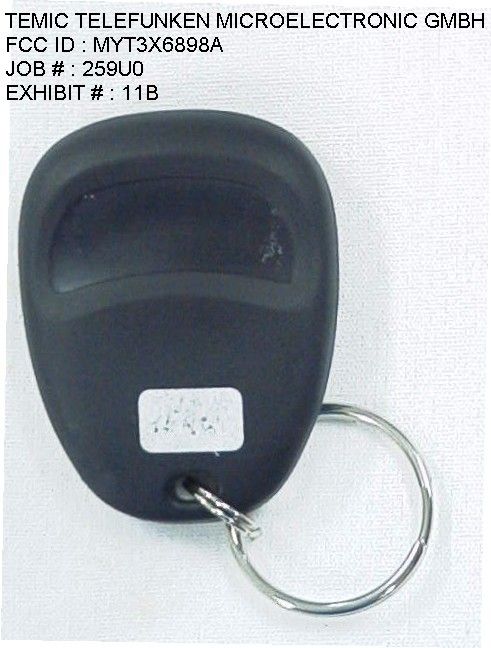

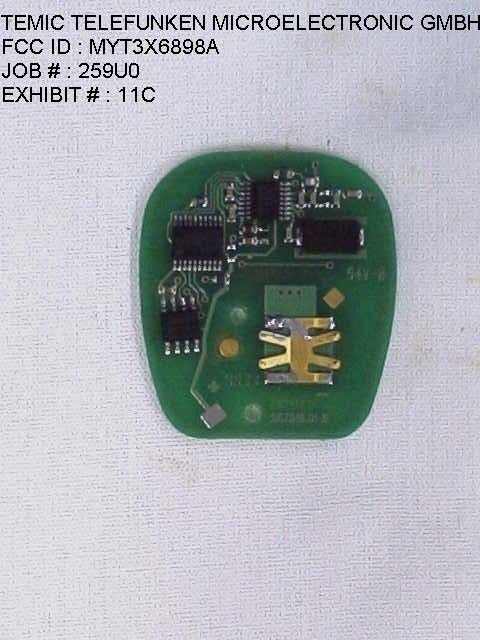

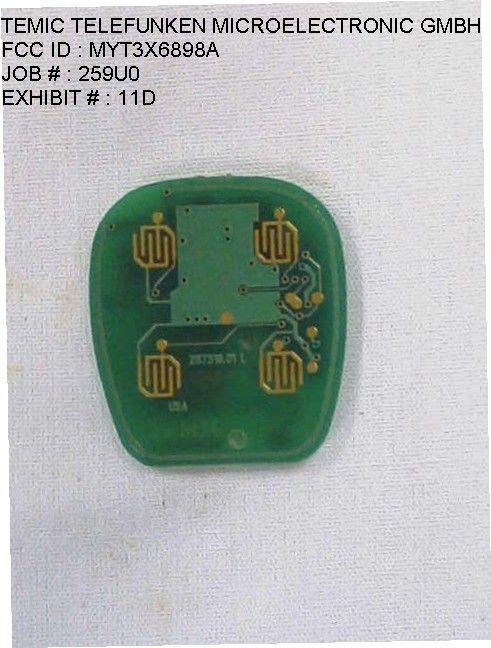

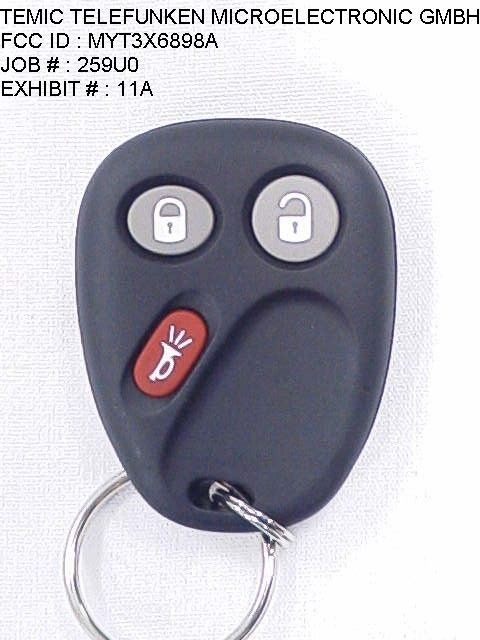

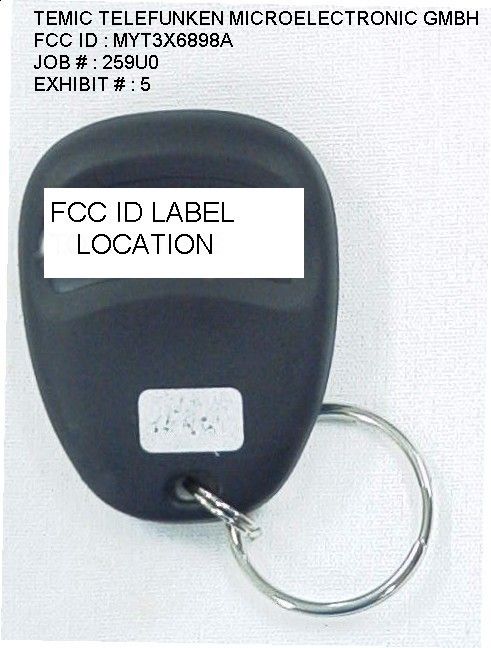

TABLE OF CONTENTS APPLICANT: TEMIC TELEFUNKEN MICROELECTRONIC GMBH FCC ID: MYT3X6898A TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST AND TEST PROCEDURE PAGE 2.............TEST PROCEDURE CONTD. & CIRCUIT DESCR. PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............CALCULATION OF DUTY CYCLE PAGE 5.............OCCUPIED BANDWIDTH EXHIBIT ATTACHMENTS: EXHIBIT 1...........BLOCK DIAGRAM EXHIBIT 2...........SCHEMATIC EXHIBIT 3A-3D.......INSTRUCTION MANUAL EXHIBIT 4...........FCC ID LABEL SAMPLE EXHIBIT 5...........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 6...........TEST SET UP PHOTOGRAPH EXHIBIT 7...........DUTY CYCLE PLOT - SMALL PULSES EXHIBIT 8...........DUTY CYCLE PLOT - LARGE PULSES EXHIBIT 9...........DUTY CYCLE PLOT EXHIBIT 10A-10B.....OCCUPIED BANDWIDTH PLOT EXHIBIT 11A.........FRONT VIEW EXTERNAL PHOTO EXHIBIT 11B.........REAR VIEW EXTERNAL PHOTO EXHIBIT 11C.........COMPONENT SIDE INTERNAL PHOTO EXHIBIT 11D.........COPPER SIDE INTERNAL PHOTO APPLICANT: TEMIC TELEFUNKEN MICROELECTRONIC GMBH FCC ID: MYT3X6898A REPORT #: T:\CUS\T\TEMIC\259U0\259U0.RPT PAGE: TABLE OF CONTENTS LIST APPLICANT: TEMIC TELEFUNKEN MICROELECTRONIC GMBH FCC ID: MYT3X6898A TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 10/17/99 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057 3._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 4._X_Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 4/27/99 5.___Horn 40-60GHz: ATM Part #19-443-6R 6.___Line Impedance Stabilization Network: Electro-Metrics Model ANS-25/2, S/N 2604 Cal. 2/9/00 7.___Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 8.___Frequency Counter: HP Model 5385A, S/N 3242A07460 Cal 10/6/99 9.___Peak Power Meter: HP Model 8900C, S/N 2131A00545 Cal 7/19/99 10._X_Open Area Test Site #1-3meters Cal. 12/22/99 11.___Signal Generator: HP 8640B, S/N 2308A21464 Cal. 9/23/99 12.___Signal Generator: HP 8614A, S/N 2015A07428 Cal. 5/29/99 13.___Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/23/97 14.___Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/99 15.___AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 9/21/99 16.___Digital Multimeter: Fluke Model 8012A, S/N 4810047 Cal 9/21/99 17.___Digital Multimeter: Fluke Model 77, S/N 43850817 Cal 9/21/99 18.___Oscilloscope: Tektronix Model 2230, S/N 300572 Cal 9/23/99 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 81oF with a humidity of 60%. FCC ID: MYT3X6898A REPORT #: T:\CUS\T\TEMIC\259U0\259U0.RPT PAGE #: 1 APPLICANT: TEMIC TELEFUNKEN MICROELECTRONIC GMBH FCC ID: MYT3X6898A FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiat- ed measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the high- est readings were converted to average readings based on the duration of "ON" time. Measurements were made by TIMCO ENGINEERING INC. at the registered open field test site located at 849 N.W. State Road 45, Newberry, Fl 32669. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. RULES:2.1033(b)(4) CIRCUIT DESCRIPTION This RF transmitter works with a battery voltage of 3V. A single lithium battery of type CR2032 will be used. The microcomputer (I001) monitors the transmitter keypad buttons and generates the corresponding data word when a button is pressed. To meet high security require- ments, the data word is encoded using an 64 bit encryption algorithm. The transmitter identification data is stored in a non-volatile memory (EEPROM) I003. The data word is sent to the final transmitter (a stage of IC002) in a serial pulse form, Manchester encoded. The pulse train switches the RF power amplifier on and off. The RF emission is independent of the data content of the switched carrier which has a duty cycle of 0.5 during the pulse trains without considering the breaks between two subsequent pulse trains of an actuation. The transmitter antenna is realized in the form of a magnetic loop. The transmission freqeuncy of 315 MHz is generated by a quartz stabilized PLL oscillator which is also part of IC002. ANTENNA & GROUND: This unit uses the PCB inductor as the anten- na. There is no provision for an external antenna. FCC ID: MYT3X6898A PAGE #: 2 APPLICANT: TEMIC TELEFUNKEN MICROELECTRONIC GMBH FCC ID: MYT3X6898A NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.231 REQUIREMENTS: Fundamental Field Strength Field Strength of Frequen…
