N3EFLIPPERFRENZYFlipper Frenzy

READY, SET, PLAY!Listen to the shark’s clues. Pick up the right friend as fast as you can! Get ready to scramble when the clues get more challenging! USING THE SHARK TAGGERStep 1: Hold the shark tagger in your hand and press the big blue button with your thumb to open the shark’s mouth. Pick up the friends by placing the shark’s mouth over the friend and releasing your thumb from the button. Step 2: Shake the shark tagger to hear if you found the right friend! Step 3: Release the friend from the shark’s mouth before finding the next friend. (Fig. 1) GETTING STARTED1. Press the button on the shark tagger to get started. 2. Choose a game. Press menu to hear the game choices. Press when you hear the game you want to play. Game #1: FLIPPER FRENZY Game #2: GROUP FRENZY Game #3: HIDE AND SEEK (2 players) Game #4: SHARKY SAYS FLIPPER FRENZY SETTING UP 1. Choose your level. Press menu to hear the levels. Press when you hear the level you want to play. Level 1: Get warmed up. Listen for the names of the friends. Level 2: Not too tough. Friend names and colors! Level 3: Getting tricky! Names, colors, and letters. Level 4: Harder still! Animal descriptions are added to the mix. 2. Spread the four friends out on the floor: the turtle, seahorse, octopus and fish. (Fig. 2) PLAYING 1. Pick up any friend with the shark tagger to start. 2. Listen for the clues. If you hear the name “turtle,” pick up the turtle with the shark tagger. If you hear “Who is yellow?”, find the seahorse. Shake the shark tagger to hear if you tagged the right friend! 3. At the end of your turn, listen for your time. See if you can beat it the next time you play! In GROUP FRENZY , when yo u hear “ Pass me!” the player holdin g the shark tagge r passes it to the next play e r. BONUS GAME! HIDE AND SEEK Hide the friends, th en find th e m with the shark tagger! SETTING UP Player 2 hides the friends around the ho use. PLAYING • Player 1 counts with the shark tagger and clo ses his or her eyes. • When you hear, “Ready or not, here we come,” find and tag the friend that is called out. If you find a friend that wasn’t called out, don’t pick it up. Just remember where it is so you can come back to it later. • When y ou find all four friends, listen for your time. See if you can find the frie nds even faster the next time you play! Now it’s your turn to hide the friends for play er 2. FLIPPER FRENZY SETTING UP 1. Choose your level. Press menu to hear the levels. Press when you hear the level you want to play. Level 1: Get warmed up. Listen for the names of the friends. Level 2: Not too tough. Friend names and colors! Level 3: Getting tricky! Names, colors, and letters. Level 4: Harder still! Animal descriptions are added to the mix. 2. Spread the four friends out on the floor: the turtle, seahorse, octopus and fish. (Fig. 2) PLAYING 1. Pick up any friend with the shark tagger to start. 2. Listen for the clues. If you hear the name “turtle,” pick up the turtle with the shark tagger. If you hear “Who is yellow?”, find the seahorse. Shake the shark tagger to hear if you tagged the right friend! 3. At the end of your turn, listen for your time. See if you can beat it the next time you play! In GROUP FRENZY , when yo u hear “ Pass me!” the player holdin g the shark tagge r passes it to the next play e r. BONUS GAME! HIDE AND SEEK Hide the friends, th en find th e m with the shark tagger! SETTING UP Player 2 hides the friends around the ho use. PLAYING • Player 1 counts with the shark tagger and clo ses his or her eyes. • When you hear, “Ready or not, here we come,” find and tag the friend that is called out. If you find a friend that wasn’t called out, don’t pick it up. Just remember where it is so you can come back to it later. • When y ou find all four friends, listen for your time. See if you can find the frie nds even faster the next time you play! Now it’s your turn to hide the friends for play er 2. Important: Please save this instruction sheet. It contains valuable product information. 3+ 1–6 players 46111Requires 3 AAA (LR03) batteries,not included. BONUS GAME! SHARKY SAYSListen carefully and find the friends ONLY when you hear “Sharky Says”!SETTING UP1. Choose your level. Press menu to hear the levels. Press when you hear the level you want to play. The higher the level, the more commands you will hear! 2. Spread the four friends out on the floor: the turtle, seahorse, octopus and fish. PLAYING• Listen as the shark tagger calls out commands. If the shark tagger says “Sharky says find the turtle!”, find the turtle, then shake the shark tagger to hear if you found the right friend! • If you hear a command that does NOT start with “Sharky says,” do not pick up any of the friends. The shark tagger will call out the next command in 8 seconds. • At the end of your turn, listen for your time. See if you can beat it the next time you play! POWERING OFF THE SHARK TAGGERTo shut off the game, press and hold the button on the Shark tagger for 5 seconds.DO NOT PLAY WITH FLIPPER FRENZY IN WATER!Do not play with the shark tagger or friends in water! This includes the pool, bathtub, sink, sprinklers, etc. you hear the game you want to pl ay. PE R F REN ZY U P FRENZY A ND SEE K a yers ) R KY S A YS Fig. 2 Fig. 1 mouth over the friend and o n. 2. 2. PLAPLA 1. 1. 2. 2. 3. 3. g . 1 FLIPPER FRENZY 46111-4000 PS 05/10 IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT US AT 1-800-247-6570 WILDPLANET.COM/HELP Wild Planet Entertainment, Inc., P.O. Box 194087 San Francisco, CA 94119-4087 © 2010 Wild Planet Entertainment, Inc., San Francisco, CA 94104,USA All Rights Reserved. MADE IN CHINA. Foreign patents pending.Product specifications subject to change. BATTERY SAFETY INFORMATION• Requires 3 AAA (LR03) batteries.• Only adults should install and replace batteries.• Rechargeable batteries are to be removed from the character before being charged. • Rechargeable batteries are only to be charged under adult supervision. • Non-rechargeable batteries are not to be recharg…

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA Scale Sheet Size FCSM No. DWG No. Rev 1 of 5 A4 Wild Planet Entertain ment, Inc Model Number:46111 Product Name:Flipper Frenzy Date: 2010 Mar 3 13.56MHz Oscillator RFID Reader IC W55MID50 MCU with sound syhethesizer W588S080H Speaker ANT 13.56MHz Control Keys U2 U1 32 Ω 0.25W

4 APPENDIX B "I, an officer of WILD PLANET ENTERTAINMENT, INC. do hereby authorize Intertek Testing Services (Mr. Ben Ho) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2006) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 70 day of 2010 By Signature Printed Title Production Integrity Manager Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

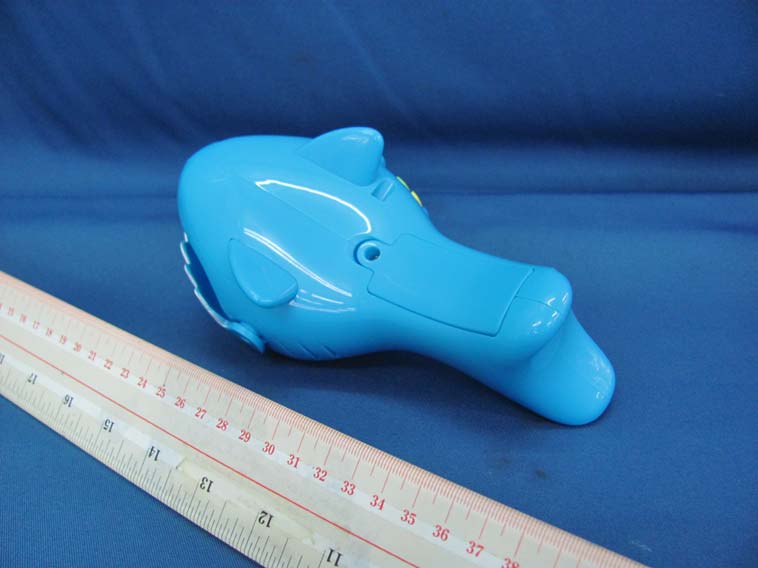

FCC ID: N3EFLIPPERFRENZY Ophoto1 Ophoto2 FCC ID: N3EFLIPPERFRENZY Ophoto3

FCC ID: N3EFLIPPERFRENZY Iphoto1 Iphoto2 FCC ID: N3EFLIPPERFRENZY Iphoto3 Iphoto4 FCC ID: N3EFLIPPERFRENZY Iphoto5 Iphoto6 FCC ID: N3EFLIPPERFRENZY Iphoto7 Iphoto8

FCC ID: N3EFLIPPERFRENZY Technical Description : The brief circuit description is listed as follows : - ANT acts as Loop Antenna. - U2 W55MID50 acts as RFID Reader IC. - Y1 and associated circuit act as 13.56 MHz Oscillator. - U1 W588S080H acts as MCU with Sound Synthesizer. - K1 to K3 and RESET act as Control Key. Antenna Used : A loop antenna has been used.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Scale Sheet Size FCSM No. DWG No. Rev 2 of 5 B Product Name:Flipper Frenzy Model no: 46111 Date:2010,Mar,3 Wild Planet Entertain ment,Inc VDDVDDOSCX321X320RESETTESTVSSVSS-SPK PWM PWM-DAC BP0.0BP0.1BP0.2BP0.3BP0.4BP0.5BP0.6BP0.7BP1.0BP1.1BP1.2BP1.3BP1.4BP1.5BP1.6BP1.7 D0D1D2D3XINXOUTVSSCMOCLKVDD REG-VDD REG-OUT RX-VDD RX-VSS ENV RESETTAGIN COIL TX-VSS TX-VDD R110R R2 100K ROSC200K C5104 K3 GOK2 MENUK1 POWER ON RESET SP1 36mm 32R U1 W5 88 S080H U2 W55MID50 C9104 C118.2PF C108.2PF C12120PF C8104 C15104C17750PF C16 27PF C13250PF R3270K D1 1N4148 D2 1N4148 L14.7UH ANT -dia 30mm Y1 13.56MHz C18104 C14140pF + C747UF + C647UF C3104 + C247UF + C147UF BT13*AA C4104 VCC D35819 D45819 TP1 C19 *pF

INTERTEK TESTING SERVICES Report No.:HK10030403-1 Sample No.:1/10 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 225 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10030403-1 Wild Planet Entertainment, Inc. Application For Certification (Original Grant) (FCC ID: N3EFLIPPERFRENZY) Transmitter Prepared and Checked by: Approved by: Leung Siu Lung, Michael Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: March 23, 2010 INTERTEK TESTING SERVICES Report No.: HK10030403-1 FCC ID: N3EFLIPPERFRENZY i GENERAL INFORMATION Wild Planet Entertainment, Inc. MODEL: 46111 FCC ID: N3EFLIPPERFRENZY Grantee: Wild Planet Entertainment, Inc. Grantee Address: 225 Bush Street, Suite 1300, San Francisco, CA 94104, U. S. A. Contact Person: Shannon Bruzelius Tel: 1 415 705 8300 Fax: 1 415 705 8311 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 46111 Type of EUT: Transmitter Description of EUT: Flipper Frenzy Serial Number: N/A FCC: N3EFLIPPERFRENZY Date of Sample Submitted: March 11, 2010 Date of Test: March 28, 2010 Report No.: HK10030403-1 Report Date: March 23, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10030403-1 FCC ID: N3EFLIPPERFRENZY ii SUMMARY OF TEST RESULT Wild Planet Entertainment, Inc. MODEL: 46111 FCC ID: N3EFLIPPERFRENZY TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.225 / RSS-210 A2.6 Pass Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10030403-1 FCC ID: N3EFLIPPERFRENZY iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Test Methodology............................................................................................. 1 1.3 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ........................................................... 3 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation................................................................................. 3 3.2 Radiated Emission Config…

Text truncated - open the document above for the full version.

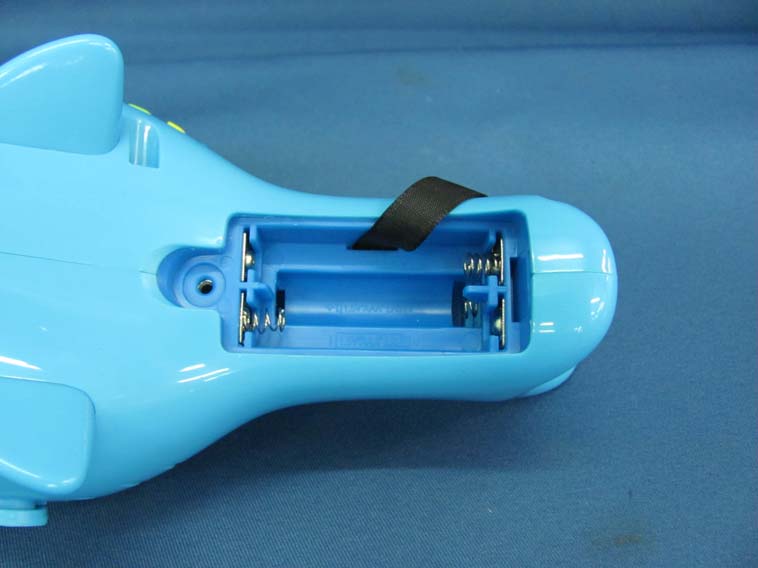

INTERTEK TESTING SERVICES Front View Back View
