N3EHIPTALKIE8201349 MHz Walkie Talkie - TX

Important: keep these instructions. Do not discard. 1 (one) 9-volt battery required per Hip Talkie (batteries not included) Only adults should install and replace batteries Alkaline batteries recommended for longer life Do not use rechargeable batteries Do not recharge non-rechargeable batteries Remove exhausted batteries from the toy Insert batteries with the correct polarity (as shown in figure 2) Do not short-circuit the battery supply terminals Parents: to install batteries Hip Talkies require two 9-volt Alkaline batteries, one battery for each unit (batteries not included). 1. With a small Phillips screwdriver, remove the screw and battery door on the back of Hip Talkie (figure 1). 2. Snap battery clip on battery as shown (figure 2). 3. Place battery into battery compartment. 4. Replace the battery door and tighten the screw. To use the walkie talkie 1. Turn the purple knob on the front clockwise (figure 3). You will hear a click, this means that it is on. 2. Turn knob clockwise (to the right) to increase the volume (figure 3). 3. Move the selector to the talkie position (figure 4). 4. Push the push button to talk to your friend (figure 4). Her Hip Talkie must also be on and selector in the talkie position. 5. Release the push button to listen. 6. To turn off your Hip Talkie turn the purple knob counterclockwise (to the left) until it clicks. To use the FM radio 1. Turn the hip talkie on using the purple knob (figure 3). 2. Move the selector switch to radio (figure 5). 3. The radio will always start at 88 FM frequency when you turn it on. 4. To find a different station, push the scan button to select the next station higher, (figure 6). The radio automatically scans and stops at the next available higher FM station. 5. To scan down, press the reset button (figure 6) to start scanning from 88 FM. Hip Talkie features 1. Cool earbud with microphone (wear on left ear only) 2. Belt clip (on back) 3. FM scan radio 4. Push-to-talk walkie talkie 5. Radio/talkie selector switch 6. On/off/volume knob Ages 6 and up 82013 HIP TALKIES 82013-4000 13/05/02 IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT US AT 1-800-247-6570 WWW.WILDPLANET.COM ©2002 Wild Planet Toys, Inc. Hip Talkies cool earbud with microphone cool earbud with microphone wear on left ear only, as shown belt clip (on back) FM scan radio push-to-talk walkie talkie radio/talkie selector switch on/off/volume knob Push to talk fig 1 fig 2 fig 3 fig 4 fig 6 fig 5 Warning : Changes or modifications to this toy that are not expressly approved by Wild Planet Toys, Inc. could void the user's authority to operate the toy.

FCC ID : N3EHIPTALKIE82013 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The FCC warning statement will be engraved on the Housing.

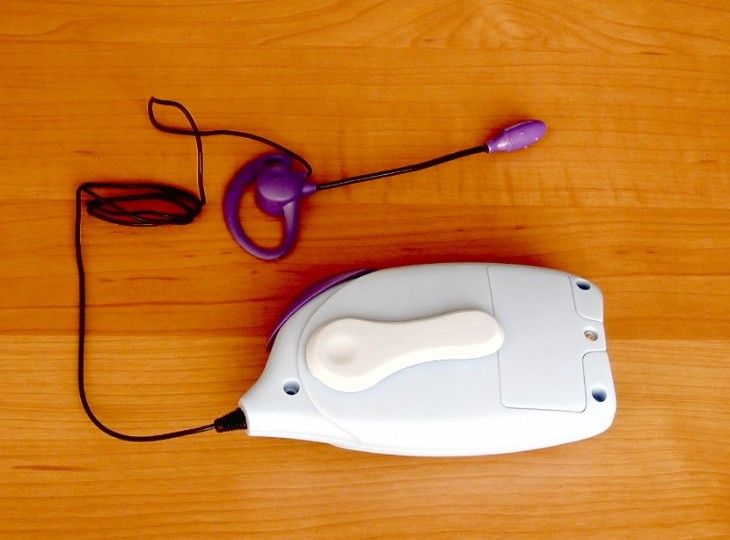

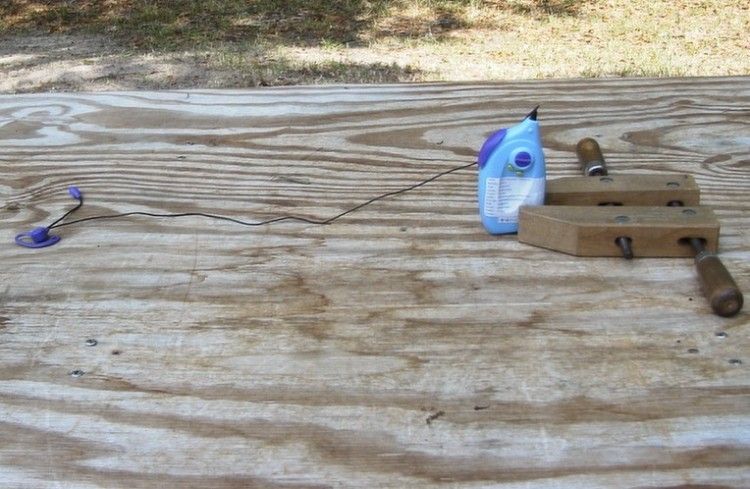

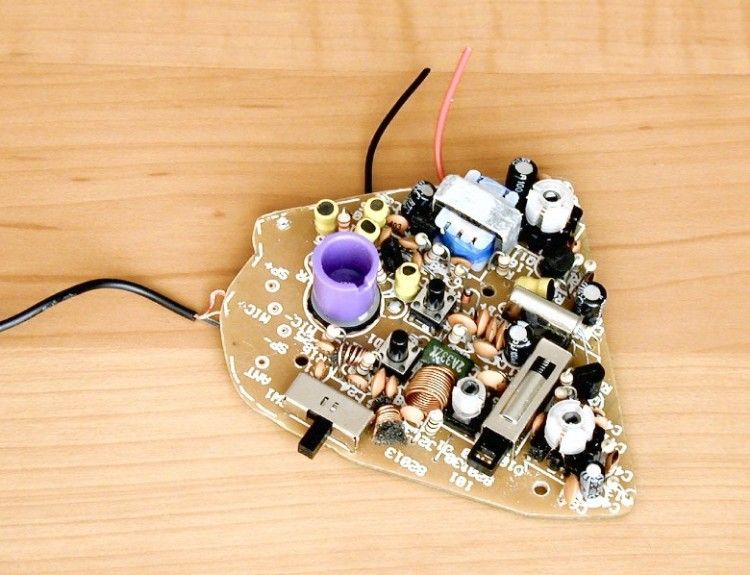

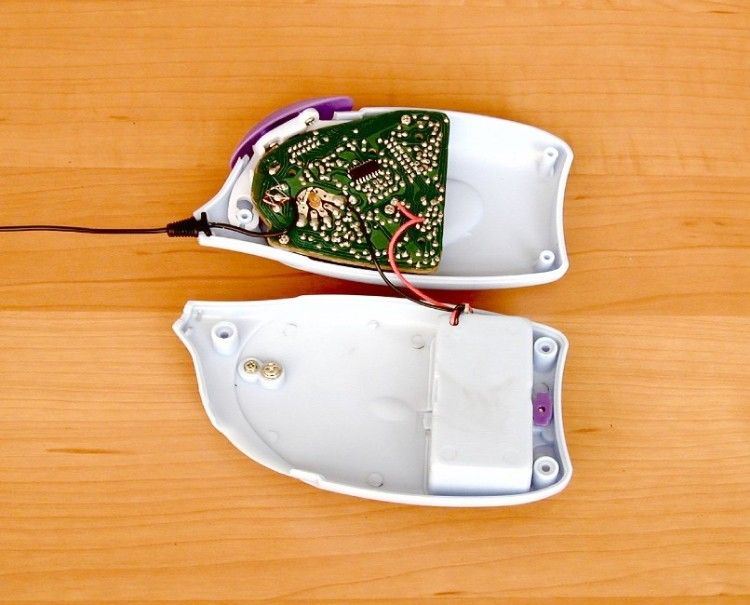

APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EHIPTALKIE82013 REPORT #: T:\W\Wild_N3E\284BHT2\284BHT2TestReport.doc TABLE OF CONTENTS LIST TABLE OF CONTENTS LIST APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EHIPTALKIE82013 TEST REPORT CONTAINING: PAGE 1-4....TEST EQUIPMENT LIST PAGE 5......TEST PROCEDURE PAGE 6......RADIATION INTERFERENCE TEST DATA PAGE 7......OCCUPIED BANDWIDTH TEST DATA PAGE 8......OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........CIRCUIT DESCRIPTION EXHIBIT 11...........TEST SET UP PHOTO APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EHIPTALKIE82013 REPORT #: T:\W\Wild_N3E\284BHT2\284BHT2TestReport.doc Page 1 of 8 Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 X Receiver, Beige Tower X Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/02 X RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/02 X Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/02 Receiver, Blue Tower Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/02 RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/02 Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/02 Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 X Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/02 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/01 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/02 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/02 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/02 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/02 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/01 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/02 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/02 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/02 Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/02 APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EHIPTALKIE82013 REPORT #: T:\W\Wild_N3E\284BHT2\284BHT2TestReport.doc Page 2 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/02 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 (5/25/00) Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/02 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/02 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/03 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/02 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/02 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/02 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/03 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/03 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/03 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/02 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/02 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/03 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/03 X Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/03 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/02 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/02 Injection Probe Fischer Custom Communications F-120-9A 270 CAL 6/1/01 6/1/02 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/01 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 11/12/99 11/12/00 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/02 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/02 APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EHIPTALKIE82013 REPORT #: T:\W\Wild_N3E\284BHT2\284BHT2TestReport.doc Page 3 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Power Line Coupling/ Decoupling Network Fischer Custom Communications FCC-801-M2- 16A 01048 CAL 8/29/01 8/29/02 Power Line Coupling/ Decoupling Network Fischer Custom Communications FCC-801-M3- 16A 01060 CAL 8/29/01 8/29/02 VHF/UHF Current Probe Fischer Custom Communications F-52 130 CAL 8/30/01 8/30/02 Passive Impedance Adapter Fischer Custom Communications FCC-801-150- 50-CDN 01117 & 01118 CAL 8/29/01 8/29/02 Radiating Field Coil Fischer Custom Communications F-1000-4- 8/9/10-L-1M 9859 CAL 10/15/98 10/15/99 Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/02 BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/02 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/02 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/02 High Pas Filter Microlab HA-10N CHAR 10/4/01 10/4/02 Audio Oscillator HP 653A 832-00260 CHAR 3/1/01 3/1/02 Frequency Counter HP 5382A 1620A03535 CHAR 3/2/01 3/2/02 Frequency Counter HP 5385A 3242A07460 CHAR 12/11/01 12/11/02 Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/02 Amplifier HP 11975A 2738A01969 CHAR 3/1/01 3/1/02 Egg Timer Unk CHAR 2/28/01 2/28/02 Measuring Tape, 20M Kraftixx 0631-20 CHAR 2/28/01 2/28/02 Measuring Tape, 7.5M Kraftixx 7.5M PROFI CHAR 2/28/01 2/28/02 EMC Immunity Test System Keytek CEMASTER 9810210 AC Power Source California Instruments 1251RP L05865 AC Power Source California Instruments PACS-1 X71484 Isotropic Field Probe Amplifier Research FP5000 22839 Isotropic Field Probe Amplifier Research FP5000 300103 APPLICANT: WILD PLAN…
